THERMALLY BROKEN ALUMINUM SERIES
PRODUCT OVERVIEW
DYNAMIC FENESTRATION The Reynaers window door system is one of Dynamic Architectural also manufacturers a unique line of narrow
Europe’s most established aluminum profile profile thermally broken aluminum windows called “Alumin-Arte”.
MANUFACTURES TWO DESIGNS
manufacturers and is relatively new to North The Alumin-Arte shares the same identical narrow profile
OF THERMALLY BROKEN
America. dimensions, welded corner construction, finishing and hardware
WINDOWS AND DOORS. as our Steel-Arte windows.
Dynamic imports the Reynaer profiles directly from
Belgium and completes all fabrication, finishing,
glass supply as well as installation in select markets.

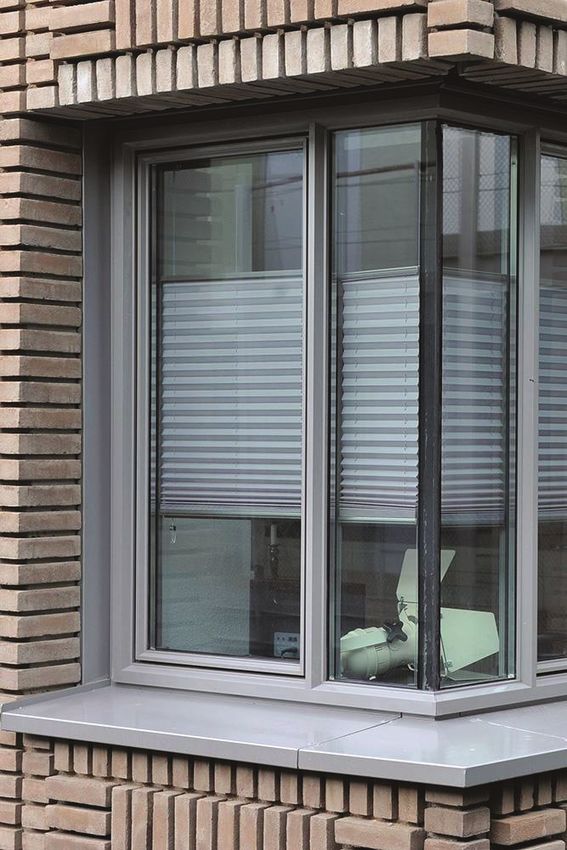

Operable & Fixed Windows SL38
INSWING CASEMENT
• Slim design (narrow profiles) • All windows are engineered to project
• Steel-like appearance design pressure
• 3 styles available • No need for drainage caps
• Classic, Ferro & Cubic • Finished with AAMA 2605 compliant
• Invisible drainage system powder coatings
CLASSIC CUBIC FERRO
DESIGN OPTIONS
Available in a wide
variety of configurations
Thermally Broken Aluminum
LIFT & SLIDES IN A VARIETY OF DESIGNS AND PRICE POINTS
Sliding & Folding Doors
• CP 130-LS • HI-FINITY
Lift and slide The ideal solution for a framless look
• CP 155-LS • CF 77
Lift and slide (a heavier profile The folding door that matches
for larger applications) the windows & hinged doors
CP 130-LS
THE LIFT & SLIDE SOLUTION FOR LIGHTER DUTY APPLICATIONS
• Design & functionality
• Lift & slide, monorail, 2-rail, 3-rail...
• Even a 90° post-less corner solution
• Complete range of solutions
and sill options
• Compatible with CS systems,
Mosquito & Ventalis screens
DESIGN OPTIONS
and more...
System depth (fixed) 68 mm 2 5/8"
System depth (opening) 77 mm 3"
Visible height (fixed) 51 mm 2"
Visible height (opening) 89 mm 3 1/2"
Max. height 2900 mm 9' 6"
Max. width 2700 mm 8' 10"
Max. leaf weight 300 kg 660 lbs
Glass thickness 4–63 mm 3/16 – 2 1/2" AW PG40
Thermal insulation - NFRC down to 1.42 W/(m²·K) down to 0.25 Btu/(h·ft²·°F) Water 9 psf / Air 0.06 cfm/sqft
Architectural Performance Class - Test results may vary
Dramatic Details with Open Corners
CP 130 LIFT & SLIDE
For that optimal
mix of style and
performance
CP 130 IS A SYSTEM
THAT OFFERS A WIDE
RANGE OF DESIGNS,
WHILE STILL ENSURING
HIGH PERFORMANCE.
CP 130 SIX LEAF 3-RAIL 90° LIFT & SLIDE SOLUTION
CP 155-LS
THE LIFT & SLIDE SOLUTION FOR LARGER APPLICATIONS
• Design & functionality
• Lift & slide, monorail, 2-rail, 3-rail...
• Even a 90° post-less corner solution
• Complete range of solutions, sill, and
performance options
• Compatible with CS & Ventalis screens
DESIGN OPTIONS
System depth 155 mm 6 1/4"
Visible height (threshold) 60 mm 2 3/8"
Visible height (vent) 102 mm 4"
Max. height 3500 mm 10'
Max. width 2700 mm 9'
Max. weight / vent 400 kg 880 lbs
Glass thickness 6 – 60 mm 1/4" – 2 3/8" LC PG40
Thermal insulation - NFRC down to 1.58 W/(m²·K) down to 0.28 Btu/(h·ft²·°F) Water 4.6 psf / Air 0.15 cfm/sqft
Light Commercial Performance Class - Test results may vary
Unmatched Design & Performance
Flexibility in Aluminum
Not interested Completely flush
in visible
profiles?
• Pocket solutions
Doors integrate into the wall,
disappears when in open
position
• Recessed threshold
Only rail is visible, making for a
handicap solution
• Unlimited number of
doors for grand openings
Recessed threshold
Clip-on profiles allow for any
number of doors
Create Sliding Walls with Oversized
Multi-panel Combinations
Performance
without
Compromise
ONE OF THE TOP
QUALITY SYSTEMS ON
THE MARKET, CP 155
OFFERS THE BEST OF
THE BEST IN
PERFORMANCE.
CP 155 4-LEAF LIFT & SLIDE SOLUTION
CF 77
BI-FOLD FLEXIBILITY AT 10 FEET HIGH
• Design & functionality
• Lift & slide, monorail, 2-rail, 3-rail...
• Up to 8 panels in one direction ... even a
90° post-less corner “in development”
• Wide range of solutions
with hinging flexibility
• Compatible with other Reynaers profiles
• Tested thermal performance (NFRC rated)
DESIGN OPTIONS
Style variants FLAT DESIGN SLIM LINE
Visible height (threshold) 60 mm 2 3/8" 60 mm 2 3/8"
Visible height (vent) 144 mm 5 3/4" 122 mm 4 3/4"
Max. height / leaf 3000 mm 10 ft 3000 mm 10 ft
Max. width / leaf 1200 mm 4 ft 1200 mm 4 ft
Max. weight / vent 120 kg 260 lbs 120 kg 260 lbs
Glass thickness up to 61 mm up to 2 3/8" PG55
Thermal insulation - NFRC down to 1.47 W/(m²·K) down to 0.26 Btu/(h·ft²·°F) Water 8 psf / Air 0.10 cfm/sqft
Test results may vary depending on threshold

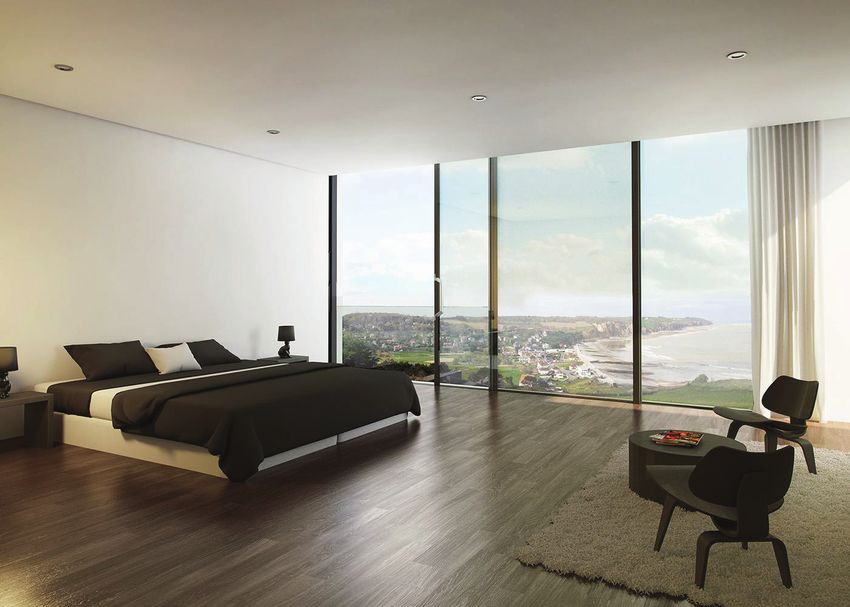

The Frameless Sliding Door Solution
HI FINITY LIFT & SLIDE
INVISIBLE FRAME
POSTLESS OPENING CORNERMonumental Design Parameters
HI FINITY LIFT & SLIDE
HI FINITY
Design: Fade the boundaries
FLOOR-TO-FLOOR AND
WALL-TO-WALL DIMENSIONS
The strength of the system shows off
when complete walls are covered with
the system. Frames disappear behind
ceiling, floors and side walls.
WEIGHTS
The door is designed to carry door leafs
up to 1200lbs. For double glass
(⅚" / ⅝" / ⅟₂"), this means that you can
cover over 100ft² per leaf.
HEIGHTS
Tested up to 11 ⅟₂ ft in height.When Minimal Sight Lines are the Objective
HI FINITY LIFT & SLIDE
Minimal frame, maximum glass
1 3/8”Hi-Finity
ULTIMATE PERFORMANCE WITH MONUMENTAL SIZE AND MINIMAL FRAME
• High performance • Comes with annealed laminated
safety glass
• Minimalistic design
• Providing superior clarity over toughened
• Monumental size availability
units (no roller wave distortion)
• Integrated design —
• Internal electric locking mechanism
you pay for what you don’t see
• Average U-value of 0.33 double glazed &
0.23 triple glazed, NFRC certified
The Infinite View
Enjoy an infinite view with ultimate performances. The ultra-slim
design of the Hi-Finity® sliding door creates large transparent
surfaces, with a light, sleek and elegant appearance.
CW PG30 STC - 45
Water 8 psf / Air 0.075 cfm/sqft E90-09 / 1332 OITC - 37
Commercial Performance Class - Test results may vary Test results vary depending on glass typeState of the Art Security
Concealed Locking Mechanism
The electrical lock is
concealed in the top profile
and well protected against
burglary attempts.Alumin-Arte
THERMALLY BROKEN ALUMINUM WINDOWS
The popularity and market acceptance of the glazing stop is not available from any of the
narrow thermally broken Steel-Arte window and traditional aluminum window suppliers.
door line has been exceptional. While the
demand continues to build, it’s clear to us that the To address this specific market demand, Dynamic
cost of our mild Steel is sometimes beyond the is pleased to introduce a new line of thermally
project budget. The design of the thin narrow broken Aluminum windows called Alumin-Arte.
profiles, the smooth welded corners and options
like the contemporary appearance of the “L” Here are a few of the design highlights:
• Alumin-Arte has the identical face • The hardware availability will be the same
dimensions as the Steel-Arte window & as the Steel-Arte with a wide selection of
door line. handle options.
• The welded and ground corners capture • The casement will be an outswing design
the same aesthetic of the steel-arte while and will essentially replicate the Arte look
providing the additional strength. in all ways. The window is also available in
a direct glazed frame with no sash when a
• Thermal performance is not compromised
very narrow profile is desired.
with a 1 5/8" glass composite thermal
break, very similar to the Steel-Arte. • The Alumin-Arte will have smaller
maximum size limitations as aluminum is
• The frame is 1/4" deeper than Steel-Arte to
not as strong as steel, however the two
accommodate additional combinations of
window lines could be mixed.
the triple glazing.
• The Alumin-Arte will have NFRC
• Alumin-Arte will be powder coated using
certification like all Dynamic
the same semi-gloss or textured powder
product lines.
coated finishes available with the
Steel-Arte. The powder coat is AAMA 2605
compliant, the benchmark of high
performance finishes.Why Choose Dynamic
Thermally Broken Aluminum
You may be familiar with Reynaers aluminum and accessories in container shipments direct from the
windows and doors as a high-end European parent company in Belgium. Dynamic will complete all of
thermally broken aluminum system that is the fabrication in our factory, including finishing, glass
currently available through a “mark up and re-sell” supply and installation in select markets. Given our
dealer network in a limited number of North experience with thermally broken steel fabrication, we
American cities. know the factory direct business model delivers the
highest overall value to both the architect and builder
Dynamic is doing things differently than the with clear and consistent communication from initial
traditional dealer business model. As an Original quote to final delivery. There are several advantages to
Equipment Manufacturer, Dynamic will by-pass the Dynamic business model:
the distributor cost base by purchasing profiles
• You will be dealing with the fabricator • As a result of our factory direct approach, we’re
(Dynamic) directly, just like our wood and able to offer an advanced aluminum system
steel products, by-passing the traditional priced competitively from a proven manufacturer
third party dealers while working with well with systems in place to ensure complete and
trained Dynamic factory representatives. timely deliveries, installation and after sale
service.
• Dealing factory direct allows for
streamlined communication with concise • Both Dynamic aluminum windows lines offer
and timely responses to detail, technical tested performance, superior thermal qualities
and application questions. and unmatched custom capabilities.
• With Dynamic’s 25 year history of custom Ask about our “Design-Assist” service . We can
manufacturing, we can offer greater design provide technical assistance, 3rd party engineering
flexibility in both complexity of and advice on all of the variables early in the design
configurations, finishes and sizes. process. Call toll free to 1.800.661.8111 or email
connect@dynamicfenestration.com for assistance.
We believe our thermally broken aluminum proven business model. In short, it is the best value
solutions offer a superior aluminum system with a option when thermally broken aluminum is the
competitive price point, complementary designs specification.
in steel and wood and supported by an effective, www.dynamicfenestration.comYou can also read
