OMAL GROUP OMAL is a leading Italian company specialized in the automation of flow control. We design, manufacture and sell our manual and automated process valves to virtually every industry including oil&gas, chemical processing, gas generation, HVAC, automotive, food and beverage. Founded in 1981 in Italy, where it still has its headquarters and production units, OMAL currently operates worldwide through a strong network of distributors and since 2021, has established a presence in the North American market with our new site near Cincinnati, OH. THE VALVES 6
THE AUTOMATION
7
THE POWER
OF AUTOMATION
8

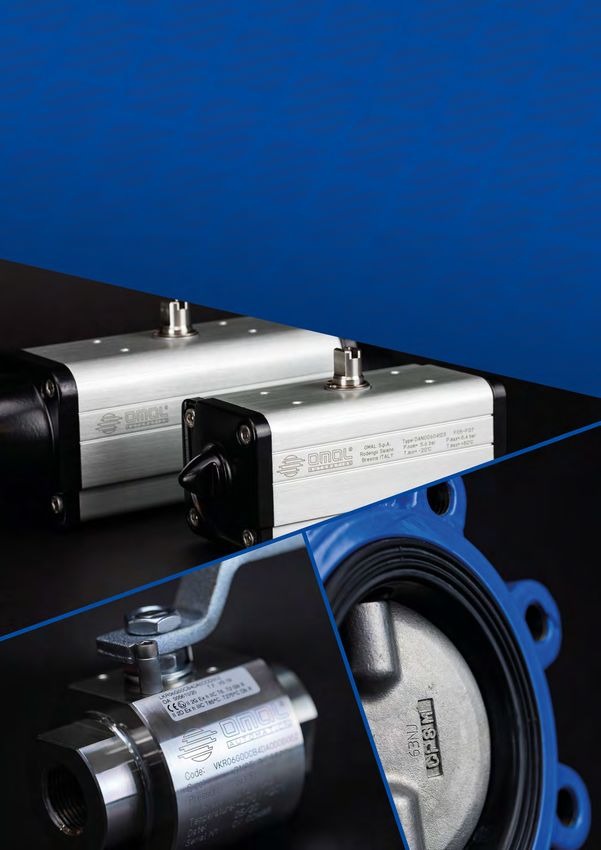

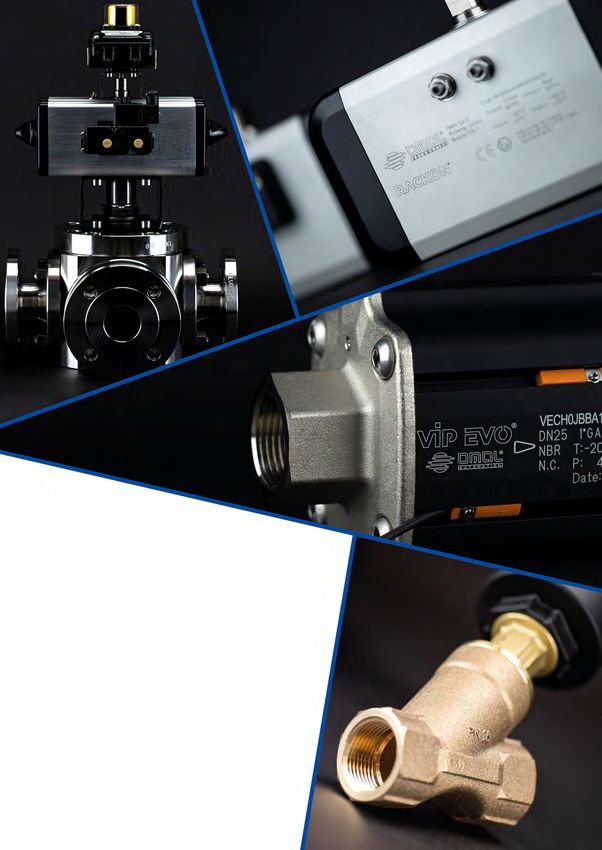

OUR PRODUCTS
PNEUMATIC ACTUATORS
ELECTRIC ACTUATORS
PNEUMATIC VALVES
BALL VALVES
BUTTERFLY VALVES
9
PNEUMATIC ACTUATORS
RACK&PINION PNEUMATIC ACTUATORS PNEUMATIC SCOTCH YOKE ACTUATORS
SPECIFICATIONS SPECIFICATIONS
Type Scotch yoke
Type Rack&Pinion
Size 70 in-lbs to 70,800 in-lbs
Size 88 in-lbs to 4,250 in-lbs Aluminium;
Body material
Stainless steel;
Double acting;
Body material Aluminium Variations
Spring return;
Double acting; Heavy duty option;
Variations Dosing;
Spring return;
Integrated handwheel;
Namur plate; Low temp. version -58°F;
Low temp. version -58°F; Options
High temp. version +300°F;
Options High temp. version +300°F; Adjustable rotation;
Adjustable rotation; Surface treatments;
Accessories (see page 18); Accessories (see page 18);
ATEX 2014/34/EU; ATEX 2014/34/EU;
Certifications SIL3; Certifications SIL3;

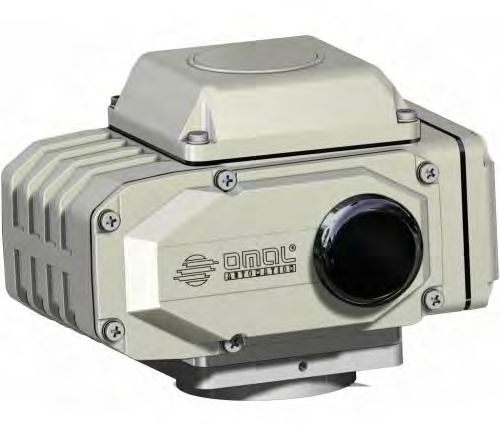

10ELECTRIC ACTUATORS
EA-AE
ELECTRIC ACTUATORS
SPECIFICATIONS
Type Electric
Size 88 in-lbs to 1,730 in-lbs
Body material Aluminium;
ON-OFF;
Variations
Modulating;
115 Vac;
230 Vac;
Options
24 Vdc;
Battery backup;
11PNEUMATIC VALVES
PNEUMATIC AXIAL VALVE
SPECIFICATIONS
Size 3/8” - 2”
Aluminium
Body material
Brass
FKM;
Available seats NBR;
EPDM;
NPT (ANSI B1.20.1);
End connections
BSP (EN 10226-1);
Max pressure 580 PSI
Double acting;
Variations Spring return
N.C. - N.O.;
Oxygen use;
Options Vacuum use;
Accessories (see page 18);
ATEX 2014/34/EU;
Certifications PED 2014/68/EU;
SIL3;
12PNEUMATIC VALVES
ARES ZEUS
PNEUMATIC ANGLE SEAT VALVE PNEUMATIC ANGLE SEAT VALVE
SPECIFICATIONS SPECIFICATIONS
Size 3/8” - 2” Size 3/8” - 2”
Body material Stainless steel Body material Bronze
Available seats PTFE Available seats PTFE
NPT (ANSI B1.20.1); NPT (ANSI B1.20.1);
BSP (EN 10226-1); BSP (EN 10226-1);
End connections Flanged; End connections Flanged;
Weld ends; Weld ends;
Clamp; Clamp;
Max pressure 230 - 360 PSI Max pressure 230 - 360 PSI
Double acting; Double acting;
Variations Spring return Variations Spring return
N.C. - N.O.; N.C. - N.O.;
Oxygen use; Oxygen use;
Options Vacuum use; Options Vacuum use;
Accessories (see page 18); Accessories (see page 18);
ATEX 2014/34/EU; ATEX 2014/34/EU;
Certifications PED 2014/68/EU; Certifications PED 2014/68/EU;
13BALL VALVES
ITEM 101 ITEM 400
2 PIECE BRASS BALL VALVE 2 PIECE S.S. BALL VALVE
SPECIFICATIONS SPECIFICATIONS
Size 3/8” - 3” Size 3/8” - 4”
Body material Brass
Body material 316 Stainless steel
Available seats PTFE; PTFE;
Available seats RPTFE + glass;
RPTFE + Carbongraphite;
NPT (ANSI B1.20.1);
End connections
BSP (EN 10226-1); NPT (ANSI B1.20.1);
End connections
BSP (EN 10226-1);
900 PSI (varies by size
Max pressure
and temperature) 1450 PSI (varies by size
Max pressure
and temperature)
Dirty fluids option;
Pneumatic actuation
Options available; Pneumatic actuation
Direct mounting Options
available;
actuator;
ATEX 2014/34/EU; ATEX 2014/34/EU;
Certifications Certifications PED 2014/68/EU;
PED 2014/68/EU;
14BALL VALVES
ITEM 424
3 PIECE S.S. BALL VALVE HIGH PRESSURE STEEL BALL VALVE
SPECIFICATIONS SPECIFICATIONS
Size 1/4” - 2”
Size 1/4” - 4” A350-LF2 Carbon steel
Body material
316 Stainless steel
Devlon;
Body material 316 Stainless steel RPTFE + glass;
Available seats RPTFE + Carbongraphite;
PTFE; TFM 1600;
Available seats RPTFE + glass; PEEK;
RPTFE + Carbongraphite; NPT (ANSI B1.20.1);
End connections
BSP (ISO 228-1);
NPT (ANSI B1.20.1); 6000 PSI (varies by size
End connections Max pressure
BSP (EN 10226-1); and temperature)
Oxygen use;
Max pressure 910 PSI Hydrogen use;
Options Mono-directional ball;
Pneumatic actuation
Pneumatic actuation available;
available;
Options ATEX 2014/34/EU;
Direct mounting
actuator; Fire safe API607/ISO
10497;
Certifications PED 2014/68/EU;
ATEX 2014/34/EU;
Certifications PED 2014/68/EU; SIL3;
TA Luft fugitive emission;
15BALL VALVES
MAGNUM THOR
FLANGED BALL VALVE FLANGED BALL VALVE
SPECIFICATIONS SPECIFICATIONS
Size 1/2” - 8” Size 1/2” - 8”
A105 carbon steel; A105 carbon steel;
Body material Body material
316 Stainless steel; 316 Stainless steel;
TFM 1600; TFM 1600;
RPTFE + Glass; RPTFE + Glass;
Available seats Available seats
RPTFE + Carbongraphite; RPTFE + Carbongraphite;
Devlon; Devlon;
End connections Flanged (RF/RTJ) End connections Flanged (RF/RTJ)
ANSI 150-300; ANSI 600 ANSI 150-300; ANSI 600
Pressure class Pressure class
PN 16-40; PN 63-100; PN 16-40; PN 63-100;
3-Ways; 3-Ways;
Reduced bore; Reduced bore;
Mono-directional ball; Mono-directional ball;
Pneumatic actuation Pneumatic actuation
Options Options
available; available;
Locking device; Locking device;
Stem Extension; Stem Extension;
Bottom tank; Bottom tank;
ATEX 2014/34/EU; ATEX 2014/34/EU;
Fire safe API607/ISO 10497; Fire safe API607/ISO 10497;
PED 2014/68/EU; PED 2014/68/EU;
Certifications SIL3; Certifications SIL3;
TA Luft fugitive emission; TA Luft fugitive emission;
API6D; API6D;
NACE MR0175; NACE MR0175;
16TRUNNION VALVES BUTTERFLY VALVES
TRUNNION BUTTERFLY
VALVE
TRUNNION BALL VALVE BUTTERFLY VALVE
SPECIFICATIONS SPECIFICATIONS
Size 2” - 24” Size 1-1/2” - 24”
Cast iron;
Carbon steel; Body material Stainless steel;
Body material
Stainless steel; PVC;
Cast iron;
RPTFE; Disc material CF8M;
Available seats
Devlon; Bronze aluminium;
EPDM;
End connections Flanged (RF/RTJ) NBR;
Available seats
FKM;
PTFE;
ANSI 150-300-600-900-
Pressure class
1500-2500; Wafer;
End connections
LUG;
Manual lever;
Gear box;
Options Pressure class ANSI 150, PN 10-16
Pneumatic actuation
available;
Pneumatic actuation
ATEX 2014/34/EU; available;
Fire safe API607/ISO 10497; Options Direct mounting
PED 2014/68/EU; actuator;
Certifications SIL3; Clamp version;
TA Luft fugitive emission;
API6D; ATEX 2014/34/EU;
Certifications PED 2014/68/EU;
NACE MR0175;
17ACCESSORIES
LIMIT SWITCH BOXES SOLENOID VALVES
AIR FILTER AND
POSITIONERS
FLOW REGULATORS
DECLUTCHABLE GEAR
18THE POWER
OF SOLUTIONS TO
SATISFY MANY
SECTORS
CEMENT PACKAGING
PLANT
CERAMIC WATER &
WASTEWATER
CHEMISTRY MARINE
INDUSTRY
PHARMA & CHEMICAL & FIRE POWER &
COSMETICS PETROCHEMICAL FIGHTING RENEWABLE
ENERGY
HEATING
OIL & GAS VENTILATING
AIR CONDITIONING
FOOD &
BEVERAGE MINING
AUTOMOTIVE TEXTILE
19THE POWER OF THE GROUP 20

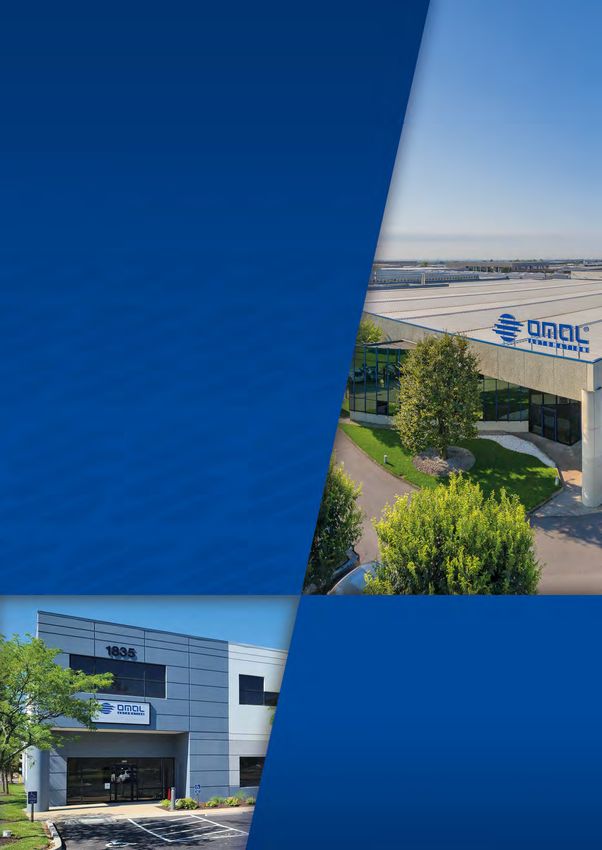

OMAL S.p.A.
HEADQUARTERS
Via Ponte Nuovo, 11 - 25050
Rodengo Saiano (BS) ITALY
PRODUCTION SITE
Via Brognolo, 12 - 25050
Passirano (BS) ITALY
Ph. +39 030 8900145
Fax +39 0308900423
info@omal.it - www.omal.com
OMAL USA Corp.
HEADQUARTERS
1835 Airport Exchange Blvd, Suite 100
41018 Erlanger, KY - USA
Ph. +1 (859) 900-2108
info@omal.com - www.omal.com
ACTUATECH S.p.A.
HEADQUARTERS
Via San Lorenzo, 70 - 25069
Villa Carcina (BS) ITALY
Ph. +39 030 8908142
Fax +39 030 8908143
actuatech@actuatech.com
www.actuatech.com
21THE POWER OF OUR EXPERIENCE 22
23
THE POWER OF FULLY INTEGRATED IN-HOUSE PROCESS 24
DIE CASTING DEPARTMENT
DESIGN DEPARTMENT
MOULDING OF PLASTIC MATERIALS
QUALITY DEPARTMENT
TESTING AREA
PRODUCTION AREA
25THE POWER
TO WALK THE TALK
OMAL’s certifications: quality, environment, products and processes.
Some OMAL’s corporate certifications.
MANAGEMENT SYSTEM
MANAGEMENT SYSTEM
CERTIFICATE CERTIFICATE
Certificate No: Initial certification date: Valid: Certificato no./Certificate No.: Data prima emissione/Initial date: Validità:/Valid:
236889-2017-AQ-ITA-ACCREDIA 14 July 1992 10 June 2020 - 09 June 109786-2012-AE-ITA-ACCREDIA
2023 23 gennaio 2012 23 gennaio 2018 - 23 gennaio 2021
This is to certify that the management system of Si certifica che il sistema di gestione di/This is to certify that the management system of
OMAL S.p.A.
OMAL S.p.A. - Sede Legale e Operativa
Via Ponte Nuovo, 11/1 - 25050 Rodengo Saiano (BS) - Italy
and the sites as mentioned in the appendix accompanying this certificateSede Legale: Via Ponte Nuovo, 11/1 - 25050 Rodengo Saiano (BS) - Italy
È conforme ai requisiti della norma per il Sistema di Gestione Ambientale/
has been found to conform to the Quality Management System standard:Has been found to conform to the Environmental Management System standard:
ISO 9001:2015
UNI EN ISO 14001:2015 (ISO 14001:2015)
This certificate is valid for the following scope: Valutato secondo le prescrizioni del Regolamento Tecnico RT-09/
Evaluated according to the requirements of Technical Regulations RT-09
Design and e production of pneumatic actuators, electric actuators, ball
valves 2-way and 3-way, butterfly valves, Angle seat valves, pneumatic
valves coaxial through assembly (IAF 18) Questa certificazione è valida This certificate is valid
per il seguente campo applicativo: for the following scope:
Progettazione e produzione di attuatori Design and manufacturing of pneumatic
pneumatici, elettrici, valvole pneumatiche actuators, electric actuators, pneumatic
coassiali ed a flusso avviato, valvole a sfera coaxial and angle seat valves, manual
ed a farfalla manuali ed automatizzate and automatized ball and butterfly valves
attraverso processi di lavorazioni by machining, plastic moulding,
meccaniche, stampaggio plastica, assembly, testing, packaging
assemblaggio, collaudo, imballaggio and shipping
e spedizione
(Settore EA: 18) (EA Sector: 18)
Place and date: For the issuing office: Luogo e Data/Place and date: Per l'Organismo di Certificazione/
Vimercate (MB), 21 July 2020 DNV GL - Business Assurance
Vimercate (MB), 11 gennaio 2018 For the Certification Body
Via Energy Park, 14, - 20871 Vimercate
(MB) - Italy
Zeno Beltrami
Management Representative Zeno Beltrami
Management Representative
Lack of fulfilment of conditions as set out in the Certification Agreement may render this Certificate invalid.
ACCREDITED UNIT: DNV GL Business Assurance Italia S.r.l., Via Energy Park, 14 - 20871 Vimercate (MB) - Italy. TEL:+39 68 99 905.Lawww.dnvgl.it
validità del presente Certificato è subordinata al rispetto delle condizioni contenute nel Contratto di Certificazione/
Lack of fulfilment of conditions as set out in the Certification Agreement may render this Certificate invalid.
DNV GL Business Assurance Italia S.r.l., Via Energy Park, 14 - 20871 Vimercate (MB) - Italy. TEL:039 68 99 905. www.dnvgl.it/assurance
AD2000 GHG ISO 9001 ISO 14001
Some OMAL’s product certifications.
CERTIFICATE
This certifies that the company
Omal S.p.A.
Via Ponte Nuovo, 11
25050 Rodengo Saiano (BS)
Italy
Is authorized to provide the product mentioned below
Description of product: Pneumatic scotch-yoke spring return and double acting actuator
series SR, SRN, DA, DAN
In accordance with: EN 61508:2010 Parts 1, 2, 3, 4, 5, 6, 7
Registration No 20 20293 01 Validity
Test Report No PS-20293-20-L from 2020-07-03
File reference 20293-01 until 2023-07-03
TÜV NORD Italia S.r.l. (TÜV NORD Group) Cerro Maggiore, 2020-07-03
Via Turati, 70 - 20023 Cerro Maggiore (MI) www.tuev-nord.it prodotto@tuev-nord.it
Please also pay attention to the information stated overleaf
ATEX Ball Valves EAC TR CU 032/2013 - ATEX Pneumatic Valves SIL EN 61508 Pneumatic Actuators
Butterfly Valves DA, SR, DAN, SRN
26Since September 2017 OMAL is a Certified B Corporation®.
B Corp TM companies meet the highest standards of overall social and
environmental performance, transparency and accountability and aspire to use the
power of business to solve social and environmental problems. OMAL S.p.A is the
first world’s company in the valve and actuator sector certified B Corporation®.
OMAL supports the UN Global Compact Compact programme.
OMAL has achieved Gold membership in the Ecovadis platform, which evaluates
suppliers according to their social and environmental practices.
OMAL has been included in the Transparency Rating developed by the Authority
Italian Antitrust Authority (AGCM).
THE THE
PROCUREMENT PROCUREMENT
AWARD PRIZE AWARD PRIZE OMAL won the Procurement Award 2016 and 2017
WINNER WINNER in the category “Ethical and Sustainable purchasing
2017 2017 practices” and in the category “Cross-function and Team
Procurement” 2017.
Sustainable & Ethical Cross-Function & Team
Procurement Category Procurement Category
OMAL measured and compensated its Organizational Carbon Footprint, certifying
the process according to ISO 14064 – part I.
27THE POWER OF OUR GLOBAL BUSINESS NETWORK 28
Headquarters
Distributors
29NOTES: ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... ........................................................................................................................... 30
OMAL USA Corp.
Ph. +1 (859) 900-2108 - info@omal.com - www.omal.com
HEADQUARTERS
1835 Airport Exchange Blvd, Suite 100 41018 - Erlanger, KY - USA
Coordinates:
Lat: 39° 03’ 30.4” North; Lon: 84° 37’ 49.4” West
UIPOUCP2021 - 07/21You can also read
