The Classic Door Collection
-
SAFE AND SOUND
SAFE & SOUND
Your front door is the first point of contact with your home.
With the reassuring ‘clunk and click’ as it closes behind you,
you’re able to shut rest of the world outside, relax
and unwind.
Our range of high security, low maintenance and energy
efficient, traditional and contemporary composite front
and back doors, has been specially selected to give you a
choice of design and style to perfectly compliment your
property. You can’t choose a better composite door.

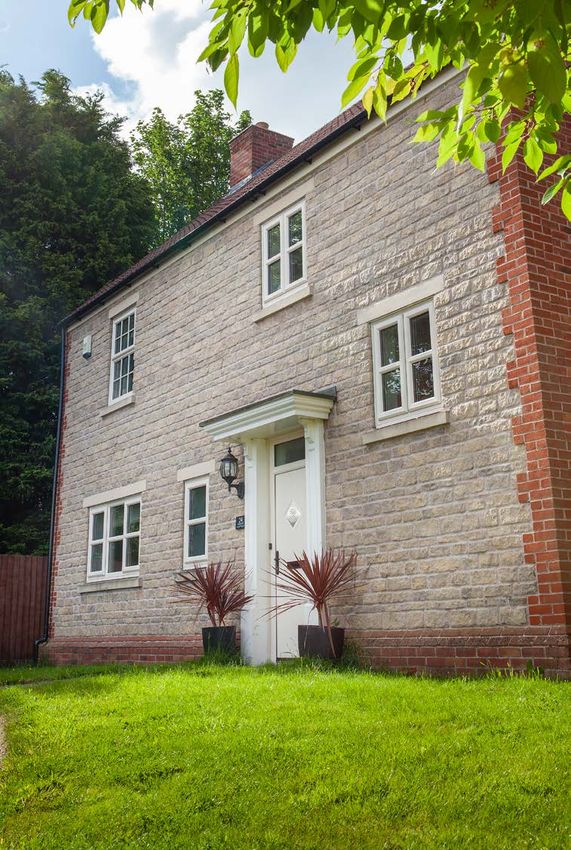

Door shown is the Belfry in Cream White
featuring Grange glass
Page 2 | Composite Door Brochure
CONTENTS
OUR DOORS
4-5 Why choose a composite door?
6 Making your home more secure
7 10-year guarantee
8 Door security
10-11 Kubu Equipped Doors
12 Making your home warmer
13 Technical overview
14-15 Choosing your door
DOOR STYLES
16-17 Carnoustie, Birkdale & Penina
18-19 Turnberry & Lytham
20-21 Riviera, Portrush & Sunburst
22-23 St Andrews
24-25 Troon, Muirfield & Colonial
26-27 Sunningdale
28-29 Belfry & Belfry 3
30-31 Gleneagles
32-33 Contemporary Doors
34-35 Seminole, Monza & Augusta
36-37 Chantilly Farmhouse / Chantilly Flush
SIDE LIGHTS
38-39 Side lights
DOOR COLOURS
40-41 Colour options
43 Framing your door
GLASS OPTIONS
44 Glass options
44 Obscure glass options
HARDWARE OPTIONS
45 Hardware options
Door style is Carnoustie in Cream White
TECHNICAL INFORMATION featuring Lanesborough glass
47 Technical information
FIVE EASY STEPS
1 2 3 4 5
CHOOSE YOUR CHOOSE YOUR CHOOSE YOUR DOOR CHOOSE YOUR CHOOSE YOUR
DOOR STYLE SIDE PANEL & FRAME COLOUR GLASS DESIGN DOOR FURNITURE
Proud to be
Made in Britain
01/21 Composite Door Brochure | Page 3
WHY CHOOSE A COMPOSITE DOOR?
NOT ALL DOORS ARE MADE EQUAL
Our composite doors combine the latest innovations, to keep your home warm and
secure, whatever the weather. Emulating the natural beauty of wood with an energy
efficient warm core technology and high security, smart ready multi-point locking
system, our composite doors are and elegant addition to any home.
Manufactured to the British Standards Institute kitemark accreditation for Quality
Management, BSI9001, they’re also built to last.
1
4
6
3
Multi-point smart
equipped locking
9 High security steel hooks
fully penetrate the door
frame keeps, which help to
prevent the door sash and
frame from being forced
apart. A steel deadbolt
delivers maximum strength
to the centre of the door.
7
2
10
8
5
Page 4 | Composite Door Brochure
WHY CHOOSE A COMPOSITE DOOR?
1 he appearance of natural timber but without the
T 6 Energy efficient glazing
maintenance
Our doors feature the
Composite doors emulate the natural appearance of latest in energy efficient
a traditional timber door but without the associated double and triple-glazed
maintenance. They won’t warp or expand and don’t glass technology to keep
require painting. A tough and durable timber-grain your home warmer.
effect impact resistant GRP skin, will stand up to the Manufactured to the British
knocks bangs and scrapes that family life throws at it! Standard BS1 EN1279, this
includes a full choice of
glass types and styles from
2 Insulated thermally efficient core privacy glass to coloured,
crystal and leaded finishes,
Our doors are which means you can design the perfect door for your home.
manufactured from a
thermally efficient and 7 BSI Kitemark accredited handles and hardware
tough high density
polyurethane foam core. Our doors are manufactured
This has been specially to the highest security
developed to significantly standards. BSI Kitemark
reduce the transfer of accredited multi-point
heat, making our doors locking mechanisms, keeps
almost 20 per cent better at keeping the warmth inside and handles are included as
your home and your energy costs lower, than a traditional standard. You can choose
solid timber door. anti-lift, anti-drill and anti-pick locking cylinders that
meet and exceed all current building standards including
3 Sound insulation PAS24:2016, because your security and that of your home
and family matters.
The polyurethane core offers great sound insulation,
8 Mobility
reducing outdoor noise by an average of 31dB.
All of our doors come with an optional mobility low
4 Colour choice threshold, ideal for wheelchair use or with pushchairs.
Our hinges also open past 90 degrees for optimal access.
Choose from 8 standard
-colour finishes or a choice of 9 Door furniture
38 premium colour options,
making the colour choice for Define your style with a choice
your home as individual as of handles, letter-plates,
you are. door knockers and spy holes
available in satin, white, gold,
chrome and black finishes.
See page 45 for more details.
5 Weathertight 10 Hinges
The insulated core is High spec hinges with traditional
protected from water and and improved aesthetics provided
moisture ingress by a high without any compromise to the
performance polymer user friendly mechanics, or security
skin. This is specially performance. Our hinges also open
constructed to prevent the past 90 degrees for optimal access.
delamination which can
effect lesser quality doors,
guaranteeing performance
for years to come. Strong stainless steel door hinges and
robust gaskets ensure that the door makes the perfect
seal against the frame. Our doors are also fully tested to all
relevant British Standards.
Composite Door Brochure | Page 5
MAKING YOUR HOME MORE SECURE
Multi-point locking
High security steel hooks fully
penetrate the door frame keeps,
With one home in England and Wales broken into which help to prevent the door
every seven seconds – the majority by forcing or sash and frame from being
forced apart. A steel deadbolt
kicking a door – your front or back door is at the delivers maximum strength to
the centre of the door.
‘frontline’ in the battle to protect
your home from intruders.
All of our doors can be supplied to the Secured by
Design Police Preferred Specification* through our
High security door cylinder
supplier Emplas, for accredited products please see: Anti-bump, anti-drill, anti-pick and anti-snap
https://www.securedbydesign.com/member-companies/sbd-members and search for Emplas Window Systems Ltd Kitemarked cylinder lock options available.
PEACE OF MIND
BUILT IN Reinforcement and thickening of door frame
The use of reinforcements and local thickening
of the door frame provide a stronger fix and
improved hardware retention and screw through-pull,
This means that they meet not only the requirements for door security locking the sash and frame firmly together.
set out in PAS 24:2016 and Part Q of Building Regulations* but have been
independently tested as doing so, as defined by the police approved PVBInterlayer
Interlayer
PVB
Secured by Design scheme.
Setting the Standard for Door Security
Our doors have been independently tested against the following type of assault:
• Manual attack on the locking hardware with tools including screwdrivers, Floatglass
glass Float
Float Floatglass
glass
chisels and mole grips
Laminated glass units
• Three minute attacks on the door cylinder using a range of tools including
Internally glazed 6.8mm toughened laminated
craft knifes and screw drivers glass energy efficient units provide increased
resistance to attack, if selected. All glazing is
• Three minute manual attacks using chisels and brick bolsters supplied as Energy PLUS, incorporating ‘Low E’
glass and Argon filled.
• Hard-body impact testing of the leaf, hinge and locking points using a
50kg steel impactor.
PAS24
KM 597761 Robust hinges
Supplier of accredited Windows and Doors
Supplied as standard, stainless steel hinges
provide resistance to resistance testing with 50kg
BREAK SECURE ANTI-BUMP ANTI-DRILL ANTI-PICK
steel impactor. Featuring minimalist aesthetic
design lines.
Secured By Design
Letterplate**
Designed to meet the
exacting requirements
of TS008. It’s suitable
*Optional specially selected product configurations only, upgrade includes 3 Star Diamond Cylinder,
laminated glass and letterplate for doorsets that need
to be Document Q or
** Supplied through our supplier Emplas, for accredited products please see:
https://www.securedbydesign.com/member-companies/sbd-members and search for Emplas Window Systems Ltd PAS 24: 2016 compliant.
The Emplas Composite 44mm Residential Door System range has been designed, tested and achieves the standard
Manufactured from 304
to meet Secured By Design. Stainless Steel for ultimate
corrosion resistance.
Page 6 | Composite Door Brochure
Door style is Gleneagles in Slate Door style is Augusta long in French Blue
featuring Impression glass featuring Athena glass
10 YEAR GUARANTEE
DURABLE AND LONG-LASTING, A DOOR
WITH PEDIGREE, TRIED AND TESTED FOR
OVER 20 YEARS
• Strength from its construction, incorporating an LVL
(Laminated Vaneer Lumber subframe)
• High impact resistant door skin, 4mm thick GRP as standard
• Stability, whatever the weather conditions
• A full 10-Year Guarantee
R A NT
UA
G
PEACE OF MIND BUILT IN 10 - YE
EE
AR *
EE
G
UA
RA NT
PAS99 ISO 14001 ISO 45001 PAS24
IMR 566162 EMS 566160 OHS 566161 ISO 9001 KM 597761
FM 12731
*1 year guarantee on standard gold and chrome hardware
Composite Door Brochure | Page 7
DOOR SECURITY
SECURITY LOCKED IN...
INTRUDERS LOCKED OUT.
Our Thumbturn operation is specially designed to beat the wire bypass entry
threat associated with standard thumbturn locks. Document Q building
regulations and PAS24 compliant design.
PAS 24
Enhanced
Security
Doors
Anti drill
• SS312 Sold Secure Diamond Grade
• 3 Star British Kitemark - TS007:2014 (KM 586153)
• Anti snap technology
• Pick, Drill & Bump Resistant
• Polished Chrome/Brass or Matt Brass options
• Trap Pins for advance pick resistance
• Anti-drill pins Anti snap
• Double, and thumbturn formats available
• Multiple keys per cylinder
• Keyed alike key/key pairs are available
• Master keying on request
BREAK SECURE ANTI-BUMP ANTI-DRILL ANTI-PICK
Anti screwdriver
Page 8 | Composite Door Brochure
Door style is Belfry in Cream White
featuring Grange glass
Composite Door Brochure | Page 9
KUBU EQUIPPED DOORS
KUBU EQUIPPED
DOORS Be sure it’s secure
How many times have you Kubu Equipped Doors
To activate your Kubu Equipped Door Lock and
thought…have I locked my make it smart, you will need to purchase your
Kubu Smart Kit from www.kubu-home.com
door? We’ve all been there!
Once your Kubu Home Hub arrives
With Kubu you’ll never have to worry if your
1 Simply follow the QuickStart guide that comes
door is unlocked again.
with the Kubu Smart Kit in order to get set up.
Kubu uses smart and simple technology to
2 During set up you will be prompted to enter
monitor your lock in real time. You’ll be able to
a door reference code, this is on the dummy
check the status of your door no matter where
module that is within the Kubu lock smart
you are, at any time of the day, right from the
activation slot.
Kubu app on your phone.
With Kubu say goodbye to uncertainty and hello
Be sure it’s secure
to peace-of-mind.
• From any place in the world.
• At anytime, day or night.
Be sure it’s secure
• On all the doors in your home.
• On all the homes that you look after.
What does the Kubu App do?
• It lets you see the status of your door
* Please note: Kubu Smart Technology
(locked/unlocked).
is not available on slam shut doors.
• Get notifications with every turn of the key.
• You can schedule notifications when you want.
• It shows the history of your doors.
• You can share your door with family and friends.
• Its perimeter feature helps to prevent you from
leaving your home unlocked.
Download Kubu Door Module
the app Home Hub
Page10 | Composite Door BrochureKUBU EQUIPPED DOORS
Your composite door will
include Smart technology,
as standard.
Composite Door Brochure | Page 11MAKING YOUR HOME WARMER Almost all white goods that we buy come with a colour coded and alphabetical energy rating running from A to G, with ‘A’ indicating the highest level of energy efficiency. Well, it’s exactly the same for doors and windows. UNDERSTANDING DOOR ENERGY EFFICIENCY The exact energy efficiency of your new door will depend on a number of different factors including the style of door you choose and glass but all feature our warm core foam technology. This maximises the thermal efficiency of your new composite door, making it up to almost 20 per cent more energy efficient than a traditional solid timber door. Page12 | Composite Door Brochure
TECHNICAL OVERVIEW
2
1
3
4
1 Foam core 2 Thermally efficient door frame
High Density polyurethane foam core provides Multi-chamber thermally efficient
an insulating thermal barrier between warm air composite door frame
inside the home and cold air outside
3 High performance door gasket 4 Threshold
High performance door gasket and adjustable Weather proof threshold and brushes reduce
door hinges deliver a firm and consistent the flow of air under the door
compression between the door frame and
sash, stopping draughts
Composite Door Brochure | Page 13CHOOSING YOUR DOOR
Door style is Gleneagles in Slate
featuring Impression glass
Page 14 | Composite Door BrochureCHOOSING YOUR DOOR
CHOOSING YOUR DOOR
Your choice of door defines the individual
character of your property.
Choose the perfect complement for your home
from our refined collection of energy efficient
and beautifully crafted doors.
From the elegant understatement of a traditional design or stylish contemporary
statement door, you can build the perfect match for your property.
This includes a choice of finish from a carefully chosen palette of colour options,
sophisticated glass designs and as a final touch, combining function and form,
our range of high quality door furniture.
Door style is Lytham in Irish Oak
featuring Athena glass
1 STEP ONE
Choose your door style from one of our elegant
traditional and stylish contemporary designs
2 STEP TWO
Choose your side light if required
3 STEP THREE
Select a colour option from one of seven standard
colour finishes or choose one of our bespoke
colour options
4 STEP FOUR
Choose a glass design
5 STEP FIVE
Pick your favourite options from our high quality
range of door furniture
Door style is Riviera in Green
featuring Prestige glass
Composite Door Brochure | Page 15CARNOUSTIE, BIRKDALE & PENINA
Style: Carnoustie Style: Carnoustie Style: Carnoustie
Colour: Black Colour: Blue Colour: Green
Glass: Artisan Glass: Lanesborough* Blue Glass: Impression
Hardware: Gold Hardware: White Hardware: Chrome
Style: Carnoustie Style: Carnoustie Style: Carnoustie
Colour: Red Colour: Rosewood Colour: White
Glass: Birchwood Glass: Prestige Glass: Diamonte
Hardware: Black Hardware: Gold Hardware: Chrome
* Lanesborough glass is not available in Birkdale & Penina options
Page 16 | Composite Door BrochureCARNOUSTIE, BIRKDALE & PENINA
Carnoustie
Birkdale
Penina
Door style is Carnoustie in Chartwell Green
featuring Lanesborough Green glass
CARNOUSTIE, BIRKDALE & PENINA*
Our most popular composite door option which is now available in a choice
of three glazing styles.
* Lanesborough glass is not available in Birkdale & Penina options
Composite Door Brochure | Page 17TURNBERRY & LYTHAM
Turnberry
Door style is Turnberry in Cotswold
Turnberry Grid,
featuring Tranquility glass Gridlite
TURNBERRY & LYTHAM
The large glazed area of the Turnberry and Lytham lets light flood through
both can also be enhanced with the Gridlite option.
Page 18 | Composite Door BrochureTURNBERRY & LYTHAM
Style: Turnberry Style: Turnberry Style: Turnberry
Colour: Black Colour: Blue Colour: Green
Glass: Impression Glass: Tranquility Glass: Birchwood
Hardware: Chrome Hardware: Chrome Hardware: Gold
Style: Lytham Style: Lytham Style: Lytham Grid
Colour: Red Colour: Golden Oak Colour: White
Glass: Athena Glass: Impression Glass: Optimal
Hardware: White lever pad Hardware: Gold Hardware: Black
Composite Door Brochure | Page 19RIVIERA, PORTRUSH & SUNBURST
Riviera
Portrush
Sunburst*
Door style is Riviera in Green
featuring Prestige glass
Shown with our Long Lever hardware option
RIVIERA, PORTRUSH & SUNBURST
A traditional favourite with just a hint of modern, the Riviera is also available
in Portrush and Sunburst options as shown
*Glass styles available for the Sunburst are, Clear, Satin, Minster, Stippolyte and Costswold - See page 44
Page 20 | Composite Door BrochureRIVIERA, PORTRUSH & SUNBURST
Style: Riviera Style: Riviera Style: Riviera
Colour: Black Colour: Blue Colour: Azure
Glass: Prestige Glass: Impression Glass: Lanesborough Green
Hardware: Chrome Hardware: Chrome lever pad Hardware: White
Style: Riviera Style: Riviera Style: Riviera
Colour: Clotted Cream Colour: Rosewood Colour: White
Glass: Artemis Glass: Birchwood Glass: Diamonte
Hardware: Black lever pad Hardware: Gold Hardware: Satin lever pad
Spy hole and Knocker position for illustration purposes only. Position may vary.
Composite Door Brochure | Page 21ST ANDREWS
Style: St Andrews Style: St Andrews Style: St Andrews
Colour: Black Colour: Wedgewood Colour: Olive Grove
Glass: Impression Glass: Artemis Glass: Lanesborough Green
Hardware: Gold Hardware: Chrome lever pad Hardware: Chrome
Style: St Andrews Style: St Andrews Style: St Andrews
Colour: Red Colour: Rosewood Colour: White
Glass: Tranquility Glass: Lanesborough Amber Glass: Panama
Hardware: Black lever pad Hardware: Gold Hardware: Satin lever pad
* Please note that glazing cassettes on this style of door have visible screw caps (unlike all other styles in the range).
Page 22 | Composite Door BrochureST ANDREWS
St Andrews
Solid
Door style is St Andrews in Rosewood
featuring Lanesborough Amber glass
ST ANDREWS
Reminiscent of the door styles of the 1930’s, the St Andrews door is available
as a solid door option as well as a glazed version.
Composite Door Brochure | Page 23TROON, MUIRFIELD & COLONIAL
Troon
Muirfield
Colonial
Door style is Troon in Very Berry
featuring Prestige glass
TROON, MUIRFIELD & COLONIAL
A traditional six panel design gives the Classical interest and detail,
while colonial or top-light only options give you a strong sense of privacy
and security.
Page 24 | Composite Door BrochureTROON, MUIRFIELD & COLONIAL
Style: Troon Style: Troon Style: Troon
Colour: Black Colour: Mulberry Colour: Agate Grey
Glass: Impression Glass: Lanesborough Blue Glass: Artemis
Hardware: Chrome Hardware: White Hardware: Gold
Style: Troon Style: Troon Style: Troon
Colour: Diablo Colour: Rosewood Colour: White
Glass: Birchwood Glass: Prestige Glass: Diamonte
Hardware: Satin lever pad Hardware: Gold Hardware: Black lever pad
Composite Door Brochure | Page 25SUNNINGDALE
Style: Sunningdale Style: Sunningdale Style: Sunningdale
Colour: Black Colour: Azure Colour: Chartwell Green
Glass: Prestige Glass: Impression Glass: Artemis
Hardware: White Hardware: Chrome lever pad Hardware: Black lever pad
Style: Sunningdale Style: Sunningdale Style: Sunningdale
Colour: Bolero Colour: Mulberry Colour: Stormy Seas
Glass: Birchwood Glass: Tranquility Glass: Diamonte
Hardware: Satin lever pad Hardware: Gold Hardware: Gold
Page 26 | Composite Door BrochureSUNNINGDALE
Sunningdale
Farmhouse Solid
Door style is Sunningdale in Citrine
featuring Prestige glass
SUNNINGDALE
The Sunningdale is available with a wide range of glass designs.
Composite Door Brochure | Page 27BELFRY
Belfry
Belfry3
Door style is Belfry in Chartwell Green
featuring Grange glass
BELFRY
Unlike other ‘cottage’ doors in the market, the Belfry has a unique ‘offset
etched’ detailing and comes in two glazing styles.
Page 28 | Composite Door BrochureBELFRY
Style: Belfry Style: Belfry Style: Belfry
Colour: Anthracite Colour: California Colour: Diablo
Glass: Grange Glass: Artemis Glass: Tranquility
Hardware: Chrome Hardware: Chrome lever pad Hardware: Black lever pad
Style: Belfry 3 Style: Belfry 3 Style: Belfry 3
Colour: Red Colour: Moonshine Colour: Clotted Cream
Glass: Tranquility Glass: Grange Glass: Lanesborough
Hardware: Satin lever pad Hardware: Gold Hardware: Gold
Composite Door Brochure | Page 29GLENEAGLES
Style: Gleneagles Style: Gleneagles Style: Gleneagles
Colour: Black Colour: Blue Colour: Green
Glass: Artemis Glass: Impression Glass: Birchwood
Hardware: White Hardware: Chrome lever pad Hardware: Black lever pad
Style: Gleneagles Style: Gleneagles Style: Gleneagles
Colour: Red Colour: Slate Grey Colour: White
Glass: Synergy Glass: Panama Glass: Artemis
Hardware: Satin lever pad Hardware: Gold Hardware: Gold
Page 30 | Composite Door BrochureGLENEAGLES
Door style is Gleneagles in Black
featuring Impression glass
GLENEAGLES
With its American styling, the Gleneagles composite door is proving to be as
popular here in the UK.
Composite Door Brochure | Page 31CONTEMPORARY DOORS
With its clean crisp sightlines, flush finish and
bold glazing options Augusta is a true statement
door. Evoking the glamour of the art deco
period, its sophisticated styling is carried
through to a dedicated contemporary
hardware range.
CONTEMPORARY DOORS
DOOR LIGHT AND GLASS OPTIONS
Esprit provides a canvas for your creativity. It’s your choice of door light design and the glass
that you decide to put in it, that really brings this stylish and contemporary door to life.
Door light design options include minimalist single centre or off-centre designs, through to
repeating ‘stacked’ designs. A choice of cool curves or stunning diamond bursts lights are
also available.
Shape the character of your door further with your choice of glass, from simple privacy
glass to more detailed designs.
HARDWARE OPTIONS
In addition to our standard ranges, Augusta comes with a dedicated range of pull handles.
Available in three different sizes, handles feature a contemporary satin stainless steel finish,
the refined design providing the all-important finishing touch to the design of your door.
The 550mm and 720mm pull handle, the key
position is 928mm from the bottom of the slab.
The high key position on the 1400mm pull handle,
the key position is always 1379.5mm
from the bottom of the slab.
Pull bar outside only incorporates our
Cylinder Door Pull (E80700/01/02)
Pull bar both sides incorporates our Pull Bar
Escutcheon in satin (DAAFSSOVE)
550mm 720mm 1400mm Thumbturn Cylinder
(Indicative lock position only for the With our Unique “Click Secure” thumbturn design our
thumbturn euro cylinder provides a simple method of
550mm, 720mm and 1400mm) opening and closing the door from the inside without a
key, and allows for a quick and safe exit in the event of a fire. Door style is Augusta in Cream
* Kubu Smart Technology not available on this range. featuring Impression glass and
* Key position is always 1379.5mm
Page 32 | Composite Door BrochureCONTEMPORARY DOORS
White
1400mm pull bar
from the bottom of the slab with a 1400mm pull handle
Composite Door Brochure | Page 33SEMINOLE, MONZA & AUGUSTA
Door style is Seminole in Clay
featuring Impression glass and 1400mm pull bar
Monza II Augusta Long Monza II Solid Augusta Augusta Long
(Athena Glass) (Impression Glass) (Athena Glass)
Page 34 | Composite Door BrochureSEMINOLE, MONZA & AUGUSTA
Style: Seminole 3C Style: Seminole 3C Style: Seminole 3C
Colour: Citrine Colour: Cotswold Colour: Florida
Glass: Birchwood Glass: Impression Glass: Artemis
Hardware: Stainless Steel 550mm Hardware: Stainless Steel 720mm Hardware: Stainless Steel 1400mm
Pull Bar Pull Bar Pull Bar
Style: Seminole 4L Style: Seminole 4L Style: Seminole 4C
Colour: Wedgewood Colour: Very Berry Colour: Twilight
Glass: Birchwood Glass: Tranquility Glass: Artemis
Hardware: Stainless Steel 720mm Hardware: Stainless Steel 1400mm Hardware: Stainless Steel 720mm
Pull Bar Pull Bar Pull Bar
* Indicative lock position only, Kubu Smart Technology not available on this range.
Composite Door Brochure | Page 35CHANTILLY FARMHOUSE / CHANTILLY FLUSH
Style: Chantilly Farmhouse Style: Chantilly Farmhouse Style: Chantilly Farmhouse
Colour: Clay Colour: Stormy Seas Colour: Victory Blue
Glass: Prestige Glass: Lanesborough Blue Glass: Artemis
Hardware: Stainless Steel 550mm Hardware: Stainless Steel 720mm Hardware: Stainless Steel 1400mm
Pull Bar, letterplate chrome Pull Bar, letterplate chrome Pull Bar, letterplate chrome
Style: Chantilly Farmhouse Style: Chantilly Farmhouse Style: Chantilly Farmhouse
Colour: Vanilla Colour: Emerald Colour: Clotted Cream
Glass: Diamonte Glass: Birchwood Glass: Tranquility
Hardware: Stainless Steel 720mm Hardware: Stainless Steel 1400mm Hardware: Stainless Steel 720mm
Pull Bar, letterplate chrome Pull Bar, letterplate chrome Pull Bar, letterplate chrome
Letterplate position for illustration purposes only. Position may vary. Indicative lock position only.
Kubu Smart Technology not available on Pull Bar Versions.
Page 36 | Composite Door BrochureCHANTILLY FARMHOUSE / CHANTILLY FLUSH
Door style is Chantilly Flush in Black
featuring Prestige glass
Composite Door Brochure | Page 37SIDELIGHTS
Monza Troon
Door style is Monza II Augusta Long in Anthracite Grey
featuring Luxor glass and 1400mm pull bar Muirfield Colonial
SIDELIGHTS – MAKING MORE OF AN ENTRANCE
Sidelights make more of the entrance to your home. Carnoustie, Birkdale,
Penina, Monza, Troon Muirfield and Solid also come with matching side
lights. We also offer PVC-U frame side screens which can be manufactured to
your individual design.
Page 38 | Composite Door BrochureSIDELIGHTS
Style: Carnoustie side light with Lytham door Style: Birkdale side light and door
Colour: Black Colour: Black
Glass: Athena Glass: Diamonte
Hardware: Chrome Hardware: Chrome
Style: Penina side light and door
Colour: Black
Glass: Prestige
Hardware: Gold
Composite Door Brochure | Page 39COLOUR OPTIONS DOOR COLOUR OPTIONS Standard Colours We offer a range of 8 external colours with a white interior as standard. Coloured both sides available as a cost option. Premium Colours Our range of 38 premium colours are created using state-of-the-art coating technologies as used in the yacht industry. the paint has been prepared to the recommended gloss level which range from a Semi-Matt, Satin or Semi-Gloss sheen dependent upon colour. Page 40 | Composite Door Brochure
* Please note that due to the physical differences of a PVC-U outerframe and the GRP skin of the door,
we cannot guarantee an exact colour match of door and outerframe.
RAL Colours
Any RAL colour is available from us as a special order.
Here are the most requested colours as an example.
Composite Door Brochure | Page 41Door style is St Andrews in Black
featuring Tranquility glass
Page 42 | Composite Door BrochureFRAMING YOUR DOOR
Door style is Belfry in Chartwell Green Door style is Seminole in Clay
featuring Impression glass
FRAMING YOUR DOOR
YOU CAN ALSO CHOOSE THE COLOUR
AND FINISH OF YOUR DOOR FRAME.
The classic design of a white door frame against a solid
door colour provides contrast, showing off your door
but you can also choose subtle combinations, which
will connect your door to the fabric of your home that
surrounds it.
Choose from standard white, light oak or rosewood
finishes or your individual colour choice.
You can also choose to have a colour finish on the outside
and white inside, or any combination of colours inside
Door style is Augusta in Cream White
and out.
featuring Impression glass
Door style is Augusta Long in Golden Oak Door style is Gleneagles in Black
featuring Athena glass featuring Impression glass
Composite Door Brochure | Page 43GLASS OPTIONS
GLASS OPTIONS
CHOOSE THE PERFECT DESIGN FOR YOUR HOME
DoorCo Door Brochure 2016_Layout 1 29/03/2016 16:17 Page 51
The decorative touch that defines your door, our wide range of glass
options offer you the perfect choice.
Lanesborough Impression***
Whatever your preference, all of our doors are internally glazed, while
For a traditional
For Victorian look,
a traditional Dorchester
Victorian look, DorchesterStunning black chromeblack
Stunning cameing combined
chrome cameing combinedA mod
glass units achieve top ratings for energy efficiency, keeping youris the
home
perfectischoice combining
the perfect choicevibrant
combining vibrant with satin and grey
with bevelled
satin glass
and grey pieces,glass pieces, Moden
bevelled
‘Spectrum Glass’ with textured
‘Spectrum glass
Glass’ with and glass and Reflections makes
textured a classy
Reflections yet striking
makes a classy yet striking pieces
safe, warm and welcoming. traditional lead. Available
traditional in 3Available
lead. border colour
in 3 border colourstatement encapsulated inside a double
statement encapsulated glazed
inside and po
a double glazed
options: Amber, Blue Amber,
options: and Green.
Blue and Green. unit for easeunit
of cleaning.
for ease of cleaning.
This European style design is produced using The Takoma and Yukon ranges of glass are
high grade brushed stainless Inox elements, that designed to focus on European styling that suits
are bonded to the centre pane of glass using a the door that surrounds them. Contemporary,
specialist technique. The combination of Inox clean, simple etched designs that have proved
and etched glass provide a unique contrast. very popular when creating that modern feel.
Grange Choose from Luxor*
a wide range
of great Pilkington designs
ngton Texture Glass Pilkington Texture Glass
lacement Range Replacement
The Kensington range of glass is simplistic, but Sandblasted and Range
Millennium glass areSimplicity
Both and
Both This European
Elegance
Simplicity have
and style have
proven
Elegance design is produced
to beproven
hugely popular
to using
designs
be hugely The Takoma
combining
popular designs and Yukon
a combining
combination ofranges of Simple
a combination glass
of a
elegant. The clear border combined with satin separated by on off centre clear dividing
texturedline high
handgrade brushed stainless Inox elements,
glassthat designed to focus on
is European
Simplicitystyling
ispattert
need replacement glass to match an existing
centre allows just the perfect amount of light to
n, don’t worry, we have a number of well-
Choose from a wide range
If you need replacement glass to match an existing
offering a stunning , yet clean contemporary
glasses
available in either
withglasses
textured
are
Brass
available
cutwith
orbonded
polished
to the
ZincBrass
in either came
bevelled
hand cut
centre
options.
or Zinc pane
came
glass
polished which
bevelled sparkle
of glass using a
options.
in thesparkle
which sunlight. Simplicity
in the sunlight.
the door that surrounds them. Contemp double
flood through the entrance of your home. design, don’t look toworry, we have a number of well-
ished designs that are still available.
your door.
of great Pilkington designs
established designs that are still available.
specialist technique. The combination of Inox
and etched glass provide a unique contrast.
clean, simple etched designs that have p
very popular when creating that modern
Tranquility** Panama Prestige** Artisan* Diamonte**
Pattern Design
Using patented technology that allows for an Sophisticated, contemporary design
incredibly intricate bevelled effect design, French incorporating various glass textures with clear
also has enhanced security and sound insulation ‘came’ lines. Havana is a twist on lineal Art Deco
due to the materials used in their manufacture. period style that is appealing, and provides
Available in: Emerald, Onyx, Ruby and Sapphire. insulated units with excellent acoustic values.
Flemish™ Sycamore™ Flemish™ Sycamore™
Privacy Level 2 Privacy Level 2 Privacy Level 2 Privacy Level 2
Athena Pattern
Artemis Design
Florielle Privacy Level 4
™
Optimal Birchwood*** Synergy***
Taffeta™ Privacy Pelerine ™ Everglade™
A stunningly simple design, Quartz is created SimulatedLevel 3 create the look of
divided lights Simple in design,
SimpleZinc Using
inArt Star
design,patented
Art technology
combines
Zinc glue
Star combinesthatglue
allows for anetched
Combining Sophisticated,
glass
Combining glasscontemporary
with hand-made
etched with ‘fused design
glass’
hand-made eleme
‘fused
using hand cut glass centres, that are polished individual panes of glass, whilst maintaining the incredibly Privacy
intricate Level
bevelled effect 5design, Privacy Level 5
chipped star bevels with
chipped starabevels
zinc caming.
with The
a zinc caming. TheFusion ArtFrench
ranges Artaincorporating
Fusionare are a various
truly modern
ranges glass
decorative
truly modern textures
glass wi
option.
decorative
OBSCURE GLASS OPTIONS
and bonded within a clear border. The contrast performance benefits of a single double glazed
decorative bevelled
decorative also
elementshas
bevelled enhanced
stand security
out from
elements and
stand out fromsound insulation
5 colourways5to ‘came’
complement
colourways lines. Havana is
or contrast with
to complement a twist on lineal
the doorwith
or contrast thA
colou
between texture and etch offers a beautiful unit. Selectively etched panels ensure privacyobscure due to thesurrounds
materials used in theirthem
manufacture. period style
Red.that is appealing, and prov
combination.
the neutral
without sacrificing natural light. in striking fashion. Choose from a wide range
glass
the neutral that
obscure
in strikingAvailable
glass thatthem
surrounds Green, PurpleGreen,
fashion. in: Emerald, Onyx, Ruby and Sapphire.
and Red.
Purple and
insulated units with excellent acoustic
of great Pilkington designs
dly coloured glass Fuego is a bold design that stands out from the crowd. Specifically designed
PRIVACY FOR YOUR HOME
d fused together at
ment is triple glazed
for the Paris and Biarritz style Inox door, this modern fused glass range
enables™you to perfectly complement the glass with the door. Available in
Autumn Arctic ™
Autumn™ Arctic™
rn Design
k, Blue, Copper,A choice
Green ofcolour
five
Privacy designs
Level options, , our
3 Black, range
Blue, of etched
Copper, Mayflower
Green and Purple.
Florielle
™glass
Privacy
™
adds
Level
Privacy
Privacy
4 aPelerine
Level
™ Level 4
4touch of™ style,
Privacy elegance
Level 3 and privacy to yourLevel
Privacy home.
4
Chantilly Privacy Privacy
Level 2 Level 5
Taking a 2000 year old glass technique of The Cielo design is vibrant and visually stunning.
The simplicity ofVividly
The coloured
brilliant
simplicity cutoflinesglass
Contora
combined
brilliant Fuego
cut lines combined
™ is adelicately
The bold design that stands
shaped
The out
clearshaped
delicately glass from theglass
bevels
Charcoal
clear crowd.
glisten Specifically
against
Sticks
bevels the ea
glisten
melting coloured glass together, our Fusion Art pieces are mounted on to a textured
withbackground,
soft satin
with and
glass fused
softgives together
satinLinear
glass agivesat Linear
classic
Privacy appeal for theappeal
a Level
classic Paris
surround
4 andand
Biarritz
createstyle
surround aandInox
look ofdoor,athis
lookmodern
understated
create and fused glass
tasteful
of understated elegara
and ta
Privacy Level 4 E
™ products are then triple glazed inside aMinster
high ™ high
™4 temperatures. Once cooled, the decorative element is triple glazed enables
Oak Privacy ™Level 3you to™ perfectly complement the glass with the door. Avail
™
rielle™ Privacy Level Stippolyte
4 Mayflower Cotswold Privacy
Privacy Level 4 2Stippolyte
Level that suits
™
both traditional
that suitsTaffeta
both and contemporary
traditional
™ Cotswold
and contemporary
Privacy Level coloured Blue, Green, Grey,
coloured Blue, Purple or RedPurple
Green, Grey, borders to complem
or Red borders
Satin
Privacy Levelperformance
4
Cotswold™
insulated glass unit to give the
Stippolyte™
to create
Privacy Level 5 a high quality sealed unit.
Privacy Level
Minster™
Available
4 in Black, Blue, Copper,
Black
Green
Grey Sticks™
five
Privacycolour options,
Level 5 Black, Blue,
Contora™
Copper, Green and Purple. P
door styles. Only
dooravailable
styles. Onlyin aavailable
limited range of range
in a limited colour,
of Designer EtchDesigner
colour, allows youEtchtoallows
harmoniously personalise
you to harmoniousl
at Opal Privacy Level 5
™ highest levels of thermal efficiency. and Purple colour options. door styles. door styles. and door. and door.
fted by adding cut fusible glass pieces, and We have taken the traditional bullion and created
d glass frit in a complimenting colour around a unit that is suitable for use in a modern door.
able in Black, Blue, Copper, Green and Purple and With its deep, effective circular indentations, this
ct textured background. will enhance any cottage style door, while
maintaining the desired aesthetics. Contora™
Privacy Level 4 Pelerine™
Privacy Level 5
™ ™Warwick Privacy Level 1
™
Digital Privacy Level 3
Oak Privacy Level 4 Chantilly™ Privacy Level 2 Pelerine™
yflower™ Privacy Florielle™
Level 4 Mayflower™ Oak™ Digital™ Chantilly™
To discover more about the use of Warwick™
please visit our website pilkington.co.uk/textureglass
* Clear Bevels ** Textured Bevels *** Mixture of Clear and Textured Bevels. Door styles are also available with fully clear or obscure double glazed options, as shown above
pilkington.co.uk/texture
Please note double glazed options, do not come as laminated / SBD as standard unless specified.
Page 44 | Composite Door Brochure
Each piece of glass in the Lucero range will be unique due to the wispy This unique design is crafted by adding cut fusible glass pieces, and We have taken the traditional bullion anHARDWARE OPTIONS
HANDLES, HARDWARE & DOOR FURNITURE
Your door handle is the part of your new door that you’ll touch each and every day. Your letter plate, choice of
knocker, all come together to put the all-important finishing touches to your new door.
Whether you’re designing a contemporary, bold, statement door, or recreating the timeless charm of a period
installation, we can offer you the perfect choice of lever, pad lever, heritage or contemporary pull handles
available in white, gold, chrome black and satin finishes.
Stainless Steel Standard (Zinc/ DDA (Zinc/ Standard
lever/lever Aluminium) Aluminium) (Zinc/Aluminium) Secured By Design
lever/lever lever/lever lever/pad Letterplate*
External
Internal
Gold
External
Internal
Satin
Satin
External
Internal
Chrome
External
Internal
Black
External
White
Internal
We also offer a Long Lever easier to grip Handle (3rd column above) which offers a greater, smooth action and low operating forces required to
operate handle. The ample lever-to-door surface clearance option, are Compliant with Document M of the The Disability Discrimination Act (DDA),
which states that the door handle needs to be able to be operated one handled without tightly grasping or any twist on the wrist.
Stainless steel options are available, for ultimate corrosion resistance which come with a 10 year guarantee. These are shown in the 1st column
above. Standard Black and White Zinc / Aluminium hardware is also covered with a 10 year guarantee.
Appearance and finish on hardware is subject to change. Also please take into account that the product photography may slightly differ from the
physical item in terms of color, due to lighting during photo shoot and the print reproduction process.
*Supplied through our supplier Emplas, for accredited products please see:
https://www.securedbydesign.com/member-companies/sbd-members and search for Emplas Window Systems Ltd Composite Door Brochure | Page 451 Carnoustie, Birkdale & Penina Lytham / Grid Turnberry / Grid Riviera, Portrush, Sunburst
CHOOSE YOUR DOOR STYLE
DoorCo DoorDoor
DoorCo Brochure 2016_Layout
Brochure 1 29/03/2016
2016_Layout 16:17
1 29/03/2016 Page
16:17 50 50
Page
(Min width 443mm/Max width 463mm)
composite side screens
PVC-U side screens
2 5
CHOOSE YOUR SIDE PANEL CHOOSE YOUR
DOOR FURNITURE
Carnoustie Birkdale Penina (Left) Penina (Right) PVCuSS1 PVCuSS2 PVCuSS3 PVCuSS4
(CD70) (FI70) (FI70) (FI70)
Monza Troon Muirfield Colonial
Decorative Glass Options
PVCuSS5 PVCuSS6 PVCuSS7
3 Decorative
CHOOSE YOUR DOOR &
Glass
Standard colours Options
FRAME COLOUR
4
CHOOSE YOUR
GLASS DESIGN
Lanesborough Impression*** Tranquility**
Amber, Blue and Green
For a traditional Victorian
For a traditional look, Dorchester
Victorian look, Dorchester Stunning black chrome
Stunning cameing
black chrome combined
cameing combined A modern twist on
A modern a traditional
twist technique
on a traditional techniqu
is the perfect choice choice
is the perfect combining vibrantvibrant
combining with satin
withand grey
satin andbevelled glass pieces,
grey bevelled glass pieces, Modena combines
Modena hand cut
combines textured
hand glass gla
cut textured
‘Spectrum Glass’ with
‘Spectrum Glass’textured glass and
with textured glass and Reflections makesmakes
Reflections a classya classy
yet striking
yet striking pieces,pieces,
contemporary fused glass
contemporary fusedelements
glass eleme
traditional lead. Available
traditional in 3 border
lead. Available colour colour
in 3 border statement encapsulated
statement inside ainside
encapsulated double glazedglazed and polished
a double zinc cameing.
and polished zinc cameing.
options: Amber,Amber,
options: Blue and Green.
Blue and Green. unit forunit
easeforofease
cleaning.
of cleaning.
Grange Luxor* Athena
Page 46 | Composite Door BrochureSt Andrews/Solid Troon/Colonial Muirfield Sunningdale Farmhouse Farmhouse Belfry Belfry 3 Gleneagles Seminole Monza II Monza Solid Chantilly Augusta Augusta Long
Solid Pevero Square Augusta Long
Secured By Design Letterplate****
Stainless Steel Handles Cylinders available with thumbturns
as shown on the 2nd row below
External
DDA
Pull bar outside only incorporates our
Pull bar both sides incorporates our Pull Bar Escutcheon
DDA DDA Cylinder Door Pull (E80700/01/02)
in satin (DAAFSSOVE)
hure 2016_Layout 1 29/03/2016 16:17 Page 51 Internal
Premium colours
The Takoma and Yukon ranges of glass are
at designed to focus on European styling that suits
the door that surrounds them. Contemporary,
clean, simple etched designs that have proved
Monza II Augusta Long
very popular when creating that modern feel.
Monza II Augusta
Turnberry Grid
Seminole 3 / 4
Pevero Square
Augusta Long
Sunningdale
Lytham Grid
St Andrews
Gleneagles
Carnoustie
Turnberry
Muirfield
Sunburst
Chantilly
Portrush
Augusta
Belfry 3
Birkdale
Belfry 1
Lytham
Riviera
Penina
Troon
Grange • • •
Prestige • • • • • • • • • •
Lanesborough • • • • • • • • • • • • • • •
The Kensington range of glass is simplistic, but
elegant. The clear border combined with satin
Sandblasted and Millennium glass are
separated by on off centre clear dividing line
This European style design is produced using
high grade brushed stainless Inox elements, that
The Takoma and Yukon ranges
Artisanof glass are
• • •
designed to focus on European styling that suits
• • • •
centre allows just the perfect amount of light to offering a stunning , yet clean contemporary are bonded to the centre pane of glass using a the door that surroundsOptimal
them. Contemporary, • • • •
flood through the entrance of your home.
Panama look to your door.
Prestige** specialist technique.
Artisan* The combination of Inox
and etched glass provide a unique contrast.
clean,
Birchwood***simple etched designs that have proved
Panama
very popular when creating that modern feel.
• •
Sophisticated, contemporary design Artemis • • • • • • • • • • • • • • • • • • • •
ch incorporating various glass textures with clear Athena • • • • • • • •
on ‘came’ lines. Havana is a twist on lineal Art Deco
period style that is appealing, and provides
Luxor • • • • • • • • •
. insulated units with excellent acoustic values. Synergy • • • • • • • • •
Birchwood • • • • • • • • • • • • • • • •
Impression • • • • • • • • • • • • • • • • • •
Tranquility Zinc • • • • • • • • • • • • • • • •
Tranquility Brass • • • • • • • • • •
Diamonte • • • • • • • • • •
Artemis Optimal Diamonte** Synergy*** • Glass available in Toughened or Laminated, • Toughened not available - Laminated as standard, • Laminated not available - Toughened as standard • Glass available in Toughened and Laminated
A stunningly simpleand
Appearance design,
finish Quartz is created
on hardware Simulated
is subject to change. divided
Also please takelights create the
into account thatlook of
the product Using
photography patented
may technology
slightly differ from thethat allows
physical itemfor an of colour,
in terms Sophisticated,
due to lightingcontemporary design
during photo shoot and the print reproduction process. **** Supplied through our supplier Emplas, for accredited products please see:
* Clear
using hand cutBevels
glass ** Textured
centres, thatBevels *** Mixture of Clear
are polished and Textured
individual panes ofBevels
glass, whilst maintaining the incredibly intricate bevelled effect design, French incorporating various glass textures with clear https://www.securedbydesign.com/member-companies/sbd-members and search for Emplas Window Systems Ltd
and bonded within a clear border. The contrast performance benefits of a single double glazed also has enhanced security and sound insulation ‘came’ lines. Havana is a twist on lineal Art DecoNG GUIDE
XX% XX%
LOGO
Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX
Cert no. XXX-XXX-XXXX
100 MS1 MS2 MS3 MS4 MS5
COLOUR
Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX Cert no. XXX-XXX-XXXX
C1 C2 C3 C4
Cert no. XXX-XXX-XXXX
NTA TION
Cert no. XXX-XXX-XXXX
O1 O2
11mm
Cert no. XXX-XXX-XXXX
PLEA SE INDICA TE W
LOGO COLOUR A NYou can also read
