The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
The Acute Management of Pelvic
         Ring Injuries

                Sean E. Nork, MD
             Harborview Medical Center

   Original Author: Kyle F. Dickson, MD; Created March 2004
       New Author: Sean E. Nork, MD; Revised January 2007
                     Revised: December 2010
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Pelvic Ring Injuries

High energy

Morbidity/Mortality

Hemorrhage
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Pelvic Ring Injuries
An unstable pelvic injury may
  allow hemorrhage to collect
  in the true pelvis as there is
  no longer a constraint
  which allows tamponade.
The volume was traditionally
  assume to be a cylinder
  with a volume of 4/3π r3,
  However…

             Best estimated by a hemi-elliptical sphere
                        (Stover et al, J Trauma, 2006)
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Primary survey: ABC’s
Airway maintenance with cervical spine
    protection
Breathing and ventilation
Circulation with hemorrhage control
Disability: Neurologic status
Exposure/environment control: undress
   patient but prevent hypothemia
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Considerations for Transfer or Care at a Specialized Center:
                         Pelvic Fractures

•    Significant posterior pelvis instability/displacement on the initial AP
     X-ray (indicates potential need for ORIF)

•    Bladder/urethra injury

•    Open pelvic fractures

•    Lateral directed force with fractures through iliac wing, sacral ala or
     foramina

•    Open book with anterior displacement > 2.5 cm (value of 2.5
     centimeters somewhat arbitrary and controversial with regards to
     reliability)
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Physical Exam
• Degloving injuries

• Limb shortening

• Limb rotation

• Open wounds

• Swelling &
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Defining Pelvic Stability???

• Radiographic

• Hemodynamic

• Biomechanical (Tile & Hearn)

• Mechanical

“Able to withstand normal
   physiological forces without
   abnormal deformation”
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...

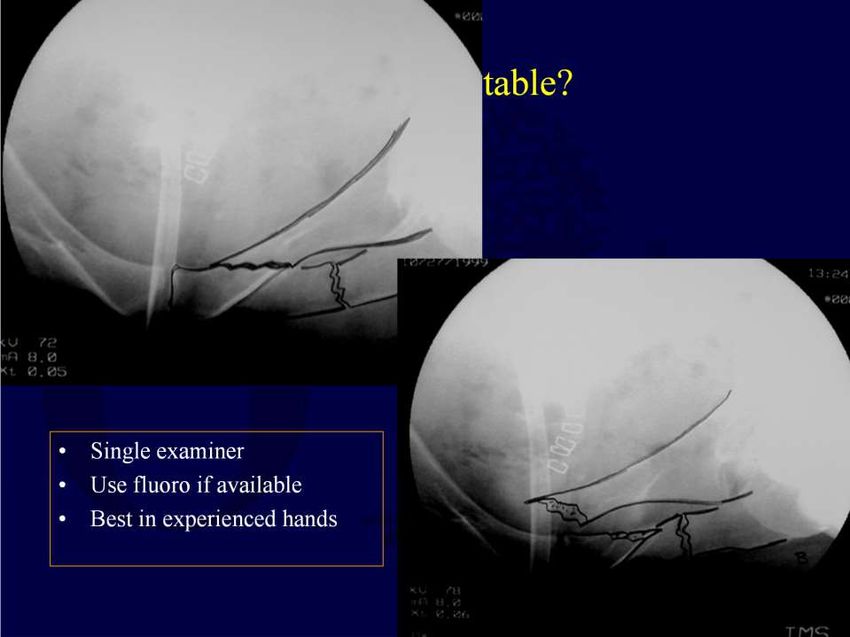

Stable or Unstable?

• Single examiner
• Use fluoro if available
• Best in experienced hands
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Radiographic Signs of Instability
• Sacroiliac displacement of 5 mm in any
  plane

• Posterior fracture gap (rather than
  impaction)

• Avulsion of fifth lumbar transverse process,
  lateral border of sacrum (sacrotuberous
  ligament), or ischial spine (sacrospinous
  ligament)
The Acute Management of Pelvic Ring Injuries - Sean E. Nork, MD Harborview Medical Center - Orthopaedic Trauma ...
Open Pelvic Injuries
• Open wounds extending to the colon, rectum,
  or perineum: strongly consider early diverting
  colostomy

• Soft-tissue wounds should be aggressively
  debrided

• Early repair of vaginal lacerations to minimize
  subsequent pelvic abscess
Urologic Injuries
• 15% incidence

• Blood at meatus or high riding prostate

• Eventual swelling of scrotum and labia
  (occasional arterial bleeder requiring surgery)

• Retrograde urethrogram indicated in pelvic
  injured patients
Urologic Injuries
• Intraperitoneal & extraperitoneal bladder ruptures are usually
  repaired

• A foley catheter is preferred

• If a supra-pubic catheter it used, it should be tunneled to
  prevent anterior wound contamination

• Urethral injuries are usually repaired on a delayed basis
Sources of Hemorrhage
• External (open
  wounds)

• Internal: Chest
•                     Long
    bones
•                     Abdominal
•
        Retroperitoneal
Sources of Hemorrhage
• External (open
  wounds)
                                  Chest x-ray
                                  Physical exam, swelling
• Internal: Chest                 DPL, ultrasound, FAST
•                     Long
                                  CT scan, direct look
    bones
•                     Abdominal
•
        Retroperitoneal
Shock vs Hemodynamic
         Instability
        • Definitions Confusing
• Potentially based on multiple factors &
                 measures

             • Lactate
           • Base Deficit
         • SBP < 90 mmHg
    • Ongoing drop in Hematrocrit
Pelvic Fractures & Hemorrhage
• Fracture pattern associated with risk of vascular injury (Young & Burgess)

    •               External rotation and vertical shear injury patterns at
                    higher risk for a vascular injury that internal rotation
                    patterns
•       APC & VS (antero-posterior compression and vertical shear) at increased
                                  risk of hemorrhage

         •   Injury patterns that are tensile to N-V structures at increased risk
                    • (eg iliac wing fractures with GSN extension

                                                              Dalal et al, JT, 1989
                                                             Burgess et al, JT, 1990
                                                            Whitbeck et al, JOT, 1997
                                                            Switzer et al, JOT, 2000
                                                            Eastridge et al, JT, 2002
Pelvic Fractures & Hemorrhage:
                  Young and Burgess Classification

Lateral
Compression
(LC)

Anteroposterior
Compression
(APC)

                                      V
                                          eased
Vertical Shear
(VS)
Hemorrhage Control: Methods
       • Pelvic
         Containment
       •              Sheet
       •              Pelvic Binder
       •              External
           Fixation

       • Angiography

       • Laparotomy
Circumferential Sheeting
• Supine                                         2
                        1
• 2 “Wrappers”

• Placement

• Apply

• “Clamper”         4                            3
• 30 Seconds

                        Routt et al, JOT, 2002
Sheet Application
Sheet Application

     Before
After
Pelvic Binders

          Commercially available.
          Placed over the
          TROCHANTERS and not
          over the abdomen.
External Fixation
• Location          Clinical Application

  AIIS                  Resuscitative

  ASIS                 Augmentative

 C-clamp                 Definitive
Biomechanics of External Fixation: Anterior
             External Fixation
• Open book injuries with posterior ligaments
                (hinge) intact:
                   •
            • All designs work

            C-type injury patterns

No designs work well (but AIIS frames help more
               than ASIS frames)
Biomechanics of External Fixation:
        Considerations

            • Pin size

        • Number of pins

         • Frame design

        • Frame location
AS   Frames
• Placed at the
  iliac crests
  bilaterally
• Not a good
  vector for
  controlling the
  pelvis
AI
• Placed at the AIIS
  bilaterally
• At least biomechanically
  equivalent, thought to be
  superior to ASIS frames

• Patients can sit

      Kim et al, CORR, 1999
AIIS Frames
Placed at the AIIS
  bilaterally
At least biomechanically
  equivalent, thought to
  be superior to ASIS
  frames

Patients can sit

      Kim et al, CORR, 1999
Indications for External Fixation
• Resuscitative (hemorrhage control,
    stability)

• To decrease pain in
  polytraumatized patients?

• As an adjunct to ORIF

• Definitive treatment (Rare!)
•          Distraction frame
•          Can’t ORIF the pelvis
Indications for External Fixation
• Resuscitative (hemorrhage control,
    stability)

• To decrease pain in
  polytraumatized patients?

• As an adjunct to ORIF

• Definitive treatment (Rare!)
•          Distraction frame
•          Can’t ORIF the pelvis
Indications for External Fixation
• Resuscitative (hemorrhage control,
    stability)
                                       Theoretical and a
• To decrease pain in                  marginal indication,
  polytraumatized patients?            but there is literature
                                       support

• As an adjunct to ORIF

• Definitive treatment (Rare!)         Barei, D. P.; Shafer, B. L.; Beingessner, D.
                                       M.; Gardner, M. J.; Nork, S. E.; and Routt,
•          Distraction frame           M. L.: The impact of open reduction internal
•          Can’t ORIF the pelvis       fixation on acute pain management in unstable
                                       pelvic ring injuries. J Trauma, 68(4): 949-53,
                                       2010.
Indications for External Fixation
• Resuscitative (hemorrhage control,
    stability)

• To decrease pain in
  polytraumatized patients?

• As an adjunct to ORIF

• Definitive treatment (Rare!)
•          Distraction frame
•          Can’t ORIF the pelvis
Indications for External Fixation
• Resuscitative (hemorrhage contr ol,
    stability)

• To decrease pain in
  polytraumatized patients?

• As an adjunct to ORIF

• Definitive treatment (Rare!)
•          Distraction frame
•          If can’t ORIF the pelvis
Technical Details: ASIS & AIIS Frames
Pin Orientation: ASIS
Pin Orientation: AIIS
Pin Orientations
Technical Details: ASIS
•   Fluoro dependent
                     frames…
•   3 to 5 cm posterior to the ASIS
•   Along the gluteus medius pillar
•   Incisions directed toward the
    anticipated final pin location
•   Pin entry at the junction of the lateral
    2/3 and medial 1/3 of the iliac crest
    (lateral overhang of the crest)

•         Aim: 30 to 45
          degrees (from lateral to
•         medial)
                     Toward the hip joint

    Consider partial closed reduction first!
Outlet Oblique Image

• Inner Table

• Outer Table

• ASIS
Outlet Oblique Image

• Inner Table

• Outer Table

• ASIS
Confirm Pin Placement
Technical Details: AIIS
                       frames…
• Fluoro dependent:
•   1. 30/30 outlet/obturator obl       ique
    (confirm entry location and directi on)
•   2.    Iliac oblique (confirm dir ection
    above sciatic notch)
•   3.    Inlet/obturator oblique (c onfirm
    depth)
• Incisions directed toward t he
  anticipated final location
• Blunt dissection

• Aim:             According to
  fluoro
      Consider partial closed reduction first!
• Outlet Obturator Oblique Image

           Outlet Obturator Oblique Image
5 degrees too much obturator   5 degrees too little obturator

 5 degrees too much outlet       5 degrees too little outlet
5 degrees too much obturator   5 degrees too little obturator

 5 degrees too much outlet       5 degrees too little outlet
JUDITH                          H.M.C. #6
                                  DR. NORK
2
H5U02854
   EY           •
                                        13:32:44
 5/29/2006 · - ' - - . . .                  #0019

                       .

                           fJ

                                                    JUDITH        H.M.C. #6
                                                    HUEY            DR. NORK
                                                    2502854
                                                     5/29/2006            13:36:02

                                                                              #0021

 kU   71
 mR 8.0
 Xt 3.45
 PEL 2689320

                                                     kU   70
                                                     mR 8.0
                                                     Xt 3.55
                                                    PEL 2689320        ZIEHM
• Iliac Oblique Image
Inlet Obturator Oblique Image
Outlet Obturator Oblique Image
Pin Orientation

Inlet (with obturator oblique)
Pin Orientation

Inlet (with obturator oblique)
Anti-shock Clamp (C-clamp)
Better posterior pelvis
  stabilization

Allows abdominal access

Consider application with
  fluoro or in the OR to
  prevent poor pin placement

Can be combined with pelvic
  packing
                               Ertel, W et al, JOT, 2001
Anti-shock Clamp (C-clamp)
Better posterior pelvis
  stabilization

Allows abdominal access

Consider application with
  fluoro or in the OR to
  prevent poor pin placement

Can be combined with pelvic
  packing
Anti-shock Clamp (C-clamp)
Better posterior pelvis
  stabilization

Allows abdominal access

Consider application with
  fluoro or in the OR to
  prevent poor pin placement

Can be combined with pelvic
  packing
Anti-shock Clamp (C-clamp)
Better posterior pelvis
  stabilization

Allows abdominal access

Consider application with
  fluoro or in the OR to
  prevent poor pin placement

Can be combined with pelvic
  packing
Emergent Application
C-clamp: Anatomical
                       Landmarks
•   Same (similar location) as the starting

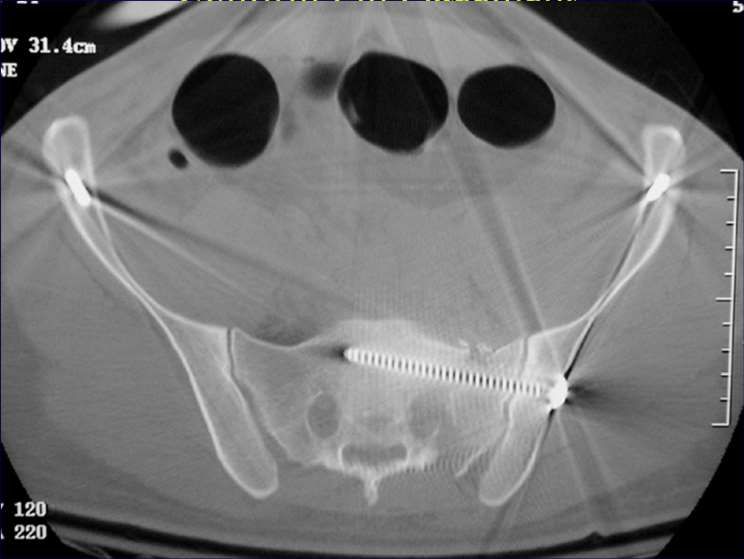

    point for an iliosacral screw
                                                     Pin Location

•   “Groove” located on the lateral ilium as
    the wing becomes the posterior pelvis

• Allows for maximum compression

                                               Near IS screw entry point
• Can be identified without fluoro in
  experienced hands

                                                Pohlemann et al, JOT, 2004
Caution…

       Avoid Over-compression in
           Sacral Fractures!
Pelvic Packing

           •   Ertel, W et al, JOT, 2001
           •   Pohlemann et al, Giannoudis et al,
Role of Angiography???

•   Valuable for arterial only

•   Estimated at 5-15%

•   Timing (early vs late?)

•   Institution dependent
Role of Angiography???

•   Fracture pattern may
    predict effectiveness

•   Contrast CT suggests

•   Effective in retrospective
    studies!!!
Vascular Injuries
• Arterial vs Venous vs
  Cancellous

• Unstable posterior ring
  association

• Associated fracture
  extension into notch

• Role of angiography
                                    Cryer et al, JT, 1988
                                    O’Neill et al, CORR, 1996
                                    Goldstein et al, JT, 1994
Acute Hemipelvectomy….
Acute Hemipelvectomy….

           Rarely required (thankfully)
           Life saving indications only
Acute Hemipelvectomy….
Retrospective evidence
  •   Hypotensivesuwgitghestsatbsle…pelvicpattern…
• Proceed to Laparotomy (85% with abdominal hemorrhage)

 • Hypotensive with unstable pelvic pattern…
     • Proceed to Angio (59% with pEoasstirtiidvgeeaentgali,oJ)T,2002

 Contrast enhanced CT very suggestive of arterial source
                       (40 fold likelihood ratio)
                     (PPV and NPV of 80%, 98%)

                                                    Stephen et al, JT, 1999
Example of a protocol for management
Example of a protocol for management
•   Hypovolemic shock and no response to fluids…
•   (+) DPL:      1. Laparotomy (+/- packing with ex fix)
•                           2. Angio
•   (-) DPL:                1. Sheet/binder/ex-fix (some still crash lap)
•                           2. Angio

Hypovolemic shock with response to fluids…
(++) DPL:          1. Laparotomy (+/- packing with ex fix)
                   2. Ex Fix
                   3. Angio
(+) DPL: 1. Ex Fix
                   2. Laparotomy
                   3. Angio
(-) DPL:           1. Sheet/binder
                   2. Angio
                   3. Ex Fix
Example of a protocol for management
Protocol for Management
• Biffl et al, Evolution of a mutlidisciplinary clinical pathway for the
   management of unstable patients with pelvic fractures. JOT, 2001

5 elements:      Immediate trauma surgeon availability (+ Ortho!)
                 Early simultaneous blood and coagulation products
                 Prompt diagnosis & treatment of life threatening injuries
                 Stabilization of the pelvic girdle
                 Timely pelvic angiography and embolization

Changes:         Patients more severely injured (52% vs 35% SBP < 90)
                 DPL phased out for U/S
                 Pelvic binders and C-clamps replaced traditional ex fix
Protocol for Management
• Biffl et al, Evolution of a mutlidisciplinary clinical pathway for the
   management of unstable patients with pelvic fractures. JOT, 2001

Mortality decreased                            from 31% to 15%
Exsanguination death                           from 9% to 1%
MOF                                            from 12% to 1%
Death (
Immediate Percutaneous Fixation

                          •   From Chip Routt, MD
Summary: Acute Management
    •        Play well with others (general surgery,
             urology, interventional radiology,
             neurosurgery)

              • Understand the fracture pattern

        • Do something (sheet, binder, ex fix, c-clamp)

•        Combine knowledge of the fracture, the patients
         condition, and the physical exam to decide on the
         next step
Thank You

                       Sean E. Nork, MD
                   Harborview Medical Center
                    University of Washington

                            HMC Faculty
Barei, Beingessner, Bellabarba, Benirschke, Chapman, Dunbar, Hanel,
    Hanson, Henley, Krieg, Routt, Sangeorzan, Smith, Taitsman
Acknowledgment

If you would like to volunteer as an author for
the Resident Slide Project or recommend           E-mail OTA           Return to
                                                  about                 Pelvis
updates to any of the following slides, please    Questions/Comments    Index
send an e-mail to ota@ota.org
You can also read
