Technical Challenges: Mounting a Tyrannosaur Skull
                 in Exploded View
                | Amy Kowalchuk;
                  amy.kowalchuk@gov.ab.ca
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
TMP2001.036.0001
Milk River Daspletosaur (AKA, MR Daspleto)
•   Daspletosaurus torosus
•   Found near Manyberries, Alberta in 2000
•   Judith River formation
•   Collection continued sporadically 2000 – 2011
•   Nearly complete skull (missing Vomer) and partial skeleton
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk

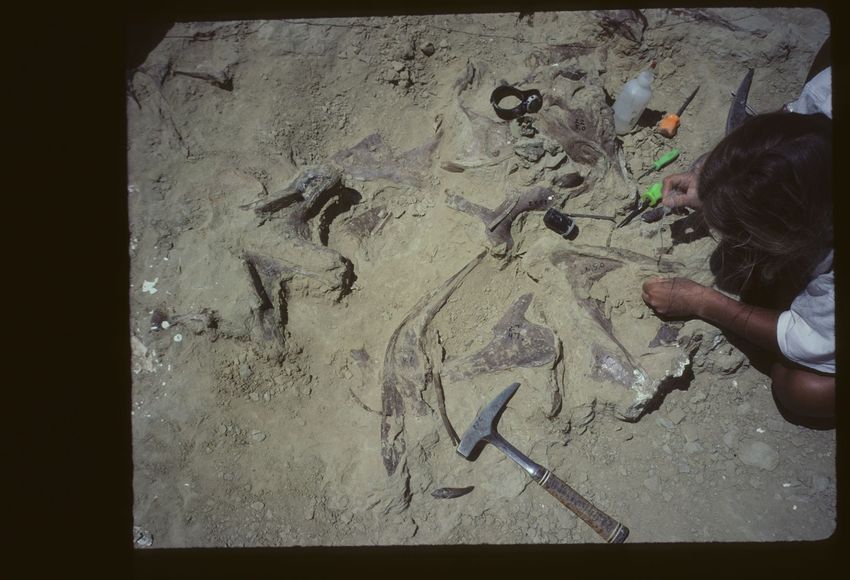

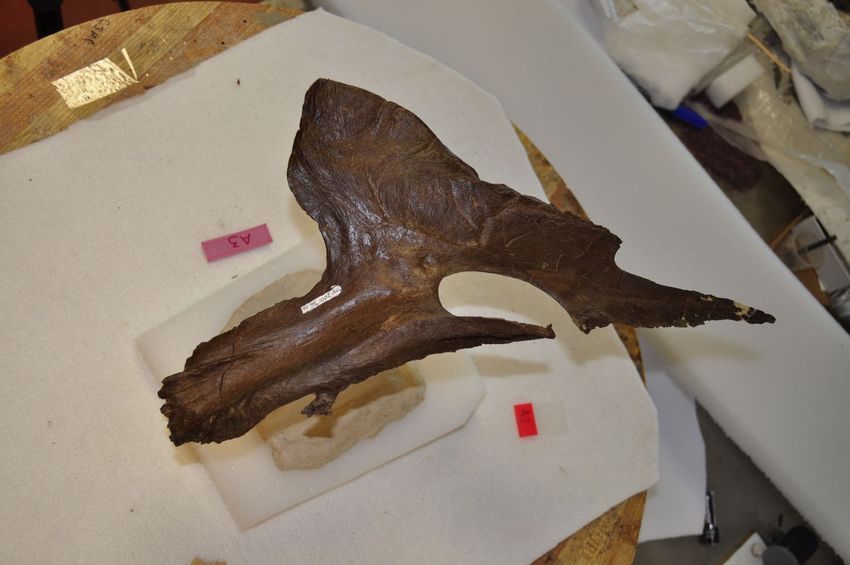

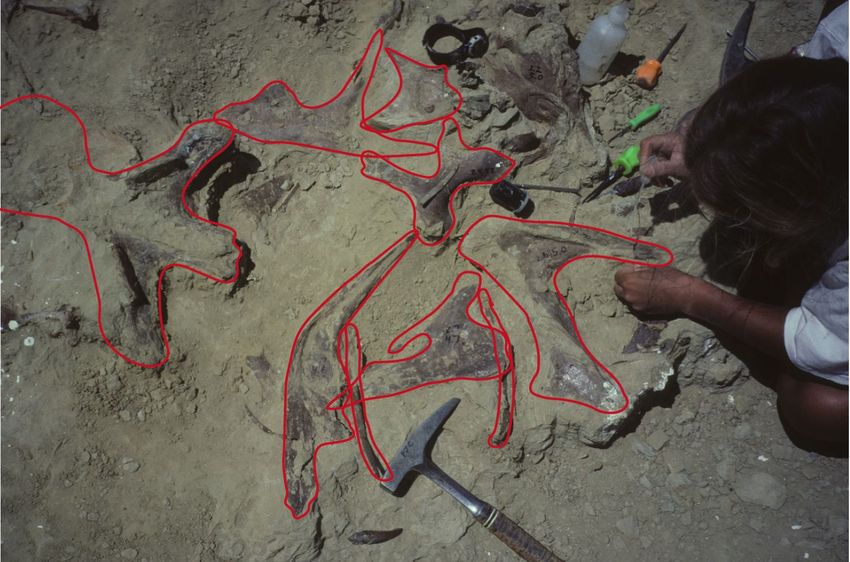

| THE SPECIMEN
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
| THE SPECIMEN
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
| THE SPECIMEN
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
| THE SPECIMEN
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
| THE SPECIMEN
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
THE CONCEPT

        | DESIGN CONCEPTS
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
BEAUCHENE SKULL

        | DESIGN CONCEPTS
Technical Challenges: Mounting a Tyrannosaur Skull in Exploded View - | Amy Kowalchuk
- These were the largest/
                                                     most robust elements

- Both Dentaries and Maxillae were cast in Aqua-Resin (S3 + L)
- Three-part molds made of Smooth-On Dragon Skin 10 FAST, and Smooth-On
  Rebound 25

                           | THE SPECIMEN
| THE SPECIMEN
| PHOTOGRAMMETRY
PHOTOGRAPHY
• Thin bones were set into modeling
  clay supports

• Allowed thin edges to be captured
  in photographs

• Minimized contact with thin edges

                       | PHOTOGRAMMETRY
| THE SPECIMEN
PHOTO PROCESSING
• Agisoft PhotoScan Professional

• Software used to create high
  resolution 3D digital models

• Processing in 4 separate steps

-   Align photos
-   Optimize cameras
-   Build dense cloud
-   Build mesh

                        | PHOTOGRAMMETRY
Step 1: ALIGN PHOTOS

    Gives you a sparse point cloud!

               | PHOTOGRAMMETRY

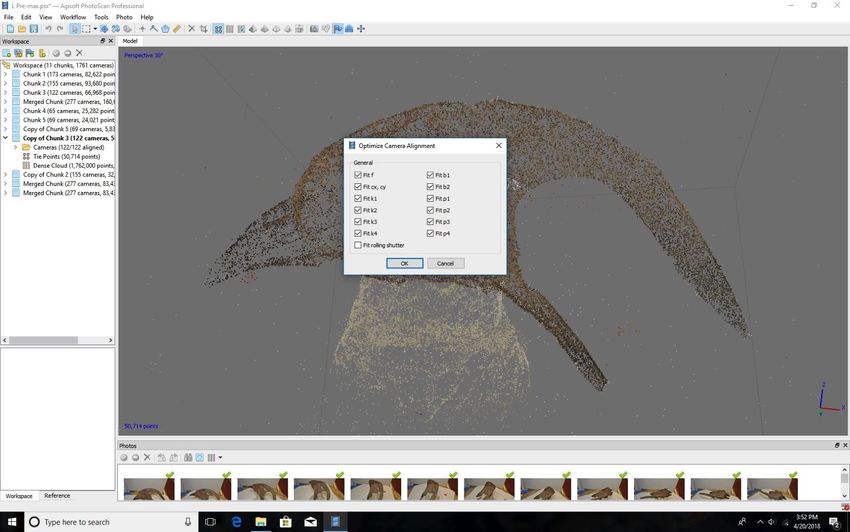

Step 2: OPTIMIZE CAMERAS

         | PHOTOGRAMMETRY
Step 2: OPTIMIZE CAMERAS

         | PHOTOGRAMMETRY
Step 3: BUILD DENSE CLOUD

         | PHOTOGRAMMETRY
Step 4: BUILD MESH

          | PHOTOGRAMMETRY
MERGING ‘CHUNKS’

- Important when there are                 - Place numbered markers
too many photographs to                    on specific landmarks that
process in one batch                       are shared between both
                                           chunks

                        | PHOTOGRAMMETRY
Step 4: SCALING THE MODEL

         | PHOTOGRAMMETRY
| PHOTOGRAMMETRY
| BUILDING THE MOUNT

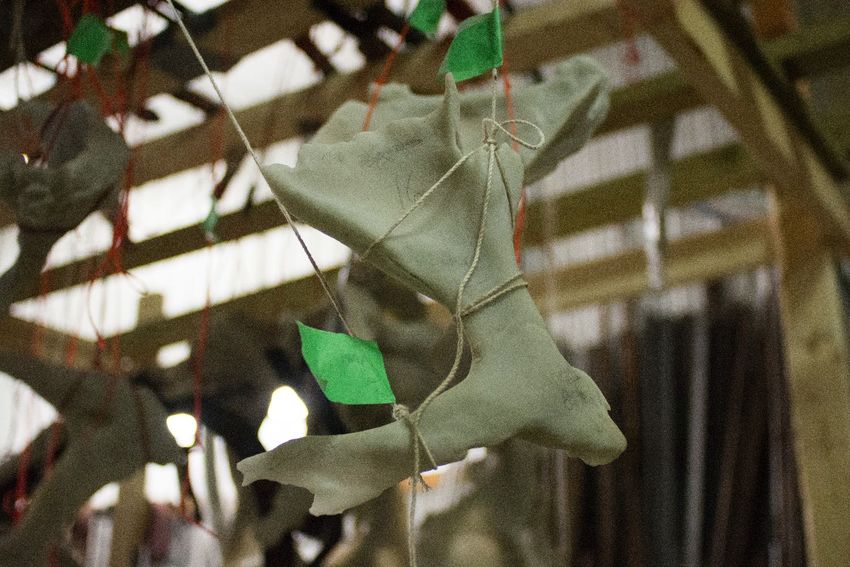

| SUSPENDING THE SKULL

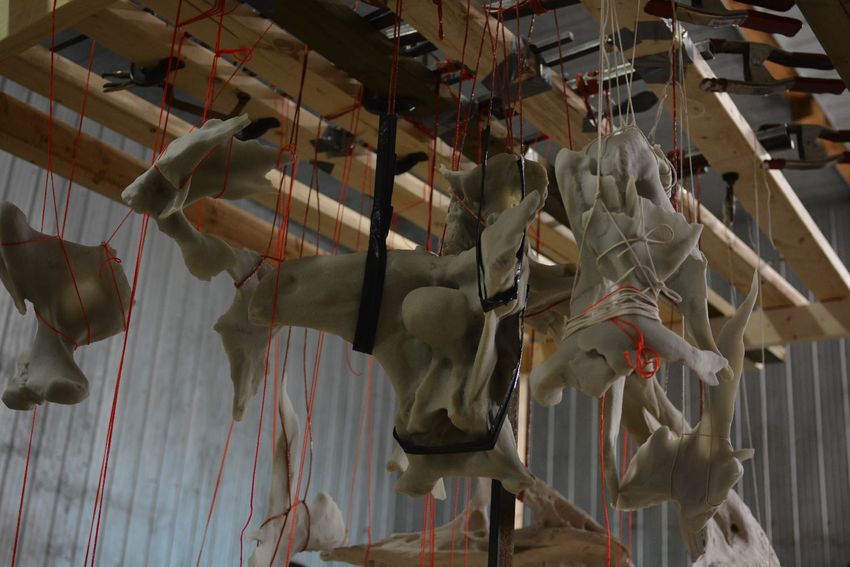

| PLACING THE BONES
| PLACING THE BONES
| ARTICULATING THE PRINTS
PERMANENTLY ARTICULATING ELEMENTS

 - Dentary and Surangular attached using
   ¼” forged steel bar

 - Other elements attached by drilling
   holes in casts at site of articulation

 - Inserted aluminium or brass pins

 - Epoxied pins into place using Devcon 2
   Ton Epoxy

                          | ARTICULATING THE PRINTS
| FORGING
| THE TEAM
| TWO SMITHS – Kitchener, ON
| SANDRA DUNN – Master Blacksmith
| BRONSON KOZDAS – Apprentice
| LYNN GRATZ – Independent Blacksmith
| TOOLS
| TOOLS
| THE FORGE
| POWER HAMMER
- Organic feel, with smooth
                   curved branches

                 - Resembles a tree, with one
                   main ‘trunk’ that branches into
                   smaller branches

| MOUNT DESIGN
| FORGING
| FORGING
| FORGING
| FORGING
| FORGING
| FORGING – TECHNICAL INPUT
| FORGING
| THE FACE OF MR DASPLETO
| THE FACE OF MR DASPLETO
| ‘THE TREE’
| ‘THE TREE’
| PAINTING THE CASTS
| PAINTING THE 3D PRINTS
| COLOR MATCHING THE SKULL
| TEETH
| ‘SHEEN’ ON THE TEETH
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
| THE DISPLAY
ACKNOWLEDGEMENTS
•   Drumheller and District Chamber of Commerce
•   Lorna O’brien – Project Manager
•   Lynn Gratz – Ton of Volunteer work on the mount
•   Two Smiths – Sandra Dunn and Bronson Kozdas
•    Sue Sabrowski, Christin Roper, Alanna Kho – Photography
QUESTIONS?
