Tiled Sculptural System Surface Architecture Sculpture
Tiled Sculptural System Giles Miller Studio uses their signature techniques to array the tiles in a pre-designed mathematical manner in order to illustrate graphic content. The studio has developed specific techniques which follow the GMS system to manipulate light and shade in order to illustrate these patterns and imagery.

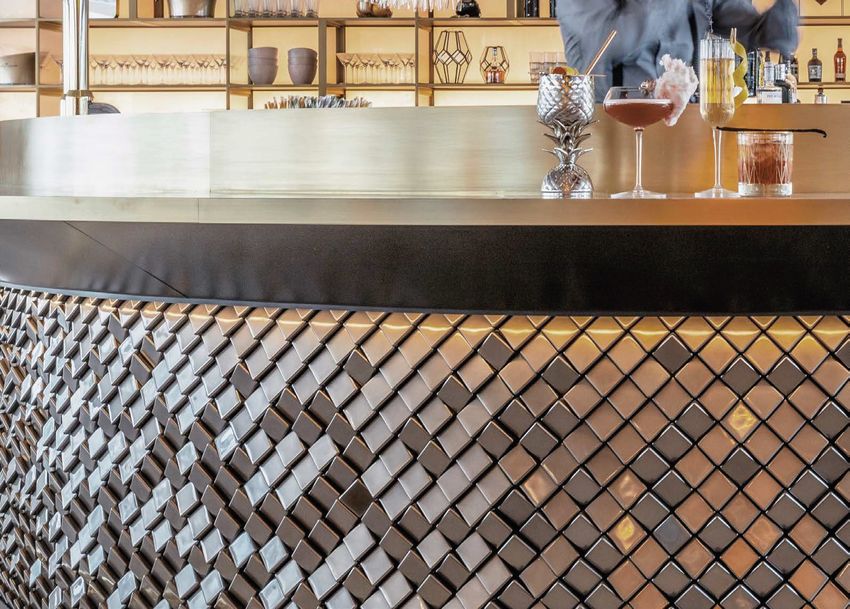

Vivi Centre Point, London The beautifully designed interior of Vivi Restaurant in London’s Centre Point incorporated the studio’s ‘Harper’ tile on the counter front at the main cocktail bar. Stunning interior design from Gordon Young and SAY Architects for Rhubarb.

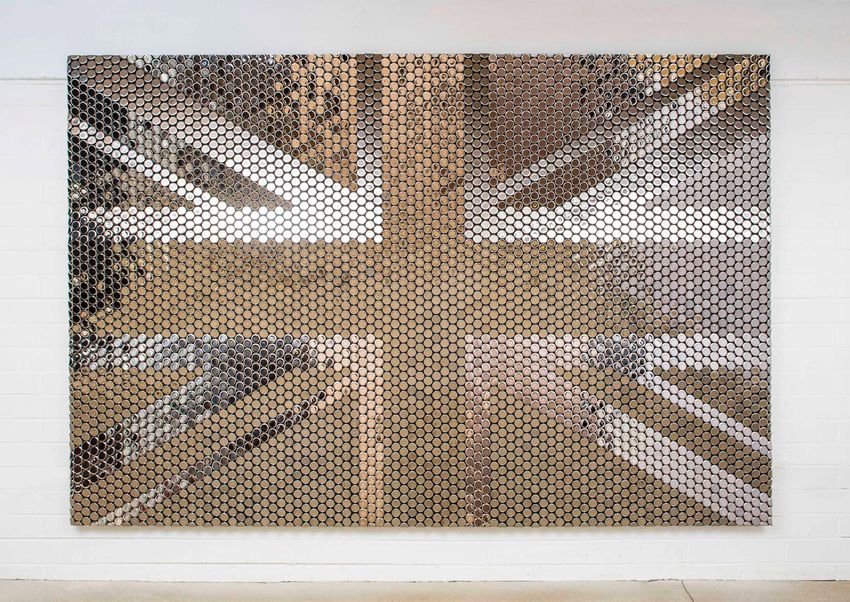

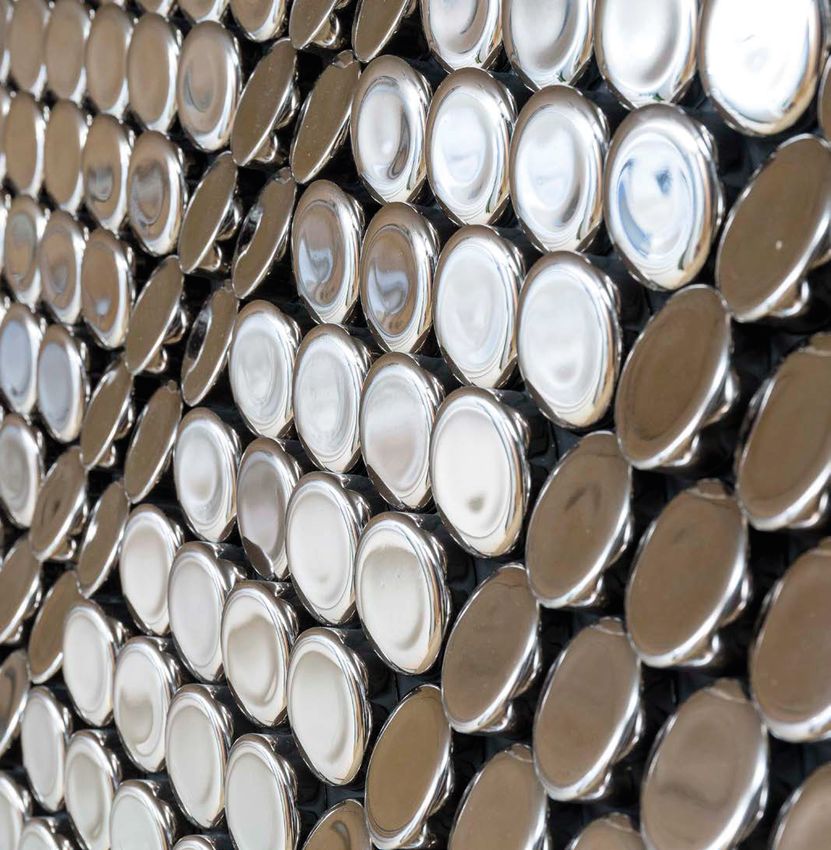

Union Great Festival of Innovation, Hong Kong The giant Union Flag is composed of hundreds of reflective ceramic ‘pennies‘ which are angled to reflectively manipulate surrounding light, illustrating the tones of the flag as well as creating a kind of interaction in the surface when the viewer moves around it. Union was created for the UK Department of Trade and has been touring the globe following it’s first showcasing at the Asia Society in Hong Kong in 2018.

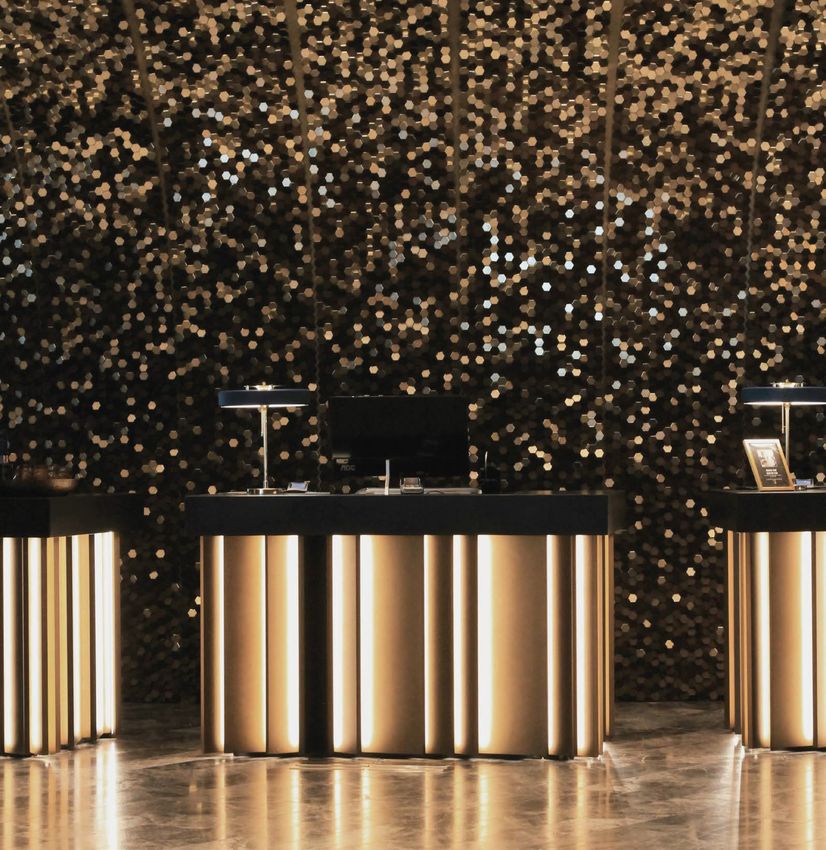

The Hub Oslo, Norway A unique use of our Alexander tiles, this large- scale installation in this scandinavian hotels’ lobby incorporates a double curve which is executed with a series of fanned strips of surface artwork.
Design Cube Greenwich, London A contemporary Giles Miller Studio tile, the Marsden surface creates a sea of geometry, creating an intriguing feature surface. A luxurious example of residential design the Design Cube project was designed by Amos & Amos and featured ceramic Marsden tiles in a random gradient composition.
Level Shoe District Dubai, UAE Commissioned to create a mural for the Womens VIP area at the Dubai Mall Shoe District, the studio worked alongside interior designers Shed to produce a tailor- made ceramic wall covering featuring tiles arrayed in floral formations in a variety of ceramic finishes.

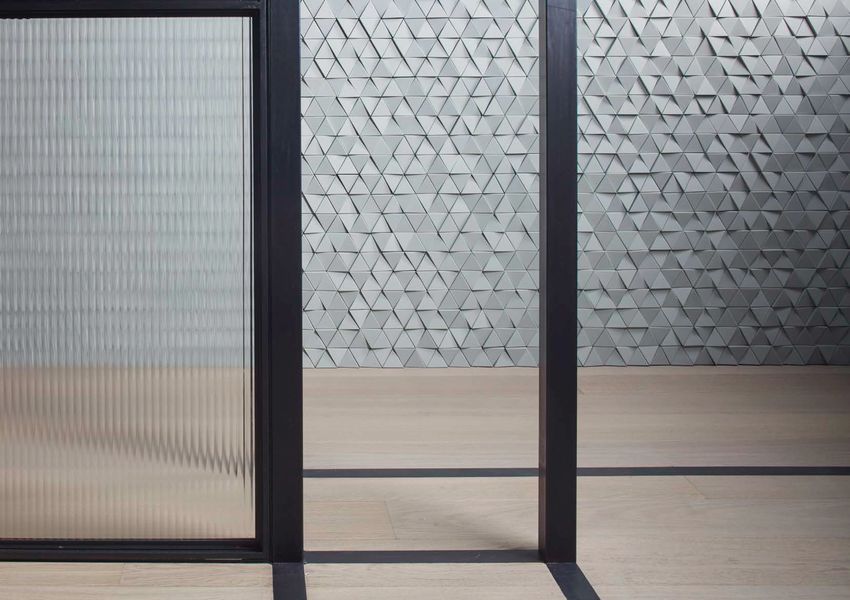

Yas Mall Abu Dhabi, UAE Commissioned to create a unique surface system incorporating triangular 3-dimensional tiles, the studio produced both mirror and corian-backed surface artworks for the largest handbag store in the world, located in Yas Mall, Abu Dhabi. Our compositions framed stores including Burberry, Chanel, Dolce and Gabbana, Louis Vuitton and Fendi.
Bespoke design elements
Bespoke pixel shape
We have a diverse selection of shape
available.
However, we are also able to create
bespoke tile shapes (Tooling cost required).
1 Carriage Way
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 0253ALEXANDER (TIMBER) ALEXANDER (CERAMIC) FIN ENSIS
22
20
18 18
34
4 5 3 14
45
5
47 71
156
50
39
41
MARSDEN - A MARSDEN -B FACET PENNY
14 13 14
5 3 5
15
5 30
59 59 40
51 90 40
51
WELLINGTON HARPER DROPLET
CUSTOM TILE SHAPES POSSIBLE (TOOLING COST APPLICABLE)
10
4
28 3
23 11
7 6 37
100 17
40
46
40 43
Technical data-sheets available upon request. 1 Carriage Way
Please note dimensions +/- 2mm depending on specific finish. All dimensions are in mm.
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 0253Material and Finish Options
A wide variety of material and finish options
are available. We can look into developing
bespoke finishes if required.
Material and finish options available:
-Ceramic colour / gloss and matt - we can
match to RAL and Pantone colours
-Timber / walnut and oak - we can source a
wide range of timbers upon request
-Jesmonite plain / stone effect - we can
match to RAL and Pantone colours
-Ceramic metallics / gloss, matt and crackle
-Cast metal / variety of metal finishes
available including plating (gloss/
matt/brushed/antique) powder coating (any
RAL colour) and anodising in a range of
colours
1 Carriage Way
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 0253Artwork/Pattern
Giles Miller Studio work in
collaboration with our clients in creating
their bespoke artwork/pattern.
During the design phase of the project,
we will put forward a selection of
2-dimensional artworks for
consideration. These artworks can be in
response to a specific brief (e.g
Geometric patterns, florals or a brand
Logo) or GMS can propose possible
design concepts to work from.
3-dimensional sketch renders of the
pattern can be produced, at request.
1 Carriage Way
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 0253Assembly/Production
Giles Miller Studio's iconic tiled surfaces
are meticulously hand assembled by our
skilled production team. Our control of
texture using innovative design and
intricate fabrication techniques generates
imagery, movement and character tailored
to individual clients and contexts.
1 Carriage Way
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 0253Each panel will have 4x screw holes in place for the panels to be fixed to the Panels are cut in a way which
substrate, these holes will then be covered with tiles supplied loose. means they will seamlessly slot
onto the neighbouring panels.
XXX XXX XXX XXX XXX XXX
Each panel will have
a label which will
correspond with the
install guide submitted
XXX
A1 B1 C1 D1 E1 F1
with the panels.
XXX A2 B2 C2 D2 E2 F2 XXXX
Installation
The project cost incorporates not only the
production of these bespoke tiles, but also XXX
A3 B3 C3 D3 E3 F3
the artwork/pattern development and the
hand assembly of the tiles onto panels.
The overall artwork will be split into panels XXXX
(approximately 600x800mm) that fit
together on-site. The panels will come
clearly labelled along with a corresponding Example Installation Map – Please refer to project specific installation map which will be supplied in both a physical and digital copies.
NB. We recommend making allowances for up to 0.5% difference of the dimension given due to material expansions. A level of flexibility on site may be required.
Installation guide.
With regards to installation: 1 2
- Panels fit together in a pre-calculated
arrangement to ensure seamless joints.
- Then are screwed in to the wall at
pre-marked points with loose tiles supplied
in order to cover fixings.
- All panels are supplied along with the GMS
installation guide and install map for con-
tractors to follow.
- Panels can be installed using client/
purchaser’s own contractors. PANELS WILL BE SUPPLIED WITH EXTRA TILES AND VACANCIES FOR THESE EXTRA TILES TO BE PLACED ONCE THE PANELS ARE FIXED. giles
m ill
er
studio.
Giles Miller Studio
7 Borthwick Street
London
SE8 3GH
E / enquiries@gilesmiller.com
T / +44 (0)20 7293 0253
Place panels into position relative to the installation map provided. Once in place, fix panels with screws into position,
- There is an option of a GMS representative Panels will be supplied with extra tiles and vacancies for these extra tiles to be placed once the panels are fixed.
1through theINTO
- PLACE PANELS exposed pilot
POSITION holes.
RELATIVE TO THE INSTALLATION MAP PROVIDED. ONCE IN PLACE, FIX PANELS WITH SCREWS INTO
POSITION, THROUGH THE EXPOSED PILOT HOLES.
giles
m ill
er
Giles Miller Studio
7 Borthwick Street
London
SE8 3GH
3 4
studio. E / enquiries@gilesmiller.com
being present to oversee if requested at an
T / +44 (0)20 7293 0253
extra agreed cost. Tile Orientation
Version 1 – Pattern
Tile Orientation
Version 2 – Random
The lowest edge of the tile should align with the There will be no etched line on the panel.
indicative etched line on the substrate. The shortest edge of the tile can be applied in
any orientation (random).
Lowest Edge
WEST
Lowest EDGE
Edge
LO
NO
NoETCHED LINE
Etched Line
TIVE ETCHED
Indicative Etched LINE
Line
Refer to page 6.
Use the adhesive to place the tile over screw head and into position. The Shortest edge of the tiles should align with the indicative etched Correct tile placement should cover fixing and continue the intended pattern in the surface.
line on the substrate.
1 Carriage Way
Deptford Market Yard
London
SE8 4BZ
enquiries@gilesmiller.com
+44 (0) 20 7293 02531 Carriage Way Deptford Market Yard London SE8 4BZ +44 (0) 20 7293 0253 enquiries@gilesmiller.com gilesmiller.com Thank you. Surface Architecture Sculpture
