Table of Contents
Reinforcing Bar Supports (Metal & Platic)
Metal Bar Supports......................................................................................................... 5-8
Slab Bolster.................................................................................................................................6
Slab Bolster - Upper....................................................................................................................6
Beam Bolster...............................................................................................................................6
Beam Bolster - Upper..................................................................................................................6
Continuous High Chair.................................................................................................................7
Reinforcing Bar Supports
Continuous High Chair - Upper....................................................................................................7
Continuous High Chair - Metal Deck............................................................................................7
High Chair - Metal Deck..............................................................................................................7
High Chair...................................................................................................................................7
Bar Chair.................................................................................................................................... 8
Joist Chair...................................................................................................................................8
Joist Chair - Upper..................................................................................................................... 8
Continuous Support - Zig Zag......................................................................................................8
Wire Girder - Double....................................................................................................................8
Plastic Bar Supports.................................................................................................... 9-10
Rebar Splicing Products
Tuff Plus SB - Slab Bolster..........................................................................................................9
Tuff Plus SBR - Slab Bolster with Runner....................................................................................9
Tuff Chair....................................................................................................................................9
Intersectional Chair......................................................................................................................9
Mesh Chair with Base..................................................................................................................9
PC-2 Snap-On Mesh Chair.........................................................................................................10
PC-3 Snap-On Mesh Chair with Base........................................................................................10
PC-4 Snap-On Paving Chair with Base......................................................................................10
PC-5 Snap-On Bar Chair............................................................................................................10
PW-11 Plaswheel......................................................................................................................10
PW-14 Unispacer.......................................................................................................................10
BC-2, BC-4 Bar Cap..................................................................................................................10
Rebar Splicing Products
Threaded Splice System...........................................................................................11-18
BT Couplers Type 1 & Type 2HS Rebar Splicing System........................................................... 12
Three-part Mechanical Connect System................................................................................... 13
Setting Bar Assemblies............................................................................................................. 14
Splice Bars............................................................................................................................... 15
Tension Splice Lap Length Data............................................................................................... 16
BT Couplers Installation............................................................................................................ 17
ZAP Screwlock & Double ZAP Screwlock.................................................................................. 18
3
Precast Technical Manual
www.MeadowBurke.com
4
Reinforcing Bar Supports
www.MeadowBurke.com

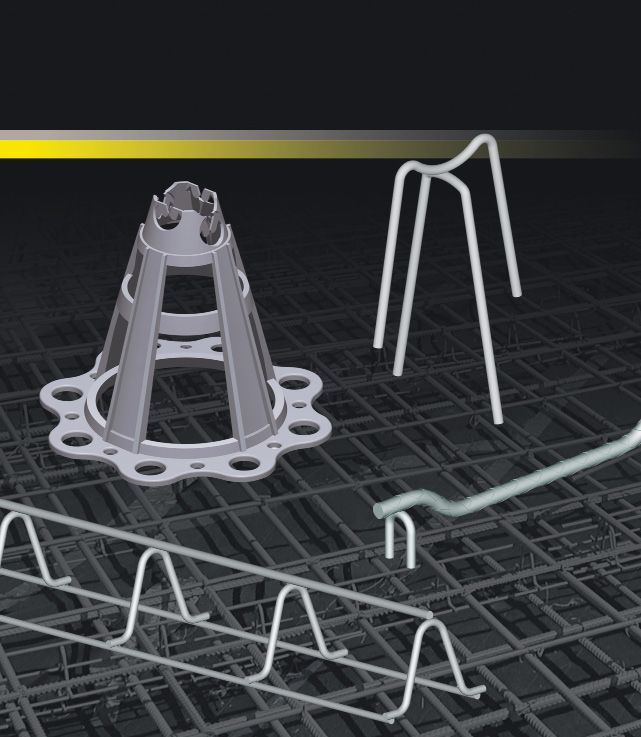

Reinforcing Bar Supports
5

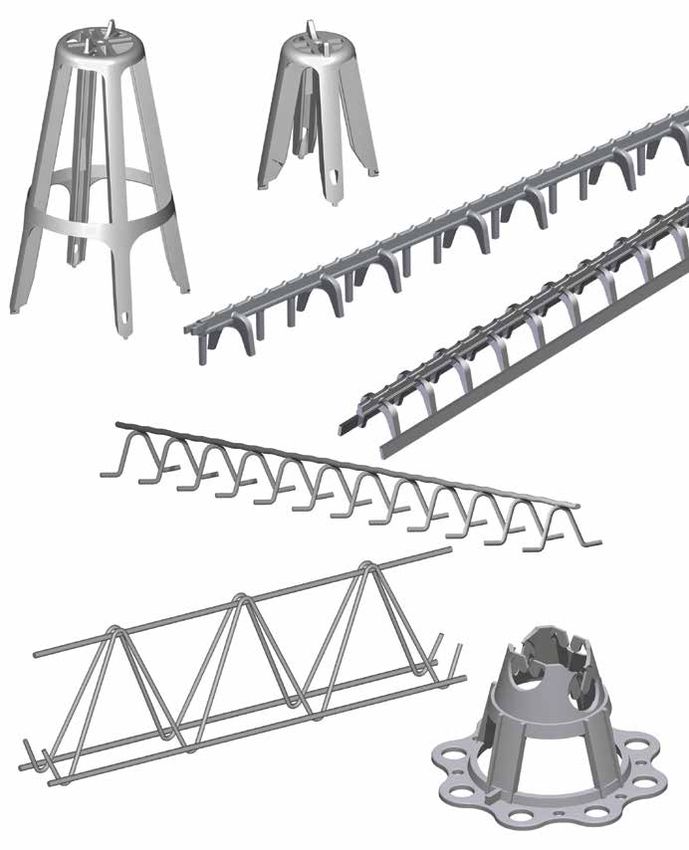

Metal Reinforcing Bar Supports
www.MeadowBurke.com
Meadow Burke metal reinforcing bar supports can be manufactured in compliance with American Concrete Institute (ACI) ACI-SP-66, ACI-315 and
ACI-315R.
Quality rebar metal supports are available in the following CRSI Classification for finishes:
Class 1A – Epoxy coated.
Class 2 (A or B) – Manufactured with Stainless steel legs.
Class 3 – Plain wire, no protection.
Also available:
Epoxy coated meeting AASHTO specifications.
Epoxy coated with plastic dipped feet.
Complete plastic coating (100% encapsulate) up to 3” heights. (not available for the Slab Bolster)
Notes:
Stainless steel utilized by Meadow Burke in the manufacture of rebar supports conforms to ASTM A-493 and AISI Type 430 and may display some
magnetic qualities which shall not be cause for rejection. Heights available in 1/4” increments.
METAL REINFORCING BAR SUPPORTS
(SB) SLAB BOLSTER
SLAB BOLSTER DATA
Available Leg Spacing
Type Length
Height (c/c)
SB 3/4” to 3” 5” 5’-0”
To Order, Specify: quantity, type, height and finish classification.
(SBR) SLAB BOLSTER – UPPER
SLAB BOLSTER - UPPER DATA
Available Leg Spacing
Type Length
Height (c/c)
SBR 3/4” to 3” 5” 5’-0”
To Order, Specify: quantity, type, height and finish classification.
(BB) BEAM BOLSTER
BEAM BOLSTER DATA
Available Leg Spacing
Type Length
Height (c/c)
BB 1” to 5” 2-1/2” 5’-0”
To Order, Specify: quantity, type, height and finish classification.
(BBU) BEAM BOLSTER – UPPER
BEAM BOLSTER - UPPRT DATA
Available Leg Spacing
Type Length
Height (c/c)
BBU 1” to 5” 2-1/2” 5’-0”
To Order, Specify: quantity, type,height and finish classification.
6
Metal Reinforcing Bar Supports
www.MeadowBurke.com
(CHC) CONTINUOUS HIGH CHAIR
CONTINUOUS HIGH CHAIR DATA
Available Leg Spacing
Type Length
Height (c/c)
CHC 2” to 20” 7-1/2” 5’-0”
To Order, Specify: quantity, type, height and finish classification.
(CHCU) CONTINUOUS HIGH CHAIR – UPPER
CONTINUOUS HIGH CHAIR - UPPER DATA
Available Leg Spacing
Type Length
Height (c/c)
CHCU 2” to 20” 7-1/2” 5’-0”
Reinforcing Bar Supports
To Order, Specify: quantity, type,height and finish classification.
(CHCM) CONTINUOUS HIGH CHAIR – METAL DECK
CONTINUOUS HIGH CHAIR - METAL DECK DATA
Available Leg Spacing
Type Length
Height (c/c)
Type A 1” to 5” 7-1/2” 5’-0”
Type B
Type B 1” to 5” Varies 5’-0”
Type A
To Order, Specify: quantity, name, type A or B,
leg spread, height.
(HCMD) HIGH CHAIR – METAL DECK
HIGH CHAIR - METAL DECK DATA
B Type A
HHCMD Available Height Height Increments A
Type A or B 2” to 15” 1/4”
To Order, Specify: quantity, name, type, A, B and C
C dimension.
B
To insure accuracy of order please include metal A
Type B
deck profile.
C
(HC) HIGH CHAIR
HIGH CHAIR DATA
Available Height
Type
Height Increments
HC 2” to 40” 1/4”
To Order, Specify: quantity, type,
height and finish classification.
(Available with metal or plastic sand plate)
7
Metal Reinforcing Bar Supports
www.MeadowBurke.com
(BC) BAR CHAIR (JC) JOIST CHAIR
BAR CHAIR DATA JOIST CHAIR DATA
Available Height Available Height
Type Type
Height Increments Height Increments
BC 3/4” to 2” 1/4” JC 3/4” to 2” 1/4”
To Order, Specify: quantity, type, To Order, Specify: quantity, type,
height and finish classification. height and finish classification.
(UJC) JOIST CHAIR – UPPER
JOIST CHAIR - UPPER DATA
Height
Available
Type SPAN
Height
UJC -1” to +3-1/2” 14”
To Order, Specify: quantity, type, Span
height and finish classification.
(CS) CONTINUOUS SUPPORT (ZIG-ZAG)
CS Continuous Support (Zig-Zag) is a steel support for horizontal wire mesh,
structural fabric or reinforcing bars and an excellent spacer for vertical steel in concrete
walls. The support is very stable, it will not slide or tip and has excellent load carrying
capacity. It is easy to install and can be bent around voids and/or partitions.
CONTINUOUS SUPPORT (ZIG-ZAG) DATA
Available Height
Type Length
Height Increments
CS 2” to 12” 1/4” 8’-0”
To Order, Specify: quantity, type,
height and finish classification.
WIRE GIRDER – DOUBLE
The Wire Girder – Double is designed to quickly and accurately position wire mesh in large slab-
on-grade applications. The girder is available in heights from 3” to 9” in 1” increments and in
lengths up to 40’. Optional snap-on sand plates are available for use on sandy soils to prevent
the girder from turning during concrete placement. When using on a firm casting bed, the snap-
on plates are not a necessity but will give better support on slabs exceeding 6” in thickness.
The optional snap-on plates are field installed by simply squeezing the bottom runners of the girder
inward until they slip inside the plate tabs. Release of the runners will let them slide under the tabs
and be held firmly in place by the tabs.
To Order Specify: quantity, type, height & length.
To Order Optional Snap-On Plate, Specify: quantity and type.
8
Plastic Reinforcing Bar Supports
www.MeadowBurke.com
TUFF PLUS SB – SLAB BOLSTER
The Tuff Plus SB is a composite slab bolster that is used to provide accurate cover for lower mats
of steel reinforcement in concrete elements. Suitable for a wide range of uses, the Tuff Plus SBslab
bolster can be used in Tilt-Up Concrete Construction, Precast Concrete Construction, Post
Tensioned Concrete and other Cast in place applications. The Tuff Plus SB, all plastic slab bolster,
may also be used as side form spacers in vertical formwork.
The Tuff Plus SB slab bolster is fabricated from fiber filled gray composite material designed to
blend with the concrete surface, if exposed. Top bar corrugations are placed on 1” centers to
visually aid rebar placement. The Tuff Plus SB plastic slab bolster is manufactured in true 60”
lengths, eliminating assembly and expedites field placement.
TUFF PLUS SBR – SLAB BOLSTER with RUNNER
Reinforcing Bar Supports
The Tuff Plus SBR Slab Bolster with Runner, is typically used to provide accurate and efficient
placement of upper mats of steel reinforcement in concrete elements. The Tuff Plus SBR is a
composite slab bolster upper that can be used in Bridge, Tilt-up, Precast, Post Tension and other
segments of concrete construction.
The Tuff Plus SBR Slab Bolster Upper, is fabricated from fiber filled composite material. Top bar
corrugations are located at 1” centers to aid in rebar placement. The Tuff Plus SBR with Runner is
a direct replacement for metal slab bolster upper.
X-TUFF SLAB BOLSTER
X Tuff Slab Bolster is a new rebar support manufactured in the U.S. using high-performance
PC/ABS plastic for best-in-class strength and durability.
MB TUFF CHAIR
MB Tuff Chair is engineered for strength, durability, recoverability and consistent ruggedness,
and are available in a range of heights from 3/4” to 10”.
(IC) INTERSECTIONAL CHAIR
The IC Intersectional Chair or is designed for use at the intersection of two crossing lengths of
post tensioning cable rebar to correctly position and firmly hold the two bars in place. The large
support base gives added benefit when used on vapor barriers or soft fill. The chair fits 1/2” PT
cable or up to #5 rebar, and is available in most heights from 1-1/2” to 7” in 1/2” increments.
(MBCB) MESH BAR CHAIR WITH BASE
The Mesh Bar Chair with Base (MBCB) is a light duty, composite chair with sand plate for use
on soft surfaces and/or slab on grade to correctly position and hold the wire mesh securely in
place. Each size chair is designed to service two mesh positioning heights. It is available in
heights from 5/8” to 6”. It can be used to support up to a #5 rebar.
To order any of these products, specify: quantity, type and height.
9
Plastic Reinforcing Bar Supports
www.MeadowBurke.com
PC-2 SNAP-ON MESH CHAIR
PC-2 PC-3
PC-3 SNAP-ON MESH CHAIR WITH BASE
The PC-2 and PC-3 Snap-On Mesh Chairs are economical heavy duty, four sided chairs that
quickly snap onto 4 ga. to 10 ga. mesh to correctly position it in the slab. The Snap-On Mesh
Chair is available in most heights from 3/4” to 3” and the PC-2 is available in heights from 3/4”
to 3”. The PC-3 is available in heights fro 1-1/2” to 3”. Both Chairs will accommodate wire
mesh 4 ga. to 10 ga.
To Order, Specify: quantity, type and height.
PC-4 SNAP-ON PAVING CHAIR WITH BASE
PC-4 PC-5
PC-5 SNAP-ON BAR CHAIR
The PC-4 Snap-On Paving Chair and PC-5 Snap-On Bar Chair are substantial plastic bar
supports available to support reinforcing steel in various applications. The Snap-On Paving
Chair for #3 to #4 rebar or #4 to #6 rebar (PC-4) is available in heights from 3/4” to 7” and
the Snap-On Bar Chair for #3 to #7 rebar (PC-5) is available in heights from 3/4” to 3”.
To Order, Specify: quantity, type and height.
PW-11 PLASWHEEL
The PW-11 Plaswheel is designed to quickly snap onto and space vertical or horizontal steel at
side walls and columns. They are available to accommodate #2 through #8 rebar and provide
5/8” through 4”concrete cover.
To Order, Specify: quantity, type, bar size and cover.
PW-14 UNISPACER
The PW-14 Unispacer is an economical spacer available in one size to provide a 1” concrete
cover. It slides onto any rebar up to #14 size and permits rotation and/or movement of the
rebar without risk of the spacer coming off.
To Order, Specify: quantity and type.
BC-2, BC-4 BAR CAP
The BC-2 and BC-4 Bar Cap is available in two sizes for the purpose of protection from
scrapes, cuts and torn clothing caused by protruding rebar. It is not intended for use as an
impalement protector. The small size BC-2 accepts rebar sizes #3 through #8 and the larger
size BC-4 accepts rebar from #9 through #14.
To Order, Specify: quantity, type and rebar size.
10
Rebar Splicing Products
www.MeadowBurke.com

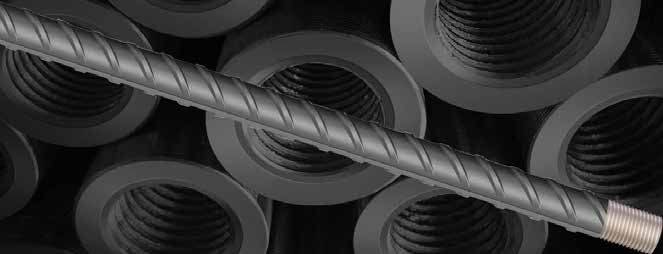

Mech Saver – Type I & II
Rebar Splicing System
Mechanically connect rebar
sections in segmental pours
Rebar Splicing Products
11Rebar Splicing Products
www.MeadowBurke.com

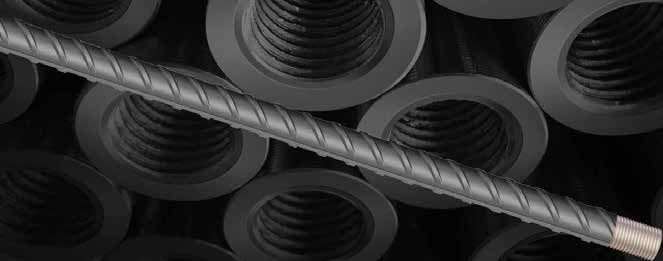

BT Couplers
Type 1 & Type 2HS Rebar Splicing System
BT Couplers are a versatile and robust mechanical rebar splicing system.
BT Couplers are a Type 1 & Type 2HS Rebar Splicing System used to
mechanically connect rebar sections in segmental pours as an alternative
to traditional dowel bars. The three-part system consists of a Splice
Bar, Coupler and Setting Bar that meets the mechanical splice strength
requirements of ACI-318-19 when used to splice grade 60 rebar.
FEATURES
• Improved performance: Exceeds ACI-318-19 Type 1 & Type 2HS splice
requirements and maintains reinforcing steel continuity independent of
concrete cover.
• Saves time and money: Reduces costly form repairs by eliminating drilling
of forms and simplifies form striping.
• Available in standardized lengths (sizes #4 – #11) and configured to order.
BT COUPLERS SPLICING PERFORMANCE
Nominal Grade 60 Type 1 Type 2HS
Bar Size Area Rebar Yield 125% Yield 90 KSI Tensile
(inch2) Strength (lbs) Strength (lbs) Strength (lbs)*
#4 0.20 12,000 15,000 18,000
#5 0.31 18,600 23,250 27,900
#6 0.44 26,400 33,000 39,600
#7 0.60 36,000 45,000 54,000
#8 0.79 47,400 59,250 71,100
#9 1.00 60,000 75,000 90,000
#10 1.27 76,200 95,250 114,300
#11 1.56 93,600 117,000 140,400
*ASTM A615 and A706 compliant
12Rebar Splicing Products
www.MeadowBurke.com

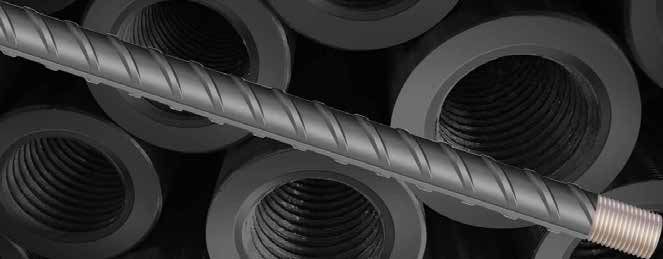

The Three-part Mechanical Connect System
STANDARD LENGTH SETTING BARS
Type I Type II Rebar Grade 60 “A” Length
Item Number Item Number Size Finish: Plain (inch)
MBR2610424F #4 RC-61-T2 Setting Bar 24” A
MBR2610448F #4 RC-61-T2 Setting Bar 48”
Contact MBR2610530F #5 RC-61-T2 Setting Bar 30” L
Meadow Burke MBR2610548F #5 RC-61-T2 Setting Bar 48”
MBR2610636F #6 RC-61-T2 Setting Bar 36”
MBR2610648F #6 RC-61-T2 Setting Bar 48”
The setting bar is attached against the interior side of the formwork.
Additional lengths are available for Type I & II upon request
STANDARD LENGTH SPLICE BARS
Type I Type II Rebar Grade 60 “C” Length
Item Number Item Number Size Finish: Plain (inch)
ength
MBR2610424M #4 RC-61-T2 Setting Bar 24” Overall L
C
MBR2610448M #4 RC-61-T2 Setting Bar 48”
Contact MBR2610530M #5 RC-61-T2 Setting Bar 30”
Meadow Burke MBR2610548M #5 RC-61-T2 Setting Bar 48”
MBR2610636M #6 RC-61-T2 Setting Bar 36”
The splice bar is screwed in the setting bar after the form is
MBR2610648M #6 RC-61-T2 Setting Bar 48” stripped, continuing the rebar.
Additional lengths are available for Type I & II upon request
TYPE I COUPLER DETAIL
Rebar Splicing Products
Standard Flange
Rebar Couple “L” Length Diameter Weight
Coupler PN# Coupler PN#
Size Thread Size (inch) (inch) (lbs.)
(plain finish) (plain finish)
MB860501 MB860502 #4 1/2-13 UNC 1.875 0.875 0.24
L
MB860651 MB860652 #5 5/8-11 UNC 2.125 1.000 0.34
MB860801 MB860802 #6 3/4-10 UNC 2.250 1.125 0.41
MB860951 MB860952 #7 7/8-9 UNC 2.625 1.250 0.57
MB861101 MB861102 #8 1-8 UNC 3.250 1.500 1.08
MB861251 MB861252 #9 1-1/8-7 UNC 3.750 1.625 1.39
MB861401 MB861402 #10 1-1/4-7 UNC 4.250 2.000 2.61
The coupler is a steel sleeve that the splice bars
MB861551 MB861552 #11 1-3/8-6 UNC 4.750 2.000 2.66 thread into, providing rebar continuity.
TYPE II COUPLER DETAIL
Standard Flange
Rebar Couple “L” Length Diameter Weight
Coupler PN# Coupler PN#
Size Thread Size (inch) (inch) (lbs.)
(plain finish) (plain finish)
MB860551 MB860552 #4 5/8-11 UNC 1.250 1.000 0.17
MB860681 MB860682 #5 3/4-10 UNC 1.625 1.125 0.25
MB860851 MB860852 #6 7/8-9 UNC 2.250 1.250 0.40
MB860981 MB860982 #7 1-8 UNC 2.500 1.500 0.70
MB861151 MB861152 #8 1-1/8-8 UN 2.750 1.625 0.88
MB861281 MB861282 #9 1-1/4-8 UN 3.000 2.000 1.70
MB861451 MB861452 #10 1-7/16-8 UN 3.250 2.125 1.84
MB861581 MB861582 #11 1-9/16-8 UN 3.625 2.250 2.19
BT Couplers are sold as an engineered component system, proof tested and third party certified. Under no circumstances
will Meadow Burke permit the mixing other manufactures splicing parts with genuine MB components.
13Rebar Splicing Products
www.MeadowBurke.com
SETTING BAR ASSEMBLIES
Meadow Burke BT Setting Bars are assemblies comprised of threaded rebar coupler and a length of Grade 60 deformed reinforcing steel threaded on
one end. Setting Bars are available in all rebar sizes #4 through #11 and in any required length. The Setting Bar (RC-61/RC-61T2) model is furnished
straight for standard lap splice applications and the Setting Bar (RC-63/RC-63T2) is furnished with a 90° bend. All setting bars are manufactured to
furnished job specifications.
A
L
RC-61/RC-61T2
A
L
RC-63/RC-63T2 B
To Order, Specify:
For Setting Bar (RC-61/RC-61T2) – quantity, type, rebar size and overall length. (“A” + “L”)
For Setting Bar (RC-63/RC-63T2) – quantity, type, rebar size, “A” and “B” dimensions.
14Rebar Splicing Products
www.MeadowBurke.com
SPLICE BARS
Overall Length
C
RC-61/RC-61T2
Overall Length
C
RC-62/RC-62T2
Meadow Burke BT Splice Bars are manufactured from Grade 60 deformed rebar material and are available in all of the corresponding sizes to the
Threaded Rebar Coupler. After the Setting Bar has been placed and the concrete has set the Splice Bar is threaded into the Setting Bar to complete the
splice. Splice Bars are available in the following configurations: RC-61/RC-61T2 straight, RC-63/RC-63T2 90° bend, RC-62/RC-62T2 threaded at both
ends and with a RC-64/RC-64T2 return bend.
For Hook Bar development lengths actual dimensions C, B, D and R are functions of f’c (concrete strength), PSI and minimums based on ACI-318-05
section 12.5 both code and commentary.
Overall Length
Rebar Splicing Products
C
RC-63/RC-63T2
Overall Length
C
B
RC-64/RC-64T2
B
To Order, Specify:
For Splice Bars (RC-61/RC-61T2 ) and (RC-62/RC-62T2) – quantity, type, rebar size and “C” dimension.
For Splice Bar (RC-63/RC-63T2) – quantity, type, rebar size, “C” and “B” dimensions.
For Splice Bar (RC-64/RC-64T2) – quantity, type, rebar size, “C”, “B” and “D” dimensions.
D
15Rebar Splicing Products
www.MeadowBurke.com
TENSION SPLICE LAP LENGTH DATA
Lap Splice Length
RC-64/RC-64T2 Setting Bar RC-61/RC-61T2
LAP SPLICE LENGTH OF DEFORMED BARS IN TENSION
No. 6 and No. 7 and
CASE f’c (psi)
Smaller Bars Larger Bars
3,000 44 db 55 db
Clear spacing of bars or wires being developed
or spliced not less than db clear cover not less 4,000 38 db 48 db
than db and stirrups or ties throughout Id not 5,000 34 db 43 db
less than the code minimum or clear spacing
of bars or wires being developed or spliced not 6,000 31 db 39 db
less than 2db and clear cover not less than db 8,000 27 db 34 db
(ACI 318-05 section 12.2.2)
10,000 24 db 30 db
3,000 66 db 83 db
4,000 57 db 72 db
5,000 51 db 64 db
Other Cases (ACI 318-05 section 12.2.2)
6,000 47 db 59 db
8,000 41 db 51 db
10,000 36 db 45 db
Table is based on the following criteria:
1. Grade 60 reinforcing steel bars.
2. Normal weight concrete factor o=1.0.
3. Uncoated reinforcement factor, o=1.0.
4. Reinforcement location factor, o=1.0.
16Rebar Splicing Products
www.MeadowBurke.com

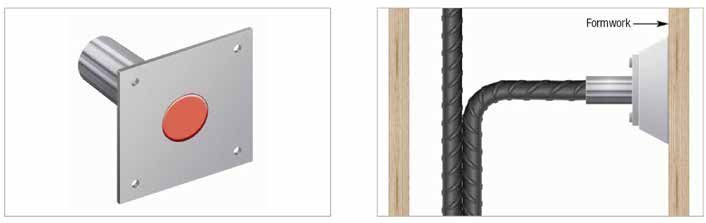

STEP 1 Ensure you are installing the bar size as per plan. Be sure that the STEP 2 Lay the BT Coupler Setting Bar dowel parallel with rebar to be spliced.
protective thread plug is installed in the end of the coupler. Position coupler plate flush against formwork and tie the female BT Coupler
to the rebar mat. Be sure the bars are properly supported. Note: Roofing nails
can be used to assure the coupler plate stays flush against formwork. The
plate on the coupler is not intended to support the weight of the bar, workmen
or equipment.
Rebar Splicing Products
STEP 3 After concrete is placed and forms are stripped, the protective thread STEP 4 Remove the bar end protector from the male bar. Visually inspect the
plug and face plate of the coupler are visible. The protective thread plug can be thread to make sure it is undamaged and free of rust or debris. If the threads
easily removed using a screwdriver or pliers. need to be cleaned use a wire brush.
NOTE: In situations where proper positioning of setting or splice bar is
not possible after hand tightening assembly, it is acceptable to unscrew
one side up to 1 turn to correctly index hooks or bent bar in rebar cage.
STEP 5 Thread a Splice Bar into Setting Bar until Splice Bar threads bottom out
against Coupler Thread Stop, tighten hand tight (10 ft lbs.)
17Rebar Splicing Products
www.MeadowBurke.com

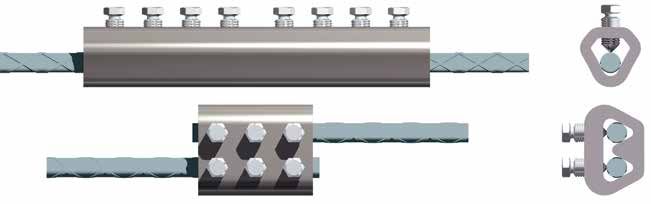

ZAP SCREWLOCK®
DOUBLE ZAP SCREWLOCK®
The ZAP Screwlock® is a high strength mechanical rebar connection device available for splicing #4 through #11 rebar. No rebar end
preparation is required. Simply insert the ends of the two bars into the connector body. A positive center stop ensures proper installation.
A
B
S
Tightening the lock-bolts generates a positive mechanical interlock as the rebar deformations are pressed into the ductile steel wedge-shaped
body of the connector. Visual inspection is easily accomplished; just verify that the heads of the lock-bolts have sheared off during the
tightening sequence.
The ZAP SCREWLOCK exceeds 125% of the specified yield strength of the rebar and is approved by or meets the following: ACI-318, ICBO
and AASHTO.
ZAP SCREWLOCK DATA
Nominal
Coupler Ave. Dim. Dimension Number of Torque (Ave.) Hex Head
Bar Size Coupler
Lgth. “L” (in.) “A” (in.) “B” (in.) Screws / Bar (ft.-lbs.) Ø
Wt. (lbs)
#4 1.9 7” 1-1/16” 11/16” 3 50 1/2”
#5 3.7 9” 1-1/8” 3/4” 4 50 1/2”
#6 5.2 11” 1-3/16” 15/16” 5 50 1/2”
#7 7.6 13” 1-1/4” 1-1/16” 5 100 5/8” L
#8 10.3 15-1/4” 1-5/16” 1-1/16” 6 100 5/8”
#9 16.9 16-3/4” 1-5/8” 1-1/4” 6 200 3/4”
#10 21.7 19-1/8” 1-11/16” 1-7/16” 7 200 3/4”
#11 24.7 21-1/2” 1-13/16” 1-1/2” 8 200 3/4”
DOUBLE ZAP SCREWLOCK DATA
Nominal
Coupler Ave. Dim. Dimension Dimension Number of Torque (Ave.) Hex Head
Bar Size Coupler
Wt. (lbs)
Lgth. “L” (in.) “A” (in.) “B” (in.) “S” (in.) Screws / Bar (ft.-lbs.) Ø L
#4 1.3 2-1/8” 1-1/16” 1/2” 15/16” 2 50 1/2”
#5 2.3 3” 1-1/8” 5/8” 15/16” 3 50 1/2”
#6 3.2 3-7/8” 1-3/16” 3/4” 15/16” 4 50 1/2”
18Leviat locations in North America: California Iowa Pennsylvania 3611 E La Palma Ave 1000 Technology Drive 565 Oak Ridge Road Anaheim CA 92806 Boone IA 50036 Hazle Township PA 18202 Tel: (800) 804-6565 T: (800) 232-1748 T: (800) 550-0060 Florida New Jersey Texas 6467 S Falkenburg Road 526 US Route 46 7000 Will Rogers Blvd Riverview FL 33578 Teterboro NJ 07608 Fort Worth TX 76140 Tel: (800) 282-7213 T: (800) 207-7778 T: (800) 993-9641 Georgia Oregon Texas 3080 N Lanier Parkway 155 SE Hazel Dell Way 8521 FM 1976 Decatur GA 30034 Canby OR 97013 Converse TX 78109 Tel: (800) 241-5662 T: (888) 232-9991 T: (800) 323-6896 Contact Information Customer Service: (800) 518-7665 Engineering: (813) 280-8900 Email: info@leviat.us Web: www.leviat.com 01010MB-C001-T2107X Imagine. Model. Make. Leviat.com
You can also read
