RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
Recommendations for
                       VoIP and IMS Security

                                                                      Ari Takanen
                                                                      CTO
                                                                      Codenomicon

Picture taken from http://www.smbc-comics.com/ with permission.

         WWW.CODENOMICON.COM
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
NOTE:
                      PARTS OF THIS PRESENTATION
                             ARE BASED ON
                        THE VOIP SECURITY BOOK

                                   by
                              Peter Thermos
                                  and
                               Ari Takanen

WWW.CODENOMICON.COM
                                                   2
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
Contents of the Book

       Chapter 01: Introduction
       Chapter 02: VoIP Architectures and Protocols
       Chapter 03: Threats and Attacks
       Chapter 04: VoIP Vulnerabilities

       Chapter 05: Signaling Protection Mechanisms
       Chapter 06: Media Protection Mechanisms
       Chapter 07: Key Management Mechanisms
       Chapter 08: VoIP and Network Security Controls

       Chapter 09: Security Framework for Enterprise VoIP Networks
       Chapter 10: Service Provider Architectures and Security
       Chapter 11: Enterprise Architectures and Security

WWW.CODENOMICON.COM
                                                                      3
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
1. Introduction

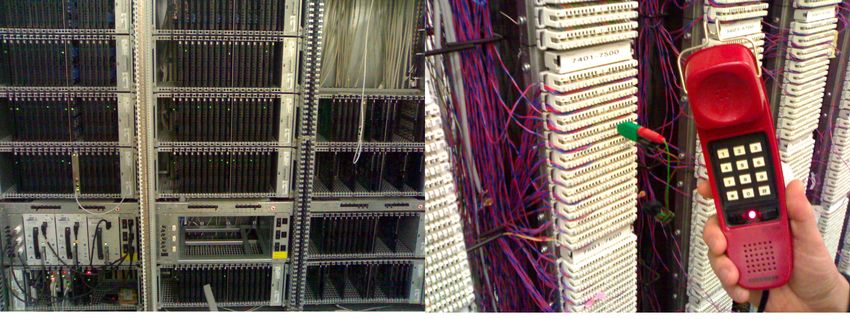

       VoIP is transition from closed PSTN/TDM into all-IP
       Security focus moves away from physical,
        to audits of interconnected software and protocols

WWW.CODENOMICON.COM
                                                             4
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
2.3 VoIP Protocols

       Signaling / Session control:
         •   SIP, SIP-I, (SIP-T)
         •   MGCP/H.248
         •   BICC
         •   SS7/Sigtran
         •   (H.323)
         •   RTSP
       Media:
         •   RTP, SRTP, RTCP
         •   Mpeg1/2/4
       Transport:
         •   IPv4 and IPv6 (with or without IPSEC)
         •   SCTP
         •   TLS

       Others: DHCP, DNS, Diameter, Radius, STUN,
        TURN, ...
WWW.CODENOMICON.COM
                                                     5
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
3. VoIP Threats and Attacks

       Threat: The means through which someone
        can do something bad. A potential violation of
        security.
       Vulnerability: The flaw or weakness that
        enables threats, attacks or exploits.
       Attack: The attempt of doing something bad.
       Exploit: The tool of conducting something
        bad.

WWW.CODENOMICON.COM
                                                         6
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
3.1 VoIP Threat and Attack Categories

       Service disruption and annoyance
       Eavesdropping and traffic analysis
       Masquerading and impersonation
       Unauthorized Access
       Fraud

WWW.CODENOMICON.COM
                                                          7
RECOMMENDATIONS FOR VOIP AND IMS SECURITY - ARI TAKANEN CTO
3.2 Service Disruption and Annoyance

       Malformed packets DoS attack
         •   Found by e.g. fuzzing
         •   Caused by broken anomalous inputs, malformed packets
         •   Buffer overflow is an example where malformed packets
             can be used to get full access to the device
         •   70% of all known vulnerabilities appear to be in this
             category
       Load-based flooding attacks (DDoS)
         •   Performance flaw, or load balancing problem
         •   Also a place for fuzzing!
       “SPIT”
         •   Hard to block in real-time communications
         •   Phone rings before the unwanted media can be detected
         •   Black-lists and white-lists

WWW.CODENOMICON.COM
                                                                     8
4. VoIP Vulnerabilities

WWW.CODENOMICON.COM
                                            9
Fuzzing:

           Proactive security testing for
             unknown vulnerabilities

WWW.CODENOMICON.COM
Overview of security testing techniques

       Focus on robustness and reliability
       Load testing simulates DDoS situations
       The Denial of Service attack can also consist
        of individual malformed packets
       In 2002, PROTOS researchers from
        University of Oulu released a freely available
        test suites for SIP and H.323
       During same year, Codenomicon released
        commercial tools for use in VoIP penetration
        testing and quality assurance

WWW.CODENOMICON.COM
                                                            11
Proactive = Fuzzing

       Finds buffer overflows and other
        boundary-value flaws
       Fuzzing means crash-testing
       Also called:
         •   Negative testing
         •   Robustness testing
         •   Grammar/Syntax testing
       Based on sending systematically broken (rarely
        random) inputs to a software, in order to crash it
       Two techniques of model-based fuzzers:
         •   Template-based
         •   Specification-based
WWW.CODENOMICON.COM
                                                             12
Fuzzing Interfaces

       VoIP devices and services need to be tested on all
        layers
       Any protocol interface that is open to the public Internet
        is a high risk to the system
       80% of all VoIP devices still crash when tested with
        fuzzing

                                                                                                                RTP/RTCP/SRTP
                                                                                                      SIGCOMP
                                                                        TLS/SSL

                                                                                        UPnP

                                                                                               MGCP
                                                          TURN
                                   H.248

                                                   RTSP

                                                                 TURN
                                           H.323

                                                          STUN

                                                                 STUN

                                                                                  SIP
                            SCTP           TCP                                     UDP

                                                     IPv4 / IPv6

WWW.CODENOMICON.COM
                                                                                                                                13
Interoperability (and other uses)

       Model-based tools such as fuzzers test for the
        full specification coverage
         •   Automated peer-review of specification
         •   Generate prototypes directly from specifications,
             and are true implementations of the specification
         •   Modelling and simulation can be used with full
             prototypes of the protocol interface implementations
       Model-based tools (such as fuzzers) can be
        used to tests for both valid and unexpected
        use scenarios
         •   Also will include tests for all optional and most
             vendor-proprietary extensions
       All tests are automatically generated and
        executed, and always repeatable
WWW.CODENOMICON.COM
                                                                    14
Performance

       Model-based tools are not slow
         •   Negative testing results in millions of tests
         •   With modern hardware, you can execute tens of
             thousands of tests per second
         •   4 million tests in less than 10 minutes!

       Complements modern performance testing
         •   A good fuzz-test takes more CPU power than a
             valid “nice” test case
         •   Hackers will not use conformant tests in attacks

WWW.CODENOMICON.COM
                                                                15
Failure-modes

       Crash
         •   Boundary value condition
         •   Buffer overflow
         •   Memory exceptions
       Slow performance
         •   Busy loops
         •   Memory leaks
         •   Error handling problems
       Data leaks
         •   Bad asserts
         •   Error handling
       Others…

WWW.CODENOMICON.COM
                                        16
Summary

       Full dynamic tests built from protocol models
       Protocol models automatically generated from
        protocol specifications (if possible)
       100% TTCN Free! (No programming needed)
       200+ protocols on all layers
         •   Conformance testing
         •   Performance testing
         •   Negative testing

       But most importantly,
        finds security problems proactively

WWW.CODENOMICON.COM
                                                        17
The IMS Study:

                       Learnings from
                      several IMS audits
                         during 2010

WWW.CODENOMICON.COM
Overview of the 2010 IMS Study

       Unfortunately the report is NOT public
       Focus was to build a secure lifecycle model
        for IMS deployments
         •   business considerations
         •   design
         •   procurement
         •   deployment
         •   maintenance
       Defined a set of about 30 best practices for
        deploying IP Multimedia Subsystem (IMS)
        networks and systems securely
       We are only covering about 7 of those
        here…
WWW.CODENOMICON.COM
                                                       19
The Vulnerability Assessment of IMS

       Threat modelling or comprehensive attack
        surface analysis helps in mapping the
        injection vectors into the IMS core or through
        it between UA’s
       A network scan (nmap + nessus) will not
        provide enough insight in what needs to be
        tested
       A traffic analysis provides clear mapping of all
        interfaces, protocols, and both server and
        client-side implementations that need testing
       Also IMS-core internal traffic can be seen

WWW.CODENOMICON.COM
                                                           20
WWW.CODENOMICON.COM
                      21
Most Relevant Attack Vectors in Rel6/Rel8

WWW.CODENOMICON.COM
                                                          22
Attack Vector Analysis of the Rel8

WWW.CODENOMICON.COM
                                                       23
Key Threats for IMS

       P-CSCF / S-CSCF / I-CSCF / IBCF
         •   Messages from UA?
         •   Messages from “interconnect” i.e. another operator?
         •   B2BUA or Proxy?

       Border Control Functions
         •   TS 23.228 clause 4.14 and Annex I
         •   Mx reference point
         •   Co-location of I-CSCF with IMS-ALG
         •   Helps security testing as targets are narrowed down
             to IBCF and TrGW

WWW.CODENOMICON.COM
                                                                   24
Use of Fuzzers For Security Review

       Some threats cannot be blocked
       SIP UA can always attack the IMS core and
        all intermediary proxies using fuzzers
       Most probable attack vectors are SIP
        OPTIONS and SIP REGISTER
         •   Why?

       Fuzzers simulate these and many other attack
        scenarios and test the reliability of the
        platforms and VoIP applications processing
        SIP messages

WWW.CODENOMICON.COM
                                                       25
ENUM and DNS Attacks

                       ENUM E.164 queries make number
                        harvesting feasible for SPIT or “Phishing”
                       Sample NAPR record:

$ dig any NAPTR 3.1.1.7.4.0.0.0.8.7.3.4.e164.arpa +trace

;; Warning, extra type option

;  DiG 9.6.0-APPLE-P2  any NAPTR 3.1.1.7.4.0.0.0.8.7.3.4.e164.arpa +trace

;; global options: +cmd

. 19878 IN NS G.ROOT-SERVERS.NET.

[…]

3.1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NAPTR 100 10 "u" "E2U+sip" "!^.*$!sip:enum-milliwatt-test@sip.nemox.net!" .

3.1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NAPTR 100 10 "u" "E2U+web:http" "!^.*$!http://q.nemox.net/!" .

3.1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NAPTR 100 10 "u" "E2U+email:mailto" "!^.*$!mailto:info@nemox.net!" .

1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NS dns4.nemox.net.

1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NS dns1.nemox.net.

1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NS dns2.nemox.net.

1.1.7.4.0.0.0.8.7.3.4.e164.arpa. 600 IN NS dns3.nemox.net.

;; Received 396 bytes from 87.106.40.145#53(dns3.nemox.net) in 52 ms

               WWW.CODENOMICON.COM
                                                                                                                      26
The Promised 7 Selected Key Findings
                  from our IMS Audits

   1.    There is no requirement to follow any IMS
         Release “by the book”
   2.    Authentication and encryption are critical,
         even inside the IMS core
   3.    Separated VLANs for IMS interfaces help
   4.    Attack surface analysis and detailed study
         of interfaces and protocols
   5.    Repeatable test plans for regression tests
   6.    Product inventory (including HW + OS)
   7.    Remember to treat proxies as potential
         attackers (note: SIP-I vs. SIP-T)
WWW.CODENOMICON.COM
                                                         27
Summary

       VoIP security is not only about security
        mechanisms
       For full security analysis, you should study:
         •   Threats
         •   Attacks
         •   Vulnerabilities
         •   Architectures
         •   Countermeasures
       There is no one way of doing VoIP security,
        different techniques apply for different needs
       Security is a process not a product!

WWW.CODENOMICON.COM
                                                         28
PROACTIVE SECURITY AND ROBUSTNESS SOLUTIONS

                 THANK YOU – QUESTIONS?

                “Thrill to the excitement of the chase!
                 Stalk bugs with care, methodology,
                  and reason. Build traps for them.
                                      ....
                                  Testers!
                Break that software (as you must) and
                          drive it to the ultimate
                 - but don’t enjoy the programmer’s
                                    pain.”
                            [from Boris Beizer]
