PROJECT PRESENTATION Any weather. Any surface - Duration: 7 minutes
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
terranica.com
PROJECT
PRESENTATION
Any weather.
Any surface.
Duration: 7 minutes
mail@terranica.com
terranica.com
GLOBAL
TERRANICA
/ Established in 2012
It produces, promotes and sells all-terrain vehicles of the new This ratio was achieved due to a combination of more than thirty
generation. years of experience in designing off-road and all-terrain vehicles
using high-strength polymers and other materials of the new
The main idea of the brand is to create all-terrain vehicles capable of generation in construction, which have high impact resistance,
performing transportation tasks in any remote location with the resistance to abrasive impact, not losing their properties at low
consumption of a small amount of fuel resources, reliability, safety temperatures and having light weight.
and high level of comfort comparable to the automotive.
mail@terranica.com

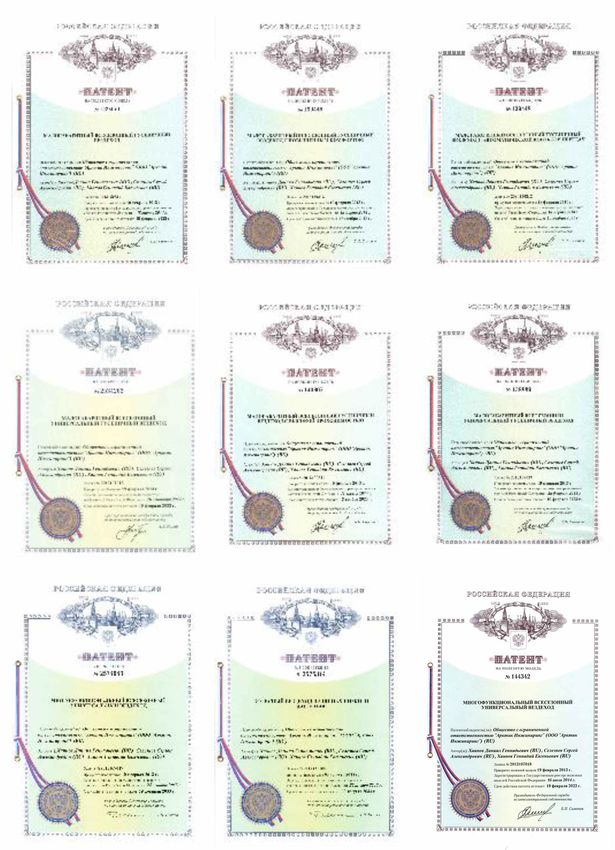

terranica.com INTELLECTUAL PROPERTY To date, the company holds nine patents, six there of are for invention and three for a utility model. At the moment, three more patents are in the process of registration and there are solutions for issuing two patents for ultra-low pressure tires. The company has exclusive rights for TERRANICA trademark in Russia, USA, Canada, Australia, China, Kazakhstan and Mongolia, as well as in seventeen EU countries (countries of the Madrid Protocol). mail@terranica.com
terranica.com
VOLUMETRIC
To date, all global auto companies clearly segment the model
range for different categories of customers, their needs and
objectives. TERRANICA will be the first and only company in the
MARKET SHARE world with a full line of all-terrain vehicles capable of solving
transportation problems for all categories of customers on all
types of planetary surfaces.
TERRANICA ATVs are in a lower price range compared to heavy
tracked vehicles, and in a comparable range with compact
lower-level ATVs.
Practically no competitors
in this segment TERRANICA model range covers both ATV market and profes-
sional vehicles market.
Snowmobiles ATVs Amphibians Tarranica Marsh Tarranica Dreamtrack Tarranica Dreamtrack L Hydratrek Heavy tracked vehicles
ATV VEHICLES CLASS PROFESSIONAL VEHICLES CLASS
0,35 т. 0,6 т. 0,9 т. 1,4 т. 1,6 т. 2 т. 2,8 т. 3,6 т.
mail@terranica.com
terranica.com
MODEL
RANGE
TERRANICA Waterbug Floating buggy
Length (mm.) 3700 The main purpose:
• Leisure
Weight (kg.) 900 • Use for hunting, and fishing
Load capacity (kg.) 400 • Military (special operations)
Loading capacity • Use in a simultaneous combination of conditions and obstacles,
insurmountable for other buggies: water, carpet marsh
afloat (kg.) 200 (due to the use of optional tracks), and small snow cover
IN DEVELOPING
TERRANICA Marsh On extra low pressure tires
Length (mm.) 3600 The main purpose:
• Leisure
Weight (kg.) 1500 • Use for hunting, fishing
Load capacity (kg.) 600 • Medium-level transport tasks (bypasses of power lines, communication
Loading capacity lines, delivery of goods or transportation of managers to the production
facilities)
afloat (kg.) 400 • Military (intelligence targets
• Using as a main vehicle in the areas with prevailing bad weather conditions
of swamps, deserts and savannas
PATENT RECEIVED • Using in a simultaneous combination of conditions and obstacles,
insurmountable for other vehicles: light snow, mud, marsh, desert, rivers,
lakes and in hot conditions
mail@terranica.com
terranica.com
TERRANICA Dreamtrack Tracked snow and swamp vehicle
Length (mm.) 3620 The main purpose:
• Leisure
Weight (kg.) 1700 • Using for hunting, fishing
Load capacity (kg.) 600 • Simple transportation tasks (transportation of managers to the production
Loading capacity locations)
• Military (special operations, intelligence purposes)
afloat (kg.) 400 • Using as a main vehicle in the areas with prevailing bad weather conditions
or areas with severe winters
• Using in a simultaneous combination of conditions and obstacles,
PATENT RECEIVED insurmountable for other vehicles: snow, mud, swamp, desert, rivers,
lakes, etc. with the ability to perform these tasks in arctic conditions.
TERRANICA Dreamtrack Long Tracked snow and swamp vehicle
Length (mm.) 4530 The main purpose:
• Leisure
Weight (kg.) 1950 • Using for hunting, fishing
Load capacity (kg.) 900 • Medium-level transportation tasks (bypasses of power lines, communication
Loading capacity lines, delivery of goods, whether workers are on watch or delivered to a fire
site through overwhelming obstacles, etc.)
afloat (kg.) 750 • Military (delivery of staff units), performance of special operations
in conditions and areas not accessible to other vehicles, including
on the water and in the Arctic;
PATENT RECEIVED • Rescue operations, including those on the water (MES, emergency medicine)
• Using in a simultaneous combination of conditions and obstacles,
insurmountable for other vehicles: snow, mud, swamp, desert, rivers, lakes, etc.
with the ability to perform these tasks in arctic conditions
mail@terranica.com
terranica.com
TERRANICA Expedition Expedition all-terrain vehicle on ultra-low pressure tires
Length (mm.) 4600 The main purpose:
Using as a main vehicle for long journeys, including round-the-world,
Weight (kg.) 2300 with the possibility of autonomous residence of two people traveling
Load capacity (kg.) 900 long distances on public roads and able to overcome all kinds of obstacles
Loading capacity off-road while simultaneously being combined through the use of an innovative
hybrid hydromechanical transmission, without any analogues in the world.
afloat (kg.) 750
PATENT RECEIVED
TERRANICA Waterpillar Speedboat with climbing tracks
Length (mm.) 6000 The main purpose:
• Providing a solution to transport problems in difficult conditions of land,
Weight (kg.) 2500 swamps, deserts, swamps, savannas, etc. with the simultaneous possibility
Load capacity (kg.) 2000 of overcoming significant distances in coastal marine areas.
Loading capacity • The ability to quickly transfer special cargo or personnel military units
(14 persons) with full equipment over long distances without roads
afloat (kg.) 1500 and complicated by a large number of water barriers.
• An important advantage of this car is that it enters the transport dimension,
which will allow moving on public roads, as well as providing an opportunity
IN DEVELOPING to transport on a trailer without special permission.
mail@terranica.com
terranica.com
TERRANICA Pickup On extra low pressure tires
Length (mm.) 5200 The main purpose:
• Any specialized companies (geologists, oilmen, power engineers, foresters,
Weight (kg.) 2700 firemen, etc.) with the option of using a loading platform for installing any equipment
Load capacity (kg.) 2500 for working on water, in wetlands, swamps, savannas, a small snow cover
• Transportation of various cargoes, incl. frozen and perishable to hard-to-reach
Loading capacity places with a total weight up to 2500 kg
afloat (kg.) 2000 • Rescue operations, both on land and on water. Extinguishing fires in places
inaccessible to conventional vehicles
• Construction and maintenance of new roads, overpasses, pipelines, high-voltage
power lines and communication lines in hard-to-reach places
IN DEVELOPING • Installation of rocket, fire and other equipment for military purposes, ensuring
the process of communication and radar tracking from remote areas
• Transportation of vehicles, AATV class in case of impossibility for them
to get out of places of active rest
• Using cargo compartment as a full-fledged room for a long stay of two people
with the installation of an autonomous heater or air conditioner (long commercial
hunting, geological exploration, meteorological observation).
TERRANICA Heavytrack
Length (mm.) 5200 The main purpose:
• Any specialized companies (geologists, oilmen, power engineers, foresters,
Weight (kg.) 2900 firefighters, etc.) with an option of using cargo platform for installation
Load capacity (kg.) 3000 of any equipment for working on water, in wetlands, swamps, savannas, large snow
cover, conditions of the Arctic
Loading capacity • Transportation of various cargoes, in particular frozen and perishable to hard-to-reach
afloat (kg.) 2200 places with a total weight of up to 2500 kg
• Rescue operations, both on land and on water. Extinguishing fires in places inaccessible
to conventional vehicles.
• Construction and maintenance of new roads, overpasses, pipelines, high-voltage power
IN DEVELOPING lines and communication lines in hard-to-reach places
• Transportation of vehicles, AATV class, if getting out of leisure areas is impossible
• Using cargo compartment as a full-fledged for a long stay of two persons with installation
of an auxiliary heater on the wood or air conditioner (long commercial hunting, geological
prospecting, meteorological observation)
mail@terranica.com
terranica.com
PROJECT
GEOGRAPHY Canada
Sweden
Norway
Finland
Russia
Belarus
Mongolia
With the implementation of the entire model USA France
Romania
Kazakhstan
range, geography of the product distribution can
become very extensive and cover the most Saudi United
important areas of Russia, North and South Algeria
Egypt
Arabia Arab
Emirates
America, Africa, Australia, the Middle East, coun- Chad
tries of Europe and Southeast Asia. Venezuela Nigeria
Colombia Uganda
Kenya
Brazil
In some of the aforementioned areas, there is still Peru
Zambia
Angola
no well-established market for all-terrain vehicles, Bolivia
our strategy involves the presence in the near- Australia
Chile South Africa
term perspective in all areas and positioning as
the only company in the world that has a diverse
product line of all-terrain vehicles to solve trans-
portation problems of any complexity
Areas of presence Areas of presence Areas of presence
in the near term in the medium term
mail@terranica.com
terranica.com

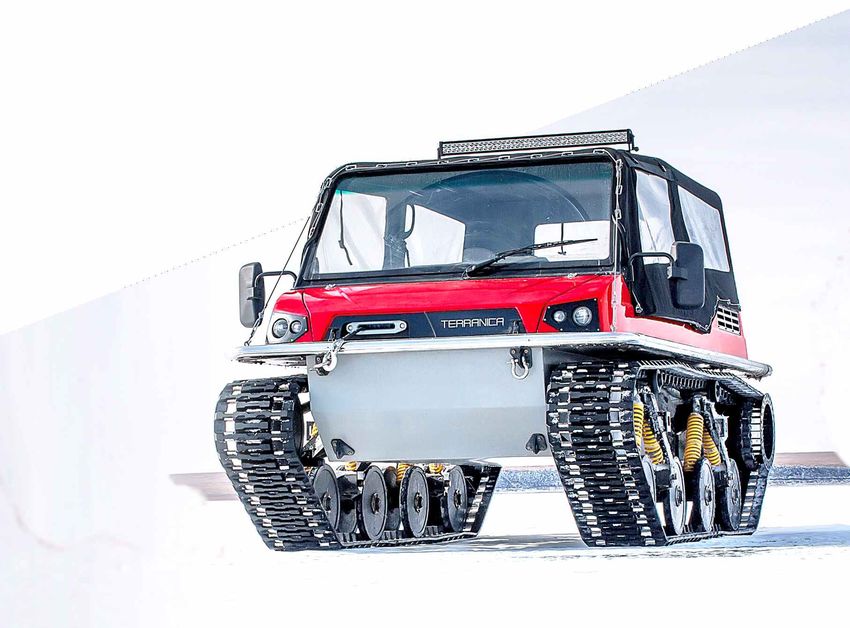

DREAMTRACK
The model has been developed to solve transportation
tasks of medium level. It is designed in two modifications –
with short and long base.
The all-terrain vehicle has an independent lever suspen-
sion, a reliable and economical turbo diesel engine with a
capacity of 150 l/sec, automatic transmission, an intuitive
steering and a warmed, hermetic body with the possibility
of accommodating up to six (up to eight) crew members.
The suspension of the car is made of materials of a new
generation - ultrastrong polymers, which gives it a special
impact resistance and creates additional buoyancy.
The vehicles successfully combines snowmobile function-
ality with characteristics of the amphibian.
To date, mass production and sales of TERRANICA
Dreamtrack tracked snow and swamp-going vehicle have
been established. In the near future, the long-base model
will be launched into serial production.
mail@terranica.comterranica.com
MARSH
The high-speed wheel all-terrain vehicle with a suspension and a
combined control system on tires of ultralow pressure.
The control system is patented and is a combination of turning the
automobile type with both steered axles and counter-turning and
turning the tractor type using onboard clutches. The driver has the
ability to choose the type of control, depending on the overcome off-
road.
4x4 wheel formula, one-volume closed body, independent suspen-
sion with trailing arms, manual transmission or automatic transmis-
sion.
The housing is made bearing, solid-welded from aluminum alloys and
sheets.
The transmission is two-stage, with a chain distribution of power to
the wheels, the first stage is an open roller chain, placed in the
housing and protected by a casing, the second stage is a wheel
reducer in an oil bath, combined with suspension arms.
A good speed afloat is achieved due to high lugs.
To date, work is underway to build a prototype for the passage of
subsequent tests. Patent for invention received
mail@terranica.comterranica.com

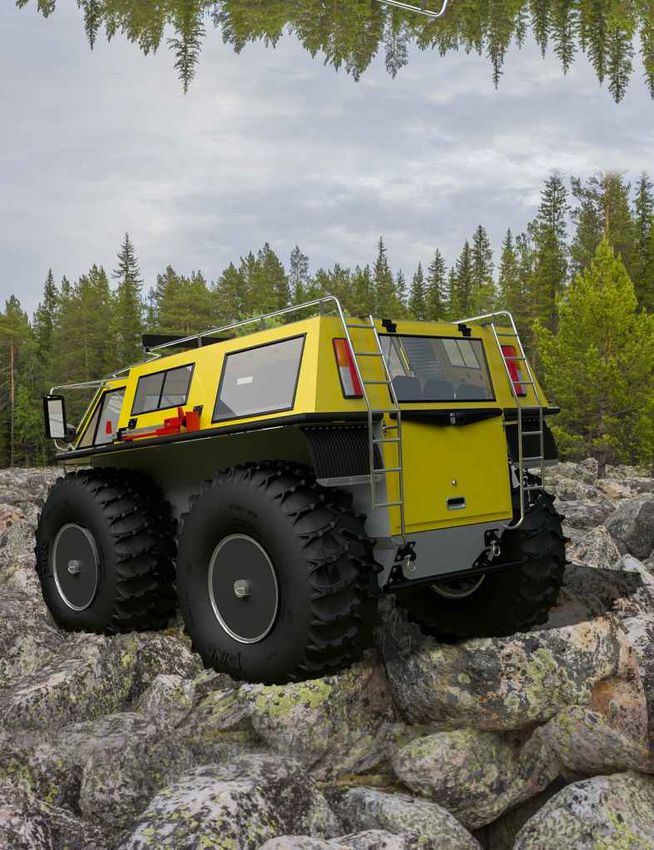

EXPEDITION
TERRANICA Expedition is a really multivariate vehicle that allows over-
coming any kinds of obstacles in simultaneous combination.
The vehicles combines consumer qualities of cars, SUVs, trucks, tracked
all-terrain vehicles, snowmobiles, amphibians and minibuses.
The possibility of transforming the main suspension units and combined
hydromechanical drive transmissions today have no analogues in the
world.
When the crawler is mounted on the wheels, a large patch of the caterpil-
lar belt appears, which creates a low specific pressure of the vehicles on
the ground, allowing it to move through the swamps and snow.
By installing skis on the front axle and tracks on the middle and rear axle,
one can get a ski-tracked version of this vehicle or more common name -
snowmobile.
The three-axis layout scheme suggests the possibility of raising the
middle axis, which allows moving like a regular two-axle vehicle.
A patent was obtained for an invention. The required calculations and
R&D operations have been performed. Design work is underway.
mail@terranica.comterranica.com
Wheel formula 4x2 and 4x4
The raised average axis will allow to move, as the usual passenger car.
Four-wheel drive allows you to move in an easy off-road conditions.
Wheel formula 6x6
This position of the transmission will provide increased carrying capacity
and the ability to move in a heavy off-road conditions.
Tracked drive
Will allow to move in conditions of heavy off-road, deep swamps and snow.
Ski-Caterpillar option - tracked running gear at the middle
and rear axle with a quick-release controlled ski on the front axle.
High speed of movement along the snow cover of great thickness.
Floatability for all transmission options
Easy overcoming water obstacles due to sufficient displacement
and instalment of water jet.
Single-space body
This layout will provide an excellent overview and the possibility
of organising a sleeping space for three people. Dimensions
of the machine will allow passengers to move freely inside the car
to the full height. Car capacity - 8 people.
mail@terranica.comterranica.com
WATERPILLAR
The main technical idea is to locate the tracks under the boat in the dimensions of
the boat. Tracks will be mounted on the steel, box-section sealed pontoons.
Pontoons can be deployed upwards - around the longitudinal axis.
To fix the pontoons in the sides of the boat there are shaped cutouts made in the
sides. When turning the pontoon, its upper part becomes a part of the bottom.
There are 2 complete sets of amphibious vehicle:
- Displacement, with the ability to move on water at a speed of 15-20 km / h, with a
diesel engine of 100 hp and a carrying capacity of up to 3.5 tons.
- Gliding, with the ability to move on water at a speed of 60-70 km / h, with a diesel
engine of 250 hp and high-speed water cannon. The contours of a body will allow
to go not only in gliding mode, but also will provide seaworthiness, up to a wave of
about 1.5 meters in gliding mode. Load capacity of this option - 1.5 tons.
Amphibian is unsinkable, since a large amount of special unsinkable material will
be placed in the voids between the inner lining of the sides and the bottom part.
This all-terrain vehicle has a higher capacity - up to 15 people, a huge flat cargo deck
and large cargo space.
mail@terranica.comterranica.com mail@terranica.com
terranica.com
THE COMPANY IS OPEN
TO STRATEGIC PARTNERSHIP.
TOGETHER WE:
Will develop the entire range of vehicles, We will continue the development of new We will make TERRANICA brand recognizable
patent it, test it in all geographical and climatic materials required to improve the reliability around the world by holding an aggressive
conditions for effective access to the and resistance to extreme conditions of marketing campaign, including, inter alia,
corporate and retail market of Russia, as well operation of new machines. By this we will arranging Arctic, polar expeditions, conduct-
as the CIS countries and abroad. successfully increase the capabilities and ing trophy-raids in the conditions of the desert,
consumer properties of products, expressing African savannas and other formidable places,
the constant concern for our customers using as well as constant publications with opinion
an all-terrain vehicle in difficult conditions leaders
We will complete other commercial projects In 5 years we will create a steady financial flow We will achieve IPO by the initial public
related to the TERRANICA brand, such as and stable growth of sales up to the level of 5% offering on the stock exchange.
TERRANICA Store, an online store of goods of the world market - at least $ 500 million.
and accessories for outdoor activities. These
projects have to be implemented due to the
great attention of the audience associated
with all-terrain vehicles and outdoor activities.
mail@terranica.comterranica.com Short films www.youtube.com/watch?v=euFAPP_tt4I www.youtube.com/watch?v=qpLc_iaRj0M&t=280s www.youtube.com/watch?v=M7wtjdR_6C0&t=18s Promotional videos www.youtube.com/watch?v=gUDL7m9X23g www.youtube.com/watch?v=U7SKp2CrrWo www.youtube.com/watch?v=8FPxSW8fQ_0 www.youtube.com/watch?v=HWRq-J9q474&t=6s mail@terranica.com
8 800 555 6703 terranica.com mail@terranica.com
You can also read
