THIS IS MESMERIZE LIGHTING Mesmerize Lighting is a research-driven company that imports high quality LED lighting products for wholesalers across South Africa. Despite growing so significantly, there remains a very strong commitment to providing personalized service with a youthful energy that drives a special relationship between supplier and wholesaler. Extensive effort is spent on mastering the after-sales service. Our products are made by specialist manufacturers and exceed both international and local standards. Adhering to all required certifications, our LED’s have test reports and detailed specification sheets available; in addition to the trendy product information-brochures. We offer on-site inspections, lighting designs, customisable options and professional recommendations on all our LED products and accessories – truly going above and beyond the simple role of a traditional wholesaler. Call your closest Mesmerize Branch today, and we would be more than happy to assist you with our expert technical advice, as well as how to buy or sell Mesmerize Products - we are ALWAYS happy to help! www.mezlighting.com
CONTENTS 1 3 5 7 9 29 31 33 35 37 LED UFO LED UFO LED UFO LED UFO LED UFO LED LED LED LED LED HIGHBAY HIGHBAY HIGHBAY HIGHBAY HIGHBAY DOWNLIGHT DOWNLIGHT ANTI-GLARE ANTI-GLARE ANTI-GLARE SIERRA SKYE ZENITH 19 ZENITH 200 LUMINA SLIM/ HALO G2 DOWNLIGHT DOWNLIGHT DOWNLIGHT SURFACE HORIZON HORIZON CCT TITAN PANEL 11 13 15 17 19 39 41 43 45 47 LED LINEAR LED LINEAR LED HEAVY LED HEAVY LED HEAVY LED 3 WIRE LED LINEAR LED ROTARY LED PANEL LED PANEL LOWBAY HIGHBAY DUTY GLOBE DUTY GLOBE DUTY GLOBE TRACK SPOT LIGHT APEX SHOPLIGHT LIGHT LIGHT MARVEL MATRIX HAVOK CORSAIR CYCLOPS ATHENA SEAMLESS WALLWASHER BACKLIT EDGE-LIT CCT GALAXY 21 22 23 25 27 49 51 53 55 57 LED LED LED LED LED LED TROFFER LED DAMP LED DAMP LED INDOOR IP65 VAPOUR FLOODLIGHT FLOODLIGHT FLOODLIGHT FLOODLIGHT FLOODLIGHT LUMINAIRE PROOF LIGHT PROOF LIGHT LINEAR IP33 PROOF ACCENT MOTION ATLAS ELITE APOLLO STELLAR INFINITY NEO IP65 FITTING COLOUR SENSOR COASTAL COASTAL SERIES
CONTENTS 58 59 61 63 65 82 83 85 86 87 IP20 OPEN LED LED LED CEILING LED GU10 3 LED DC12V LED DC12V ULTRA THIN ALUMINIUM DC12V & CHANNEL T8 GLASS PENDANT LIGHT WIRE TRACK SIGNAGE & DC24V POWER PROFILES DC24V FITTING TUBE LAMP TRINITY SPOT ARES MODULES STRIPLIGHTS SUPPLIES STRIPLIGHT COSMO ACCESSORIES 67 69 71 73 74 89 91 93 LED GU10 LED GU10 LED LED LED 7W A60 LED DC24V LED 220V LED 220V RAINBOW COMET BULKHEAD MODULAR EMERGENCY NEON FLEX TAPELIGHT NEON FLEX PRO SATURN 2D RETROFIT GLOBE PRO PRO 75 77 79 80 81 LED GLOBE LED GLOBE LED 4.5W LED 4.5W LED STAR- FILAMENT A60 CANDLE GOLF BALL LIGHT BI-PINS G9 & G4

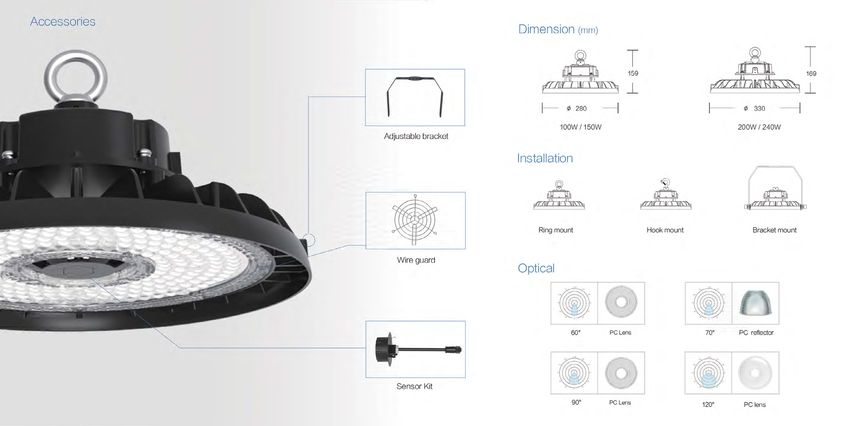

SMD2835 130 lm/w CRI 80 LM80 TM21 105° Beam Angle 4KV PF 180~264Vac surge protection > 0.95 ADC12 IP65 IK07 EMC Heat-sink IES 30,000 2Year Warranty available hrs Features and Benefits Specially selected MLS SMD2835 LED chips provide a high luminous efficacy of up to 130 lumens per watt. A well protected built in driver with 4kV surge protection and a constant current of 180 – 264VAC helps to maintain the lifetime of this product. Additionally, the ADC12 graded Aluminium heatsink and heavy duty IP65 IK07 housing improves the heat dissipation to keep components running cool and dry. The driver has been EMC passed and has a power factor of PF>0.95 and operating temperature of between -30° and +50° Celsius. This UFO LED highbay has been rated compliant by SAA/IEC/CE and RoHS. A reliable 2-year warranty and rated minimum lifespan of 30 000 hrs mean this product is perfect for commercial use. Technical Specifications Model No. Watt Lumen CCT BA CRI Voltage PF Surge DIM Hook or Cable Dimension (mm) Ring AC D H up to 6500K ML-SRA-110W 110W 14300lm 5000K 105° Ra80 180-264Vac ≥0.95 4KV NO Hook H05, 230 53 -xx 4000K 1m LED UFO HIGHBAY SIERRA 6500K ML-SRA-160W 160W 20800lm 5000K 105° Ra80 180-264Vac ≥0.95 4KV NO Hook H05, 270 53 -xx 4000K 1m ML-SRA-210W 6500K H05, -xx 210W 27300lm 5000K 105° Ra80 180-264Vac ≥0.95 4KV NO Hook 1m 310 53 4000K 1 LED UFO HIGHBAY SIERRA LED UFO HIGHBAY SIERRA 2
Features and Benefits The Skye is made with patented housing that is significantly smaller in size than the industry standard UFO highbay range but is by no means less powerful. CREE SMD2835 LED chips provide outstanding lumen maintenance and better efficiency of up to 150 Effective Lumens per watt, diffused by an optional optic reflector for even better light distribution. Patent housing for a lightweight and smaller dimension means space-saving, both in warehouses and on shipping making this fitting truly economically viable for use in large numbers. The built-in driver regulates voltage, promotes efficiency up to 96% and comes with a 4KV surge protection. The very impressive voltage range of 90 – 305VAC allows for wide voltage input. The driver can also be used to dim the luminaire. Demanding applications require robust housing, the TGIC paint maintains superior colour retention and protects the housing against chipping or scratching. The product comes with a 5-year warranty, multiple possibilities for installation, an option for sensor and smart control systems. Installation 150 CRI LM80 TM21 SMD2835 lm/w 80 90° Beam Angle Hook mount Pole mount Surface mount Isolated 4KV surge 3-in-1 dimming driver 90~305Vac protection 1-10V, PMW, Resistence TGIC DIY IP65 IK08 painting lens IES 50,000 5Year available hrs Warranty Technical Specifications Model No. Watt LEDs Lumen CCT CRI Beam Voltage PF Dim Surge Dimension Angle Protection D H 60°/70° LED UFO HIGHBAY ML-SK-100W-5K 100W SMD2835 15000lm 5000K 80 90~305VAC 0.95 NO 4KV 226 152 90°/120° SKYE 60°/70° 1-10V/ ML-SK-150W-5K 150W SMD2835 22500lm 5000K 80 90~305VAC 0.95 PMW 4KV 275 152 90°/120° 60°/70° 1-10V/ ML-SK-200W-5K 200W SMD2835 30000lm 5000K 80 90°/120° 90~305VAC 0.95 PMW 4KV 275 152 3 LED UFO HIGHBAY SKYE LED UFO HIGHBAY SKYE 4
Features and Benefits The specialized LOW GLARE RATING on this product is important in commercial applications where it is required to prevent glare that causes symptoms like eye pain and dizziness or tiredness in workers in dangerous, difficult or lengthy operations. The low Anti-glare Rating of between
Features and Benefits The Zenith 200 is the best suited product for extremely high ceilings or high-lumen output requirements. The TOYODA GOSEI(TG) SMD2835 LEDs provide a highly improved lumen maintenance and efficiency while the external SOSEN CNL series driver supplies a wide voltage range of 90 – 305Vac, a Power Factor of >0.95 and a 4KV surge protection (with an optional extra 10KV Surge Protection Device). The housing is covered with TGIC paint and IP65 and IK08 ratings that allow for protection in coastal applications, and the center of the fitting is hollow for quick installation of sensor and wireless control modules. Optional extras include a Bluetooth mesh or Tuya Lighting control module, and both 90° beam angle with PC dot lens and a 120° beam angle with PC strip lenses, as well as an optional reflector for an even better optical performance. This product has an extra 1m safety rope to ensure a safe and easy installation. The Zenith has been reliably tested and rated for 50 000 hours and comes with a 5-year warranty. Optical 90° Fresnel Circle Lens SMD2835 200 lm/w CRI 80 LM80 TM21 90° FRESNEL LENS Installation Beam Angle 4KV PF DIM 90~305Vac surge protection 0.95 0-10V Ring Hook Bracket Suspending Suspending Surface Mounted TGIC DIY IP65 IK08 H Painting Lens Technical Specifications D IES 50,000 5Year Warranty Model No. Watt Lumen LEDs CCT CRI Beam Voltage Driver PF Surge Dimension (mm) available hrs Angle D H Fresnel Circle Lens 4000K ML-ZN200-80W-XX 80W 16000lm TG 5000K Ra80 90° 90~305Vac >0.95 4KV SMD2835 5700K 4000K ML-ZN200-100W-XX 100W 20000lm TG 5000K Ra80 90° 90~305Vac >0.95 4KV 280 159 SMD2835 5700K LED UFO HIGHBAY ML-ZN200-120W-XX 120W 24000lm TG 4000K 5000K Ra80 90° 90~305Vac >0.95 4KV ZENITH 200 SMD2835 5700K 4000K ML-ZN200-150W-XX 150W 30000lm TG 5000K Ra80 90° 90~305Vac >0.95 4KV SMD2835 5700K 330 169 4000K ML-ZN200-200W-XX 200W 40000lm TG 5000K Ra80 90° 90~305Vac >0.95 4KV SMD2835 5700K 7 LED UFO HIGHBAY ZENITH 200 LED UFO HIGHBAY ZENITH 200 8
≥ LEDs 160 CRI 80 LM80 TM21 120° 72,000 lm/w Beam Angle lm 4~10KV PF 90~305Vac surge protection > 0.95 ≥15m AL1070 Cold-forging -40°C~ IP65 IK08 Aluminum Technology +50°C IES 50,000 5Year Warranty available hrs Features and Benefits The Lumina is a 5-year warranty version of the UFO Highbay that comes with a choice of either NICHIA 757G-V3 or CREE SMD2835 LED chips, producing up to 150LM/W and 160LM/W respectively. Meanwell HLG or SOSEN VP drivers (optional) both provide stable power to the product. An AL1070 pure Aluminium housing and specialized Cold-Forging technology provide an HCI (Heat Conductive Index) of up to 226W/MK providing a superior control of heat within a lightweight and corrosion resistant body (with advanced electrophoresis surface treatment to the housing). Additional options include accessories for optical reflectors, emergency kits, sensors, brackets, safety ropes, longer cables, a junction box and special Fresnel lens of 60° and 90°. Tested and approved by UL/DLC/FCC/SAA/TUV/CE and RoHS with a rated lifespan of 50 000 hours. H Technical Specifications D Model No. Watt Lumen LEDs CCT CRI BA Driver Voltage PF Surge DIM Dimension (mm) D H Option 1: CREE LEDs SMD2835+SOSEN VP driver, 150lm/w ML-LM-320W 4000K 60° 90~ -xx 320W 50000lm 5000K Ra80 90° 0.95 10KV Yes 280 221 568pcs 305Vac 5700K 120° SS-320VP ML-LM-480W 4000K 90~ -xx 480W 72000lm 5000K Ra80 120° 305Vac 0.95 10KV Yes 400 255 864pcs 5700K SS-500VP Option 2: NICHIA LEDs 757G-V3+MEANWELL HLG driver, 160lm/w LED UFO HIGHBAY 4000K 60° LUMINA ML-LMV-320W 320W 51200lm 757G-V3 Ra80 90~ -xx 5000K 90° 305Vac 0.95 4KV Yes 280 221 784pcs 5700K 120° HLG-320 ML-LMV-480W 4000K 90~ -xx 480W 76800lm 757G-V3 5000K Ra80 120° 305Vac 0.95 4KV Yes 400 255 1264pcs 5700K HLG-480 9 LED UFO HIGHBAY LUMINA LED UFO HIGHBAY LUMINA 10
SMD2835 140 lm/w CRI 80 LM80 TM21 30*70° Why Linear Lowbay? Beam Angle A linear lowbay design serves well in applications with aisles and racks; providing unified light on both shelving and walk-ways. 10KV PF DIM 100~305Vac surge protection 0.95 0-10V Features and Benefits AL1070 TGIC DIY Aluminum Paint lens IP65 IK08 The Marvel LED Linear Lowbay comes with American Brand CREE SMD2835 LED chips that produce up to an impressive 140 lumens per watt and three optional beam angles (30x70°, 60x90° and 90°) – making it perfectly suited to lighting aisles or storage facilities with racking. IES 50,000 5Year Warranty The driver is made by SOSEN and has a range of 100 -305Vac, a 10V surge protection, 1 – 10V dimming available hrs option as well as an optional 10kV SPD The TGIC paint material resists corrosion and assists in maintaining an IP65 rating, and the AL1070 Aluminium housing keeps working components cool. The Marvel is especially easy to install, with an internal junction box and toolless entry, available for suspended or surface mount installation It also comes with the options for emergency kit or sensor / smart control. LED LINEAR LOWBAY Reliably tested and rated by CE/RoHS and SAA, this product has been rated with a lifespan of 50 000 hours and a 5-year warranty. MARVEL Optical Installation 90° 60° x 90° 30° x 70° Suspending Surface Mounted H Technical Specifications L W Model No. Watt Lumen CCT CRI BA Voltage PF Surge DIM Dimension(mm) L W H ML-MV-100W 4000K 30*70°/ -xx 100W 14000lm 5000K Ra80 60*90°/ 100~305Vac >0.95 10KV Yes 562 119 94 5700K 90° ML-MV-150W 4000K 30*70°/ -xx 150W 21000lm 5000K Ra80 60*90°/ 100~305Vac >0.95 10KV Yes 829 119 94 5700K 90° ML-MV-200W 4000K 30*70°/ -xx 200W 28000lm 5000K Ra80 60*90°/ 100~305Vac >0.95 10KV Yes 1095 119 94 5700K 90° 11 LED LINEAR LOWBAY MARVEL LED LINEAR LOWBAY MARVEL 12
Features and Benefits The new Mesmerize Matrix is an LED linear Highbay with almost endless options that include emergency back-up, motion sensor or smart control kits, and have the option to be surface or pole mounted. Available from 75W up to 400W in 4000K, 5700K or 6500K to ensure all needs are met, while using a SOSEN isolated driver with 3-in-1 dimming options and up to a 10KV surge protection (depending on which option is chosen). The CREE SMD2835 LED chips are extremely efficient and push out up to an impressive 150 Effective Lumens per watt and excellent lumen maintenance. Mesmerize product designers made use of incredible optical designs with 50 * 90º beam angles so the product makes perfect sense for use in warehouse aisles or in factories with high ceilings. Cutting-edge modular strategies allowed for a pure aluminium extrusion heatsink that dissipates heat quickly and increases anti-corrosion capacities. Reliably tested for up to 50,000 hours, these products come with a 5-year warranty. Installation up to CRI SMD2835 150 80 LM80 TM21 50*90° lm/w Rope Hanging Surface Mount Pole Mount Beam Angle 6/10KV surge 3-in-1 dimming 90~305Vac protection 1-10V, PMW, Resistence PURE Aluminum DIY IP40 W H housing lens Technical Specifications L IES 50,000 5Year Model No. Watt Lumen Lumen CCT CRI Voltage PF BA Surge Dimension(mm) L W H available hrs Warranty L/N-PE:10KV ML-LH-75W-57K 75W SMD2835 11250lm 5700K 80 90-305Vac 0.98 50*90° L-N:6KV 577 254 59 ML-LH-100W-57K 100W 15000lm 5700K 80 90-305Vac 0.98 50*90° L/N-PE:10KV 577 254 59 SMD2835 L-N:6KV L/N-PE:10KV ML-LH-150W-57K 150W SMD2835 22500lm 5700K 80 90-305Vac 0.98 50*90° L-N:6KV 577 254 59 ML-LH-200W-57K 200W 30000lm 5700K 80 90-305Vac 0.98 50*90° L/N-PE:10KV 1094 254 59 LED LINEAR HIGHBAY SMD2835 L-N:6KV ML-LH-240W-57K 240W 36000lm 5700K 80 90-305Vac 0.98 50*90° L/N-PE:10KV 1094 254 59 MATRIX SMD2835 L-N:6KV 45000lm 5700K L/N-PE:10KV ML-LH-300W-57K 300W SMD2835 80 90-305Vac 0.98 50*90° L-N:6KV 1094 254 59 ML-LH-400W-57K 400W 60000lm 5700K 80 90-305Vac 0.98 50*90° L/N-PE:10KV 1094 374 59 SMD2835 L-N:6KV 13 LED LINEAR HIGHBAY MATRIX LED LINEAR HIGHBAY MATRIX 14
Store Park Features and Benefits The little brother of the Cyclops range, the Havok is well suited to lower ceiling heights and has smaller wattages, without losing the power or thermodynamic capabilities. Flicker free SMD2835 LED chips are used to produce up to 100 Effective Lumens per watt, with an impressive colour rendering index of CRI80 for excellent light quality. A unique tooling provides for a single piece heat-sink housing with an ingress protection rating of IP40. The product comes with new switch DOB technology with a wide voltage range of 180 – 277VAC making it a cost-effective and contemporary replacement for the lower wattage HID lamps. The housing’s advanced technology provides excellent light distribution, without shadow. The product comes with a 2-year warranty and has been tested for a lifespan of up to 25 000 hours. . LED CFL 20W 35W 30W 45W SMD 100 CRI LM80 TM21 40W 65W H ≤ 6m 2835 lm/w 80 200° 50W 85W Beam Angle Replacement is based on lux Suggested installation height Switch 500V DOB 180~277Vac surge protection D 1-PIECE housing IP40 H IES 25,000 2Year IEC60598-1&2 available hrs Warranty Technical Specifications Model No. Watt Lumen CCT CRI Beam Voltage Flicker Base Used in Replace Dimension(mm) Angle free closed fixture CFL D H ML-HK-20W-DL 20W 2000lm 6500K Ra80 200° 180~277V YES E27 NO 35W 80 140 LED HEAVY DUTY GLOBE ML-HK-30W-DL 30W 3000lm 6500K Ra80 200° 180~277V YES E27 NO 45W 100 162 HAVOK ML-HK-40W-DL 40W 4000lm 6500K Ra80 200° 180~277V YES E27 NO 65W 118 196 ML-HK-50W-DL 50W 5000lm 6500K Ra80 200° 180~277V YES E27 NO 85W 138 230 15 LED HEAVY DUTY GLOBE HAVOK LED HEAVY DUTY GLOBE HAVOK 16
Features and Benefits The Corsair is Mesmerize Lighting’s natural replacement for the HID fitting and the compact size allows for a direct retrofit. An improvement to the design of the optics prevent dark spots and an improvement in both the 4000K and 5700K variants in the SMD2835 high efficiency 100lm/W LEDs. The Corsair has been designed with AL1070 aluminium housing by cold-forging technology and a market-leading heatsink. The 2-year warranty is supported by the 1kV surge protection. Reliably rated at 25 000 hours and has passed SAA, CE and RoHS. Replacement is Suggested based on lux installation height SMD 2835 100 lm/w CRI 80 LM80 180° Beam Angle LED CFL HID 100W 5-7m 100W 150W 175W 150W 240W 320W 150W 8-10m PF 1KV 198~264Vac 0.95 surge protection AL1070 Aluminum Housing E40 D IES 25,000 2Year Warranty H available hrs Technical Specifications Beam Dimension(mm) Model No. Watt Lumen CCT CRI Angle Voltage PF DIM Base D H LED HEAVY DUTY GLOBE ML-CRS-100W-E40-57K 100W 10000lm 5700K Ra80 180° 198~264Vac >0.95 NO E40 140 278 CORSAIR ML-CRS-120W-E40-57K ML-CRS-150W-E40-57K 120W 150W 12000lm 15000lm 5700K 5700K Ra80 Ra80 180° 180° 198~264Vac 198~264Vac >0.95 >0.95 NO NO E40 E40 140 167 297 324 17 LED HEAVY DUTY GLOBE CORSAIR LED HEAVY DUTY GLOBE CORSAIR 18
Features and Benefits The Cyclops, meaning ‘Round Eye’, is a HID replacement lamp with an E40 base that fits perfectly into a commercial or industrial setting. The latest SMD LED technology provides high efficiency and excellent lumen maintenance. The improved PBT housing with built-in aluminium heat sinks and new thermal design produces a chimney effect, resulting in impressive heat dissipation. An isolated power supply stabilizes voltage input and keeps excessive heat away from the LED chips. The 500V built in surge protection and advanced testing rates this product up to 25 000 hours lifespan. The product comes with a 2-year warranty. LED CFL HID 80W 130W 175W H ≤ 8m SMD 100 CRI LM80 TM21 120W 200W 250W 2835 lm/w 80 150° Beam Angle Replacement is based on lux Suggested installation height 120° Reflector is sold seperately. Isolated PF 500V driver 100~277Vac 0.9 surge production PBT IP20 housing D IES 25,000 2Year IEC60598-1&2 available hrs Warranty H Technical Specifications LED HEAVY DUTY GLOBE Model No. Watt Lumen CCT CRI Beam Voltage PF Flicker Base Dimension(mm) angle free D H CYCLOPS ML-CY-120W-E40-DL 120W 12000lm 6500K Ra80 150° 100-277Vac 0.9 YES E40 190 270 ML-CY-80W-E40-DL 80W 8000lm 6500K Ra80 150° 100-277Vac 0.9 YES E40 170 229 19 LED HEAVY DUTY GLOBE CYCLOPS LED HEAVY DUTY GLOBE CYCLOPS 20
LED FLOODLIGHT LED FLOODLIGHT ACCENT COLOUR MOTION SERIES Features and Benefits SENSOR Available in 10W and 30W the Accent Series of Mesmerize LED Floodlights will enhance any architectural or landscape features you want to highlight. Options include the remote-controlled Multi-Colour Floodlights, as well as single colours in Blue and Green Features and Benefits with up to 80 Effective Lumens per watt. Ideal for security, this is the Mesmerize 20W LED Floodlight with Motion Sensor and Day / Night switch. Expertly sourced Shangahi BPS IP65 drivers with a 0.90 Power Factor manage electronic currents to Easy-to-use settings allow for customizable duration, sensitivity and scheduling settings. maintain efficiency. Sanan LED chips were expressly selected for the job of producing up to 88 Effective Lumens per watt at a A surge protection of 1.5KV and wide input voltage of AC100-277V prolongs the life of the luminaire. 110º beam angle for better light distribution and to maximize colour output. The 1000mm pre-wired cable makes for fast and convenient installations. A surge protection of 1KV and a wide input voltage range of AC180-260V prolongs the life of the luminaire. Reliably tested for up to 25 000 hours and rated IP65 with a IK07 impact rating, this product comes with Separately mounted, the PIR sensor can be pointed in the ideal direction, and the 1000mm pre-wired cable a 2-year warranty. makes for fast and convenient installations. Reliably tested for up to 25 000 hours and rated IP65 with a IK07 impact rating, this product comes with Technical Specifications a 2-year warranty. Model No. Watt Colour CRI BA Voltage Surge Dimension(mm) L W H ML-JFL-10W-G 10W Green Ra80 120° 180-265Vac 1kV 110 95 30 ML-JFL-10W-B 10W Blue Ra80 120° 180-265Vac 1kV 110 95 30 Technical Specifications ML-JFL-10W-RGB 10W Multi Colour Ra80 120° 180-265Vac 1kV 100 130 30 Model No. Watt Lumen CCT CRI BA Voltage PF Surge Protection ML-JFL-30W-G 30W Green Ra80 120° 180-265Vac 1kV 180 150 40 ML-FL-SL-20W-MS 20W 1800lm 6000K Ra75 110° 180~250Vac 0.9 1kV ML-JFL-30W-B 30W Blue Ra80 120° 180-265Vac 1kV 180 150 40 ML-FL-SL-30W-MS 30W 2700lm 6000K Ra75 110° 180~250Vac 0.9 1kV ML-JFL-30W-RGB 30W Multi Colour Ra80 120° 180-265Vac 1kV 180 215 40 ML-FL-SL-50W-MS 50W 4000lm 6000K Ra75 110° 180~250Vac 0.9 1kV 21 LED FLOODLIGHT ACCENT COLOUR SERIES LED FLOODLIGHT MOTION SENSOR 22
Features and Benefits Discreet but powerful and long lasting, this floodlight is perfectly suited for commercial and repetitive usage, but will also be at home in your residence or garden. The younger brother of the Elite, this floodlight is by no means little, with a massive 1KV or 2KV surge protection in a compact driver-on-board housing. The design allows for auto-production which provides a truly stable, reliable and cost effective solution to the floodlight market. Using the newest technology, the Mesmerize Atlas range implements excellent weatherproofing and ventilation functions called ePTEF technology. As with most of the Mesmerize Floodlights, the Atlas comes with a 1meter H05-graded cable and an oblique angled bracket for even easier and faster installations. It is rated up to 25 000 hours of life and has up to 100 lumens per watt, this product carries a 2 Year Warranty. W H Oblique angled bracket Stamping aluminum housing L Technical Specifications 50W Dimension(mm) Model No. Watt LEDs Lumen CCT CRI BA Voltage PF Surge 100 CRI LM80 TM21 L W H SMD2835 lm/w 80 110° ML-AT-10W--xx 10W SMD2835 900lm 3000K/4000K/6500K 80 110° 180-277Vac 0.5 1KV 109 90 27 Beam Angle ML-AT-20W--xx 20W SMD2835 1800lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 1KV 165 135 30 ML-AT-30W--xx 30W SMD2835 2700lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 1KV 186 135 30 1~2KV DOB ML-AT-50W--xx 50W 4500lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 2KV 180 240 30 PF SMD2835 surge protection 0.9 design ML-AT-100W--xx 100W SMD2835 9000lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 2KV 313 243 37 180~277Vac ML-AT-200W--xx 200W 20000lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 2KV 380 362 49 SMD2835 ML-AT-300W--xx 300W SMD2835 30000lm 3000K/4000K/6500K 80 110° 180-277Vac 0.9 2KV 480 262 54 ePTEF Aluminum housing IP65 IK06 H05 respirator cable IES 25,000 2Year IEC60598-1&2 available hrs Warranty LED FLOODLIGHT 23 LED FLOODLIGHT ATLAS ATLAS LED FLOODLIGHT ATLAS 24
Features and Benefits Like a featherweight boxer, this floodlight can take, and give a few punches. The Mesmerize Elite Floodlight has been equipped with the powerful Osram Optoelectronics SMD2835 LEDs that emit upto100lm/w at a beam angle of 110 degrees. The robust built-in driver comes with a surge protection of between 1KV to 2KV depending which product in the series you choose. The new patented housing has an ADC12 graded-aluminum oblique bracket for extra strength and is corrosion resistant, allowing for a three year warranty. Depending on what you select in this series, the product has either a compact coastal polycarbonate or the hefty ADC12-graded die-cast aluminium housing. From domestic security to public pathways, the user friendly oblique bracket is angled in such a way that mounting is a breeze. This hard working LED Floodlight has a 35 000 hour life-span with IEC60598-1&2 approved certifications. 10w 20w 30w 50w up to CRI SMD2835 100 lm/w 85 LM80 TM21 110° Oblique angled bracket Coastal housing Beam Angle L H Built-in 1~2KV PF driver 100~277Vac surge protection 0.9 W COASTAL HOUSING IP65 IK06 Technical Specifications IES 35,000 3Year IEC60598-1&2 Beam Dimension available hrs Warranty Model No. Watt LEDs Lumen CCT CRI Voltage IP Angle L W H ML-EL-10W-DL 10W 950lm 6500K Ra85 110° 100~277V IP65 108 93 22 SMD2835 ML-EL-20W-DL 20W 1950lm 6500K Ra85 110° 100~277V IP65 159 124 36 SMD2835 LED FLOODLIGHT ML-EL-30W-DL 30W SMD2835 2950lm 6500K Ra85 110° 100~277V IP65 188 148 36 25 ELITE COASTAL LED FLOODLIGHT ELITE COASTAL ML-EL-50W-DL 50W ML-EL-200W-DL 200W SMD2835 SMD2835 4950lm 6500K 20000lm 6500K Ra85 Ra85 110° 110° 100~277V 100~277V IP65 IP65 208 158 40 414 385 102.5 LED FLOODLIGHT ELITE COASTAL 26
Features and Benefits This is a high powered and well protected Coastal floodlight that is perfect for industrial usage. Phillips Luxeon LumiLED chips have been framed by the highly reflective white micro-cellular PET to boost the 130 lumens per watt they are already pushing out. The highly transmittable impact resistant polycarbonate lens is interchangeable to allow for customisable beam angles on the 500W and 1000W. A robust Meanwell Driver has a 6kV surge protection for 3 seconds to prevent damages caused by unstable voltage supply. These specialized components are all housed in ADC12 graded aluminium with extra ventilation to prevent internal condensation. 316 stainless steel screws, brackets and nuts ensure protection at every level of harsh environments. SPIGOT WITH 65W 120W 240W Technical Specifications 130 CRI LM80 TM21 SMD3030 lm/w 82 DIMENSION (mm) Model No. Watt Lumen LEDS CCT CRI Voltage PF Driver BA L W H ML-APXS-25W-57 25W 3250lm 5700K 82 100~277Vac 0.9 80° x 140° 242 169 51 PF 6kV ML-APXS-65W-57 65W 8450lm 5700K 82 100~277Vac 0.9 80° x 140° 337 269 52 100~305Vac 0.98 surge protection ML-APXS-120W-57 120W 15626lm 5700K 82 100~305Vac 0.98 90° 394 393 57 ML-APXS-240W-57 240W 30457lm 5700K 82 100~305Vac 0.98 90° 498 393 59 PC 316 lens micro-cellular PET ADC12 aluminum housing stainless steel with RESPIRATOR IP66 IK10 ML-APX-500W-57 500W 60000lm 5700K 82 100~305Vac 0.95 80°x140°/30° 695 435 65 ML-APX-1000W-57 1000W 120000lm 5700K 82 100~305Vac 0.95 80°x140°/30° 695 885 65 IES 50,000 5Year available hrs Warranty LED FLOODLIGHT APOLLO COASTAL 27 LED FLOODLIGHT APOLLO COASTAL LED FLOODLIGHT APOLLO COASTAL 28
Features and Benefits This is the newest adaptation of the Slim LED Panel, our PMMA Lighting Guide Plate provides for a longer lifespan and better light output quality. Surface mounted 2835 LED chips have been rated for up to 80 Effective Lumens per watt, the heat is maintained and distributed by the 6063 aluminium housing. A separated driver allows for easier installation and a maintenance-free fitting, with optional upgrades like swapping out the driver for a dimmable version. The ultra-slim modern matt white housing is still an easy fit into the slimmest of the ceilings, designed specifically for this purpose. The PMMA frosted lens drastically reduces yellowing and diffuses the light output to provide a 120º beam angle that produces a softer light. The surface mounted version of this panel is still available. This range is covered with a 2-year warranty. 6063 die-casting aluminum housing Edge-lit SMD2835 LEDs with high lumen efficiency and high CRI Frosted diffuser PMMA light guide plate Metal base Reflector paper to increase lumen BPS ISOLATED driver design Technical Specifications SMD 80 CRI 2835 lm/w 80 120° RECESSED MOUNTED Beam Angle Model No. Watt Lumen CCT Voltage PF Mounting Shape Cutout CFL replacement Isolated PF ML-CL-6W-R-xx 6W 400lm 3/4/6K 100-277Vac 0.9 Recessed Round Φ110mm 1*13W driver 100~277Vac 0.9 ML-CL-6W-S-xx 6W 400lm 3/4/6K 100-277Vac 0.9 Recessed Square 110*110mm 1*13W ML-CL-12W-R-xx 12W 960lm 3/4/6K 100-277Vac 0.9 Recessed Round Φ160mm 1*18W ML-CL-12W-S-xx 12W 960lm 3/4/6K 100-277Vac 0.9 Recessed Square 160*160mm 1*18W 6063 PMMA ML-CL-18W-R-xx 18W 1550lm 3/4/6K 100-277Vac 0.9 Recessed Round Φ210mm 1*26W Aluminum housing LGP ML-CL-18W-S-xx 18W 1550lm 3/4/6K 100-277Vac 0.9 Recessed Square 210*210mm 1*26W ML-CL-24W-R-xx 24W 2100lm 3/4/6K 100-277Vac 0.9 Recessed Round Φ280mm 2*18W ML-CL-24W-S-xx 24W 2100lm 3/4/6K 100-277Vac 0.9 Recessed Square 280*280mm 2*18W IES 35,000 2Year IEC60598-1&2 available hrs Warranty SURFACE MOUNTED Model No. Watt Lumen CCT Voltage PF Mounting Shape Dimension CFL replacement ML-SM-6W-R-xx 6W 400lm 3/4/6K 100-277Vac 0.9 Surface Round 120*40mm 1*13W ML-SM-6W-S-xx 6W 400lm 3/4/6K 100-277Vac 0.9 Surface Square 120*120*40mm 1*13W ML-SM-12W-R-xx 12W 960lm 3/4/6K 100-277Vac 0.9 Surface Round 172*40mm 1*18W LED DOWNLIGHT ML-SM-12W-S-xx ML-SM-18W-R-xx 12W 18W 960lm 1550lm 3/4/6K 3/4/6K 100-277Vac 100-277Vac 0.9 0.9 Surface Surface Square Round 172*172*40mm 225*40mm 1*18W 1*26W SLIM/SURFACE PANEL ML-SM-18W-S-xx ML-SM-24W-R-xx ML-SM-24W-S-xx 18W 24W 24W 1550lm 2100lm 2100lm 3/4/6K 3/4/6K 3/4/6K 100-277Vac 100-277Vac 100-277Vac 0.9 0.9 0.9 Surface Surface Surface Square Round Square 225*225*40mm 300*40mm 300*300*40mm 1*26W 2*18W 2*18W 29 LED DOWNLIGHT SLIM/SURFACE PANEL LED DOWNLIGHT SLIM/SURFACE PANEL 30
Features and Benefits The HALO G2 design removes the need for large stock holding by using a CCT 3-in-1 DIP switch and an interchangeable trim (black, silver and Nickel) – saving on stock and shipping costs. The built-in driver with Triac Dimmable means the Halo has even further functionality. Specialized 2835 LEDs with an excellent lumen maintenance and high efficiency of 100lm/W provide an impressive CRI of 83. An Ingress Protection of IP54 and damp proof front diffuser means that this product can be ideally used in the bathroom. The improved built-in block makes for easier installation and wire connection in series. A rated life span of 25 000 hours and approvals from SAA, CE, RoHS and ErP combined with the 3-year warranty make this product a safe and easy choice. Images in detail up to SMD CRI 2835 100 lm/w 83 LM80 TM21 110° Beam Angle PF 200~240Vac > 0.9 Interchangeable Trim BK/SG/NK IP54 Trim Interchangeable CCT Adjustable IES 25,000 3Year Warranty ErP available hrs Black Silver Nickel brushed Technical Specifications LED DOWNLIGHT HALO G2 Dimension (mm) Model No. Watt Lumen CCT CRI BA Voltage PF Dim Cutout D H ML-HG2-10W 30K+ 10W 900~1000lm 40K+57K Ra83 110° 200~240Vac >0.9 Yes Φ90~95mm 106 40 -CCT-D 31 LED DOWNLIGHT HALO G2 LED DOWNLIGHT HALO G2 32
Features and Benefits This high-tech Anti-Glare downlighter is the Mesmerize Solution for high level affordable commercial lighting. These luminaires are fitted SMD2835 LED Chips that produce up to 90 Effective Lumens per watt, fitting in the glare-free housing that may prevent headaches caused by glaring light. The specialized Aluminium housing provides for an impressive UGR
Features and Benefits The Horizon has a specialized anti-glare design with a UGR 0.9 surge UGR0.9 1kV
120 lm/w CRI 90 LM80 TM21 60° Beam Angle Lifud EMC 1KV surge 180~277Vac Driver passed protection Aluminium Housing Anti-Glare Design IP20 50,000 5Year Warranty IEC60598 -1&2 hrs Features and Benefits Perfect for commercial use, the Titan Downlight has a built-in anti-glare reflector to minimize glare for consumers’ comfort without compromising on brightness. The high-quality Bridgelux COB LED chip provides up to an impressive 120LM/W with a CRI 90 for a crisp, reliably bright light. A LIFUD driver that runs on a range of 180-277VAC with a Surge Protection of 1Kv helps to regulate the product for maximum output and maximum lifetime. The Aluminium housing adds to the longevity of the product Reliably tested and rated for 50 000 hours and awarded a 5-year warranty. Technical Specifications Model No. Watt Lumen LEDs CCT CRI Beam Voltage PF Surge Cutout Dimension (mm) angle D H ML-TN-10W-xx 10W 1200lm 3000K >90 60° 180-277Vac 0.95 1kV 90 100 90 4000K ML-TN-15W-xx 15W 1800lm 3000K >90 60° 180-277Vac 0.95 1kV 115 130 95 LED ANTI-GLARE DOWNLIGHT 4000K TITAN ML-TN-20W-xx 20W 2400lm 3000K >90 60° 180-277Vac 0.95 1kV 140 160 110 4000K ML-TN-30W-xx 30W 3600lm 3000K >90 60° 180-277Vac 0.95 1kV 175 190 130 4000K 37 LED ANTI-GLARE DOWNLIGHT TITAN LED ANTI-GLARE DOWNLIGHT TITAN 38
Features and Benefits Another new addition to the Mesmerize collection, the 3-wire track LED spotlight – the Athena – is fitted with Aluminium housing and is perfectly suited for indoor stores in both the commercial and retail setting. Built with SMD3030 LED chips, this product produces up to 100LM/W and a crisp CRI85. The 45° beam angle allows precision focus on products for sale in a retail setting. An isolated driver that runs at between 180 – 277VAC is protected with a 1KV Surge Protection to help maintain longevity. Reliably tested and rated with a lifetime of 50 000 hours, the Athena has been awarded a 5-year warranty. Accessories: Available in black or white ML-ATL-2M-BL ML-ATL-CON-I ML-ATL-CON-4 ML-ATL-CON-FL ML-ATL-CON-EC (3 Wire 2M Track Black (3 Wire Straight I Connector) (3 Wire 4 Way Connector) (3 Wire Flexible Connector) (3 Wire End Cap) with Power Feed and End Cap) ML-ATL-CON-L ML-ATL-CON-MAF ML-ATL-CON-PF ML-ATL-CON-T ML-ATL-MSF (3 Wire L Connector) (3 Wire Multi Angle Feeder) (3 Wire Power Feed) (3 Wire T Connector) (3 Wire Mini Straight Feeder) SMD 3030 100 lm/w CRI 85 LM80 TM21 45° Technical Specifications Beam Angle Model No. Watt Lumen LEDs CCT CRI Beam Voltage PF Surge Colours Dimension (mm) angle D H Isolated EMC 1KV surge ML-ATL-30W 30W 3000lm SMD3030 3000K >85 45° 180-277Vac 0.95 1kV White 95 105 180~277Vac Driver passed protection 4000K or Black ML-ATL-40W 40W 4000lm SMD3030 3000K >85 45° 180-277Vac 0.95 1kV White 95 105 4000K or Black Aluminium Housing Integrated Design IP20 IES 50,000 5Year Warranty available hrs Surface Mounted Accessories LED 3 WIRE TRACK SPOT 39 LED 3 WIRE TRACK SPOT ATHENA ATHENA LED 3 WIRE TRACK SPOT ATHENA 40
Features and Benefits The Apex Seamless Linear series provides a unified, seamless look and feel - perfect for retail/ commercial settings. Equipped with SMD2016 led chips that deliver up to 120lm/w and a CRI80, this product will provide crisp, bright light without compromising on longevity. The isolated driver has passed all relevant EMC tests and is flicker free. PMMA PCB IP20 (indoor) housing and the 1Kv Surge Protection helps to maintain the lifetime of the product. Reliably rated with 50,000 hours and 5-year warranty, this product will not disappoint. Technical Specifications Model No. Watt Lumen LEDs CCT CRI Beam Voltage PF Surge Dimension (mm) angle L W H ML-SLL-45W 45W 5500lm SMD2016 4000K >80 240° 180-265Vac 0.95 1kV 1500 38 38 -5FT 5000K LED LINEAR LIGHT ML-SLL-60W -5FT 60W 6500lm SMD2016 4000K 5000K >80 240° 180-265Vac 0.95 1kV 1500 38 38 APEX SEAMLESS SMD 2016 120 lm/w CRI 80 LM80 TM21 240° Beam Angle Isolated EMC 1KV surge 180~265Vac Driver passed protection Seamless Linkable Design PMMA IP20 LGP 50,000 5Year Warranty hrs 41 LED LINEAR LIGHT APEX SEAMLESS LED LINEAR LIGHT APEX SEAMLESS 42
SMD 2835 100 lm/w CRI 85 LM80 TM21 120° Beam Angle Isolated EMC 1.5KV surge 180~277Vac Driver passed protection PCB IP20 Housing 40,000 3Year Warranty IEC60598 -1&2 hrs Features and Benefits Specifically created to highlight design aspects and product displays, the Wallwasher shoplight comes with an adjustable tilt function and separated driver to ensure it’s perfectly suited to commercial use. This range comes with a 65° rotatable head, and 3-in-1 colour options of 3000K/4000K and 6500K. Replacing the old Metal Halide, these luminaires come in 40W and 60W options with surface mounted LED chips to produce up to120 Effective Lumens per watt. Industry leading drivers have been used to ensure voltages are regulated, now with an even wider voltage range of 180-305V and a 1.5KV surge protection. W The driver has been separated for ease of maintenance and future upgrades, as well as to reduce heat even further. The polycarbonate housing with internal aluminium heat sink assists in diffusing heat away for the LED chips to extend the lifetime of the luminaire. Reliably rated for up to 40,000 hours, these products come with a 3-year warranty. 65° L H Technical Specifications LED ROTARY SHOPLIGHT Model No. Watt Lumen LEDs CRI CCT BA Voltage PF Cutout Dimension(mm) L W H WALLWASHER CCT SMD 3000K ML-RS-40W-CCT 40W 4000lm 2835 80 4000K 120° 180~277Vac >0.9 L225*H130 246 156 115 6500K SMD 3000K ML-RS-60W-CCT 60W 6000lm 2835 80 4000K 120° 180~277Vac >0.9 L225*H130 246 156 115 6500K 43 LED ROTARY SHOPLIGHT WALLWASHER CCT LED ROTARY SHOPLIGHT WALLWASHER CCT 44
Features and Benefits Compared to the traditional Edge-Lit Panel, the Galaxy Back-lit Panel has no Lighting Guide Plate, which means there is no risk of yellowing caused by warped LGPs. The Galaxy contains new technology that allows for 3-in-one CCT colour temperature switching capabilities that allows you to fine tune your lighting needs. An iron back plate and an aluminium frame allow for exceptional heat dissipation to provide for a longer luminaire lifespan by reducing the heat within the fitting. Tested and compatible with Tridonic Drivers, the LED isolated power supply makes for easier installation, even better heat control and gives the option of dimming the product; it’s also DALI compatible. The powerful flicker free chips have been rated up to 100 Effective Lumens per watt with a CRI80. This product comes with a 3 or 5 year warranty, is tested and rated up to 50,000 hours burning time. Technical Specifications Model No. Watt Lumen Switched CRI BA Voltage PF Flicker Dimension CCT Free L W H ML-BP-40W-6x6-CCT 40W 4000lm 45/55/65K Ra80 110° 180~277VAC 0.9 YES 595 595 32 45K 55K 65K up to ML-BP-60W-12x6-CCT 60W 6000lm 45/55/65K Ra80 110° 180~277VAC 0.9 YES 1195 595 32 CRI SMD 2835 100 lm/w 80 LM80 TM21 110° ML-BP-40W-12x3-CCT 40W 4000lm 45/55/65K Ra80 110° 180~277VAC 0.9 YES 1195 295 32 Beam Angle Isolated EMC 180~277Vac driver passed matched BACK-LIT NO Switched 3CCT-in-1 design 30MM LGP 4500K/5500K/6500K IES 50,000 3/5Year IEC60598-1&2 available hrs Warranty LED PANEL LIGHT 45 LED PANEL LIGHT BACKLIT GALAXY LED PANEL LIGHT BACKLIT GALAXY 46
Features and Benefits Seasoned technology brings you our 5-year warranty slimline edge-lit panel with PMMA Lighting Guide Plate. Perfect for schools, offices and hospitals, this luminaire comes with a high power factor of 0.9 and an EMC certified isolated driver. The flicker free and low unified-glare rating are excellent for eye-comfort and productivity during long working hours. The aluminium frame and slimline design allow for installations in tight ceiling spaces and the option of suspending or surface mounting the luminaire. Tested with Tridonic Drivers, the LED isolated power supply makes for easier installation, better heat control and allows for DALI-dimming. This product comes with a 5-year warranty, reliable testing has rated the luminaire with up to 50 000 burning hours. Three-digit Connector Terminal Bottom Cover of Power Box Upper Cover of Power Box Power Driver Double-digit Connector Terminal Galvanized Back Plate EPE Light Guide Plate Diffuser Plate PCB Board up to CRI SMD 4014 100 lm/w 80 LM80 TM21 110° Aluminum Frame Beam Angle Isolated EMC PF 180~277Vac driver passed matched 0.9 L H EDGE-LIT PMMA design LGP W IES 50,000 5Year IEC60598-1&2 Technical Specifications available hrs Warranty Dimension(mm) Model No. Watt Lumen CCT CRI BA Voltage PF Flicker Free L W H ML-G-40W-6x6-DL 40W 4000lm 6500K Ra80 110° 180-277Vac 0.9 Yes 595 595 10 LED PANEL LIGHT ML-G-40W-6x6-CW 40W 4000lm 4500K Ra80 110° 180-277Vac 0.9 Yes 595 595 10 EDGE-LIT ML-G-60W-12x6-DL 60W 6000lm 6500K Ra80 110° 180-277Vac 0.9 Yes 1295 595 10.8 ML-G-60W-12x6-CW 60W 6000lm 4500K Ra80 110° 180-277Vac 0.9 Yes 1295 595 10.8 47 LED PANEL LIGHT EDGE-LIT LED PANEL LIGHT EDGE-LIT 48
Features and Benefits A great staple of the commercialized office is the troffer panel – ideal for big or small areas dedicated to long hours of hard work. These panels are fitted with industry-leading Lumileds SMD2835 + Samsung SMD 4014 LED chips that produce up to 100 Effective Lumens per watt to provide high quality flicker free lighting. They also come with an isolated driver that allows for optional dimming. Further ratings of CRI>90 and a SDCM
Features and Benefits The intuitively linkable design and quick connector makes the Infinity an easy-to-install and easy-to-use product. The total system can run an impressive 800W; the 2ft (20W) can handle 40pcs, the 4ft (40w) 20pcs and the 5ft (50w) 16 pcs max. The heavy-duty design with ratings of IP66 and IK08 make this product the perfect fit for industrial and commercial use. The Infinity has been built with Bridgelux SMD2835 LED chips that have an excellent lumen output of up to 120 lumens per watt and a Colour Rendering Index of Ra86. The Infinity has been designed with an Isolated driver, is EMC compliant and has a Power Factor of >0.9. It is compliant with IEC60598, CE, RoHS, Erp and CISPR15. The wide input voltage of 180 – 277 Vac and 1Kv surge protection assist in prolonging the lifespan that allows for a rating of 50 000 hours at L80B10 and a 5-year warranty. H L W up to CRI SMD2835 120 lm/w 86 LM80 TM21 120° Technical Specifications Beam Angle Model NO. ML-DPIF-2FT-20W-xxK-S ML-DPIF-4FT-40W-xxK-S ML-DPIF-5FT-50W-xxK-S Isolated PF 1KV Length 2FT 600mm 4FT 1200mm 5FT 1500mm Design 180~277Vac 0.9 surge protection Watts 20W 40W 50W LEDs Bridgelux SMD2835 Bridgelux SMD2835 Bridgelux SMD2835 Lumen 2400lm 4800lm 6000lm IP66 IK08 CCT 3000K | 4000K | 6500K 3000K | 4000K | 6500K 3000K | 4000K | 6500K CRI Ra86 Ra86 Ra86 Beam Angle 120° 120° 120° 5Year Voltage 180~277Vac 180~277Vac 180~277Vac IES 50,000 Warranty IEC60598 ErP CISPR15 PF >0.9 >0.9 >0.9 available hrs Surge Protection 1kV 1kV 1kV Life span 50,000hrs 50,000hrs 50,000hrs IP IP66 IP66 IP66 IK IK08 IK08 IK08 Operating Temp. -20°C~+40°C -20°C~+40°C -20°C~+40°C LED DAMP PROOF LIGHT LINKABLE YES ≤40pcs YES ≤20pcs YES ≤16pcs INFINITY N.W./PC 0.55kg 0.96kg 1.16kg L 650 1250 1550 Dimension(mm) W 63.7 63.7 63.7 H 63.7 63.7 63.7 51 LED DAMP PROOF LIGHT INFINITY LED DAMP PROOF LIGHT INFINITY 52
Features and Benefits A complete unit replacement for the T8 Tube in an IP65 damp proof housing, without having the hassle to individually install all the separate items. Surface mounted LED chips providing up to 90 Effective Lumens per watt are diffused to prevent shadows or light pixilation. The specialized Polycarbonate housing protects the working parts from physical impact with an Ingress Protection rating of IP65 to protect against damage caused by dampness. The built-in driver successfully regulates the output to the LEDs through a high-speed switching operations with EMC certified control gear that makes these luminaires perfect for underground parking lots or evenhospitals. Available in 2FT (18W) 4FT (36W) and a 5FT (45W) in 5700K and all can be surface mounted or suspended. Reliably rated for up to 35,000 hours, this product comes with a 2-year warranty. L W Technical Specifications H Model No. Watt Lumen LEDs CCT CRI Beam Voltage PF Surge Dimension(mm) Angle Protection L W H SMD ML-DP-2FT-18W-PW 18W 1600lm 2835 5700K 80 120° 180~277Vac 0.9 1KV 662 66 38 SMD CRI 2835 80 LM80 TM21 120° ML-DP-4FT-36W-PW 36W 3200lm SMD 2835 5700K 80 120° 180~277Vac 0.9 1KV 1262 66 38 Beam Angle ML-DP-5FT-45W-PW 45W 4200lm SMD 5700K 80 120° 180~277Vac 0.9 1KV 1562 66 38 2835 PF 1KV 180~277Vac 0.9 surge protection IP65 304 SS 1M Bracket white cable IES 35,000 2Year available hrs Warranty LED DAMP PROOF LIGHT 53 LED DAMP PROOF LIGHT NEO IP65 NEO IP65 LED DAMP PROOF LIGHT NEO 1P65 54
Features and Benefits This discreetly slim and sleek indoor linear fitting is designed to replace the traditional T8 fluorescent tubes in open channel fittings. SMD LED technology allows for up to 80 Effective Lumens per watt and produces more uniform light distribution. The soft acrylic cover diffuses the light to prevent glare, and the aluminium heatsink dissipates the heat quicker. An impact rating of IK07 means the fitting is protected from physical impact. The IP33 rating means that the luminaire is protected from dust and upward splashing water. The product comes with a 2-year warranty and a has been tested for a lifespan of up to 25 000 hours. L W Technical Specifications H Model No. Watt Lumen CCT CRI BA Voltage PF Dimension(mm) L W H ML-LL-10W-1FT-xx 10W 850lm 30/40/65K 80 120° 100~277Vac 0.6 300 76 23 SMD CRI 90 LEDs 80 lm/w 120° Beam Angle ML-LL-20W-2FT-xx 20W 1700lm 30/40/65K 80 120° 100~277Vac 0.6 600 76 23 ML-LL-40W-4FT-xx 40W 3724lm 30/40/65K 80 120° 100~277Vac 0.9 1200 76 23 PF 500V 100~277Vac 0.9 surge protection ML-LL-50W-5FT-xx 50W 4628lm 30/40/65K 80 120° 100~277Vac 0.9 1500 76 23 T8 IP33 IK07 retrofit IES 25,000 2Year IEC60598-1&2 available hrs Warranty LED INDOOR 55 LED INDOOR LINEAR IP33 LINEAR IP33 LED INDOOR LINEAR IP33 56
LED FITTING AND EMERGENCY BACKUP LED FITTING AND EMERGENCY BACKUP IP65 VAPOUR PROOF FITTING IP20 OPEN CHANNEL FITTING Features and Benefits Features and Benefits Designed to function as a standard outdoor housing for LED T8 tubes, this Mesmerize IP65 Vapour Proof comes Mesmerize Lighting’s answer to the need for an LED equivalent to the housing for T8 Fluorescent with the added benefit of a built-in emergency back-up system with inverter to add even more value. tubes is here! This robust IP65 housing is ready for 2 x either 1.2m or 1.5m Mesmerize LED T8 Glass tubes The IP20 Open channel fitting is designed to take two of the Mesmerize Lighting T8 LED Tubes. (depending on the size selected) and can be mounted indoors or outdoors. A Single-Sided connection makes installation much easier and a built-in fuse is included in this product The polycarbonate and ABS housing with a specialized prismatic antiglare lens and waterproof connection gland to ensure its safety for installers and users. is perfect for use in extreme conditions in areas that need to remain lit, even when there is power-loss. Just like the IP65 version, the Indoor open channel fitting is compatible with emergency back-up options. Options include 1-hour or 3-hour battery back-up, 4ft or 5ft design, and plastic or 304 stainless steel mounting clips. Completely made from steel this indoor fitting won’t bend or lose its shape and has been awarded a Perfect for day-to-day and emergency lighting for secure areas, under-ground parking lots or emergency exits, this 1-year Warranty. durable housing will ensure reliable emergency lighting wherever it is needed. This product comes with a 5-year warranty on the inverter, a 2-year warranty on the batteries and a 1-year warranty on the housing. Technical Specifications Technical Specifications Model No. IP Rating Housing Clips Emergency Backup Dimension(mm) Model No. IP Rating Housing Built-in Fuse Emergency Backup Dimension(mm) L W H L W H ML-VPD-4FT-IP65 IP65 ABS PC or Stainless Steel Available 1300 113 63 ML-OC-4FT-IP20 IP20 Steel Yes Available 1200 82 32 ML-VPD-5FT-IP65 IP65 ABS PC or Stainless Steel Available 1600 113 63 ML-OC-5FT-IP20 IP20 Steel Yes Available 1500 82 32 57 LED FITTING AND EMERGENCY BACKUP IP65 VAPOUR PROOF FITTING LED FITTING AND EMERGENCY BACKUP IP20 OPEN CHANNEL FITTING 58
Features and Benefits A new replacement for the traditional T8 florescent tube, this powder coated craft-glass LED tube uses advanced technology that utilizes a coating to keep the glass together to prevent shattering. Specifically selected LED chips with a high efficiency rating of up to 100 Lumens per watt and a CRI80 are used to maximize brightness and colour quality. The voltage range of 180-277VAC and single-ended input means that this product is perfectly suited for most applications. A flicker free rating means that the rate of light instability is less than 80 fluctuations per second and may prevent headaches and fatigue. The LED Fuse allows for the luminaire to be CCG compatible (Electronic Ballast), making it the natural next step in the evolution of lighting. This product comes with a 2-year warranty and is rated with a lifetime of up to 15 000 hours. FUSE FOR LED T8 TUBE Technical Specifications Model No. Watt Lumen CCT CRI Beam Voltage Flicker Base Dimension(mm) Angle Free 100 D L SMD CRI 2835 lm/w 80 LM80 TM21 3000K 330° LT8G-2FT-9W-xx 9W 900lm 4000K 80 330° 180~277Vac YES G13 28 604 Beam Angle 6500K 3000K LT8G-4FT-18W-xx 18W 1800lm 4000K 80 330° 180~277Vac YES G13 28 1213.6 6500K CCG compatible 3000K 180~277Vac LT8G-5FT-24W-xx 24W 2400lm 4000K 80 330° 180~277Vac YES G13 28 1514.2 6500K Glass FUSE IP20 coating Single-ended input LED IES 15,000 2 Year available hrs Warranty LED SINGLE-ENDED INPUT 59 T8 GLASS TUBE LED SINGLE-ENDED INPUT T8 GLASS TUBE LED SINGLE-ENDED INPUT T8 GLASS TUBE 60
SMD2835 100 lm/w CRI 85 LM80 TM21 360° Beam Angle OFF 100~277Vac ON PMMA Suspending fitting 3-Step LGP available Switching E27 25,000 2Year Warranty ErP hrs Features and Benefits The perfect solution for a wide variety of needs, from 2W to 12W and a little something in between, this E27 lamp has something for everyone. A patented private pendant tooling with a unique optical design makes full use of the highly efficient Bridgelux SMD2835 LED chips with an output of up to 100 Effective Lumens per watt. Mesmerize is committed to bringing you as many lighting options as possible, so you have the choice of the single wattage design or the 3-step option. The 3-step design starts with the outer ring illuminated at a 10W consumption, the second switch illuminates only the center at 2W and the final switch illuminates the full luminaire at the maximum consumption of 12W. Both options are available in 3000K, 4000K or 6500K and can be made available in black housing or with a matching pendant fitting. Reliably tested for up to 25 000 hours, this product comes with a 2-year warranty. 3-Steps design by on-off COSMO LED PENDANT LAMP 1st Step: Outside light, 2nd Step: Middle Part light 3rd Step: Full light D H Technical Specifications Model No. Watt Lumen LEDs CCT CRI BA Voltage Housing Base Dimension(mm) Color D H LPL-CS-3step- 10W 1000lm 3000K BK-xx 2W 200lm 4000K Ra85 360° 100~277Vac Black E27 192 118 12W 1200lm 6500K LPL-CS-3step- 10W 1000lm 3000K WH-xx 2W 200lm 4000K Ra85 360° 100~277Vac Whilte E27 192 118 12W 1200lm 6500K 61 LED PENDANT LAMP COSMO LED PENDANT LAMP COSMO 62
Features and Benefits The Trinity uses a specialized 3-in-1 CCT switching technique that allows the user to change from 3000K, to 4000K to 65000K, as well as a DIY interchangeable frame from white, to black, silver grey, copper or chrome plated – truly customisable! Specifically chosen Samsung SMD2835 LED chips give high efficiency and an excellent lumen maintenance. Wide voltage (180 – 277Vac) input, EMC approved and flicker-free allow for great reliability. An IP rating of IP44 means this is the perfect product to use in kitchens and bathrooms. There is an option for Stepless dimming and CCT tunable by IR remote control. A two-year warranty is attached to this product and it has been reliably rated for 30 000 hours; compliant with CR, RoHs, ErP and REACH. 80 CRI D LM80 TM21 SMD2835 lm/w 80 110° Beam Angle Technical Specifications H TRINITY MATT BLACK EMC passed Model No. Watt Lumen CCT CRI BA Voltage EMC DIM Dimension (mm) D H 180~277Vac ML-TY-12W-65K 12W 960lm 6500K Ra80 110° 180~277Vac YES NO 250 70 ML-TY-18W-CCT 18W 1440lm 30/40/65K Ra80 110° 180~277Vac YES NO 300 65 Interchangeable Frame BK/SG/CP Switched 3CCT-in-1 3000K+4000K+6500K IP44 SILVER GREY ML-TY-24W-CCT 24W 1920lm 30/40/65K Ra80 110° 180~277Vac YES NO 350 65 IES 30,000 2Year Warranty ErP available hrs COPPER PEARL TRINITY IR Dimension (mm) Model No. Watt Lumen CCT CRI BA Voltage EMC DIM LED CEILING LIGHT D H TRINIT Y ML-TR-15W-IR 15W 1200lm *CCT tunable by Ra80 110° 180~277Vac YES Stepless 300 65 IR Remote control Dimming *3 CCT by ML-TR-20W-IR 20W 1600lm wall switcher Ra80 110° 180~277Vac YES Stepless 350 65 Dimming 63 LED CEILING LIGHT TRINITY LED CEILING LIGHT TRINITY 64
Features and Benefits The Ares series for GU10 track spotlights is perfect for homes and commercial use alike, with a sleek modern finish in matt black or white. The three-wire track system provides safe power to either dimmable or non-dimmable GU10 LED Lamps. 2-Meter Aluminium tracks are adaptable and connectable via a whole range of accessories that include cross-connectors (4-way join) and T-connectors (3-way join) for a customisable installation. Sold as a stand-alone surface mounted fitting or as an insertable GU10 track spot. The adjustable axis can rotate 280° to focus your light wherever it’s needed. This series comes with a 1-year warranty. Accessories: Available in black or white ML-AR-2M-BL ML-AR-CON-I ML-AR-CON-4 ML-AR-CON-FL ML-AR-CON-EC (3 Wire 2M Track Black (3 Wire Straight I Connector) (3 Wire 4 Way Connector) (3 Wire Flexible Connector) (3 Wire End Cap) with Power Feed and End Cap) Available in black or white ML-AR-CON-L ML-AR-CON-MAF ML-AR-CON-PF ML-AR-CON-T ML-AR-MSF (3 Wire L Connector) (3 Wire Multi Angle Feeder) (3 Wire Power Feed) (3 Wire T Connector) (3 Wire Mini Straight Feeder) Compatible GU10 220Vac Technical Specifications Aluminium Housing IP20 Model No. Input Voltage Housing Track System Dimension (mm) D H ML-AR-TR-xx 220Vac White or Black 3 Wire 55 110 1Year IEC60598 ML-AR-SM-xx 220Vac White or Black Surface Mount 55 110 Warranty -1&2 LED GU10 3 WIRE TRACK SPOT ARES 65 LED 3 WIRE TRACK SPOT ARES LED 3 WIRE TRACK SPOT ARES 66
CNC DOWNLIGHTER Anti Glare CUT OUT: Φ75-84mm Φ70mm 24mm 90° Φ95mm ML-AGF-WH ML-AGF-SL ML-AGF-BL Cutout and Beam angle Fixed CUT OUT: Φ57-73mm Φ70mm 23mm 90° Φ79mm COB 500 surge 20,000 2Year ML-FF-WH ML-FF-SL ML-FF-BL Cutout and Beam angle 45° Beam Angle protection 220~240Vac hrs Warranty Tilt LED GU10 CUT OUT: Φ73-85mm Φ70mm RAINBOW 24mm 90° Φ90mm 90+-30° ML-TF-WH ML-TF-SL ML-TF-BL Cutout and Beam angle Features and Benefits Well-placed colourful lighting can highlight the outlines and structural planes of buildings in a more energetic Deep Anti Glare way than traditionally coloured lighting can. CUT OUT: Φ68-75mm This 4.8W single colour GU10 (twist and lock) bulb comes in Red, Green, Blue or Magenta. Φ65mm High quality EPILEDS COB LED chips create a crisper colour than their competitors and they are protected 90° 39mm by a built-in 500V surge protection. The polycarbonate housing with internal aluminium heat sink assists in diffusing heat away from the LED chips Φ86mm 90+-30° to extend the lifetime of the luminaire. Mercury-free and instant-on to maximum brightness , these low-heat 45º beam angle bulbs are perfect for ML-DAGF-WH ML-DAGF-BL Cutout and Beam angle up/down lighting systems. Reliably rated with up to 20 000 hours, these products come with a 2-year warranty. Technical Specifications GU10 HOLDER Model No. Watt Color Wavelength BA Voltage PF DIM ML-Z-4.8W-4.8W-R 4.8W Red 680nm 45° 220~240Vac 0.6 No SANS APPROVED ML-Z-4.8W-4.8W-G 4.8W Green 530nm 45° 220~240Vac 0.6 No ML-Z-4.8W-4.8W-B 4.8W Blue 445nm 45° 220~240Vac 0.6 No ML-GU10-H ML-Z-4.8W-4.8W-M 4.8W Magenta 390nm 45° 220~240Vac 0.6 No 67 LED GU10 RAINBOW CNC DOWNLIGHER AND GU10 HOLDER 68
Features and Benefits Burning bright and moving fast, all products in the Comet range come equipped with market leading Bridgelux LED chips that deliver excellent light colour rendering of up to CRI85 and an impressive lumen output of up to 103 Lumens per watt. The housing is made from thermal plastic and contains an embedded aluminium heat-sink to effectively maintain heat control, prolonging the life of the luminaire. By matching the dimensions of industry standards, and a voltage range of 180 – 277VAC, this range is perfectly suited for all applications. This product has been developed for Shuttle dimmer modules and can achieve market leading dimming below 5%. The latest testing technology has rated these lamps with LM80 and TM21 (a more realistic method of projecting lumen maintenance in actual operating conditions), as well as approving the range with the latest safety standard - REACH. The product comes with a 2-year warranty, has been tested for a lifespan of up to 25 000 hours and IES test reports are available upon request. Equivalent LED Gu10 Halogen 5.5W 50W 7.5W 70W 5.5W 7.5W Technical Specifications Model No. Dim or Non-dim Watt LEDs Lumen CCT CRI Beam Voltage Dimension Angle D H 3000K ML-CT-5.5W-GU10-xxK* Non-Dimmable 5.5W 500~570lm 4000K Ra85 60° 180~277V 50 54 SMD2835 6500K 3000K ML-CT-5.5W-GU10-xxK-D Dimmable 5.5W 500~570lm 4000K Ra85 60° 180~277V 50 54 SMD2835 6500K 36°/60° 100 CRI LM80 TM21 3000K 85 ML-CT-7.5W-GU10-xxK Non-Dimmable 7.5W 650~740lm 4000K Ra85 36° 180~277V 50 57 SMD2835 lm/w SMD2835 6500K 3000K ML-CT-7.5W-GU10-xxK-D Dimmable 7.5W 650~740lm 4000K Ra85 36° 180~277V 50 57 SMD2835 6500K matched 180~277Vac IES 25,000 2Year available hrs Warranty LED GU10 69 LED GU10 COMET COMET LED GU10 COMET 70
