PRODUCT
CATALOG
2021
electronic monitoring
About us | 1
Technology is our hobby
We live in a chaotic world in which we I would not achieve this without our team of
are exposed to an infinite information industry professionals, for whom technology
overload. Whether as entrepreneurs, and innovation are not only their livelihood
parents or just human beings, our task is but, above all, a hobby.
to recognize the essential of it to make the
Excitement of innovation is why we have
right decisions.
been providing solutions for monitoring
I have founded LEVEL Systems to simplify and security of your vehicles, trains, heavy
this process and help our customers to machinery, containers, aircraft and any other
have all necessary information about their objects, for more than
assets in one place. 30 years.
Michal Falta
Founder of LEVEL Systems
Headquarters in the Czech Republic
products all over the World
In 1990, LEVEL Systems was founded in
Nachod, Czech Republic. Within the years of
developing our products as well as ourselves,
we have become one of Europe‘s leading
producers of GPS monitoring devices and
software.
To maintain our position, following
international industry standards is necessary.
Therefore, we hold certifications such as
ISO/IEC 27001 for Information Security
Management and ISO 9001 for Quality
Management.
Currently, more than 100 000 of our products
are used in 32 countries across the world.
ISO 27001 ISO 9001
2 | Industry use
Solution for trains
and wagons
Rail wagon and locomotive management is a complex activity that carries the risk
of many errors and high maintenance costs. We‘ve created a solution that puts all
essential information in one place, thereby simplifies the work and reduces your
expenses.
» Online tracking - easier and more efficient management (traffic log)
» Mileage information - watch the mileage of owned/rented cars
» Anti-theft security - automatic alarm/notification in case of unauthorised manipulation
» Quick and Easy installation - no other additional costs
railway » Maintenance management - overview of planned and implemented maintenance
transportation
» Safety Improvement - crash and derailment prevention
» G-shock detection - damage reduction (when shounting/roughness on railway)
» Wide range of measured values - e.g. loading status, braking system pressure, load
temperature and humidity, open/closed doors
Even small fleets
are worth monitoring
Daily records of vehicle operation - a neverending nightmare of all entrepreneurs. No
matter if you have a single vehicle or a whole fleet, our monitoring units provide you
with automatic log book, anti-theft security including remote engine shut off and
many more.

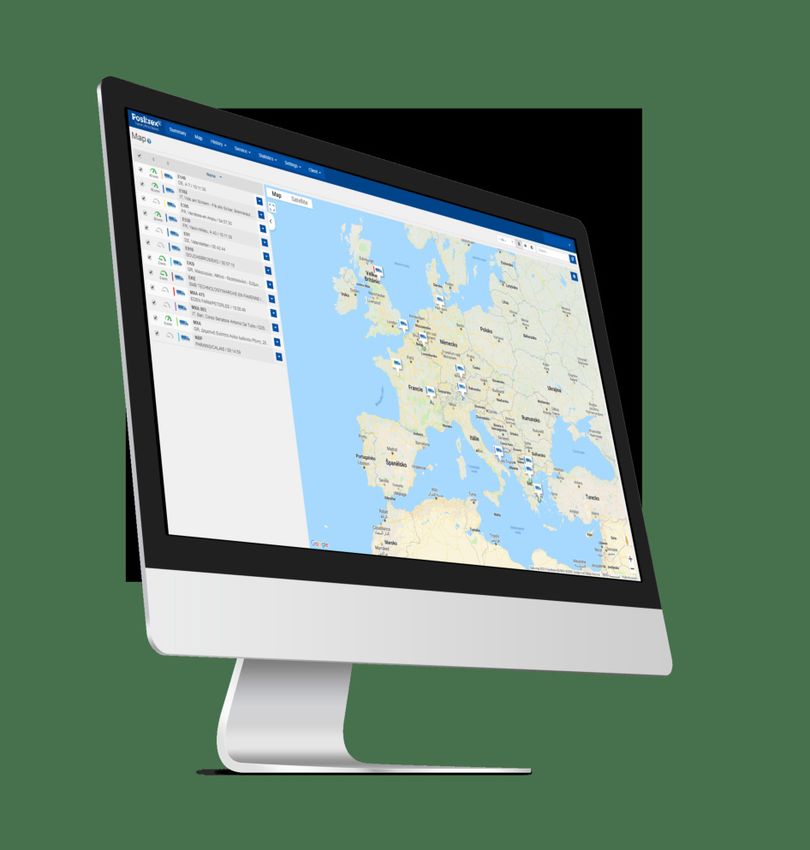

» Online tracking of vehicles and motorcycles - watch it live on a map
» Detailed automatic Log book - with unlimited history
» Wide range of measured values - altitude, temperature, humidity, air pressure
» Tilt and shock sensors - will warn you in cases of crash or towing personal
» Geofence function - set geofences to know when monitored vehicles enter or leave
transportation
» Anti-theft security - alarm/notification based watchdog, remote engine shut-off
» Trip purpose switcher - beween personal and private use
» Driving evaluation – assesment of driver behaviour helps optimizing your costs
www.level.systems
Industry use | 3
Operate your trucks
the smarter way
The straightway to increase your profit and get ahead of the competition is to know all
details about vehicle use and its work efficiency. We bring a complete set of solutions
to optimize performance in truck transportation. Delivery delays will no longer be
unpleasant surprises for you.
» Online tracking of trucks and semi-trailers
» Detailed automatic Log book - with unlimited history
» Freight conditions monitoring - temperature, humidity, air pressure, vibration histogram
» Anti-theft security - automatic alarm/notification in case of unauthorised manipulation
truck » Fuel Economy - overview of consumption from tanks and fuel cards consumption
transportation
» Maintenance management - overview of planned and implemented maintenance
» Easier communicaton - direct communication between freight agents and drivers
» Driving evaluation - assesment of driver behavior helps optimizing your costs
» Advance your customer care - report trip details to your customers
Tracking devices are no longer
for transportation only
Our devices are capable of many more than above-mentioned. Among our strengths is
a flexibility allowing us to develop tailor made solutions to meet our customers´specific
needs and requirements.
» Exact GPS location of your containers, heavy equipment, parcels and other property
» Anti-theft security - automatic alarm/notification in case of unauthorised manipulation
» Working hours counter when renting out
» Temperature, humidity and atmospheric pressure records during operation or transport asset
» Waterproof units - functional solution in any environment
tracking
www.level.systems
4|
Our
Products
Our products | 5
TF1
TotalFinder
UNIVERSAL MONITORING UNIT FOR LONG-TERM
TRACKING WITH EXTREMELY LONG LASTING
RECHARGEABLE BATTERY AND EASY
INSTALLATION BY STRONG MAGNETS
Online tracking, Trip history, Acceleration,
Statistics, Driver behaviour evaluation,
Wide range of other values
(see wireless external sensorsrs)
Portable
Strong magnet attachment
2G | 4G NB-IoT | 4G Cat M1
Bluetooth 5.0 Long range receiver
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
15 600/21 600 mAh - rechargeable
Up to 4 years on a single charge
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature, Humidity, Air Pressure
USB-C covered by rubber cap
°C
°C -25°C up to +70°C
Charging 0°C up to +70°C
IP66 - Waterproof
ACCESSORIES
177 x 85 x 25 mm MD 092 000 Robust metal holder for secure fixing
MD 092 001 Tool for releasing the unit from holder
BS 0.. ... Wide range of Bluetooth accessories
550 g
(see full list of Accessories)
www.level.systems
6 | Our products
TF1

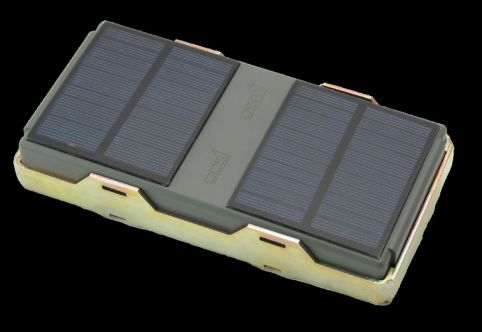

TotalFinder Solar
SOLAR POWERED MONITORING UNIT FOR LONG-
TERM MONITORING OF RAIL WAGONS, TRAILERS
AND HEAVY MACHINERY WITH EASY AND SECURE
INSTALLATION BY STRONG MAGNETS
Online tracking, Trip history, Acceleration,
Statistics, Driver behaviour evaluation,
Wide range of other values
(see wireless external sensorsrs)
Portable
Strong magnet attachment
2G | 4G NB-IoT | 4G Cat M1
Bluetooth 5.0 Long range receiver
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
Solar charging
Battery cap. 15 600 mAh
5+ years - maintenance free
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature, Humidity, Air Pressure
USB-C covered by rubber cap
°C
°C -25°C up to +70°C
Charging 0 °C up to +70°C
IP66 - Waterproof
ACCESSORIES
MD 092 000 Robust metal holder for secure fixing 177 x 85 x 25 mm
MD 092 001 Tool for releasing the unit from holder
BS 0.. ... Wide range of Bluetooth accessories 550 g
(see full list of Accessories)
www.level.systems
Our products | 7
TF2
TotalFinder Industrial
HEAVY DUTY GPS MONITORING AND
TRACKING UNIT WITH AN UNPRECEDENTED
BATERRY LIFE
Online tracking, Trip history, Acceleration,
Statistics, Wide range of other values
(see wireless external sensors)
Portable
Strong magnet attachment
Rivet installation option
2G | 4G NB-IoT | 4G Cat M1
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
4 x 19Ah @3.6V - primary
Up to 12 years (6 posititons per day)
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature
Capacity of 5000 events or positions
°C
°C -35°C up to +85°C
IP69 - Waterproof
ACCESSORIES
189 x 88 x 48 mm
MD TF2 001 Metallic plate holder for rivet installation
1200 g Wide range of Bluetooth accessories
BS 0.. ...
(see full list of Accessories)
www.level.systems
8 | Our products
TF200
TotalFinder ATEX
ATEX CERTIFIED HEAVY DUTY GPS MONITORING
AND TRACKING UNIT WITH AN UNPRECEDENTED
BATTERY LIFE
Online tracking, Trip history, Acceleration,
Statistics, Wide range of other values
(see wireless external sensors)
Portable
Rivet installation option
2G | 4G NB-IoT | 4G Cat M1
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
4 x 19Ah @3.6V - primary
Up to 12 years (6 posititons per day)
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature
Capacity of 5000 events or positions
°C
°C -35°C up to +85°C
IP67 - Waterproof
189 x 88 x 48 mm
ACCESSORIES
MD TF2 001 Metallic plate holder for rivet installation
1200 g
Wide range of Bluetooth accessories
BS 0.. ...
(see full list of Accessories)
EX II 2 GD Ex ib IIB T4 Gb
Ex ib IIIC T135°C Dd
www.level.systems
Our products | 9
GC095

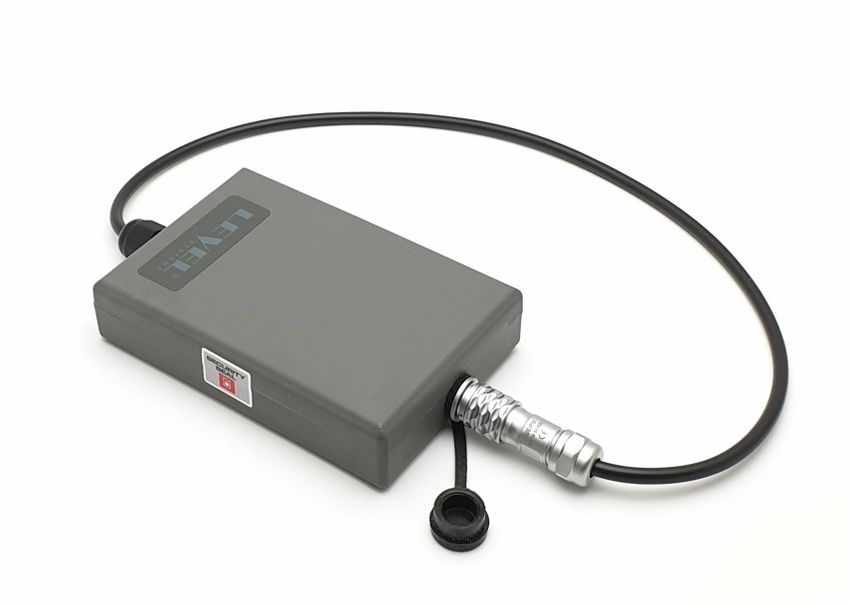

TotalTracker
BATTERY GPS TRACKING DEVICE FOR LONG-TERM
MONITORING OF VEHICLES AND MACHINES.
CABLE VERSION WITH A BACK-UP BATTERY
AVAILABLE.
Online tracking, Trip history, Acceleration,
Statistics, Driver behaviour evaluation
Portable (magnet attachment)
Fixed installation version available*
2G | 3G
7 800 mAh - rechargeable
Up to 24 months on a single charge
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature, Humidity, Air Pressure
Battery version - micro USB
Cable version* - 1x analog/ 1x binary
Capacity of 5000 events or positions
°C
°C -25°C up to +70°C
Charging 0°C up to +70°C
IP66 - Waterproof
ACCESSORIES
120 x 80 x 24 mm SA 092 000 USB charger 2A (including cable)
* The cable version with a back-up battery finds its usage
220 g especially where irregular power supply of given object
occurs. For more details contact our sales department.
www.level.systems10 | Our products
GC095
TotalTracker E-Seal
COMPACT GPS TRACKING DEVICE SPECIFICALLY MADE FOR
SIVS - SMART IMPOUND VEHICLE SYSTEM. LONG-TERM
MONITORING, CABLE CHARGING OPTIONS AND
EASY INSTALLATION.
Removal, detection, Online tracking, Trip
history, Acceleration, Statistics,
Driver behaviour evaluation
Portable
2G
7 800 mAh - rechargeable
Up to 24 months on a single charge
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock, Cable
Disconnection Alarm, Geofence Alarm
SF10 - 3pin, 5A
Capacity of 5000 events or positions
°C
°C -25°C up to +70°C
Charging 0 °C up to +70°C
IP54 - Dust/Splashing Water protected
ACCESSORIES
SA 092 000 USB charger 2A (including cable) 120 x 80 x 24 mm
* This product has a longer lead time.
For more details contact our sales department. 300 g
www.level.systemsOur products | 11
CT1
CompactTracker
COMPACT GPS MONITORING UNIT FOR
TRACKING AND SECURITY OF MOTORCYCLES,
VEHICLES, PARCELS AND LUGGAGE.
Online tracking, Trip history, Acceleration,
Altitude, Statistics, Driver behaviour
evaluation, Crash detection
Portable
2G | 4G NB-IoT | 4G Cat M1
3 400 mAh - rechargeable
Up to 12 months on a single charge
Movement Detection, Tilt Detection,
Vibration Histogram, G-shock,
Temperature, Humidity, Air Pressure
USB-C covered by rubber cap
°C
°C -20°C up to +65°C
Charging 0°C up to +40°C
IP30
50 x 90 x 20 mm
ACCESSORIES
130 g SA 092 000 USB charger 2A (including cable)
www.level.systems12 | Our products
VT1
VehicleTracker
HARDWIRED MONITORING TRACKER FOR CARS AND
TRUCKS. OPTIONALLY WITH A BACK-UP BATTERY,
RS232 OR CAN INTERFACE AND BLUETOOTH 5.0
Online tracking, Trip history, Log book,
Statistics, Driver ID, Driver behaviour
evaluation, Remote Dashboard
Monitoring, Remote Engine Shut-off
Fixed Installation
4G, 3G, 2G
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
3 400/380 mAh - rechargeable*
Movement Detection, Tilt Detection,
G-shock, Temperature
Binary / Analog IN 2x
Binary IN 1x
Binary OUT 2x
°C
°C -25°C up to +65°C*
-25°C up to +80°C
IP40 - solid objects greater than 1mm
ACCESSORIES** For indoor use only
ED 002 002 External GPS antenna with 2m cable
50 x 90 x 20 mm
ED 060 614 Power switch relay for engine cut
Wide range of Bluetooth accessories
BS 0.. ...
(see full list of Accessories) 120 g
* Version with a back-up battery.
** For the full list of accessories see page 15.
www.level.systemsOur products | 13
AR1
AxleRing
PATENTED SELF-CHARGING GPS UNIT FOR
MONITORING AND ASSET TRACKING OF
RAIL AND TRANSIT CARS
Online tracking, Trip history, Exact
mileage, Axle blocking detection,
Statistics, Wide range of other values
(see wireless external sensors)
Simple installation by connection around
wagon axle
2G | 4G NB-IoT | 4G Cat M1
Bluetooth 5.0 Long range receiver
Range up to 250m/30m indoors
Connection of up to 100 sensors
Self-charging
Charging at speed >40 km/h (25mph)
Capacity - 7 800 mAh
Movement Detection, Cargo hold
temperature/humidity, open/closed door,
G-shock, Blocked axle detection
Capacity of 5000 events or positions
°C
°C -35°C up to +70°C
IP66 - Waterproof
ACCESSORIES
ø195 mm / ø284 mm x 100mm
(inner/outer diameter x width)
Wide range of Bluetooth accessories
BS 0.. ...
(see full list of Accessories)
2000 g
*AR1 is temporarily available for testing purposes only.
For more details please contact our sales representative.
www.level.systemsBT 5.0 Wireless
14 | Our products
External Sensors
WATCH A WIDE RANGE OF VALUES FROM THE
CARGO HOLD. MAKE SURE THE DOORS ARE
CLOSED, AND THE CARGO IS TRANSPORTED
UNDER THE RIGHT CONDITIONS
Cargo hold temperature, humidity
Fuel level sensor (FL sensor)
Bluetooth Low Energy
BT. 5.0 compatible
Compatible with:
AR1, TF1, TF2, TF200, VT1
1000 mAh - 2200 mAh
(up to 5 years) - replaceable batteries
Installation by screws or
double-sided adhesive tapes
Range up to 200m
°C
°C -20 °C up to +70 °C
IP 67/ IP 69 - Waterproof
49 x 66 x 17.5 mm | 72 x 45 x 22 mm
80 x 80 x length of tubes (FL sensor)
22g - 50g | 500 g (FL sensor)
* For the full list of BT sensors see page 15.
www.level.systemsAccessories | 15
ACCESSORIES
ID Number Type Compatibility
ED 002 002 External GPS antenna with 2m cable VT1 - VehicleTracker
ED 030 100 Over-voltage protection VT1 - VehicleTracker
ED 060 500 Driver identification contact reader VT1 - VehicleTracker
ED 060 550 Driver identification contact ID button VT1 - VehicleTracker
ED 060 614 Power switch relay for engine cut VT1 - VehicleTracker
ED 060 615 Switch type of journey VT1 - VehicleTracker
ED 073 525 Driver identification contactless card VT1 - VehicleTracker
ED 073 526 Driver identification contactless button VT1 - VehicleTracker
ED 073 531 Driver identification contactless reader VT1 - VehicleTracker
ED 075 804 CAN bus converter VT1 - VehicleTracker
TF1 - TotalFinder
MD 092 000 Robust metal holder for secure fixing
TF1 - TotalFinder Solar
TF1 - TotalFinder
MD 092 001 Tool for releasing the unit from holder
TF1 - TotalFinder Solar
TF2 - TotalFinder Industrial
MD TF2 001 Metallic plate holder for rivet installation
TF200 - TotalFinder ATEX
TF1 - TotalFinder
GC 095 - TotalTracker
SA 092 000 USB charger 2A (including cable)
GC 095 - TotalTracker E-Seal
CT1 - CompactTracker
Bluetooth Sensors
BS 010 390 BLE temperature sensor
BS 020 130 BLE robust temperature sensor TF1 - TotalFinder
TF1 - TotalFinder Solar
BS 030 380 BLE access card TF2 - TotalFinder Industrial
TF200 - TotalFinder ATEX
BS 040 540 BLE open/close door sensor VT1 - VehicleTracker
SA 050 001 BLE wireless fuel level sensor
www.level.systems16 | ACCESSORIES
MD 092 000 MD 092 001
Robust metal holder for Tool for releasing
secure fixing the unit from holder
MD 060 550 ED 073 526
Driver identification contact Driver identification
ID button contactless button
BS 010 390 BS 020 130
BLE temperature sensor BLE temperature
sensor
BS 030 380 BS 040 540
BLE access card BLE open/close
door sensor
www.level.systems12 |
17
Products to be
launched18 | To be launched
VT1
Independent NB-IoT
Monitoring Sensor
WE ARE CONSTANTLY WORKING ON DEVELOPMENT OF MORE
SOPHISTICATED AND INDEPENDENT MULTIPURPOSE
SENSORS THAT WILL FIND THEIR USE NOT ONLY IN
TRANSPORTATION, BUT ALSO IN REAL ESTATES
OR PUBLIC SERVICES. .
Multipurpose use
As an NB-IoT sensor, Multisensor
is offering versatile use without
dependence on any other monitoring
devices. MS1 will send all measured
values directly to the cloud, thus will
make its data collection process faster
and cheaper.
Bearing box temperature sensor
Flat wheel detection
Cargo hold loading sensor
G-shock sensor - crash, vibration
Illumination
Air pressure
Humidity
Door check (open/close)
Identification of tracked objects
www.level.systemsPositrex))) | 19
Platform Positrex)))
» WEB Portal fully customizable for your brand and business
» Positrex))) app for Android and iOS
» API-led connectivity to your own system available
» Available in 16 languages
x )))
www.level.systems20 | Positrex)))
Watch it anytime
and anywhere.
Only accurate and up-to-date information move you ahead of your competition.
Positrex))) monitoring system helps in many different areas and gathers all possible data you might
need to know about your vehicles, trains, parcels or even places.
The more information you have and the quicker you get it, the better and faster decision making.
You are able to react much faster than ever before.
System also includes modules such as efficient route planning, maintenance costs tracking, driver
behaviour assessment, wide range of notifications and various statistics.
Individual solutions enables to monitor different data
• Overall view with up-to-date localization
• Automatic Log book, speed record and record of trip events
• Vibration and crash detection
• Geofencing options
• Fuel consumption monitoring
• Temperature, humidity, air pressure and many other values
• Detailed statistics with comparison options
• Driver behaviour assessment
Try out
a free
tour
www.level.systemsLEVEL, s.r.o.
Plhovská 1997, 547 01 Náchod
Czech republic
tel.: +420 491 446 611
e-mail: level@level.systems
www.level.systemsYou can also read
