STANDARD
Our G-DECK STANDARD system is a patented 3 in 1 multi-functional high strength low-cost trestle/
working platform/tower, which is rapid to erect, durable and flexible enough to meet your site access
needs. Safety is a priority and G-DECK has been subject to stringent testing and analysis to provide its
load carrying capabilities.
The G-DECK system was designed with simplistic in mind which is why there are only 5 core
components per m2. The system provides integrated feature options such as handrails, stairs, adjustable
legs and can be erected at a range of heights from 0.8m – 5m. The deck has been tested and shown to
easily accommodate imposed loads of 6kn or 600kg per m2 which makes G-DECK the strongest system
currently available.
All our G-Deck systems are fully British & European Standards certified and is a flexible access decking
system designed to meet a variety of end user needs.
All our systems can be erected by hand and without the use of tools by a two-man team at a rate of up
to 45/60 square metres per hour. All components positively lock into place for maximum safety and
security.
The corrosion protection system enhances durability and enables G-Deck to withstand the weather,
providing an extended service life without any reduction in its strength.
• Erect up to 5 metres in height • Multi - level plattorm heights
• 100% free standing system • Various safety features as standard
• 600kg loading • Very fast to erect & dismantle
• 3 in 1 (trestle, platform, tower) • Adjustable legs 1.5m to 2.8m
• Integrated handrail option • Can be tailored to requirements
• 5 core components per m2 • No other system required (party wall)
• 100% Repairable • Integrated stair options
• 100% Recyclable • Internal access points
• Zero collapses
WWW.GDECKING.COM (4)
G-DECK WAS DROPPED TESTED WITH 150KG FROM 3M IN HEIGHT AND PASSED
Report number TES000380TR-2: 3G metal Fabrica�ons
TESMEC Limited: Test house, Unit 19 Newey Business Park
Sedgley Road West, Tipton, West midlands
DY4 8AH
Telephone: 07947 103 644
Impact survey to G deck anodized modular pla�orm systems
Document number: TES000380TR-2
Client: 3G metal fabrica�ons
2 Selbury Drive
Oadby
LE2 5NG
Item descrip�on: : Fabricated open mesh deck panels, approx 1000mm 2. Outer frame constructed of
20mmx20mmx1.2mm thick square hollow section, material grade not specified, each corner terminating
with a shark fin type location plate, 3mm mesh infill 50x50 square.
Vertical uprights constructed from 45x45mm x 1.8mm wall SHS, 1800mm long complete with shark fin
location housings at 500mm interval, material grade not specified.
Lateral cross braces constructed from 40mmx20mmx1.3mm thick rectangular hollow section complete
with shark fin type location plate at each end, material grade not specified.
All steel items zinc coated finish.
For Internal working application/indoor use only stated by client.
Iden�fica�on mark affixed to item: G deck
Quan�ty submi�ed for test: 5 panels complete with vertical box section uprights and lateral bracing,
assembly approx. 2 meter x 2 meter bay
Client submi�ed drawing numbers: N/A
Client design review Ref: Internal review of findings by client, No British Standards submitted at time of
survey, verbal instruction by client only.
Tes�ng Machine: Verified drop test mass at 150kgs x 350mm impact area, quick release drop system.
Client tes�ng requirements: Impact tests to mesh panel assembly, height range 3 meter (see impact area
schematic 1.2.)
Number of pages in this report: 9
Test conducted at: TESMEC Limited
Test House, Unit 19Newey Business Park
Sedgley Road West
Tipton
West Midlands
DY4 8AH
The data collated and compiled in this document is solely for client design review or technical analysis by client or others and if/ where required has been collated in accordance
with client or client representa�ve’s requests.
The tes�ng and collated data herein does not mean that the product complies with the standards or associated accompanying standards as further tes�ng or technical analysis
may be required.
TESMEC LIMITED, INDEPENDENT TESTING AND ENGINEERING SERVICES IS A COMPANY REGISTERED IN ENGLAND AND
WALES. REGISTRATION NUMBER 9860063
Email: info@tesmectes�ng.co.uk PAGE 1
WWW.GDECKING.COM (5)
LITE
Our patented LITE system was developed to offer a walk on/work no platform where a loading wasn’t
needed such as timber frame.
Still with our trademark slim profile metal decks to keep the strength under foot, we also included a
metal web within our legs to ensure stability and safety.
The G-DECK LITE system was designed with simplistic in mind which is why there are only 5
core components per m2. The system can be erected up to a height of 3m. The deck has been
tested and shown to easily accommodate imposed loads of 2kn or 200kg per m2 which makes
G-DECK LITE the lightest system currently available.
All our G-Deck systems are fully British & European Standards certified and is a flexible access
decking system designed to meet a variety of end user needs.
All our systems can be erected by hand and without the use of tools by a two-man team at
a rate of up to 45/60 square metres per hour. All components positively lock into place for
maximum safety and security.
The corrosion protection system enhances durability and enables G-Deck LITE to withstand the
weather, providing an extended service life without any reduction in its strength.
• Erect up to 3m in height • 5 components per m2
• 200Kg per m2 loading • Easy to move, store and transport
• Super quick to erect • Adjustable leg 1500mm to 3130mm
• Unique Zinc coated decks tor • Can be tailored to requirements
• longevity • Integrated handrail option
• Metal inner supporting legs to give • 100% repairable
• rigidity • 100% recyclable
• 1.8 to 3m height for optimum working • Patent pending no. GB1610741.9
WWW.GDECKING.COM (6)
G-DECK LITE WAS DROPPED TESTED WITH 100KG FROM 2M IN HEIGHT AND PASSED
Report number TES000511TR-1: 3 G Metal Fabrica�ons
TESMEC Limited: Test house, Unit 19 Newey Business Park
Sedgley Road West, Tipton, West midlands
DY4 8AH
Telephone: 07947 103 644
Load survey of: G Deck Light system
Document number: TES000511TR-1
Client: 3 G metal Fabrica�on Ltd
2 Selby Drive
Oadby
LE2 5NG
Client order ref: Mr. G Bains
Date of survey: 6th July 2018
Item descrip�on: Fabricated open mesh deck panels, 1000mm 2. Outer frame constructed of
20mmx20mmx1.2mm thick square hollow section, material grade not specified, internal frame lateral
bracing constructed from 20x4 flat lengths, material grade not specified, each corner terminating with a
shark fin type location plate, 3mm mesh infill 50x50 square.
Vertical leg constructed from 41.5mm 2 plastic square hollow section 3.4mm wall thickness complete with a
steel tubular section inserted throughout length as stiffener, overall length 1800mm, complete with
150mm2 steel base plate 2mm thick.
4 way shark fin housing sleeve 44.5mm 2 SHS 1.5mm wall thickness inserted around the plastic uprights 1
midpoint and 1 at 1800mm lift secured by an 8mm locking pin.
Lateral cross braces constructed from 40mmx20mmx1.3mm thick rectangular hollow section complete
with shark fin type location plate at each end, material grade not specified.
All steel items zinc coated finish. Vertical plastic square section orange finish
For Internal working application/indoor use only stated by client. System to be restrained from lateral
movement at all times.
Iden�fica�on mark affixed to item: G Deck
Client submi�ed drawing numbers: Not submitted
Client design review Ref: Internal review of findings by client or others.
Tes�ng equipment: 100kg verified drop mass
Client tes�ng requirements: Applied load displacement comparison survey in accordance with client’s
instruction.
Number of pages in this report: 5
Test conducted at: TESMEC Limited
Test House, Unit 19Newey Business Park
Sedgley Road West
Tipton
West Midlands
DY4 8AH
TESMEC LIMITED, INDEPENDENT TESTING AND ENGINEERING SERVICES IS A COMPANY REGISTERED IN ENGLAND AND
WALES. REGISTRATION NUMBER 9860063
Email: info@tesmectes�ng.co.uk 1
WWW.GDECKING.COM (7)
DUAL
Our G-DECK DUAL patented system is the world’s first hybrid system that enables scaffolding
companies to offer decking to customers at a much lower cost.
Designed to combine the robust metal G-DECK decks with birdcage tubes & fittings using G-DECK’s
patented brackets, G-DECK Dual provides a more cost-effective investment than standard decking
systems while delivering enhanced strength and safety. Much faster to install than traditional birdcage,
it allows scaffolding companies to tap into demand for load deck systems from housebuilders,
developers and construction companies at a much lower investment level, while utilising their existing
birdcage assets.
With G-Deck Dual we’ve solved those problems. The investment is much lower – even compared to a
decking system of lower quality - and the profit opportunity is significant. Scaffolding companies can
re-use their existing birdcage tubes using our easy-fix brackets. Our decks have been designed to offer
market-leading levels of safety and strength and to stack neatly for secure storage. We genuinely have
designed it with scaffolding companies in mind.”
G-DECK’s metal decks have a 600kg/m2 load capacity, making them the strongest load deck system on
the market and ideal for projects where materials need to be delivered or stored on the deck at the work
area.
• Fast to erect/dismantle. • Easily create handrails with tube &
• Re-use existing scaffold tubes & fit- fitting.
tings. • Create props with ease
• 600kg per m2 load bearing (strongest • Can go up to 4 metres in height.
system on the planet). • Less storage needed.
• Adjust heights by changing leg length • 100% repairable
• Can be branded with your colours for • Cost effective
ownership. • Patent pending
WWW.GDECKING.COM (8) ACCESS & MATERIALS HATCH Our access hatch is our latest and safest new access hatch. This hatch has the most advanced safety features available and at a reasonable cost. Features: 3 x hatches – ladder, materials & person access. 300kg loading as built with strength. Certified to British Standard BSEN12811 CLASS 4. 1250mm x 750mm footprint and colour but can be tailored for specific requirements. Chequer plate hatch covers for better grip above. Combo locks – saves time finding keys for padlocks, sites can have the same individual combo on all. Man hatch – Cannot be left open as self closes (a must for hatches as prevents drop in’s) Can easily fit under any decking system. Quick and easy to install
WWW.GDECKING.COM (9) STAIRWELL HATCH Our stairwell hatch comes in segments to make carrying it and installing it easy. It is fully adjustable with extensions that can be added for bigger voids, so our system fits any stairwell. We designed this system to be fitted from underneath by one person if needed to avoid fall arrest from above. It can be fitted by anyone and takes 20 minutes. If the stairwell has no lip at the wall the system comes with a support membrane that spans the void and is screwed down at both ends to support giving our hatch a 3.5kn loading. It comes with three hinged access hatches. The first is for the ladder, the second is for a person to access up or down and the third letterbox style hatch is for allowing any decking system to be passed up or down without any fall arrest from above. Because it is metal after a site use it can be returned to be refurbed and repainted instead of having to buy new again to keep your ROI. The colour can be personalised to your brand colours so looks on point.
WWW.GDECKING.COM (10) LIFT SHAFT GATE The latest addition to our product family is our new lightweight lift shaft gate. They are modular so you can add extension wings either side of the gate to cover any void space. The gate has stable style doors which enables the bottom door to remain locked while the top door can be opened. Both doors only open out and can be padlocked for security. Takes 10 minutes to fit, with minimum fixing required. We can offer a tailored service on these for specific requirements. We can powder-coat in your company colours. Gate is 2200mm (h) x 1200mm (w) & each wing is 2200mm (h) x 600mm (w) Additional wings can be added for bigger voids

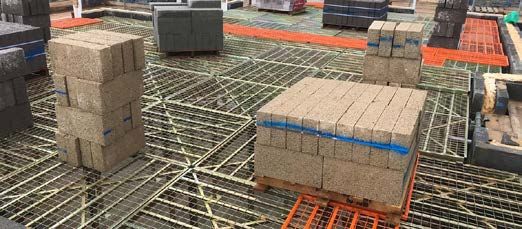

WWW.GDECKING.COM (11) USP’S Strongest load bearing capacity on the market at 600kg per m2 Handrail off danger/drop off points
WWW.GDECKING.COM (12) USP’S G-DECK stairs for safe easy access on and off our platforms Internal access points

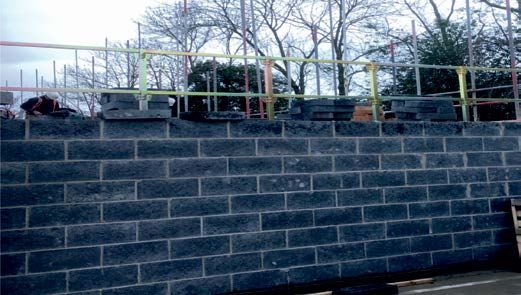

WWW.GDECKING.COM (13) USP’S Party wall lift without the need for scaffold Leg braces allows for strength & a self-supporting platform

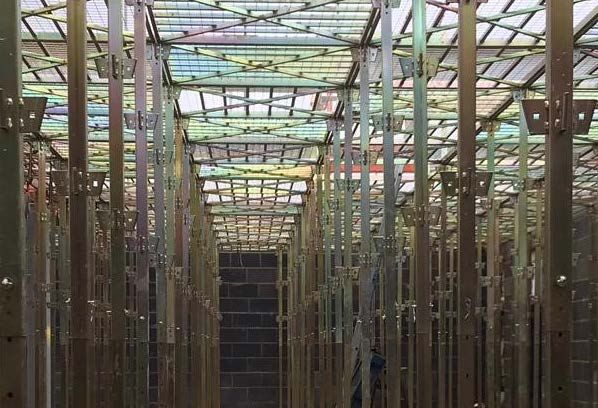

WWW.GDECKING.COM (14) USP’S Multi deck levels Same G-DECK components used in our trestle system & working platform
WWW.GDECKING.COM (15)
COMPONENTS
Platform units
Part: GD9Weight: 14kG
Part GD1Weight: 8kG
1000 mm x 1000 mm steel platform units used
to form the working platform.
Platform units
Part: GD33Weight: 11kG
750 mm x 1000 mm steel platform units used
to form the working platform.
Platform units
Part: GD8Weight: 8kG
Part GL2Weight: 5.5.kG
1000 mm x 500 mm steel platform units used
to form the working platform.
Make-up Panel
Part: GD10Weight: 6kG
600mm x 900mm - Make up panels are used
to infill gaps within the working platform if
required.
Spring loaded gate
Part: GD11Weight: 10kG
The gate provides edge protection at points
of access onto the working platform. Lightly
spring loaded for positive closure to ensure
the opening in the edge protection is
permanently secured.WWW.GDECKING.COM (16)
COMPONENTS
Cross Braces
Part: GD2Weight: 1.4kG
Horizontal cross braces can be easily inserted
into the legs & handrail posts enabling safe
and secure protection. 500mm & 1000mm
Gd19: Adjustable rail version
Handrail Post
Part: GD17 Weight: 3kG
vertical posts designed to expend the top of
the legs to support the handrail sections.
Leg Posts
Part: GD4,5,6,7. Weight: 4.5 & 5kG
Part GL3 Weight: 3.5.kG
The G-DECK posts allows heights of 800mm,
1000mm, 1500mm, 1800mm, 2000mm,
3000mm. The G-DECK Lite leg is 1.8m & 2m
Base plate foot
Part: GD1 Weight: 0.6kG
Footplate with spreader
Ladder Bracket
Part: GD11Weight: 10kG
The gate provides edge protection at
points of access onto the working platform.
Lightly spring loaded for positive closure
to ensure the opening in the edge
protection is permanently secured.SITE EXAMPLES
SITE EXAMPLES
