Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Perspective of space utilisation in
                                 the Italian Railways
                                      Massimiliano Ciaffi – RFI
                                   Fabrizio Memmi– Trenitalia

13 November 2019
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Summary

     ERSAT Program

          ERSAT GGC

            Certification Process and Other RFI Projects

            Trenitalia contribution and Field Test Results

          Opportunities for Railway Undertakings

     Trenitalia expectations from ERSAT

                                                             2
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Status of railway infrastructure & evolution

                                           ERTMS Acceleration Plan
                                             Deploy the ERTMS on the
                                             entire Italian railway
                                             infrastructure and trains

                                             first ERTMS
                                             deployment on
                                             Regional lines

                                             Decommissioning of
                                             legacy systems as
                                             requested by EC

ERSAT FOR REGIONAL AND
       LOCAL LINE

                                                                         3
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
ERSAT
       Enhanced Railway Signalling Application
               Satellite-based enhanced localisation
  Multi-
bearer TLC
              Multi constellation
 solution
                                     EGNSS-based localisation
              Local Area Trusted
             Augmentation service
                                        EGNOS       Galileo Early
                                                      Services
  ERTMS      Localisation in GNSS-
                 denied areas

                                                                    4
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
ERTMS on Satellite Program (ERSAT)

                                      2013      2014     2015   2016        2017      2018          2019   2020
 3inSAT
                                             2013-2016
GNSS & SatcomSignallingDemonstrator

 ERSAT EAV + GGC                                                2015-2019
 ERTMS Application + Test Site

DB4RAIL
Antispoofingand Antijamming                                                        2017-2019
technology
SAT4Train
TLC Application                                                                    2017-2019

 Gate4Rail
 GNSS Virtual Test Bed                                                                         2018-2020

 SBS phase 2
 Technology Demonstrator                                                                       2018-2020

 PILOT LINE
 Regional Line                                                                         2017-2021

                                                                                                                  5
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
ERSAT GGC project priorities

                      EGNSS assets validation and relevant certification process compatible with ERTMS standards

                            Definition and Certification of standard process, methodology and toolset for
                            replacing physical Balises with Virtual balises

                               Consolidation and certification of the enhancement of the functional ERTMS
                               architecture integrated with satellite based location determination system

                                  Contribute to the standardization process & dissemination of results with
                                  the satellite and rail stakeholders

                        Integration of EGNSS w/o impacting on the ERTMS system

                                                                                                                   6
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
ERSAT GGC - project planning
                                                                                                                                                                TODAY

                                            2017                                    2018                                                     2019
                                           Quarter 4      Quarter 1     Quarter 2          Quarter 3     Quarter 4   Quarter 1   Quarter 2          Quarter 3   Quarter 4

  WP1
  Project Coordination and                             Dec 2017 – Nov 2019
  Management
  WP2                                                  Dec 2017– Sep 2018
  Enhanced ERTMS Spec and
  Architecture
  WP3                                                         Jan 2018 – Sep 2018
  Safety and Hazards Analysis
  WP4                                                  Dec 2017 – Nov 2019
  TrackSurveyand Track
  Classification
  WP5
  Assessment of Enhanced ERTMS                                                               Jun 2018 – Nov 2019
  architecture and of Survey process and
  related toolset
  WP6                                                                                                                                          May 2019 – Nov 2019
  Demonstration
  WP7                                                  Dec 2017 – Nov 2019
  Exploitation and Dissemination

                                                                                                                                                                            7
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Certification Process agreed with ERA

     1.   Trackside CCS and On Board Unit must be implemented according to the ERTMS Baseline 3 R2
          standard and subject to certification. Regarding TRK ETCS, by not exporting application conditions
          that affect interoperability to the OBU, the certification will be performed by a NOBO

     2.   The certification of the new on-board and trackside functions that include the introduction of GNSS
          and the train integrity function will be carried out by a DeBO

                 All the products and functions of GNSS (including the Augmentation Network), which
                 are added to the provisions of point 1, will be used only for the purpose of improving
                     odometry by virtual balise and they are not impeding the line interoperability

                                                                                                                8
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Working Group to support the certification process

                               ESA                   ASI

                                               GSA

                         ERA                               ANSF

             Certification                                 Assessment
           Process defined                                  of EGNOS
                                                            underway
                                                                        9
Perspective of space utilisation in the Italian Railways - Massimiliano Ciaffi - RFI Fabrizio Memmi-Trenitalia - ERSAT ...
Challenges
                                                                          Track discrimination – At ETCS SoM (*)
The ERSAT-GGC track survey will help in the characterization of
  the line in terms of suitability of the area for the VB location,
  i.e.
  Line green: VB can be placed even at small distances;
                                                                                 GNSS
  Line red: we need different solutions
                                                                                Open Sky
Frequent VBs increase performances through odometry reset

                                                                      Reduce SR travelled distance at Start Of Mission

   RFI is interested in the results of EU projects, as well as
   technological and market trends (DCMF, Non GNSS Sensors,
   Data Fusion) to extend current performances also in GNSS                                   VB              VB
   denied zones.                                                                               1               2
                                                                                SR travelled distance

                                                                                                                         10
ERTMS Enhancements: Train Position

                                     PHYSICAL BALISE

                                     VIRTUAL BALISE LOCATION

                                                               11
Roadmap to certification & operational activation

                                                                    Cooperative effort involving
                                                                    Rail & Satellite community
       ERTMS    L2linebaseline 3
          Regional
                                   Activation of ERTMS L2           ERA target window   Implementation ERTMS L3
                                   + GNSS                                   for         + GNSS
                                   + Local Augmentation Network       upgrade of TSI    + IP Based Public TLC
                                                                                          L3 Impl. – Nov
                                                                                               29

                   2018                           2021                    2022                2023                  2024

              Preparatory                                             Preparatory                                 Readyness –
               activities                                              activities                                   Sep 25
          Selection of Train and                                    Upgrade to ERTMS                          Activation ERTMS L3
          Logistic elements for                                          + GNSS                               + GNSS
             deploying local                                       + EGNOS Based SBAS                         + IP Based Public TLC
         Augmentation Network

                    Activities underway                           Role of GSA-ESA

                                           Satellite asset to comply with ERTMS certification process
                                                                                                                                      12
RFI «Smart Diagnostic» cofunded by                                                  from January 2020
Use Case Application
Integrated Systems for “Smart Maintenance”:
 High reliability, real-time (short latency time), extensive territorial coverage, cybersecurity.
The application of 5G technology allows centralizing in real-time a huge amount of diagnostic information that can be
collected by sensors, installed wayside along the railway network.
Also, measurement systems installed on board RFI diagnostic trains can be centralized in real-time.
The integration of satellite technology with the terrestrial 5G network will maximize system performances, ensuring
high levels of service coverage and reliability.

                         Central                  Local                        Local           Central
                        Diagnostic              Diagnostic                   Diagnostic       Diagnostic
                           Unit                    Unit                         Unit             Unit

                          Station                            Technological                      Station
                                                                Rooms

                                                                                                                        13
MOMIT- CALL H2020 FROM JANUARY 2018 – OCTOBER 2019
Multi-scale Observation and Monitoring of railway Infrastructure Threats
           MOMIT Team                                                                   Targets
 RFI – ITA                                              Develops new products and methodologies based on remote
 E-Geos – ITA                                            sensing data for different types of railway damagge monitoring
 NEAT – ITA                                             Develops reliable precedures to support the railway
 Terabee – FRA                                           management
 Centre Tecnològic                                      Makes remote sensing a standard technology in the
  Telecomunicacions Catalunya – SPA                       infrastructure management processes
 Universidad de Alicante - SPA                          Consolidates an effective use of satellite and RPAS based
                                                          technologies into the operational maintenance and control
                                                          process
                             • Railway Asset monitoring needs
                 ANALYSE     • RPAS regulatory

MOMIT Steps                  • Data processig and analysis methods
                 DEVELOP     • Data homogenization, fusion and information extraction algorithms

                             • RPAS and satellite monitoring applications
               DEMONSTRATE

                                                                                                                           14
MOMIT
Demonstrators

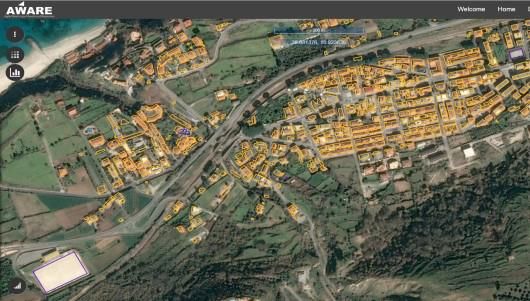

             Ground Movements                               Hydraulic activities
                     Interferometry derived by SAR
                                                                      A combination of optical and
                     satellite data analysis will be
                                                                      radar satellite data will be used
                     adopted to define tools and
                                                                      to monitor soil moisture and
                     indicators supporting the user for
                                                                      water bodies close to the track
                     detailed analysis and preventive
                     actions planning

                Natural hazard                                    Safety
                  Anomalies along the track related to         Anomalies and illicit activities along the
                  natural phenomena (as vegetation             track will be monitor by the use of
                  growth) will be monitored by the use of      optical a radar satellite data
                  satellite data

          Civil engineering structures                       Electrical system

                     A a combination of satellite and
                                                                   RPASs will be equipped with
                     RPAS data will be used to identify
                                                                   innovative sensors to monitor
                     possible     criticalities to the
                                                                   electrical effects impacting on the
                     infrastructure
                                                                   infrastructure efficiency

                                                                                                            15
Trenitalia contribution and
                              Field Test Results
                            Fabrizio Memmi – Trenitalia

13 November 2019
Trenitalia Fleet, State of the Art
High Speed Fleet (ERTMS systems)
   Rolling        Fleet            SSB
    Stock      Consistency       Supplier
    Class
  ETR 1000         50          HITACHI STS
  ETR500           30          HITACHI STS

  ETR 500          30            ALSTOM
  ETR 600          12            ALSTOM
  ETR 610          7             ALSTOM
  ETR 485          15            ALSTOM
  ETR700           17          HITACHI STS

Regional Fleet (Class B systems)
 Nearly 4500 Vehicles (4 SSB suppliers!)

                                             17
ERTMS on Trenitalia Regional Fleet, a long way to go..
First applications of ETCS on regional vehicles for new commercial service on the DD line Roma-Florence

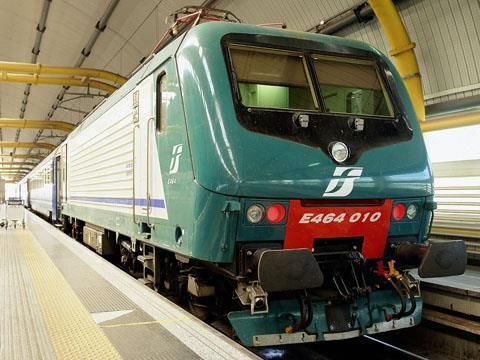

           E464                               Vivalto                        E40X                   Semipilota Z1

  Vehicle already ERTMS certified, currently in commercial service only on class B lines

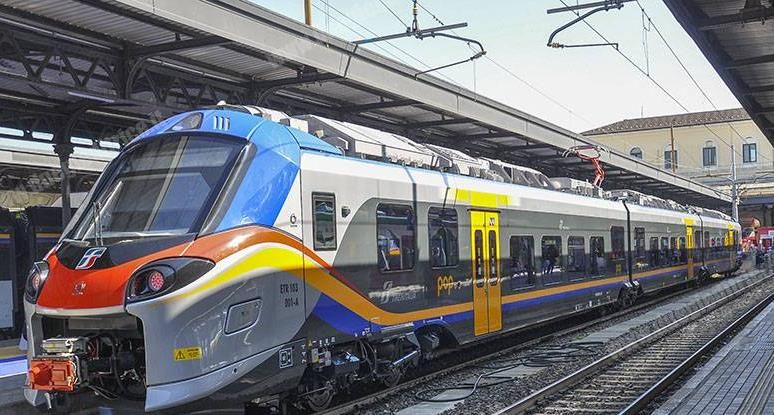

                                                                            New     Regional     Trains     will be
                                                                             progressively equipped with ETCS
                                                                             following network installations

                                                                                                                       18
Improvement of Low-Traffic Regional lines Management:
Satellite Technology introduction

                                Use of satellite technology (GPS, GLONASS,
                                EGNOS, GALILEO) in order to obtain:

                                  A    more     reliable and  available
                                   speed/distance monitoring for train
                                   positioning

                                  Cost reduction to equip a line with
                                   ERTMS system.

                                                                             19
An opportunity for Railway Undertakings: Integration with Satellite and
Virtual Balise
  1. Increase in the Availability of the Balise detection chain of Signalling System

  Now: unreliability of Signalling System due to failures of discrete onboard-inline interface (balises,
    problems with the on-board antenna…..)

                                                                              Real balise
                                                                              detection

  With ERSAT: The Virtual balise eliminates malfunctioning related to
             the detection of the physical balises

                   RUs benefits:                        Virtual Real balise
                                                       detection: matching
• Savings in energy and time for unnecessary braking     between GNSS
                                                        position and VBR
                                                         stored position
• Savings for time spent at starts of mission
                                                                                                           20
An opportunity for the Railway Undertakings (2): Satellite as an
additional speed sensor
   2. Increase of reliability of Speed Monitoring of Signalling System

   Now: Problems related to on-board odometry (slipping/sliding wheel), already
     experienced in ERTMS

   With ERSAT: Integration of satellite improve the accuracy of the odometry in condition of
     low adhesion rail/wheel

                                                            RUs benefits:
                                         • Savings in energy and time for unnecessary braking

                                         • Savings for time spent at starts of mission

                                                                                                21
An opportunity for the Railway Undertakings (3):
Multi-bearer TLC solution
 3. Increase of reliability of Communication Network

 Now: Problems due to weakness of interaction between onboard-trackside totally based
   on GSM-R standard

 With ERSAT: Using different bearers (GSM 3G/4G/5G mobile networks, Wi-Fi, Satellite)
   links may be added or dropped as the train moves in or out of coverage without
   interrupting the end-to-end connection.

                                                                                        22
Trenitalia needs expected to be solved by ERTMS+SAT program in the long
term
                       1. Reduction of investment and maintenance costs.

                       2. Modernise signalling system at lower costs to              ensure
                          sustainability, according to the European scale numbers.

                       3. Guarantee a real and long-term interoperable European standard.

                       4. Improve capacity of transportation networks extending ERTMS
                          system on secondary lines and urban nodes.

                       5. Minimize Impact on Operational Rules.

                                                                                              23
Thank you
    m.ciaffi@rfi.it
f.memmi@trenitalia.it

                        24
You can also read
