PEM-Elektrolyse-Stacks
Entwicklungen der Fa. Giner ELX
Uwe Küter
HYPOS-Dialog, Leipzig
27.02.2020
Agenda
Vorstellung
Giner ELX, Inc. - as part of Giner, Inc. - Brief History
Geschäftsmodell bietet Partnerschaften
Extrem-Stack-Entwicklungen liefern Know-how Basis
Der Weg zur MW-Plattform Allagash
NREL - Extrem- und Langzeittests
Commercial Products
Summary of Technical Advantages
2
Über uns
2015, Lübeck Gründung
Uwe Küter, Matthias Bromeis Gesellschafter
Giner ELX, USA, exklusive Repräsentanz Handelsvertretung in Deutschland
Wasserstofferzeugung aus Erneuerbarer Energie Fokus der unternehmerischen Tätigkeit
Wasserstoff
1. 2. 3.
Produkte Projekte Dienstleistungen
• Stacks • Infrastruktur • Handelsvertretung
• Elektrolyseure • Initiierung • Kunden- und Projekt-Akquise
• Lastgang-Analyse
3
Unser Partner
PEM Electrolysis for Industry, Mobility and
Grid-Level Energy Storage
4
Brief History
World-leading PEM since 1973
• In 1973 Giner starts operation as a purely research group focused on electrochemistry
• In 1985 Giner recruited several of the GE engineers who originated PEM electrolysis technology for
the Gemini Space Program
• Over the succeeding 3 decades Giner has conducted multiple projects on behalf of commercial
customers and US government agencies to make PEM technology more efficient, lighter, more
durable, lower cost and larger scale
5
Brief History
47 Years Specializing in Electrochemical April 2017: formation of
R&D • Large-scale hydrogen generators
• Fuel Cells
• Electrolyzers June 2018: formation of
• Life support O2 for US Navy and NASA
• Oxygen for cell preservation
• Sensors
Located in Newton, MA
Dec 2018: Acquisition of Spectracarb productline
GDLs for electrolyzers, fuel cells, batteries
6

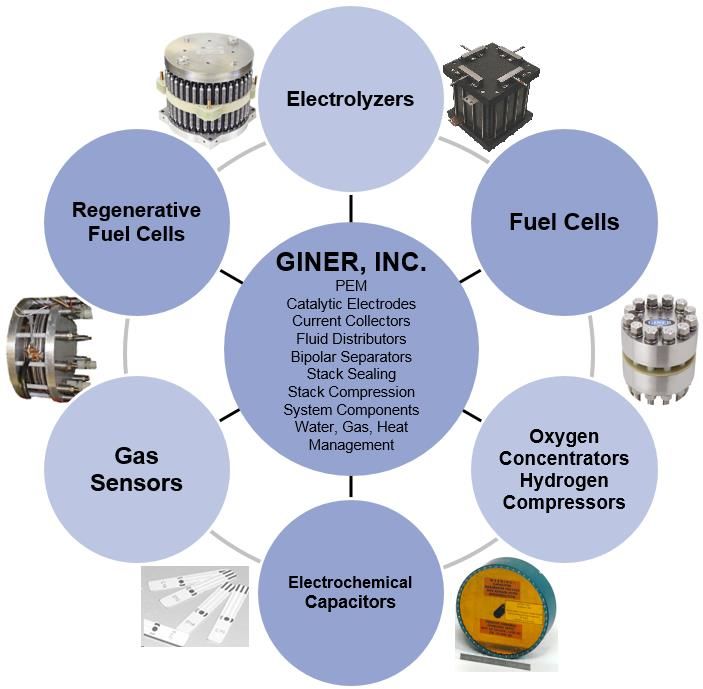

Company Profile
!
Synergy of Giner, Inc.
Giner, Inc. Founded in 1973
GINER
Technologies
Specializing in the development of PEM
based electrochemical technologies and ELX
systems Electrolyzers
Global leader in Polymer Electrolyte
Membrane (PEM)-based electrolyzers
Highest efficiency technology for
commercial applications GINER
Accelerated growth since 2005
LABS
Membranes
Key driver has been the Catalyst
manufacturing of PEM electrolyzers R&D
to OEMs
In April 2017, Giner ELX, Inc. was
created to focus on commercial GINER
development and manufacturing of large
scale electrolyzer stacks & systems
GLS
Life
Sciences
Core Mission: Provide Innovative
PEM Technologies with the Highest Synergy of Giner, Inc.
Efficiencies at the Lowest Costs to Technologies 7
Developing Hydrogen Markets 2
Geschäftsmodell Giner ELX 1. Hersteller und Zulieferer von PEM-Elektrolyse-Stacks 2. Anbieter von Elektrolyseanlagen, Fertigung durch Partner 3. Systemanbieter, zB Elektrolyseur+Speicher+HRS
Zulieferer von Stacks
Stackfertigung in USA
aktuell: Wasserstoffproduktion von 0,25 l/h bis 207 Nm³/h je nach Stack-Typ
Allagash-Plattform 30N-400Nm³/h
9

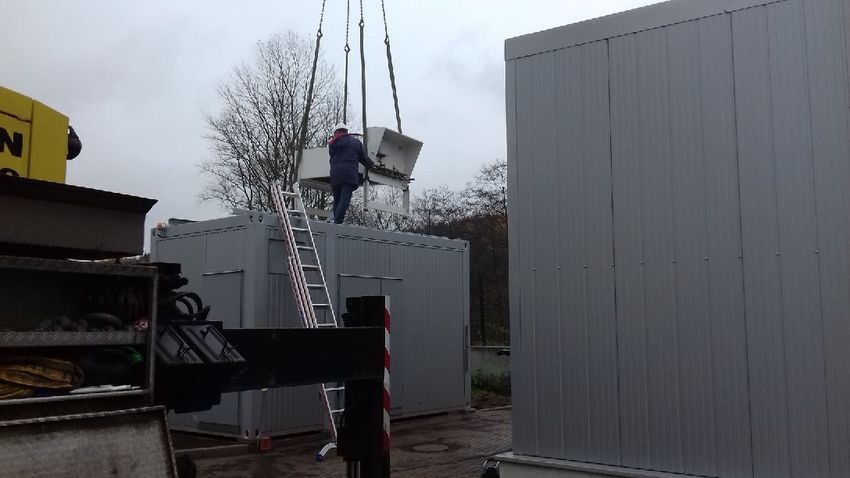

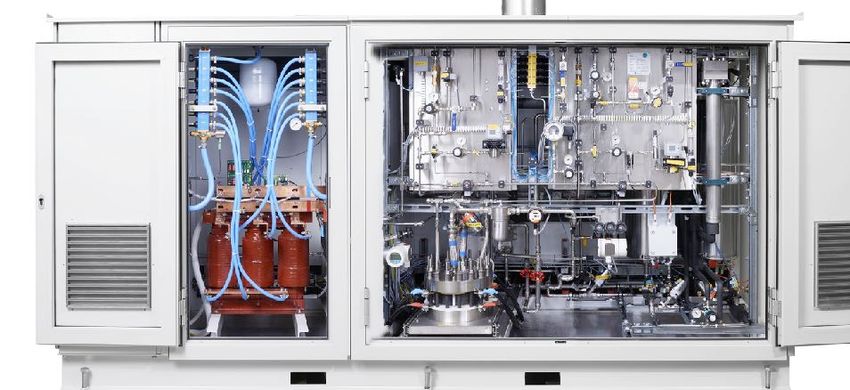

Anbieter von Elektrolyseuren
Bilder: Giner, iGas energy GmbH

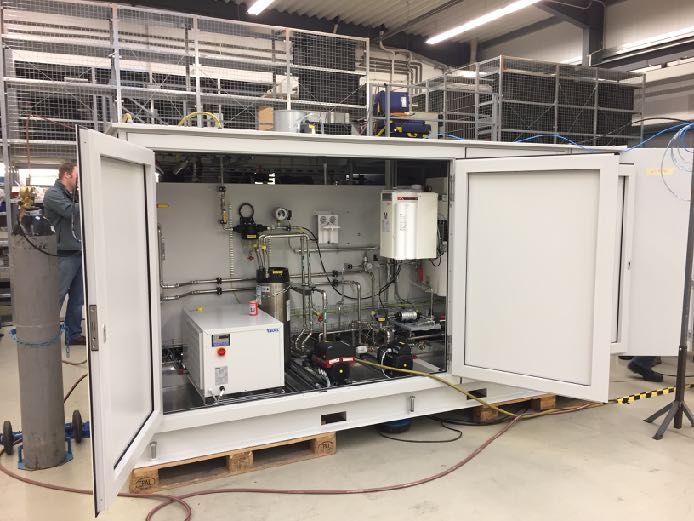

10Anbieter von Elektrolyseuren
Anlagenfertigung
in Deutschland / Europa
Bilder: iGas energy GmbH

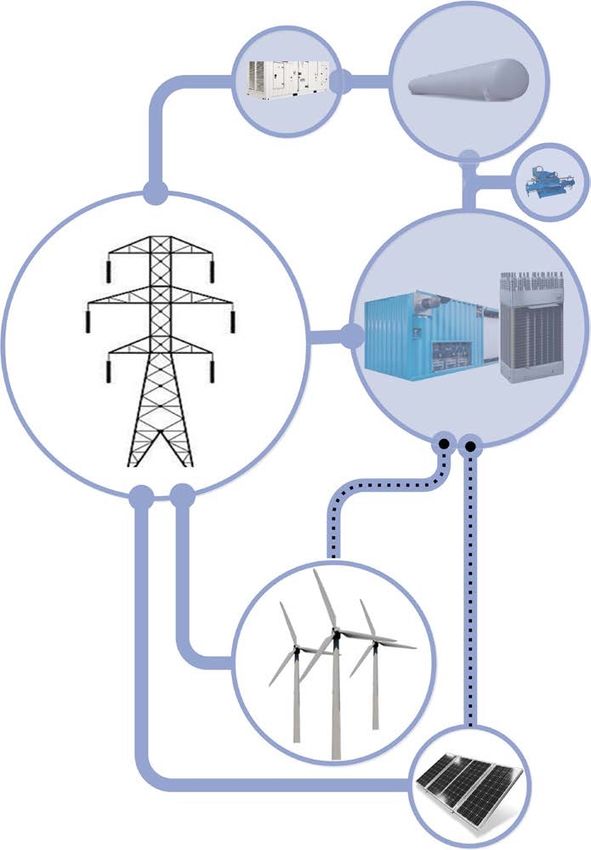

11Systemanbieter
Bilder: Giner ELX
12The Giner ELX PEM Electrolysis Advantage
Peerless Expertise
The Giner ELX team has built and run PEM stacks and systems with
exceptional performance requirements:
• High efficiency
• Differential pressure
• High pressure
• Ultra light weight
• Large scale
• Miniature scale
• Low cost

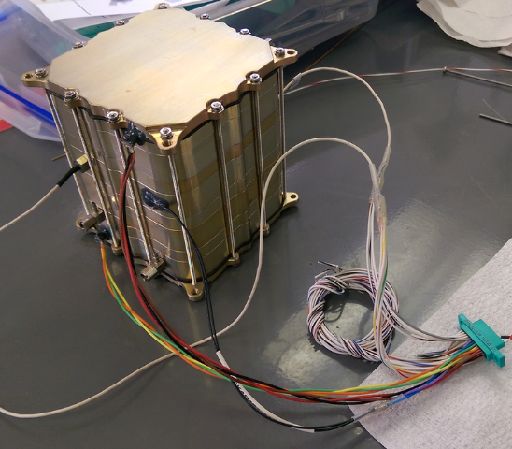

13Aerospace Applications
DARPA Ultra-lightweight
high energy electrolyzer
Miniature Regenerative Fuel Life-Support O2 for ISS
Cell for 1 liter Satellite
14NASA Life Support Oxygen
Challenge: NASA’s Oxygen Generating Assembly electrolyzers water but has
difficulty with the gas/liquid separation in zero gravity leading to system failures.
Solution: Giner delivered a simplified vapor feed electrolyzer system that
delivers both the H2 and O2 at sub-saturated conditions. Leading to a 30x savings
in mass.
NASA’s OGA 1,872 kg
Giner’s OGA 60 kg
20,000 h and running
15NASA: Extravehicular Activities
Challenge: NASA needs to take cabin air and
isolate and compress O2 to 250 bar for
astronaut space suits.
Solution: Giner engineered an
electrochemical O2 pump that delivered
gases at pressure and demonstrated > 5000
hours of operation.
16Commercial Success track record
20 years of Life Support O2 on Submarines
• Electrolyzer stack supply for
Ohio Class submarines
• 2-4 units/year for 2 decades
• Zero stack problems in service
17R&D Project Electrochemical Compression
875 bar
Operation!
R&D Project Oct 2016-June 2020
18OVER 25,000 UNITS OPERATING
PROVEN TRACK RECORD OF PERFORMANCE
Electrolyzer Stacks Electrolyzer Systems
19Commercial Success: PEM Electrolyzer Stacks
Commercial Success: PEM Electrolyzer Stacks
• Over 25,000+ units operating worldwide
• Giner ELX supplies 5 to 150 kw stacks to
system integrators for many applications:
− On-demand laboratory hydrogen
− Industrial
− CO2 conversion
− Gas engine optimization
• Supports integrators with critical
intelligence:
• E.g. water quality management, safety
20PEM Electrolyzer Advancements
PEM Electrolyzer Advancements
Emerging Markets &
Drivers
Power to Gas (P2G): Vast
opportunities in Biogas
Power to Mobility (P2M)
Power to Hydrogen (P2H)
Integration of Renewable Energy
220+ Nm3/hr
Sources (MW Scale)
Large reserves of stranded
energy (need to store/shift)
Ongoing broad
developing wind
energy sector
Backup power for grid outages
and load shedding
30 Nm3/hr
3 Nm3/hr
0.05 Nm3/hr
Aerospace/Military/Navy Applications Commercial/Industrial Applications 4
21Der Weg zur kommerziellen MW-Plattform-Allagash
Erhöhung der aktiven Fläche von 290 cm² (150 kW Plattform)
auf 1.250 cm² (MW Plattform).
Kostenreduzierung durch Auslegung auf Serienfertigung (zB
Reduzierung von Bauteilen, Roll-to-Roll, Spritzgussrahmen)
Aufbau der MW-Stack-Plattform
Langzeittests und Tests unter Extrembedingungen
Parallele Tests Inhouse
Zyklischer und konstanter Betrieb
Untersuchung Wirkungsgradverhalten, Belastbarkeit,
Lebensdauer (Degradation), Spannungsverhalten, Stabilität bei
Stromdichten bis zu 3 A/cm² , H2 Diffusion in O2
220+ Nm3/hr
22Cost Reduction, Volume Production
Cell Frames: Lead time reduced with purchase of injection mold
Assembly & Sealing: Designed/Purchased Bolt Tensioner to reduce labor
and assembly time
MEAs: Implemented R2R Catalyst for MW-Platform.
Single Cell Architecture: Rapid production/Automation:
Traditional Supported Membranes Latest Supported Membrane* Single-piece Cell Architecture*
*Developed under separate DOE project, Scale-up required for MW-Platforms
23Cost Reduction, Volume Production
Best in Class: Process Automation
Roll to Roll Electrode Process
Part and Cost Reductions ‘R&D Automation’
70% / past 10 years • Labor Savings:
60% / next 5 years • Ability to make ten (10) 1-MW
Allagash worth of electrodes/day
• Exact Tolerances:
Single-Piece Cell Units: ‘The 2 Piece Cell’ • 95% Catalyst utilization (at scale
operation)
• Cathodes and Anodes now fully qualified
• Enables Dry-Build Assemblies
2 Parts/Cell
2020
24Testing
Giner ELX at NREL-ESIF
Allagash MW Build
■ MW stack build assembled
■ Installed into NREL testbed
■ Stack Design Specifications
Active Area: 1,250 cm²
Operating Pressure: 40 bar
Operating Temperature: 70C
Operating mode: Differential Pressure
Current (Nominal): 3,750 Amps ( 3 A/cm²)
CE Compliant
NREL - National Renewable Energy Laboratory
ESIF - Energy Systems Integration Facility
25Testing
Allagash Testing & Performance
17,100+
Operating Hours
(as of February 2020)
■ 150 hrs. at 1A/cm², 15bar
■ 350 hrs. at 2A/cm², 15bar
■ 5,135 hrs. at 3A/cm², 15 bar (Target Met)
■ 11,465 hrs. at 3A/cm², 40 Bar (Ongoing)
40 bar
11,465 hours
26Testing
Parallel testing at Giner ELX
27Emerging Designs for Future Applications
Data Collected at 1 MW+
NREL is used to 3,750 Amp
improve MW platform >10kW/cell
design and for the
design of larger Multi-
Allagash
MW stacks 5 MW
■ 5MW Stack Platform 12,500 Amp 25
Operating Pressure: 600 psig (40 kW/cell
Bar) 1100Nm3/hr
Active Area: 3,000+ cm² 220+ Nm3/hr
Current Density: 5A/cm²
Kennebec
Temperature: 90°C (Improved (MW Scale)
efficiencies) Active Area: 1,250 cm²
Small Footprint - ideal for Onsite Pressure: 40 bar
hydrogen generation Nominal Current: 3,750A
Current Density: 3A/cm²
■ Lowest total cost of ownership
■ Clear development roadmap to
green hydrogen at a cost of
$1.50 per kilogram (assuming
power at $0.02/kWh)
Based on technology advances
already being demonstrated in our
labs
30 Nm3/hr
3 Nm3/hr
28Commercial PEM Electrolyzer Stacks
29Commercial PEM Electrolyzer Stacks
30Commercial PEM Electrolyzer Stacks
31Summary
MATERIAL TECHNICAL ADVANTAGES
PROTECTED ADVANTAGES ALLOW FOR HIGHER EFFICIENCY AND LOWER COSTS
Membrane Thickness
§ Thinner membranes exhibit lower cell resistance and higher
Operating Parameter Metric Typical PEM Giner ELX electrolyzer cell efficiencies
Competitor
§ Giner has reduced the amount of the expensive precious
metal catalyst required for high efficiency stack operation
Membrane Thickness (mils) 10 5
Temperature
Temperature (°C) 50 70 § Operating at a higher temperature makes electrolysis more
economically efficient by requiring less energy input
Current Density (A/cm2) 2 3 Current Density
§ Higher current density allows PEM cells to be smaller while still
Cell Area (cm sq) 265-1,400 1,250 achieving high efficiency
Cell Area
Stack Size kW 150-750 1,000
§ A large cell active area reduces the number of cells required to
produce a given amount of hydrogen, and thus reduces the
stack manufacturing labor, and the materials scrap rate
Source: Management. 13
32Meet the Team
Executive Team
Andy Belt
CHAIRMAN AND CEO
MBA, Harvard
Bain and Company, London
Multiple Entrepreneur
Hector Maza
GINER ELX BOARD MEMBER, & CCO
BS ChE, Graduate Finance, MBA
25 Years in Operations & International
Sales, Fluent in four languages
Cortney “Corky” Mittelsteadt
GINER ELX BOARD MEMBER & CTO
BS ChE, PhD Ch; MBA, MIT
23 Years of PEM experience
Giner ELX, Hall 27, Booth # C47
33Vielen Dank. Uwe Küter uk@h2agentur.de www.h2agentur.de
