OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
MANUAL DEL PROPIETARIO
*
*
AIR CONDITIONER
Owner’s Manual.............................1 - 14
MODEL * MODÈLE * MODELO
CLIMATISEUR
Manuel du propriétaire.................15 - 28
DAC060EE1WDB
AIRE ACONDICIONADO
Manual del propietario.................29 - 42
www.Danby.com DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9
DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840 2020.10.13
Welcome to the Danby family.
We are proud of our quality products and we believe in dependable service. We suggest
that you read this owner’s manual before plugging in your new appliance as it contains
important operation information, safety information, troubleshooting, and maintenance tips
to ensure the reliability and longevity of your appliance.
You are entitled to the warranty coverage as described in the owner’s manual provided with
your new appliance.
1. Please write down your appliance information below. You must keep the original proof
of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION
after filling out a product survey, at www.danby.com/support/product-registration/
Model Number: ____________________________________________________
Serial Number: ____________________________________________________
Date of Purchase: __________________________________________________
Need Help?
1. Read your Owner’s Manual for installation help, troubleshooting, and maintenance
assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching
your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/
support. Your submission will go directly to an expert on your particular appliance.
Our average response times are between 20 minutes and 2 hours, during EST business
hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one
hour.
1
Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAFETY REQUIREMENTS GROUNDING INSTRUCTIONS
DANGER: Risk of fire or explosion. Flammable This appliance must be grounded. Grounding
refrigerant used. Do not damage the refrigerant reduces the risk of electrical shock by providing an
circuit. escape wire for the electrical current.
• Ensure that servicing is done by factory This appliance has a cord that has a grounding
authorized service personnel, to minimize wire with a 3-prong plug. The power cord must be
product damage or safety issues. plugged into an outlet that is properly grounded.
• Consult repair manual or owner’s guide before If the outlet is a 2-prong wall outlet, it must be
attempting to service this product. All safety replaced with a properly grounded 3-prong wall
precautions must be followed. outlet. The serial rating plate indicates the voltage
• Dispose of properly in accordance with federal and frequency the appliance is designed for.
or local regulations.
• Follow handling instructions carefully. WARNING - Improper use of the grounding
• Keep ventilation openings, in the appliance clear plug can result in a risk of electric shock.
of obstruction. Consult a qualified electrician or service agent
• Do not use mechanical devices or other means if the grounding instructions are not completely
to accelerate the defrosting process. understood, or if doubt exists as to whether the
• Children should be supervised to ensure that appliance is properly grounded.
they do not play with the appliance.
• Do not store or install the appliance near Do not connect your appliance to extension
continuously operating ignition sources such as cords or together with another appliance in the
open flames or a gas stove. same wall outlet. Do not splice the power cord.
• Do not operate near water or in a wet room. Do not under any circumstances cut or remove the
• Do not pierce or burn. third ground prong from the power cord. Do not
• Be aware that refrigerants may not contain an use extension cords or ungrounded (two prongs)
odor. adapters.
• The appliance must be stored so as to prevent
mechanical damage from occurring. If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
All wiring must comply with local and national similar qualified person in order to avoid hazard.
codes and must be installed by a qualified
electrician. Check the available power supply and
resolve any wiring problems before installing and
operating this appliance.
The rating plate located on the right side of the
appliance just above the power cord contains
electrical and other technical data.
This appliance is not intended for use by persons
(including children) whose physical, sensory or
mental capabilities may be different or reduced,
or who lack experience or knowledge, unless such CAUTION: RISK OF FIRE
persons receive supervision or training to operate
the appliance by a person responsible for their Flammable refrigerant used. When maintaining
safety. or disposing of the air conditioner, the refrigerant
must not be allowed to vent into the open air.
SAVE THESE INSTRUCTIONS!
2Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
Any person involved with working on the refrigerant 5. Presence of fire extinguisher: If any hot work is
circuit should hold a current, valid certificate from to be conducted on the refrigeration equipment
an industry accredited assessment authority which or any associated parts, appropriate fire
authorizes their competence to handle refrigerants extinguishing equipment shall be available
safely in accordance with an industry recognized to hand. Have a dry powder or C02 fire
assessment specification. extinguisher adjacent to the work area.
Servicing shall only be performed as recommended 6. No ignition sources: No person carrying out
by the manufacturer. Maintenance and repair work in relation to a refrigeration system which
requiring the assistance of other skilled personnel involves exposing any pipe work that contains
shall be carried out under the supervision of or has contained flammable refrigerant shall use
the person competent in the use of flammable any sources of ignition in such a manner that it
refrigerants. may lead to risk of fire or explosion. All possible
ignition sources including cigarette smoking,
When maintaining or disposing of the appliance the should be kept sufficiently far away from the
refrigerant must be recovered properly and should site of installation, repairing, removing and
not be allowed to discharge to the air directly. disposal during which flammable refrigerant can
possibly be released to the surrounding space.
Information on servicing Prior to work taking place, the area around the
equipment is to be surveyed to make sure there
1. Checks to the area: Prior to beginning work are no flammable hazards or ignition risks. No
on systems containing flammable refrigerants, smoking signs shall be displayed.
safety checks are necessary to ensure that the
risk of ignition is minimized. For repair to the 7. Ventilated area: Ensure that the area is in the
refrigerating system, the following precautions open or that it is adequately ventilated before
shall be complied with prior to conducting work breaking into the system or conducting any hot
on the system. work. A degree of ventilation shall continue
during the period that the work is carried out.
2. Work procedure: Work shall be undertaken The ventilation should safely disperse any
under a controlled procedure so as to minimize released refrigerant and preferable expel it
the risk of a flammable gas or vapour being externally into the atmosphere.
present while the work is being performed.
8. Checks to the refrigeration equipment: Where
3. General work area: All maintenance staff electrical components are being changed, they
and others working in the local area shall shall be fit for the purpose and to the correct
be instructed on the nature of work being specification. At all times the manufacturer’s
carried out. Work in confined spaces shall be maintenance and service guidelines shall be
avoided. The area around the work space shall followed. If in doubt consult the manufacturer’s
be sectioned off. Ensure that the conditions technical department for assistance.
within the work area have been made safe by
removing all flammable material.
4. Checking for the presence of refrigerant:
The are shall be checked with an appropriate
refrigerant detector prior to and during work
to ensure the technician is aware of potentially
flammable atmospheres. Ensure that the leak
detection equipment being used is suitable
for use with flammable refrigerants, i.e. non-
sparking, adequately sealed and intrinsically
safe.
3Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
The following checks shall be applied to installations Repairs to sealed components
using flammable refrigerants:
1. During repairs to sealed components, all
• The charge size is in accordance with the room electrical supplies shall be disconnected from
size within which the refrigerant containing the equipment being worked upon prior to any
parts are installed. removal of sealed covers, etc. If it is absolutely
• The ventilation machinery and outlets are necessary to have an electrical supply to
operating adequately and are not obstructed. equipment during servicing then a permanently
• If an indirect refrigerating circuit is being used, operating form of leak detection shall be located
the secondary circuit shall be checked for the at the most critical point to warn of a potentially
presence of refrigerant. hazardous situation.
• Marking to the equipment continues to be visible
and legible. Markings and signs that become 2. To ensure that by working on electrical
illegible must be corrected. components the casing is not altered in such
• Refrigeration pipe or components are installed in a way that the level of protection is affected,
a position where they are unlikely to be exposed particular attention shall be paid to the
to any substance which may corrode refrigerant following:
containing components, unless the components
are constructed of materials which are inherently • Damage to cables, excessive number of
resistant to being corroded or are suitable connections, terminals not made to original
protected against being corroded. specification, damage to seals, incorrect fitting
of glands, etc.
9. Checks to electrical devices: Repair and • Ensure the apparatus is mounted securely.
maintenance to electrical components shall • Ensure that seals or sealing materials have
include initial safety checks and component not degraded such that they no longer serve
inspection procedures. If a fault exists that the purpose of preventing the ingress of
could compromise safety, then no electrical flammable atmospheres. Replacement parts
supply shall be connected to the circuit until it shall be in accordance with the manufacturer’s
is satisfactorily dealt with. If the fault cannot specifications.
be corrected immediately but it is necessary to
continue operation, an adequate temporary Note: The use of silicon sealant may inhibit the
solution shall be used. This shall be reported to effectiveness of some types of leak detection
the owner of the equipment so all parties are equipment. Intrinsically safe components do not
advised. have to be isolated prior to working on them.
Initial safety checks shall include: Repair to intrinsically safe components
• That capacitors are discharged. This shall be Do not apply any permanent inductive or
done in a safe manner to avoid possibility of capacitance loads to the circuit without ensuring
sparking. that this will not exceed the permissible voltage
• That no live electrical components and wiring and current permitted for the equipment in use.
are exposed while charging, recovering or Intrinsically safe components are the only types that
purging the system. can be worked on while live in the presence of a
• That there is continuity of earth bonding. flammable atmosphere. The test apparatus shall
be at the correct rating. Replace components only
with parts specified by the manufacturer. Other
parts may result in the ignition of refrigerant in the
atmosphere from a leak.
4Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
Cabling Removal and evacuation
Check that cabling will not be subject to wear, When breaking into the refrigerant circuit to make
corrosion, excessive pressure, vibration, sharp repairs or for any other purpose conventional
edges or any other adverse environmental effects. procedures shall be used. However, it is important
The check shall also take into account the effects of that the best practice is followed since flammability
aging or continual vibration from sources such as is a consideration. The following procedures shall
compressors or fans. be adhered to:
Detection of flammable refrigerants • Remove refrigerant.
• Purge the circuit with inert gas.
Under no circumstances shall potential sources of • Evacuate.
ignition be used in the searching for or detection • Purge again with inert gas.
of refrigerant leaks. A halide torch or any other • Open the circuit by cutting or brazing.
detector using a naked flame shall not be used. • The refrigerant charge shall be recovered into
the correct recovery cylinders. The system shall
Leak detection methods be flushed with OFN to render the unit safe. This
process may need to be repeated several times.
The following leak detection methods are deemed Compressed air or oxygen shall not be used for
acceptable for systems containing flammable this task.
refrigerants: • Flushing shall be achieved by breaking the
vacuum in the system with OFN and continuing
• Electronic leak detectors shall be used to detect to fill until the working pressure is achieved, then
flammable refrigerants but the sensitivity may venting to atmosphere and finally pulling down
not be adequate or may need recalibration. to a vacuum. This process shall be repeated until
Detection equipment shall be calibrated in a no refrigerant is within the system. When the
refrigerant-free area. Ensure that the detector is final OFN charge is used, the system shall be
not a potential source of ignition and is suitable vented down to atmospheric pressure to enable
for the refrigerant used. work to take place. This operation is absolutely
• Leak detection equipment shall be set at a vital is brazing operations on the pipe-work are
percentage of the LFL of the refrigerant and to take place.
shall be calibrated to the refrigerant employed • Ensure that the outlet for the vacuum pump is
and the appropriate percentage of gas (25% not close to any ignition sources and there is
maximum) is confirmed. ventilation available.
• Leak detection fluids are suitable for use with
most refrigerants but the use of detergents Charging procedures
containing chlorine shall be avoided as the
chlorine may react with the refrigerant and In addition to conventional charging procedures, the
corrode the copper or pipe-work. following requirements shall be followed:
• If a leak is suspected, all naked flames shall be
removed or extinguished. • Ensure that contamination of different
• If a leakage of refrigerant is found which refrigerants does not occur when using charging
requires brazing, all of the refrigerant shall be equipment. Hoses or lines shall be as short as
recovered from the system or isolated by means possible to minimize the amount of refrigerant
of shut off valves in a part of the system remote contained in them.
• Cylinders shall be kept upright.
from the leak. Oxygen free nitrogen (OFN) shall • Ensure that the refrigeration system is earthed
then be purged through the system both before prior to charging the system with refrigerant.
and during the brazing process. • Label the system when charging is complete, if
not already labeled.
• Extreme care shall be taken not to overfill the
refrigeration system.
• Prior to recharging the system it shall be
pressure tested with OFN. The system shall be
leak tested on completion of charging but prior
to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
5Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
Decommissioning Recovery
Before carrying out this procedure, it is essential When removing refrigerant from a system, either for
that the technician is completely familiar with the servicing or decommissioning, it is recommended
equipment in all its detail. It is recommended good good practice that all refrigerants are removed
practice that all refrigerants are recovered safely. safely.
Prior to the task being carried out, an oil and
refrigerant sample shall be taken in case analysis is When transferring refrigerant into cylinders, ensure
required prior to re-use of reclaimed refrigerant. It that only appropriate refrigerant recovers cylinders
is essential that electrical power is available before are employed. Ensure that the correct number of
the task is commenced. cylinders for holding the total system charge are
available. All cylinders to be used are designed
A. Become familiar with the equipment and its for the recovered refrigerant and labeled for that
operation. refrigerant, i.e. special cylinders for the recovery
B. Isolate system electrically. of refrigerant. Cylinders shall be complete with
C. Before attempting the procedure ensure that: pressure relief valve and associated shut-off valves
• Mechanical handling equipment is available in good working order. Empty recovery cylinders
if required for handling refrigerant cylinders. are evacuated and, if possible, cooled before
• All personal protective equipment is recovery occurs.
available and being used correctly.
• The recovery process is supervised at all The recovery equipment shall be in good working
times by a competent person. order with a set of instructions concerning the
• Recovery equipment and cylinders conform equipment that is at hand and shall be suitable for
to the appropriate standards. the recovery of flammable refrigerants. In addition,
D. Pump down refrigerant system, if possible. a set of calibrated weighing scales shall be
E. If a vacuum is not possible, make a manifold so available and in good working order. Hoses shall
that refrigerant can be removed from various be complete with leak-free disconnect couplings
parts of the system. and in good condition. Before using the recovery
F. Make sure that cylinder is situated on the scales machine, check that is it in satisfactory working
before recovery takes place. order, has been properly maintained and that any
G. Start the recovery machine and operate in associated electrical components are sealed to
accordance with the manufacturer’s instructions. prevent ignition in the event of a refrigerant leak.
H. Do not overfill cylinders. No more than 80% Consult the manufacturer if in doubt.
volume liquid charge.
I. Do not exceed the maximum working pressure The recovered refrigerant shall be returned to the
of the cylinder, even temporarily. refrigerant supplier in the correct recovery cylinder
J. When the cylinders have been filled correctly and the relevant waste transfer note shall be
and the process is completed, make sure that the arranged. Do not mix refrigerants in recovery units
cylinders and the equipment are removed from and especially not in cylinders. If compressors or
the site promptly and all isolation valves on the compressor oils are to be removed, ensure that they
equipment are closed off. have been evacuated to an acceptable level to make
K. Recovered refrigerant shall not be charged into certain that flammable refrigerant does not remain
another refrigeration system unless it has been within the lubricant. The evacuation process shall be
cleaned and checked. carried out prior to returning the compressor to the
suppliers. Only electric heating to the compressor
Labeling body shall be employed to accelerate this process.
When oil is drained form a system, it shall be
Equipment shall be labeled stating that it has been carried out safely.
decommissioned and emptied of refrigerant. The
label shall be dated and signed. Ensure that there
are labels on the equipment stating the equipment
contains flammable refrigerant.
6INSTALLATION INSTRUCTIONS
LOCATION REQUIRED TOOLS
This air conditioner is designed to fit inside a • Screwdrivers: Phillips and flat head.
standard double-hung window between the sizes of • Power Drill: 3.2mm (1/8 inch) diameter drill bit
23” and 36”. The lower sash must allow for 14.5” • Pencil
in vertical clearance. • Measuring Tape
• Scissors
This air conditioner is not designed for vertical, • Carpenter’s Level
slider type windows or “through the wall”
installation. Note: Save the shipping carton and packing
materials for future storage or transportation.
Ensure that the window and frame are structurally Remove the plastic bag from the carton containing
sound and free from dry or rotted wood. the installation hardware kit necessary for the
installation of your air conditioner. Please check
Install the air conditioner on a side of the building the contents of the hardware kit against the
which favors more shade than sunlight. If the corresponding model check list, prior to installation
appliance must be in direct sunlight, it is advisable of the appliance.
to provide a shade awning to ensure efficient
functioning.
INCLUDED ACCESSORIES
Do not install the appliance where leakage of
combustible gas is suspected. 1. Top rail
2. Filler panels
This air conditioner is designed to evaporate 3. Sash lock
condensation under normal conditions. Under 4. Lock frame x2
extremely hot or humid conditions, excess 5. Remote control
condensation may overflow to the outside. The air 6. Battery (AAA)
conditioner should be installed where condensation 7. 3/8” screws x4
cannot drip on pedestrians or neighboring 8. 1/2” screws x3
properties. 9. 3/4” screws x4
10. Window sash seal
Provide sufficient clearance around the appliance 11. Foam top window gasket
to allow ample air circulation. The rear of the 12. Foam insulation
appliance should be outdoors, it should not be in
a garage or another room. Keep the appliance
away from obstacles and at least 76 cm (30 inches)
above the ground. Ensure that curtains and other
obstructions do not block air flow to the appliance.
1
12 cm
(30.5 in)
12
11
2
10
0
50.8 cm 3 9
(20 inches)
50.8 cm 4 8
76.2 cm
(30 inches) (20 inches) 5 6 7
7INSTALLATION INSTRUCTIONS
INSTALLATION 3. Place the air conditioner into the window.
Close the window securely. The upper window
1. Use 4 included 3/8” screws to fasten the top should slide into the top mounting rail. The
mounting rail to the air conditioner. air conditioner should be tiled by 1/4” to the
outside to allow water to drain out the back of
the cabinet.
1/4”
2. Fasten the accordion style side panels to the
sides of the air conditioner. They are marked
“right” and “left”. Pull the leading edge to 4. Fasten the air conditioner to the window frame
its maximum width and then slide the panels using the 3 included 1/2” screws. Fasten each
downward into the grooved notches on the sides of the side panels using the included 3/4”
of the cabinet. screws and the lock frames.
5. Attach the sash lock between the top of the
sliding window and the window frame using 1
of the included 3/4” screws. To prevent outside
air from entering the room, insert the foam top
window gasket cut to the size of the window.
8OPERATING INSTRUCTIONS

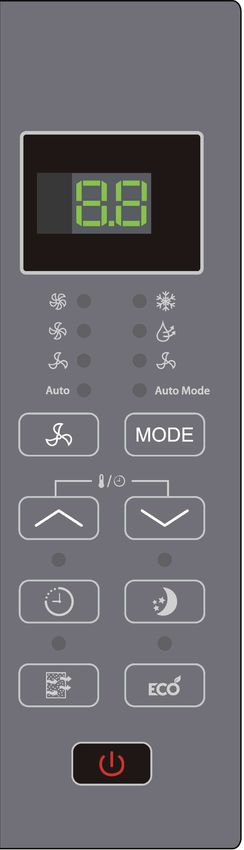

CONTROL PANEL
1. Fan speed: press the fan speed button to set the fan speed. In
cool mode the fan can be set to high, medium, low or auto. In
fan mode the fan can be set to high, medium or low.
2. Modes: press the mode button on the control panel to cycle

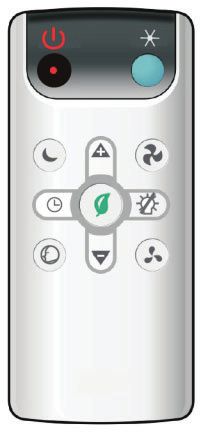

and select a mode or press the desired button on the remote.
• Auto mode: in auto mode the air conditioner
automatically choose the mode of operation (cool, dry or
fan) based on ambient conditions.
• Cool mode: cool mode allows the air conditioner to cool
the room and reduces air humidity. Adjust the fan speed
and air temperature to your desired comfort level. In this
mode, if Eco is not enabled, the fan may continue to run
after reaching the desired temperature.
• Fan mode: used to run the fan only. Fan mode only works
when the air conditioner is vented.
• Dry mode: only available by pressing the mode button on
the control panel. This mode reduces the humidity in the
air. When in use, a function of alternating cooling and fan
cycles is activated.
3. Up and down buttons: used to set the desired temperature or
the timer function.
4. Timer: press the timer button to set the timer.
• Set timer on: with the air conditioner off, press the timer
button and use the up and down arrows to set the desired
temperature. Press the timer button again and use the up
and down arrows to set the amount of time before the air
conditioner turns on. Press the timer button again to start
the countdown. 1 2
• Set timer off: with the air conditioner on, press the timer
button and use the up and down arrows to set the amount
of time before the air conditioner turns off. Press the timer
button again to start the countdown.
• The timer can be set from 0.5 - 24 hours. The up and
down buttons will change the timer in 0.5 hour increments
3
below 10 hours and in 1 hours increments above 10
hours.
5. Sleep button: in sleep mode the air conditioner will
automatically adjust the temperature and fan speed. The set
temperature will raise every 30-60 minutes and at most will 4 5
change 6 times until the set temperature is 81 or 82 degrees.
6. Filter button: after the fan motor runs for 500 total hours, the
filter check light will turn on to remind you to clean the filter.
After cleaning the filter, turn off the light by pressing the filter
button.
7. Eco mode: this mode can be used to save electricity. In eco
6 7
mode, the air conditioner will turn off once the desired
temperature is reached and will not turn on again until the
temperature in the room exceeds the set temperature. While
in eco mode the fan may turn on periodically for a few
seconds to take an accurate temperature reading. 8
8. Power button: used to turn the air conditioner on and off.
9OPERATING INSTRUCTIONS
REMOTE CONTROL
1. Power button: used to turn the air conditioner on and
off.
2. Cool button: press to activate cool mode.
3. Up and down buttons: used to set the desired
temperature or the timer function.
4. Sleep button: in sleep mode the air conditioner will
automatically adjust the temperature and fan speed. The
set temperature will raise every 30-60 minutes and at
most will change 6 times until the set temperature is 81
or 82 degrees.
5. Timer button: press the timer button to set the timer.
• Set timer on: with the air conditioner off, press the
timer button and use the up and down arrows to set
the desired temperature. Press the timer button again
and use the up and down arrows to set the amount
of time before the air conditioner turns on. Press the
timer button again to start the countdown.
• Set timer off: with the air conditioner on, press the
timer button and use the up and down arrows to
set the amount of time before the air conditioner
turns off. Press the timer button again to start the
countdown.
• The timer can be set from 0.5 - 24 hours. The up
and down buttons will change the timer in 0.5 hour
increments below 10 hours and in 1 hours increments
above 10 hours.
6. Auto mode button: in auto mode the air conditioner
automatically choose the mode of operation (cool, dry or
fan) based on ambient conditions.
7. Fan speed: press the fan speed button to set the fan
speed. In cool mode the fan can be set to high, medium,
low or auto. In fan mode the fan can be set to high,
medium or low.
8. Display button: press the display button to turn all lights
on the display on or off.
9. Eco mode button: this mode can be used to save
electricity. In eco mode, the air conditioner will turn off
once the desired temperature is reached and will not turn
on again until the temperature in the room exceeds the
set temperature. While in eco mode the fan may turn on
periodically for a few seconds to take an accurate.
10. Fan only button: used to run the fan only.
TEMPERATURE SCALE
1. To change the temperature scale between Fahrenheit and
Celsius, first turn off the unit, unplug it and wait for 2
minutes before plugging it back in.
2. Turn on the unit and set it to cool mode and medium fan
speed at a temperature of 30°C (86°F).
3. Press the display button on the remote control 8 times
within 8 seconds. The unit will beep and the temperature
scale will change.
10CARE & MAINTENANCE
AIR FILTER CLEANING
The air filter should be cleaned approximately every To avoid possible electric shock, ensure that the
2 weeks. The air filter may require more frequent appliance is unplugged before performing any
cleaning if there is significant dander or fur in the cleaning or maintenance.
air.
The outside of the appliance can be wiped clean
Follow the steps below to clean the filter and return with a soft cloth or with a lukewarm, damp cloth if
the appliance to normal functioning. Ensure that the necessary.
program selector dial is turned to “OFF” and that
the power cord is unplugged. Do not use gasoline, benzene, thinner or any
other chemicals to clean this appliance as these
1. The air filter is located behind the front intake substances can cause damage to the finish and
grill. To remove the air filter, grasp the filter tab deformation of plastic parts.
on the right side of the grill and slide it out to the
right. Never pour water directly onto the appliance as this
will cause deterioration of electrical components
2. Use a vacuum cleaner with a soft brush and wiring insulation.
attachment to remove any large debris or dust
build up from the air filter.
END OF SEASON CARE
3. Wash the filter in lukewarm, soapy water, below
40°C (104°F), or use a neutral cleaning agent. Before removing the appliance from service for the
year, operate the appliance on high fan mode for
4. Rinse the filter with clean water and dry half a day to ensure the inside of the appliance
thoroughly before reinstalling in the appliance. is dry. This will help avoid the growth of mold or
mildew inside the appliance. Ensure the filter is
Note: Do not operate the appliance without the air clean and dry. Store the appliance covered in a dry
filter installed. location.
Note: When installing or removing the appliance
from the window, ensure that caution is taken to
prevent it from falling backward. It is recommended
that installation or removal is completed with
assistance to prevent injury to persons or damage to
Specific electrical requirements are shown in the property or the appliance.
diagram below. Follow the requirements below for
the type of plug on the power supply cord.
Wiring Requirements Power Supply Cord
DISPOSAL
• 115 Volt (103 min - 127 Check for local regulatory compliance regarding
max) approved and safe disposal of this appliance.
• (0-8 amps)
• (10 amp time-delay fuse
or circuit breaker)
• Use on single outlet
circuit only CAUTION
The compressor is located on the left side of the
appliance, on the same side as the controls. This
side of the appliance will be heavier and more
awkward to manipulate. Inadequate support on
the control side of the appliance can result in
personal injury and damage to the appliance and
your property. It is recommended that you have
someone assist you during the installation of this
appliance.
11FREQUENTLY ASKED QUESTIONS
Can I leave my AC in place through the winter?
This is not recommended. Please bring your AC unit indoors during the winter months.
What are the standard wattage and amps used?
Information pertaining to watts and amps can be found on the rating plate located on the back of the unit.
Can I use an extension cord?
No, an extension cord may not be used.
Is there supposed to be Styrofoam in the unit?
The Styrofoam that is inside the unit acts as insulation. Do not remove it. Only remove loose packaging.
Why do I hear water in the unit?
Water is collected during the air conditioning process. This water will drain out of the unit and onto the
ground and is why the unit should be installed on a slight downward tilt.
How much does it cost to run the unit?
Please refer to the energy guide.
Odors
Odour is caused by the formation of mold or mildew on internal surfaces. This can happen when there is
poor air circulation, a dirty filter or the air conditioner was not used for a period of time.
• Ensure the filter is clean.
• Run the unit on fan mode to remove any internal moisture.
• Ensure that back of the unit is installed downward slope so the water can drain outside.
If the odour continues, we suggest using an algaecide tablet. Unplug the unit, then place half the tablet
through each side of the unit, through the slots on the side (usually on the portion outside of the window).
Please do not place the tablet through the front grill.
12TROUBLESHOOTING
Appliance will not operate
• Plug is not fully inserted into the wall outlet
• Blown fuse or circuit breaker
Insufficient cooling
• Air filter is dirty
• Blocked air flow
• Appliance size is too small for application
Noise
• Inadequate support in window installation
Water dripping inside
• Appliance is not properly angled to allow water to drain to the outside
Water dripping outside
• On very hot or humid days dripping water from the back of the appliance is normal
Frost build up
• When outdoor temperatures are below 18.3°C (65°F) frost may form when the appliance is in cooling
mode
• Switch the appliance to fan only mode until the frost melts
13LIMITED
LIMITED “CARRY APPLIANCE
IN-HOME IN” WARRANTY
WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating
This qualityintended
conditions product is warranted
by the manufacturer.to be free from manufacturer’s defects in material and workmanship, provided that the unit is used
under the normal
This warranty operating
is available conditions
only to the intended
person to whom the unitbywasthe manufacturer.
originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter
This warranty
“Danby”) or by anis authorized
availabledistributor
only to of
the person
Danby, and istonon-transferable.
whom the unit was originally sold by Danby Products Limited (Canada) or Danby
Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.
TERMS
TERMS OFOF WARRANTY
WARRANTY
Plastic
Plastic parts are
parts, are warranted
warranted for(30)
for thirty thirty (30)from
days only days fromdate,
purchase the with
datenoofextensions
purchase, with no extensions provided.
provided.
First 24 months During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired
First Year orDuring the firstattwelve
replaced, (12) months,
warrantor’s any functional
option, at no parts of thistoproduct
charge found topurchaser.
the original be defective, will be repaired or replaced, at warrantor’s
option, at no charge to the ORIGINAL purchaser.
To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where
To obtain service must be
Danby reserves theperformed by boundaries
right to limit the a qualified of “Inservice technician.
Home Service” If service
to the proximity of anisAuthorized
performed on Depot.
Service the unitAnybyappanyoneliance
other
Service than an authorized
requiring service outsideservice depot,
the limited all obligations
boundaries of “In Home Service” , itunder
of Danby will be this warrantyresponsibility
the consumer’s shall be void.
to transport the appliance (at
their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Serv ice” below.
It Contact
is the responsibility
your dealer from of theyour
whom purchaser to transport
unit was purchased, the appliance
or contact your nearest to the nearest
authorized Danby authorized
service depot, service depot.
where service
must be performed by a qualified service technician.
If service
Transportation charges to and is performed
from theonservice
the unitslocation
by anyoneare
othernot
thanprotected
an authorized
byservice depot, or theand
this warranty unit isare
usedthe
for responsibility
commercial appli of thecation, all
purchaser.
obligations of Danby under this warranty shall be void.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other
contents ofofthis appliance,
Boundaries whetheris installed
If the appliance due to inany defectthat
a location ofisthe
100 appliance, or itsoruse,
kilometers (62 miles) morewhether proper
from the nearest or improper.
service center your unit must be
In Home Service delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certif ied for
warranty service by Danby. Transportation charges EXCLUSIONS
to and from the service location are not protected by this warranty and are t he
Save as herein provided, by Danby,
responsibility of thethere are no other warranties, conditions, representations or guarantees, express or implied, made
purchaser.
or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any
warranties,
Nothing withinconditions,
this warrantyrepresentations or will
shall imply that Danby guarantees under
be responsible anyforSale
or liable of Goods
any spoilage Act or
or damage like or
to food legislation
other c orontents
statuteof is
thishereby expressly
appliance, whether due
excluded.
to any defectSave
of theas hereinorprovided,
appliance, Danby
its use, whether propershall not be responsible for any damages to persons or property, including the unit itself,
or improper.
howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the
purchaser does hereby agree to indemnify and hold harmlessEXCLUSIONS Danby from any claim for damages to persons or property caused by
the unit.
Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, m ade or intended by Danby or its
authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditio ns, representations or guarantees
GENERAL PROVISIONS
under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall no t be responsible for any damages
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction o f the unit and by the purchase of
1) Power failure.
the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or propert y caused by the unit.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance GENERAL such asPROVISIONS
inadequate air circulation in the room or abnormal operating
conditions
No warranty(ie. extremely
or insurance hereinhigh or low
contained room
or set temperature).
out shall apply when damage or repair is caused by any of the following:
5) Use1)forPower
commercial
failure. or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
2) Damage in transit or when moving the appliance.
7) Service calls resulting in customer education.
3) Improper
8) Improper power supply
Installation such as low voltage,
(ie. Building-in defective
of a free house wiring
standing or inadequate
appliance or usingfuses.an appliance outdoors that is not approved for outdoor
4) Accident,
application, alteration,
including but abuse or misuseto:
not limited of the appliancepatios,
garages, such as inadequate
porches or air circulation
anywhere in the
thatroom or abnormal
is not properlyoperating con or climate
insulated ditions controlled).
(extremely high or low room temperature).
Proof of
5) purchase date will
Use for commercial be required
or industrial purposesfor(ie.warranty claims;
If the appliance is not retain
installedbills of sale.residence).
in a domestic In the event that warranty service is required, present
the proof of purchase
6) Fire, to our
water damage, theft,authorized service
war, riot, hostility, acts ofdepot.
God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for out door application).
Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our
AUTHORIZED SERVICE DEPOT.
Warranty
Warranty Service
Service
Carry In
In-home
Danby Products
Danby Products Limited
Limited Danby Products
Danby Products Inc. Inc.
POPOBox 1778,
Box 1778, Guelph,
Guelph, Ontario,
Ontario, Canada N1H Canada
6Z9 N1H 6Z9 1-800-263-2629
1-800-263-2629 PO Box PO 669, Findlay,
Box 669, Findlay,Ohio, U.S.A.
Ohio, U.S.A. 45840 45840
Telephone: (519)
Telephone: (519) 837-0920
837-0920 FAX: (519) 837-0449
FAX: (519) 837-0449 04/17 Telephone: Telephone:
(419) 425-8627
(419) 425-8627 FAX: (419)
FAX: (419) 425-8629
425-8629
04/09Bienvenue dans la famille Danby.
Nous sommes fiers de nos produits de qualité et nous croyons en un service fiable. Nous
vous suggérons de lire ce manuel du propriétaire avant de brancher votre nouvel appareil
car il contient des informations de fonctionnement importantes, des informations de
sécurité, des conseils de dépannage et d’entretien pour assurer la fiabilité et la longévité de
votre appareil.
Vous avez droit à la couverture de la garantie décrite dans le manuel du propriétaire fourni
avec votre nouvel appareil.
1. Veuillez noter ci-dessous les informations relatives à votre appareil. Vous devez
conserver la preuve d’achat originale pour valider et bénéficier des services de garantie.
2. Enregistrez votre produit en ligne et recevez une PROLONGATION DE GARANTIE
GRATUITE DE 2 MOIS après avoir rempli une enquête sur les produits, à l’adresse
www.danby.com/support/product-registration/
Numéro de modèle : _______________________________________________
Numéro de serie : _________________________________________________
Date d’achat : _____________________________________________________
Besoin d’assistance?
1. Lisez votre manuel du propriétaire pour obtenir de l’aide à l’installation, au dépannage
et à la maintenance.
2. Visitez www.Danby.com pour accéder aux outils en libre-service, aux FAQ et bien plus
encore en recherchant votre numéro de modèle dans la barre de recherche.
3. Pour bénéficier du service client le plus rapide, veuillez remplir le formulaire Web à
l’adresse www.danby.com/support. Votre soumission ira directement à un expert de
votre appareil particulier. Nos temps de réponse moyens sont compris entre 20 minutes
et 2 heures, pendant les heures ouvrables EST.
4. Composez le 1-800-263-2629 - veuillez noter que pendant les heures de pointe, les
temps d’attente peuvent dépasser une heure.
15Consignes de sécurité importantes
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS DE SÉCURITÉ
EXIGENCES DE SÉCURITÉ INSTRUCTIONS DE MISE À LA TERRE
DANGER: Risque d’incendie ou d’explosion. Cet appareil doit être mis à la terre. La mise à
Fluide frigorigène inflammable utilisé. Ne pas la terre réduit le risque de choc électrique en
endommager le circuit de réfrigérant. fournissant un fil d’échappement pour le courant
électrique.
• Assurez-vous que les réparations sont effectuées
par du personnel autorisé par l’usine, afin de
minimiser les dommages au produit ou les Cet appareil possède un cordon doté d’un fil de
problèmes de sécurité. mise à la terre avec une fiche à 3 broches. Le
• Consultez le manuel de réparation ou le guide cordon d’alimentation doit être branché sur une
du propriétaire avant de tenter de réparer prise correctement mise à la terre. Si la sortie
ce produit. Toutes les précautions de sécurité est une prise murale à 2 broches, elle doit être
doivent être suivies. remplacée par une prise murale à 3 broches
• Éliminer correctement conformément aux correctement mise à la terre. La plaque signalétique
réglementations fédérales ou locales. en série indique la tension et la fréquence
• Suivez attentivement les instructions de auxquelles l’appareil est conçu.
manipulation.
• Veillez à ce que les ouvertures de ventilation de AVERTISSEMENT - Une utilisation incorrecte de la
l’appareil ne soient pas obstruées.
• N’utilisez pas d’appareils mécaniques ou fiche de mise à la terre peut entraîner un risque
d’autres moyens pour accélérer le processus de d’électrocution. Consultez un électricien qualifié
dégivrage. ou un agent de service si les instructions de mise
• Les enfants doivent être surveillés pour s’assurer à la terre ne sont pas complètement comprises ou
qu’ils ne jouent pas avec l’appareil. s’il existe un doute quant à savoir si l’appareil est
• Ne rangez pas et n’installez pas l’appareil à correctement mis à la terre.
proximité de sources d’allumage fonctionnant
en continu, telles que des flammes nues ou une Ne branchez pas votre appareil à des rallonges
cuisinière à gaz. ou avec un autre appareil dans la même prise
• Ne pas utiliser près de l’eau ou dans une pièce murale. Ne pas épisser le cordon d’alimentation.
humide. Ne coupez ou retirez en aucun cas la troisième
• Ne pas percer ou brûler.
• Sachez que les réfrigérants peuvent ne pas broche du cordon d’alimentation. N’utilisez pas de
contenir d’odeur. cordons de prolongement ou d’adaptateurs sans
• L’appareil doit être rangé de manière à éviter mise à la terre (deux broches).
tout dommage mécanique.
Si le cordon d’alimentation est endommagé, il doit
Tout le câblage doit être conforme aux codes locaux être remplacé par le fabricant, son agent de service
et nationaux et doit être installé par un électricien ou une personne qualifiée similaire afin d’éviter tout
qualifié. Vérifiez l’alimentation disponible et risque.
résolvez tout problème de câblage avant d’installer
et d’utiliser cet appareil.
La plaque signalétique située sur le côté droit
de l’appareil, juste au-dessus du cordon
d’alimentation, contient des données électriques et
techniques.
Cet appareil n’est pas destiné à être utilisé par des
personnes (y compris des enfants) dont les capacités
physiques, sensorielles ou mentales peuvent
être différentes ou réduites, ou qui manquent
d’expérience ou de connaissances, à moins que ATTENTION: RISQUE D’INCENDIE
ces personnes ne soient supervisées ou formées Fluide frigorigène inflammable utilisé. Lors
pour faire fonctionner l’appareil par une personne de l’entretien ou de la mise au rebut du
responsable de leur utilisation. sécurité.
climatiseur, le réfrigérant ne doit pas pouvoir
s’échapper à l’air libre.
GARDEZ CES INSTRUCTIONS!
16Consignes de sécurité importantes
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS DE SÉCURITÉ
Toute personne impliquée dans le travail sur le
circuit de fluide frigorigène doit détenir un certificat 5. Présence d’extincteur: Si des travaux à chaud
en cours de validité, délivré par une autorité doivent être effectués sur l’équipement de
d’évaluation accréditée du secteur, attestant de sa réfrigération ou sur toute pièce associée, un
compétence pour manipuler les fluides frigorigènes équipement d’extinction d’incendie approprié
en toute sécurité, conformément à une spécification doit être disponible. Avoir un extincteur à
d’évaluation reconnue par l’industrie.
poudre sèche ou au C02 adjacent à la zone de
L’entretien ne doit être effectué que selon les travail.
recommandations du fabricant. L’entretien et les
réparations nécessitant l’assistance d’un autre 6. Aucune source d’inflammation: Aucune
personnel qualifié doivent être effectués sous personne effectuant des travaux en rapport
la supervision de la personne compétente pour avec un système de réfrigération impliquant
l’utilisation de réfrigérants inflammables. l’exposition de tuyauteries contenant ou ayant
contenu un réfrigérant inflammable ne doit
Lors de l’entretien ou de la mise au rebut de utiliser une source d’inflammation de manière à
l’appareil, le réfrigérant doit être récupéré entraîner un risque d’incendie ou d’explosion.
correctement et ne doit pas être autorisé à se Toutes les sources d’inflammation possibles, y
décharger directement dans l’air. compris le tabagisme, doivent être suffisamment
Informations sur le service éloignées du lieu d’installation, de réparation,
de retrait et d’élimination, pendant lesquelles un
1. Chèques à la région: Avant de commencer réfrigérant inflammable peut éventuellement être
à travailler sur des systèmes contenant des rejeté dans l’espace environnant. Avant le début
frigorigènes inflammables, des contrôles de des travaux, la zone autour de l’équipement
sécurité sont nécessaires pour réduire au doit être inspectée pour s’assurer qu’il n’y a
minimum le risque d’inflammation. Pour réparer pas de danger d’inflammabilité ou de risque
le système de réfrigération, les précautions d’inflammation. Aucun signe de fumer ne doit
suivantes doivent être respectées avant de être affiché.
procéder à des travaux sur le système.
7. Zone ventilée: Assurez-vous que la zone
2. Procédure de travail: Les travaux doivent être est à l’air libre ou qu’elle est correctement
effectués selon une procédure contrôlée, de ventilée avant de pénétrer dans le système ou
manière à minimiser le risque de présence d’effectuer des travaux à chaud. Une certaine
de gaz ou de vapeurs inflammables pendant ventilation doit être maintenue pendant la
l’exécution des travaux. durée des travaux. La ventilation doit disperser
en toute sécurité tout fluide réfrigérant libéré
3. Zone de travail générale: Tout le personnel de et de préférence l’expulser de l’extérieur vers
maintenance et les autres personnes travaillant l’atmosphère.
dans la zone locale doivent être informés de la
nature des travaux effectués. Les travaux dans 8. Contrôles à l’équipement de réfrigération:
des espaces confinés doivent être évités. La zone Lorsque des composants électriques sont
autour de l’espace de travail doit être divisée. remplacés, ils doivent être adaptés à l’usage
Assurez-vous que les conditions dans la zone prévu et aux spécifications appropriées.
de travail ont été sécurisées en retirant tout Respectez à tout moment les directives
matériau inflammable. du fabricant en matière d’entretien et de
maintenance. En cas de doute, consultez le
4. Vérification de la présence de réfrigérant: Le service technique du fabricant.
sont doivent être vérifiés avec un détecteur de
réfrigérant approprié avant et pendant le travail
pour s’assurer que le technicien est conscient
des atmosphères potentiellement inflammables.
Assurez-vous que l’équipement de détection des
fuites utilisé convient aux fluides frigorigènes
inflammables, c’est-à-dire qu’il ne produit pas
d’étincelles, est correctement scellé et de sécurité
intrinsèque.
17Consignes de sécurité importantes
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS DE SÉCURITÉ
Les contrôles suivants doivent être appliqués aux Réparation de composants scellés
installations utilisant des réfrigérants inflammables:
1. Lors de la réparation de composants scellés,
• La taille de la charge est conforme à la taille de toutes les alimentations électriques doivent
la pièce dans laquelle les pièces contenant le être débranchées de l’équipement utilisé
réfrigérant sont installées. avant toute dépose de couvercles scellés,
• Les machines de ventilation et les sorties etc. S’il est absolument nécessaire de prévoir
fonctionnent de manière adéquate et ne sont pas une alimentation électrique de l’équipement
obstruées. pendant l’entretien, une détection des fuites
• Si un circuit de réfrigération indirect est utilisé, fonctionnant en permanence doit être situé au
le circuit secondaire doit être vérifié pour la point le plus critique pour avertir d’une situation
présence de réfrigérant. potentiellement dangereuse.
• Le marquage sur l’équipement continue d’être
visible et lisible. Les marques et les signes qui 2. Afin de garantir qu’en manipulant des
deviennent illisibles doivent être corrigés. composants électriques, le boîtier ne soit pas
• Les tuyaux ou composants de réfrigération sont modifié de telle sorte que le niveau de protection
installés dans une position où ils ne risquent soit affecté, une attention particulière doit être
pas d’être exposés à une substance susceptible accordée aux éléments suivants:
de corroder les composants contenant du
réfrigérant, à moins que les composants • Dommages aux câbles, nombre excessif
ne soient construits avec des matériaux de connexions, bornes non conformes aux
intrinsèquement résistants à la corrosion ou spécifications d’origine, dommages aux joints,
protégés de manière adéquate. mauvais montage des presse-étoupes, etc.
• Assurez-vous que l’appareil est bien monté.
9. Contrôles aux appareils électriques: La • Assurez-vous que les joints ou les matériaux
réparation et la maintenance des composants d’étanchéité ne se sont pas dégradés de telle
électriques doivent inclure les contrôles de sorte qu’ils ne servent plus à empêcher la
sécurité initiaux et les procédures d’inspection pénétration d’atmosphères inflammables. Les
des composants. S’il existe un défaut pièces de rechange doivent être conformes aux
susceptible de compromettre la sécurité, aucune spécifications du fabricant.
alimentation électrique ne doit être connectée
au circuit jusqu’à ce que le problème soit Remarque: l’utilisation d’un produit d’étanchéité à
résolu. Si le défaut ne peut pas être corrigé base de silicone peut nuire à l’efficacité de certains
immédiatement mais qu’il est nécessaire de types d’équipement de détection de fuites. Les
poursuivre le fonctionnement, une solution composants de sécurité intrinsèque ne doivent pas
temporaire adéquate doit être utilisée. Cela doit nécessairement être isolés avant de travailler dessus.
être signalé au propriétaire de l’équipement afin
que toutes les parties soient informées. Réparation de composants à sécurité intrinsèque
Les contrôles de sécurité initiaux doivent inclure: N’appliquez aucune charge inductive ou capacitive
permanente sur le circuit sans vous assurer que cela
• Que les condensateurs sont déchargés. Ceci ne dépassera pas la tension et le courant autorisés
doit être fait de manière sûre pour éviter la pour l’équipement utilisé. Les composants à sécurité
possibilité d’étincelles. intrinsèque sont les seuls types sur lesquels on
• Qu’aucun composant ni câblage électrique sous peut travailler tout en vivant dans une atmosphère
tension ne soit exposé pendant le chargement, la inflammable. L’appareil d’essai doit avoir la cote
récupération ou la purge du système. correcte. Remplacez les composants uniquement
• Qu’il existe une continuité de la mise à la terre. par des pièces spécifiées par le fabricant. D’autres
pièces peuvent provoquer l’inflammation de
réfrigérant dans l’atmosphère par une fuite.
18You can also read
