New products 2021
I like it cosy. Kermi.
/ Discover Kermi /
Kermi continues to show how quality, performance, and diversity can be improved
when faced with new challenges in 2021. Discover Kermi innovations!
Experience top levels of efficiency for team players, pure aesthetics for design lovers,
and smart know-how for technology enthusiasts.
residential
esidential ventilation heat pumps
panel heating/cooling
steel panel radiators
ors
radiators for
bathroomss and
living spaces heat storage
energy management
The Kermi system x-optimised is the formula for optimal thermal comfort: the perfect
combination of generating, storing, controlling, and transferring heat and controlled
ventilation. Here, we rely on the use of renewable energies and the intelligent combination
of water and electricity-based system components. The “+e” suffix stands for expansion
with intelligent electrical solutions. Kermi offers the complete range for holistic, energy-
efficient solutions.
Discover the latest innovations in 2021:
with new models and components
for a Plus in possibilities, energy efficiency,
From page
and comfortable warmth.
For team players 4
From page
For design lovers 10
From page
16
For technology enthusiasts
/ Discover Kermi /
For

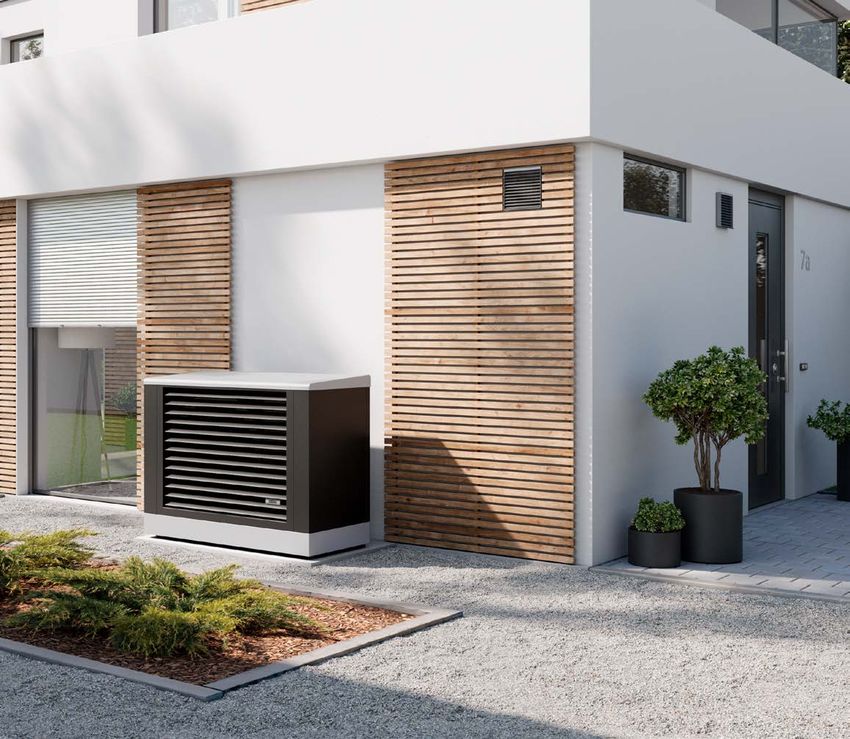

Most efficient air / water heat pump
for outdoor installation
The x-change dynamic pro air / water heat pump scores
well with the best efficiency, lowest sound emissions, as well
as newest control technology.
x-change dynamic pro ac AW E
Heat output COP1 WxDxH
Name
(kW) for -7/W35 A2/W35 (mm)
x-change dynamic pro ac modulating
– 1275 x 690 x 1075
6 AW E 3-7
x-change dynamic pro ac modulating
4,80 1435 x 690 x 1150
10 AW E 4 - 11
4 New products 2021
team players
Your Plus with the Kermi x-change dynamic pro
air / water heat pump:
WW Highly efficient and virtually silent operation:
large modulation range, generously dimensioned
vaporiser, and state-of-the art axial fan technology
WW Minimised installation effort: saves time
and money
WW Highest safety: integrated microbubble
separator, safety valve, and decoupling hoses
WW User-friendly: newest x-center pro controller
incl. new 7" touch display
WW Remote control and remote maintenance:
web or app based without additional accessories
WW Design: high quality, discrete, and extremely
attractive casing with a robust stainless steel cover
WW Active cooling function as standard:
modulating cooling capacity through process
inversion
/ discover Kermi / for team players
Comfortable warm and refreshingly
efficient. Kermi x-flair: Heat dynamics
through fans
The experience of the patented x2-technology – heating radiators
particularly quickly and efficiently – is in the x-flair steel panel
radiators. This technology is optimised by a fan system that
effectively distributes the heat in the room.
Perfect for heat pumps and condensing boilers.
6 New products 2021
Heat pump radiator x-flair x-flair heat pump radiators can also make full use of their benefits
in new-builds as well. Because some rooms in a house are used more
strong when renovating and in new-builds
and others less. In this case, the x-flair heat pump radiator responds
x-flair heat pump radiators are ideal for modernising heating much more quickly than panel heating.
systems as they can simply be connected to existing pipes.
This way, they can optimally use the low flow temperature of Living rooms with open kitchens are central rooms: This is where the
the heat pump, heat up efficiently, and rapidly dissipate the heat family meets; this is where it should always be at a pleasant temperature.
in the room. It is different in the children's room, home office, or utility room,
where it should be comfortably warm at certain times and then cool
again for sleeping or because the room is not being used.
New products 2021 7
/ discover Kermi / for team players
Your Plus with Kermi x-flair:
WW Fully automatic control: operates like a conventional
radiator, the fans switch on automatically when required
WW Low-noise: sound-optimised axial fans and spring-loaded
bearings reduce noise to a minimum
WW Identical look: combination with all therm-x2
steel panel radiators
WW Top efficiency: significant reduction in the system
temperature, with huge energy savings potential through
highly efficient operation with heat pumps and
condensing boilers
WW x2 inside: maximum radiated heat output with integrated
x2 technology
WW kv preset valves: for all valve versions, including
hydraulic balancing
WW Flexibility: perfect for operation with all heat generators
in the low-temperature range
WW Financial incentives: attractive subsidies as part of
state funding programmes
The way the fully automatic control works
3 3
Use of the rooms according Highly dynamic and quick response Fully automatic control.
to need. times.
The x-flair heat pump radiator is off The room should be at 20 °C. 20 °C room temperature has been reached.
in rooms that are not being used. The thermostatic sensor head is turned The x-flair automatically regulates the
This saves energy and costs. to position 3. The x-flair heat pump speed of the fans. The pleasant thermal
radiator heats up. The axial fans comfort remains.
quickly dissipate the heat in the room.
8 New products 2021
/ discover Kermi / for team players
Models and sizes
x-flair Profil x-flair Plan/Line
600 900 559 959 605 905
554 954
Height in mm (Profil-V/- (Profil-V/- Links_Height in mm (Plan-/ (Plan-/ (Plan-/Line- (Plan-/Line-
(Profil-K) (Profil-K)
Vplus) Vplus) Line-K) Line-K) V/-Vplus) V/-Vplus)
Length in mm Designed heat output 45/35/20 °C in watts Length in mm Designed heat output 45/35/20 °C in watts
400 373 362 405 364 354
600 400 559 435 543 605 389 544 423 528
800 533 746 580 724 805 517 724 563 703
1000 666 932 725 905 1005 646 904 703 878
1200 799 1118 870 1086 1205 774 1084 843 1052
1400 932 1305 1015 1267 1405 903 1263 983 1227
1600 1000 1089 1605 968 1054
1800 1115 1214 1805 1079 1175
2000 1263 1375 2005 1222 1330
Note: static heat output (fan off) and maximum heat output (max. speed) can be
found in the document Kermi x-flair Prices and Technology I/2021
Uniform design
The x-flair heat pump radiator is available as Profil, Plan, and Line
versions. So the x-flair perfectly matches the Kermi therm-x2 models.
Connection
The x-flair heat pump radiator fits the popular DIN connection dimen-
sions 500 and 900. It is available in the versions V and Vplus (apart
from BL 400). This enables dirt-free replacement during renovation
without changing the connections and wall fixings. This makes
installation is simple and efficient – both during renovation and in
new-builds.
Power supply and control components including
sensors for air and panel temperature are easily
accessible.
New products 2021 9
/ Discover Kermi /
For
Your Plus with the
design steel panel radiator Leveo:
WW A feast for the eyes: high quality design
steel panel radiators
WW Thermostatic sensor head: integrated into
the design through chrome-plated cover rosette
WW Classy: top cover with new design
WW Flexible: available in the operating modes
hot water and all-electric
WW Size range: height 612 mm,
lengths: 510, 610, 810, 1010, 1210 mm
WW Valve: optionally on left or right
WW Connection: optionally at the bottom in
the centre or at the bottom on left or right
WW Also as Leveo-E for all-electric operation
10 New products 2021design lovers

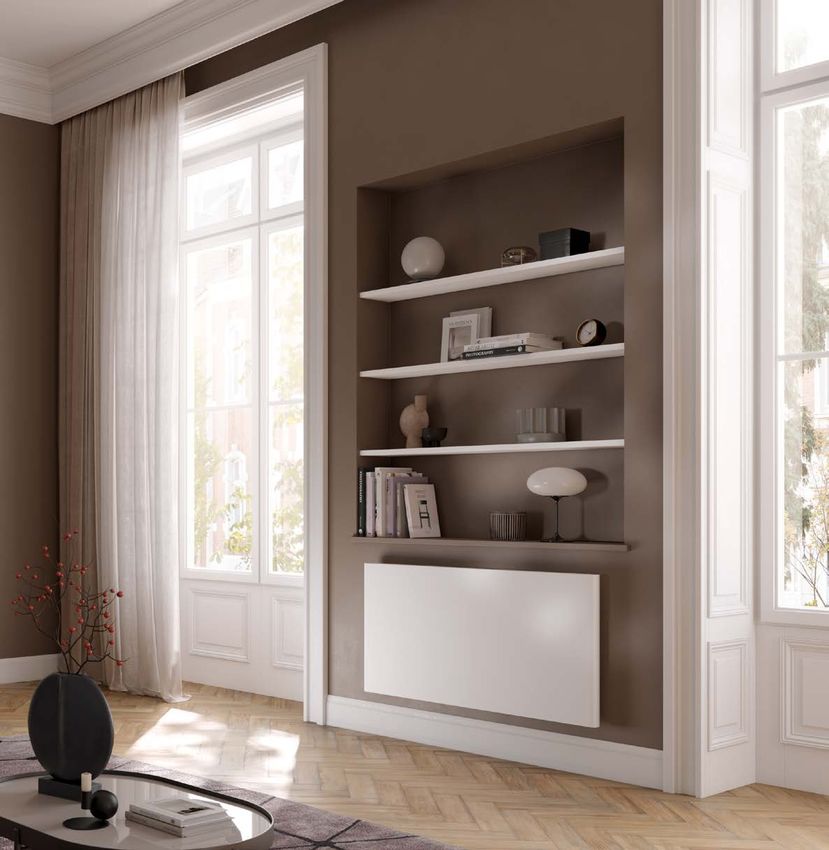

Leveo / Leveo-E. Proven
technology at its most beautiful
The horizontal design steel panel radiator Leveo is a real eye-
catcher. In the version for hot water operation, it works particularly
energy efficiently with the x2-technology using serial flow.
In the all-electric version (Leveo-E), the infrared technology
provides comfortable warmth completely independently of
a central heating network.
New products 2021 11/ discover Kermi / for design lovers
Leveo for hot water operation
WW Thermostatic sensor head integrated into the design
(included in the scope of delivery)
WW Preset valve available on right or left
WW Connection at the bottom in the centre or at the bottom
on the valve side
Leveo hot water operation
Height Length Depth Heat output
mm mm mm in watts
75/65-20 °C 70/55-20 °C 55/45-20 °C
612 510 66 563 452 288
612 610 66 673 540 344
612 810 66 894 717 457
612 1010 66 1115 895 570
612 1210 66 1336 1072 683
12 New products 2021Leveo-E for all-electric operation Leveo-E all-electric operation
Independent of the hot water central heating all year round Height Length Depth Heat output
mm mm mm in watts
with all-electric operation. And: It can also be fixed without
a visible cable. 612 510 66 200
612 610 66 245
WW All-electric radiator that radiates heat all year round 612 810 66 340
independently of the hot water central heating 612 1010 66 440
WW Uniform, area heating using a heating mat 612 1210 66 540
WW Easy installation, fixing not visible from the front
WW Maximum comfort thanks to advanced infrared technology
New products 2021 13/ discover Kermi / for design lovers
Pateo-E / Rubeo-E.
Aesthetic. Without frills.
Powerful.
Infrared radiators
with pleasant,
radiant heat
Passionately uncomplicated in design and
pleasantly unobtrusive in comfort. Both of the
Your Plus with the infrared design
infrared radiators Pateo-E / Rubeo-E radiators Pateo-E and Rubeo-E:
demonstrate exemplary performance and energy
WW Infrared radiators: all-electric
efficiency. And this is due to the all-electric operation operation, no heat transfer fluid
without connection to a central heating network. WW Two versions:
- Radiator with main function
room heating
- Radiator with main function
towel warming
WW Towel warming function: towel rail
can be installed at any height. Open on
left and right, several rails possible
WW Safe and invisible: fixed at the back
with a wall bracket
WW Controller: WKS, WFS, WRX
New: also without controller
WW Painted front panel: identical to
Pateo/Rubeo hot water or additional
electric operation
With its round front and the With its clear contours and sharp
soft transition between front separation of front and side
and side panel, the Pateo-E panel, the Rubeo-E is impressive
sets architectural accents and right from the start with its pure
radiates confident aesthetics. aesthetics and a clear, minimalist
design line.
14 New products 2021Infrared:
Heating based on the
principle of the sun
The heat from infrared radiators
is pure radiant heat and thus
comparable to the feeling we get
from the sun's rays. Because in-
stead of heating the ambient air,
the radiated heat hits the objects
and walls and is reflected by
them. This means that the heat
is not distributed selectively, but
evenly throughout the room. And
of course, the people in the room
also feel the extremely pleasant
radiant heat directly. By the way,
it's ideal for allergy sufferers, as
no rising hot air stirs up the dust.
New products 2021 15/ Discover Kermi /
For
Thinking ahead about room air Lay ventilation pipes
The new x-well D13 pendulum fan for decentralised quickly and safely
ventilation is ideal for retrospective installation, for
The practical x-well dispenser for
example during renovations.
installing ventilation pipes for central
ventilation systems will save you time
and effort on the construction site.
WW Significantly reduces installation work
and helps keep the construction site tidy
WW Unrolling free of tension and twisting
WW Can be assembled and disassembled in just a few
available simple steps without the need for tools
from the
en d of 2021
WW Efficient: high-quality fans and flow-optimised outer and inner panels
Heat recovery 87 % according to EN 13141-8
WW Only at Kermi: SEC value of < -40 kWh/(m³ x a)
WW Unique: minimum installation depth of just 20 cm, ideal for the
prefabricated house segment and timber frame construction
WW Uncomplicated: no cable connection between the fans,
communication via Bluetooth
WW Cost-effective: reduces installation costs by around 25 %
WW Future-proof: fans can be updated via smartphone
16 New products 2021technology enthusiasts
Clean air:
electronic air filters
The electronic x-well hygienic air filter improves the air
quality of the supply air for central ventilation systems,
making sure the supply air is virtually dust and pollen-free.
WW Extremely high separation rate, more than 85 % of particles with a size from 1 μm are filtered out
WW Minimal operating costs: low electrical power consumption
WW Easy to maintain: washable filter element, meaning no additional maintenance costs
WW Minimal pressure losses: this means that the efficiency of the ventilation system is not impaired
WW Flexible: suitable for wall and ceiling installation
The x-well hygienic air filter works
in two phases. To start with, impurities
in the incoming air are charged in an
ionising and polarising field. Afterwards,
the particles charged in this way are
attracted to collecting surfaces and held
in place by a strong electrostatic field.
New products 2021 17/ discover Kermi / for technology enthusiasts
x-net ready line plus / x-net ready line EGO plus.
Everything sorted with a single click
The x-net ready line plus / x-net ready line EGO plus control units make installation on the
construction site quite a bit quicker, easier, and safer. It can also be installed with a magnetic seal
shortly before initial operation which reduces the risk of theft to a minimum. The actuators are
wired in the terminal strip in accordance with VDE requirements, coded so that they cannot be
confused, and secured with strain relief. The LED function display and the function and control
display of the control actuators make it possible to quickly and safely check that they are working
properly. A remote diagnosis option through optical LED function display of the terminal strip as
well as function and control display of the actuators (e.g. taking a photo) is possible.
The terminal strips can quickly be positioned in the The x-net terminal strip plus is the central unit for
manifold cabinet with the x-net quick fix set. connecting up x-net system components (controller
The magnetic holder ensures secure, screwless fixing and actuator). It can be used to quickly realise simply
and also creates space for cable routing below the designed single room control for surface heating
raised terminal strip. systems while saving time.
Your Plus with the x-net ready line:
WW Super easy installation using
magnetic fastening with one click
WW Time saving during installation due
to pre-wired control actuators
WW Automatic hydraulic balancing
(EGO version)
WW Seamless functional control
with optical function display
18 New products 2021/ discover Kermi / for technology enthusiasts

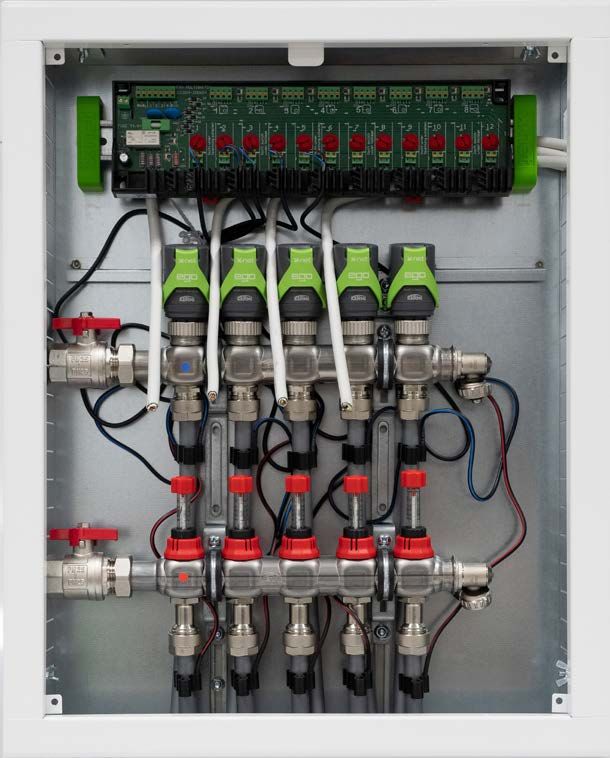

The x-net manifold cabinet Comfort XL with a separate
electrical installation zone has a particularly high quality finish.
The sturdy sheet steel is electrolytically galvanised or powder-
coated. Two removable mounting rails are located in the rear panel
for convenient installation of the manifold outside the manifold
cabinet. Available as surface-mounted or flush-mounted version.
Click
Your Plus with the
x-net manifold cabinet Comfort XL:
WW More space and comfort with heights
of 760 to 890 mm
WW Height-adjustable installation feet
The x-net ready line plus control unit is connected
without power and is already fitted with two hard-wired
temperature sensors. This saves valuable time on the
construction site, as it can be installed with a single click.
New products 2021 19You can find out about all our innovations and
our complete Kermi product range for heating and
ventilation technology at www.kermi.de/discover
Kermi GmbH
Pankofen-Bahnhof 1
94447 Plattling
GERMANY
Tel. +49 9931 501-0
Fax +49 9931 3075
www.kermi.com
info@kermi.comYou can also read
