DOORS 3
DOORS INFINITY S L I DE R
O u r I N FI N I TY S lider combines fl aw l e ss o p e r a ti o n a nd hi g h w e athe r r e s i s t a n c e w i t h a n
attr activ e design for effort less r e tr ac ti o n o f sl i d i ng d o o r s and w i nd o w s . Th e s e c a n b e
m an u factu red up t o a height of 3 . 4 me te r s w hi c h al l o w f o r unp a r a l l e l e d p a n o ra m i c
v iews . I n a ddit ion, t he t ried and te ste d f o ur p o i nt l o c k g ua r a nte e ’ s ma x i m u m s e c u ri t y .
Main advantages:
• Convenient and effortless operation due to innovative closing motion and
heavy duty rollers that are engineered to sustain a weight of 300kg per panel.
This allows for large format “glass walls” which blur the lines between indoor
and outdoor spaces
• The 4 point locking mechanism provides the ultimate security barrier and
peace of mind
• The stainless steel track maintains its like new appeal compared to the
standard powder coated tracks which age quickly due to wear in even the most
minimal use environments
• Large sliding panels can be realised of up to 3.4 meters high which allows for
superior panoramic views
• A Modular Frame allows for an INFINATE amount of sliding panels with a variety
of sliding directions
• Drainage channels with weeping holes in the sill were designed to direct water flow
that gathers within the system to flow directly to the outside which ensures that
water isn’t trapped within the sill
• EPDM Gaskets are used to ensure minimal shrinkage is experienced. This achieves
maximum resistance against air and weather infiltration
• Sliding panels stack flush with one another when opened in a single direction. This
allows for a maximum opening and a clean, sleek aesthetic
4
DOORS INFINITY S L I DE R
5
DOORS ROMA FO L DI NG
O u r Fo ldin g St acking Door comb i ne s c o nv e ni e nt o p e r a ti o n, hi g h b ur g l a r re s i s t a n c e
with h eav y dut y hinges t hat co mp l e me nt the d o o r s attr ac ti v e d e si g n. Th e h a n d l e
des ign will complement any pre mi um ho me . T he E ur o p e a n d e si g n l o c k s a n d fi t t i n g s
allo w f o r the maximum securit y r e si stanc e a nd an unp r e c e d e nte d p r e m i u m a e s t h e t i c
f o r yo u r h ome or commercial b ui l d i ng . In a d d i ti o n to thi s the g aske ts u s e d t h ro u g h o u t
th e s ys tem as well as t he close d uni t l e v e r b o l t o utp e r f o r m any d o o r i n t h e m a rk e t w i t h
a h igh air and weat her resist anc e .
Main advantages:
• Convenient and easy operation with little effort
• Heavy duty hinges and European design locks and fittings
• High aesthetic appeal with premium hardware
• The 3 point locking mechanism provides the ultimate security barrier
• High Air and weather resistance due to gasket and closed unit rotary bolts
• The stainless steel track maintains its like new appeal compared to the
standard powder coated tracks which age quickly due to wear in even the
most minimal use environments
• Large sliding folding panels can be realised of up to 3.2 meters high
• Drainage channels with weeping holes in the sill were designed to direct
water flow that gathers within the system to flow directly to the outside
which ensures that water isn’t trapped within the sill
6
DOORS ROMA FO L DI NG
7
DOORS NE R O H I N G E D

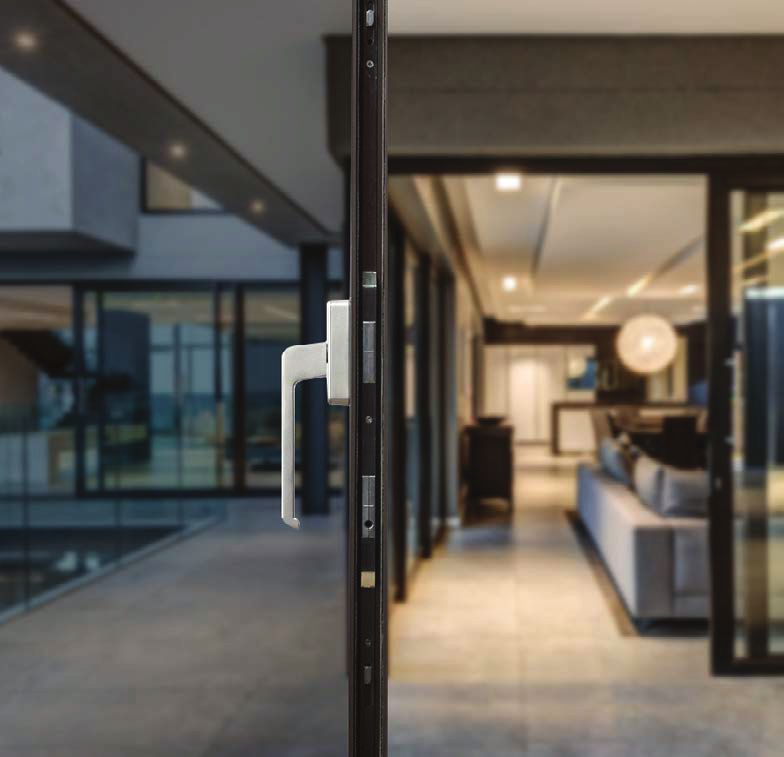

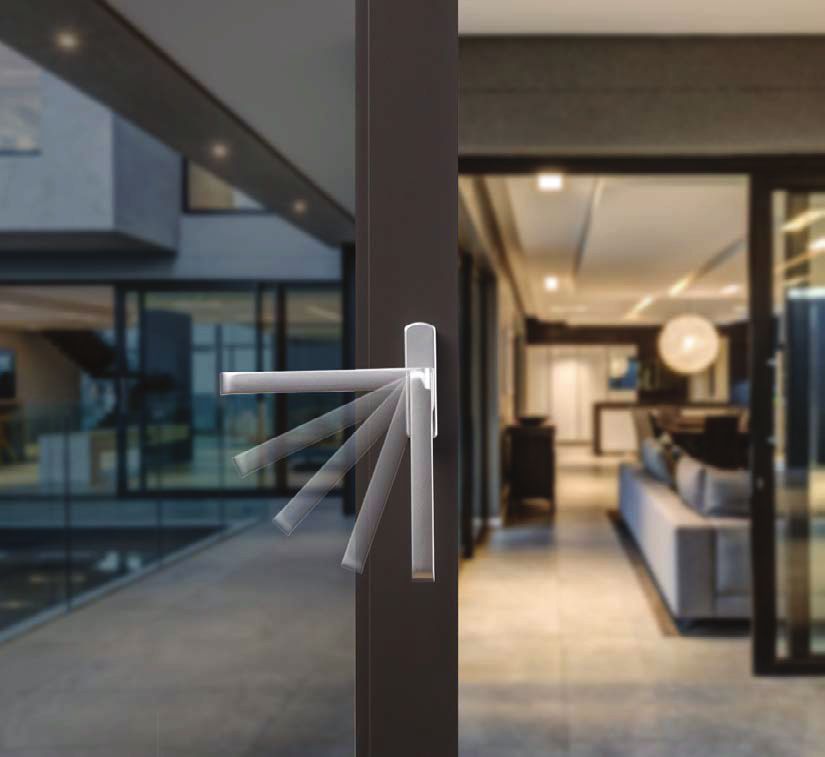

O u r Hin ged door combines con v e ni e nt o p e r ati o n,
h igh bu r glar resist ance wit h he av y d uty hi ng e s tha t
c o m plem ent t he doors at t ract iv e d e si g n. T he hand l e
des ign will complement t he hig he st l e v e l o f a ny
pr em iu m h ome or commercial b ui l d i ng . T he
Eu r o pean d esigned lock s and f i tti ng s al l o w f o r the
m ax im u m securit y resist ance and a n unp r e ce d e nte d
pr em iu m aest het ic for your Luxur y ho me o r
c o m m ercial building.
Main advantages:
• Convenient and easy operation with little effort
• Heavy duty hinges and European design locks and
fittings
• High aesthetic appeal with premium hardware
• The 3 point Locking mechanism provides the
ultimate security barrier
• High Air and weather resistance due to gasket
and closed unit rotary bolts
• Large door panels can be realised of up to 1.2
meters wide and 3.2 meters high
• Drainage channels with weeping holes in the sill
were designed to direct water flow that gathers
within the system to flow directly to the outside
which ensures that water isn’t trapped within the
sill
8
DOORS NE R O H I N G E D
9
DOORS PIATRA PI VOT

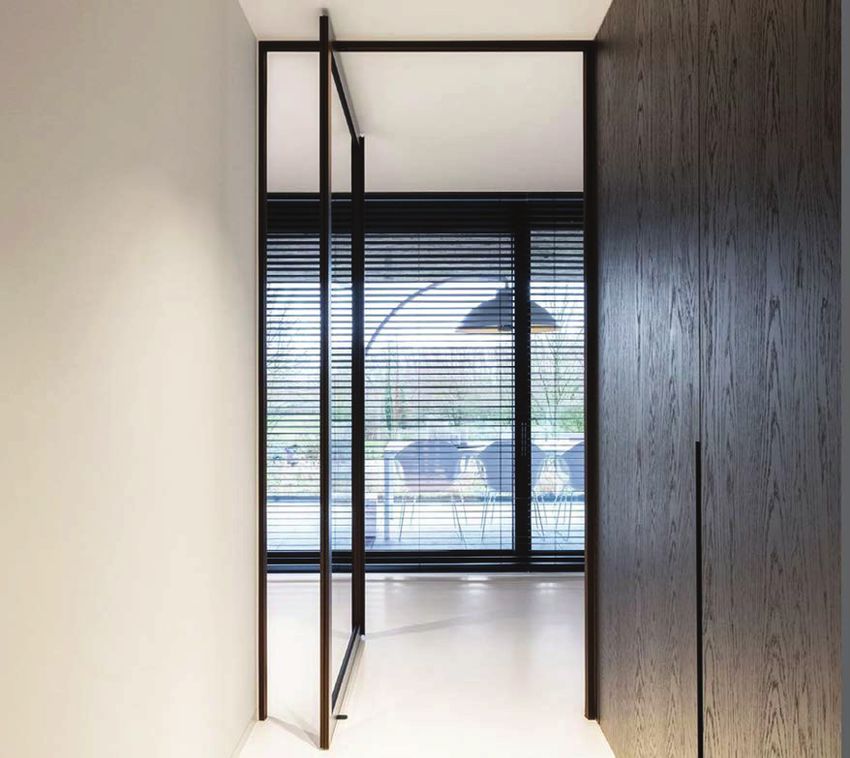

O u r P iv o t d oor is designed for l uxur y
h o m es th at are look ing for a w o w f a cto r
wh en r eceiving someone int o the i r ho me .
With its I ta lian 3 point mult i lo cki ng p o i nt
l ock, th e h eavy dut y floor sprin g w i th a 90
degr ee h o ld open funct ion and so f t
c lo s in g m ec hanism. The handle o f 2 m l o ng
an d cylin drical look and feel fini she s the
P I A TRA P ivot doors bold appear anc e a nd
pr es en ce it delivers for any pre mi um
l ux u ry Ho me.
Main advantages:
• Convenient and easy operation with
little effort
• Heavy duty floor spring with 90 degree
hold open function to ensure the door
isn’t slammed closed by the elements
• The floor spring performs a soft closing
function
• High end aesthetic appeal with premium
3 point multi Lock
• Large door panels can be realised of up
to 1.8 meters wide and 3.4 meters high
10W I ND OWS 11
WINDOWS
NOVA EURO CASEMENT
EMENT - FRICTION STAY
The outward opening funct ion f re q uentl y o f fer s sub st anti al
ben ef its s u ch as efficient vent i l ati o n a nd no d i stur b i ng sash
i n th e roo m. Wit h it s large sash fo rm ats and o p ti mi se d f uncti ti o ns
th e Euro casement delivers a p r e mi um f i ni sh that c o mp l i me nts
l ux u ry h o mes and commercial s p ac e s.
Features:
• Hig h p e rformance m ulti-cham be r syste m i n sy mm e tri c
d e sig n , quality ass ured weathe r cha mbe rs e ns ure to p
p e rfo rmance against weathe r conditions
• Corn e r and butt joint connec ti o n Te chno l o gy fo r hi gh
rig id ity o f frames
Fit tin g s:
• lateral application for side-hung o pe ni ng
• top -sid e application for top - hung o pe ni ng
• Sash we i ght: up to 45 kg
• Sash formats (w x h): up to 1700 m m x 1 700 m m
12WINDOWS
NOVA EURO CASEMENT - FRICTION STAY
13WINDOWS
NOVA EURO CASEMENT - TILT & TURN
Th is window is effect ively t hree w i nd ows i n o ne : i t se r ves as a f i xed
d
win dow, an in swing casement w i nd ow and a ho p p er w i nd ow. So
i n one configurat ion, you have a f l exi b l e w i nd ow that swi ng s as
you wou ld expect . This orient ati o n al so al l ows fo r ea sy cleani ng
on both s id es of t he glass whil e d oub l i ng as a g o o d exi t wi nd ow in
em ergencies.
I n the oth er configurat ion, t he ti l t al l ows i n b reeze s, hel p s d ef l ect
rain and lock s into place against p o te nti al i ntr usi o ns. Heat es cap es s
th rough the top and air enters a nd exi ts a ro und the ed g es ,
facilitating draft -free vent ilat ion. In o the r wo rd s: yo u can l eave t he e
win dow op en when you are away wi thout wo r r y i ng to o much aboutt
security or t he weat her.When you sw i tch b ack to the l o cked p osi ti on, on
you can also feel t he mult i-point l oc ki ng mecha ni sms cl i ck i nto p l ace ce
e
( 4 point locks). This provides f ur ther se c ur i ty and a comp l etel y
air-tight weat her seal. When t h e wi nd ow i s i n thi s cl o sed p osi ti on ,
you are als o left wit h an uninte r r up ted v i ew thro ug h a si ng l e p ane
of glass, versus somet hing like a trad i ti o nal two - p i ece sas h wi nd ow w
wh ich m ay split your view down the ce nter.
14WINDOWS
NOVA EURO CASEMENT - TILT & TURN

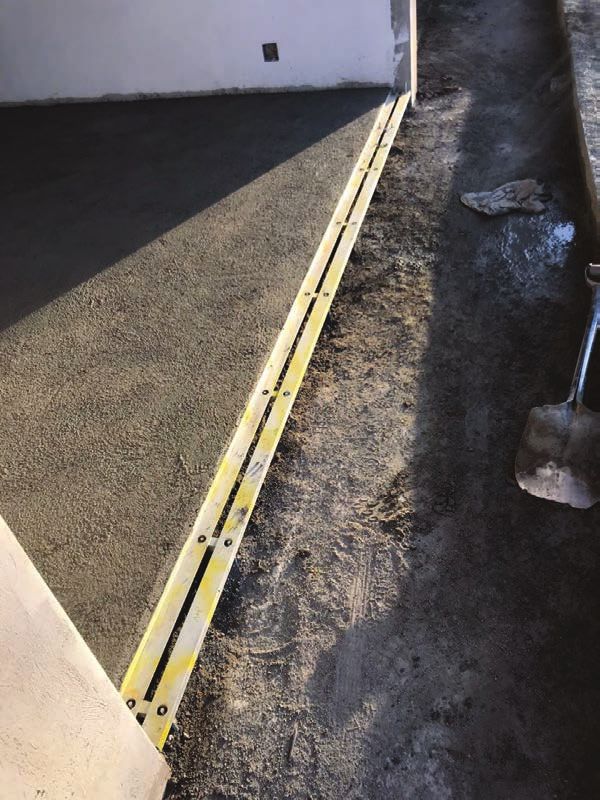

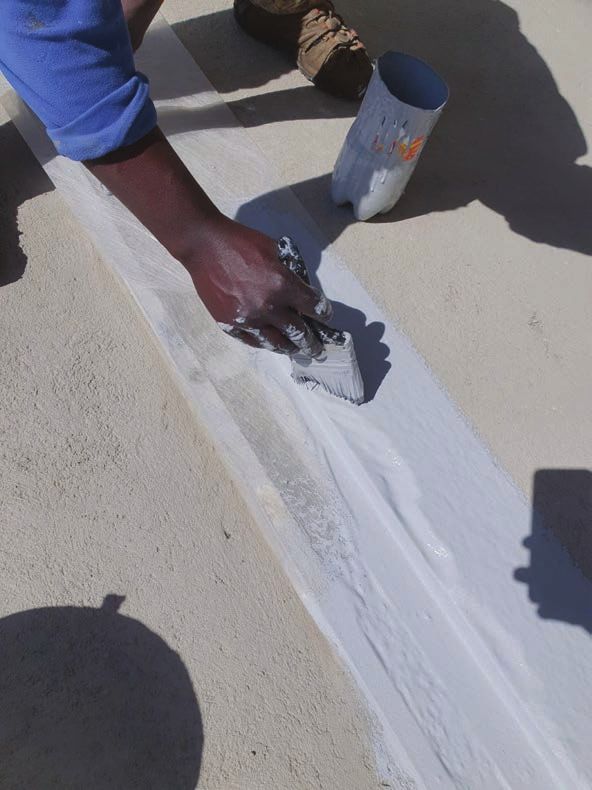

15INSTALLATION METHODOLOGY
I KO N A lu minium recommends b e st p r a cti c e o f
i ns tallatio n met hodologies t o e nsur e that o ur
pr o du cts perform opt imally wit ho ut a ny
u n n eces s ary st ress or frict ion o n the Ha r d w a r e
an d alu m in ium profiles.
Th is will ensure t hat our produc ts p e r f o r m
BEST with out unnecessary and f r e q ue nt
m ain ten an ce. In addit ion t o t hi s, l e aki ng i ssue s
ar e als o prevent ed.
Th es e m ethodologies are based o n E ur o p e a n
s tan dards which are considered to b e b e st
pr actice around t he world.
16I NSTALLATION METHODOLOGY
SEALANT BY OTHER
Finished floor
level (Inside)
20
Tile
20
MESH AND SCREED DESIGN BY
Finished floor level PROJECT STRUCTURAL ENGINEER
5
(Outside)
Screed
To be sloped away
80
from Sill
60
Tile
116
119

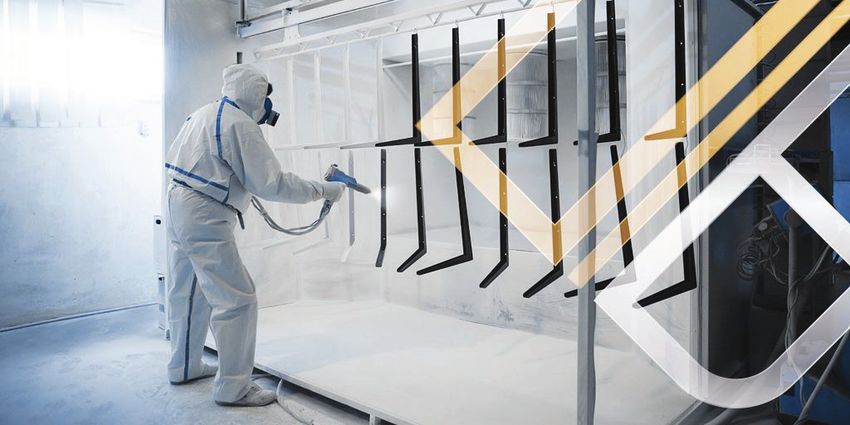

17POWDER COATING
We pride ourselves in offering the b e st p r o d uc t and hi g he st l e v e l o f c a re
wh en th e a pplicat ion is done. T o a d d mo r e v a l ue and a l o ng e r l i f e sp a n t o
y o u r pr o duct , IK ON has part ner e d w i th QU A LIC OA T l i c e nc e d a p p l i cators t o
br in g yo u a more durable powd e r c o ati ng w hi c h has a 1 5 - 2 5 - y e ar w ar ra n t y
again s t f ad ing and peeling.
Q UA L I C O A T is a qualit y label o r g ani sati o n co mmi tte d to ma i nta i ni ng a n d
pr o m o tin g t he qualit y of coat in g o n a l umi ni um a nd i ts a l l o y s f o r ar chi t e c t u ra l
applicatio ns.
To determine whether or not a coating meets a customer’s requirements, the
results need to be measurable against technical specifications. Working on
behalf of customers who have their products coated, QUALICOAT defines
comprehensive quality requirements and monitors their compliance by
licensed plants worldwide. This gives purchasers of coated aluminium the
assurance that they will receive a premium-grade product delivering
long-term value and consistent quality.
QUALICOAT’s mission is to provide best practice rules to obtain a good
quality coating on aluminium.
To achieve this goal, QUALICOAT is committed in particular to:
• establishing specifications for processes, products and tests to be used by
the coating plants
• developing and improving these specifications
• granting licenses to coating plants that apply for the quality label
• testing and approving chemicals and coating products to be used
• monitoring the correct application of the specifications in licensed plants
18P G Sm artGlass®
19PG SmartGlass®
O u r X1™ single glazed range of l ami nate d g l ass p ane s car r i es a rang e o f s p ecial i s ed coat i n g s . Th i s al l ows
ho m eowners to use more glass w hi l st co mp l y i ng w i th l eg i sl ati on and b ene fi t i n g from s afet y, s ecuri t y, s ou nd
redu ction and U V control. It is i mp o r tant to no te that l eg i sl ati on co mp l i ance d o es n ot necess ari l y l ead to
t h ermal comfort . That is why we o f fer a rang e of d i f ferent p er formance o p t i on s t h at can b e s p eci fi ed to m anag e
d if ferent s olar and t hermal comfo r t req ui re me nts fo r your ho me.
Ou r X2 ™ d ouble glazed range i s co nstr ucted usi ng two p ane s o f p erfo rm a n ce g l ass I f you need t h e very b est
b lend of insulat ion, light , energ y e f f i c i ency and al l ro und com for t, the X 2™ ran g e h as you covered . You have t he
ch o ice of using laminated glass to enhance the se co nd ary b enef i ts of s afet y, s ecuri t y, s ou n d red uct ion an d UV
con trol.
Clear Double
Single Clear X1 STD X1 PLUS X1 ELITE X2 STD X2 PLUS X2 ELITE X2 SUP
Glazing
Zone 1 & 6 WTF Ratio % 15 21 21 21 28 33 33 33 35
Zone 2 to 5 WTF Ratio % 18 24 24 24 33 38 38 38 40
Visible Light % 88 83 60 43 79 67 54 52 69
COG - U-Value W/m2K 5.80 3.65 3.65 3.65 2.71 1.85 1.90 1.85 1.65
0.80 0.71 0.55 0.43 0.70 0.51 0.47 0.44 0.38
Relative Heat Gain W/m2 659 540 427 338 526 381 356 337 291
20ABOUT US
IKON ALUMINIUM
I KO N A lu minium is home t o one o f So uth A f r i c a’ s l a r g e st
m an u factu rers and inst allers of a r c hi te ctur a l a l umi ni um
pr o du cts . From heavy dut y slid i ng d o o r s to ti l t and tur n
win do ws , each product is caref ul l y cr a f te d o ut o f hi g h q ual i ty
m aterials and t ailor made t o fit the cl i e nts uni q ue a nd
dis cer n in g needs. Const ruct ing a p r o d uc t that p r o v i d e s the
h igh es t s tandard of workmanshi p and y e ar s o f tr o ub l e f r e e
s er v ice is a result of our impec c ab l e a tte nti o n to d e ta i l .
A t I KO N A l uminium, our t op qua l i ty se r v i c e b e g i ns w i th the
f act th at w e t reat each project a s i f i t’ s o ur o w n. Fr o m the
i nitial relat ionship t hat is deve l o p e d w i th the cl i e nt, al l the
way th ro u g h t o t he inst allat ion o f the f i na l p r o d uct, e ac h ste p
o f th e pr o c ess is t reat ed wit h t he hi g he st l e v e l o f
pr o f es s io n alism and precision.
O u r lo v e for archit ect ural alum i ni um p r o d uc ts b e g a n i n 2 01 1
wh en we joined t he PG Alumini um g r o up . It w asn’ t l o ng unti l
we becam e a leader in t he industr y and b e g an w o r ki ng o n
pr o jects o f larger scale. Howev e r , a s the y e ar s w e nt b y , w e
r e alis ed th at in order t o cont in ue e xc e e d i ng e xp e c tati o ns, w e
n eeded to creat e our own bran d w i th i ts o w n i d e nti ty . We
u ltim ately decided t o part way s w i th the PG A l umi ni um g r o up
an d cr eated IK ON Aluminium. Our c o mmi tme nt to hi g h q ual i ty
pr o du cts and services which our c l i e nt ha v e b e co me
accu s to m ed t o is guarant eed t o i mp r o v e und e r the IK ON
A lu m in u m b rand.
21ABOUT US
MANUFACTURING FACILITY
210 0m 2 Facilit y - Apex, Benoni .
All alum inium and glass products are cu sto m
made to the highest st andard usi ng the l ate st
techno lo gy and equipment t hat i s i mp o r te d
f rom I taly and Germany.
22ABOUT US
S
IKON INNOVATION
NO
OVVA
I KO N I n n o vat ion focuses on bri ng i ng y o u
u n iqu e an d innovat ive product s, w hi ch
we des ign and manufact ure in-ho use to g e the r
with o u r s ist er R&D Company IN OV A Sy ste ms.
We are n o t only aiming t o be l e a d e r s i n
n ew in n o v at ion, but also at t he f o r e f r o nt
o f in creas ing securit y whilst ke e p i ng a l l
pr o du cts aest het ically pleasing .
Working hand-in-hand with INOVA
Systems we can design and deliver
new window and door systems from
CONCEPT TO INSTALLATION.
23PO RTFO LI O
2425
RESIDENTIAL
STAND 165 - NATURE ESTATE
• Superior sliding doors
• Casement windows
• Clip44 windows
• Black powder coated
aluminium
• Low e laminated glazing
• Pivot entrance door
with double action floor
spring
• Single hinged doors
• Butt jointed corner
windows
• Slopped / Arched
Skylight
26RESIDENTIAL
STAND 165 - NATURE ESTATE
27RESIDENTIAL
HOUSE C - SANDOWN
• Superior sliding doors
• Casement windows
• Clip44 windows
• Matt Jet Black powder
coated aluminium
• Standard glazing
• Stacking folding doors
• Frameless entrance pivot
door
• Single hinged doors
• Patio sliding windows
28RESIDENTIAL
HOUSE C - SANDOWN
29RESIDENTIAL
STAND 685 - SERENGETI GOLF ESTATE
• Superior sliding doors
• Casement windows
• Clip44 windows
• Umber grey powder
coated aluminium
• Low e glazing
• Stacking folding doors
• Pivot door with double
action floor spring
• Single hinged doors
30RESIDENTIAL
STAND 685 - SERENGETI GOLF ESTATE
31RESIDENTIAL
HOUSE M - HOUGHTON ESTATE
• Louvre fixed windows
• INFINITY sliding doors
• NERO Double & single
hinged doors
• INFINITY Cavity sliders
• NOVA EURO casement
windows
• Matt Jet Black powder
coating
• Double Glazed Units,
Premium insulation
properties
32RESIDENTIAL
HOUSE M - HOUGHTON ESTATE
33RESIDENTIAL
STAND 43 & 44 - STEYN CITY
• Superior sliding doors
• Casement windows
• Clip44 windows
• Charcoal powder coated
aluminium
• Low e laminated glazing
• Pivot entrance door
with double action floor
spring
• Single hinged doors
• Butt jointed corner
windows
34RESIDENTIAL
STAND 43 & 44 - STEYN CITY
35COMMERCIAL
CRUISES INTERNATIONAL
• Shopfront partitioning
• Double hinged door
• 210 Bespoke Angled flush
glazing panels
• 76mm Clip44 windows
• Casement windows
• Double volume Facades
• Frameless pivot door
with double action floor
spring
• Low e Performance Glass
• Matt Jet Black Powder
coating
36COMMERCIAL
CRUISES INTERNATIONAL
37COMMERCIAL
EL RIDGE OFFICE PARK
• Superior sliding doors
• Double/ single hinged
doors
• Cavity sliders
• Casement windows
• Clip44 windows
• Charcoal powder coating
• Clear Glass
38COMMERCIAL
EL RIDGE OFFICE PARK
39CONTACT US
You can also read
