Monitoring Flights and Sending SMS with Taskmatics Scheduler and Enzo Unified This while paper shows you how to accelerate your development efforts, reduce complexity of your code, and orchestrate Internet services easily. A white paper produced by Blue Syntax Consulting (http://www.enzounified.com) and Taskmatics (http://www.taskmatics.com). Published on April 10, 2015
Table of Contents
Introduction .................................................................................................................................................. 2
Scenario......................................................................................................................................................... 2
How To Call FlightAware and Twilio with Enzo Unified ................................................................................ 3
How To Schedule The Call With Taskmatics Scheduler ................................................................................ 5
Conclusion ..................................................................................................................................................... 9
About Blue Syntax Consulting ..................................................................................................................... 10
About Taskmatics ........................................................................................................................................ 10
Introduction 1
Introduction
Software developers need to build solutions quickly so that businesses remain competitive and agile.
This while paper shows you how Taskmatics Scheduler (http://www.taskmatics.com) and Enzo Unified
(http://www.enzounified.com) can help developers build and deploy solutions very quickly by removing
two significant pain points: the learning curve of new APIs, and orchestrating Internet services.
Scenario
Let’s build a solution that checks incoming flights in Miami, Florida, and send a text message using SMS
when new flights arrive to one or more phone numbers. To track flight arrivals, we will be using
FlightAware’s (http://www.flightaware.com) service which provides a REST API to retrieve flight
information. To send SMS messages, we will be using Twilio’s (http://www.twilio.com) service which
provides an API as well for sending messages.
To remove the learning from these APIs, we used Enzo Unified, a Backend as a Service (BaaS) platform
that enables the consumption of services through native SQL statements. Enzo Unified abstracts
communication and simplifies development of a large number of internal systems and Internet services.
In this example, Enzo Unified is hosted on the Microsoft Azure platform for scalability and operational
efficiency.
To orchestrate and schedule the solution, we used the Taskmatics Scheduler platform. Taskmatics calls
into your custom code written in .NET on a schedule that you specify, which is configured to connect to
Enzo Unified in the cloud. The call to Enzo Unified is made using ADO.NET by sending native SQL
statements to pull information from FlightAware, and send an SMS message through Twilio. At a high
level, the solution looks like this:
Figure 1 – High Level call sequence between Taskmatics Scheduler and Enzo Unified
Introduction 2
How To Call FlightAware and Twilio with Enzo Unified
Developers can call Enzo Unified using a REST interface, or a native SQL interface. In this example, the
developer uses the SQL interface, leveraging ADO.NET. The following code connects to Enzo Unified as
a database endpoint using the SqlConnection class, and sends a command to fetch flights from a specific
airport code using an SqlCommand object. Fetching FlightAware data is as simple as calling the
“Arrived” stored procedure against the “flightaware” database schema.
var results = new List();
// Connect to Enzo Unified using SqlConnection
using (var connection = new SqlConnection(parameters.EnzoConnectionString))
// Prepare call to FlightAware’s Arrived procedure
using (var command = new SqlCommand("flightaware.arrived", connection))
{
connection.Open();
command.CommandType = System.Data.CommandType.StoredProcedure;
command.Parameters.Add(new SqlParameter("airport", airportCode));
command.Parameters.Add(new SqlParameter("count", 10));
command.Parameters.Add(new SqlParameter("type", "airline"));
// Call FlightAware’s Arrived procedure
using (var reader = command.ExecuteReader())
while (reader.Read())
results.Add(new ArrivedFlightInfo
{
Ident = (String)reader["ident"],
AircraftType = (String)reader["aircrafttype"],
OriginICAO = (String)reader["origin"],
OriginName = (String)reader["originName"],
DestinationName = (String)reader["destinationName"],
DestinationCity = (String)reader["destinationCity"]
// ... additional code removed for clarity...
});
}
Calling Twilio is just as easy. A simple ADO.NET call to the SendSMS stored procedure in the “Twilio”
schema is all that’s needed (the code is simplified to show the relevant part of the call).
// Establish a connection Enzo Unified
using (var connection = new SqlConnection(parameters.EnzoConnectionString))
using (var command = new SqlCommand("twilio.sendsms", connection))
{
connection.Open();
command.CommandType = System.Data.CommandType.StoredProcedure;
command.Parameters.Add(new SqlParameter("phones", phoneNumbers));
command.Parameters.Add(new SqlParameter("message", smsMessage));
// Call Twilio’s SendSMS method
command.ExecuteReader();
}
How To Call FlightAware and Twilio with Enzo Unified 3
If you inspect the above code carefully, you will notice that it does not reference the APIs of FlightAware
or Twilio. Indeed, calling both FlightAware and Twilio was done using ADO.NET calls against Enzo
Unified; because Enzo Unified behaves like a native database server (without the need to install special
ODBC drivers), authenticating, making the actual API calls, and interpreting the REST results was entirely
abstracted away from the developer, and replaced by an SQL interface, which dramatically increases
developer productivity. Database developers can call Enzo Unified directly to test FlightAware and
Twilio using SQL Server Management Studio (SSMS). The following picture shows the results of calling
Enzo Unified from SSMS to retrieve arrived flights from FlightAware.
Figure 2 – Calling the FlightAware service using simple SQL syntax in SQL Server Management Studio
Sending a SMS text message using Twilio is just as simple using SSMS:
Figure 3 – Calling the Twilio service using simple SQL syntax in SQL Server Management Studio
How To Call FlightAware and Twilio with Enzo Unified 4
How To Schedule The Call With Taskmatics Scheduler
In order to run and schedule this code, we are using Taskmatics Scheduler, which provides an enterprise
grade scheduling and monitoring platform. When a class written in .NET inherits from the
Taskmatics.Scheduler.Core.TaskBase class, it becomes automatically available as a custom task inside
the Taskmatics Scheduler user interface. This means that a .NET library can easily be scheduled without
writing additional code. Furthermore, marking the custom class with the InputParameters attribute
provides a simple way to specify input parameters (such as the airport code to monitor, and the phone
numbers to call) for your task through the Taskmatics user interface.
The following simplified code shows how a custom task class is created so that it can be hosted inside
the Taskmatics Scheduler platform. Calling Context.Logger.Log gives developers the ability to log
information directly to Taskmatics Scheduler for troubleshooting purposes.
namespace Taskmatics.EnzoUnified.FlightTracker
{
// Mark this class so it is visible in the Taskmatics interface
[InputParameters(typeof(FlightNotificationParameters))]
public class FlightNotificationTask : TaskBase
{
// Override the Execute method called by Taskmatics on a schedule
protected override void Execute()
{
// Retrieve parameters as specified inside Taskmatics
var parameters = (FlightNotificationParameters)Context.Parameters;
// Invoke method that calls FlightAware through Enzo Unified
var arrivedFlights = GetArrivedFlights(parameters);
// do more work here… such as identify new arrivals
var newFlights = FlightCache.FilterNewArrivals(arrivedFlights);
// Do we have new arrivals since last call?
if (newFlights.Count > 0)
{
// Invoke method that calls Twilio through Enzo Unified
var results = SendArrivedFlightsViaSMS(newFlights, parameters);
// Update cache so these flights won’t be sent through SMS again
FlightCache.SaveFlightsToCache(newFlights);
}
else
Context.Logger.Log("SMS phase skipped due to no new arrivals.");
Context.Logger.Log("Job execution complete.");
}
}
}
How To Schedule The Call With Taskmatics Scheduler 5Installing the task into the Taskmatics Scheduler platform is very straightforward. Log into the user
interface and create a definition for the flight tracker task. This step allows you to import your library
into the system to serve as a template for the new scheduled task that we will create next.
Figure 4 - Import your custom task as a definition

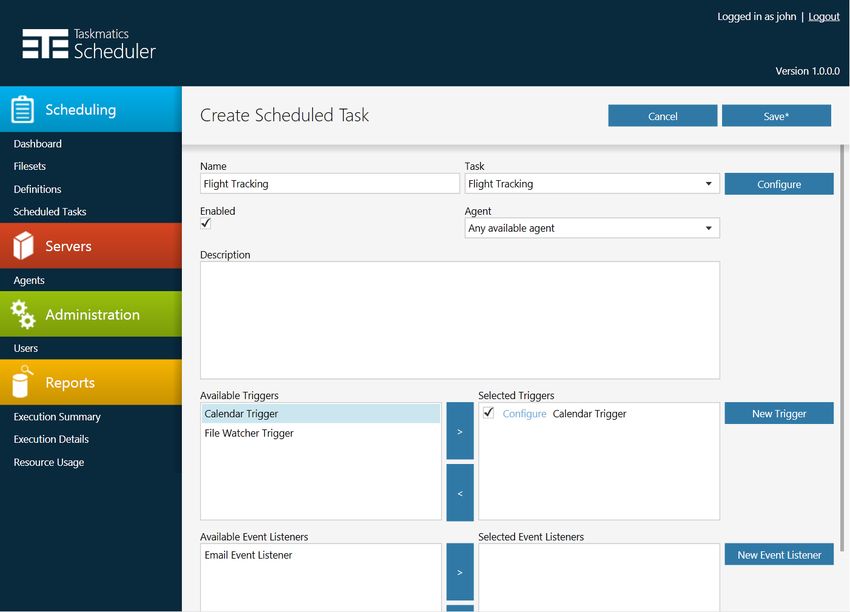

Once you have created your definition, go to the “Scheduled Tasks” section of the user interface, and
create the task by selecting the definition that you just created from the Task dropdown. This is also
where you will schedule the time and frequency that the task will run as well as configure the input
parameters for the task.
How To Schedule The Call With Taskmatics Scheduler 6Figure 5 - Schedule your custom task to run on the days and times you specify.
How To Schedule The Call With Taskmatics Scheduler 7Figure 6 - Configure the parameters for the scheduled task.

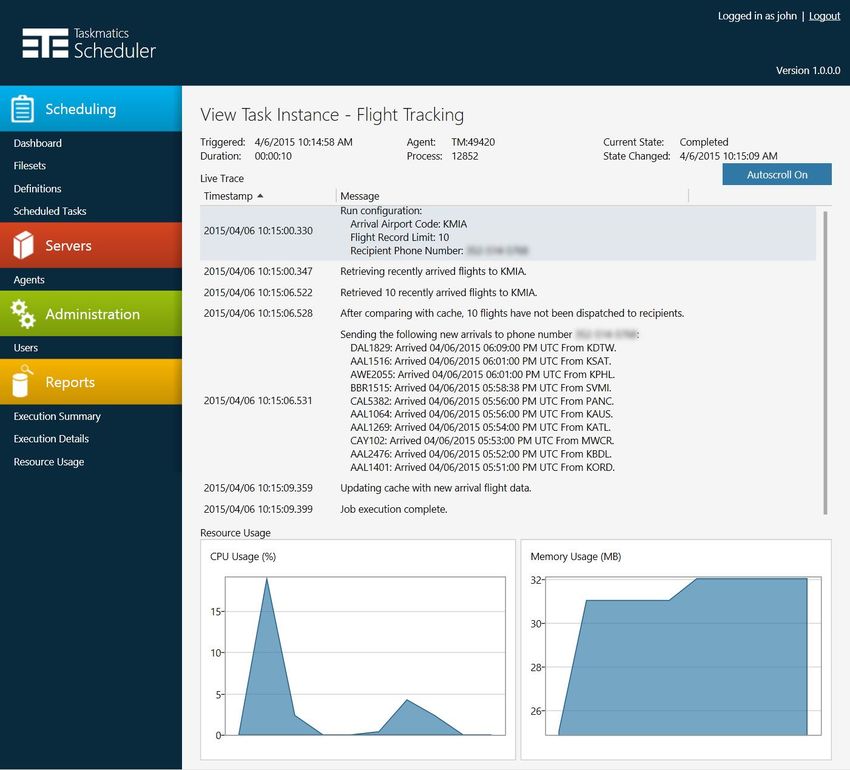

Finally, from the Dashboard screen, you can run your task manually and watch the output live, or look at
a past execution of the task to see the outcome and logs from that run. In the image below, you can see
the execution of the Flight Tracking task where we monitored recent arrivals into the Miami
International Airport (KMIA).
How To Schedule The Call With Taskmatics Scheduler 8Figure 7 - Review and analyze previous task executions or watch your tasks live as they run.
Conclusion
This blog post shows how developers can easily build integrated solutions without having to learn
complex APIs using simple SQL statements, thanks to Enzo Unified’s BaaS platform. In addition,
developers can easily orchestrate and schedule their libraries using the Taskmatics Scheduler platform.
Combining the strengths of Enzo Unified and Taskmatics, organizations can reap the following benefits:
- Rapid application development by removing the learning curve associated with APIs
- Reduced testing and simple deployment by leveraging already tested services
- Service orchestration spanning Internet services and on-premises systems
- Enterprise grade scheduling and monitoring
Conclusion 9You can download the full sample project on GitHub here: https://github.com/taskmatics-
45/EnzoUnified-FlightTracking
