DATA SHEET
LOGITECH TAP SCHEDULER

Make it easy to find and claim      SCHEDULING PANEL FOR MEETING ROOMS
the right meeting space with        Make the most out of every meeting space by helping workers
Tap Scheduler. This purpose-built   easily find the right room — whether that’s checking room details to
                                    make sure it’s the right place, or reserving a room for impromptu or
scheduling panel is designed        scheduled meetings. With a spacious screen and sleek, unobtrusive
as a Zoom Rooms Scheduling          profile, Tap Scheduler is designed for easy viewing and to match your
Display, to enhance your room       office aesthetics. Complete with glass, mullion, and wall mounts, Tap
                                    Scheduler can be conveniently installed outside any room. Built-in cable
booking experience.                 management hides cables for a clean and professional look. Count on
                                    Tap Scheduler for reliable performance with durable components that
                                    are built to last.
LOGITECH TAP SCHEDULER - Zoomtopia
HOW TAP SCHEDULER WORKS                                                                           LOGITECH TAP SCHEDULER

BUILT FOR ZOOM ROOMS

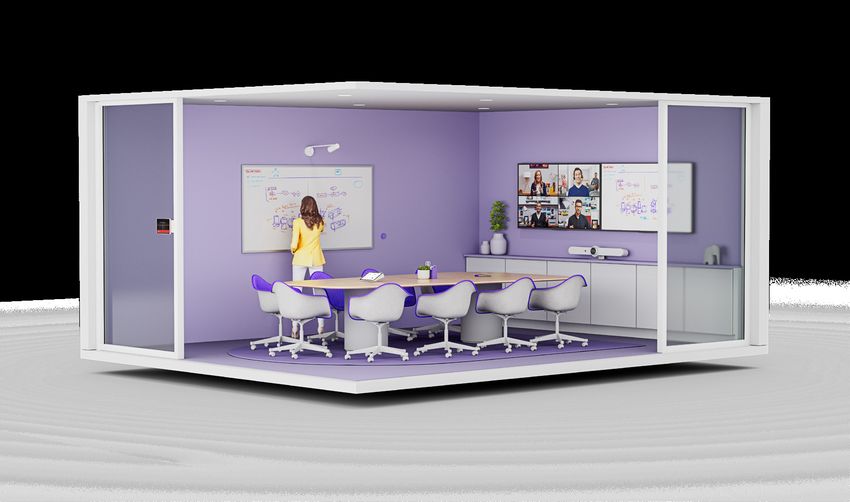

Tap Scheduler can be easily configured as a Zoom Rooms Scheduling Display. Place Tap Scheduler outside any meeting
space for a simplified booking experience.

RIGHT PLACE, RIGHT TIME
Logitech room solutions are designed to get the most out of your Zoom rooms, both inside and outside meeting spaces.

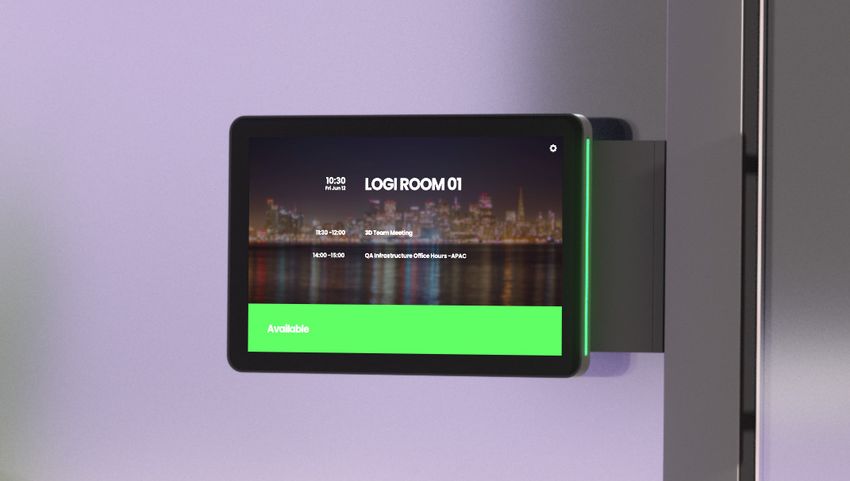

Availability at a Distance                                   Details Up Close
Find an open room in a flash. Green or red LED lights        See meeting details, check-in and book meetings on a
indicate their availability at a distance.                   spacious 10.1” screen.
LOGITECH TAP SCHEDULER - Zoomtopia
FEATURES & BENEFITS                                                                                    LOGITECH TAP SCHEDULER

CLEAN AND CONVENIENT SETUP
                                                                                            Up

                                                                                             Through
                                                                                                               Right
                                                               Left

                                                                                            Down
                                                             Showing wall-mounted
                                                             routing options

Easily Install with Included Mounts                          Hide Cabling for a Clean Setup
Place Tap Scheduler outside any room with the included       Multiple routing options hide cables for a tidy, professional
mounts for glass, walls, and mullions for fast deployment.   looking install.

PURPOSE-BUILT SCHEDULING PANEL

                                                                                                   4

                                                                                        5

                1          2

                                                                                                       6
                                               3

        10.1” touchscreen: Easily read details                             Availability lighting: Green or red status
 1                                                              4
        and reserve a room on the spacious and                             lights indicate availability from a distance
        responsive touchscreen.                                            without being too distracting.

        Anti-fingerprint: Oleophobic coating                               Flat angle for accessibility: Tap
 2                                                               5
        resists fingerprints for legibility.                               Scheduler is mounted flat against the wall
                                                                           for easy reading from accessible heights.
        Built to last: Sealed screen protects
 3
        internal components and withstands                                 Low profile install: Tap Scheduler mounts
                                                                 6
        regular cleaning.                                                  flush to the wall for a sleek, unobtrusive
                                                                           presence.
LOGITECH TAP SCHEDULER - Zoomtopia
SPECIFICATIONS                                                                                                                         LOGITECH TAP SCHEDULER

                                                                    PRODUCT SPECS

  Dimensions (Total Height x Width x Depth)           Touchscreen                                                 General Specifications
                                                      Size: 10.1” diagonal                                        Sensors: Accelerometer, Ambient light
  Device-only
                                                      Display Type: IPS (In-Plane Switching)                      Mounting Pattern: 100mm x 100mm VESA FDMI
  6.5 x 9.69 x 1.12 in
                                                      LCD Panel with LED Backlighting                             Cable exits: horizontal / vertical / center
  165 x 246.2 x 28.5 mm
                                                      Resolution: 1280 x 800
  0.7 kg (1.5 lbs)
                                                      Viewing Angle: 85° (up/down/left/right)
  Surface mounted                                     Capacitive, 10 points multi-touch
  6.5 x 9.69 x 1.24 in                                Brightness: 400 nits
  165 x 246.2 x 31.4 mm                               Contrast: 1000:1
  Mullion mounted                                     Anti Fingerprint: Oleophobic coating
  6.5 x 11.52 x 1.75 in                               Position Angle: 0 degrees (flat on mounting
  165 x 292.6 x 44.5 mm                               surface)

               POWER & CABLES                                     PORTS & INTERFACES                                       PACKAGE CONTENTS

  Power over Ethernet (PoE), IEEE 802.3af Type 1,     Ethernet: 10/100mbps                                        Logitech Tap Scheduler
  Class 3 device                                      WiFi: 802.11a/b/g/n/ac                                      Multi-surface mount (glass/drywall)
  *Requires PoE enabled network or PoE Injector       Bluetooth 5.0 (inactive, reserved for future use)           Corner mount accessory
  and ethernet cable (Not included)                                                                               Mullion mount
                                                                                                                  Mounting hardware
                                                                                                                  Documentation

           DEVICE MANAGEMENT                            COMPATIBILITY & CERTIFICATIONS                                        ENVIRONMENTAL

  Monitor and manage with Logitech Sync remote       Integrates with Zoom Rooms as a Zoom Rooms                   Operating Temperature: 0 to 40°C
  management and Zoom Device Management              Scheduling Display.                                          Storage Temperature: -40 to 70°C
  platforms.                                                                                                      Humidity: 10 to 95%
                                                     See www.logitech.com/support/tapscheduler-
                                                     compatibility for the latest certification and
                                                     compatibility information.                                                    SECURITY
                                                     Also compatible with Logitech Sync remote
                                                     management platform.                                         Full Disk Encryption: AES-128
                                                                                                                  Data Encryption: Symmetric Keys, PKI
                                                                                                                  Device Identity: Protected by device
                                                                                                                  attestation
                                                                                                                  Key Protection: Arm TrustZone, RPMP

                                               WARRANTY                                                                        PART NUMBERS

                             Ensure peace of mind for the typical depreciation and replacement                    Logitech Tap Scheduler in Graphite
                             cycle of most conference room equipment through the purchase of                      952-000091
                             an extended warranty, which adds one additional year to the original                 Logitech Tap Scheduler in White
                             Logitech manufacturer’s two year warranty.                                           952-000094
                             Contact your reseller for availability.
                             Standard 2-year limited hardware warranty included
