7 NEW STATIONS FOR DUBAI’S 2020 WORLD EXPO

                                The context                                                             Our vision of station architecture involves taking into account the
                                Built on a long stretch of land between the desert and the ocean,       identity of the Red Line while adopting a more contemporary
                                Dubai was chosen to host the 2020 World Expo, which, under the          approach for its extension. Before the study, we carried out an
                                theme «Connecting minds, Creating the future», is expected to           assessment of the existing stations and the feedback we got helped
                                attract 25 million visitors. The Red Line already comprises             us elaborate various optimization scenarios drawing on the operational
                                40 stations, developed between 2000 and 2009 by the Road and            experience and the analysis of current dysfunctions.

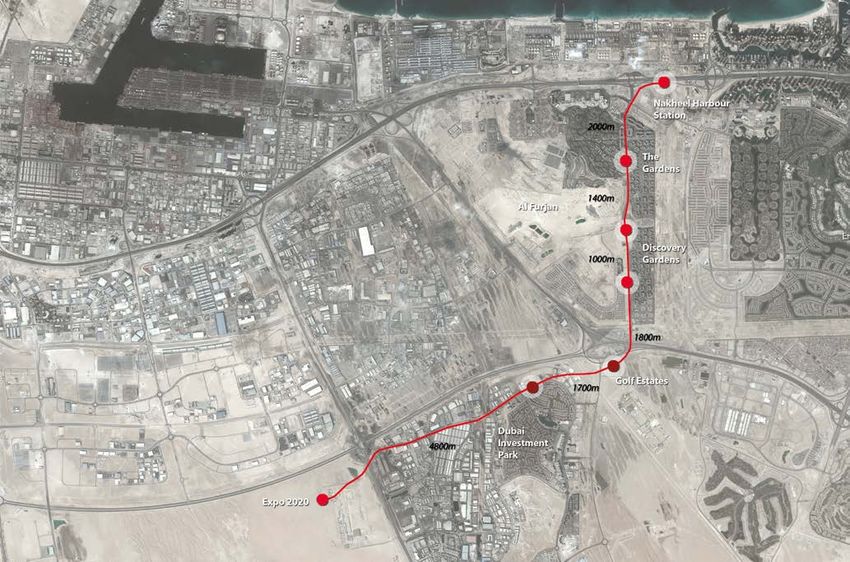

                                Transport Authority (RTA). It will be extended by 14.5 km, with         One of Dubaï’s distinctive features is the extreme climate conditions
                                seven new stations to be delivered by 2019. The project is divided      on the Persian Gulf, which require special architectural design, sun
                                into a 10.5km viaduct section and a 4km long tunnel section. The        shading, choice of appropriate materials, air control strategies and
                                Red Line links together the airport, the historic centre and the        air-conditioned connections between the various modes of transport.
                                industrial port. The extension will eventually serve the new
                                Al Makhtoum International Airport, towards Abu Dhabi.                   Both the assessment and the subsequent optimization study of
                                The new stations are of four different types and respond to different   the Red Line stations helped us identify the three main design-
                                contexts:                                                               related challenges:
                                - a transfer station connecting to the existing line;                   - fluidity and comfort of circulation routes;
                                - three elevated stations on viaduct located in districts with low      - air-conditioning and maintenance principles;
                                  population density;                                                   - signage and retail facilities integrated with the built design.
                                - two underground stations located in a new district under
                                  development;                                                          Methodology
                                - and, finally, the high-profile station of the 2020 World Expo site,   AREP worked hand in hand with Terao, an engineering firm specializing
                                  iconic station of the whole project.                                  in environment and thermal comfort, to implement operational
                                                                                                        patterns and obtain LEED certification. Our tasks also include
                                Our tasks                                                               structural and fluid mechanics studies, circulations, signing,
                                The Road and Transport Authority selected AREP jointly with Parsons     advertising as well as the setting-up of retail outlets, which are
                                and Systra, both engineering consultancies, to carry out the urban      integrated with the built design and are being developed in partnership
                                integration and design and to prepare the call for bids.                with AREP Design.

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                                                                                               5
January 2017                                                                                                                                               www.arepgroup.com
GARE DE L'EXPOSITION UNIVERSELLE 2020 DE DUBAÏ - L'EXTENSION DE LA LIGNE ROUGE DU METRO AVEC 7 NOUVELLES STATIONS - AREP
7 NEW STATIONS FOR DUBAI’S 2020 WORLD EXPO

                                The 2020 World Expo iconic station                                         the tracks. It alludes to the memory of Abbas Ibn Firnas, a Berber
                                The 2020 World Expo station lies in the heart of a master plan             scientist and poet, who, in the ninth century, attempted to fly
                                developed by the Bureau of Exhibitions. The site is built in the desert    from a tower in Cordoba using a machine comprised of a pair
                                south of Dubaï and forms part of the city. It will host pavilions from     of wooden wings. His adventure is now part of the Arab culture.
                                nations across the globe but also housing districts, a shopping centre,
                                sports facilities and later on a conference centre. Travellers coming      The transfer station
                                from the centre of Dubaï will be able to access the site rapidly and       Several scenarios have been considered to transform the current
                                directly. The station on the Expo site must be able to respond to          Nakheel Harbour and Towers station. Finally, it will be partially
                                fluctuating numbers of visitors depending on the events, but also          dismantled to give way to a new station, more suited to accommodate
                                to meet two different types of requirements: copy with 18,000 people       transfer functions and two additional platforms. Only the railway
                                per hour during the six-month World Expo then with less important          viaduct and most of the technical premises will be preserved. The
                                flows corresponding to a normal use of the station.                        station should nevertheless convey the architectural statement of
                                Unlike other stations on the line, it incorporates a third rail track to   the existing sections of the line: the Road and Transport Authority
                                deal with any operational problems that might occur on the main            aspires to preserve the visual unity on Sheikh Zayed Road, along
                                tracks during the World Expo.                                              which the Red Line runs. The roof envelope shelters the elevated
                                As it is an elevated station, it releases all the necessary space          platforms, which can be accessed by air-conditioned passageways
                                required for road infrastructure relating to the Expo as well as for       spanning the road infrastructure on each side of the station and
                                the technical premises relating to the operation of the station. Its       leading north to a large car park and south to a small volume acting

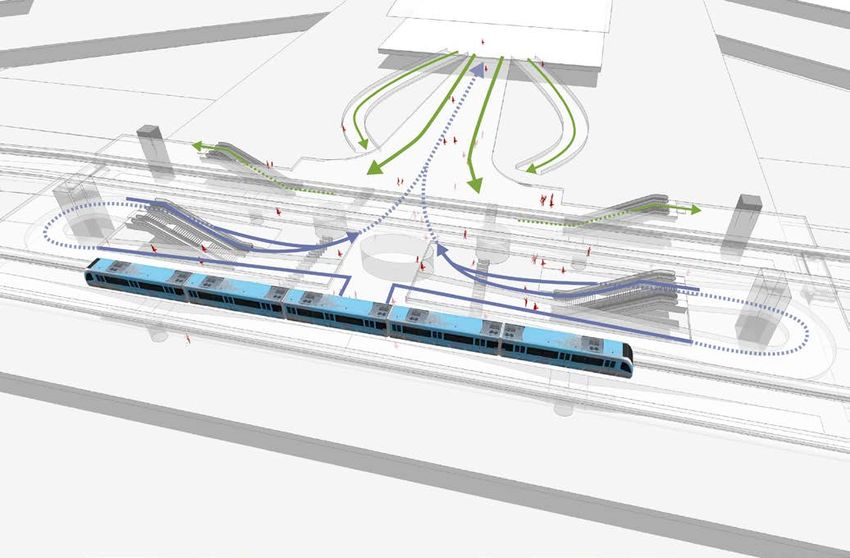

                                elevated main platform is served by a system of ramps providing            as an entrance to the station. The central platform allows for
                                large space for walking and designed to accommodate dense                  transfers from one platform to another while the rest of the
                                passenger flows arriving simultaneously.                                   interconnections radiate from a large mezzanine level under the
                                Alongside operational requirements, the World Expo station needs           south platforms, which also houses ticketing facilities, services
                                to be an iconic building in the eyes of its visitors. The Road and         and retail outlets on its north side. The lower level features a vast
                                Transport Authority chose among the various sketches the                   concourse surrounded by retail stands and a ticket office. Most of

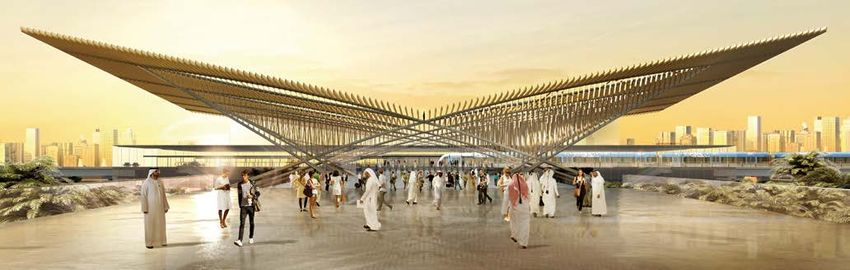

                                one that seduced them by its concept. The canopy roof of the               the travellers arrive by car, bus or taxi as the station is located in
                                station forms two protective, outstretched wings soaring above             a less densely urbanized area.

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                                                                                                 6
January 2017                                                                                                                                                 www.arepgroup.com
GARE DE L'EXPOSITION UNIVERSELLE 2020 DE DUBAÏ - L'EXTENSION DE LA LIGNE ROUGE DU METRO AVEC 7 NOUVELLES STATIONS - AREP
7 NEW STATIONS FOR DUBAI’S 2020 WORLD EXPO

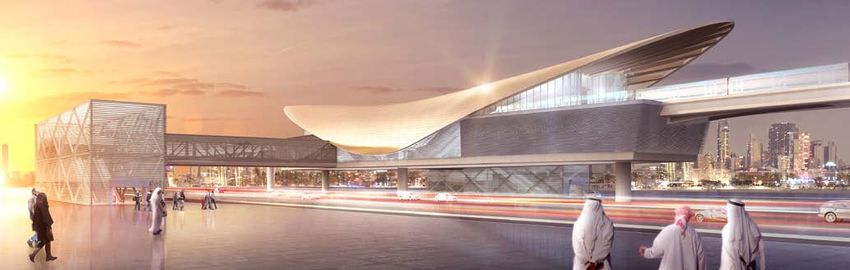

                                The elevated stations                                                   which houses shops, ticket offices and vertical circulations.
                                The Road and Transport Authority retained the concept of reinter-       The intermediate mezzanine level allows views enabling passengers
                                preting in a contemporary and optimal manner the design of the          to anticipate their movements before accessing the lower
                                existing stations. The three elevated stations of the project share     platform level. The project favours natural light and seeks to bring
                                the same typology: the rail tracks are raised 16 metres above ground    it deep down into the lower levels. A large rift of light goes
                                level and both of the central tracks are each served by a side          down from the upper level to the platforms situated several tens
                                platform. The transfer area and the main concourse, which houses        of metres below. Wide, double-height circulations provide passengers
                                ticket offices and shops, are located beneath the platforms, nine       with a sense of space and legible spaces.
                                metres above ground level. This level connects to the passageways
                                accessed by «entrance pods» situated on each side of the street.
                                «Entrance pods» are smaller ancillary buildings, which act as waiting
                                areas for buses and taxis and give access to the station.
                                The slender form of the roof adds dynamism to the building envelope
                                by giving the whole structure an appearance of lightness and
                                emphasizing the longitudinal direction of the movements.
                                                                                                        Schedule:
                                The underground stations                                                Opening of the line in 2019, six months before the World Expo
                                Both of the underground stations are designed according to the          (run-in period)
                                same operational patterns. «Golf Estate» will serve a future real
                                estate development project featuring a shopping centre while            Client:
                                «Dubai Investment Park» will serve an office and housing                Road and Transport Authority
                                development. Two main reasons justify the choice of underground         Project management:
                                stations: avoid conflicts at the road junctions nearby and use the      AREP Ville (architectural study), Parsons, Systra (infrastructure
                                above-ground site for an office development. The stations are           study), Terao
                                accessed at ground level by «pods» located on the sides of the          Delivery:
                                main buildings. They connect to the underground concourse level,        2019

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                                                                                             7
January 2017                                                                                                                                             www.arepgroup.com
GARE DE L'EXPOSITION UNIVERSELLE 2020 DE DUBAÏ - L'EXTENSION DE LA LIGNE ROUGE DU METRO AVEC 7 NOUVELLES STATIONS - AREP
1
               1 - 0028678

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                               8
January 2017                                                                               www.arepgroup.com
GARE DE L'EXPOSITION UNIVERSELLE 2020 DE DUBAÏ - L'EXTENSION DE LA LIGNE ROUGE DU METRO AVEC 7 NOUVELLES STATIONS - AREP
1
               1 - 0032278

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                               9
January 2017                                                                               www.arepgroup.com
GARE DE L'EXPOSITION UNIVERSELLE 2020 DE DUBAÏ - L'EXTENSION DE LA LIGNE ROUGE DU METRO AVEC 7 NOUVELLES STATIONS - AREP
1
               1 - 0032279

DUBAI’S 2020 WORLD EXPO STATION - an extension of the red metro line with 7 new stations
                                                                                                               10
January 2017                                                                               www.arepgroup.com
0    25            50 m
                                                                                                                                                                                                                                                                                                 Gare de l’Exposition Universelle 2020, Dubaï - plan masse

                                                                                                                   Femal staff   Pantry    Public WC                      Paid area          Fare gate   Unpaid Area   Unpaid Area              Faire Gate                 Paid area                    Public WC TelecommucationMale staff
                                                                                                                                                                                                                                                                                                                        room

                                                                                                                      UPS           Transformer room   Transformer room             Fire          Water                       Technical Acces                 Signalling         Chilled Water   AHU Room
                                                                                                                                                                                 pump room      pump room                                                    and comms

                                                                                                0   10      20 m                                                                                                                                                                                                                       Gare de l’Exposition Universelle 2020, Dubaï - coupe transversale

       1
               1 - 0032056
       2       2 - 0032266
       3       3 - 0032060
                                                                                                0   10      20 m                                                                                                                                                                                                                       Gare de l’Exposition Universelle 2020, Dubaï - coupe longitudinale
