EN TENACITY KTM ENDURO RANGE 2021
GRIT AND
DETERMINATION
ULTRA-LIGHT
EXTREME ENDURO
THE KING OF HARD ENDURO
The KTM 300 EXC TPI has been at the moving around a bliss, while the frame allows
forefront of the insane development in the the rider to select a line with instant precision.
highest levels of extreme enduro performance. An innovative and strong 3D stamped exhaust
This nimble, lightweight, all-terrain master pipe, as well as the impressive cooling
fears no obstacle and with the advent of TPI and suspension, all help to make the 2021
technology, has risen to ridiculous new heights. KTM 300 EXC TPI ready for the most
The refined bodywork and ergonomics make extreme enduro challenges.
04
HIGH PERFORMANCE,
THE COMPLETE FUEL INJECTED
TECHNOLOGY
PACKAGE TPI
The Transfer Port Injection (TPI) system features two fuel injectors
which spray the optimal amount of fuel down into the rear transfer ports.
CUTTING-EDGE TWO-STROKES
This downstream injection guarantees excellent atomization of the fuel
KTM’s 2021 EXC range includes the most potent and capable
with the upstreaming air, resulting in highly efficient combustion and
2-stroke enduro weapons available on the market. Refined
significantly reduced losses of unburned fuel. An additional ambient
through years of valuable KTM factory rider feedback, these
pressure sensor guarantees even faster adaption of the system to different
extreme machines are a result of KTM’s unwavering commitment
altitudes, while two selectable engine maps allow riders to get the most
to constant progression. Apart from a dynamic handling chassis,
out of their machines.
all 2-strokes feature revolutionary TPI (Transfer Port Injection)
technology, delivering unrivaled power throughout the entire
rev range no matter what the conditions.
ENGINE
KTM’s EXC 2-stroke engines are designed to satisfy
EXHAUST even the most advanced enduro riders. They feature
The latest exhaust pipes play a key role in the improved a sophisticated power valve system, providing smooth
power delivery and performance of the 2021 KTM EXC and controllable power characteristics. Refined for
range. Designed to conquer the most extreme of trails, the 2020, they are again the center of each model’s
KTM 250 EXC TPI and KTM 300 EXC TPI feature a HD power arch for 2021.
(Heavy Duty) pipe with stiff outer shell, minimal width,
and plenty of ground clearance.
06 07
CHAMPIONSHIP-
FRAME
The latest spec frames
feature ideal longitudinal
and torsional stiffness,
WINNING CHASSIS providing optimal
feedback to the rider,
agile handling, and
exceptional stability.
READY FOR MORE EXTREME ACTION
The 2021 EXC models feature several significant highlights that raise the
bar of enduro performance to extreme levels. The entire range combines
class-leading performance with precise handling and easy maneuverability.
The impressive dynamic of the 2021 KTM EXC models is how well all the
features work together to create race-winning machines of the highest caliber.
GRAPHICS
New, high-quality inlay graphics add some fierce style to the
sharp bodywork of the new EXC range, with contrasting grey
and black decals complementing the striking KTM orange.

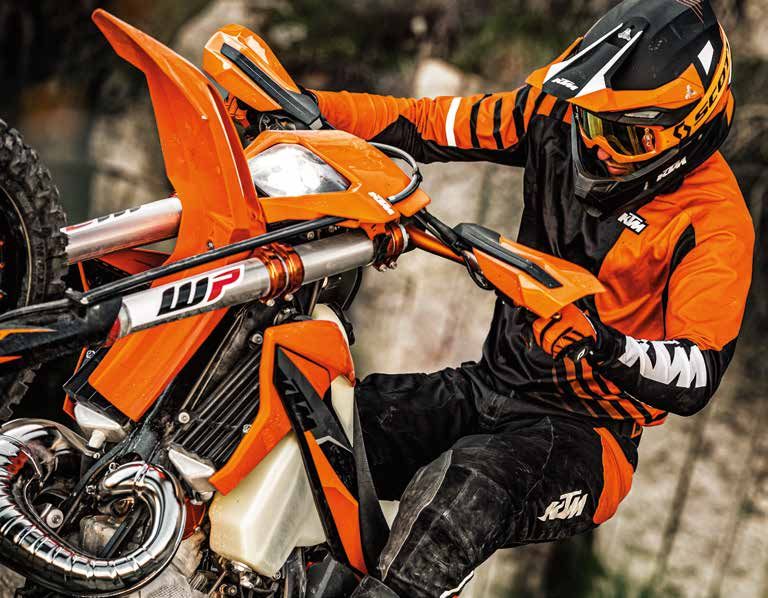

SUSPENSION
Providing optimal suspension characteristics, the
WP XPLOR front fork has received minor updates for
2021. Offering race-proven performance in the most
extreme enduro conditions, it now comes with an
additional preload adjuster that allows for easy setting
changes for varying track or trail conditions.
BODYWORK
The KTM Factory Riders were involved in shaping the
bodywork and the goal of complete harmony between
rider and bike was achieved. The plastics provide
perfect contact points for the rider, maximum freedom
of movement, and improved overall handling.
08 09
RACE-PROVEN
PERFORMANCE
PERFECT BALANCE OF POWER AND HANDLING
The KTM 350 EXC-F has become the power than ever, while advancing even closer
best-selling 4-stroke competition model ever, to the lightweight maneuverability of a 250.
due to its 250-like agility and 450-like power. The basic idea of this bike is easy to see, and
Following years of development, this trail continues to be a recipe for success for those
master has continued to gain in performance, who want a proven race winner.
torque, handling, and agility, delivering more
11
OFFROAD CLASS-LEADING
TORQUE AND POWER
POWERHOUSE ENGINE
Compact dimensions with class-leading power output,
CUTTING-EDGE 4-STROKES KTM’s fuel-injected 4-stroke engines are the most refined
KTM refuses to knock down a gear in its mission to make the EXC-F and powerful on the market. They feature enduro-specific
models the most competitive 4-stroke machines on the market today. exhaust systems, latest-technology electronic fuel-injection,
Low weight, unbeatable torque, efficient engine management, sensitive and several internal components that all help deliver
delivery, and even more reliability have been KTM development efficient power throughout the rev range. These Euro IV
priorities over recent years. Developed for riders of any skill range, homologated engines are the lightest and most competitive
the 2021 KTM EXC-F models are race-winning machines across yet, with an unrivaled power-to-weight ratio.
all offroad racing disciplines.
12
READY FOR THE ULTIMATE EXTREMES SPECIAL EDITION ENDURO MODELS Developed for the gnarliest trails on the planet, special edition KTM machines are the most the flagship KTM EXC SIX DAYS models and the READY TO RACE enduro bikes available on the exclusive KTM 300 EXC TPI ERZBERGRODEO market today. Celebrating the sport of enduro, are here to make the toughest even tougher. they are ready to tackle even the most extreme Boasting the very latest in innovation, these and most demanding races around the globe.
BUILT FOR THE
TOUGHEST CHALLENGE
KTM EXC SIX DAYS 2021
No chain is stronger than its weakest link, Featuring an impressive list of components
so when facing the ultimate challenge, including the latest-spec WP XPLOR forks,
every element needs to be as tough as the CNC machined triple clamps, a map select
rest. KTM knows what it takes to get the switch, and an exclusive design, these
job done and has developed a race-winning models not only look the part, but are ready
package built as tough as they come. for the hardest tests.
SPECIAL FEATURES
> SILENCERS WITH NEW SIX DAYS LOGO
> RIMS WITH NEW SIX DAYS LOGO
> ENGINE GUARD
> FRONT AXLE PULLER
> STEALTH REAR SPROCKET
> RADIATOR FAN FOR ALL 4-STROKES
> HANDLEBAR WITH NEW SIX DAYS LOGO
> SOLID REAR BRAKE DISC
> FLOATING FRONT BRAKE DISC
> ORANGE FRAME
> ORANGE CNC TRIPLE CLAMPS
> ORANGE CHAIN GUIDE
> SIX DAYS SEAT
and many more …
18AS EXTREME
AS IT GETS
KTM 300 EXC TPI ERZBERGRODEO 2021
The ErzbergRodeo Red Bull Hare reinforce its READY TO RACE bloodline.
Scramble in Austria is known to be one of A special tribute to the iconic event, this
the toughest extreme enduro races on the unique bike is ready to take you forward
planet. A truly limited-edition machine, in your journey to conquer the most
the KTM 300 EXC TPI ERZBERGRODEO extreme terrain on the planet.
features a long list of special parts that
SPECIAL FEATURES
> ERZBERG GRAPHICS (XX6) PLUS ORANGE FRAME
> FACTORY WHEELS WITH ANODIZED HUBS
> METZELER EXTREME REAR TIRE, SOFT
> CLOSED HAND GUARDS
> RADIATOR FAN PLUS RADIATOR PROTECTORS
> CNC MACHINED TRIPLE CLAMPS
> FACTORY SEAT
> FRONT BRAKE DISC GUARD
> CHAINGUIDE BRACKET PROTECTION
> SUPERSPROX STEALTH REAR SPROCKET
> PULL STRAPS & OIL PLUG
> CLUTCH SLAVE CYLINDER PROTECTION
> REAR BRAKE SAFETY WIRE
and many more …
2101 04
MADE
A
FOR EXTREMES
KTM PowerWear and KTM PowerParts have been developed to deliver the highest
levels of performance, protection, and agility for both the rider and their motorcycle.
C
02 A COMP LIGHT HELMET 01 LED HEADLIGHT 05
Advanced, lightweight offroad helmet with removable, Intense and extremely robust 1,500 Lumen headlight,
B/D moisture-wicking inner lining and cheek pads. specifically developed for the KTM Enduro range.
B HUSTLE MX GOGGLES 02 SKID PLATE
Advanced performance MX goggles with three-layer Made from special high-strength plastic, the skid plate
fleece foam lining and LEXAN® glass. has been developed to provide the maximum level of
protection at the lowest possible weight.
E C RACETECH SHIRT
Robust quality and lightweight with breathable mesh 03 FACTORY FRONT WHEEL
panels for optimum ventilation, along with raglan-style Anodized D.I.D DirtStar rim, developed to produce
sleeves for added comfort. the ideal compromise between rigidity and flexibility.
D RACETECH GLOVES 04 WAVE SEAT
Lightweight offroad gloves with silicone print for Freedom of movement and perfect grip thanks to the
F better grip, touchscreen functionality, and LYCRA® “wave surface”, which acts as a stepped seat – even
finger sidewalls. though it isn’t one.
03 06
E RACETECH PANTS 05 FACTORY TRIPLE CLAMP
Durable, lightweight offroad pants with perforated Manufactured from the highest-grade aluminum and
ventilation zones, heatproof and abrasion-resistant tuned to produce perfect steering stem stiffness
leather knee reinforcement. and flexibility – adapted precisely to the WP fork.
F TECH 7 EXC BOOTS 06 AKRAPOVIČ “SLIP-ON LINE”
Made exclusively for enduro riding, with a non-slip Akrapovič slip-on silencer offers more power and
two-component sole and a stainless steel heel and torque, uncompromising factory racing looks, and
toe protection. substantial weight savings.
> VISIT KTM.COM TO VIEW THE ENTIRE
KTM POWERPARTS & KTM POWERWEAR RANGETECHNICAL
DATA
KTM 150 EXC TPI KTM 250 EXC TPI KTM 300 EXC TPI KTM 250 EXC-F KTM 350 EXC-F KTM 450 EXC-F KTM 500 EXC-F
ENGINE (LIQUID COOLED)
ENGINE TYPE Single-cylinder, 2-stroke, Exhaust control Single-cylinder, 2-stroke, Exhaust control Single-cylinder, 2-stroke, Exhaust control Single-cylinder, 4-stroke, 4V / DOHC with finger followers Single-cylinder, 4-stroke, 4V / DOHC with finger followers Single-cylinder, 4-stroke, 4V / OHC with rocker arms Single-cylinder, 4-stroke, 4V / OHC with rocker arms
ENGINE MANAGEMENT Continental TPI System Continental TPI System Continental TPI System Keihin EMS Keihin EMS Keihin EMS Keihin EMS
DISPLACEMENT 143.99 cc 249 cc 293.2 cc 249.91 cc 349.7 cc 449.9 cc 510.9 cc
BORE X STROKE 58 mm x 54.5 mm 66.4 mm x 72 mm 72 mm x 72 mm 78 mm x 52.3 mm 88 mm x 57.5 mm 95 mm x 63.4 mm 95 mm x 72 mm
COMPRESSION RATIO - - - 12.8:1 12.3:1 12.75:1 12.75:1
STARTER / BATTERY E-starter & kick-starter system / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah E-starter / Lithium Ion 12V / 2Ah
FUEL SYSTEM Dellorto throttle body Ø 39 mm Dellorto throttle body Ø 39 mm Dellorto throttle body Ø 39 mm Keihin throttle body Ø 42 mm Keihin throttle body Ø 42 mm Keihin throttle body Ø 42 mm Keihin throttle body Ø 42 mm
TRANSMISSION
CLUTCH Wet multi-disc DS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics Wet multi-disc DDS clutch, Brembo hydraulics
LUBRICATION Electronically regulated oil pump Electronically regulated oil pump Electronically regulated oil pump Pressure lubrication with 2 oil pumps Pressure lubrication with 2 oil pumps Pressure lubrication with 2 oil pumps Pressure lubrication with 2 oil pumps
GEARBOX 6 gears 6 gears 6 gears 6 gears 6 gears 6 gears 6 gears
GEAR RATIOS 12:33 15:31 17:28 19:26 21:25 20:20 14:32 16:26 20:25 22:23 25:22 26:20 14:32 16:26 20:25 22:23 25:22 26:20 13:32 16:30 16:24 23:28 23:23 26:20 14:32 16:26 20:25 22:23 25:22 26:20 14:36 17:32 19:28 22:26 23:24 26:21 14:36 17:32 19:28 22:26 23:24 26:21
PRIMARY RATIO / FINAL DRIVE 23:73 / 13:48 (13:50) 26:73 / 14:50 (13:50) 26:73 / 14:50 (13:50) 24:73 / 14:52 (13:52) 24:73 / 14:52 (13:52) 31:76 / 14:52 (13:52) 31:76 / 14:50 (13:50)
CHAIN X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4" X-Ring 5/8 x 1/4"
CHASSIS & BRAKES
FRAME Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4 Central double-cradle-type 25CrMo4
SUBFRAME Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
HANDLEBAR NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28 / 22 mm NEKEN, Aluminum Ø 28/22 mm
STEERING HEAD ANGLE 63.5° 63.5° 63.5° 63.5° 63.5° 63.5° 63.5°
TRIPLE CLAMP OFSET 22 mm 22 mm 22 mm 22 mm 22 mm 22 mm 22 mm
MUFFLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
FRONT SUSPENSION WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm WP XPLOR USD fork, Ø 48 mm
REAR SUSPENSION WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS WP XPLOR shock absorber with PDS
SUSPENSION TRAVEL FRONT / REAR 300 mm / 310 mm 300 mm / 310 mm 300 mm / 310 mm 300 mm / 310 mm 300 mm / 310 mm 300 mm / 310 mm 300 mm / 310 mm
WHEELBASE 1,482 mm ± 10 mm 1,482 mm ± 10 mm 1,482 mm ± 10 mm 1,482 mm ± 10 mm 1,482 mm ± 10 mm 1,482 mm ± 10 mm 1,482 mm ± 10 mm
RIMS FRONT / REAR 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant 1.60 x 21"; 2.15 x 18" Giant
TIRES FRONT / REAR 80 / 100-21"; 140 / 80-18" 80 / 100-21"; 140 / 80-18" 80 / 100-21"; 140 / 80-18" 80 / 100-21"; 140 / 80-18" 80 / 100-21"; 140 / 80-18" 80 / 100-21"; 140 / 80-18" 80/100-21"; 140/80-18"
BRAKE FRONT / REAR Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm Disc brake Ø 260 / 220 mm
DIMENSIONS & WEIGHT
SEAT HEIGHT / GROUND CLEARANCE 960 mm / 370 mm 960 mm / 370 mm 960 mm / 370 mm 960 mm / 355 mm 960 mm / 355 mm 960 mm / 355 mm 960 mm / 355 mm
TANK CAPACITY approx. 9 liters approx. 9 liters approx. 9 liters approx. 9 liters approx. 9 liters approx. 9 liters approx. 9 liters
DRY WEIGHT approx. 96.8 kg approx. 103.4 kg approx. 103.4 kg approx. 103 kg approx. 103.8 kg approx. 105.5 kg approx. 105.6 kg
SIX DAYS & ERZBERGRODEO
SIX DAYS EDITION AVAILABLE SIX DAYS EDITION AVAILABLE SIX DAYS EDITION AVAILABLE SIX DAYS EDITION AVAILABLE SIX DAYS EDITION AVAILABLE
24 EDITIONS AVAILABLE 25IT STARTS HERE
MORE ENDURO
CONQUER
THE TRAIL
There has never been a better time to get onto
a 2021 KTM Enduro motorcycle. With a range of
models to cater to every experience level, as well
as proven pre- and after-sales products, your journey
to new extremes starts here.
More information at KTM.COM/ENDURO
KTM FINANCE
Financing your own dream bike couldn’t possibly be any easier.
With KTM Finance, riding off on a brand new motorcycle is simpler
than you could’ve ever imagined. For each specific motorcycle,
individually tailored financial solutions enable you to race off in no time.
Contact your authorized KTM dealer for more information.
KTM Finance might not be available for all markets.
Please ask your local authorized KTM dealer about the offers and conditions in your country.
27LEGAL DISCLAIMER
Do not imitate! The riders illustrated are professional motorcycle riders. The photos were taken on closed
racing circuits or closed roads. KTM wishes to make all motorcyclists aware that they need to wear the
prescribed protective gear and always ride in a responsible manner in accordance with the relevant and
applicable provisions of the road traffic regulations.
Only the homologated versions of the motorbikes promoted in this brochure are suitable for road use.
The warnings and hazard notices in the owner’s manual must be observed without fail when purchasing
a motorcycle and using it for the first time (especially the prescribed speed limits). Some items in the
KTM PowerParts product line are not approved for use on public roads in certain circumstances (varies from
country to country). Please contact your KTM dealer for further information. The illustrated vehicles may
vary in selected details from the production models and some illustrations feature optional equipment available
at additional cost. All information concerning the scope of supply, appearance, services, dimensions and
weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur;
such information is subject to change without notice. Please note that model specifications may vary from
country to country.
Photos: R. Schedl, H. Mitterbauer, KISKA GmbH
KTM SPORTMOTORCYCLE GMBH © 2020, KTM SPORTMOTORCYCLE GMBH
5230 Mattighofen, Austria
www.ktm.comYou can also read
