Intuvo 9000 GC

Firmware Bulletin

Revision 2.3.3.6
Internal and External use
Intuvo 9000 GC Firmware Bulletin Revision 2.3.3.6 - Internal and External use - Agilent
Document Number D0010909
Intuvo 9000 GC Firmware Bulletin Revision 2.3.3.6 - Internal and External use - Agilent
Contents
About this Document .................................................................................................................................... 4
Document History ......................................................................................................................................... 5
Agilent Intuvo 9000 GC Firmware Support Information ............................................................................... 7
Notes for Agilent Intuvo 9000 controlled by non-Agilent Chromatography Data Systems (CDS) ................ 8
OQ/PV - Validation Information.................................................................................................................. 10
Data Handling Compatibilities. ................................................................................................................... 11
Current Version Changes. ........................................................................................................................... 13
Previous Firmware Versions. ...................................................................................................................... 18
Previous Firmware Versions. ......................................................................... Error! Bookmark not defined.

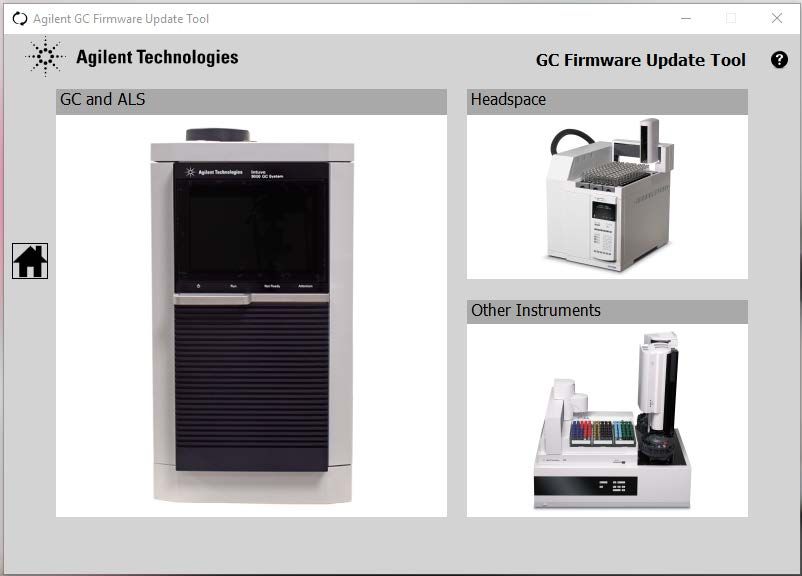

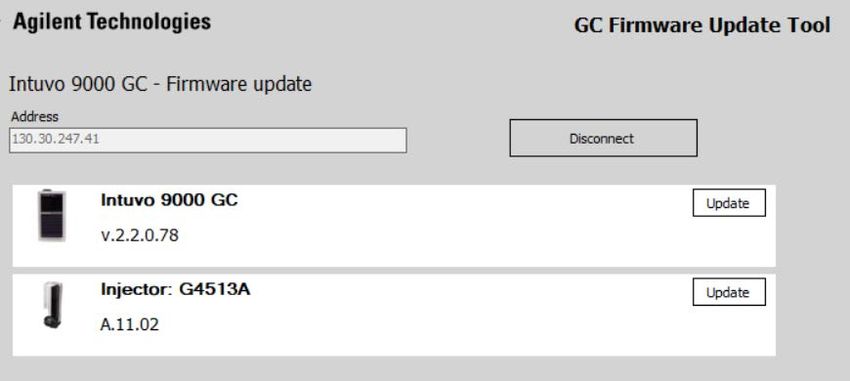

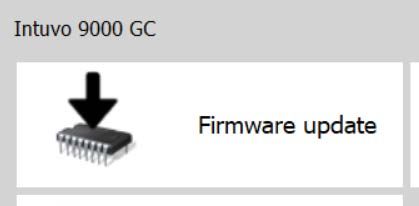

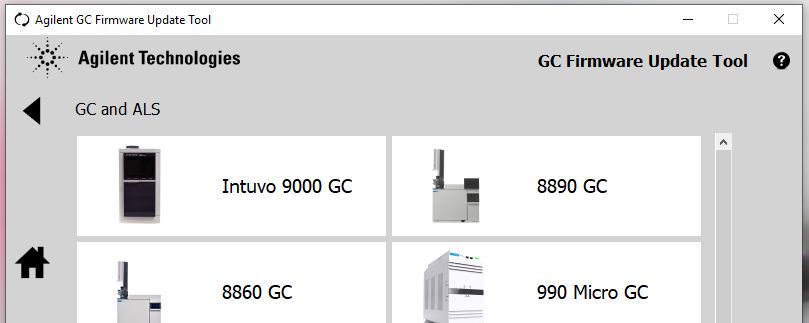

Firmware Update Program. ........................................................................................................................ 44

Document Number D0010909
Intuvo 9000 GC Firmware Bulletin Revision 2.3.3.6 - Internal and External use - Agilent
About this Document

This document provides the firmware changes used for the following GC Systems

          •   G3950A; G3952A; G3953A; G3950AR

Where To Get Latest Information.

The latest Intuvo firmware versions and two previous revisions can be downloaded via
Agilent.com.

Document Number D0010909
Intuvo 9000 GC Firmware Bulletin Revision 2.3.3.6 - Internal and External use - Agilent
Document History

The table below lists all changes that have been made to this document.

 Date               Version                         Description
 15th June 2020     Rev 1.00                        Initial release
 14th September     Rev 1.1                         Added 2.1.1.7
 2020
 10th December      Rev 1.2                         Added 2.2.0.286
 2020
 6th January 6,     Rev 1.3                         Added 2.2.1.4
 2021
 28th January       Rev 1.4                         Added 2.2.2.4
 2021
 22nd March         Rev 1.5                         Added 2.3.0.203
 2021
 22nd April 2021    Rev 1.6                         Added 2.3.1.6
 27th July 2021     Rev 1.6.1                       Added 2.3.2.11
 2nd August 2021    Rev 1.6.2                       Added 2.3.3.6

Document Number D0010909
Compatibility Information

   •   Agilent Intuvo 9000 GC Firmware Support Information.
   •   Notes for Agilent Intuvo 9000 controlled by non-Agilent Chromatography Data
       Systems (CDS).
   •   OQ/PV - Validation Information.
   •   Data Handling Compatibilities.

Document Number D0010909
Agilent Intuvo 9000 GC Firmware Support Information

   •   Agilent recommends using always the latest firmware revision of a firmware in order to
       avoid interoperability issues.
   •   Generally, Agilent recommends keeping the GC instrument firmware always current.

Document Number D0010909
Notes for Agilent Intuvo 9000 controlled by non-Agilent Chromatography Data
Systems (CDS)

   •   The 3rd-party CDS software vendor is responsible for compatibility testing with the
       respective CDS revision.
   •   The 3rd-party CDS software vendor defines the minimum firmware revision required for
       CDS compatibility.
   •   The 3rd-party CDS release notes issued by the respective CDS vendor may use different
       terminology for the firmware requirements such as "tested firmware", "supported
       firmware", "firmware requirements", "minimum tested firmware", etc.

Waters

Waters have recently released their latest Agilent driver, instrument Control Framework
(ICF) Version 2.6 Update 2 in Empower 3

For GC Control: This release adds support for Agilent GC and the 7697A Headspace sampler.
The supported GCs are:

   •   New: 8860 GC
   •   New: 8890 GC
   •   Intuvo 9000 GC
   •   6850 GC
   •   6890N GC (Note that 6890A and 6890+ must have had LAN cards added)
   •   7820 GC
   •   7890A & 7890B GCs
   •   7697A Headspace Sampler
   •   G1888 Headspace Sampler

NOTE - Be careful to not confuse the Agilent driver, Instrument Control Firmware, (ICF) with the
Waters Native driver, ICS, Instrument Control Software.
Both are allowed by Waters and both can be installed on the same system at the same time.

Thermo Fisher

Thermo Fisher have recently released their latest Agilent driver, instrument control software
Chromeleon 7.2

This release adds support for Agilent GC and the 7697A Headspace sampler. The supported
GCs are:

   •   Intuvo 9000 GC

Document Number D0010909
•   6850 GC
   •   6890N GC (Note that 6890A and 6890+ must have had LAN cards added)
   •   7820 GC
   •   7890A & 7890B GCs
   •   8860 GC
   •   8890 GC
   •   7697A Headspace Sampler

Document Number D0010909
OQ/PV - Validation Information

   •   If a firmware upgrade has been performed, normally no revalidation of the
       module/system is required. This is stated in the released Service Note applicable to the
       release.
   •   In addition, this information is stated further on in this document.

Document Number D0010909
Data Handling Compatibilities.

Below is a list of minimum Intuvo Firmware requirements to support Agilent Open Lab CDS
Chemstation (rev C.01.07 and C.01.08). and Open Lab EZChrom (rev A.04.06 and A.04.07)

 Instrument     Model                          Supported Firmware     Notes
                                               Version (minimum)
 Intuvo 9000    G3950A                         A.01.02

Document Number D0010909
Firmware History

•   Current Version Changes.
•   Previous Firmware Changes.

Document Number D0010909
Current Version Changes.

The current shipping firmware for the Intuvo is 2.3.3.6
Released July 2021
http://download.chem.agilent.com/firmware/9000_FW_2.3.3.6.tgz.gpg

To download this version use GC Firmware Update Utility 2.4.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Service Note Number
Changes/Fixes made since the last version. (2.3.2.11)

Issue ID          Title
040619:     Multiple TCD filament broken cases are reported
041452:     Selector: when selector is loading sample, after pressing Stop button on the touchscreen,
the warning message under the selector maintenance should be modified.
041693:      UTC +9:30 time zone unavailable for selection in GC 3.5
041836      System Setup froze on Headspace Configure Interface

Previous Firmware Versions.
This section details previous versions of Intuvo GC firmware giving release notes.

Intuvo FW 2.3.2.11

Released July 2021
http://download.chem.agilent.com/firmware/9000_FW_2.3.2.11.tgz.gpg

To download this version use GC Firmware Update Utility 2.4.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Changes/Fixes made since the last version. (2.3.1.6)

Add Support of the Pyrolizer

Issue ID          Title
041487:      Invalid Leap Year Handling in WSDL
041407:      The applied Bead Current reported in the EMF is different from the Bead current reported
in diagnostics
041448:       Inlet Sampler: LUI shows empty screen after reboot
041597:       System fault n- please reboot - Error code 1000600a and System fault 0x00100000

Document Number D0010909
041601:      Manual Injection data remains on the instrument
041447:      Inlet Sampler: LUI Shows Config Setpoints that should be invisible

Intuvo FW 2.3.1.6
Released April 2021
http://download.chem.agilent.com/firmware/9000_FW_2.3.1.6.tgz.gpg

To download this version use GC Firmware Update Utility 2.4.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Changes/Fixes made since the last version. (2.3.0.203)

Issue ID          Title

41086 Multiple feedback received for Electronics Fault - Error code 1000600b
41233 APG remote on 8890 does not send stop signal when run is done
41273 Intuvo unable to maintain high split with 7697 PID configured

Intuvo 9000 FW 2.3.0.203
Released March 2021
http://download.chem.agilent.com/firmware/9000_FW_2.3.0.203.tgz.gpg

To download this version use GC Firmware Update Utility 2.4.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Changes/Fixes made since the last version. (2.2.2.4)

Enhancements.

Support for the 8697 Headspace Sampler
Instrument Intelligence: Troubleshooting
Support 32 oven ramps and 33 plateaus. Negative ramps will continue to be allowed.

Issue ID          Title

36059   AO events always seem to Signal Zero at time of first AO event
38233   Request addition of BUI method to individual results folders for documentation purposes
38332   Lost connection on downloading detector compensated signal or running sample with this signal
38383   Blank and Detector Evaluation Reports from Browser do not factor in time zone of the browser
39547   Customer reported that front NCD showing wave baseline periodically about 3~4 weeks
39735   Intuvo disconnects from system when column compensation (FID) is selected.

Document Number D0010909
40062 The screen display freeze happened sometimes on multiple GCs when the online signal on touch
screen is selected
40178 WebUI: next line in sequence should be locked during sample overlap runs
40213 LUI maintenance cannot finish normally
40242 Method\Performance\Peak Evaluation, reference chromatogram timestamp are not consistent
with original one
40284 Intuvo touchscreen should not accept IP's with leading zeroes
40765 GatherLogs Status not always returning proper value
40789 Intuvo FID makeup gas flow can't reach setpoint using PPIP
40858 Browser not upload Sleep/Wake changed methods to the browser after changes are made in
Sleep/Wake method in driver
40899 Browser Run Status Injections column shows multiple ALS injections oddly: first is 1 of 1; second
is 0 of 1
41077 OLCDS Sequence table ignores Sample type 'Sample' if injection source is Blank; runs Blank
Evaluation invalidly

Intuvo version 2.2.2.4
Released January 2021
http://download.chem.agilent.com/firmware/9000_FW_2.2.2.4.tgz.gpg

To download this version use GC Firmware Update Utility 2.3.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Service Note Number Intuvo Series GC 032

Changes/Fixes made since the last version. (2.2.1.4)

Issue ID          Title
039547 Front NCD showing Baseline wave.
039735 Disconnects when Column Compensation is selected
038332 Disconnects on download of Column Compensated signal.

Intuvo version 2.2.1.4
Released December 2020
http://download.chem.agilent.com/firmware/9000_FW_2.2.1.4.tgz.gpg

To download this version use GC Firmware Update Utility 2.3.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Service Note Number 9000 Intuvo GC 031A

Changes/Fixes made since the last version. (2.2.0.287)

Document Number D0010909
Issue ID       Title
040505 Need to add Intuvo Quiet Mode to the LUI, Browser, and Driver

Several customers have requested that the emitted noise from Intuvo be reduced, particularly
during cooling. To address this, a new selection is created under "Cycle Time Optimization" and
is called Quiet Mode. When selected, the cooling fans, both column and guard chip, are run at a
lower maximum duty cycle. In addition, the scupper fan is also run at a lower duty cycle and the
maximum temperature for any zone in the instrument is 350C.

Intuvo Version 2.2.0.287
Released November 2020

https://download.chem.agilent.com/firmware/9000_fw_2.2.0.287.tgz.gpg

To download this version use GC Firmware Update Utility 2.3.3.0 or greater.

Updating to this firmware does not require instrument revalidation.

Service Note Number 9000 Intuvo GC 030

Enhancements.

Peak Evaluation.
The self-aware and GC intelligence features of the Agilent Intuvo 9000 and 8890 GC systems
continue to be expanded. With firmware 2.2, an initial version of Peak Evaluation that expands
the GC Performance section of the methods to allow users to enter chromatographic attributes
for monitoring on up to 10 peaks in sample chromatograms is released.

GC Browser Phone Interface

A browser interface optimized for mobile viewing on either iOS or Android phones now
provides status information including remaining run time and a static plot of the last 20 minutes
of detector data.

New Updated GC Specifications

The following GC specifications for Intuvo 9000, 8890 and 8860 have been updated to help
make you more competitive in bids/tenders. Note: MMI is for Intuvo 9000 and 8890 only.

                   OLD Agilent GC     NEW Agilent GC
                                                          Shimadzu 2030       Thermo 1310
                   Spec               Spec
Max Inlet Split
Ratio              7,500:1            12,500:1            9,999.9:1           12,500:1
(SSL, MMI)

Document Number D0010909
Max ECD Data
                     50 Hz                500 Hz               500 Hz               300 Hz
Rate
Max FPD+ Data
                     200 Hz               500 Hz               500 Hz               300 Hz
Rate

Added Security to Set Browser UI PIN At Touchscreen

A PIN must be used at the Browser to enable it to connect to a GC. The PIN is set at the GC
touchscreen.

    •   The previous GC firmware allowed up to 4 numerical digits to be entered for a PIN

    •   The new firmware (rev. 2.2) allows up to 4-8 numerical digits to be entered for a PIN if
        additional security is desired

Changes/Fixes made since the last version. (2.1.1.7)

Issue ID          Title
035788 Oven cryo timeout can only be cleared by power cycling the GC.
035046 User validation of Static IP information.
037468 Minor adjustment for button on IE browser.
038094 Sequence Name not displayed on LUI for CDS Headspace Sequences.
038216 Request addition of 'pause sequence' button in BUI.
038335 WebUI: column dimensions displayed incorrectly after being changed.
038635 Using Signal Events from Browser causes no data at all to be collected for that signal (Freeze
and Resume).
039243 Excessive Safety Flow Shut off with all gasses needs to apply just to H2.
039536 Change MS network setting behavior from the LUI.
039749 Modify GC Access PIN to allow for 4 to 8 digits.
039968 Aborting sequence from LUI while a vial is in the heater will cause subsequent runs to fail with
tray error.
040168 Browser UI- Unable to select Load Default Setpoints.
040171 Split Vent Restriction Test - wrong valve appears to be controlled.
040212 NO "Resume" button display after click "Pause".
040410 BUI Help_some linkage are wrong linked

Document Number D0010909
Intuvo 9000 GC FW 2.1.1.7
    Released August 2020 (not released to manufacturing - Hot Fix only)
    https://download.chem.agilent.com/firmware/9000_fw_2.1.1.7.tgz.gpg

    Updating to this firmware does not require instrument revalidation.

    Service Note Number Intuvo 9000 Series GC 027

    Changes/Fixes made since the last version. (2.1.0.626)

    Issue ID          Title
    039345 Inlet bleeding pressure at end of run even if Purge time is set to 999.99. In version
    2.1.0.626, if the purge time was set to 999.99, the inlet would bleed pressure at the end of the
    run.
    039367 User is unable to enter the Inlet Maintenance from the LUI. Selecting the Inlet tab will
    revert you back to the previously entered field and not the inlet field.
    039370 Browser: User Configurable Heater Parameters under Service Mode
    039401 8890A Inlets Maintenance screen is wrong
    039427 Unable to download inlet PID from the LUI.
    039458 Help does not find any hits when searching

    Previous Firmware Versions.

    The current firmware for the Intuvo 9000 is A.02.1.0.626.
    Released June 2020
    Released using Service Note 25
    Updating to this firmware does not require instrument revalidation.

    Below is a list of Enhancements introduced or defects fixed that were present in previous
    firmware versions.

Team Track #                     Description

036061         Oven cools when front door is opened (should be bus door instead)

036302         Touchscreen Plot requires 1,000,000 du to display full first peak of test plot

036435         Touchscreen Settings\Calibration\Oven should show Oven Actual

036599         LUI events table signal drop down

    Document Number D0010909
036643      Signal source table blank until uploaded from instrument

036647      Cannot add Signal events to the Signal Events Table

036786      Automated blank run analysis does not occur with power cycle

036834      WebUI vial location in status bar

036851      Carrier gas type consistency with Helium Conservation Module

036923      Abort sequence from LUI

036928      Injection Dispense Speed sometimes doesn't match between LUI & DSA

036930      Sets default setpoints for all configured modules when new hardware is installed

036935      BUI has incorrect bounds for sample overlap

037015      LUI Plot calls Detector 2 connector temperature 'Jumper Temperature'

037246      Touchscreen needs a context Help topic 'About this screen' for Oven Cycle
            Optimization

037247      Unable to run method with oven turned OFF due to readiness

037256      No need "Apply" button in Setting > System Setting > About screen

037275      LUI shows front/back for tray calibration

037289      No System Log message produced when system in Sleep state is woken by sending
            a method to the instrument from the BUI

037290      Won't upload certain thermal diagnostic signals from GC

037328      Power Fail test case. Automated blank run appears to be suppressed while
            connected to the data system

037362      Oven Standby - Guard Chip Temp and Standby Max Temp parameters require
            adjustment

037364      Oven Standby - Autoclean should be invoked upon exit from standby if it is
            specified in the method and the standby temp is over the autoclean temperature
            threshold

   Document Number D0010909
037401      Browser Method enables all setpoints for Tray Vial Heating and Vial Mixing when
            these options are disabled

037403      Browser Tray Vial Heating and Mixing setpoints accept out-of-range entries
            without complaint; declare them downloaded when they aren't

037422      Truncation in error message upon Inlet Pressure Zero calibration failure

037427      Touchscreen should show a Tray Parked condition as a pop-up, not just a Not
            Ready condition

037441      WebUI flowpath not correct with a 1:1 splitter D1:MS

037442      MSD connector temperature missing from LUI and WebUI

037448      Touchscreen Vial Heater temp requires re-entry after setting offset in order to
            reach readiness

037449      Touchscreen should change label for Chiller Readiness to 'Use Chiller Ready (or
            Readiness);

037450      Touchscreen GSV Loop and Inject Times allow 0 incorrectly

037454      Browser does not display configured MPV position on its Valve page

037455      Touchscreen events offers Valve event for now-invalid GSV

037500      Intuvo boots up with empty LUI screen.

037519      Cannot setup bus type

037527      PSD Purge Flow Reduced diagnostic condition should clear automatically

037531      Intuvo detector fault does not turn zone heater off

037563      Bounds for MMI cryo wrong

037594      Method resolution after updating firmware

037621      Intuvo 2.0 stuck in pre-run with "Inlet flow not ready" error, but flows and
            pressures appear to be correct

037650      Incorrect conversion value (psi vs kPa) in Gas Plumbing of 9000GC Web Help

   Document Number D0010909
037663      Intuvo thermal sensor erroneous 'open' reading

037694      Smart Key write error

037695      Inlets/Guard Chips not working with recent firmware

037696      9000 Instrument Smart Key Write Error

037706      Startup Behavior with Cryo Valve

037707      High CPU usage.

037749      9000 LUI Settings\Calibration ALS/Tray is devoid of spatial values

037823      Intuvo guard chip fan ON while heating, unable to reach temp, causes thermal
            fault

037869      9000 with 2 detectors Browser shows configuration diagram as railroad map, not
            icons

037870      9000 MPV Failure diagnostic condition cannot be exited from the browser; circles
            back to condition

037895      9000 System Fault message on touchscreen after starting sequence

037899      Headspace transferline accessory configuration doesn't stick

037945      Column flow actual not correct in constant flow mode

037991      Intuvo GC NCD: burner temperature fluctuated and could not get ready

038083      Running a sequence on Intuvo 9000, unit goes into 'Cooldown' and sets oven
            temperature to 0 (can't get there)

038229      Too Many Run Logs

038270      Inlet leak & restriction diagnostic test on 1:1 inlet splitter to 2 columns makes an
            incorrect calculation

038298      Method tab of Browser UI is blank on 9000 (displayed properly on 8890) and lines
            cannot be added to Sequence

038346      System fault on Intuvo and 8890 (fault code 0x00002000, error code 1000600a)

   Document Number D0010909
038415      Changing temperature setpoints in BUI method causes the flow setpoint to change

038428      LUI "Cancel" button to leave loading screen is not functional

038466      9000- Post Run flows are not being properly set.

038467      Internal Error During Instrument Configuration Removing PSD

038471      Intuvo Column connector heating too slowly

038737      "Select Method" drop-down boxes in Method and in Settings\Manage Reference
            Chromatograms often require a BUI refresh in order to open

038741      Intuvo Browser Oven Ramp Line Editor has no labels for Rate or Value

038743      Extending run from Intuvo touchscreen does not log extension in Run Log of any
            interface

038762      Intuvo oven standby parameters cannot be changed from BUI
            Method\Configuration\Miscellaneous (8890 is unaffected)

038766      9000 MS Mid-Column BF Perform Maintenance procedure includes Step 27 to
            'turn on the Mass Spec' for Col 1, even though it wasn't off

038769      9000 Bakeout for MS Mid-Column Perform Maintenance begins before temp is
            reached.

038778      9000 MS Mid-Column BF Perform Maintenance procedure stalls at Step 14 of 30
            with blank screen

038790      Intuvo MS Mid-Column Perform Maintenance procedure repeats message of
            Waiting for Zone Temps multiple times in touchscreen while waiting for ready
            during Bakeout

038811      Browser uploads Signal Event times incorrectly

038814      9000 Power User Mode ranges for Detector Tail Temp and Column Connector rate
            are inconsistent with test case

038855      9000 Browser does not include any valve configured as 'Other' in Run time Events
            position; Other does not upload to browser or DSA from touchscreen

038857      Intuvo touchscreen offer new MPV Maximum Position; If this option is valid, the
            range of 1-99 is incorrect, should be 1-32 as for any other valve

   Document Number D0010909
038858      Intuvo Browser offers new MPV Maximum Position; If this option is valid, the
            range of 1-99 is incorrect, should be 1-32 as for any other valve

038859      Intuvo Browser GSV method Valve Setpoints dialog should not include On
            checkbox

038867      Intuvo DSA does not upload or Save any MPV (or Other) Valve Runtime Events

038879      9000 Touch Screen and Browser UI- Not tracking the number of injections for the
            Bead and the ceramic insulator injecitons

038911      Function: Intuvo Browser UI: Incorrect error message when trying to save an
            empty sequence

038914      Browser UI -Navigation Pane is empty for the 9000 and the 8890

038915      Run time events are not working.

038932      No MS signal is collected if a vial is missing from the tray and the "Retry" function
            is used

039016      Intuvo Browser Event table shows incorrect position range for configured MPV: 0-
            30; should be 1-max position

039057      One inlet to two columns-incorrect total flow

039059      Tray is not display in BUI

039075      BUI Could not run reference chromatogram if 9000 configured with tray

039161      BUI display blank if enter IP in the Browser

039169      Manage Reference Chromatograms is still available in the Browser UI

039174      Touchscreen GC's hold ownership until rebooted

039192      XCD Quick start Oxidizer range

039277      Making a run when EMF values have exceeded warning or service thresholds
            causes those thresholds to be disabled

039115      Disc Storage Full Up Warning pop up with 88x0 GC

   Document Number D0010909
2.0.2.8 Intuvo GC Firmware

Released January 2020
Service Note - 24
Updating to this firmware does not require instrument revalidation.

Team Track #               Description

037889         Integrated SCD: Column (Actual) not matching the set point

037925         Intuvo XCD not using burner pressure for flow calculations

037958       Intuvo updated to 2.0 firmware now unable to connect to OLCDS when splitter flow chip
between D1 and MSD installed.

2.0.0.391 Intuvo GC Firmware

Released October 2019
Service Note - 23
Updating to this firmware does not require instrument revalidation.

Team Track # Problem Description
32058          Stop Press from LUI does not stop Acquisition.
32396          Overlap injections uses only the injection volume from the first injection for subsequent
injections.
33576          Method parameters are not locked when they should be.
34840          Retry doesn't work on non-overlapped runs.
35160          EZChrom: RETRY again not working.
34926          Oven Standby parameter included.
35323          Trap Heater PID update.
35366          Valve 1 defaults to a GSV but customer needs it to be used as a switching valve.
35444          Support for 3rd-party Intuvo columns.
35489          Column Connector Temperature errors after power cycle.
35490          Chromeleon: ALS Recoverable error RETRY not working.
35913          Diagnostic signals for heated zones.
35740          Support for second FID Heater added.
35996          Intuvo Browser Interface Help not displaying.
36033          USB ports aren't enabled.
36085          Guard Chip/Bus Temp set to OFF prevents Instrument Ready.
36574          Cable G4580-60733 LSIB Signal Cable might have caused longer retention time and FW
2.0.187 could not detect its malfunctioning.
36913           SSL not reporting "heating too slowly" when TC shows no change in Temperature.
36922           Review response time in FID/SSL heating too slowly fault.
37073           Power Line Voltage Behavior modified.
37147           Post-column backflush flow limits on LUI.
37158           D2 Post-column backflush fails leak & restriction diagnostic test.
37225           Sequence volume injected are offset by one.

1.0.4.399 Intuvo GC Firmware

Document Number D0010909
Released November 2018
Service Note - 17
Updating to this firmware does not require instrument revalidation.

Issue ID         Title

  Team Track #                  Title                               Description of failure
  026894            Alignment failure on tray      The tray internal alignment can be started by
                    should be reported by          pressing a button on the tray. It would be useful
                    Intuvo.                        to be able to report the results of the alignment
                                                   on the LUI.
  026979            Intuvo LUI Disk Space          From the LUI, select Settings\System
                    Settings options are unclear   Settings\Disk Space Settings. There are two
                                                   options:
                                                   - Min Available Disk Space (range 15-75%)
                                                   - Max Data Age (1-infinity days)
                                                   It is not intuitive what to do with this screen.
                                                   User would expect to set a Maximum disk space,
                                                   not a minimum, as in PC event log settings. the
                                                   disk is full.

  027166            Intuvo with configured and     Configure a MPV in position 7 and a GSV in
                    present MPV and GSV is         position 1. The GC is always Not Ready, with
                    always 'Not Ready'             these two valves noted in conditions as 'Not
                                                   Ready'. Cannot start a run to this instrument
                                                   because of these conditions which never resolve.
  027296            Cosmetic: 9000GC- Lower
                    part of Mode button is cut -
                    off.
  027297            Cosmetic: 9000GC
                    _Pneumatics mode setting
                    are not aligned.
  027298            Cosmetic: 9000GC _Valve
                    setting are not aligned.
  027299            Cosmetic: 9000GC _Valve
                    setting of Configuration
                    Misc. are not aligned.
  027300            Truncation: 9000GC - The
                    unit is truncated.
  027301            Truncation: 9000GC - The
                    unit is truncated. -
                    Method_Active Method
                    _ALS_ Speeds page.

Document Number D0010909
027302          Truncation: 9000GC - The
                  unit is truncated.
                  Method_Active
                  Method_Columns _Column 1
                  page.
  027303          Truncation: 9000GC - The
                  unit is truncated.
                  Method_Active
                  Method_Detectors_Flows
                  page.
  027304          Enhancement: Unit are            1. Start up the 9000GC.
                  hidden. Move units to            2. Open the Method
                  column header.                   3. Click the Edit of Active Method.
                                                   4. Click the Valve.
                                                   5. The unit of Load time, injection time is
                                                   truncated.

  027305          Truncation: Front inlet page
                  has truncation -
                  Setting_Calibration_Inlets
                  page.
  027339          Intuvo LUI Calibration\ALS
                  date/time stamp text box is
                  too narrow, truncating entry
  027390          Intuvo: Turning Det temp off     From the LUI, turn off the detector temp. The
                  from LUI shows Not Ready         Status goes Not Ready incorrectly, Detector
                  until Filament or Bead is also   Temp Waiting, and will not go Ready until the
                  turned off                       Bead or Filament is also turn off.
  027398          Intuvo Edit Method\              Collision cell with BF. Select Method\Edit Active
                  Collision Cell et al table       method\ Columns\Collision Cell. The headings
                  headings do not line up with     for the ramp table do not align with the columns
                  columns                          beneath them.
                                                   True also for PSD Backflush Restrictor ramp
                                                   tables.
  027417          Intuvo Service Mode ALS
                  Serial ID text fields are
                  truncating contents
  027422          Intuvo Clock Table Time
                  entry has no range displayed
  027452          Intuvo LUI Calibration Oven      From the LUI, select Calibration\Oven\Offset.
                  Offset offers and enforces no    There is no range offered or enforced. 7890
                  temp range                       under Options\Calibrate\Oven shows Correction
                                                   with a range of -10 to 10oC, if this is the same
                                                   thing. Info there says, 'Difference between
                                                   sensor and measured temperatures'

Document Number D0010909
027473          Intuvo with AIB shows no         Intuvo configured with AIB to NCD standalone,
                  detector in flow path for LUI    there is no detector of any kind displayed in the
                  and web UI                       appropriate spot of the Flow path on the LUI
                                                   Home screen or the web UI. The driver displays
                                                   this correctly as D1 AIB in its flow path.
  027491          Intuvo: Gas type changes         From Config\Inlet, change the gas type and save.
                  require reboot to affect         Setpoints that should change within Inlet, etc. do
                  method ranges                    not change their ranges until the GC is rebooted.
                                                   Ranges are now correct after a reboot.

  027516          Intuvo LUI offers no way to      From the LUI, select Settings\Tools. The 4
                  view Column Comp Profile         Column Compensation profiles have no way to
                  length, if data exists           view the Run length and the Recorded length of
                                                   that profile. 7890 keypad offers this info by
                                                   scrolling to the date/time of any given Col comp
                                                   profile, then pressing Info.
  027552          Intuvo LUI text boxes for all    LUI Method Edit text boxes for all flow setpoints
                  flows are too narrow,            and actuals, no matter what inlet or detector are
                  truncating the units 'mL/min'    too narrow, truncating the 'mL/min'.
  027554          Intuvo LUI Method edit           LUI Method Edit Detectors should display the
                  should display the Column        Column Flow with the configured inlet gas type
                  Flow with the configured         (read-only), as a user help. This is also important
                  inlet gas type (read-only), as   because when the gas flow correction is set to
                  driver does; this value is the   Column + Makeup = Constant, the column flow
                  lower limit when                 becomes the lower limit of the Makeup flow.
                  Col+MU=Constant flow
                  correction
  027576          Intuvo does not support hot-     Currently, if a Smart Key is plugged in for a new
                  swapping bus plates of           bus plate type, a warning is raised to the user
                  different types                  that they need to power cycle the instrument.
  027588          MSD Tail temperature has         in status screen, check MSD status, on the top,
                  truncation on the status         the MSD Tail Temperature truncated. it should
                  screen                           show "250 oC" but "C" is truncated and cannot
                                                   be seen.
  027603          Solvent wash icon truncation     Go to settings > system settings> system setup
                  in system set up wizard ALS      wizard
                  config screen                    Go to step of ALS config, the solvent wash mode
                                                   icon truncated on top/bottom

Document Number D0010909
027635          Intuvo Sample path status         While the status within the method for FID and
                  does not show intermediate        probably other detectors show intermediate
                  flame, et al states: waiting,     flame states such as Waiting, igniting, Slewing,
                  igniting                          etc., these do not display on the Home sample
                                                    path view. Only Lit/ Not Lit indicators.
                                                    The web UI still uses words 'Not Lit/Lit' while the
                                                    LUI uses a colored flame or a slash across the
                                                    flame, but I think the web UI does not show the
                                                    intermediate states either.
  027639          Intuvo MS LUI Reboot, Vent,
                  Pump Down all display
                  truncated messages when
                  selected
  027698          Intuvo with PSD: LUI's text
                  boxes truncate the values
                  given for Pneumatics
                  Average Velocity and Holdup
                  Time
  027739          The Pre-run Flow test mode
                  in LUI is inconsistent with the
                  software interface
  027753          Intuvo LUI: Runtime events        From LUI, select Method Edit\Events. Add a
                  table time cell has no range      Detector polarity event. The time cell has no
                                                    range.
  027799          Intuvo: LUI Method Edit is        Configure Valve 1 and 5 as GSV's, 6 as Switching,
                  activating Position options       7 as MPV, 8 as Remote Start, Save. Select
                  for non-MPV's; Load and           method edit and the Position, Load, and Inject
                  Inject times for non-GSV's        Time columns and box are active for all valve
                                                    types with range of 1-32, times .01-999.99 min.
                                                    Load and inject times are valid only for GSV's.
                                                    Position is only valid for MPV.

  027806          Function: In System Health        In System Health Report, Diagnostic test results
                  Report, Diagnostic test           are not sorted by time.
                  results are not sorted by         This issue occurs both in WebUI and LUI.
                  time                              Either Ascending or descending is fine, but It is
                                                    preferable that Instrument Alerts, Diagnostic
                                                    Test Results and Installation History are sorted in
                                                    the same direction.

  027823          Intuvo Configuration HS           From LUI, select
                  labels should match 7697          Settings\Configuration\Headspace. Connect to a
                  LUI, On Time needs a unit         7697 that has been configured to communicate
                                                    with the GC. Label 'Total Cycles' shows as 'Total
                                                    Injections' on 7697 LUI. (Service
                                                    mode\Diagnostics\Instrument Status.)
                                                    'Total Uptime' is shown as 'On Time' on LUI. This
                                                    cell needs a unit: days.

Document Number D0010909
027836          XCD column outlet pressure     The Sulfur and Nitrogen Chemiluminescence
                  not correct                    Detectors (8255 & 8355) run under a vacuum
                                                 and the flowpath outlet pressure on Intuvo must
                                                 be able to be set accordingly.
  027847          LUI: Keyboard shift is caps-
                  lock
  027899          Intuvo: LUI does not change    From the LUI, select Method edit\Inlet. Select
                  lower limit of MMI Solvent     Solvent Vent mode. The lower limit of the Purge
                  Vent's 'Purge Flow to Split    Flow to Split Vent end Time should be whatever
                  Vent end time' to the Vent     is set as the Vent end time.
                  end time
  027900          Intuvo LUI does not            From the LUI, set Oven ramp to 210 oC, Intuvo
                  automatically set Bus Temp     Bus Temperature to On Use Default. This does
                  to highest oven ramp temp      not automatically set the Bus Temp to 210, as it
                  with Use Default On            should, even after applying. It does, however,
                                                 upload to software and then downloads
                                                 correctly from software.
  028043          Intuvo LUI for BF Restrictor   Intuvo configured for post-column backflush.
                  in Ramped modes does not       From the LUI method edit for column\Backflush
                  limit the final time to oven   restrictor, select Ramped pressure or Ramped
                  run time; also, inlet ramps    Flow mode. Add three ramps that exceed the
                                                 oven run time. The final time is not limited by
                                                 the oven run time max (as it is in the driver.)
                                                 Upload to the driver and it is limiting the time;
                                                 download from driver does not overwrite the
                                                 LUI's incorrect max time.
                                                 True also for Inlet ramps.

  028078          LUI Does Not Refresh the
                  Page When Walking Through
                  an Inlet Maintenance Item
  028298          Intuvo LUI: Should Oven        From the LUI, select Settings\System
                  Calibration be exposed to      Settings\Calibrations\Oven. Should this be
                  user?                          exposed to the user? Apparently, it is
                                                 complicated and may need to be done by Agilent
                                                 personnel. If it should be exposed, there should
                                                 be context Help accompanying it.
  028528          Intuvo requires                From the LUI, select
                  uncheck/Apply, then            Configuration\Detectors\Reboot the MS. When
                  recheck/Apply of MS Enable     the blue indicator light on the MS signifies it has
                  Communications checkbox in     completed, the communications is not re-
                  order to re-establish comm     established. I must uncheck the 'Enable
                  after LUI reboot of MS         Communications' checkbox, Apply, then check
                                                 the box and Apply in order to re-establish comm.

Document Number D0010909
028533          Intuvo: setpoints that are Off Set any temp, pressure or flow to uncheck (off).
                  should say 'Off' in LUI Actuals Select to view in LUI Actuals. The setpoint does
                                                  not show 'Off', but rather the value entered as if
                                                  it was on.
  028542          Intuvo and 7010 MS in MH
                  are not recognized on
                  selection of Parts Finder in
                  DS
  028551          Headspace aux heater temp       Headspace aux heater temperature range in the
                  can be set but the range is     input pad shows as 0-450C, but actually we can
                  not correct                     only set temperature below 220C.

  028735          LUI Plot does not Draw           LUI Plot does not Draw Vertical Red Line and
                  Vertical Red Line and Reset X    Reset X value to 0 at start of a new run.
                  value to 0 at start of a new
                  run
  028790          Intuvo LUI Run Status is now     Start a run of any injection source (ALS, valve).
                  green "Run - Ready'              Traditionally, run state has been blue. Now it is
                                                   green with text 'Run-Ready' or yellow 'Run-Not
                                                   Ready'.
  028793          Intuvo DComm MSD type is         From the LUI, select
                  not saving at LUI                Settings\Configuration\Detector and select and
                                                   Apply the MSD type. Select away and return. The
                                                   MSD type is empty.
  028886          LUI Actuals on Actuals and in
                  method edit shows active
                  FID signal as 0 pA
  028895          Check for a change in value
                  before sending actuals is
                  missing in the detector
                  endpoints (except FID)
  028903          Intuvo LUI method edit           Run MDL sample using Detector signal, 50 Hz.
                  shows no actual data rate;       The LUI Actuals shows data rate of about 8.6 pA.
                  only 'Lit'                       However, select LUI's Method edit\Detectors
                                                   and the Detector shows only 'Lit', but no data
                                                   rate
  028904          Intuvo LUI Plot is not           Run MDL sample with detector signal selected.
                  displaying any signals; Start    From the LUI, select Plot and select any signal,
                  Plot makes no changes to         detector or diagnostic, set x and/or y axes, and
                  axes. Start Plot appears to be   start Plot. X and Y axes do not change. No signal
                  not working                      is displayed.
                                                   Start Plot appears to not work.

  028920          Intuvo LUI allows reset of       From the LUI, select Maintenance\Instrument.
                  Instrument On Time, Disk         All of these EMF's are resettable.
                  Usage EMF's

Document Number D0010909
028925          Intuvo has no EMF's for Mass   From the LUI with 5977A, select
                  Spec                           Maintenance\Mass Spectrometer. There are no
                                                 EMF's listed. This causes Maintenance in DSA
                                                 (MH) to never load any EMF's at all to software.
                                                 Web UI for the 5977A also shows NO EMF's or
                                                 listing for the MS. 5977B shows for all MSD 1
                                                 EMF's: 'Type undefined not supported yet'FW

  028926          Intuvo Actuals for Intuvo in   Set oven and MS Transfer lines to 100oC, inlet
                  MS Shutdown do not update      pressure on. Un-cable the LAN from the MS to
                  setpoints for oven and         create an MS Shutdown after about 15 minutes.
                  transfer line temps            GC Vent method was loaded. After shutdown,
                                                 LUI Actuals shows the setpoints for Oven and
                                                 Transfer lines correctly as OFF. However, web UI
                                                 does not.
  028927          LUI Startup Hangs              In attempting to perform a full build of
                                                 A.01.03.075, the build system hangs indefinitely
                                                 waiting for the LUI startup script to finish. The
                                                 LUI screen comes up, but with the "Feature
                                                 Tour" screen empty. The LUI startup script never
                                                 exits. System halted.
  028929          Intuvo: LUI Method edit        Turn on all NPD flows and temps. These reach
                  Detector Flow Actuals show     readiness as displayed on the LUI Actuals and the
                  as 0 mL/min                    Web UI. However, method edit Actuals do not
                                                 update, showing Oxidizer, Fuel, and Makeup
                                                 Flows as 0 uL/min.
                                                 True also for FID, ECD, TCD...
  028952          MMI Cryo valve type should     The MMI Cryo type field in configuration is
                  not be a selectable field.     currently a pull-down menu with selectable
                                                 options. This field should just display the type
                                                 that is currently installed since the user cannot
                                                 change this from the front panel. It requires a
                                                 physical change to the hardware. When
                                                 the N2/Air version is introduced there can be a
                                                 selection for which gas the user decides to use.
  028960          Intuvo blank run after power   Start a 10 min run with all temp, pressure, and
                  fail loads default method      flow zones on. (MH B.07.06.2701 on CBC-MH).
                                                 During the run, power off the GC at the switch
                                                 on the back. At power on, a blank run begins
                                                 immediately, but it is 999 min long with no
                                                 temps, etc. on.
  028961          Intuvo Status shows green      Start a 10 min run with all temp, pressure, and
                  'Status: Run, Waiting for      flow zones on. The LUI status is green and reads:
                  Prep Run' during a run         'Status Run - Waiting for prep run'. The time is
                                                 counting down and the run light is on. DSA also
                                                 shows the time counting down.

Document Number D0010909
028962          Intuvo LUI Actuals disappear
                  after firmware update
  028966          Toggling column pressure via
                  the LUI on-the-fly editor
                  sometimes doesn't cause the
                  changes to save
  028972          Intuvo web UI Actuals loses
                  previous actuals after FW
                  Update, leaves empty lines
                  behind that must be deleted
  029091          Intuvo LUI does not show       Start a run or sequence from OLCS C.01.07.
                  Estimated remaining time       Estimated Remaining time shows until it reaches
                  when in a run                  the Run (blue) state, at which point it disappears.
  029100          Intuvo webUI Actuals does      Web UI Actuals Detector 2 Temperature shows
                  not show any setpoint or       nothing for Setpoint and Actual. Detector 1 temp
                  Actual for Detector 2          is shown, Det 2 tail and Connector temps are
                  Temperature                    shown.
  029119          Web UI tabs stuck showing      Status says: Diagnostics Mode
                  "Are You Sure You Want to      Try to select Diagnostics Tab and get pop up
                  Exit Diagnostic Test?"         asking: Do you want to exist Diagnostic Test?
                                                 Select Yes and still stuck.
  029136          LUI real time plot causes      GC has a split inlet to dual columns and flame
                  Mass Hunter sequence to fail   detectors set up to run our MDL sample that
                                                 lasts for approx 11 min. (7.75 min. program and
                                                 another 3.25 min. for the oven and other zones
                                                 to cool before starting the next injection). The
                                                 sequence running was 400 lines long and would
                                                 complete if the LUI real time plot is not being
                                                 displayed. However when turning on the LUI
                                                 real time plot when the following parameters
                                                 were used:
                                                 Detector 1 or 2 Signal, X-Axis 22 min., Y-Axis 0
                                                 pA, Y-Axis 50 pA the same sequence would fail
                                                 on the 3rd 4th and/or 5th injection.
                                                 Should there be a time length limit or is the data
                                                 rate too high? Maybe the data rate for the LUI
                                                 plot could be lower?

Document Number D0010909
029138          GC will not reconnect after    1. Set up short sequence employing ALS on 9000
                  power failure                  2. Sequence completed Line 1
                                                 3. During sample prep, turned off GC simulating
                                                 power failure.
                                                 4. Instrument status confirms GC is Offline.
                                                 5. Turned GC on.
                                                 6. Once GC finished boot process, checked
                                                 Instrument Status.
                                                 7. GC remained OFFLINE.
                                                 8. After reboot of computer, still could not
                                                 reestablish connection to 9000 when using
                                                 configured IP address, as reported in EZChrom
                                                 activity log.
                                                 9. IP address confirmed on LUI.
                                                 10. Reconfiguring in EZChrom was unsuccessful.
                                                 11. Configuring same GC as new instrument in
                                                 EZChrom also unsuccessful.

  029153          Firmware update needs an       When updating the firmware from A.01.03.095
                  immediate message on the       to A.01.03.111, the update tool took possession
                  Intuvo LUI                     of the Intuvo, but no message showed up on the
                                                 LUI for approximately 10-15 minutes. The home
                                                 screen continued to show but was
                                                 unresponsive. Given the time involved a
                                                 message needs to be displayed on the LUI screen
                                                 during this time before the update screen
                                                 appears. This should happen first once the
                                                 update tool takes possession of the instrument.
  029154          GC9000 - FID - Changing        Changing Hydrogen setpoint on LUI causes
                  Hydrogen setpoint on LUI       'Applying changes...' when selecting apply
                  causes 'Applying changes...'   There was no clean way to get out of this LUI
                  when selecting apply           hang - have to power cycle.
  029155          LUI crash on MH sequence
  029170          Intuvo LUI Configuration for   From the LUI, select Configuration\ALS. All
                  G4567 incorrectly offers all   Solvent wash modes are available for selection,
                  options for solvent wash       though this turret should not allow anything but
                                                 A, B.
  029175          Report working setpoints       The endpoints are calling the wrong access
                  and not actual values for      function for the working setpoints for the
                  detector flow working          detector flows in the 5 detector endpoints.
                  setpoint properties
  029176          Diffusion Pump EMF should    Diffusion Pump EMF should not display when
                  not display when Intuvo is   Intuvo is configured to have a MS with a Turbo.
                  configured to have a MS with
                  a Turbo

Document Number D0010909
029182          3rd run effect with HS-GC      Intuvo with split ratio of 5:1 or 2:1. Every third
                  and low split ratio            run shows shifted retention times and
                                                 broadened peaks as if the flow rate had
                                                 changed. This does not occur with a liquid
                                                 injections in splitless mode. I have not been able
                                                 to verify if this happens with all split ratios or
                                                 just low split rates. I also have not verified
                                                 whether this is only with the HS or any injection
                                                 in split.
  029186          Unable to clear run events
                  table due to method
                  activator rejection
  029200          Method Selection in WebUI:
                  not all methods can be
                  selected for loading
  029201          WebUI: cannot delete
                  methods from the list of
                  methods
  029208          Cannot set Inlet Pressure On   The on/off control does not respond and turn
                  in WebUI Method Editor         the inlet on. If you select the on/off control on
                                                 the column flow it does respond but it does not
                                                 turn on the inlet pressure.
  029227          LUI not accepting events set   1. Set up events to control NPD fuel flow.
                  in OLCDS software              2. Event to turn OFF fuel at .2 minutes of 1.5
                                                 minutes runtime.
                                                 3. Event to turn ON fuel at .5 minutes.
                                                 4. Ran the method. No changes in fuel flow
                                                 actual.
                                                 5. Checked LUI
                                                 6. Times and ON/OFF accurately listed, but event
                                                 names listed as EMPTY.
                                                 7. Upload of events from LUI eliminated the
                                                 events in software.
                                                 8. Events set as Detector 1 Hydrogen (Apply) at
                                                 the LUI uploaded as AO Signal Range.
                                                 ADDENDUM:
                                                 After deleting events in both software and LUI,
                                                 made additional runs with diagnostic signal still
                                                 set for NPD fuel flow. With no events in the
                                                 current method, fuel flow shut off and turned on
                                                 at the times previously set.
  029230          LUI: Incorrect range on pre-   The current range on the LUI for the Pre and
                  injection and post-injection   Post injection dwell times are 0, 100 minutes.
                  dwell times                    This is incorrect. It should be 0, 1.

Document Number D0010909
029231          LUI: No error when sandwich      At he LUI, with injector configured with 10uL
                  injection exceeds 75% of         syringe, set up for a 2 Layer injection mode, with
                  syringe capacity                 4 uL for each layer for a total syringe volume of
                                                   8.4 uL (includes the .2 air gaps.) This exceeds the
                                                   75% allowable, yet no error occurred even after
                                                   pressing Apply.
                                                   Uploaded the method to software which
                                                   recognized the error by showing the syringe
                                                   volume in red.
  029232          Intuvo LUI shows Det2            From the LUI Method edit\Analog Out1/2, then
                  signals in plot when Det2        Signal. There are Det2, Det2 Column Comp x,
                  does not exist                   and Det2 - Compx signals available when no Det2
                                                   exists.
  029235          9000 Loses Communication         In MH B.07.06 Released, I configured a
                  with MH when resetting           9000/5977A system. In the software I went to
                  EMF's                            Instrument/Maintenance/Mass Spec, and
                                                   selected one of the EMF's.
                                                   I selected Reset EMF. I got a message that an
                                                   error had occurred on status line, and the the GC
                                                   status said Offline. The Instrument logbook said
                                                   Lost Connection to Agilent 9000.
                                                   This will also occur from the WEB UI when trying
                                                   to reset the EMFs

  029246          Intuvo web UI shows              Configure all valves. From the web UI in IE or
                  'Undefined' as the Setpoint      Edge (which defaults back to IE, select to view
                  and Actual for all configured    the Actuals for all valves. The Setpoint and
                  valves in IE; empty in           Actuals for all valves is displayed as 'Undefined'.
                  Chrome                           Chrome leaves these fields empty.
  029248          Intuvo does not turn MPV in      Cable a MPV to the Intuvo and configure a GSV
                  Runtime events                   and MPV in position 7. Set injection source to a
                                                   value other than 1 and include RTE to turn the
                                                   MPV during the run. Injection source turns the
                                                   valve, but no MPV events. The valve does not
                                                   turn to the selected position as entered within
                                                   the runtime events table. This same MPV works
                                                   fine on a 7890.
  029250          Intuvo - GC9000 - WebUI -        Launched the WebUI
                  Diagnostic Test Results -        Ran Diagnostic Test from LUI.
                  Different test results overlap   When I came back to WebUI, the different
                  on WebUI                         results have overlapped on the results screen.
  029255          Intuvo DSA Method edit           Configure all valves including a cabled MPV.
                  does not save any MPV            Runtime Events for the MPV do not save in the
                  runtime events                   method.

Document Number D0010909
029272          Intuvo has had all Column      Since this FW update, all shows their
                  and Intuvo Chip default EMF    Maintenance screen with ~17 items flagged as
                  values set to 0 and all are    exceeding their EMF setpoints. All of the EMF for
                  enabled                        Column(s), and Intuvo Chips (Inlet and Detector)
                                                 have zero as their Warning and Service Due
                                                 Thresholds and all are enabled for both settings.
                                                 I do not recall setting all these to be enabled,
                                                 and the value should not be 0. These also show
                                                 this value in the DSA.and web UI.
  029287          EMF Uninitialized Variable     The emfs stored on smart keys (bus and column)
                                                 are marked as read-only and cannot be changed
                                                 or reset.
                                                 There is an uninitialized variable in the emf
                                                 daemon associated with an overRide flag on the
                                                 set operation structure. The overRide flag is
                                                 intended to be false in all cases, except during
                                                 startup when it is used to update the emf
                                                 database values from the smart keys. The risk is
                                                 that since this variable is uninitialized, if
                                                 someone attempts to write data or reset a smart
                                                 key emf and the overRide value is set true it can
                                                 potentially modify the emf data in the database
                                                 and on the smart key. The change would be to
                                                 make sure it is always initialized to false. The
                                                 risk of any unintended side effects due to this
                                                 change is low and the risk of leaving the defect in
                                                 the code is to potentially modify read-only emf
                                                 data.
  029288          Split Flow should be
                  removed from the method
                  since it is defined by other
                  settings and not supported
                  by the Driver
  029293          Guard chip post-run            If a post-run temperature is set for the guard
                  temperature is ignored         chip, when the system enters post run, instead
                                                 of controlling to the post-run value, it controls to
                                                 the initial temperature. This may be true of
                                                 other small zones, but at least the column works
                                                 correctly.
  029294          Intuvo with communicating
                  7697 is not updating 7697
                  EMF's; thus, not transmitted
                  to DSA

Document Number D0010909
029301          LUI: Guard chip will not cool   1. From Maintenance tab, selected Instrument
                  for instrument maintenance      2. Selected to Perform Maintenance
                                                  3. Check ON Maintenance Mode and Start
                                                  Maintenance
                                                  4. Screen appears showing heated zones
                                                  WAITING TO COOL.
                                                  5. All zones below threshold except Guard Chip.
                                                  6. Guard Chip temp increases from maintenance
                                                  start to approx 150 degrees.
                                                  7. Aborted maintenance,
                                                  8. Guard chip heater OFF in current method.
  029310          Intuvo Oven Actuator Rev A
                  'Door Actuator Counts\Close
                  and Open Transition Count
                  for Past 20 Actuations' has
                  values not within +/- 5000
  029316          ActuatorLocator can disrupt     On instruments with Rev B actuator,
                  runs on instruments with        ActuatorLocator function does not currently (as
                  Rev B Actuator if front door    of A.01.03 dev builds) check run state before
                  is opened during run            starting. If someone opens and closes the front
                                                  door, they can trigger ActuatorLocator in the
                                                  middle of a run, which will make that run's
                                                  results unusable. Recommend implementing a
                                                  check for run state such that ActuatorLocator is
                                                  not triggered when door is opened/closed during
                                                  run state.
  029340          Intuvo WebUI plot loses         Start a sequence of 2 runs using real MDL
                  chromatogram if stopped or      sample, 10 min run. Start the plot and you may
                  started during a run; must      see the red line and chromatogram line tracking.
                  change view and return but      However, Stop and then restart the plot (most
                  then y-axis is reset            likely to change the y-axis) and the
                                                  chromatogram is completely lost and you cannot
                                                  find it again. The x-axis has reset to 0.00 min and
                                                  if any peaks are displayed, the times are
                                                  completely wrong. If I select away to another
                                                  view within the web UI and return, I will see the
                                                  chromatogram, but it is now autoscaled.
  029343          Intuvo web UI plot is not       Start a sequence of 2 runs using real MDL
                  growing fast enough to          sample, 10 min run. Watching the RTP in data
                  display entire chromatogram     system compared to the webUI plot, by the end
                                                  of the 10 min run, the web UI plot is still tracking
                                                  at about 6.8 min and all is reset and lost once the
                                                  next run starts.

Document Number D0010909
029344          Intuvo LUI Run Log does not    Create method that specifies Pre-Run Flow
                  record anything regarding      test, Set Action on Failure: Continue or Abort,
                  results of Pre-run Flow test   Set 0 pumps and washes which will cause the
                                                 Flow test to time out. Run sequence or method.
                                                 The DSA logbook correctly logs 'Inlet 1 Flow Test
                                                 Stopped Because Run Started'; however, the
                                                 Intuvo Run Log does not log anything. This
                                                 should read 'Flow test Stopped due to Run Start'.
                                                 With enough ALS movement to allow the test to
                                                 run, the LUI run log does not include anything
                                                 about the results of the test. DSA is the only
                                                 place the results and the Status are displayed

  029348          Sample overlap time could      GC9000 with 7693 tray.
                  not enter                      Check LUI, Method>>Active
                                                 method>>ALS>>Other, check the Sample
                                                 Overlap, but the overlap time could not change
                                                 in LUI.
  029356          Intuvo LUI invokes Pre-run     Create method that specifies Pre-Run Flow
                  Leak test condition on Leak    test, Set Action on Failure: Continue. This is
                  test failure, continue on      downloaded to the instrument. ALS has 6 pumps
                  failure; text is wrong about   and 2 washes to allow time for the leak test.
                  the setting and effect         Start 2 line sequence. As the ALS begins moving,
                                                 insert a syringe into the inlet to create a leak.
                                                 After the Inlet Leak condition pop-up, remove
                                                 the syringe. View condition and the text reads
                                                 incorrectly:
                                                 'Error Code 104, Failed Pre-Run Flow Check with
                                                 Abort on Failure option selected.
                                                 Effect: Sequence aborted. Option to run this
                                                 diagnostic to troubleshoot the cause of the flow
                                                 check failure. Dismiss/Diagnose.'
  029357          When Guard Chip is set to      When Guard Chip is set to Track Oven the
                  Track Oven the temperature     temperature set point should be grayed out.
                  set point should be grayed
                  out.
  029374          Guard chip not at setpoint     The recent change to having the Guard Chip at a
                  when idle can cause            minimum of 150 degrees when the system at
                  confusion for the customer     idle will cause the confusion if there is no
                                                 indication of the state being normal. Customer
                                                 will only see that the temperature isn't at
                                                 setpoint when they look at the LUI and data
                                                 system

Document Number D0010909
029408          Intuvo LUI Actuals shows          MPV cabled. Configure 2 GSV's and a switching
                  GSV and Switching Valve On        valve. Start a method from OLCS C.01.08.197
                  state as '0'                      that specifies Runtime events that change the
                                                    state of these two valves during the run. LUI
                                                    Actuals shows OFF correctly, but when ON, it
                                                    shows '0' (zero).
  029409          Intuvo LUI Actuals does not       Configure at least 1 GSV and a MPV in position 7.
                  show MPV position; always         Start a valved run specifying a position available
                  'OFF'                             from the MPV with a runtime event that changes
                                                    the position during the run. LUI Actuals for Valve
                                                    7 shows OFF continually. This should show the
                                                    current position dynamically, as the DSA does.

  029415          Maintenance section of Web
                  Help does not work in
                  English
  029422          Intuvo LUI Method Edit does       MPV cabled. Configure a Switching valve in
                  not show a configured             position 5 or 6 (LUI). Apply. The switching valve
                  Switching valve                   for the position in the method edit is
                                                    empty/read-only.
  029439          Intuvo WebUI Help for             Select From the Help Home page, select
                  Troubleshooting\'To               Knowledgebase\Troubleshooting\To Measure
                  Measure NPD Leakage               NPD Leakage Current. User cannot set the NPD
                  Current' file errs in that user   Adjust offset to OFF nor control the bead by
                  must use Target Offset            adjusting the Bead voltage. Intuvo only allows
                                                    the use of Target Offset.
                                                    "To Measure NPD Leakage Current
                                                    1 Load the analytical method.
                                                    2 Set the NPD Adjust Offset to Off and
                                                    the Bead Voltage to 0.00 V.
                                                    •     Leave the NPD at operating temperature.
                                                    •     Leave flows on or off.
                                                    3 Verify that the output (leakage current) is
                                                    stable and < 1.0 pA.
                                                    4 The output should slowly drop toward
                                                    0.0 pA, and should stabilize in the tenths of a
                                                    picoamp. Current > 2.0pA indicates a problem."

  029452          When the Cryo valve for
                  MMI is disconnected at
                  power up there should be a
                  fault displayed in Diagnostics

Document Number D0010909
029753          Column Autoclean feature          The column Autoclean feature does not run
                  does not work when PSD is         when a PSD is installed. This configuration is
                  installed                         used when the customer has a Post Column
                                                    backflush installed.
                                                    The problem of the column stationary phase
                                                    shift can be overcome using column
                                                    compensation. However this customer uses a
                                                    Mass Spec and the MS does not have this
                                                    option.
  029799          After running a method with       System is configured as post column split
                  a timed event that turns H2       between FID and NPD. Intuvo firmware A.01.03,
                  gas OFF, all subsequent runs      will update entry once GC driver revision is
                  turn OFF the H2 gas               confirmed.
                  regardless of the method          After running a method with a timed event that
                  setting.                          turns H2 gas OFF, all subsequent runs turn OFF
                                                    the H2 gas regardless of the method setting. The
                                                    Intuvo must be rebooted to stop this behaviour.
  029845          Columns with no max               There are columns with no max program
                  program temperature are           temperature. The fobs for these columns have
                  not handled properly              "0" written as the max program temperature.
                                                    Two defects then occur:
                                                    1. RTOS tries to set 0C as the max program
                                                    temperature, but that value violates the
                                                    minimum of 100C, so whatever previous value
                                                    was will stay in effect.
                                                    2. UI's show the max program temperature even
                                                    though in this case it doesn't make sense and
                                                    may need to be hidden.
                                                    I propose that RTOS change the 100C minimum
                                                    to -10C and allow 0C as a valid max program
                                                    temperature, then all UI's must check for "0" in
                                                    this field and hide it from the user. Is this
                                                    acceptable for the LUI, WebUI and driver?
  029861          TCD should show "Waiting"         The TCD, like the FID, has a minimum
                  when filament is turned on        temperature that allows operation. For the TCD,
                  but detector temp is 150C       the LUI says that it is waiting, which is correct. It
                                                    would be helpful to remind the customer that
                                                    the system is waiting for the FID temperature to
                                                    be >150C.

Document Number D0010909
You can also read
