iBeam smart Family
Single-Mode Diode Lasers
375 nm
395 nm
405 nm
420 nm
445 nm
473 nm
488 nm
515 nm
640 nm
660 nm
675 nm
685 nm
785 nm
Confocal Microscopy
Digital Photo Finishing
Disc Mastering
Flow Cytometry
Inspection
Metrology
Microlithography
Microplate Readout
Prepress, Computer-To-Plate
Retina Scanning
on.
for Precisi
A Passion
4
Contents
Colorful Diode Lasers........................................................ 3
Unique Features iBeam smart Family........................... 4 - 5
iBeam smart................................................................. 6 - 7
iBeam smart PT............................................................8 - 9
Options............................................................................ 10
Mechanical Drawings....................................................... 11
5 www.toptica.com

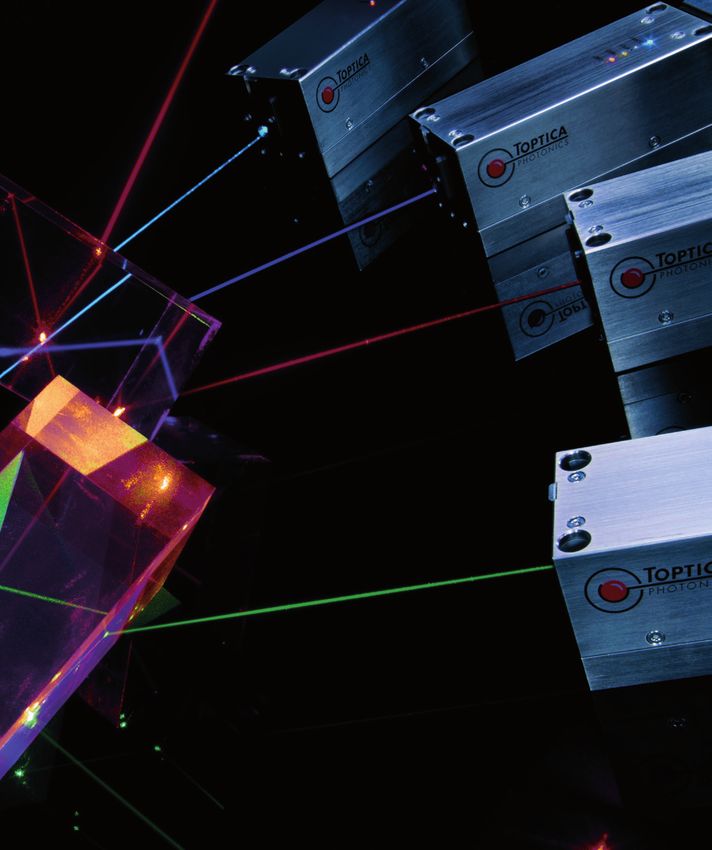

Colorful Diode Lasers -
Engineered for Maximum Performance
The iBeam smart family is the ultimate choice The iBeam smart series offers unique TOPTICA’s pigtailed diode laser line, iBeam
when looking for a high-performance, ultra- features that set a new benchmark in the smart PT, is the gold standard for long-term
reliable OEM diode laser system. competitive field of compact laser sources. power stability and reliability in the market.
High speed complete on/off modulation Enabled by TOPTICA’s proprietary fiber
Featuring wavelengths from the UV to the (with a true zero-photon off state) from a coupling technology COOLDC (Constant
IR the iBeam smart laser series serves a compact single box unit, widely exceeds Optical Output Level – DuraCalibrated) in
variety of demanding markets: the performance of any acousto-optical combination with the LongLife fiber. These
• Microscopy modulation technique. Integration into unique optical fibers prevent the commonly
• Flow Cytometry optical setups is easy with the Feedback known problem of fiber degradation at
• Precision Semicon Metrology Induced Noise Eraser (FINE) function of violet and UV wavelengths.
• Computer to Plate Printing the iBeam smart series. FINE makes these
• Laser Direct Writing lasers insensitive to optical back reflections With highest output levels, exceptional
• Microlithography and guarantees a low noise operation power stability and high speed modulation,
• Retina Scanning even in the case of fiber coupling. Another instruments like confocal microscopes,
• Digital Photo Finishing highlight of the iBeam smart series the high content screening systems or flow
• Disc Mastering SKILL (“Speckle KILLer”) speckle reduction cytometers greatly benefit of these
• Inspection feature, which minimizes and stabilizes the compact and reliable diode laser modules.
• Microplate Readout coherence length of the laser at the push
of a button. If you are unable to find the perfect solution
In all these fields our numerous customers to your application within these pages,
are looking for a compact and reliable laser The integrated µ-controller completes this please do not hesitate to talk to us about
source that exceeds the performance of a attractive package and ensures easy deep a customized solution. As a developer
standard diode laser module. The success integration into any working environment. and manufacturer of high quality lasers in
story of the iBeam smart family is based Germany, we will be happy to modify the
on excellence in all aspects of a modern parameters according to your needs.
diode laser: high power levels, low noise
operation and ultra-stable beam pointing
with a wide wavelength coverage.
3
Unique Features
Complete on/off
The advanced electronics of the iBeam smart allow a “complete
off” modulation up to 100 MHz. This feature is especially interesting
for applications requiring a true “zero photon” dark state, such as
advanced microscopy techniques, or simply the desire to increase
the signal-to-noise ratio in measurement setups.
• True “zero photon” off state up to 100 MHz modulation
• Outstanding rise and fall times with “complete off”
• User configurable
Fastest pulses with iBeam smart pulse option Adjustable analog modulation up to 1 MHz
Digital modulation Analog modulation
The digital modulation option adds a 250 MHz, true asynchronous All iBeam smart models incorporate an analog modulation input,
TTL trigger input. The included Autopulse feature enables the laser to enabling modulation up to 1 MHz.
operate on self generated pulses up to 10 MHz.
• Requires no extra hardware (no AOM / AOTF)
• 250 MHz digital modulation speed • User configurable (high-/low-active)
• Multi level triggering • Mixed mode triggering (analog and digital modulation
• Excellent rise and fall times (
FINE
Optical setups are prone to back-reflections of laser light into the laser
source. These back reflections into diode lasers can cause power instabilities
and high noise levels. All lasers in the iBeam smart family contain the FINE
(Feedback Induced Noise Eraser) feature, which eliminates this problem. A
simple push of a button makes these lasers ultra-stable even under optical
feedback. Customers save time and costs, by making re-alignment and
optical isolators unnecessary.
• Elimination of feedback induced power instabilities
• Intensity noise reduction
• Purely electronic feature - no additional hardware such as optical
isolators necessary
• Push of a button functionality
Laser power with optical feedback induced
COOLDC
The COOL technology (Constant Optical Output Level) is TOPTICA´s unique
solution for high power single-mode hands-off permanently fiber coupled
lasers. Aligning and focusing a laser beam into single-mode fibers (down
to core diameters of 2.5 µm) with highest efficiency is utmost challenging.
TOPTICA´s patent pending COOL fiber coupling concept is new, because
it does not use any mechanical micro adjustable parts, which normally are
the first to move due to thermal or mechanical influences.
• DuraCalibrated solution for compact OEM diode lasers
(integrated in the iBeam smart PT)
• Factory set to permanent fiber coupling efficiency of higher than 50%
• Unsusceptible to thermal fluctuations
• Unsusceptible to extensive mechanical disturbances
• Drop shipment warranty: laser immediately in spec after unpacking COOLDC technology
SKILL
The SKILL function acts as a purely electronic „Speckle KILLer“. By
decreasing the longitudinal coherence lengths of the emitted light, the
speckle generating mutual interference of wavefronts is reduced. Thus
annoying speckle noise on detectors and imaging systems can be lowered
to a minimum.
• Reduces speckle patterns
• Reduces coherence length
• Purely electronic feature - no additional hardware necessary
• Integrated in all iBeam smart diode lasers
• most effective at lower laser power
iBeam smart without (left) and with SKILL, activated (right)
5

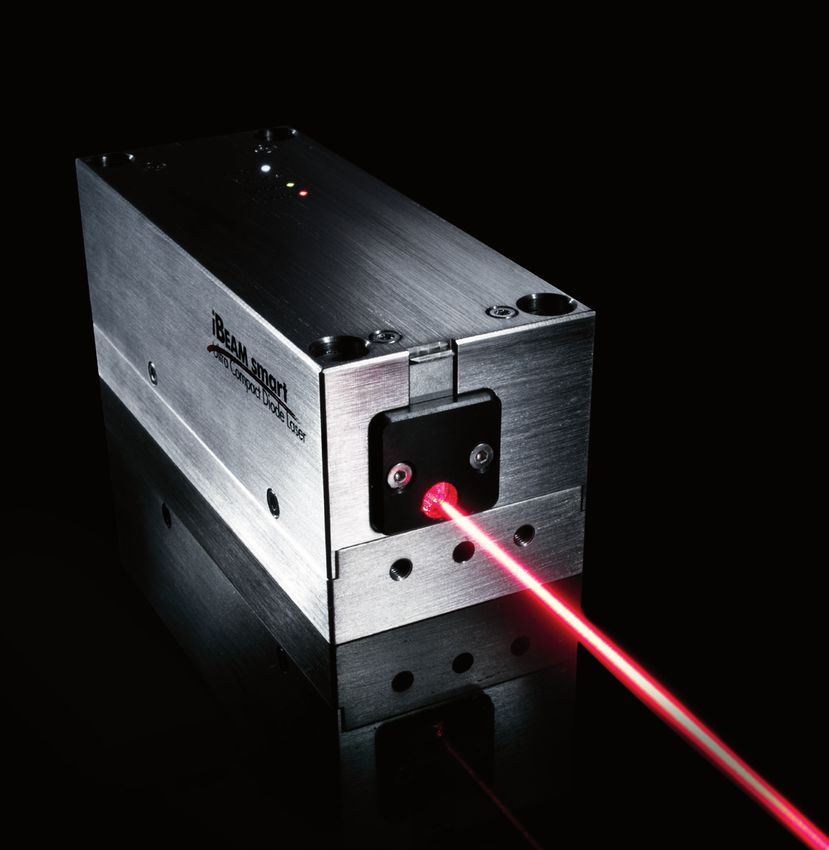

iBeam smart
Key features
• Single-mode, TEM00 laser from 375 to 785 nm
• True one box solution, no control box necessary
• Complete off – zero photon – modulation
• Ultimate long-term power and beam pointing stability
• FINE and SKILL to eliminate noise and speckle
• Analog and digital modulation up to 250 MHz
• Clean-up filters available
• Fiber coupling with up to 90 % SM/PM fiber coupling
efficiency available
Best power stability (
Specifications
iBeam smart-S Units 375-S 395-S 405-S 420-S 445-S 460 -S 473-S 488-S 515-S 640-S 660-S 685-S 785-S
Optical specifications
Wavelengths* nm 375 395 405 420 445 460 473 488 515 640 660 685 785
Wavelength range nm ±5 ±5 ±4 ±5 ±5 +0/-5 ±5 ±4 ±5 ±5 ±3 ±5 ±5
Output power mW 70 120 120/300 120 100 100 100 100/200 100 150 130 50 125
Fiber coupled output power
mW 35 70 70/180 70 60 60 60 60/120 60 100 90 30 90
(guaranteed)
Power stability (drift over 48 h @ room
% < 0.5
temperature ± 5°C)
RMS noise (10 Hz −10 MHz) % < 0.2
Beam diameter (typ. @ 1/e2) mm 1.3 1.2 1.2 1.2 1.3 1.1 1.3 1.3 1.3 1.1 1.2 1.2 1.3
Beam shape (far field) Circular
Ellipticity % < 10
Divergence (typ.) mrad < 0.6 < 0.6 < 0.6 < 0.6 < 0.6
iBeam smart PT
Key features
• Highest power single-mode pigtailed diode laser
• COOLDC – ultra stable permanent fiber coupling
• FINE: Eliminates noise from optical feedback
• Active thermal control of opto-mechanics for best stability
• Complete off – zero photon - modulation
• SKILL: Reduces speckle in your application
• Analog and digital modulation up to 250 MHz
• FC/AFC fiber connector (others on request)
Standard fiber output connector FC/AFC and iBeam smart PT standard wavelength with
polarization orientation at fiber connector highest optical power
Fiber coupled power stability (
Specifications
iBeam smart PT Units 405 445 488 515 640 660 785
Optical specifications
Wavelengths* nm 405 445 488 515 640 660 785
Wavelength range nm ±4 ±5 ±4 ±5 ±5 ±3 ±5
Fiber coupled output power mW 60/120 50 50/100 50 80 75 70
Power stability
% ±2
(drift over 24 h @ room temperature ± 5°C)
RMS noise (10 Hz − 10 MHz) % < 0.2
Long-term output power average %/1000 h ≤5 ≤5 ≤5 ≤5 ≤2 ≤2 ≤2
Ellipticity % < 10
M2 < 1.1
Polarization ratio (typ.) > 100 :1; Linear
Polarization orientation tolerance Degrees ±3
Fiber specifications
Fiber output connector FC/AFC (8° angled) standard, others like FC/PC, FC/APC or SC on request
Fiber cable length (typ.) m 2
Fiber cable type 3 mm Kevlar reinforced PVC
Fiber minimum bend radius mm 40
Fiber type single-mode, polarization maintaining
Fiber numerical aperture (5%) (typ.) 0.07 0.06 0.06 0.09 0.11 0.11 0.12
Mode field diameter µm 3.0 3.0 3.5 4.2 4.2 4.2 4.5
Electronic specifications
Digital modulation (option)
Supported digital signal levels TTL / TTL complete off
Maximum digital modulation frequency MHz 250 / 100
Rise/fall time (10% — 90 %) ns < 1.5
Digital modulation extinction ratio > 1000 : 1 / ∞ (complete off)
Analog modulation
Maximum analog modulation frequency MHz 1
Analog modulation extinction ratio 106
Electronic shutter
Rise/fall time µs 40/10
Extinction ratio ∞ (complete off)
General and environmental specifications
Qualified CE
RoHS compliancy yes
CDRH qualification Class IIIb
ESD protection Level 4
Digital communication interface RS 232, ≤ 115.200 baud
DC input requirements 12 V DC, < 2 A
Power consumption W < 18 (typ. < 6)
Maximum heat dissipation of head (baseplate at 50°C) W < 12
Warm-up time min
Options
Asynchronous modulation with iBeam smart pulse option Combined analog and digital modulation
SmartDock - highly efficient and ultra stable fiber coupler
(for iBeam smart only) Clean-up filters (iBeam smart only)

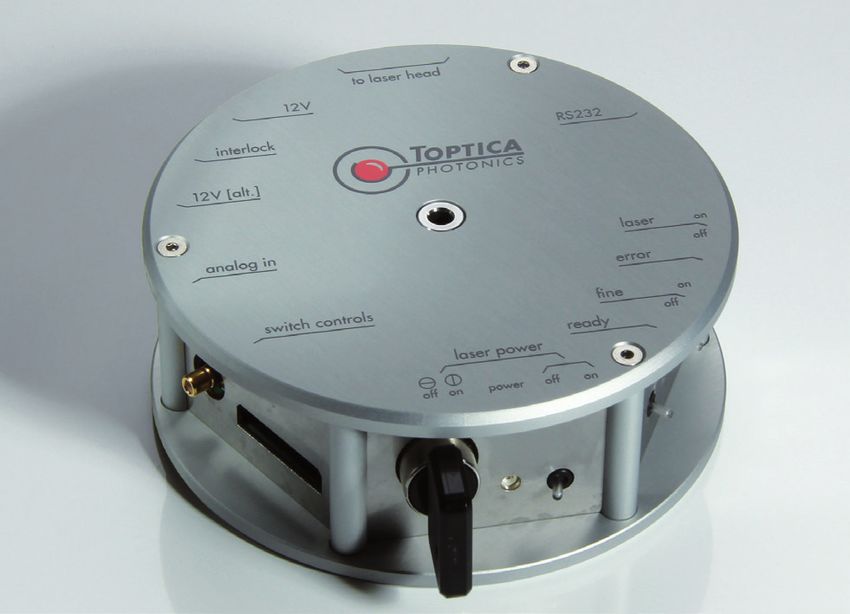

External control box with lay switch Fiber Out, fiber output collimator
10 www.toptica.comMechanical Drawings
iBeam smart
TOP
FRONT
RIGHT
BACK
BOTTOM
iBeam smart PT
RIGHT
FRONT
TOP
BOTTOM BACK
All dimensions are given in mm
11Distributors
BR-502-48A iBeam smart Family 2013-01
Australia & New Zealand Israel Taiwan Every other country
Lastek Pty. Ltd. Lahat Technologies Ltd. SLEO Photonics Co. Ltd. not listed:
Thebarton Campus Teradion Industrial Zone 6F, No. 2, Lane 74
University of Adelaide M.P. Misgav, 20179, Israel An-der Streett TOPTICA Photonics AG
10 Reid Street Phone: +972 4 999 0151 Hsin Tien City, Taipei County Lochhamer Schlag 19
5031 Thebarton, SA Fax: +972 4 999 0826 Taiwan 231, R.O.C. D-82166 Graefelfing / M unich
Australia sales@lahat.co.il Phone: +886 2 2211 5408 Germany
Phone: +61 8 8443 8668 www.lahat.co.il Fax: +886 2 2211 5401 Phone: +49 89 85837-0
Fax: +61 8 8443 8427 sleo.jimmy@msa.hinet.net Fax: +49 89 85837-200
sales@lastek.com.au Japan sales@toptica.com
www.lastek.com.au INDECO, INC. Luxton Inc. www.toptica.com
1-11-14, Kasuga, Bunkyo-ku F4, No. 2, Technology Road V,
China Tokyo 112-0003, Japan Hsinchu Science Park,
Universal (Hong Kong) Phone: +81 3 3818 4011 Hsinchu 30078, Taiwan
Technology Co. Ltd. Fax: +81 3 3818 4015 Phone: +886 3 666-2097
Room 615-619 ind@indeco.jp Fax: +886 3 666-2124
Capital Group Plaza www.indeco.jp service@luxton.com.tw
No. 6 Chaoyangmen Beidajie (Offices: Tokyo, Osaka) www.luxton.com.tw
Beijing 100027, P.R. China
Phone: +86 10 8528 3377 Korea United Kingdom & Ireland
Fax: +86 10 8528 3344 JINSUNG LASER Unit 4H Lansbury Estate
oe@universalhkco.com.cn #535-5, Bongmyung-Dong Woking, Surrey, UK, GU21 2EP
www.universalhkco.com.cn Yusung-Gu Great Britain
(Offices: Beijing, Shanghai) Hanjin Officetel Rm# 1016 Phone: +44 1483 799 030
Daejeon, 305-301, South Korea Fax: +44 1483 799 076
France Phone: +82 42 823 5300 howard.potter@toptica.com
Opton Laser International Fax: +82 42 823 7447 www.toptica.com
Parc Club d‘Orsay Université sales@jinsunglaser.com
29, rue Jean Rostand www.jinsunglaser.com USA & Canada
F - 91893 Orsay Cedex, France TOPTICA Photonics, Inc.
Phone: +33 1 6941 0405 Russia 1286 Blossom Drive
Fax: +33 1 6941 3290 EuroLase Ltd. Victor / Rochester, NY 14564
ventes@optonlaser.com Gubkina 14-80 U.S.A.
www.optonlaser.com 117312 Moscow Phone: +1 585 657 6663
Russia Fax: +1 877 277 9897
India bagratashvili@mai.ru sales@toptica.com
Simco Global Technology & www.eurolase.ru www.toptica.com
Systems Ltd. (Offices: Rochester,
Simco House (Head Office) Singapore / Malaysia Atlanta, San Jose)
14 Bhawani Kunj Precision Technologies Pte Ltd
Behind Sector D-II Vasant Kunj 211 Henderson Road # 13-02
110017 New Delhi, India Henderson Industrial Park
Phone: +91 11 2689 9867 Singapore 159552
Fax: +91 11 2612 4461 Phone: +65 6273 4573
simcorsd@del2.vsnl.net.in Fax: +65 6273 8898
www.simco-groups.com precision@pretech.com.sg
(Offices: New Delhi, Bengaluru, www.pretech.com.sg
Kolkata, Mumbai)
TOPTICA Photonics AG TOPTICA Photonics, Inc.
Lochhamer Schlag 19 1286 Blossom Drive
D-82166 Graefelfing/Munich Victor / Rochester, NY 14564
Germany U.S.A.
Phone: +49 89 85837-0 Phone: +1 585 657 6663
Fax: +49 89 85837-200 Fax: +1 877 277 9897
info@toptica.com sales@toptica.com
www.toptica.com www.toptica.com
12 www.toptica.comYou can also read
