HILUX
SPECIAL EDITION
SPECIAL
EDITION
2
HILUX
DESIGN
Some vehicles make a strong statement. But nothing
says ‘raw power’ like the new Toyota Hilux Special
Edition. With searing new Orange Spice metallic paint,
a sleek new front bumper and an integrated 3D grille,
it looks like no other pick-up. Even the rear bumper
has been redesigned, to include a step for access to the
cargo deck. And with 18" 6-spoke, bi-tone machined-
face and grey alloy wheels, it’s one of the toughest
vehicles on the planet. Whatever the conditions, this is
a pick-up that doesn’t just mean business – it looks hot,
wherever you drive it.
SPECIAL EDITION New rear bumper design
Designed with function in
SMOKING HOT DESIGN mind. A simple insert protects
STRONG LOOKS, WHATEVER the bumper so you can get
a foot-up in any conditions
THE ENVIRONMENT without worrying about
scuffing your new Hilux.
3
TORQUE TIME
ROCK-SOLID RELIABILITY
BUILT TO PERFORM

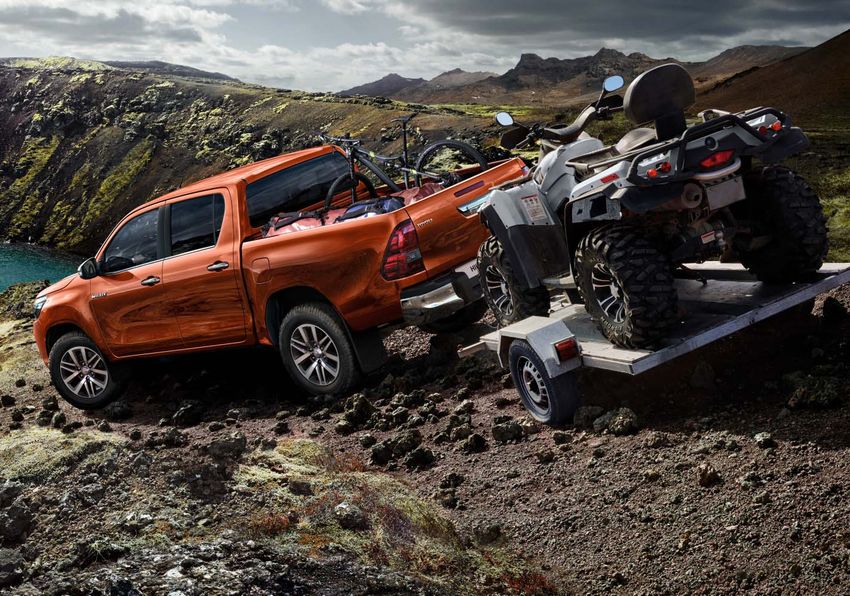

Even on the toughest terrain, you can count on the
famously reliable Hilux Special Edition to push, pull and go
almost anywhere. Featuring the latest in 4x4 powertrain
technology – including Hill-start Assist Control and
Downhill Assist Control – you can drive wherever you
need to drive, in total confidence. The 2.4 litre D-4D
diesel engine demonstrates excellent performance,
including outstanding acceleration, fuel efficiency and
minimal noise levels. With an updated frame, underbody
and suspension system, the strength and stability that
made the Hilux famous have now reached new levels. So
expect handling you can trust and the power to deliver.
Diesel Engine torque
2.4 litre D-4D 6 M/T With increased engine torque
and up to 3.5 tonnes towing
Power 150 DIN hp capacity, the Hilux tows the
Fuel consumption* 7.0 l/100 km toughest load effortlessly.
CO emissions* 185 g/km
Acceleration 0–100 km/h 13.23 seconds
* Combined cycle.
4
DRIVE
Downhill Assist Control (DAC) Hill-start Assist Control (HAC)
Helps you tackle a steep HAC maintains the brake force
descent with confidence. It for up to five seconds after
applies individual brakes to the brake pedal is released
maintain its low speed and to give you a smooth start
to keep the vehicle stable, so on steep inclines – without
you can focus on steering and rolling back.
avoiding any obstacles.
5
Toyota Touch® 2
This multimedia system will
allow you to experience a
world of information and
entertainment in a stylish
tablet-style 7" display.
6
INTERIOR
CONTROL CENTRE
TOUGH OUTSIDE,
COMFORTABLE INSIDE
COMFORT WITHOUT
COMPROMISE
Wherever you’re headed, you’ll get there in style in
the new Hilux Special Edition. A brooding new interior
includes black perforated leather, a black headliner
and Piano Black inserts throughout. A new TFT
instrument panel welcomes you with smooth new
animation, while the 7" Toyota Touch® 2 screen gives
you fingertip access to music and multimedia features.
In fact, everything about the Hilux Special Edition
is designed for the demands of real life – because
no matter how tough the job, in a pick-up as well-
equipped as this, you’ll make it look easy.
Information display Smart Entry & Start System
The new colour information This allows you to unlock
display for easy access to the car simply by pressing a
essential journey information. button on the door handle.
The start/stop button starts
the engine. All you need to do
is carry the Smart Entry key
with you.
7
IN SAFE HANDS
SET FOR ANY CHALLENGE
EVERY INCH A HILUX
The Hilux Special Edition is a pick-up with brains to
match its muscle – with Vehicle Stability Control (VSC)
and class-leading Toyota Safety Sense, comprising
three separate active safety systems: Pre-Collision
System* with Pedestrian Detection, Lane Departure
Alert and Road Sign Assist. Consider it seriously
safe for work and play. And with a redesigned body
structure made of HTSS (High-Tensile Strength Steel),
the Hilux Special Edition is as tough as it looks. To
ensure all cabin occupants are protected, it features
seven SRS airbags, while the side rails and the cross
members (the steel beams in the chassis frame) have
been reinforced and enlarged, to absorb even more
energy from impacts.

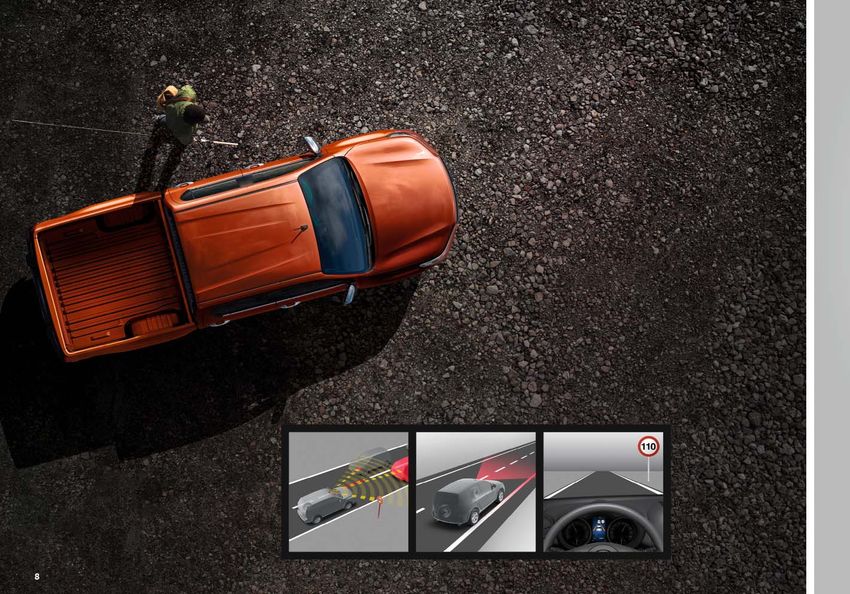

Toyota Safety Sense
Toyota Safety Sense adds advanced active safety systems
for an even safer and more relaxed drive. Three active
technologies – Pre-Collision System* with Pedestrian
Detection, Lane Departure Alert and Road Sign Assist
are at the heart of Toyota Safety Sense.
8 * Technical name: Pre-Crash Safety System.
SAFETY & GRADE
Black perforated leather 18" bi-tone grey & machined- Unique key fob
face alloy wheels (6-spoke) design
HILUX SPECIAL EDITION EQUIPPED AND READY TO GO
THE HILUX IS DESERVEDLY PROUD OF ITS LONG HISTORY OF RESILIENCE.
EVER SINCE ITS LAUNCH IN 1968, THIS ICONIC PICK-UP HAS LEFT ITS
MARK WHEREVER IT GOES. NO WONDER IT’S THE MOST SOLD PICK-UP
IN THE WORLD.
9
SPECIFICATIONS & EQUIPMENT
ENVIRONMENTAL PERFORMANCE 2.4 l D-4D ENGINE 2.4 l D-4D DIMENSIONS & WEIGHTS 2.4 l D-4D
Diesel 6 A/T Diesel 6 A/T Diesel 6 A/T
Fuel consumption (applicable legislation) Compression ratio 15.6 :1 Front overhang (mm) 1000
Combined driving (litres/100 km) 7.8 Maximum power output (DIN hp) 150 Rear overhang (mm) 1250
Urban driving (litres/100 km) 9.5 Maximum power output (kW/rpm) 110/3400 Wheelbase (mm) 3085
Extra urban driving (litres/100 km) 6.7 Maximum torque (Nm) 400 Turning circle – tyre (m) 6.4
Fuel tank capacity (litres) 80 Interior length (mm) 1732
Carbon dioxide, CO (applicable legislation) PERFORMANCE 2.4 l D-4D Interior height (mm) 1170
Diesel 6 A/T
Combined driving (g/km) 204 Deck length (mm) 1525
Urban driving (g/km) 250 Maximum speed (km/h) 170 Deck width (mm) 1540
Extra urban driving (g/km) 177 0–100 km/h (secs) 12.75 Deck height (mm) 480
Exhaust emissions (regulation EC/715/2007 Luggage overall length, rear seat up (mm) 1555
as amended by EC 2015/45Y) SUSPENSION 2.4 l D-4D
Diesel 6 A/T Gross vehicle weight (kg) 3210
Euro class EURO 6 Y Payload (kg) 1040
Carbon monoxide, CO (mg/km) 74 Front suspension Double
wishbone Kerb weight (kg) 2095 –2160
Nitrogen oxides, NOx (mg/km) 76.7 Towing capacity with brakes (kg) 3200
Rear suspension Leaf spring
Hydrocarbons, THC & Nitrogen Oxides, 85.4 rigid axle Towing capacity without brakes (kg) 750
NOx (mg/km)
Smoke particulates (mg/km) 1.25 2.4 l D-4D 2.4 l D-4D
BRAKES OFF ROAD
Sound level drive by (dB(A)) 69 Diesel 6 A/T Diesel 6 A/T
Front brakes Ventilated Min. running ground clearance (mm) 225–293
ENGINE 2.4 l D-4D disc
Diesel 6 A/T Approach angle (°) 31
Rear brakes Drum Departure angle (°) 26
Engine code 2GD
Number of cylinders 4, in line DIMENSIONS & WEIGHTS 2.4 l D-4D Special
Diesel 6 A/T WHEELS
Valve mechanism 16-valve Edition
DOHC Exterior length (mm) 5330 18" bi-tone grey & machined-face alloy
Fuel system Fuel injection Exterior width (mm) 1855 wheels (6-spoke) l
with common
rail Exterior height (mm) 1815 Highway Terrain tyres l
Displacement (cc) 2393 Front tread (mm) 1540
Bore x stroke (mm x mm) 92.0 x 90.0 Rear tread (mm) 1550
10SPECIFICATIONS & EQUIPMENT
EXTERIOR STYLING Special INTERIOR COMFORT Special SAFETY Special
Edition Edition Edition
Chrome upper front grille l Push-button start l Anti-lock Braking System (ABS) with
Chrome surround on upper front grille l Rear-view camera display l Electronic Brake force Distribution (EBD) l
Black surrounds on front fog lamps l Automatic air conditioning l LED headlamps l
Chrome-plated rear bumper l Clean air filter l Daytime running lights (LED type) l
Wide front bumper l Memory function on driver seat l Vehicle Stability Control (VSC) l
Chrome door mirrors l Front and rear power windows l Lane Departure Alert l
Chrome door handles l UV-filter on front and rear windows l Trailer Sway Control (TSC) l
Chrome tailgate release handle l 4.2" screen for information display l Active Traction Control (A-TRC) l
Chrome window frame l Audio, multimedia, telephone and voice Hill-start Assist Control (HAC) l
Privacy glass on rear windows l recognition switches on steering wheel l Downhill Assist Control (DAC) l
Supplemental Restraint System (SRS)
Special STORAGE Special airbags – 7 airbags l
EXTERIOR COMFORT Edition
Edition Driver & front passenger Whiplash Injury
Front console box l Lessening (WIL) seats l
Follow-me-home headlights l
Dusk sensor l Large storage area in front console box l
Cooler in upper glovebox l PERFORMANCE, TRANSPORT & Special
Smart Entry & Start System l PROTECTION Edition
Front and rear bottle holders l
INTERIOR STYLING Special Front and rear cup holders l Drive Mode Selector l
Edition Sunglasses holder l Front and rear parking sensors ¡
4-spoke leather steering wheel l Driver & passenger seatback pockets l Comfort suspension l
Silver and chrome insert on centre console l Pitch & Bounce control l
Leather gear shift knob l MULTIMEDIA Special Wide fenders l
Edition
Chrome insert on gear shift knob l Underbody protection cover l
Chrome gear shift knob surround l 7" multimedia display l Front and rear mudguards l
Padded armrest on front console box l Toyota Touch® 2 multimedia system l
l = Standard ¡ = Optional − = Not available
Chrome insert on centre air vents l 6 speakers l
Chrome insert on side air vents l Aux-in and USB connectors l
Chrome interior door handles l Bluetooth® hands-free system l
The fuel consumption, CO and noise values are measured in a controlled environment on a basic production vehicle, in accordance with the requirements of European law published by the
European Commission. For further information, or if you are interested in buying a basic production vehicle, please contact Toyota Motor Europe NV/SA. The fuel consumption and CO values of
your vehicle may vary from those measured. Driving behaviour as well as other factors (such as road conditions, traffic, vehicle condition, installed equipment, load, number of passengers, ...) play
a role in determining a car’s fuel consumption and CO emissions.
11JUST ANOTHER HILUX DAY.
