High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
High-bay lighting solutions
Innovative lighting solutions for high ceiling applications
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications

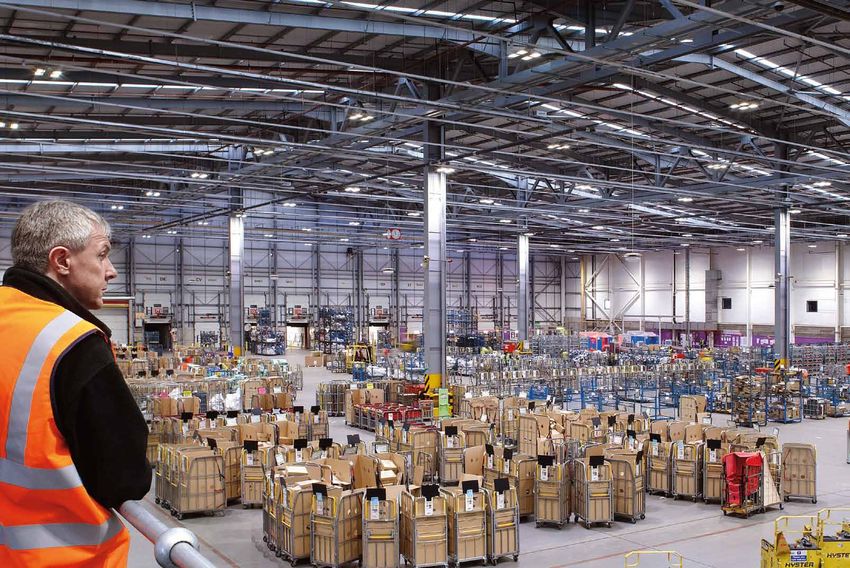

Royal Mail NDC, Daventry, UK

                                    Contents
                                    04 The challenges of high ceiling environments
                                    06 Bright solutions for your business
                                    08 Case study – Royal Mail
                                    10 Case study – Sigron
                                    12 Product overview
                                    14 GentleSpace LED
                                    16 T5 HighBay
                                    18 Megalux
                                    20 PerformaLux
                                    22 Cabana 2

High-bay lighting | Contents                                          High-bay lighting | Contents
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
04                                                                                                                                                                                                                                    05

                                                                       The challenges of high ceiling environments
                                                                       High-bay environments are unique – and the challenges you face as an owner or operator are many and
                                                                       various. With increased emphasis on cost and energy efficiency and with high cost and major disruption
                                                                       associated with maintenance, reviewing your lighting solution, especially in the light of new technology, is a must.

                                                                       Solutions that work                                                   Health and wellbeing
                                                                       At Philips Lighting, we understand the challenges you face in         Better light quality means increased comfort. When people feel
                                                                       managing your high-bay environment and we have a range                better they work better, which means increased productivity,
                                                                       of solutions to fit your needs. We can recommend the best             so everyone’s happy. Our new generation of high-bay lighting
                                                                       products for spaces using traditional HIDs, which might be a          gives more consistent light coverage, with no dark areas and
                                                                       fluorescent solution. Alternatively we can advise you on the new      better colour rendering, so workers can do their jobs more
                                                                       generation of low maintenance, energy saving LEDs – designed          comfortably and customers can feel the benefits too.
                                                                       to enhance light quality, drive down cost and reduce carbon
                                                                                                                                             Reducing carbon footprint
                                                                       footprint. In short we can help make it easy for you.
                                                                                                                                             Increasingly, organisations are being challenged by partners,
                                                                       Brighter spaces                                                       associates or by government to reduce their carbon footprint.
                                                                       Well-lit, high ceiling environments are not just a ‘nice to have’,    Reducing your carbon emissions through energy efficient lighting
                                                                       they are a legal requirement. When you have no room for               is a good way and with LED giving energy savings of up to 60%
                                                                       error, you’ll appreciate the health and safety benefits of lighting   it’s proof that lighting can make a valuable contribution to
                                                                       solutions that provide uniform light, no dark patches and good        reducing the costs associated with the carbon you produce.
                                                                       colour rendering. Employees and customers will feel better too,
                                                                                                                                             Achieving business goals
                                                                       boosting productivity or smooth flow through your space.
                                                                                                                                             When we say we understand the challenges you face, we mean
                                                                       Reducing maintenance                                                  from a commercial perspective too, not just a lighting one. Our
                                                                       High ceilings traditionally mean expensive maintenance work.          pedigree in lighting means we’re uniquely placed to be able to
                                                                       Just arranging access can be a major spike in your running            listen to you, understand your situation and advise on appropriate
                                                                       costs and that’s even before you factor in lamp replacement           solutions to meet your business needs. We know that every
                                                                       costs. Add disruption and loss of productivity to that and it’s       customer requirement is different and also that recommending
                                                                       a major interruption to ‘business as usual’. Our products have        the right lighting solution for you can directly affect your
                                                                       a reputation for reliability and with the introduction of long        profitability. And that’s good for business.
                                                                       lifetime LEDs, further cost reductions are possible.

     High-bay lighting | The challenges of high ceiling environments                                                                                                High-bay lighting | The challenges of high ceiling environments
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
06                                                                                                                                                                                                                      07

                                                              Bright solutions for your business
                                                              A consultancy approach                                              Comfortable workers, effective branding
                                                              We know we can help you achieve your business goals                 Health and safety is always an important topic. Our new
                                                              through effective lighting. We also know that everyone’s            generation of LED solutions is especially effective for lighting
                                                              lighting requirements are unique, so we will always make sure       high-bay spaces evenly, improving visibility and reducing the
                                                              we fully understand your requirements before we recommend           chance of accidents, and making workspaces more comfortable
                                                              a solution. Our consultancy approach ensures that we only           to be in by increasing feelings of health and wellbeing. Attractive,
                                                              ever specify what works best for you.                               efficient lighting is good for your brand too.
                                                              Picking up on trends                                                Advanced solutions
                                                              We can keep you up to date with the latest trends in lighting,      The evolution of technology creates more opportunities for
                                                              which can in turn pay dividends for your business. Take ‘pick to    cost savings and flexibility. Innovation in light sources is being
                                                              light’ for example, where just the relevant area will illuminate,   matched by innovation in lighting controls, which used together
                                                              effectively guiding workers to exactly the right place to pick      in combination offer you more. With technology always
                                                              their product, saving time and energy and helping improve           improving, we can now offer both dimmable and controllable
                                                              business efficiency.                                                fluorescent and LED solutions that work with advanced
                                                                                                                                  lighting control systems ensuring you always have light only
                                                                                                                                  where and when it is needed.

     High-bay lighting | Bright solutions for your business                                                                                                    High-bay lighting | Bright solutions for your business
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
08        Royal Mail, Daventry, UK                                                                          09

Before

                                      Royal Mail
                                      Daventry, UK

                                      Our innovative application of LED technology helped
                                      Royal Mail deliver a first class solution, by reducing
                                      energy and maintenance costs while providing
                                      excellent light quality that also helped improve
                                      productivity. The Northamptonshire based 30-acre
                                      site employs over 700 people and handles letters and
                                      parcels for over 60 mail centres – accounting for 40%
                                      of the UK’s mail. Working in partnership with Romec,
                                      we created a bespoke LED lighting scheme that delivered
                                      cost and energy saving benefits without compromising
                                      light quality. Our solution used long lifetime GentleSpace
                                      LED, the first high bay luminaire that can be used as a
                                      direct replacement for HIDs of up to 400W. The scheme
                                      saves Royal Mail circa £9000 / €11,000 a year in energy
                                      costs and 61,712kg of CO2 making it a truly
                                      sustainable solution.

                                      Product solution:
                                      GentleSpace

After

     High-bay lighting | Case study                                        High-bay lighting | Case study
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
10        Sigron,Vienna, Austria                                                                                    11

                                              Sigron
                                              Vienna, Austria

                                              Sigron, a wholesale company based in Dornbirn, Austria
                                              supplies cleaning chemicals, machines, equipment and
                                              accessories. Their large 350 m2 distribution centre
                                              has around 4,300 palette slots and approximately
                                              4,000 items of stock. Built in 1996, the original single
                                              fluorescent tube fittings, with mirrors and reflectors had
                                              become tired and urgently needed replacement. The new
                                              lighting solution needed to provide high-quality lighting,
                                              save energy and be durable and low maintenance. In
                                              addition, the company needed to meet chemical storage
                                              requirements, including low heat generation and high
                                              moisture resistance. GentleSpace LED was chosen for
                                              its high quality light output, and met the client’s demands
                                              for uniform light distribution on all shelving levels – to
                                              provide more visual comfort and safety. As a result,
                                              wellbeing and productivity in the distribution centre
                                              were increased.

                                              Product solution:
                                              GentleSpace

Before                                After

     High-bay lighting | Case study                                                High-bay lighting | Case study
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
12                                                                                                                                                                                                                                                     13

         Product overview

         Different solutions designed to fit different requirements
         The following pages detail the features and benefits for different
         Philips high-bay lighting solutions. Here is brief overview of the
         options available:

                                   pg 14–15                                          pg 16–17                                 pg 18–19                               pg 20–21                                pg 22–23

                                   GentleSpace                                       T5 HighBay                               Megalux                                PerformaLux                             Cabana 2
                                   The next level of high-bay lighting               Maximum ease of use                      Think big                              A real performer                        Ultra convenient
                                   • Extremely energy-efficient: energy savings of   • Easy to install: lamps and connector   • Modern, functional design using 		   • Best light output on the market       • High optical efficiency
                                     up to 40% compared to HPI-P systems               included (no need to open luminaire)     robust, high-quality materials         and to withstand harsh conditions
                                                                                                                                                                                                             • Easy to install
                                   • Serviceable LED engine                          • 20% energy savings compared to 		      • Pre-wired housing                    • High light output ratio
                                                                                       metal-halide high-bay systems
                                   • Flat design for application flexibility                                                  • Complies with the latest             • Equally suited for industrial and
                                                                                                                                standards for indoor workplaces        other general lighting applications

     High-bay lighting | Product overview                                                                                                                                                                       High-bay lighting | Product overview
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
14                                                                                                                                                                                                                                                                             15

     GentleSpace
                                                                                   ecat.lighting.philips.com                                          GentleSpace

                                                                                       Product Features                                                                                    Product Information
                                                                                       • Available in two sizes: four and to pods of LEDs respectively,
                                                                                                                                                                                                                 BY460P (2-pod version)
                                                                                         replacing 400W and 250W metal-halide high-bay solutions                                           Type
                                                                                                                                                                                                                 BY461P (4-pod version)
                                                                                       • LEDGINE platform for instant light and long lifetime
                                                                                                                                                                                           Light colour          4000K Neutral White
                                                                                       • Neutral white colour temperature
                                                                                       • Space saving flat design allowing for other installations such                                    Power                 108W, 145W, 218W and 292W
                                                                                         as sprinklers etc                                                                                 Light source          Integral LED module
                                                                                       • Gripple Y-fit hangers that can carry up to 45kg for easy
                                                                                                                                                                                                                 10,000 lm, 12,000 lm,
                                                                                         and secure installation                                                                           Lumen output
                                                                                                                                                                                                                 20,000 lm and 24,000 lm
                                                                                       • Thermally toughened extra-white glass cover for
     Customers in industrial and warehousing applications                                high translucence                                                                                                       Medium beam (MB)
                                                                                       • Optional integrated movement detectors for extra                                                  Optic                 Wide beam (WB)
     are constantly looking for ways to reduce the amount
                                                                                         energy saving                                                                                                           High-rack (HR)
     of energy required to light their facilities. GentleSpace
     is the first LED high-bay luminaire that can directly                                                                                                                                                       82 lm/W (MB)
                                                                                       Polar intensity diagrams                                                                            Lumen efficacy        82 lm/W (WB)
     replace HID high-bays of up to 400W, enabling
     significant energy savings.                                                   120
                                                                                         o
                                                                                                       180
                                                                                                                 o
                                                                                                                               120
                                                                                                                                     o                                                                           91 lm/W (HR)
                                                                                                                                                 BY461P 1xLED240S/740 MB GC
                                                                                                                                                 Lamp output ratio     :           1.00
                                                                                                                                                                                           Driver                Built-in (self-ballasted LED module)
                                                                                   o                                                         o
                                                                              90                                                        90
     GentleSpace offers excellent light quality and is DALI-dimmable,                                                                               Service upward :               0.00
                                                                                                       150                                          Service downward :             1.00
     so even more energy can be saved by dimming when appropriate.            60
                                                                                   o
                                                                                                                                        60
                                                                                                                                             o

                                                                                                       300                                       CIE flux code :     82 97 99 100 100      CRI                   > 75
     Available in two sizes and offering a choice of dedicated high-                                   450
                                                                                                                                                 S/H ratio crosswise :         max. 1.1
                                                                                                                                                            lengthwise :       max. 1.2
     quality optics, which fill the space with a gentle, comfortable light.                            600                                       UGRcen (4Hx8H, 0.25H)               21                          DALI dimmable to 10% of the
                                                                              30
                                                                                   o
                                                                                                                                        30
                                                                                                                                             o   UTE71-121 :             1.00B + 0.00T     Dimming
                                                                                       (cd/1000 lm)
                                                                                                       750
                                                                                                        0
                                                                                                             o
                                                                                                                     L.O.R.= 1.00
                                                                                                                                                                                                                 maximum light output

                                                                                                                                                                                                                 L90: 40,000 hours at 25ºC
                                                                                         o                       o                   o
                                                                                   120                 180                     120               BY461P 1xLED240S/740 WB GC
                                                                                                                                                 Lamp output ratio      :           1.00   Lifetime
                                                                              90
                                                                                   o
                                                                                                                                        90
                                                                                                                                             o
                                                                                                                                                    Service upward :                0.00                         L70: 75,000 hours at 25ºC
                                                                                                                                                    Service downward :              1.00
                                                                                                       150
                                                                                                                                                 CIE flux code :    74 97 100 100 100
                                                                                                                                                                                           Operating temp
                                                                                   o                                                         o
                                                                              60
                                                                                                       300
                                                                                                                                        60
                                                                                                                                                 S/H ratio crosswise :          max. 1.5                         -30°C < Ta +45ºC
                                                                                                       450                                                  lengthwise :        max. 1.5

                                                                                                       600
                                                                                                                                                 UGRcen (4Hx8H, 0.25H)                23   Mains voltage         230 or 240 V / 50-60 Hz
                                                                                                                                                 UTE71-121 :              1.00B + 0.00T
                                                                                   o                                                         o
                                                                              30                       750                              30

                                                                                       (cd/1000 lm)     0
                                                                                                             o
                                                                                                                     L.O.R.= 1.00                                                                                5-pole waterproof external connector
                                                                                                                                                                                           Connection
                                                                                   120
                                                                                         o
                                                                                                       180
                                                                                                                 o
                                                                                                                               120
                                                                                                                                        o
                                                                                                                                                 BY460P 1xLED100S/740 HRO GC
                                                                                                                                                                                                                 (3 + 2 DALI)
                                                                                                                                                 BY461P 1xLED200S/740 HRO GC
                                                                                   o                                                         o

                                                                                                                                                                                                                 Housing: die-cast aluminum, RAL 9006
                                                                              90                                                        90
                                                                                                                                                 Lamp output ratio      :           1.00
                                                                                                       150
                                                                                                                                                    Service upward :                0.00
                                                                              60
                                                                                   o

                                                                                                       300
                                                                                                                                        60
                                                                                                                                             o      Service downward :              1.00   Materials             (other RAL colours available on request)
                                                                                                                                                 CIE flux code :    74 97 100 100 100
                                                                                                       450                                       S/H ratio crosswise :          max. 1.5                         Cover: thermally toughened clear glass
                                                                                                                                                            lengthwise :        max. 1.5
                                                                                                       600
                                                                                   o                                                         o
                                                                                                                                                 UGRcen (4Hx8H, 0.25H)                23
                                                                                                                                                                                                                 Gripple Y-Fit Hanger system (included),
                                                                              30                                                        30
                                                                                                       750                                       UTE71-121 :              1.00B + 0.00T
                                                                                                                                                                                           Installation
                                                                                                             o
                                                                                       (cd/1000 lm)      0           L.O.R.= 1.00

                                                                                                                                                                                                                 or optional brackets
                                                                                                       o                            o
                                                                                                 0-180                     90-270

     High-bay lighting | GentleSpace                                                                                                                                                                                                         High-bay lighting | GentleSpace
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
16                                                                                                                                                                                                                                                                         17

     T5 HighBay
                                                                                 ecat.lighting.philips.com T5 HighBay

                                                                                     Product Features                                                                                  Product Information

                                                                                     • Available in 4 sizes: – 2 lengths (54W and 80W)                                                 Type              BY360P
                                                                                     		                      – 2 widths (2-lamps and 4-lamps)
                                                                                                                                                                                       Light source      Fluorescent
                                                                                     • Medium and wide-beam reflectors
                                                                                                                                                                                       Lamp included     Yes, light colour (840)
                                                                                     • HFD, HFP and HFR drivers
                                                                                     • Pigtail hooks for suspension mounting and mounting bracket                                                        Electronic, High Frequency
                                                                                                                                                                                       Ballast
                                                                                       for mounting to threaded rods and ceilings are all delivered                                                      220 - 240 V / 50 - 60 Hz:
                                                                                       with the luminaire
                                                                                                                                                                                       Reflector         High-gloss, medium and wide beam
                                                                                     • Different types and colours are available on request
                                                                                                                                                                                       Operating temp    -15°C < Ta +35ºC
     Our T5 HighBay fluorescent solution offers                                      Polar intensity diagrams                                                                                            Wieland/Adels push-in connector, 3-pole mains (and
                                                                                                                                                                                       Connection
     warehouse and industrial hall operators an                                        o                       o                      o
                                                                                                                                                                                                         2-pole control signal)
                                                                                 120                 180                     120               BY360P 4xTL5-54W/840 HFP WB
     affordable way to cut their lighting energy bill.                                                                                         Lamp output ratio     :          0.83
                                                                                                                                                  Service upward :              0.00                     Housing: steel, painted RAL 9006
                                                                                 o                                                         o
                                                                            90                                                        90

     Ready to install with lamps and waterproof external connector                                                                                Service downward :            0.83   Materials
                                                                            60
                                                                                 o
                                                                                                     150
                                                                                                                                      60
                                                                                                                                           o   CIE flux code :      53 86 99 100 83                      Cover: thermally toughened clear glass
     included, there is no need to open the luminaire during                                         300
                                                                                                                                               S/H ratio crosswise :        max. 1.7
                                                                                                                                                          lengthwise :      max. 1.6
     installation and it fits existing grids, because the product enables
                                                                                                     450
                                                                                                                                               UGRcen (4Hx8H, 0.25H)              24   Installation      Installation without removing lamp(s) and optic/cover
                                                                                                     600
     point-for-point replacement of 250 and 400 W HID high-bays             30
                                                                                 o
                                                                                                     750                              30
                                                                                                                                           o
                                                                                                                                               UTE71-121 :             0.83D + 0.00T
                                                                                                           o

     Once switched on, it delivers instant light, which can be dimmed
                                                                                     (cd/1000 lm)      0           L.O.R.= 1.00
                                                                                                     o                            o
                                                                                               0-180                     90-270

     as required. The watertight housing with integrated clip system             120
                                                                                       o
                                                                                                     180
                                                                                                               o
                                                                                                                            120
                                                                                                                                      o

                                                                                                                                               BY360P 4xTL5-80W/840 HFP WB
     gives the luminaire a smooth appearance and makes it easy              90
                                                                                 o
                                                                                                                                      90
                                                                                                                                           o   Lamp output ratio     :          0.70
                                                                                                                                                  Service upward :              0.00
     to clean.                                                                                        50
                                                                                                                                                  Service downward :            0.70
                                                                                 o                                                         o
                                                                            60                                                        60
                                                                                                     100                                       CIE flux code :      51 85 98 100 70
                                                                                                     150                                       S/H ratio crosswise :        max. 1.8
                                                                                                     200                                                  lengthwise :      max. 1.7
                                                                                                     250                                       UGRcen (4Hx8H, 0.25H)              24
                                                                            30
                                                                                 o
                                                                                                     300                              30
                                                                                                                                           o   UTE71-121 :             0.70D + 0.00T
                                                                                                           o
                                                                                     (cd/1000 lm)      0           L.O.R.= 0.70
                                                                                                     o                            o
                                                                                               0-180                     90-270

     High-bay lighting | T5 HighBay                                                                                                                                                                                                       High-bay lighting | T5 HighBay
High-bay lighting solutions - Innovative lighting solutions for high ceiling applications
18                                                                                                                                                                                                                                                                       19

     Megalux
                                                                                    ecat.lighting.philips.com                                Megalux

                                                                                    Product Features                                                                             Product Information
                                                                                    • Think big, with a modern, functional design and robust,                                    Type                4ME350, 4ME450, 4ME550, 4ME750
                                                                                      high-quality materials that make Megalux suitable for large
                                                                                      industrial and other spaces with high ceilings                                                                 HID:
                                                                                                                                                                                                     SON / E40 / 250, 400, 1000W
                                                                                    • High-performance lighting complies with the latest
                                                                                                                                                                                                     Mater HPI Plus / E40 / 250, 400W
                                                                                      standards for indoor workplaces
                                                                                                                                                                                                     HQ-E / E40 / 1000W
                                                                                    • Housings are completely pre-wired and made of robust                                                           Mastercolour CDM-T / G12 / 70, 150, 250W
                                                                                      cast aluminum                                                                              Light source        Master CityWhite CDO-ET / E40 / 100W
                                                                                                                                                                                                     Induction:
                                                                                    Polar intensity diagrams                                                                                         Master QL / E40 / 165W
                                                                                120
                                                                                      o
                                                                                                   180
                                                                                                            o
                                                                                                                          120
                                                                                                                                o
                                                                                                                                         4ME550 P-NB 1xHPI-P400W-BU                                  Fluorescent:
                                                                                                                                         Lamp output ratio     :          0.75                       Master PL-T lamps
                                                                                                                                            Service upward :              0.00
                                                                                o                                                    o
                                                                           90                                                   90

                                                                                                                                            Service downward :            0.75

     Think big, with a modern, functional design and                       60
                                                                                o                  500
                                                                                                                                60
                                                                                                                                     o   CIE flux code :   93 100 100 100 75                         Electromagnetic, 230V / 50 Hz
                                                                                                                                         UGRcen (4Hx8H, 0.25H)              16   Gear
                                                                                                   1000
                                                                                                                                                                                                     Electronic, 220-240V / 50-60 Hz
     robust, high-quality materials that make Megalux                                              1500
                                                                                                                                         EN12464-1
                                                                                                                                         UTE71-121 :
                                                                                                                                                               65°, 500 cd/m2
                                                                                                                                                                 0.75A + 0.00T

     suitable for large industrial and other spaces                        30
                                                                                o
                                                                                                   2000                         30
                                                                                                                                     o
                                                                                                                                                                                                     Aluminium reflectors
                                                                                    (cd/1000 lm)    0
                                                                                                        o
                                                                                                                L.O.R.= 0.75                                                     Optic
     with high ceilings.                                                                                                                                                                             Translucent reflectors
                                                                                      o                     o                   o
                                                                                120                180                    120            4ME550 P-WB 1xHPI-P400W-BU
     This high-performer complies with the latest standards for indoor                                                                   Lamp output ratio    :          0.78                        Housing: robust painted cast aluminium
                                                                                                                                            Service upward :             0.00
                                                                                o                                                    o
                                                                           90                                                   90
     workplaces and is available in 4 attractive housings for individual                                                                    Service downward :           0.78    Materials           Reflectors: aluminium, acrylic, polycarbonate
                                                                                                   100
     suspended installation. are completely pre-wired and made of          60
                                                                                o

                                                                                                   200
                                                                                                                                60
                                                                                                                                     o
                                                                                                                                         CIE flux code :   79 99 100 100 78
                                                                                                                                                                                                     Cover: tempered clear or frosted glass
                                                                                                                                         UGRcen (4Hx8H, 0.25H)             21
     robust cast aluminium with a high-gloss anodized inner surface.                               300                                   EN12464-1          65°, 1000 cd/m2
                                                                                                   400
                                                                                                                                         UTE71-121 :            0.78B + 0.00T    Ambient temp        Up to 45°C, special version up to 60°C
                                                                                o                                                    o
                                                                           30                      500                          30

                                                                                    (cd/1000 lm)    0
                                                                                                        o
                                                                                                                L.O.R.= 0.78                                                     Main applications   Hyper/supermarkets, DIY shops, Industries

     High-bay lighting | Megalux                                                                                                                                                                                                           High-bay lighting | Megalux
20                                                                                                                                                                                                                                                                         21

     PerformaLux
                                                                                 ecat.lighting.philips.com                                    PerformaLux

                                                                                     Product Features                                                                            Product Information
                                                                                     • An integrated beam adjuster allows the beam width                                         Type                HPK380 (large gear unit version)
                                                                                       to be modified from narrow to medium or wide using
                                                                                       a simple handle. This provides extra flexibility when                                                         HID:
                                                                                       set-ups or production layouts are changed.                                                                    MASTER HPI Plus / E40 / 400 W
                                                                                     • The PerformaLux HPK380 is available in three sizes:                                       Light source        SON / E40 / 400 W
                                                                                       large, medium and small.                                                                                      Induction:
                                                                                                                                                                                                     MASTER QL system / 165 W

                                                                                     Polar intensity diagrams                                                                    Lamp included       Yes (K)
                                                                                       o                     o                   o
                                                                                                                                          HPK380 1xHPI-P250W-BU
                                                                                                                                                                                                     Electro magnetic (low loss), 230 or 240 V / 50 Hz:
                                                                                 120                180                    120

                                                                                                                                          Lamp output ratio    :        0.80
                                                                            90
                                                                                 o
                                                                                                                                 90
                                                                                                                                      o
                                                                                                                                             Service upward    :        0.00                         Parallel compensated (IC)
                                                                                                                                             Service downward :         0.80
     The PerformaLux HPK380 luminaire has been                              60
                                                                                 o
                                                                                                    250

                                                                                                    500                          60
                                                                                                                                      o
                                                                                                                                          CIE flux code :   86 99 100 100 80     Gear                Ignitor semi-parallel self-stopping (ST)
     designed to offer the best light output on the market                                          750
                                                                                                                                          UGRcen (4Hx8H, 0.25H)           18                         Electronic, 220 - 240 V / 50 - 60 Hz:
                                                                                                                                          UEN12464-1 :       65°, 1500 cd/m2
                                                                                                    1000
                                                                                                                                                                                                     Electronic regulated (EBR)
     and to withstand harsh industrial conditions.                               o
                                                                                                    1250
                                                                                                                                      o
                                                                            30                      1500                         30

     The best-in-class light output ratio means fewer luminaires are                                                                                                                                 Aluminum reflector (normal and painted versions)
                                                                                                         o
                                                                                     (cd/1000 lm)    0           L.O.R.= 0.80

                                                                                                                                                                                 Optic
     required to maintain the desired lighting level, thus reducing total        120
                                                                                       o
                                                                                                    180
                                                                                                             o
                                                                                                                           120
                                                                                                                                 o
                                                                                                                                          HPK380 1xHPI-P400W-BU                                      Translucent reflector (acrylic and polycarbonate versions)
     cost of ownership.                                                                                                                   Lamp output ratio          :    0.87
                                                                                                                                                   Service upward    :    0.11
                                                                                 o                                                    o
                                                                            90                                                   90

                                                                                                                                                   Service downward :     0.76                       Lighting controls: external dimming controller used
     The robust design of this luminaire, combined with a wide range        60
                                                                                 o
                                                                                                    150
                                                                                                                                 60
                                                                                                                                      o
                                                                                                                                          CIE flux code :       70 89 94 87 87                       for electro magnetic ballast and DynaVision controller,
                                                                                                    300
     of light sources and both aluminum and decorative translucent                                                                        UGRcen (4Hx8H, 0.25H)             20
                                                                                                                                                                                                     provided by installer
                                                                                                    450
     reflectors, makes it equally suited for industrial and other general                                                                                                        Option
                                                                                                    600
                                                                                                                                                                                                     Emergency lighting (external battery pack, provided
     lighting applications such as shops and department stores.             30
                                                                                 o
                                                                                                    750                          30
                                                                                                                                      o

                                                                                     (cd/1000 lm)    0
                                                                                                         o
                                                                                                                 L.O.R.= 0.87                                                                        by installer)
                                                                                                                                                                                                     Auxiliary lamp for instant start-up (AUX)

                                                                                                                                                                                                     Gear unit: die-cast aluminum
                                                                                                                                                                                                     Reflector: spun aluminum with 99.85% AL purity grade
                                                                                                                                                                                 Materials
                                                                                                                                                                                                     Translucent reflector: acrylic or polycarbonate
                                                                                                                                                                                                     Glass cover: tempered glass (GC)

                                                                                                                                                                                 Installation        Individual; suspended or direct on ceiling

                                                                                                                                                                                                     Mounting bracket, steel-wire cables, twin mounting
                                                                                                                                                                                 Accessory
                                                                                                                                                                                                     bracket, catenary mounting bracket, suspension hook

                                                                                                                                                                                                     Ready-to-install versions (KIT), inclusive lamp(s) and
                                                                                                                                                                                 Remarks             installation material
                                                                                                                                                                                                     Complies with norm EN55015 and EN61547

                                                                                                                                                                                                     Industry, retail, DIY stores, public spaces,
                                                                                                                                                                                 Main applications
                                                                                                                                                                                                     hyper-/supermarkets

     High-bay lighting | PerformaLux                                                                                                                                                                                                     High-bay lighting | PerformaLux
22                                                                                                                                                                                                                                                                     23

     Cabana 2
                                                                               ecat.lighting.philips.com                                    Cabana 2

                                                                                   Product Features                                                                              Product Information
                                                                                   • External beam regulator for easy on-site narrow/wide
                                                                                                                                                                                                   BY150P (SON, HPI-P lamp version)
                                                                                     beam adjustment                                                                             Type
                                                                                                                                                                                                   BY151P (CDM-TMW lamp version)
                                                                                   • Bayonet construction for attaching the reflector to
                                                                                     the housing                                                                                                   HID:
                                                                                                                                                                                                   MASTER HPI Plus / E40 / 250, 400 W
                                                                                   • External connector for quick, simple electrical connection                                  Light source
                                                                                                                                                                                                   SON / E40 / 250, 400 W
                                                                                     without opening the unit
                                                                                                                                                                                                   Master CDM-TMW / PGZ18 / 210, 315 W

                                                                                   Polar intensity diagrams                                                                      Lamp included     Yes (K) or No

                                                                                                                                        BY151P 1xCDM-TMW315W/942                                   HID-Primavision (for CDM lamps)
                                                                                     o                     o                   o
                                                                               120                180                    120

                                                                                                                                        Lamp output ratio      :          0.73
                                                                          90
                                                                               o
                                                                                                                               90
                                                                                                                                    o
                                                                                                                                           Service upward :               0.00   Ballast           Conventional electro-magnetic (SGR) (for SON lamps)
                                                                                                                                           Service downward :             0.73
                                                                                                  100                                                                                              Conventional electro-magnetic (HGR) (for HPI lamps)

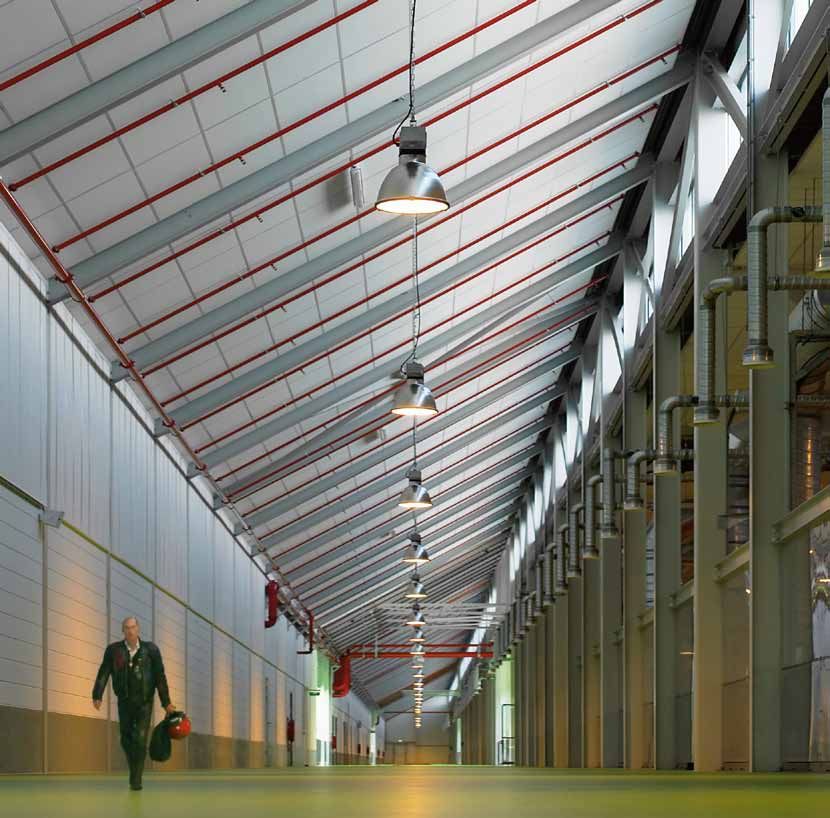

     Cabana 2 is a functional high-bay indoor luminaire                   60
                                                                               o

                                                                                                  200
                                                                                                                               60
                                                                                                                                    o   CIE flux code :     74 98 100 100 73
                                                                                                                                        S/H ratio crosswise :         max. 1.3
     for high-intensity discharge lamps.                                                          300                                              lengthwise :
                                                                                                                                        UGRcen (4Hx8H, 0.25H)
                                                                                                                                                                      max. 1.3
                                                                                                                                                                            24
                                                                                                                                                                                 Reflector         Basic (R)
                                                                                                  400
                                                                                                                                        UTE71-121 :              0.73B + 0.00T
     The supplied reflector can be attached to the unit without screws    30
                                                                               o
                                                                                                  500                          30
                                                                                                                                    o
                                                                                                                                                                                 Optical cover     Glass, clear (GC)
                                                                                                       o
                                                                                   (cd/1000 lm)    0           L.O.R.= 0.73
     by means of an ingenious bayonet construction.
                                                                                                                                                                                                   Emergency lighting: 1 hour (EL1)
                                                                                                                                                                                 Options
                                                                                     o                     o                   o
                                                                               120                180                    120            BY150P 1xHPI-P400W-BU
     The innovative external beam regulator enables easy lamp                                                                           Lamp output ratio     :          0.76                      AuxiIiary lighting (AUX) for instant light
     adjustment (narrow or wide beam) at the installation site. The                                                                        Service upward :              0.00
                                                                               o                                                    o
                                                                          90                                                   90

                                                                                                                                           Service downward :            0.76
     external connector means the electrical connection can be made       60
                                                                               o                  100
                                                                                                                               60
                                                                                                                                    o   CIE flux code :     68 96 100 100 76     Connection        3-pole push-in connector
                                                                                                                                        S/H ratio crosswise :        max. 1.5
     without opening the unit. Two versions are available: the standard                           200
                                                                                                                                                   lengthwise :      max. 1.5
     version for SON and HPI-P lamps, and a round version for                                     300                                   UGRcen (4Hx8H, 0.25H)              25                      Housing: die-cast aluminum
     CDM-TMW lamps.                                                       30
                                                                               o
                                                                                                  400                          30
                                                                                                                                    o
                                                                                                                                        UTE71-121 :             0.76C + 0.00T    Materials         Reflector: anodized aluminum
                                                                                   (cd/1000 lm)    0
                                                                                                       o
                                                                                                               L.O.R.= 0.76
                                                                                                                                                                                                   Cover: thermally toughened glass

                                                                                                                                                                                                   Installation without removing lamp(s) and cover
                                                                                                                                                                                 Installation      Individual, with hooks or bracket
                                                                                                                                                                                                   Operating temperature: -15ºC < Ta < 35ºC

                                                                                                                                                                                 Accessories       Glass cover, mounting bracket, reflector

                                                                                                                                                                                                   All components are in one box (incl accessories),
                                                                                                                                                                                 Remarks
                                                                                                                                                                                                   though, the accessories can be ordered separately

     High-bay lighting | Cabana 2                                                                                                                                                                                                       High-bay lighting | Cabana 2
©2012 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction in whole or in part is prohibited without the prior written
consent of the copyright owner. The information presented in this document does not form
part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use.
Publication thereof does not convey nor imply any license under patent- or other industrial
or intellectual property rights.
Document name: HIGHBAY FAMILY BROCHURE 08/12
You can also read
