Gillies & Mackay Garages Price List - Gillies & Mackay
Gillies & Mackay
    Garages Price List

                         Gillies & Mackay
1                        Garages price list.
Gillies & Mackay Garages Price List - Gillies & Mackay
Contents
                         4-5   Apex Garages

                         6-7   Pent Garages

                        8-9    Manual & Automated Garage Doors

                       10-11   Garage Base Requirements

                       12-15   Optional Extras

                          16   Architectural Design

                          17   Delivery & Assembly

                          18   Buyer’s Prep Guide

                          19   What Happens Next?

                      20-21    Terms Of Sale

Gillies & Mackay
Garages price list.        2
Gillies & Mackay Garages Price List - Gillies & Mackay
Garage
Specification
Revolutionary 3 Tier
Wall Specification
After many years of relentless Scottish             Roof Construction:
weather Gillies and Mackay made the                 95mm x 45mm pressure treated framing
decision to never be at the mercy of water          [minimum size]
ingress ever again. In 2016 we devised an
almighty 3 tier wall that would laugh in the        16mm tongue and groove sarking treated
face of Scottish horizontal rain!                   with Anti-Fungal wash – We like to use the
                                                    tongue and groove 115mm wide boards
Wall Construction:                                  because of its bracing qualities.
19mm thick tongue and groove pressure
treated weatherboard – Pressure treating            22mm pressure treated batten
the cladding protects it against rot for over       Proctor Roofshield membrane – This
15 years but we always recommend that you           provides a secondary barrier to the
paint it to see the wood lasting many years         ingress of rain, wind and snow. It has a low
more.                                               vapour resistance and is air – permeable;
22mm pressure treated batten – This is what         additionally, it eliminates the incidence of
creates the cavity… Water can do a lot of           condensation in pitched roofs.
things but jumping 22mm with no propelled           0.5mm Polyester coated steel box profile
effort is beyond conceivable – however, just        sheeting [20-year guarantee] – Steel Box
to be sure…                                         Profile is brilliant, reliable and durable.
Breather membrane – This membrane
acts a barrier from the outside to the inside
and stops any moisture from the external
cladding, protruding into the internals.
9mm OSB sheeting -OSB or oriented strand
board is – waterproof adhesives that bond
the wood fibres together creating strength
and excellent load bearing properties.
95mm x 45mm pressure treated framing –              Conclusion:
Our framing is C16 graded – meaning it’s            We make our Garages in sections in the
really strong and can withstand the weight it       workshop and then assemble them like a
must carry plus any additional loads. weather       massive jigsaw on site. We introduced this
or human permitted.                                 new Garage specification in 2016, but we’ve
                                                    been doing it for years with our Cabins so we
                                                    know it works.

                                                    It’s so good when things
                                                    just work don’t you think?

                                                                                    Gillies & Mackay
                                                3                                   Garages price list.
Gillies & Mackay Garages Price List - Gillies & Mackay

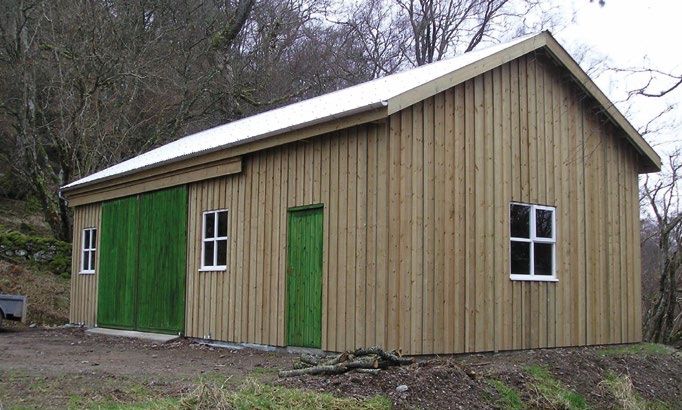

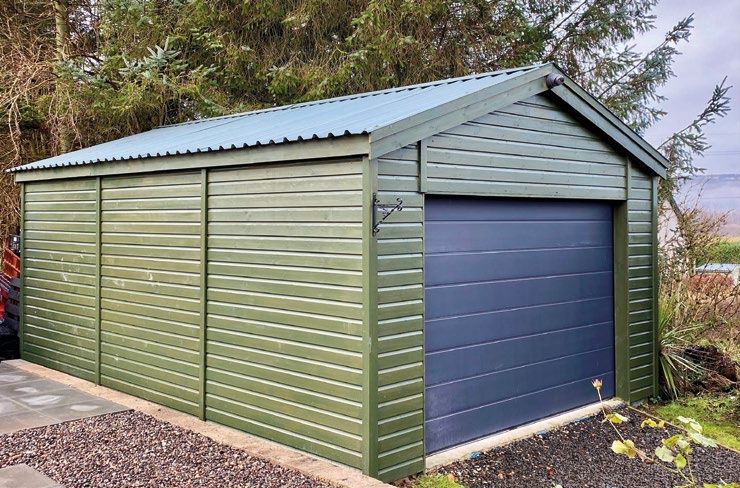

Apex Garage                                         Pricing
Pretty and Pointed                                  Size           Size              Total
The Apex style is a traditional A frame roof,
the daddy of the two roof designs; the most         (Imperial)     (Metric)
popular roof style because of its added             Apex Single Size
internal space and roof storage.
                                                    4.8m x 3m      (16’ x 10’)       £5,342.00
                                                    4.8m x 3.6m    (16’ x 12’)       £6,410.00
                                                    5.4m x 3m      (18’ x 10’)       £6,010.00
                                                    5.4m x 3.6m    (18’ x 12’)       £7,212.00
                                                    6m x 3m        (20’ x 10’)       £6,678.00
                                                    6m x 4m        (20’ x 13’12’’)   £8,904.00

                                                    Apex Double Size
                                                    6m x 5m        (20’ x 17’)       £11,130.00
                                                    5.4m x 5.4m    (18’ x 18’)       £10,822.00

Gillies & Mackay
Garages price list.                             4
Gillies & Mackay Garages Price List - Gillies & Mackay
Cross Section

                    Gillies & Mackay
5                   Garages price list.
Gillies & Mackay Garages Price List - Gillies & Mackay

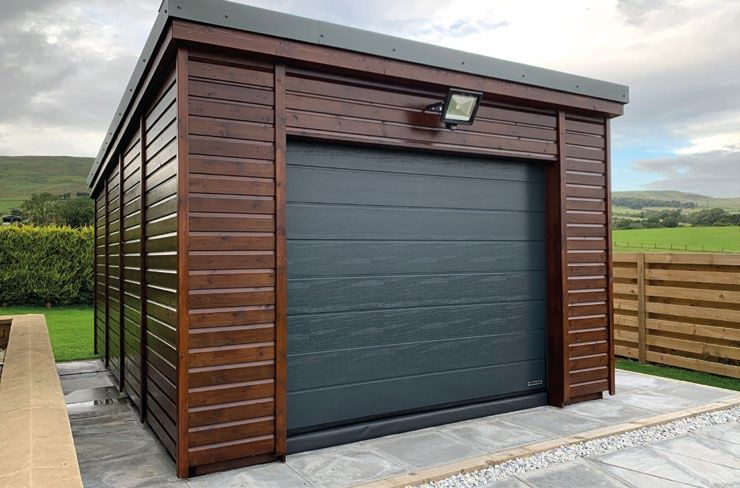

Pent Garages                                       Pricing
Pitched Perfect                                    Size               Size                Total
The Pent style is a single 9-degree pitched
roof that portrays a more discreet approach,       (Imperial)         (Metric)
ideal for; alongside house walls, garden           4.8m x 3m          (16’ x 10’)         £5,554.00
fences, and pleasing nosey neighbours.
                                                   4.8m x 3.6m        (16’ x 12’)         £6,622.00
The sizing is limited to a 3m Gable because
of the support this building needs to carry        5.4m x 3m          (18’ x 10’)         £6,222.00
such an incredible roof.
                                                   5.4m x 3.6m        (18’ x 12’)         £7,424.00
                                                   6m x 3m            (20’ x 10’)         £6,890.00
                                                   **Pent Roofs are restricted to 3.6m gable max**

Gillies & Mackay
Garages price list.                            6
Gillies & Mackay Garages Price List - Gillies & Mackay
Gillies & Mackay
7   Garages price list.
Gillies & Mackay Garages Price List - Gillies & Mackay

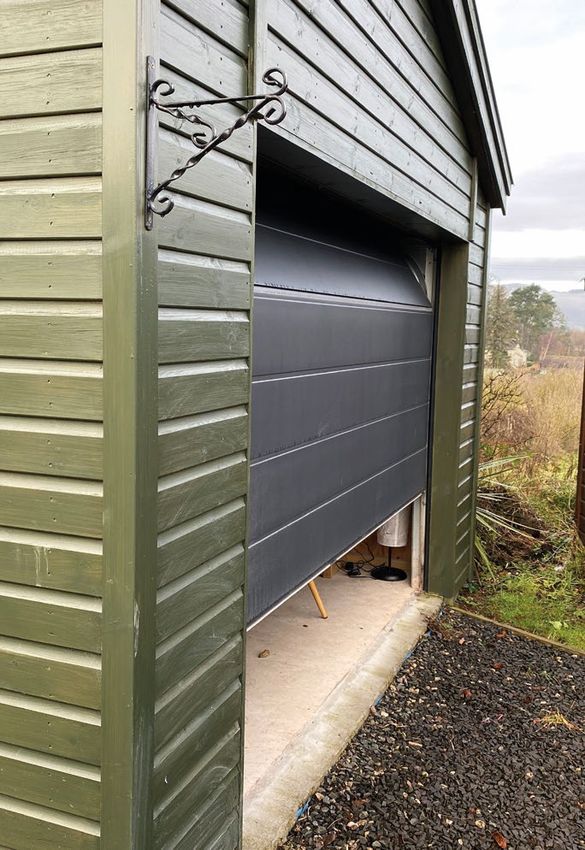

Manual &                                         Pricing
Automated                                        Garage              Manual           Automatic

Garage Doors
                                                 Doors               Price            Price
                                                 2.4m (8’)           £1,450.00        £1,700.00
Gillies and Mackay have been working
with Tayside Garage Doors for over 3 years       3m (10’)            £1,850.00        £2,200.00
now. Simone at TGD is an amazing woman           4m (14’)            £2,100.00        £2,450.00
who knows her stuff when it comes to our
favourite kind of door, a Hormann.               **Third Party Supply and Fit
                                                 Included within 50miles of Errol**
Like our wood, we only accept the best.
We have a choice of sizes and whether you
prefer to Automate them or leave them
Manual is purely a matter of preference.
Bare in mind your gable width when
choosing as there needs to be sufficient
space either side. Roughly a foot minimum.

Gillies & Mackay
Garages price list.                          8
Gillies & Mackay Garages Price List - Gillies & Mackay
Gillies & Mackay
9   Garages price list.
Gillies & Mackay Garages Price List - Gillies & Mackay
Concrete Base Requirements
Concrete Perfection
Garages don’t have floors, so they need a concrete plinth to sit on.
The plinth needs to be strong enough to carry the weight of the walls
and the roof, as well as whatever you’d like to put in it. It also needs to be
a certain size, made from the right stuff, be in square and BANG ON level.

Three things we know about Garage bases
1. Excavation
If your existing site is MENTAL unlevel, you         If your base is not to size then we cannot slot
have horrendous access and a terrain soft            the walls over the sides allowing the water to
as butter, then it’s going to take a lot of          drain away from the building properly.
preparation before we get anywhere near
                                                     In Square
the concrete.
                                                     Keeping your base ‘in square’ keeps the
If your Garage is where ‘normal’ people              building in square. How you do this is by
have their garages, to one side of the house,        using the corner to corner measurements.
already level AND in good standing firm
ground, then you can put the kids’ university        Finally… a use for all that geometry you learnt
funds away! We’re going to have an easier            at school! The square is imperative to how
ride here.                                           the building goes together. If your base is
                                                     not square, Calum will have to ‘THROW’
2. Sub Base                                          the panels which isn’t nice to see, nor is it a
                                                     pretty finish.
Once the area has been excavated we’ve got
some serious jobs on.                                Level
Depending on the ground condition you can            Some base layers cannot fathom the
expect to lay a minimum depth of 100mm               prospect of not having a ‘run’ on the level.
of T1 hardcore. Once this is compact and             A run on a base is typical to allow water to
level you would lay a DPC (damp proof                run away. Our Garages do not want a run
membrane) before the concrete gets                   because they don’t leak so there’s no water.
poured.                                              This is common on hard landscaping but is
                                                     definitely not welcome on a garage base.
3. Concrete                                          Now I know what you’re thinking…
I like to call this the list of three                I cannae do that?!
to concrete perfection:
                                                     You’re right, so please, for all the Shed love
To Size                                              in the world, do not try it – unless, of course,
Before concrete is poured there’s a timber           laying concrete is your actual job.
frame built to shutter the concrete in –             At G&M we only work with amazingly
this is where the measurements are so                handsome and clever trades. Thankfully
CRUCIAL!! Setting up the formwork takes              we know just the team to kit you out with a
precision and close attention to where               magnificent Garage base.
you’re measuring from.

Gillies & Mackay
Garages price list.                             10
We recommend Baxter and Carmichael                 Some of the factors affecting the above
for all our concrete bases.                        rates which would be an additional cost
We love B and C because they know what             are as follows:
we’re talking about. They are kind and
thoughtful when dealing with our customers,        • Access to work area , if this is awkward with
and they get the job done when they say              maybe poor access for Plant .
they will, with the utmost precision.              • Excavated spoil removed from Site , if this is
                                                     required , can easily add £600 £ 800.00 to
Paul, B and C’s Estimator was kind enough            above rates .
to help me understand their process and            • If existing Site is not level , additional hardcore
pricing.                                             maybe required which would be extra .
The following costs are budgetary                  • If Site is more than an hour from Cupar , there
meantime, exclude VAT and are based on               will be travelling costs to add , if more than 3
working in the Fife area.                            hours then overnight accommodation will be
                                                     required.
                                                   • Ducts for services , would be a small additional
Deep Concrete Base                                   cost.
                                                   We would prefer to survey the Site prior
6.00m x 3.00m x 0.150m - £3,100.00
                                                   to pricing to make sure all the above are
6.00m x 6.00m x 0.150m - £3,800.00                 included from the start.
Excavated spoil remains on Site.                   We can and do pour bases all over the
                                                   Country , but the further away we get from
                                                   home with travelling & accommodation to
                                                   factor in makes it harder to be competitive
                                                   with more locally based Contractors.
                                                   So, there you have it Sheddies! A Garage is
                                                   only as good as the base it stands on – so
                                                   be sure to get it right.

                                                                                        Gillies & Mackay
                                              11                                        Garages price list.
Optional Extras
Double Glazing
Double glazing is highly recommended for a Garage.
Due to the construction of the 3 tier wall, it is the perfect
specification to hold a double glazed casement unit. The
benefits from double glazing ensure that your building
maintains it’s insulation factor that comes from the breather
cavity within the walls. For Garages we recommend 3 sizes of
Upvc Casement Windows.

UPVC Casement Window Size
1050mm (h) x 620mm (w)
[single side hung opening window]		               £450.00
1050mm (h) x 1050mm (w)
[double side hung opening window]		               £750.00
1050mm (h) x 1790mm (w)
[triple 2 part side hung opening window]          £950.00

Siberian Larch Cladding
As standard, Gillies and Mackay use
Scandinavian Pine (Redwood) which is
commendable for it’s durability and long
lasting life span. It does however need
preserving. For Garages, we buy this timber
tanalised - which means it’s pressure treated
with an anti-fungal treatment, which is what
gives it a green colour tint.
Siberian Larch is an entirely different timber.
Larch does not require the additional
treatment of tanalising. It can withstand its
lifespan without being treated (however we
do recommend a primer of some sort to
protect it from UV damage). Siberian Larch
will weather to a slivering colour over time
but starts out as a yellow/gold.

Gillies & Mackay
Garages price list.                               12
Garage                              Close Board        Siberian
Size                                & Strap            Larch
4.8m x 3m (16’ x 10’)               £1,310.00          £2,268.00
4.8m x 3.6m (16’ x 12’)             £1,572.00          £2,721.00
5.4m x 3m (18’ x 10’)               £1,474.00          £2,551.00
5.4m x 3.6m (18’ x 12’)             £1,769.00          £3,061.00
6m x 3m (20’ x 10’)                 £1,638.00          £2,835.00
6m x 4m (20’ x 13’12’’)             £2,184.00          £3,780.00
6m x 5m (20’ x 17’)                 £2,730.00          £4,725.00
5.4m x 5.4m (18’ x 18’)             £2,654.00          £4,594.00
**additional to the Garage cost**

Close Board and Strap Cladding
This cladding is traditionally referred to as the Highland
Cladding. This is because it’s typically used for buildings
which are constructed in the Scottish Highlands. The
durability of this cladding is hardy and meant for harsh
Scottish weather which is aided by how it’s profiled.
The boards are rough sawn - not dressed (smooth) and are
fixed vertically, beside each other with a 50mm strip.
                                                                   Gillies & Mackay
                                                  13               Garages price list.
Optional Extras
Bitumen Shingled Roof
Bitumen Shingles are typically used on our
Summer Houses as a decorative roofing
option. They carry a 15 year guarantee and a
life expectancy of many more. They can be
requested by planning depts if you need to
go through the planning process.
Price on Application

                                                    Insulate and Line
                                                    Due to the 3 tier wall specification, the
                                                    Garage construction is already set up for
                                                    Insulating and lining. The 95mm x 45mm
                                                    frame can accommodate rigid board
                                                    insulation of 70mm or Knauff Omni Fit
                                                    Fibre insulation of 100mm. Thereafter we
                                                    offer either 16mm V’d Lining or 12.5mm
                                                    Plasterboard (requires additional decorative
                                                    work).
                                                    Insulating your Garage would be advisable
                                                    if you plan to use the space for more than
                                                    storage and keeping your vehicle in.
                                                    Cost on Application

Gillies & Mackay
Garages price list.                            14
Extended Canopies/Carports
It’s often requested that we incorporate a
Carport Area from the side elevation of an
Apex Garage. This adds to the versatility
of the Garage and does not impact on the
30m2 restriction that is imposed by Building
Control. Pricing is dependent on width and
depth and is best priced when you know the
size of Garage you are after.
Cost on Application

                                                    Gillies & Mackay
                                               15   Garages price list.
Architectural
Design
It is possible your Garage is part of a larger
project, possibly a new house build whereby
the incorporation of a Garage is already
determined within your plans and set to a
standard specified by the professions you
already have acting on your behalf. If this is
the case, we welcome any existing designs
/ drawings to be quoted as a tendership.

Gillies & Mackay
Garages price list.                              16
Delivery and
Assembly
Delivery and Assembly is included in the           Lead Time
prices, within a 30-mile radius of Errol.
                                                   All of our beautiful buildings are made
Thereafter, a delivery and assembly charge
                                                   to order and handcrafted for you by our
may be applied. If you live over 80 miles
                                                   amazingly skilled and talented joiners in our
from Errol, delivery and assembly is priced
                                                   workshop. Our lead time can vary anywhere
on application. The reason for this is that
                                                   between 8 weeks to 24 weeks depending on
our Garages require a team of 4 and a full
                                                   demand.
7 hours minimum for assembly. If you’re
ordering a double or have optional extras          Because we are a seasonal business, our
this could easily lead into several days           lead time moves quicker in the summer
required for assembly. If you are far away,        months compared to the winter months.
we may need to stay overnight near your
location to get the best out of the days           For example: You approach us in April about
required.                                          a Garage and our lead time at that point
                                                   is July. You mull over your Garage for 2-3
There is no option for delivery and pick-          weeks then approach us to secure your shed
up only. Our buildings have been uniquely          dream - the lead time is now August.
designed by our shed mastermind and
founding Father, Grant. Therefore, they            Please bear this in mind when enquiring.
require a G&M qualified joiner to assemble         The best place to find out our current lead
for you.                                           time is at the top of the home page on our
                                                   website.

                                                                                  Gillies & Mackay
                                              17                                  Garages price list.
Buyer’s
Prep Guide
The G&M Buyer’s Prep Guide is the single most important
guide you should read before buying your very own dream
Garage. It cover’s:
• The Order Process
• Base Prep
• Planning Permission
• Painting
• Site Access
Please read this to get a fuller understanding of what you
need to consider before buying your Garage. We’ve created
a short summary of base preparation and painting here to
get you started.

Gillies & Mackay
Garages price list.                         18
What happens next?
You’ve had a good browse through the brochure
and you’re thinking about taking the next step.
The best thing to do is to get booked in for a consultation
with us.
It might come as a bit strange that you have to book in for
an appointment, but this is to ensure you get your dedicated
one-on-one time with us and we can fully focus on you.
There are 3 consultation options available: By visiting the
show area, over the phone or on video call (Zoom).
There will also be some questions to fill out in the
consultation form that will help us both fully prepare
for your consultation.
On your consultation we’ll have the opportunity                  Book
to go over any questions you may have and,
if you’re ready, complete your order form.                    G&M Garage
There are a few different ways your journey will              Consultation
go with us depending on where you are on your
journey. We’ll be here to guide you along every
step of the way :)
We cannot WAIT to hear all about your Shed dreams :)

All our shed love,
G&M x
                                                                      Gillies & Mackay
                                               19                     Garages price list.
Terms of Sale                                                      Site for Delivery
Essential points of our Terms and Conditions of Sale               Please ensure that there is someone available to
in Plain English. Fully detailed Conditions of Sale are            show us where you would like your shed positioned.
Available Upon Request.
                                                                   If no-one can be available, please provide us with a
Terms                                                              site plan prior to the delivery date.
The terms and conditions are applicable to the supply              If we do not receive a site plan and your site is not
of products made by the Seller, hereafter referred                 absolutely evident, we shall leave the building for you
to as Gillies & Mackay Ltd, to the Buyer. The Seller               to assemble yourself.
means Gillies & Mackay Ltd, East Inchmichael, Errol,
Perthshire, PH2 7SP and the company’s website,                     If we need to return to assemble the building for you,
www.gilliesandmackay.com. The Buyer shall mean                     an extra charge will be levied at a minimum of £50.00
the person(s), firm or company seeking to purchase                 to cover vehicle costs.
the goods from the Seller.
                                                                   Payment
Levelling and Access                                               Full payment must be received by the Seller 1 week
Prior to delivery you must ensure that your site is level          prior to delivery; however a 20% deposit is required
and square. Please note that a slabbed area is the                 on all our buildings, and 30% for £3000.00 and above.
preferred site for summerhouses.                                   If you prefer to pay by credit card please arrange this
                                                                   through the sales office. We accept Mastercard, Visa
Access to the base must be clear and unobstructed                  and Maestro. We do not accept American Express.
prior to our arrival. Prices on our list allow for carrying        Cheques should be made payable to Gillies & Mackay
of panels up to a maximum of 30 yards, due to the                  Ltd. All prices are quoted in Pounds Sterling and
size of the panels and to comply with Health and                   inclusive of VAT at the prevailing rate. Any order that
Safety legislation.                                                remains unpaid 7 days before the scheduled delivery
                                                                   will be cancelled and the slot reallocated.
It is not always convenient and is not good practice
to carry buildings through garages, over walls, or over
next door’s garden!
                                                                   Title and Risk
                                                                   The property of the Goods shall not pass to the
If access is not clear or the site not level, we shall             Buyer until the Buyer has paid to the Seller the whole
leave the building for you to assemble yourself.                   price thereof, and any monies whatsoever owing by
                                                                   the Buyer to the Seller. The Buyer agrees that prior
If you require us to return and erect the building for             to the payment of the whole price of the Goods,
you, an extra charge will be levied at a rate of £15.00            the Seller may at any time enter upon the Buyer`s
per 15 minutes of labour and £50.00 for extra vehicle              premises or premises under the Buyer`s control or to
costs.                                                             which the Buyer has right of access, for the purpose
If you have a problem with your site, or have any                  of inspection, repossession and removal of Goods
doubts about levelling, please let us know well in                 therefrom, and that prior to such payment the Buyer
advance.                                                           shall keep the Goods in good and substantial repair

Gillies & Mackay
Garages price list.                                           20
and condition and separate and identifiable for the                Planning Laws
aforementioned purposes. Nothing herein shall
                                                                   Please note that certain buildings may be subject to
constitute the Buyer the agent of the Seller for the
                                                                   planning permission or building control. Whilst we
purposes of sub-sale. Notwithstanding that property
                                                                   are happy to provide the Customer with diagrams
in the Goods shall not pass to the Buyer save as
                                                                   or build-sizes of the various types of building, it is
provided above, the Goods shall be at the risk of
                                                                   entirely the responsibility of the Customer to look
the Buyer when the Goods are delivered or when a
                                                                   into the planning regulations relevant to his area and
Buyer is notified that they are available for collection.
                                                                   to complete the necessary paperwork, if required to
Notwithstanding the preceding provisions of this
                                                                   do so. Gillies & Mackay Ltd will take no responsibility
clause, the Seller may at his sole discretion, and at
                                                                   for the erection of buildings where the correct
any time by notice in writing to the Buyer, transfer the
                                                                   permissions have not been sought and which may
property in the Goods to him.
                                                                   later be subject to a removal order by the relevant
                                                                   planning department. We are happy to provide the
Delivery Dates                                                     first two sets of drawings free of charge. For additional
Any delivery date shall be considered as indicative                drawings and revisions, a minimum charge of £50.00
only, although it is our policy to endeavour to fulfill all        will be applied per set, which will be refunded upon
orders within 30 days. Gillies & Mackay Ltd cannot be              purchase of your building. If you require us to act as
held responsible for delays in delivery caused by any              your Agent in a planning application, the relevant
other third party.                                                 planning fee will be applied, please ask for details.

Acceptance                                                         Law
a) Unless otherwise specified, all items should be                 These terms and conditions are governed and
signed for on delivery or uplift.                                  shall be interpreted in accordance with the Law of
                                                                   Scotland.
b) The Buyer shall inspect the goods within 24 hrs of
receipt and after that time shall be deemed to have
accepted the goods.                                                Contacting Us
                                                                   If you have any queries about any of the above,
Cancellations                                                      please do not hesitate to telephone us on 01821
                                                                   642713.
Cancellations are only accepted if made in writing.
Cancellations should be made no later than 10 days
before the estimated date of delivery. If cancellation             Finally
is not made within this period, then the order will be             We reserve the right to decline an order and to alter
considered valid and the Customer will remain liable               the designs and/or specifications without prior notice.
for the full payment. CANCELLATIONS CANNOT BE                      Such changes would be made in order to upgrade
MADE BY E-MAIL.                                                    and improve existing designs. The designs of the
                                                                   buildings and of any publications are copyright Gillies
                                                                   & Mackay Ltd.

                                                                                                         Gillies & Mackay
                                                              21                                         Garages price list.
gilliesandmackay.com
Gillies & Mackay
Garages price list.      22
You can also read
