GEM Infrastructure Requests
             For the GE2/1 and ME0 production site
                         INFN sez. Bari

Piet Verwilligen, G. Pugliese
INFN sez. Bari
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
Revision of Infrastructure
GEM production & test lab for the upcoming Phase-2 production.
•   In the past we have cannibalized our R&D lab to setup the various Quality Control
    (QC) stands, using all electronics modules we have, together with rentals of the CERN
    EPool, without asking CSN1 for infrastructure (only for new gaslines we asked and got
    a few tens of kEUR).
•   For the construction of the 18 GE1/1 detectors the production and test was generally
    smooth, especially because there was no stringent time criterium to finish the
    chambers. The Bari lab was one of the first labs to have received the material and
    start the construction, which allowed us when necessary to take more time to
    understand the behaviour of a badly behaving chamber.
•   Now for GE2/1 (48 modules) and ME0 production (48 chambers), the time pressure
    will be much higher. And we cannot allow to be halted with the mass production by
    investigating a misbehaving chamber. Therefore we need a so-called "Hospital"
    setup. This was recommended from the beginning by the GEM collaboration.
•   Furthermore we were using the oscilloscope of the Tracker group, but this group has
    asked back the oscilloscope since they start with the production of PS modules in
    2020. Therefore in the setup I have included 2 cheap 200Mhz oscilloscopes.
•   Furthermore we need a 2nd optical table in the cleanroom. For GE1/1 production we
    used a normal table with a galvanized Aluminium protection, but this is not an option
    for GE2/1. Now we need to be able to attach the jig to the table, for which we need
    holes in the table. Furthermore the Iron jig was scratching the Aluminium cover of
    the table creating Aluminium dust in the cleanroom, which is not acceptable.
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
Overview of Requests
               Object                #   Unit Cost      Cost          Cost details
 Cleanroom Table                     1     8kEUR      8kEUR      Previous offer
 Oscilloscope 200MHz (*)             1     3kEUR      3kEUR      RS Components
 Amplifier ORTEC 474                 1     5kEUR      3kEUR      Previous offer
 PIcoAmm meter Napoli (**)           1     5kEUR      5kEUR      Estimate
 CAEN CFD                            1    4.5kEUR     4.5kEUR    Catalogue price
 CAEN Scaler                         1     5kEUR      5kEUR      Catalogue price
 MultiChannel Analyzer (MCA)         1     4kEUR      4kEUR      Previous offer
 APIC module                         1    1.8kEUR     1.8kEUR    Pre-prod run (email)
 CAEN A1515TG HV                     1    7.6kEUR     7.6kEUR    Catalogue price
 CAEN A1515TG accessories            1    400 EUR     650 EUR    Catalogue price
 APV Master-Slave for QC5            3    365 EUR     1.1kEUR    CERN Store
            Total 2020                               38.6kEUR
            Total 2021                               5.0 kEUR
(*) We will fund 1 oscilloscope through Metabolismo-CSN1. We need to give back one
oscilloscope for TRK production, furthermore hospital stand needs its own oscilloscope.
(**) Depends on CAEN commercialization. Likely 5kEUR are needed in 2021 not 2020.
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
Cleanroom Table
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico

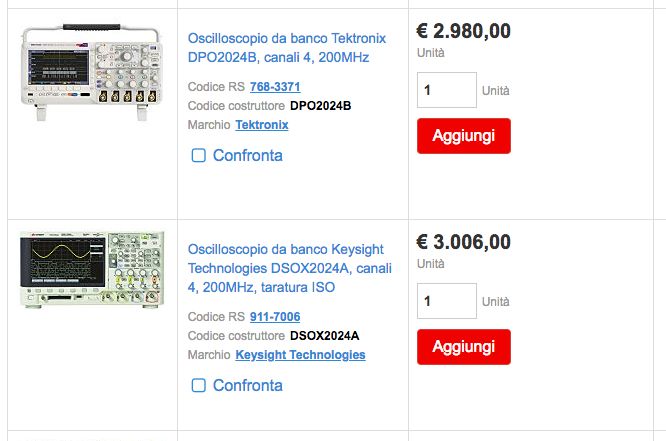

200MHz Oscilloscopes (4ch)
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
Ortec 474 Timing Filter Amplifier
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
CAEN CFD and Scaler
NIM N1145 Scaler
•   Four 8-digit up-counters with 250 MHz max counting rate
•   One 7-digit down-counter with 80 MHz max counting rate
•   NIM and TTL inputs
•   One LED display per section
•   Up to three sections can be cascaded for 24-digit counting
•   Frequency and frequencies ratio measurements
•   Individual GATE and RESET per counter
•   Manual or pulse triggered RESET

NIM N605 CFD (200MHz)
•   Four independent Constant Fraction Discriminators for fast
    detectors with sub-ns rise time
•   Independently adjustable discriminators parameters (T, W, Z)
•   Double pulse resolving time down to 4 ns
•   Fine threshold adjustment from -15 to -1000 mV
•   Fine walk correction with zero-crossing adjustment
•   Exceptional low walk jitter < 50 ps
•   Adjustable output signal width
•   CFD monitor output
•   Common veto input and individual gates for coincidence or
    anticoincidence options
GEM Infrastructure Requests - For the GE2/1 and ME0 production site INFN sez. Bari Piet Verwilligen, G. Pugliese INFN sez. Bari - CERN Indico
Amptek MCA 8000D

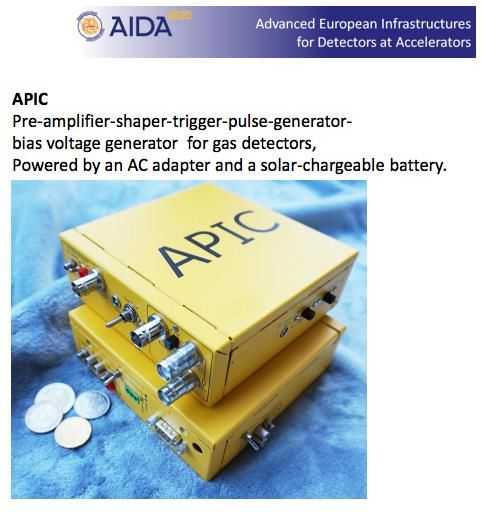

APIC
CAEN A1515TG
•   4/16 independently controllable High Voltage channels
•   Individual Floating Channel (insulated up to 5 kV)
•   Designed specifically for GEM detectors
•   Output channels grouped into 2 Complex channels
•   Radiall 52 pin connectors
•   0÷1kV and 0÷1.3kV output ranges
•   Dual range current:
•   High Power: 0 ÷ 1/3 mA, (1/3 nA Imon resolution)
•   High resolution: 0 ÷100/300 µA, (100/300 pA Imon
    resolution)
•   Programmable TRIP parameter (Complex channel setting)
•   Current generator operation in Overcurrent conditions

    A1515TG                  NIM module              7.5kEUR
    A995                     Insertion tool A996
    A996                     52 pin connector

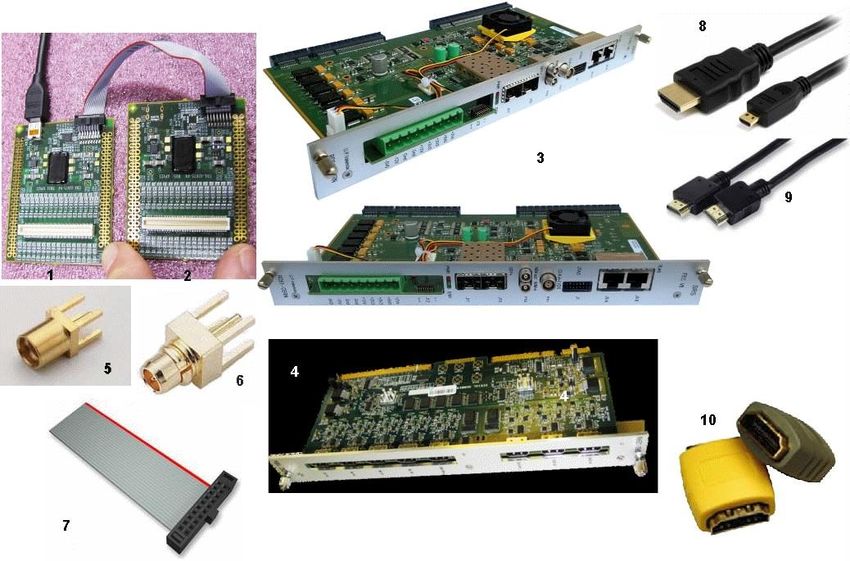

Additional APV Master-Slaves
       • Required for Gain Uniformity (QC5)
          – No spares available in BARI
          – In use since 2015; to be used until 2025
          – Out of production; spares should be
            bought now!
          – Material: ~ 400CHF
                         SCEM code        COST      Figure
         MASTER         07.89.00.005.9   160 CHF      1
         SLAVE          07.89.00.010.2   140 CHF      2
         GND Conn (M)   07.89.00.200.8   6.9 CHF      5
         GND Conn (F)   07.89.00.205.3   7.4 CHF      6
         Flat-cable     07.89.00.211.5   42.5 CHF     7
         USB cable      07.89.00.216.0   41.5 CHF     8
BACK UP
