Fondamenti di microbiologia applicata

                 Dr. Laura Treu
              Dipartimento di Biologia

             E-mail: laura.treu@unipd.it

        Istituto Vallisneri, Viale G. Colombo 3
            Laboratorio 16, terzo piano sud,
                 Telefono 049 827 6306

                                                  @DiBio_UniPD
                    A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
Fondamenti di microbiologia
We are immersed in microbes. They live in our bodies, in our food, and
in everything that surrounds us.

Microbiology is the study of living things too small to be seen without
magnification.

Microbes or microorganisms are microscopic organisms smaller than 0.1mm,
characterized by activities typical of biological systems.

Microbes are related to all aspects of life:
•   in all environments
•   many beneficial aspects
•   related to life processes (food, nutrient cycling)
•   only a minority are pathogenic

                                       A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd

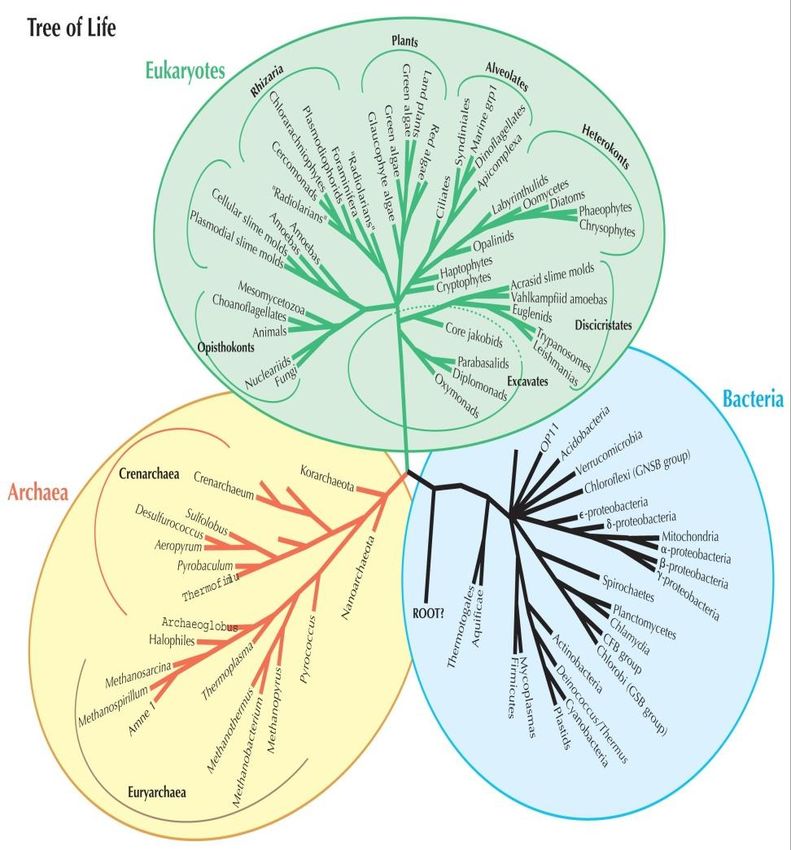

Eucarioti vs Procarioti
•   Fungi composed of molds (multicellular) and
    yeasts (unicellular)                                 •   Bacteria single-celled
•   Animals multicellular                                •   Archaea single-celled
•   Plants multicellular
•   Protozoa single-celled
•   Algae unicellular or multicellular, photosynthetic

                                      A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
5

                  Eucarioti vs Procarioti
Procarioti
Semplici organismi unicellulari,
generalmente privi di membrane
endocellulari e organelli. Si
riproducono principalemnte attraverso
scissione binaria. Il genoma (DNA
circolare) si colloca libero nel
citoplasma.

                                                                  Eucarioti
                                    Organismi che presentano un nucleo,
                                      dove è contenuto il DNA, e con dei
                                        compartimenti interni racchiusi da
                                             membrane, gli organelli, che
                                    svolgono particolari compiti biologici.
                                     Alcuni di questi organelli presentano
                                                   uno specifico genoma.

                             A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
La crescita microbica
In microbiology growth is defined as an increase in number of cells.
In prokaryotes one cell divides into two new cells (binary fission).

                                                                          One
                                                                       generation

https://www.youtube.com/
watch?v=gEwzDydciWc

                                  A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
Il tempo di generazione
 Generation time is dependent on temperature, nutrients, substrates, genetic
 etc.

  Some environmental factors affecting microbial growth are:
 • Temperature
 • pH
 • Oxygen concentration

E. coli has a generation time of 20 min., but most bacteria and archaea grow slower.

                                    A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
La crescita esponenziale

Example:
•   After 20 hours 1 gram of bacteria has been produced.
•   After 31 hours app. 4 tons of bacteria has been produced (= 1 elephant)
•   After 42.5 hours an amount of the entire human population has been produced.

                                           A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
Le fasi di crescita
•   Lag phase: Microorganisms need to adapt to growth conditions.
•   Exponential phase: no limitations in growth conditions (nutrient etc.).
•   Stationary phase: no net production in cells, but metabolism may continue.
    Nutrient are limited or waste product may inhibit the microorganisms.
•   Death phase: Cells die and cell lysis might occur.

                                  A. A. 2018-2019
Fondamenti di microbiologia applicata - Dr. Laura Treu Dipartimento di Biologia E-mail: e-learning unipd
I biocatalizzatori
 Biocatalyst: enzyme, cell, or a group of enzymes or
 cells catalyzing a chemical reaction or series of
 chemical reactions.

 Use of enzymes produced separately by
 microorganisms

     •      Harvest/purify enzymes and use in
            applications
     •      Substrate too big to enter the cell (e.g.
            degradation of cellulose to glucose)

 Use the biochemical activity of the whole cells

     •      Example : Fermentation of ethanol from
            glucose

         A. A. 2018-2019
Tipologie di relazioni
Symbiotic describes an intimate relationship between two organisms.

There are three types of symbiotic relationships:

• Mutualism - both benefit
• Commensalism - one benefits and the other receives no benefit,
  but is not harmed
• Parasitism - one benefits and the other is harmed
   Rhizobium                                                Staphylococcus aureus

                                 A. A. 2018-2019
Ecologia microbica

 Biodiversity: isolate, identify and quantify the microbes.

 • Morphological techniques: what do they look like?
 • Culture based techniques: what do they grown on?
 • Molecular techniques: who are they related to?

 Microbial activity: measure what the microbes are doing.

 • Physiological techniques: physiological properties?
 • Molecular techniques: what they can do?

What is the microbial biomass of a biogas reactor? Or any other complex environment (soil,
marine sediment, biofilm etc.) ..and what do we want to know?

                                      A. A. 2018-2019
Microscopia Morphological technique
The two basic microscopes are:

•   the light (optical) microscope uses visible light to cell stuctures. Light
    microscopes are used to look at intact cells at low magnification. Types: bright-
    field, phase-contrast, dark-field, fluorescence and Confocal Scanning Laser
    Microscope (CSLM - 3D imaging)

•   the electron microscope uses electrons and can
    be used to examine internal structures of
    microorganisms at high magnification.
    Types: Scanning Electron Microscopy
    (SEM) and Transmission electron microscopy

                                        A. A. 2018-2019
Tecniche di colorazione
Methylene blue, crystal violet. Can increase contrast
of a simple
bright-field light microscope

Gram-staining. Gram-positive cells appears blue and
gram negative cells appears
red.

DAPI is a widely used fluorescent dye staining cells
bright blue. The cells can be
identified with a fluorescence microscope in an even
complex milieu.

Streptococcus pneumonia
biofilm

                                     A. A. 2018-2019
Microscopia elettronica

                   A. A. 2018-2019
Isolamento, crescita e quantificazione
•   Spread plating: isolation and quantification of cells able to form colonies on
    solid media (agar) that may include compound to enrich or restrict growth of
    specific microbes.

•   Streak plating: isolation of single bacterial colony.

•   Counting chamber and Turbidity: quantification of cells growing in liquid
    media.

Advantages: rather simple and fast methods
Disadvantages: the microbes need to be able to grow on/in the medium.

                                   A. A. 2018-2019
Streak plate
Dilution and isolation of bacteria with inoculation loop or needle on petri plates.

                                        A. A. 2018-2019
Tipologie di mezzi dicrescita
Synthetic of Defined Media: usually relatively simple media, all components are
known.
Complex Media: composition of media not completely known. Often made from
inexpensive organic materials such as slaughterhouse wastes (tryptic digests called
tryptone, trypticase, etc.), soybeans, yeast wastes from brewing (rich source of
vitamins), animal blood, etc.
Selective Media: media favors the growth of one or more microbes.
Example: bile salts inhibit growth of most gram-positive bacteria and some gram-
negative bacteria, but enteric bacteria adapted to life in animal gut can grow well.
Differential Media: media allows distinguishing between different bacteria that grow.
Example: MacConkey agar has color indicator that distinguishes presence of acid.
Bacteria that ferment a particular sugar (e.g., glucose in culture media) will produce
acid wastes on plates, turn pH indicator red. Bacteria that cannot ferment the same
sugar will grow but not affect pH, so colonies remain white.

                                      A. A. 2018-2019
Esempi
 Unknown micro-organisms (e.g. environmental)
                                              •   Cultures on Petri plates using
                                                  complex medium
                                              •   Colony characterization by
                                                  morphology

Disadvantage: total cell count of a sample using a single medium will always
give a clear underestimation of the real number of cells.

  Well known micro-organisms (e.g. pathogens)

                                              •   Cultures on Petri plates using specific
                                                  and selective medium

 Advantage: selective media can yield rather reliable data related to specific microbial
 physiological properties.
Camere di conteggio
Total cell count with Microscope

 Advantage: very fast procedure
 Limitations:
 • dead cells are not distinguished from living cells
 • small cells are difficult to see
 • motile cells must be immobilised

                                   A. A. 2018-2019
Torbidità
Measurement on spectrophotometer of unscattered light in a cell suspension,
optical density (OD).

                                            A spectrometer works by splitting light made
                                            of many wavelengths (e.g. white light) into
                                            individual rays that can be detected.

This allows the spectrometer to
be able to find the absorbance of
different wavelengths and
determine what molecules are in
the solution.

                                    A. A. 2018-2019
22

        Bacteria                       Archaea                     Yeast

                          Methanosarcina   Methanobacteriales
 Bacillus + Clostridium                                         S. cerevisiae

Thermoanaerobacter              Methanosaeta

                                A. A. 2018-2019

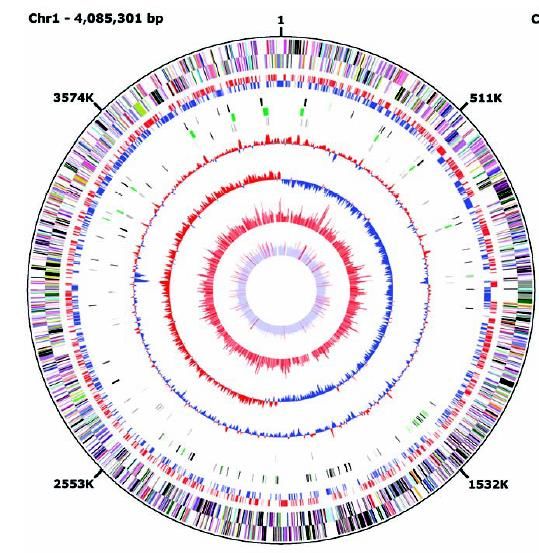

L’informazione genetica: il DNA

    Approx. 1 million genes

                                                                 Approx. 3000 to 6000 genes

All living organisms contain DNA, it encodes all of the information needed to program the
cell's activities (reproduction, metabolism and specialized functions). All of the DNA found in
an organism is collectively referred to as the genome.
                                        A. A. 2018-2019
Next Generation Sequencing
 Next Generation Sequencing (NGS), also known as high-throughput
    sequencing, is the catch-all term used to describe a number of
    different modern sequencing technologies:
           Illumina (Solexa)
           Roche 454
           Pacific Biosciences
 Before 1998 Sanger sequencing provided only one single sequence
  at time with very high costs
 With NGS can be obtained up to 4 billion reads, i.e 4000000000, in a
  single sequencing run
 NGS is significantly cheaper, quicker, needs significantly less DNA
  and is more accurate and reliable than Sanger sequencing.

More info:
https://www.ebi.ac.uk/training/online/course/ebi-next-generation-sequencing-practical-
course/what-you-will-learn/what-next-generation-dna-

                                          A. A. 2018-2019
25

           Alcuni numeri della biologia

Guerra e pace: 3 millioni di                    Il genoma umano: 3 miliardi di
lettere                                         basi
                                                Oshlack, A., Genome Biology 2013, 14:104.

               Informatica e Bioinformatica – A. A. 2018-2019
26

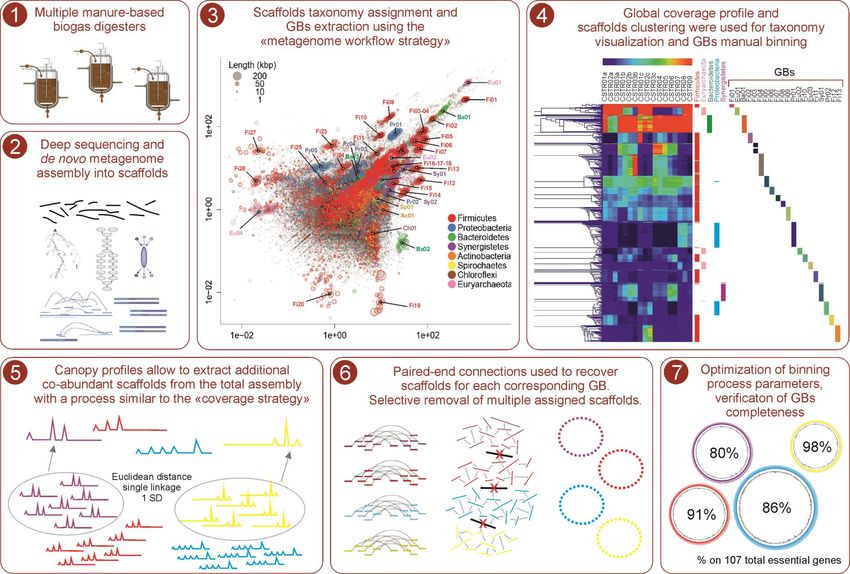

                Gli organismi "inaccessibili"

 Microbes that grow readily in culture
  represent only a fraction of the living
  organisms of interest
 Many species are difficult to study in
  isolation because they fail to grow in
  laboratory culture, depend on other
  organisms for surviving
 Methods that are based on DNA
  sequencing circumvent these
  obstacles, as DNA can be isolated
  directly from living cells in various
  contexts
 Such methods have led to the
  emergence of a new field, which is
  referred to as METAGENOMICS
                                                   Tringe S.G., 2005 Nature Reviews

                                 A. A. 2018-2019
Approcci genetici
     Fluorescence In Situ Hybridization (FISH): single microorganisms
      identification
P    Quantitative PCR (rt-PCR, qPCR): specific genes are targeted
C
R    16S High Throughput Sequencing: several 100 of rRNA 16S gene sequences
     Total random sequencing (TRS): metagenomics, millions of sequences
     RNA-seq: metatranscriptomic, whole community gene expression

                                  A. A. 2018-2019
Metagenomica e metatranscrittomica
                                                Up to 100 samples for run
                                                Phylogenetic classification
                              16S rRNA          Dominant and low abundant
                                                microorganisms
                                gene

Phylogenetic classification                         Phylogenetic classification and
      and gene functional                           metabolic activity
                annotation                          Gene expression for microbial
  Up to 10 metagenomes                              functional characterization
            in a single run

         Total Random
                                                mRNA seq
          Sequencing

                                                 NGS for disclosing microbial diversity (2014)

                              A. A. 2018-2019
16S ribosomal RNA gene
 Uncultivated species are identified by their 16S/18S small subunit
 ribosomal RNA (SSU rRNA) genes
 These genes are commonly used as phylogenetic markers because
 every cellular organism contains them and almost all gene variants can
 be amplified by standard sets of degenerate universal primers
 16S ribosomal RNA (rRNA) sequence can provide a unique molecular
 ‘bar code’ for identifying an organism and placing it in an evolutionary
 context
 Comparison of these sequences with databases of known 16S
 ribosomal RNA genes allows them to be phylogenetically classified
 Estimation of the community structure is provided, as sequences from
 dominant community members are more abundant.
 Tools (e.g. ARB and CLC) and databases (e.g. Ribosomal Database
 Project) have been developed to manage and analyse this flood of data.

                                                          Tringe S.G., 2005 Nature Reviews

                               A. A. 2018-2019
30

                            rRNA e tassonomia

Nella sequenza del 16S rRNA dei procarioti
si riconoscono delle regioni conservate
intervallate a regioni ipervariabili.
Tramite metodiche di biologia molecolare
(reazione di PCR e sequenziamento) si
riesce ad analizzare specificatamente questo
gene.

Con tassonomia si intende lo studio delle
relazioni filogenetiche tra organismi diversi.
La conoscenza della sequenza delle regioni
ipervariabili consente di assegnare la
tassonomia di un dato organismo.

                                       A. A. 2018-2019
Tassonomia e nomenclatura

Taxonomy is the study of
phylogenetic relationships
between organisms. It’s based on
hierarchical classification system
and the binomial nomenclature.

                               A. A. 2018-2019

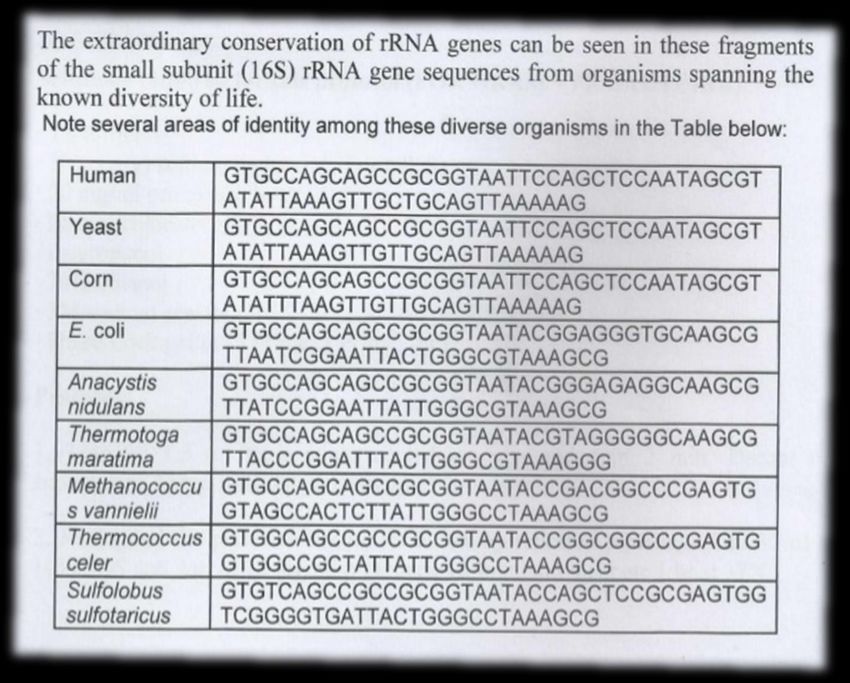

16S rRNA conserved regions

          A. A. 2018-2019
33

             Polymerase Chain Reaction (PCR)

La Polymerase Chain Reaction è una tecnica per l’amplificazione “in vitro” di
specifiche sequenze di DNA, attraverso la simultanea estensione di filamenti
complementari di DNA. Il metodo fu inventato da Kary Mullis nel 1983 e gli valse
un premio Nobel per la chimica nel 1995.

                                  A. A. 2018-2019
34

A. A. 2018-2019
A. A. 2018-2019
Fluorescence In Situ Hybridization (FISH)

                     Epifluorescent microscope :
                     Red cells = E. coli vs Green cells = Clostridium sp.

                A. A. 2018-2019
Identificazioine di nuove specie microbiche

Genome size [bp]                    2.15 Mbp

Number of contigs                   503                   Candidatus Methanoculleus
Number of protein-encoding genes    2,297                 thermohydrogenotrophicum
Estimated completeness % (CheckM)   92.70%
                                                                       Kougias P.G. et al. 2017 Anaerobe

                                               A. A. 2018-2019
Metagenomica
 Established the first                                                          Progressive functional
  reference catalog of                                                            specialization leads
  biogas microbial                                                                to the final step of the
  genomes (2016)                                                                  process

 Campanaro, S., ...Angelidaki, I. 2016. Biotechnology for Biofuels

                                                              A. A. 2018-2019

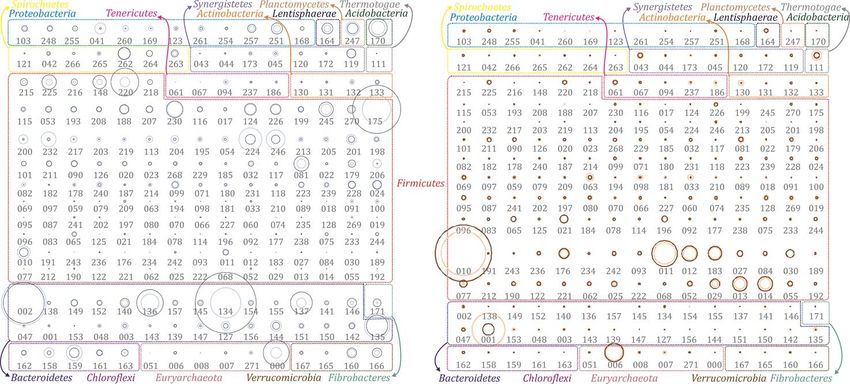

Mesophilic community                                        Thermophilic community

Coverages changes before (light) and after (dark) H2 addition are represented as circles
with proportional areas
                                                                      Treu L. et al. 2018 Frontiers in Microbiology

                                          A. A. 2018-2019
41

   Metatranscrittomica

Methanogenic pathway reconstructions in archaea
and the expression levels of relevant genes.
CoA, coenzymeA; MFR, methanofuran; H4MPT,
tetrahydrosarcinapterin; HS-CoM, coenzyme M; HS-CoB,
coenzyme B; MP, methanophernazine

A. A. 2018-2019
42

Domande...?

   A. A. 2018-2019
You can also read
