Flanders
Flanders
Smart Energy Region
Clusters for innovation
Feasibility studies 2017
Floating Photovoltaic Plant ‘Sibelco’
Duration: 6-month
Consortium: Luminus, Sweco and Sibelco
Support: € 50.000
Key questions:
• Can a floating PV plant (5MW) on the Sibelco site
in Dessel be financially viable?
• Can the ecological impact be minimized?
• Can we outline guidelines on the licensing
of floating PV parks?
Factual update
Kristof Vanhoorne: “The study showed that the impact of floating solar parks on fauna and flora is negligible,
when installed on waters deeper than 5 meters. To safeguard a landing strip for waterbirds, it should be
discouraged to cover the complete water surface.
EDF’s R&D department modelled and compared several innovative solutions (e.g. the use of bifacial panels,
Azimuth tracking, Albedo-reflection, active cooling) to maximize the efficiency of the solar panels, hoping to
bring it to 10%. Our study showed, however, that one has to be cautious with these assumptions. The efficiency
of floating solar panels is often assumed to be 3 to 5% higher than land-based panels, due to the water’s cooling
effect. Tests by Luminus showed a mere 1% increase.
In Flanders, 5560 hectares are suitable for the installment of floating PV parks. Together, they could account
for 500 MW. The business case is strongest on sites where self-consumption exceeds 60%, this is however
rarely the case as most large bodies of water occur in nature parks.”
Next steps & challenges
“Where the impact of
floating solar parks on Vanhoorne: “At the moment, the permitting procedure
has been started for the floating PV park in Dessel.
nature is negligible,
the business case still The final project will use a combination of the
needs to be improved by innovative solutions tested in the feasibility study
and standard floating PV panels.
maximizing the technical
efficiency .“ At present the business case is not viable without
support.”
Kristof Vanhoorne,
Senior Regulatory Manager, EDF Luminus
Connected Buildings
Duration: 6-month
Consortium: June, Engie, EnergyVille and Insaver
Support: € 48.521
Key questions:
• Can we identify innovative energy services for
residential users by analyzing real-time energy data
recorded by low-cost sensors and other IoT-data
services?
• Can tailored ‘total package solutions’ based on
connectivity in residential buildings provide customers
with higher comfort and significant energy- and
cost savings?
Factual update
Vincent De Dobbeleer: “Market research among June’s 7,000+ customers showed that users are open to the
expected benefits of new technologies like IoT and AI. Users confirmed a willingness to pay for data-driven,
cost-efficient energy services.
In the feasibility study, a collaboration model - between customers, June and energy suppliers & installers –
and an implementation plan was defined. When sensors are placed in a residential building in connection with
a data-driven platform for collecting, combining and analyzing data, it becomes possible to perform an automated
energy-audit, resulting in customized smart energy insights.
The financial plan turned out positive, because data-driven energy advice leads to higher trust and accuracy,
allowing installers to improve customers’ lifetime value.”
Next steps & challenges
“The study confirmed
De Dobbeleer: “At the end of 2018, following the that users are willing
positive outcome of the feasibility study, a 1,5 million €
pilot project with June, Insaver and Bagaar was to pay for data-driven,
submitted and approved by VLAIO. In this pilot we cost-efficient energy
are going to install sensors to capture energy data services. In the following
in some 200 homes. By combining these data with pilot project the digital
external data on weather and location, we should be
energy audit system will
able to create a 100% digital and accurate energy
audit system.” be implemented in 200
Vincent De Dobbeleer
CEO, June Energy homes“
Smart Business Area of the Future
Duration: 10-month
Consortium: ENGIE Electrabel, Quares, Continental & Intervest
Support: € 50.000
Key questions:
• Can a group of 4 businesses, located in the Mechelen
Noord business park, form a LEC (Local Energy
Community), to interchange energy and guarantee a
more stable network for the grid operator?
• Can storage capacity of electric vehicles, in combination
with local energy storage, be used as a reliable peak
power station?
Factual update
Mia Van Daele: “The aim is to create a microgrid living lab for a LEC with a real-time optimization of renewable
energy generation, flexibility in load, local storage and green mobility. Such a living lab has to prove cost-efficien-
cy, flexibility and reliability.
For each participant in a LEC, an optimal ‘energy profile’ is made. After a one-year study period of the site in
Mechelen - consisting of an analysis of the current situation, a technical feasibility study, an outline of the energy
management, the creation of a business model and an investigation of the legal aspects - we are now moving on
to the creation of the living lab. This involves measuring energy flows, investing in renewable energy and storage
and making financial optimizations.”
Next steps & challenges
Van Daele: “The LEC in Mechelen Noord needs room to
experiment, and therefore we need a less stringent
legal framework and full governmental support.
“We are now moving to
the creation of a living Each participating company will share in the benefits
and the costs of the LEC. Therefore, good communication
lab. Because the LEC between all stakeholders and a clear view on each
needs room to experiment, ‘energy profile’ will be key. The living lab will illustrate
and therefore a less the LEC’s functioning and validate the role of a LEC
stringent legal framework.“ manager.
We can build on the lessons learned in international
Mia Van Daele, Manager Business Development & Innovation, living labs. Going completely off-grid is definitely not
Jade Synergies (Quares) the ultimate ambition: in fact, a LEC can help to increase
local renewable energy and stabilize the grid.”
Microgrid Services for local Communities
Duration: 7-month
Consortium: ABB and Enervalis (technical players), KBC (financer), EnergyVille (research partner) & Fluvius
Support: € 41.935
Key questions:
• Can we describe the role of an energy community service provider or ‘Energy Lessor’ in the Local Energy
Community (LEC) on the Keerdoksite at the Rode Kruisplein in Mechelen?
• Can the Energy Lessor offer the LEC an all-in managed energy package, including the energy assets itself
and servicing over the entire lifecycle, at a price that is no higher than the usual alternatives, and with
minimal environmental impact.
• Can the Energy Lessor enable the LEC to act as a viable participant in the energy transition, by taking the
cost of the energy management out of the development project and offer it to the LEC separately?
Factual update
Jelle Meersman: “The project was completed in January
2018. A two-page summary, several presentations and
a paper were made available to disseminate the results.
The target group of MSLEC consisted of major urban re- “The project came up with
al-estate projects and, secondarily, the residents (buyers the ‘one-stop shop leasing
and potential tenants) of new-build houses and apartments
– we organized a special session for them in March 2018, formula’ . In March 2018
to present them with the ‘one-stop shop leasing formula’ we presented this idea to
(with a sufficiently long lease period) that the project came the main target group of
up with, enabled by the Business Model Canvas, a rough major real-estate
tool for calculations.
developers.“
The essence of the business case lies in the energy
Jelle Meersmans,
multiplier (or ‘leverage effect’) that lies at the heart of the Product Manager, Enervalis
MSLEC-idea: of each kilowatt hour supplied to the end
user, only a part will have to be purchased on the market.
Initial reactions were positive. It was felt that the Energy Lessor will bring scale and expertise to local energy
communities by ensuring that the costs and benefits of a future-oriented energy system are synchronized
from CAPEX to OPEX. However, a high level of participation (from owners/tenants) in the LEC and the imple-
mentation of a tariff structure for LEC’s in the Clean Energy Package are considered important success factors.”
Next steps & challenges
Meersman: “With the role of the Energy Lessor defined and the
business model in place, it is now time to put things into practice.
The ICON-project ROLECS (Roll-out of Local Energy Communities)
was set up to this end. If the model proves to be successful in the
field, it can easily be replicated for all large-scale real-estate
projects for which construction has yet to begin. In time, replication
in other market segments (like the renovation market) is possible.”
Smart Multi-Energy District
Duration: 6-month
Consortium: DuCoop, Enervalis, ABB, Imec & SF1 Services
Support: € 49.840
Key questions:
• Can we design a smart multi-energy district with a
heating network, decentralized wastewater treatment,
sustainable mobility and connectivity on 3 levels:
living space, work space and community space?
Starting point is brownfield De Nieuwe Dokken in
Ghent, which consists of 400 homes and a number
of commercial spaces and public facilities.
• Can a data platform meet the strict data needs for
demand side management in a LEC?
• Can we make a promising value network?
“Politics and regulation remain
hurdles, for example when it
comes to the tariff structure
and subsidy mechanisms for
LECs or the roll-out of direct
line connections on public
domain.”
Peter De Smet, Director, Clean Energy Invest

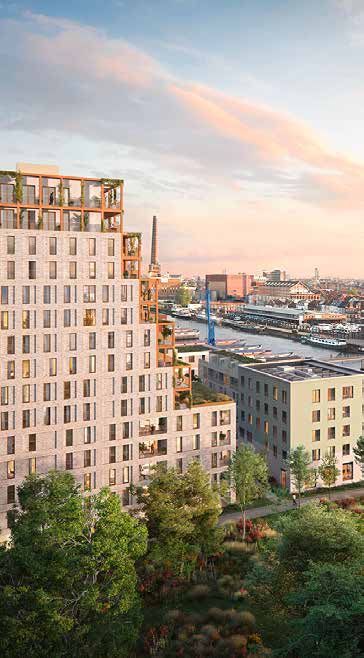

De Nieuwe Dokken
Factual update
Peter De Smet: “The public facilities at De Nieuwe
Dokken will open in the summer of 2019. By the
end of the year, people will be living in the district.
So far, gateways have been installed in 70 home
units and a district-wide IT-network is in place.
Also, a district-wide PV-network with battery storage
is on the agenda. As of June 2019, the district will
have its own medium voltage cabinet. We intend
to put in place a private direct line connection
between the construction zones.
Next steps & challenges
De Smet: “Politics and regulation remain hurdles, for Focus groups with future residents have been
example when it comes to the tariff structure and subsidy organized to collect information, raise involvement
mechanisms for Local Energy Communities (LECs) or and win their trust. This proves to be a very good
the roll-out of direct line connections on public domain. communication strategy: we are successfully
The integration of datacomms-infrastructure in new building ‘community awareness’.
buildings requires weekly meetings and intensive
communication with contractors. Overall, the feasibilty The University of Ghent researched the algorithms
of Energy Efficiency, Demand Response and Peak
studies provided us with valuable take-aways, for
Shaving, which are now being integrated in the
example regarding the substantial potential of battery
open source cloud platform OpenMotics.”
storage and the positive economic forecast of electric
mobility.”

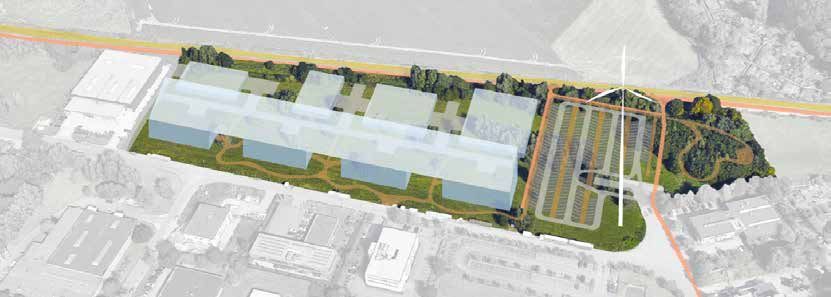

De Vlaamse Staak
Duration: 8-month
Consortium: Th!nk E, Wattson and Viessmann (in close
collaboration with Powerdale, POM Vlaams-Brabant, ge-
meente Opwijk and Intercommunale Haviland)
Support: € 50.000
Key questions:
• Can we develop a sustainable energy concept that
might be useful for new developed SME business
parks, such as ‘De Vlaamse Staak’ in Opwijk?
• Can decentralized heat pumps fed by local sustainable
electricity sources serve as an alternative for a
natural gas network?
Factual update
Antoon Soete: “In May 2019, 11 of the 15 lots on business park De Vlaamse Staak were allocated. The first
building activities are scheduled for the end of this year. It has been clear from the start that a traditional
heating network is not an option at De Vlaamse Staak. Still, the SME’s need thermal comfort at a competitive
price. Therefore, we decided on a phased approach. In Phase 1 (from 2019 to the end of 2020) all SME’s will
get a heat pump and solar panels, and their own connection to the Fluvius grid. In Phase 2 (as of 2021) De
Vlaamse Staak will hopefully evolve into a Local Energy Community (LEC) resulting in additional renewable
capacity by installing a medium-sized wind turbine on site.
The feasibility study showed that at present natural gas remains the unsurpassed energy vector. There was a
30% gap in the business case, that could luckily be bridged by support from the Flemish government.”
“The feasibility study showed Next steps & challenges
Soete: “De Vlaamse Staak is truly an ongoing pro-
that at present natural gas ject. It is incorporated as one of the pilots in the
remains the unsurpassed ROLECS-research project, funded by Flux50 and
energy vector. There was VLAIO. In 2021, depending on the specifications of
a 30% gap in the business the regulatory framework for LEC’s, De Vlaamse
case, that could luckily be Staak will decide whether or not to evolve to an
bridged by support from the LEC.
In every respect, phase 2 will build on the insights
Flemish government.“ of phase 1, for example concerning the actual
Antoon Soete, energy consumption of the SME’s on site which
Strategic Consultant 3E/ co-founder Wattson will be monitored in real time.”
Green Energy Park
In Zellik, on July 4th, the Green Energy Park by VUB and UZ Brussels was officially launched.
Support: € 295.000
No less than 6 feasibility studies provided the foundations for this unique living lab, which integrates an
electric and a thermal grid. Following the results of the financial analysis, it was decided to start with a
smaller testing ground, that can easily be upscaled in the future.
• Battery to Grid
• Experimental Operating Room
• Green Data Center
• CO₂-neutral Microgrid
• Thermal Grid and
• Vehicle to Grid
Jimmy Van Moer,
director of
Business Development,
Innovation and Marketing
Green Energy Park
“The follow-up of to the 6 studies is
guaranteed by three ICON-projects:
Machine learning for real-time advanced
multi-energy trading, Optimized bi-
directional & smart-vehicle charging in
local energy systems and ROLECS “
Maarten Messagie
team leader
Sustainable energy and
electric vehicles
at the Vrije Universiteit Brussel,
research group MOBI
“A positive result of the feasibility studies
is that the MOBI Research Centre was
able to start a new research unit, EVERGi.
The EVERGi team has gone from 3 to 20
FTE’s on the payroll. It is specifically
concerned with climate change
and air pollution.“
Green Energy Park Factual update Maarten Messagie: “The trajectory was very successful. A 120-page final report on the six projects is now available. More importantly, the follow-up to the studies is guaranteed by three ICON-projects: MaMûet (Machine learning for real-time advanced multi-energy trading – led by VUB), Optibids (Optimized bi-directional & smart-vehicle charging in local energy systems - led by VUB) and ROLECS (Roll-out of local energy communities - coordinated by Th!nk E). Another positive result of the feasibility studies is that the MOBI Research Centre was able to start a new research unit, EVERGi, that aims to be the catalyst that brings interdisciplinary science together with industrial innovation to fully support the energy transition. EVERGi was able to leverage the support of VLAIO and FLUX50 on a European level and bring several Horizon2020 and Interreg projects to Flanders. The EVERGi team has gone from 3 to 20 FTE’s on the payroll. EVERGi is specifically concerned with climate change and air pollution. We are working at the crossroads of two extremely important transi- tions – namely energy and mobility. Therefore, a demonstrator living lab and a co-creation ecosystem platform are indispensable.”. Next steps & challenges Jimmy Van Moer: “Two important challenges that come with feasibility studies and project proposals are the huge administrative burden and the intensive communication with all stakeholders. This is especially true for European projects, where the red tape seems endless, while they only provide 40% of the funding, leaving you with quite an amount to gather elsewhere.”
Enhancing Multi-Energy Distribution
in large Retail Development
Duration: 5-month
Consortium: ABB, Enervalis, Antea Group and Quares
Support: € 48.872
Key questions:
• Can retail development fit in a larger multi-energy network that consists of several clusters with their
own energy demand and generation?
• Can we develop a design tool for grid-layout through AI clustering techniques that retail developers
such as Quares use to evaluate several options early in the development process and set up an econo-
mic business case?
• Can we create a tool to define the optimal scenario (all-electric, district heating or domestic heating)
for a site such as the Graaf Karel de Goedelaan in Kortrijk?
Factual update
Jelle Meersmans: “The all-electric scenario with rooftop
“The all-electric scenario PV-panels was the cheapest and most sustainable
option for the site in Kortrijk.
with rooftop PV-panels
was the cheapest and As far as market uptake is concerned, the current
most sustainable option regulation is quite strict concerning the ownership of
for the site in Kortrijk.“ public electricity infrastructure and direct lines, with
VREG acting as a conservative regulatory body. Closed
distribution grids are rarely granted and there are many
Jelle Meersmans, hurdles to reap the potential benefits of direct line
Product Manager, Enervalis connection between buildings in retail or industrial
areas.”
Next steps & challenges
Jelle Meersmans: “The design tool we’ve
developed here will be used in the ICON-
project ROLECS (Roll-out of Local Energy
Communities), in which Antea Group is also a
partner.”Concentrated Solar Power Technology
Duration: 4-month
Consortium: Tractebel, Azteq and Port of Antwerp
Support: € 49.996
Key questions:
• Can concentrated solar power (CSP) be an economically
viable technique to provide industrial processes in
Flanders with heat in large quantities at high
temperatures (> 150°C)? Emmanuel van Vyve, Koen Vermout,
Because CSP is subject to considerable daily and seasonal Head of Hydrogen, Manager,
Energy Storage and Solar PV, Azteq
variation, it is best to integrate a thermal energy storage Tractebel Engineering
system from the start.
• Can aquifers potentially provide seasonal heat storage
in the Port of Antwerp ? Factual update on Aquifer Storage
van Vyve: “An aquifer is essentially a body of
permeable rock which can contain or transmit
Factual update on CSP groundwater and can serve as a storage place for
Vermout: “Both the energy consumption study (1) and heat or cold. In the Port of Antwerp five sufficiently
the meteorological study (2) yielded positive results. transmissive formations were identified, at 200
to 1000 meters below surface level. However, the
(1) Port of Antwerp is a representative industrial player regulatory framework as put forward in VLAREM II,
for Flanders and has an annual consumption of 15,5 sets the maximum temperature for groundwater
TWh - of which 85% is in the temperature range of 100° injections at 25°C. This is a serious constraint,
to 320°C. So, the industrial heat demand in Flanders making aquifer storage in Flanders impossible.”
is sufficient to consider CSP as an alternative energy
source. As CSP systems concentrate the sun’s energy
by parabolically curved, trough-shaped reflectors, the
technique is up to 3 times as efficient as PV-installations
and requires less government subsidies.
(2) From a meteorological point of view, CSP needs
direct sunlight. With 950 ‘full load hours’ a year,
Flanders is proved to be a suitable location for CSP.
The spatial planning study (3), however, uncovered
some challenges. A CSP collector field typically consists
of multiple parabolic trough-shaped mirrors of 6 meters
high in parallel rows (with intervals of 11 to 12 meters)
aligned to enable the mirrors to track the sun from east Next steps & challenges
to west during the day. One million square meters of
van Vyve: “There are few international references
mirror aperture takes up 240 ha of space and accounts
for high temperature aquifer thermal energy
for 432 GWh per year – which is 4.7% of the 9200 GWh
storage (ATES). There is one in Berlin-Potsdam
ambition of Flanders 2020. Open space in Flanders
of which the findings can help evaluate the
is however very scarce. Therefore, the possibilities of
business case of any aquifer storage project.”
a combined use - a CSP field with parking space, for
example - should be investigated.” Vermout: “With a period of cost recovery of only
10 years and many suitable Flemish industrial
players in its value chain, CSP remains a promising
technique for renewable heat generation for
industrial consumers. Above-ground STES (seasonal
thermal energy storage) options should be evaluated,
now that VLAREM II rules out ATES.”
“With 950 ‘full load hours’ a year, Flanders is proved to be a
suitable location for CSP. Aquifer storage of this heat
is made impossible by regulation.“Flanders
Flanders
Smart Energy Region
Dedicated to making Flanders a Smart Energy Region,
Flux50 supports individual companies and project consortia
with innovative research, development or pilot projects.
In 2017 and 2018, Flux50 launched three calls
for feasibility studies, allowing project consortia
to investigate the market-readiness of their innovative ideas
This folder presents the results of projects in the first two calls.
In all, over the last 2 years Flux50 facilitated projects worth up
to 60 million €, half of which was provided
by the Flemish or European government,
half by the participating private companies.
www.flux50.com
Koningstraat 146
1000 BrusselYou can also read
