FIRE & SMOKE
CURTAINS 2019
AN ENGINEERED SOLUTION
TO COMPLY WITH ALL UK & INTERNATIONAL
FIRE AND SMOKE REGULATIONS
00 441204 383839 WWW.A1SGROUP.COM
ENQUIRIES@A1SHUTTERS.CO.UK
CONTACT US TODAY
2

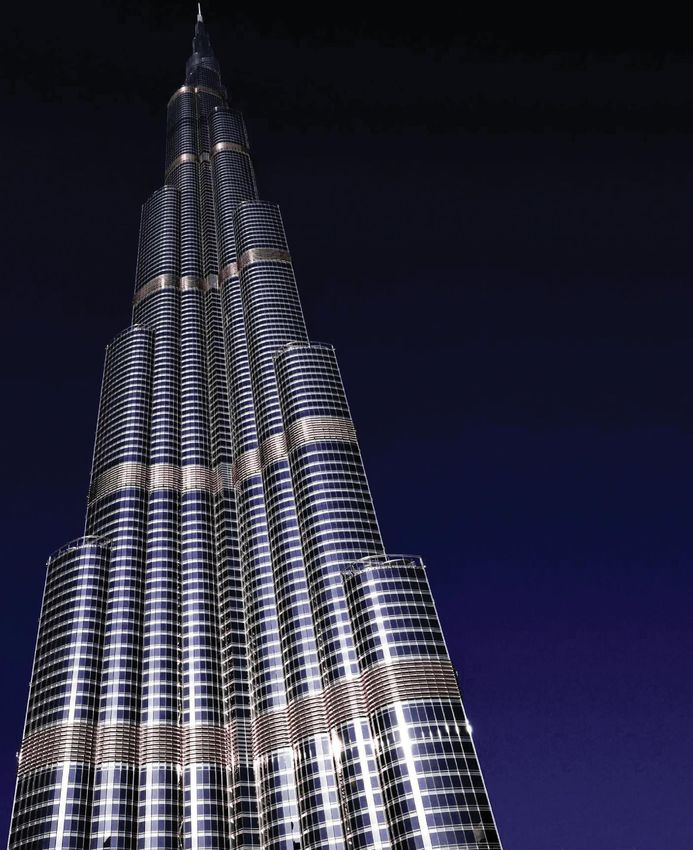

THE BURJ Single Span 9
KHALIFA metre fire curtains
Using the highest with smoke seals
quality steel and protect the new
fabric technology Papworth Hospital
as well as the latest in Cambridgeshire
in control panel
design, we always
meet exacting
standards without
compromising build
aesthetics. Vertical
Flameshield
120Fire
Curtain
“THE A1S GROUP
ARE PROUD TO HAVE
MANUFACTURED
AND SUPPLIED
WHITE ALUMINIUM
LLC OF ABU DHABI
WITH 120 MINUTE
INTEGRITY FIRE
CURTAINS TO BS
EN 1634-1 FOR
THE ICONIC BURJ
KHALIFA. “
3

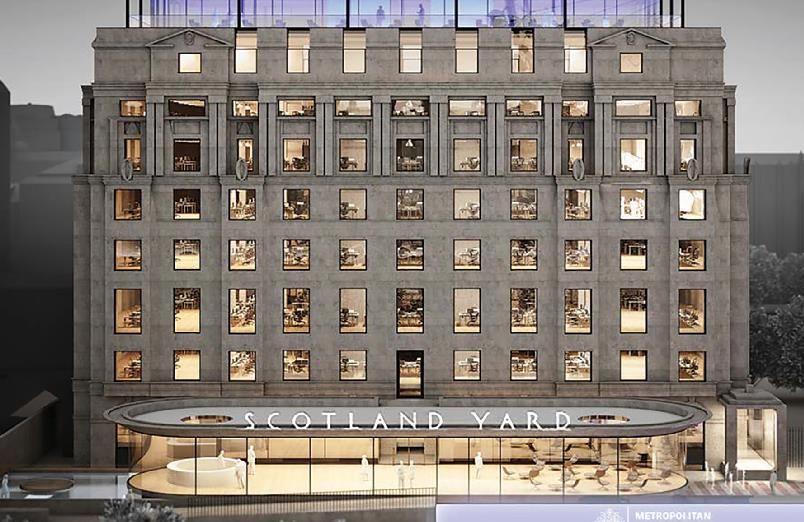

Our Fire Rated Products Protect Scotland Yard
THE A1S GROUP. international partners. We all share a passion
for protecting the buildings of the future and of
The A1S Group is a leading UK manufacturer, course the people using them.
supplier and installer of Fire and Smoke
Curtains. We supply and install our fire and FIRE AND SMOKE CURTAIN
smoke curtains throughout the UK and export APPLICATIONS.
worldwide. Using the highest quality steel, latest
fabric technology and electrical components Compartmentation, Lifts and Lift Lobbies,
available, we always meet exacting standards Stairs and Escalators, Protected Means of
without compromising on design aesthetic. Escape, Openings in Walls, Atrium, Lobbies and
Accredited to BS EN 1634-1, BS EN 1634-3, Receptions, Egress and Corridor Separation.
we offer our UK and International Partners,
competitive pricing, flexible lead times, A1S GROUP SECTOR EXPERIENCE
marketing expertise and world-class technical
support. Our experienced team is committed Stadia, Commercial Offices, Hospitals and
to providing the very latest fire protection Extra Care Units, Residential Properties,
technologies with the highest level of customer Manufacturing and Industrial, Retail and
service. Our winning strategy continues to Shopping Malls, Hotels and Restaurants,
build and develop long term partnerships with Schools and Universities, Museums Galleries
UK trade customers, main contractors and and Heritage. Government and Military.
4

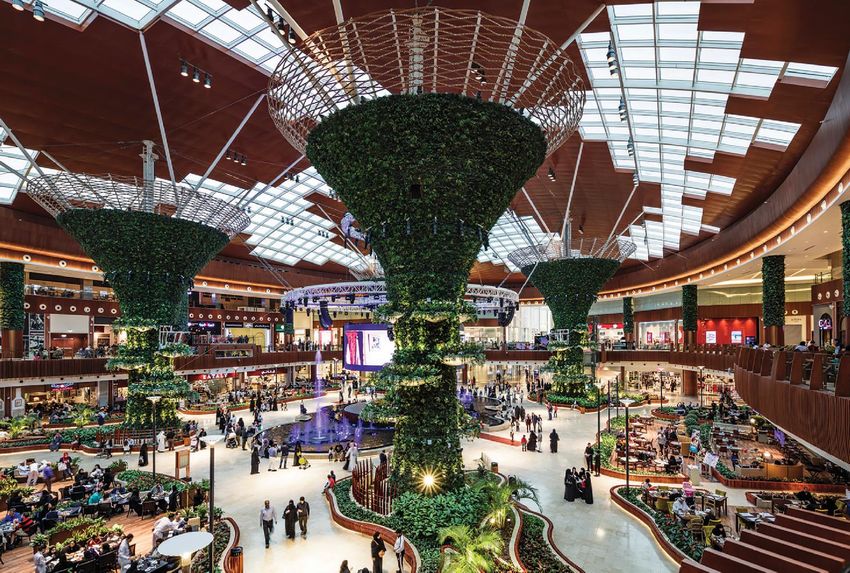

“OUR FIRE
PRODUCTS
BEAT OFF
INTERNATIONAL
COMPETITION
TO WIN THE
PRESTIGIOUS
QATAR MALL
PROJECT”
Vertical Flameshield 120Fire Curtain
5
FIRE AND SMOKE CURTAINS (60, 90, 120 MINUTE)
24 Volt tube motor, Gravity Failsafe, Variable Speed and Multi Stage Closure Options, Audio Visual
and Heat and Smoke Detector Options, Emergency Retract Options. ALL COMPLIANT WITH BS
8524 and ENBS 1634
APPROVED STANDARDS INTEGRITY RADIATION EW (60/120)
BS 8524-1 120 mins 85mins 15KW/m2 (EW60)
BS 8524-2 120 mins 120 mins15KW/m2(EW120)
BS EN 1634-1:2014 2.72 KW/m2 at 15 minutes
BS EN 1634-3
BS 476 : Part 6
BS 476 : Part 7
BS EN 12605
BS EN 14600
BS EN 13501-2
BS EN 16034
SMOKE CURTAINS TO
BS EN 12101-1+A1:2006
BS EN 1363-1:1999 BS EN 1634-3:2004
BS EN 13501-4:2007+A1:2009
HORIZONTAL FIRE CURTAINS
BS 8524 and EN BS 1634-1
We can fit to steel, masonry and timber stud. Contact us today for further details and relevant
parameters.
“DATING BACK OVER
1,000 YEARS THE
NATIONAL ARCHIVE IS
THE GUARDIAN OF SOME
OF OUR MOST ICONIC
NATIONAL DOCUMENTS,
INCLUDING THE
DOOMSDAY BOOK.
A1S WERE CHOSEN TO
PROTECT THE BUILDING
WITH OUR FIRE
CURTAINS.”
The National Archives
6

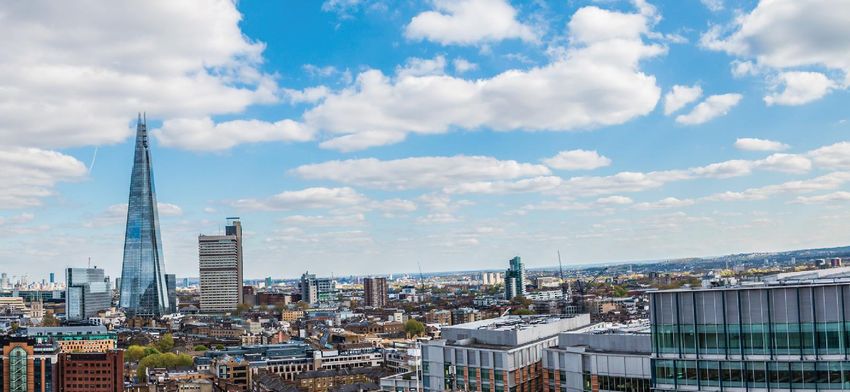

From Penthouse Apartments to Hospitals,
Thousands of A1S Group Fire and Smoke
Curtains protect London Properties. Whether
you have one fire curtain or two hundred on
your project, contact us TODAY.
HORIZONTAL FIRE CURTAINS CAN
REPLACE FIRE RATED CEILINGS TO
HELP CREATE OPEN MULTI CEILING
VOIDS. A1S HAVE SUCCESSFULLY
INSTALLED HUNDREDS OF
HORIZONTAL MOUNTED ACTIVE
FIRE CURTAIN BARRIER ASSEMBLIES.
WHEN TESTED IN ACCORDANCE
WITH EN BS 1634-1 AS REQUIRED
BY BS8524-1 2013, WE ACHIEVED
INTEGRITY RESULTS OF 120 MINUTES.
THE A1S GROUP ARE ACCREDITED
TO MANUFACTURE HORIZONTAL
CURTAINS (SUBJECT TO FIXING
DETAIL) TO 36M2. CONTACT US
TODAY FOR A WINNING QUOTATION.
WWW.A1SGROUP.COM/CONTACT/ Horizontal Fire
Curtain
7
“I want to personally thank the A1S Group for
your hard work on the new Bloomberg European
Headquarters. I am grateful for everything you did
to bring this complex project to life.“
Michael R Bloomberg
“90 A1S Group 1 hour Fire Curtains
protect London’s Porter Building.”
All A1S Group Fire rated products are tested by
Warrington Exova. Certification available for all
products on request.
8

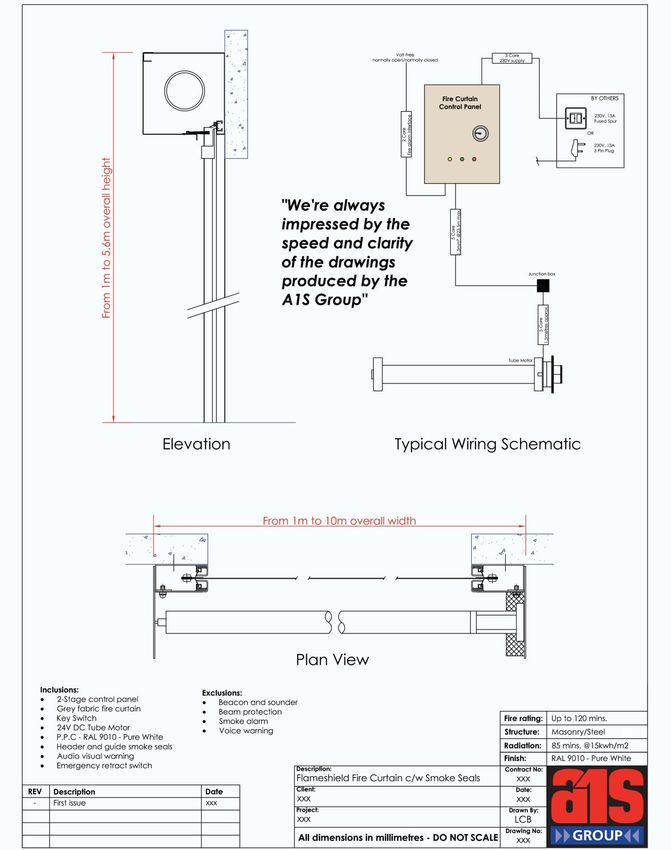

INDICATIVE DRAWING FOR SINGLE SPAN FIRE
CURTAIN WITH SMOKE SEALS UP TO 10 METRES WIDTH.
9 INDICATIVE DRAWING FOR OVERLAPPING FIRE CURTAIN, USING MULTIPLE WIDTHS UP TO 54 METRES.
10
INDICATIVE BOX SIZES
AND FIXING OPTIONS.11
“BUILDING ON OUR 30
YEAR HERITAGE, OUR
FIRE CURTAINS ARE
MANUFACTURED ATOUR
UK FACTORY JUST OUTSIDE
MANCHESTER. WE USE ONLY
THE FINEST COMPONENTS
AND THIS INCLUDES THE
LATEST IN CURTAIN FABRIC
TECHNOLOGY.”
Base Fabric Tolerance TestMethods
Yarn Warp EC9 68 X2 + IV1 S/Swire DIN EN 12654
Weft EC9 68 x2 + IV1 S/Swire
Thread Count
Warp 16.0 per 1cm + 5% DIN EN 1049
Weft 15.3 per 1cm
Tensile Strength (typical) DIN EN 12654
Warp 930 N/cm
Weft 900 N/cm
Weight 640 g/m2 + 5% DIN EN 12127
Weave 8 Shaft Satin DIN ISO 9354
Coated Fabric
Coating Fire retardant polyurethane with added aluminium pigment on both sides
Weight 690 g/m2 + 10% DIN EN 12127
Thickness 0.54 mm + 10% DIN ISO 4303/E
Tensile Strength Warp 500 N/cm DIN ISO 4060
(typical) Weft 450 N/cm
Thermal Conductivity(typical) 0.0956 W/m K DIN 52612 1/2
Thermal Resistance (typical) 0.0079 m2 K/W DIN 52612 1/2
Temperature Resistance -36to 150 C
Tolerates 180 C for short periods, Glass fibre fabric reinforced with stainless steel wire maintains its integrity
up to 1100 C
Fire Standards & Approvals class0 BS 476 part 6:1989, Part 7 1997
EN 13501-1 A2,s1,d0 & BG Nr.119.122
MO Res A.653 FTPcode Annex1,Part 2
This material has been shown suitable for the manufacture of fire curtains rated tor 2 hours according to
BS4 76 Part 20/22.FIRE & SMOKE
CURTAINS
Contact our UK and international sales team
TODAY for a fast and winning quotation
for your next project. We are always looking for
new projects and partnerships.
