FELIX: the Detector Interface for the ATLAS Experiment at CERN Front End LInk eXchange Alexander Paramonov1 on behalf of ATLAS TDAQ Collaboration 1) Argonne National Laboratory 19 May 2021 25th International Conference on Computing in High-Energy and Nuclear Physics
ATLAS DAQ for LHC Run3 (2022-2024) LAr FE FE FE 100kHz Fully synchronous GBT&FM L1 trigger Custom FELIX FELIX ROD ROD Custom Link 40MHz 100kHz Multiple types GBT : synchronous serial Fixed latency protocol at 4.8 Gb/s Highly-parallel software software FM: 8b/10b RX link at ROD ROD ROS ROS 9.6 Gb/s (Full Mode) COTS Custom ROD : ReadOut Driver, Ethernet Electronics ROS : ReadOut System, PC HLT : High Level Trigger HLT HLT HLT HLT FELIX (Front End LInk eXchange) is a modern detector readout system with fewer custom parts. Easier to support and upgrade than the older system FELIX will readout the new muon detectors, LAr calorimeters, and calorimeter trigger electronics Readout and configuration of on-detector electronics Distribution of trigger information and LHC clock to the on-detector (FE) systems 25th International Conference on Computing in High-Energy and Nuclear Physics 2
FELIX hardware platform FELIX Host PC FELIX PCIe card DMA TTC interface Memory CPU MSI-X buffer Device Driver Optical Links FPGA PCIe Gen3 buffer 24-48 ch, firmware 126 Gb/s buffer 4.8 or 9.6 Optical Link Gb/s PCIe Gen3 NIC Dual 25 or 100Gb/s ports 126 Gb/s PCIe card with FPGA chip + Host PC + NIC TTC (Time, Trigger and Control) : LHC protocol used to distribute global clock (40.08MHz) and information from the real-time trigger 25th International Conference on Computing in High-Energy and Nuclear Physics 3

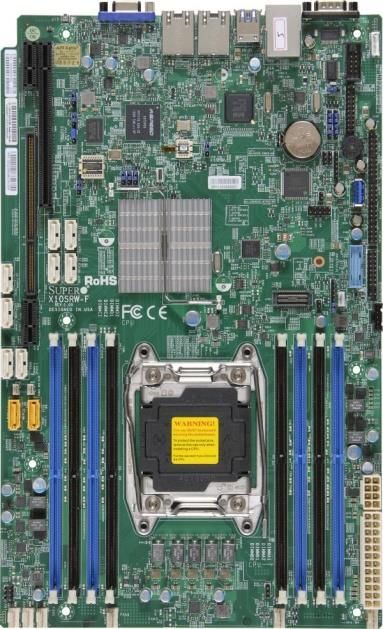

FELIX hardware components SuperMicro X10SRA-F Intel® Xeon™ E5-1660 V4 CPU o FLX712 board Custom board with Xilinx Kintex Ultrascale XCKU115 48 optical links (MiniPODs) with up to 12 Gb/s per link Input: 24 GBT links or 12/24 links at 9.6 Gb/s (fullmode) Output: 24 or 48 GBT links (4.8 Gb/s) Slot for mezzanine board to allow customization to different timing and trigger distribution mechanisms Mellanox ConnectX-5; 2x100 The ATLAS TTC signal is sampled with ADN2814 receiver on GbE (25 GbE in some cases) the mezzanine board SI5345 and LMK03200 clock jitter cleaners PCIe Gen3 x16 (via a 2x8 switch) 250+ boards were produced via an external manufacturer contracted through CERN 25th International Conference on Computing in High-Energy and Nuclear Physics 4

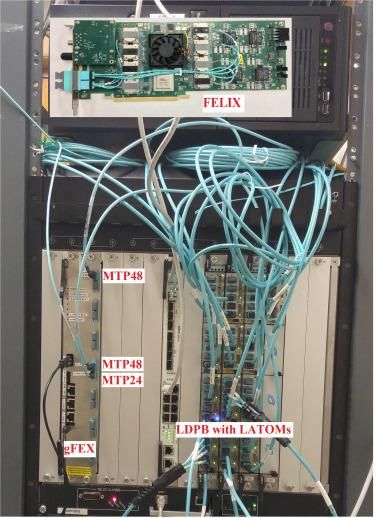

ATLAS sub-detectors currently connected to FELIX – Liquid Argon Calorimeter – LTDB (LAr Trigger Digitizer Board) -- propagation of TTC information to front-end via FELIX cards hosting 48 GBT channels. Control, configuration and monitoring data arriving from the front-end. • LDPB (LAr Digital Processing Blade) -- FELIX in FULL mode – Level-1 calorimeter trigger (see the TDR) • gFEX (Global Feature Extractor): 12 FULL mode links • ROD, Hub for eFEX (Electron Feature Extractor) and jFEX (Jet Feature Extractor) • TREX (Tile Rear Extension) – Muon spectrometer • New Small Wheels (NSW) • BIS78 (Barrel Inner Small RPC (sector 7/8)) 25th International Conference on Computing in High-Energy and Nuclear Physics 5

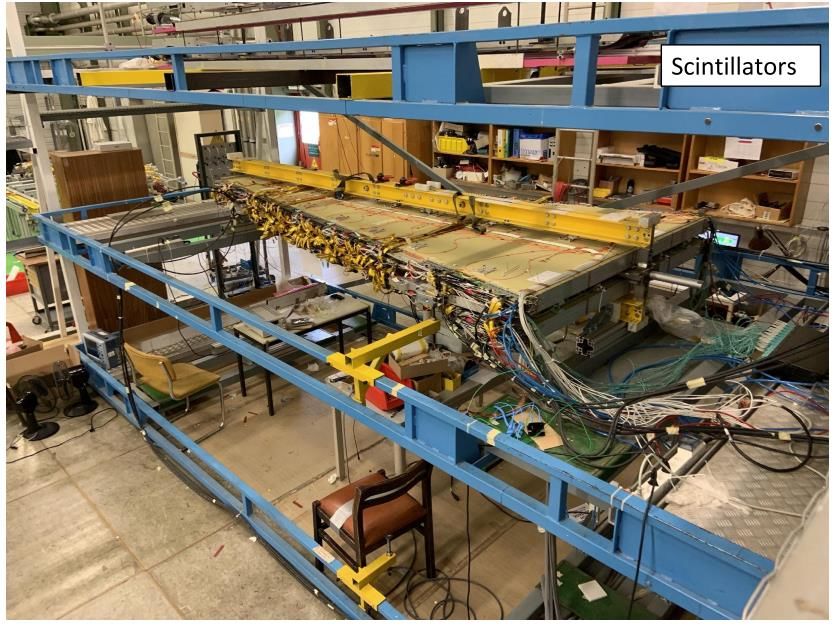

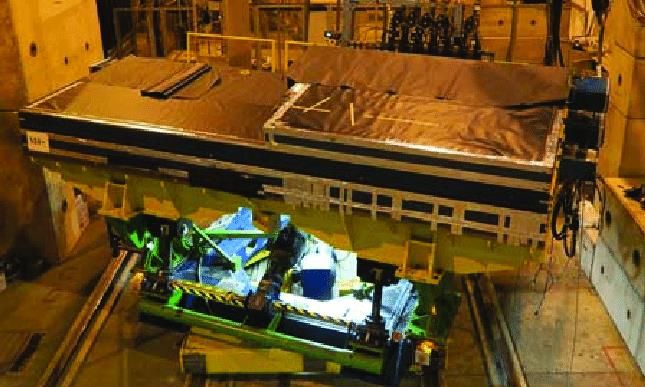

Highlights from integrations for Run-3 • NSW cosmic tests were performed as a final step of the integration process – FELIX was used to readout a section of the detector – As an example, the efficiency map is shown below • First LAr Trigger Digitiser and Digital Processing Blades integrated into ATLAS data taking with FELIX during 2020. Commissioning of remaining modules ongoing 6

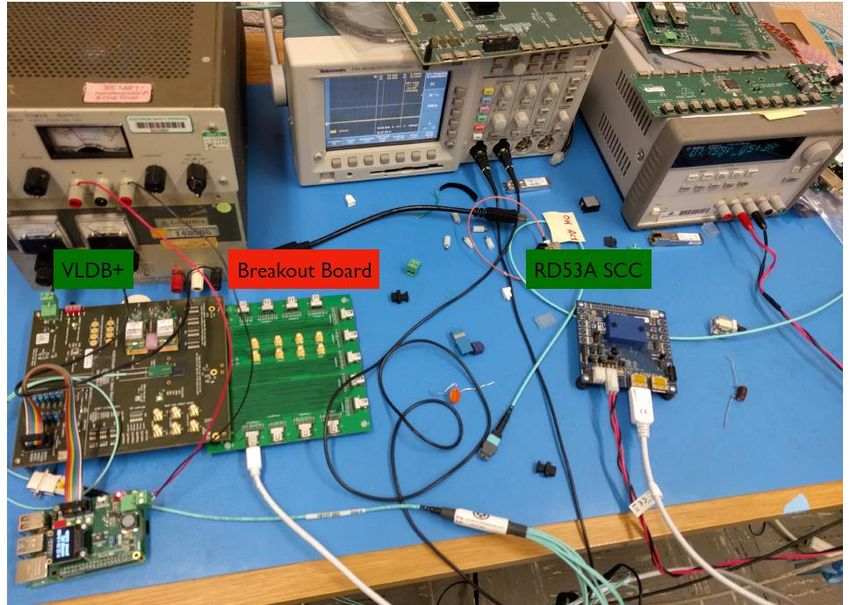

Planning and development for Run 4 • System specifications – Higher trigger rate: 100 kHz 1 MHz – support new detector systems and data transmission protocols • lpGBT and 64b/67b (Interlaken) for the optical links • 64b/66b (Aurora), 6b/8b, and a variety of custom serial link protocols for the slower electrical links. – The new TTC system will receive data at 9.6 Gb/s instead of 80 Mb/s • Prototype hardware platform – Uses Xilinx Versal Prime FPGA – Supports PCIe Gen4 x16 – Optional support for optical links with up to 25 Gb/s – Recent tests of the PCIe gen4 interface are promising • System integration – Tile Calorimeter – Pixel and Strip sensors test setups (for the upcoming ITk Inner Tracker) 25th International Conference on Computing in High-Energy and Nuclear Physics 7
Selected results for Run-4 integration • The system performance was evaluated for Run-3 operation at 100 kHz trigger rate (left-hand plot). • The system is stress tested to evaluate its performance for trigger rates up to 1 MHz (right-hand plot) 9
Summary and prospects • FELIX is a router between custom serial links and a commodity network • Takes advantage of the latest technology to simplify the ATLAS readout • In LHC Run-3 (2022-2024) FELIX will be used for selected detectors and trigger systems. – FELIX firmware and the software are mature – All of the boards needed for data taking have been produced • Ongoing efforts: – Integration with the ATLAS on-detector (front-end) systems – Development of FELIX board and firmware for LHC Run-4. 25th International Conference on Computing in High-Energy and Nuclear Physics 10
Thank you! 11

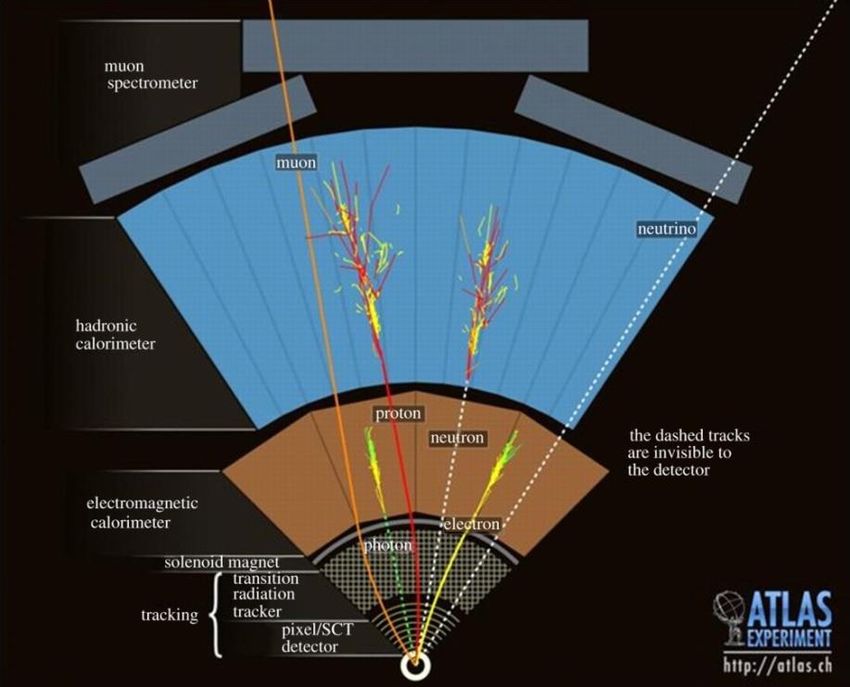

What is a collider experiment? Contemporary collider experiments study collisions of particles such as protons, electrons, and nuclei to look for new physics. The particles are accelerated in bunches so collisions are spaced in time. For example, the Large Hadron Collider accelerates protons to about 7 TeV and collides them every 25 ns. The ATLAS experiment at the LHC examines products from these collisions. 25 ns 25th International Conference on Computing in High-Energy and Nuclear Physics 1

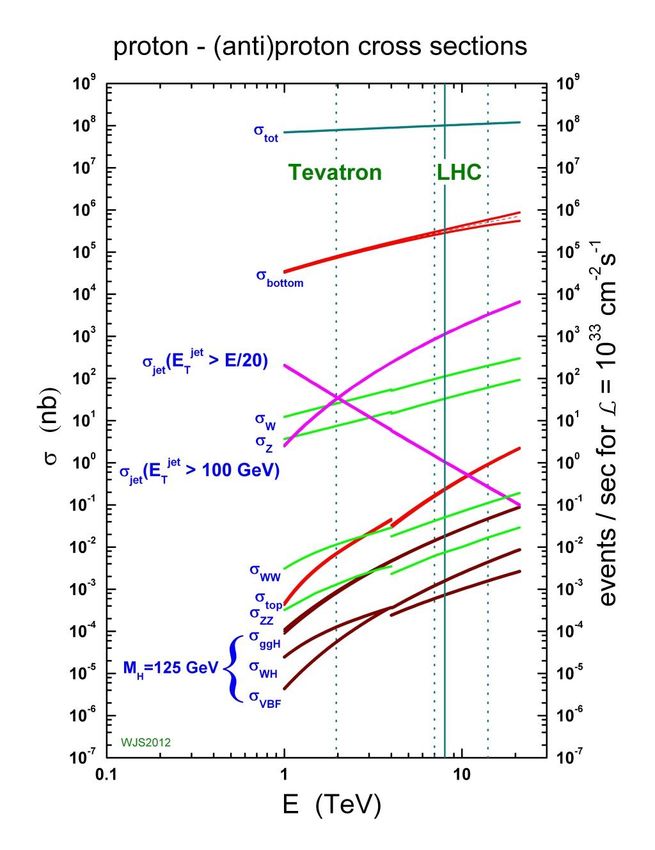

Design of the present Data Acquisition System • At LHC energies only 10 out of 40,000 proton collisions can be recorder for further study. All collisions • The trigger system performs real time selection efficiently to remove most of uninteresting data. • The DAQ system buffers data while the trigger system is analyzing it. It also Interesting collisions transports data from on-detector to offline, while facilitating online data preparation. ATLAS DAQ CPU-based Disk detector Event filter Trigger system 25th International Conference on Computing in High-Energy and Nuclear Physics 1
Challenges of the detector readout 1. Huge number of channels. For example, the ATLAS experiment has calorimeter with 120k channels muon system with 820k fast channels (RPCs and TGCs) inner tracker has 80M pixels and 46k strips 2. Fast sampling rate without dead time 40 Msps for the majority of the ATLAS experiment 3. High level of synchronization for digitization across all the systems (better than 1 ns) for years. 4. High reliability. Beam time is very expensive. 5. Affordable. Limit how much custom electronics is designed. 25th International Conference on Computing in High-Energy and Nuclear Physics 14
ATLAS DAQ for LHC Run2 (2015-2018) FE FE FE FE 100kHz Fully synchronous L1 trigger Custom 40MHz ROD ROD ROD ROD Custom Link Multiple types Fixed latency Highly-parallel ROS ROS ROS ROS COTS Ethernet Custom ROD : ReadOut Driver, Electronics ROS : ReadOut System, HLT : High Level Trigger PC HLT HLT HLT HLT Custom hardware and link protocols are used for the frontend readout During Runs 1 and 2, the experience gained suggested that commodity systems are easier to support than the custom alternatives Most of data are buffered in the on-detector electronics (FE) while the L1 trigger system is analyzing the data Trigger signals and LHC clock are sent to both front-end and ReadOut Driver (ROD) This architecture was dictated by the capabilities of available electronics in ~2005. Based on this experience, a new system for Run 3 and 4 has been designed to make better use of commodity electronics and benefit from technological advancement in the intervening years 25th International Conference on Computing in High-Energy and Nuclear Physics 15
FELIX data flow overview Large-scale flexibility of commodity FE ASIC up to 320 Mb/s to synchronous serial networking. E-link TTC FE ASIC E-link GBTx Calibration FE ASIC E-link FPGA network link up to 100Gb/s DCS ~4.8 Gb/s TTC FE configuration FE ASIC E-link FE ASIC E-link GBTx E-link Event readout FE ASIC E-link FE ASIC COTS network Event readout switch FE ASIC E-link TTC FE ASIC E-link GBTx FE ASIC E-link FPGA Event readout FE ASIC E-link FE ASIC E-link GBTx E-link FE ASIC E-link FE ASIC Commodity network. Multiple asynchronous data streams. Custom data links. Fully synchronous system. 25th International Conference on Computing in High-Energy and Nuclear Physics 1

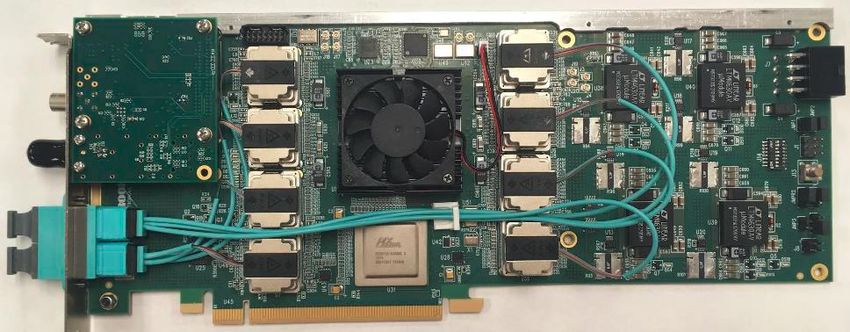

FLX712 components 25th International Conference on Computing in High-Energy and Nuclear Physics 17
FELIX firmware architecture Output: 24 GBT (4.8G) links OR 12 or 24 Full mode (9.6G) links Input: 24 GBT (4.8G) links OR 48 GBT links for TTC-fan-out 25th International Conference on Computing in High-Energy and Nuclear Physics 18
GBT Protocol • The protocol provides aggregation and de-aggregation of multiple slower data streams into a single fast serial link • A slow serial link (aka E-link) is driven by a selected set of bits in the GBT frame GBTx IC. Rad-hard • The GBT frame is fully synchronous with the LHC clock (200 bits in 25 ns) • GBTX ASIC offers high fidelity clock (40 , 80, 160, or 320 MHz clock) • Trigger and timing control for the on-detector electronics • Flexible configuration of the I/O ports Slow serial e.g. 160 Mbps Fast serial 4.8 Gbps 40 MHz clock FELIX GBTx IC or FPGA Fast serial 4.8 Gbps Slow serial e.g. 320 Mbps Off-detector On-detector 25th International Conference on Computing in High-Energy and Nuclear Physics 1
FELIX software FelixStar application is a data processing pipeline between the PCIe DMA buffer and the NIC Custom-designed network transport software layer (netio-next) is used for communication between FELIX hosts and network peers. It abstracts the low level network implementation. .POSIX and RDMA backends are supported 25th International Conference on Computing in High-Energy and Nuclear Physics 20
