NATIONAL FLOOD FORECASTING AND WARNING SERVICE (NFFWS)
River Coastal
STAGE 1 : NATIONAL AND CATCHMENT LEVEL
2
Flood Forecasting Division :
Establish the Service
Recruit Suitable Staff
• Chief Hydrometeorologist (Appointed Spring 2018)
• 6 Hydrometeorologists (4 Appointed)
• 1 Principal Meteorological Officer (Competition completed)
• 3 Senior Meteorological Officers (Planned Recruitment Q4 2019)
• Additional Hydrometeorologist competition closed last week
Accommodation
• Plans to Remodel the 3rd Floor to accommodate both the FD and FFD
are under way and will be completed by late 2019/early 2020
• Build up 24/7/365 capabilities
Training
Staff training is continuous throughout the establishment stage:
• Model development
• Meteorological Training – In house
• Hydrometeorological Training – SMHI
• Hydrological Training from the OPW
3
Making Ireland Weather
and Climate Prepared
National Flood Forecast and warning service
Example diagram of a flood forecasting and warning system (Bureau of Meteorology)
▪ Stage 1 of a Three Stage Implementation Plan
▪ Objective to develop a national scale hydrological model(s) at an hourly
timestep for gauged/ungauged locations - ambitious
▪ IMDC (International Marine and Dredging Consultants) procured to identify,
calibrate and trial hydrological models
▪ Develop in-house capacity: input/output datasets, hydro models (build etc.)
and ancillary tools (e.g. post-processing, assimilation, visualisation, etc.) 4
Making Ireland Weather
and Climate Prepared
Rainfall-Runoff model types
Simple model representations of a catchment (Source: Sene, 2008)
▪ Modelling options: from lumped empirical ‘black boxes’ to physically based fully
distributed
▪ Huge variety in the types of models to select – exists on a spectrum
▪ Various considerations (e.g. data requirements, model objectives, accuracy,
runtime, ease of use)
▪ The most appropriate model is not always the most complex 5
Flood Forecasting Division :
Fluvial
• 4 Models have been built and calibrated for 5 catchments
• Next: operational trial of the models and 2 integrator systems
to identify any issues in the running of the models
• Contract extension planned to include another 7 catchments;
Boyne, Liffey, Suir, Blackwater (Munster), Lee, Galway Bay
and Erriff-Clew Bay.
Coastal
• Tide and Storm Surge Forecast (TSSF) system – developing a
plan with the OPW to integrate this system into MÉ’s High
Performance Computing Centre
• This will allow the model to be run on a supercomputer and
will speed up the run time, it will also mean that the TSSF is
part of MÉ’s operational forecast model suite
• Potential to run Ensemble versions of the TSSF
Fluvial Models are calibrated for 5 catchments (orange) –
additional 7 planned (green)
6
Making Ireland Weather
and Climate Prepared
Fluvial Model Calibration
▪ Models chosen for trial:
1. Unified River Basin Simulator (URBS)– Don Carroll
2. WRF-Hydro – US National Water Model
3. HYPE – Swedish Meteorological Hydrological Institute
4. WFLOW – Deltares (Dutch independent research institute)
▪ Each is different: e.g. runtime, language, modelling
approach, spatial configuration, and data requirements
▪ They have been built and calibrated for 5 catchments – 7
more selected
▪ Generally 2 models are outperforming the others HYPE
and URBS – but other considerations
7
Static datasets; WFLOW model simulation for the Boyne
Making Ireland Weather
and Climate Prepared
Fluvial Model Performance
Comparison of modelled peak discharges in Slaney for station 12013
▪ Generally 2 models are outperforming the others HYPE and URBS – but
there are other considerations
▪ IMDC trialling phase will begin soon – move towards operationalizing
the models in real time using live observed/NWP data 8
Making Ireland Weather
and Climate Prepared
Data inputs
▪ Requires higher resolution inputs
(hourly, grid scale) – some
combination of radar and rain gauge
data
▪ Identifying gaps in the existing rain
gauge network
▪ CAMP stations and proposed radar
network have potential for
improving forecast reliability –
will take time (following slides)
▪ Post-processed NWP products on
the same spatio-temporal scale as
the observations used for
calibration Rainfall distribution (mm) across the Suir Catchment
9
Making Ireland Weather
and Climate Prepared
Flood Forecasting Division :
Observations
• MÉ has ~ 25 Synoptic sub-daily weather stations,
approx. 400 daily climate stations (many of which are
volunteers)
• Climate Modernisation Update Project – 60 automated
(sub-daily) climate stations being installed before the
end of the year, with the option to drawdown an
additional 20 automated climate stations in 2020.
• This will mean an additional 80 climate stations
recording weather observations in real time
• After a period of time has elapsed, the data from these
stations will be used to re-calibrate the fluvial flood
models
10Making Ireland Weather
and Climate Prepared
Flood Forecasting Division :
Radar
• MÉ has initiated a scoping exercise to identify and
document the range of requirements for an upgraded and
modernised weather radar network to include the type of
radar, locations and provide a strategic plan up to 2040
• Upgrade of the current radar network of 2 up to 5. This
improvement in coverage will benefit flood forecasting as
weather systems will be able to be tracked more accurately.
• Locations that are not currently well covered by radar will
be included with the upgrade
• The radar data can be used by flood models in order to
produce more accurate forecasts
11Making Ireland Weather
and Climate Prepared
Operational runs
Proposed Model simulation schedule
▪ Blending products: aim of reducing errors and extending lead times
▪ Ideally a combination of nowcasting and HARMONIE/ECMWF ensembles
▪ Temporal response of the catchment is important for predictability and
significance of products with different lead times
12Making Ireland Weather
and Climate Prepared
Flood forecasting system
Example of the Delft-FEWS user interface
▪ Integrator system: interface handles import, model simulation and data
processing
▪ IMDC will test two different systems; FEWS (Deltares) and MIKE Operations
(Danish Hydrological Institute)
13Making Ireland Weather
Model and data ensembles
and Climate Prepared
Ensemble flood forecasts
▪ Ensemble Streamflow Prediction – now standard approach
▪ HEPEX: A global community in Hydrological Ensemble Prediction
(https://hepex.irstea.fr/)
▪ The best way to take advantage of ensemble forecasts and to make better
decisions based on them? – probabilistic forecasts
▪ Hydrological model ensemble – addressing model uncertainties 14Making Ireland Weather
and Climate Prepared
Coastal Models
▪ Exploring the transfer of the existing national coastal model (OPW/RPS)
across to Met Éireann
▪ Incorporate within EC Flow scheduler?
▪ Coastal Flood Forecasting Strategy to be prepared later this year
▪ Potential to develop the existing national scale coastal model – include
additional coastal flood risk components; wind, swell, waves etc. Incorporate
probabilistic NWP inputs.
▪ Potential for high-res coupled ocean-atmosphere model to provide inputs
▪ Develop in-house capacity: input/output datasets, coastal models (build etc.)
and ancillary tools (e.g. post-processing, assimilation, visualisation, etc.)
15Making Ireland Weather
and Climate Prepared

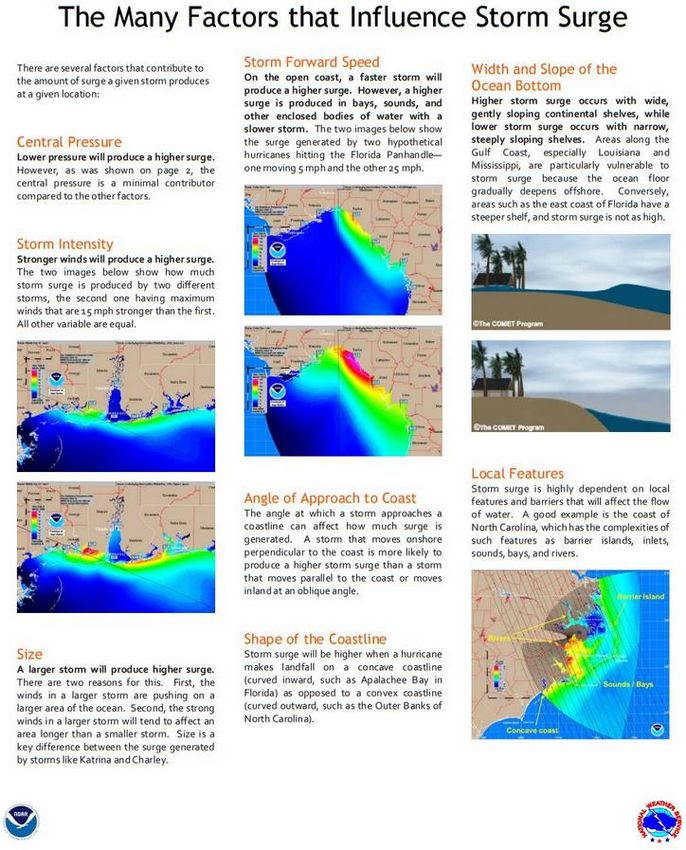

Components of tidal / coastal flood risk
• Position of earth / moon / sun
• Astronomical tide
• Atmospheric pressure, storm intensity, storm
• Storm surge size, storm forward speed, angle of
approach to coast, shape of coastline, width
& slope of ocean floor, local features
(barriers/defences, river outlets)
• Waves
• Wave and wind components
• Swell
• Swell refers to waves that develop over a
longer period of time than locally-generated
wind waves, and over a larger area.
16Making Ireland Weather
and Climate Prepared
Components of tidal / coastal flood risk
Central low pressure of a depression /
storm
17Making Ireland Weather
and Climate Prepared
Existing National Coastal Model
Tide and
surge
forecast
ONLY
18Making Ireland Weather
and Climate Prepared
Tide and surge forecasts at 18 locations around the
coast – uses EC HighRes (deterministic)
Surge Level (m)
North-West
Total Water Level (m ODM)
West East
South
Astronomical Tide Level (m CD)
-East
South-West South
19Making Ireland Weather
and Climate Prepared

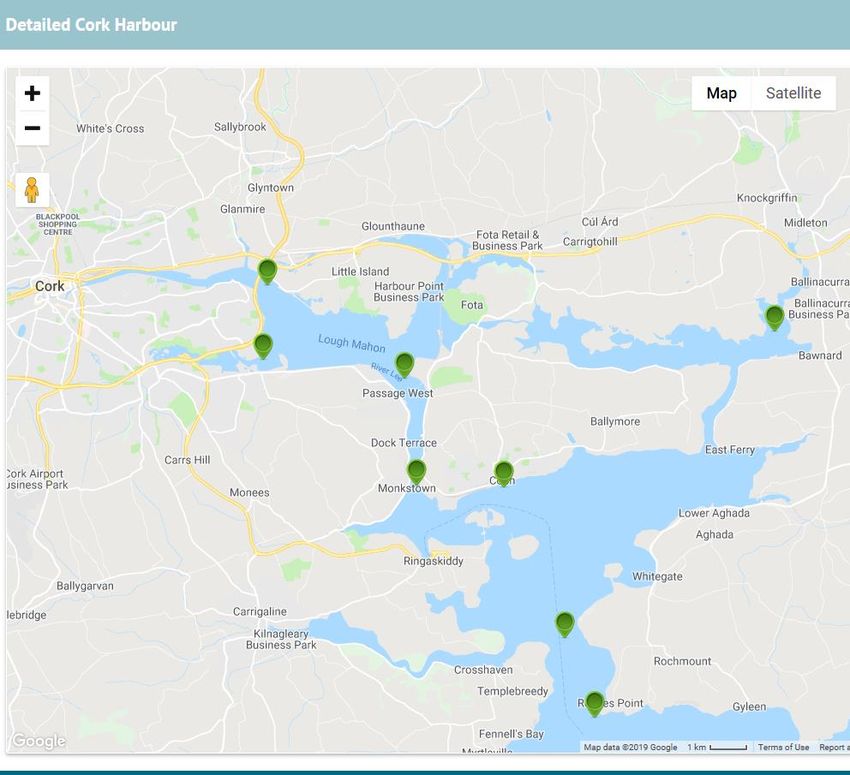

Detailed forecasts – still tide and surge ONLY! Just additional
locations along 5 specific sections of the coastline
20Making Ireland Weather
and Climate Prepared
Tide, surge and ‘wave’ forecasts
• Currently only for Tralee Bay
• Astronomical tide forecast
• Storm surge forecast
• Significant wave height, peak
period and mean wave direction
• Model uses meteorological
forecast wind and pressure data
from HARMONIE (Making Ireland Weather
and Climate Prepared
Wave forecasts
• Potentially this information could be used.
• However, it does not tell us the expected wave
height in isolation. It tells us significant wave
height, peak wave period & mean wave direction.
• To ensure we are not double-counting any tide or
storm surge component from the national model, we
need to estimate wave height on its own; this can
typically be an additional 0.2 – 0.5m.
22Making Ireland Weather
and Climate Prepared
Using NWP models to forecast
swell and waves
• The EC wave model is not accurate close to
shore
• The red line = model land-sea boundary
• last grid point to land is not trustworthy.
Even the 2nd last may not be depending on
the surrounding grid points and the
direction of the waves.
• The High resolution WAM model has a better
idea of the Irish Coastline but it’s still not
great near some shores.
• The finer the grid of the model the closer to
shore you can get accurate Significant wave
heights i.e. the better the model ‘sees’ the
coastline.
• HARMONIE – ocean-atmosphere coupling?
Higher resolution!
23Flood Forecasting Division :
24-hour response capability (limited)
• Met Éireann has developed an on-call roster which provides
24/7 support from the Flood Forecast Centre
• The aim was to introduce a 24-hour capability in the Flood
Forecast Centre, noting that there is a limited number of
Flood Forecast Systems in place in the country, and that
EFAS is an awareness system
• FFC staff have developed products from MÉ’s suite of
Numerical Weather Prediction models; Harmonie and its
Ensemble version, IREPS, as well as the ECMWF models too
• The staff have been activated a number of times to provide
support to the General Forecast office
24Making Ireland Weather
and Climate Prepared
Flood Forecasting Division :
Projected track of Ophelia: 16th of October 2017
Operational HARMONIE forecast from 00UTC on 16th Oct: Valid @ 00UTC on 17th Oct IREPS forecast from 00UTC on 16th Oct: Valid @ 00UTC on 17th Oct
25
25Flood Forecasting Division :
Develop a Communication Strategy
• This is nearing completion with excellent input from
all members of the Steering Group.
• MÉ will use its existing Web and App platform, which
has a large reach (4th most popular public service
website and over 500,000 downloads of the app) to
help disseminate flood information
• The app uses your location to inform you if there are
any warnings in operation for your location
• Later this year the App will allow users to receive push
notifications for weather warnings, types and levels for
any county in Ireland.
• The aim of the Communication Strategy is to use the
same technology for flood alerts.
26Making Ireland Weather
and Climate Prepared
Any questions?
27
27You can also read
