E-catalog 2021
Energy Harness Corporation (Corporate) Energy Harness Corporation (Midwest)
71 Mid Cape Terrace 10815 Deandra Dr.
www.energyharness.com
Cape Coral, FL 33991 Zionsville, IN 46077
sales@energyharness.com
1-239-790-3300 (Sales) 1-317-999-5561 (Midwest Sales)
Table of Contents Street Light........................................1 Area Post Top V2..............................5 Wall Pack Cutoff................................7 Wall Pack Open...............................11 Tri-Proof Fixture...............................13 Flood Lights.....................................15 Retroit Kit.........................................17 Bollard.............................................19 Canopy.............................................21 Garage Lights..................................23 Solar Cobras................................... 25 Solar Flood Lights............................27 Yard Light.........................................29 Corn Bulb.........................................31 Mounting Accessories......................33 Flat Panel.........................................35 Recessed Downlight........................39 Flush Mounting Downlights..............43 Indirect Troffer..................................45 Architectural Suspended Fixture......47 Strip Light.........................................49 Wrap Fixture.....................................51 Vanity................................................53 Wall Sconce.................................... 55 Horizontal PL Bulb G24Q.................57 High Output PARs............................60 Circular High Bay..............................62 Linear High Bay................................64 Linear T8 Tube.................................68 Linear T8 to T5 Tube Light...............70 T8 U-bend Tube...............................72 PLL bulb...........................................74 Integrated T8 Light...........................76 Integrated T5 Light...........................78 Emergency Battery Backup..............80 Exit Signs..........................................82
LED Street Light Fixtures
Energy Harness® LED Street Lights have an
excellent optical design, optimal cooling fin
design, even light distribution, and a hinged door
for easy maintenance access. This product is
great for roadways, residential areas, parking
lots, and much more. With its unmatched lighting
performance and long lifespan, this fixture is
sure to provide great light for years to come.
Features
- Field Serviceable LED Modules
- Field Serviceable Power Supply
- NEMA 7-pin twist lock photocell socket
- Shorting cap included
- Toolless hinged door for maintenance
- Adjustable mounting included (receives on 2-3/8” tenon)
- Terminal block inside for safe power connection
- Power wire (3ft) included for easy installation
- Universal and high voltage models available
Applications
- Roadways - Residential Areas
- Parking Lots - Airports
- Parks - High Security Areas 1
Back to top
LED Street Light Fixtures
Specifications
- IP66 rated - Lifespan: > 50,000 hours
- 0-10V dimmable - Operating ambient temperature: -40°F-122°F
- Efficacy: > 135lm/w - EPA: 80W = 1.26 | 150W = 1.39 | 300W = 1.80
- CRI > 80 - CCT: 3000K, 4000K, 5000K, 5700K
- PF > .9
- Distribution Types: I, II, III, IV, V
- Input Voltage: 120-277V or 277V-480V
Accessories
Wireless Controls
Motion Sensor (MS) EHW-SY-PHOTO-CONTROL-277
Surge Protection Device Round Pole Mounting Accessory
EHA-SURGE-20kV-277V EHA-ADAPT-SQ-POLE-SIDE-TENON
EHA-SURGE-20kV-480V
Glare Shield (GS) Square Pole Mounting Accessory
1, 2, or 3 sided EHA-ADAPT-RD-POLE-SIDE-TENON
*Field Installed
Included Mounting Feature
2
Back to top
LED Street Light Fixtures
Light Distribution
Type I Photometric Type II Photometric Type III Photometric
Type IV Photometric Type V Photometric
Dimensions (mm)
80W 150W 300W
3
Back to top
LED Street Light Fixtures
Ordering Guide
Example Model Number: EHF-ST5-3-30057K-480V-D010-BK-MS
EHF-ST2 = 80W / 12447lm - 12683lm
Product Series EHF-ST3 = 150W / 22601lm - 22953lm
EHF-ST5 = 300W / 43308lm - 44688lm
1 = Type I 4 =Type IV
Light Distribution 2 = Type II 5 = Type V
3 = Type III (standard)
30K = 3000K 50K = 5000K
CCT
40K = 4000K 57K = 5700K (standard)
Input Voltage 277V = 120-277V 480V = 277-480V
Dimming D010 = 0-10V dimmable
Fixture Color BK = Black Powder Coat GY = Grey Powder Coat BR = Bronze WH = White
Accessories MS = Motion Sensor GS = Glare Shield
Model Number: EHF- ST ____ - ____ - ____ ____ k - ____ V - D010 -
Project Name:
Date:
Specified By:
4
Back to top
LED
LEDArea
AreaPost TopTop
Post V2 V2
Energy Harness® LED Area Lights were
developed to modernize traditional post top
lighting. With its contemporary appearance
and unique design, these state of the art lights
provide 360° light distribution that is sure to
brighten any location. The micro-lens system
delivers visual comfort by providing a wider
smoother and more uniform light output.
These LED Area light fixtures require no
ballasts, bulbs, or maintenance for their entire
lifespan.
AVERAGE BEAM ANGLE(50%):145.2 DEG TYPE IV
Applications
-Parks -Condos
-Walkways -Apartments
-Parking lots -Schools
5
Back to top
202004DF
LED Area Post Top V2
Specifications
-CRI > 70 -1-10V Dimmable
-Distribution Type: IV & V (V standard) -Lifespan > 50000 hrs
-Power Factor > 0.995 -EPA Rating 0.6
-Cast Aluminum Housing -Working Temp: - 40˚ F - 122˚ F
-IP65 Rated -Inventronics Power Supply
-Replaces 150W | 400W HID -Efficacy: 130lm/W
Accessories & Mounting Options
Surge Protection Device Standard Post Top (Option 1 -
EHA-SURGE-20kV-277V Series leave blank on model number)
Wireless Controls Side Entry Mounting- receives
EHW-SY-PHOTO-CONTROL-277 on 2-3/8" tenon (Option 2)
Center Pole Post Top Mounting
Motion Sensor (MS) receives on 2-3/8" tenon (Option 3)
EXAMPLE MODEL NUMBER: EHF-POST-5-7557K-277-PC-GY-MS
LED Area Post Top MODEL NUMBER
Product Series EHF-POST
Distribution Type 4 = Type IV | 5 = Type V (standard)
Wattage 75 = 75W (9750lm) | 120 = 120W (15600lm)
Color CCT 30K = 3000K | 57K =5700K
Input Voltage (AC) 277 = 120-277 | 480 = 277-480
Twist-Lock Photocell Receptacle PC = NEMA 7-pin recptacle
Fixture Color GY = Grey | BK = Black
Motion Sensor Accesory MS = factory installed
Alternate Mountaing Options SE = Side Entry | CP = Center Pole
6
Back to top
LED Wall Pack Cutoff
Energy Harness® LED Cut-Off Wall Packs have
a versatile full cut-off or semi-cut off design. The
same model will meet both full cut-off and semi-cut
off designs simply by installing the back-plate upside
down. Multiple installation methods allow this fixture
to be used as a flood light as well. With wattages
ranging from 35 -120W, this wall pack will cover all
your lighting needs.
Photometrics
Full Cut-Off Semi Cut-Off
Features
- 2 – in – 1 Fixture: Full cut-off and Semi cut-off options from same model
- Versatile Mounting: Junction box (standard) | surface | or slip fitter mounting
- Finish: Dark Bronze (standard) | Black | Grey | White
Applications
- Loading Docks - Residential Areas
- Schools - Parking Lots
- Outdoor Pathways - High Security Areas
7
LED Wall Pack Cutoff
Specifications
-IP65 -Lifespan > 50,000hrs
-Dimmable 0-10V -Operating Ambient Temp: -40°F - 104°F
-Power Factor > 0.9 -CRI >70
-Optics: Type 2 | Type 4
Accessories
Emergency LED Driver Motion Sensor | PIR | 0-10V Dimming
(90 minutes) BBU Switch or Remote Control | MS
Button Photocell | BPC Junction box plate (included)
Slip Fitter Mount for Installation |
Surge Protection Device SFA
(Field installed) | EHA- SURGE

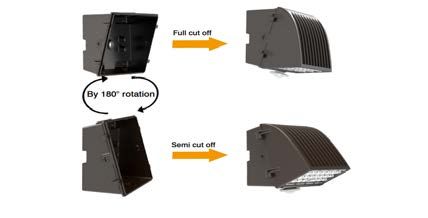

Cut-Off Features
8
Back to topLED Wall Pack Cutoff
Dimensions
35W Models
Back Full Cut-Off Semi Cut-Off
75-120W Models
Lumen Packages
EHF-WPC-4-35 EHF-WPC-4-75 EHF- WPC-4-120
Wattage | Lumens Wattage | Lumens Wattage | Lumens
35 4900 75 10500 120 16800
9
Back to topLED Wall Pack Cutoff
Ordering Guide
Example Model Number: EHF-WPC-4-7550K-277-D010-BK-MS
Product Series EHF-WPC
1 = Type 2
Light Distribution
2 = Type 4 (Standard)
Wattage 35 = 35W | 75 = 75W | 120 = 120W
30K = 3000K 50K = 5000K (Standard)
CCT
40K = 4000K
Input Voltage 277V = 120-277V (Standard) 480V = 277-480V
Dimming Left Blank = Non dimmable | D010 = 0-10V dimmable (Standard)
BK = Black Powder Coat BR = Bronze (Standard)
Fixture Color
GY = Grey Powder Coat WH = White
Accessories MS = Motion Sensor BBU = Battery Backup Unit
Model Number: EHF- WPC ____ - ____ ____k - ____ - ____ - ____ - ___ - ___
Project Name:
Date:
Specified By:
10
Back to topLED Wall Pack Fixture
Energy Harness® LED Wall Pack fixtures are
a modern solution for upgrading your outdoor
security lighting. These LED wall packs are great
for replacing existing fixtures or adding extra light
where it is needed. With a removable bracket
that mounts to an junction box, these fixtures are
designed for quick and easy installation. With
reduced energy usage compared to traditional
lighting and zero maintenance needed, these
fixtures save time and money!
Applications
-Doorways -Parking garages
-Walkways -Stairwells
-Parking lots -More
11
Back to topLED Wall Pack Fixture
Specifications
-CRI > 75 -IP65 rated
-Beam angle > 120˚ -100-277VAC
-Power Factor > 0.9 -Lifespan > 50,000hrs
-Total Harmonic Distortion 13.4% -Phillips 3030 LEDs
Accessories
EHA-SURGE-20kV-277V-SERIES
LED Wall Pack 80W 150W
EHC Part Number EHF-WP-8050K-277 EHF-WP-15050K-277
Replacement 150-300W 400-550W
Wattage 80W 150W
Lumens 9600lm 18000lm
Efficacy 120lm/w 120lm/w
Size (L” x W” x H”) 15” x 8” x 9” 17” x 10” x 10”
Color (CCT) 5000K 5000K
Voltage (AC) 100-277VAC 100-277VAC
DLC PSXWXSNP N/A
12
Back to topLED Tri-Proof Fixtures
Energy Harness® LED Tri-Proof lights are
designed to replace traditional vapor proof
fixtures. These LED light fixtures are a
great replacement for traditional walk-in
cooler and freezer lighting and outdoor
lighting. With easy installation and no
maintenance, you can reduce your costs
as well as save energy.
Applications
-Ceilings -Canopies
-Pavillions -Freezers
-Parking Garages -More!
13
Back to topLED Tri-Proof Fixtures
Specifications
-CRI > 80 -Lifespan > 50,000hrs
-Beam angle > 120˚ -Isolated internal driver
-IP66 rated (not for submersion) -Junction box mounting option available
(power feed through back)
-Power factor > .95
-Aluminum / plastic housing
-5 year warranty
-Frosted cover
-Non-dimmable
-Versatile mounting option available
(power feed through side)
Accessories
-Mounting Hardware
-Power Cord
-Connector Cord
LED Tri-Proof: 2’ 4’
EHC Part Number EHI-TRI24-3050K-277 EHI-TRI48-6050K-277
Replacement 60-75W 120-175W
Wattage 30W 60W
Lumens 2700lm 5600lm
Efficacy 90lm/w 93lm/w
Size (L” x W” x H”) 24.7” x 3.5” x 2.5” 47.2” x 3.5” x 2.5”
Color (CCT) 5000K 5000K
Voltage 100-277VAC 100-277VAC
14
Back to topLED Flood Lights
Energy Harness® LED Flood light fixtures
are designed to replace metal halide flood
light fixtures with clean bright light for secure
illumination. These fixtures have an excellent
optical design, optimal cooling heatsink, even
light distribution, and great heat dissipation for
longevity. Give your fixtures a modern look while
upgrading your light output, all while reducing
your energy cost!
EHF-FLOOD-5050K-277
Applications
-Parking lots -High security areas
-Flag lighting -Sidewalks
-Sign lighting -Monuments
15
Back to topLED Flood Lights
Specifications
-CRI > 75 -Working Temp: -22°F - 140°F
-Beam angle > 130˚ -5 year warranty
-Power Factor > 0.9 -10W, 20W,40W includes mounting knuckle
-IP65 rated -Phillips SMD 3030 LEDs
-Diecast aluminum housing -Lifespan > 50,000hrs
-Adjustable mounting bracket
Replacement : 15-40W 40-75W 75-125W 100-200W 250-400W
EHC Part Number EHF-FL-1050K-277-KN EHF-FL-WP-2041K-277-KN EHF-FL-WP-4041K-277-KN EHF-FLOOD-5050K-277 EHF-FLOOD-10050K-277
DLC Number N/A N/A N/A PPJPS1YUU PCDYVPS5R
Wattage 10W 20W 40W 50W 100W
Lumens 1500lm 2310lm 4100lm 5000lm 10000lm
Efficacy 150lm/w 115lm/w 102.5lm/w 100lm/w 100lm/w
Size (L” x W” x H”) 6.13” x 5.38” x 1.5” 7.88” x 6.63” x 10.63” 7.88” x 6.63” x 10.63” 10.5” x 9” x 2” 10.5” x 10” x 6.5”
Color (CCT) 5000K 4100K 4100K 5000K 5000K
Voltage 100-277VAC 100-277VAC 120-277VAC 100-277V (480V optional) 100-277V (480V optional)
Replacement : 450-600W 650-800W
EHC Part Number EHF-FLOOD-15050K EHF-FLOOD-20050K
DLC Number P6VGZPDG6 PVUJAV7AW
Wattage 150W 200W
Lumens 15000lm 20000lm
Efficacy 100lm/w 100lm/w
Size (L” x W” x H”) 10.5” x 10” x 6.5” 15.5” x 12” x 9”
Color (CCT) 5000K 5000K
Voltage 100-277V (480V optional) 100-277V (480V optional)
16
Back to topLED Retrofit Kit
Energy Harness® LED Retrofit Kits are designed
to replace existing Metal Halide and High Pressure
Sodium lighting with energy saving and long lasting
LED technology. Only the internal lighting components
of a fixture are replaced, saving additional waste and
expenses by reusing the existing fixtures. Energy
Harness® LED Retrofit Kits utilize industry-leading COB
technology to provide high quality light output. With the
kit’s durable construction, specially designed heatsink,
active cooling technology, efficient heat dissipation, and
built in surge protection, these lights have proved to last
throughout the years. The versatile mounting options
allow the user to mount into almost any fixture!
Applications
-Parking lots -Street lights
-Warehouses -More!
-Wallpacks
Back to top 17LED Retrofit Kit
Specifications
-CRI > 80 -Working Temp: -4° - 113°F
-Beam angle > 120˚ -Efficacy: 152lm +/- 5lm
-Power Factor > 0.9 -0-10V Dimmable upon request
-In-fixture use only -Aluminum/ steel housing
Product Replacements
Kit: 60W 90W 90W
EHC Part Number EHK-06050K-120-277V EHK-09050K-120-277V EHK-09050K-200-528V
Replacement 150-180W 250-400W 250-400W
Wattage 60W 90W 90W
Lumens 9120lm 13680lm 13680lm
SIZE (L x W) 7” x 4.25” 7” x 4.25” 7” x 4.25”
Voltage 100-277VAC 100-277VAC 200-528VAC
Kit:
Base 150W
E26 Direct
150WA/C 300W
E26 300W
EHC Part Number EHK058-15050K-120-277V EHK058-15050K-200-528V EHK058-30050K-120-277V EHK058-30050K-200-528V
Replacement 400-600W 400-600W 600-1000W 600-1000W
Wattage 150W 150W 300W 300W
Lumens 21900lm 21900lm 43800lm 43800lm
Size (L x W) 7” x 4.25” 7” x 4.25” 7” x 8.5” 7” x 8.5”
Voltage 100-277VAC 200-528VAC 100-277VAC 200-528VAC
18
Back to topLED Bollard
Energy Harness® LED bollards are designed to
replace traditional bollards. Rated for 147,000 hours
with an output of 15W, these lights are an excellent
replacement for up to 70W metal halide or high
pressure sodium bulbs. Energy Harness® LED
Bollards provide an easy to install modern fixture
upgrade from traditional bollards. With integrated LED
technology, the need for changing bulbs and ballasts
is completely eliminated. Upgrade your lights today,
increase your light output, and modernize the look of
your fixtures all while lowering your energy cost!
Applications
-Medical Facilities -Banks
-Schools -Universities
-Retail Centers -More!
19
Back to topLED Bollard
Specifications
-Domed top -Non-dimmable
-Vandal-resistant screws -Mounting kit with 8” anchor bolts included
-IP65 rated -Ballast bypass
-Working temp: -40° - 104°F -Surge protection
-Extruded aluminum housing -Wide beam spread Type V distribution
-LED Cone Reflector
Accessories
Mounting kit with 8” anchor bolts included
LED Bollard 15W
EHC Part Number EHF-BOLLARD-1550K-277-BR
Replacement 0-75W MH/HPS
Wattage 15W
Lumens 510lm
Efficacy 101
Height 42.25” (1,073mm)
Diameter 7” (178mm)
Voltage (AC) 120-277VAC
Color (CCT) 5000K
20
Back to topLED Canopy Fixture
Energy Harness® LED Canopy fixtures
are designed to replace traditional
canopy lighting. These fixtures are great
replacements for 100-400W metal halide
and high pressure sodium bulbs. They are
great for retail stores, shopping plazas,
gas stations, entryways, covered ceiling
walkways, perimeter lighting, and much
more!
Applications
-Gas stations -Perimeter lighting
-Retail stores -Walkways
-Entryways -More!
21
Back to topLED Canopy Fixture
Specifications
-Pendant / surface mounting -Working temp: -40° - 113°F
-IP 65 Rated -White finish
-Die-cast aluminum alloy housing -5 year warranty
Dimensions
LED Canopy Fixtures 150W
EHC Part Number EHF-CANOPY-15057K-277
Replacement 250-500W
Wattage 150W
Lumens 19500 lm
Efficacy 130lm/w
Size (L” x W”) 15” X 15”
Color (CCT) 5700K
Voltage (AC) 100-277V
22
Back to topLED Garage Light Fixtures
Energy Harness® LED Parking Garage lights have
a traditional canopy light design intended for outdoor
ceiling mounted applications. They utilize the latest in
LED technology including a weather sealed IP65 LED
driver and efficient thermal management. This light
features high-performance illumination that can last up
to 100,000 hours. It is ideal for replacing 100-250W
metal halide lighting and delivers significant energy
savings for facilities providing 24 hour lighting.
EHF-GL-4050K-277-RD
Applications
-Parking Garages -Pavilions
-Canopies -Shopping Plazas
-Gas Stations -More!
23
Back to topLED Garage Light Fixtures
Specifications
-CRI > 80 -IP54 Rated
-Beam Angle: 120˚-180˚ -Aluminum Housing
-Power Factor: > 0.9 -Operating Temperature: -4˚-104˚F
-Lifespan: > 50,000hrs -Surface-mount Installation
Product Replacements
LED Garage Light: 40W Round 60W Round 55W Square 75W Square
EHC Part Number EHF-GL-4050K-277-RD EHF-GL-6050K-277-RD EHF-GL-5550K-277-SQ EHF-GL-7550K-277-SQ
Replacement 100-150W 150-250W 100-175W 150-250W
Wattage 40W 60W 55W 75W
Lumens 5400lm 8100lm 6050lm 8250lm
Efficacy 135lm/w 135lm/w 110lm/w 110lm/w
Size (D x H), (L x W x H) 11.42” x 4.49” 11.42” x 4.49” 15” x 15” x 3” 13.5” x 13.5” x 8”
Color (CCT) 5000K 5000K 5000K 5000K
Voltage (AC) 100-277VAC 100-277VAC 100-277VAC 100-277VAC
Back to top
24LED Solar Cobra
Energy Harness® LED Solar Cobra Fixture has
a unique, durable design intended for outdoor
pole applications. It combines the latest in LED
technology and solar technology for secure
illumination and maintenance free operation. This
luminaire is ideal for areas that need light where no
electrical wires exist.
EHF-SOLAR-COBRA-3050K-MS
Applications
-Parks -Pedestrian crossings
-Bus stops -High security areas
-Side walks -More!
25
Back to topLED Solar Cobra
Specifications
-CRI > 83 --60W / 18VDC solar panel
-Beam angle: 140˚ -Suggested installation height: 6-8m
-Philips SMD3030 LEDs (48 diodes) -Pole mounted (requires tenon)
-Lithium Ion Battery -Lifetime: 1000 cycles
-Built in motion sensor -Panel doubles as photocell
LED Solar Cobra 30W
EHC Part Number EHF-SOLAR-COBRA-3050K-MS
Replacement 75-150W
Wattage 30W
Lumens 4200lm (at full power)
Efficacy 140lm/w
Fixture Color Grey/silver
Color (CCT) 5000K
IP Rating IP65
Size (L” x W” x H”) 19” x 10” x 2.5”
26
Back to topLED Solar Floodlights
Energy Harness® LED Solar Floodlight Fixture
has a unique, durable design intended for outdoor
pole or wall applications. It combines the latest in
LED and solar technology for secure illumination
and maintenance-free operation. Not only do these
fixtures reduce energy usage, but they generate
their own electricity and are able to be used
in applications where traditional lighting is not.
Upgrade today to eliminate your maintenance and
energy costs entirely!
Applications
-Parks -High security areas
-Bus stops -Sidewalks
-Signs lighting -More!
27
Back to topLED Solar Floodlights
Specifications
-CRI > 83 -Built in motion sensor
-Beam angle: 140˚ -60W / 18VDC solar panel
-Philips SMD3030 LEDs (48 diodes) -Lifetime: 1000 cycles
-Lithium Ion Battery -Panel doubles as photocell
-LifePO4 Battery, 307WH 12.8V -Solar panel stand included
-Yoke Mounting (wide bracket)
Accessories
Solar Panel
LED Solar Floodlight 30W
EHC Part Number EHF-SOLAR-30FLOOD
Replacement 75-150W
Wattage 30W
Lumens 4200lm (at full power)
Efficacy 140lm/w
Fixture Color Grey/silver
Color (CCT) 5000K
IP Rating IP65
Size (L” x W” x H”) 16.2” x 10.6” x 3.3”
28
Back to topLED Yard Light Fixture
Energy Harness® LED Yard lights, also known
as barn lights or security lights, are great
replacements for traditional security lighting.
They provide clean, bright light exactly where
needed, do not require the use of ballasts,
and are fitted with a twist-lock photocell for
dusk-to-dawn applications. These lights can be
mounted directly onto existing bull horns or wall
mount brackets. With an easy installation and a
dusk-to-dawn photocell, these lights are perfect
for upgrading existing security lighting!
Applications
-Barns -Walkways
-Doorways -Docks
-Parks -More!
29
Back to topLED Yard Light Fixture
Specifications
-Photocell included -Aluminum finned housing
-Photocell rating: 120-277VAC -120° beam angle
Accessories
Photocell
LED Yard Light 55W
EHC Part Number EHF-YARD-5550K-277
Replacement 100-175W
Wattage W
Lumens 7150lm
Efficacy 130lm/w
Size (L” x W” x H”) 13” x 8” x 7.5”
Color (CCT) 5000K
Voltage (AC) 100-277VAC
Fixture Color Grey
30
Back to topLED 360˚ Corn Bulbs

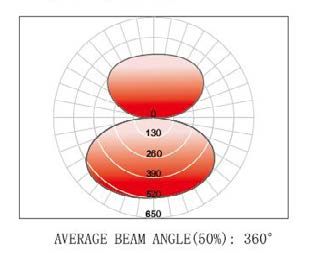

EHC LED 360° Bulbs provide 360° distribution
while dispersing clean and even light. These LED
bulbs are built with an efficient, heat dissipating
design to ensure a long lasting lifespan. They save
on average 50-60% on electrical usage and do
not require the use of a ballast. These eco-friendly
bulbs contain no mercury eliminating the disposal
fees of traditional bulbs. Upgrade your lights today
and save!
Applications
-Wallpacks -Small parking lots
-Decorative post top lights -Warehouses
-Low bay fixtures -More!
31LED 360˚ Corn Bulbs
Specifications
-CRI > 80 -Isolated internal driver
-Power factor > 0.9 -Working temp: -22˚ - +113˚F
-IP64 rated -Aluminum/ plastic housing
-Non-dimmable -Clear covers
-100-277VAC 50/60Hz -Base adapters available
360° Corn
BaseBulbs E26 60W Direct A/C 120W
EHC Part Number EHB-CC-6050K-E40-360-277-LS EHB-CC-12050K-E40-360-277-LS
Wattage 60W 120W
Lumens 7800lm 15600lm
Efficacy 130lm/w 130lm/w
Color (CCT) 5000K 5000K
Base E39 mogul E39 mogul
Dimensions (D x H) 3.66” x 11.22” 4.92” x 13.2”
32
Back to topLED Mounting Accessories
EHA-ADAPT-SINGLE-HOR-TENON EHA-ADAPT-TWIN180-HOR-TENON EHA-ADAPT-TWIN-90-HOR-TENON
EHA-ADAPT-TRIPLE-120-HOR-TENON EHA-ADAPT-TRIPLE-90-HOR-TENON EHA-ADAPT-QUAD90-HOR-TENON
EHA-ADAPT-4SQ-TENON EHA-ADAPT-4ROUND-TENON EHA-ADAPT-4/5WALLBRACKET
EHA-ADAPT-5SQ-TENON EHA-ADAPT-5ROUND-TENON
EHA-SL-SF EHA-ADAPT-90DEG-WallMount EHA-ADAPT-PTSF
EHA-ADAPT-SAA EHA-ADAPT-ROUND-POLE-SIDE-TENON EHA-ADAPT-SQ-POLE-SIDE-TENON
Back to top
33LED Mounting Accessories
EHC Part Number Description
EHA-ADAPT-SAA-DOUBLE-TENON-LS Slipfit adjustable adapter- 2 sided tenon - gray color
EHA-ADAPT-SINGLE-HOR-TENON Single 90˚ horizontal tenon - recieves on 2 3/8” vertical tenon
EHA-ADAPT-TWIN90-HOR-TENON Double 90˚ horizontal tenons - recieves on 2 3/8” vertical tenon
EHA-ADAPT-TWIN180-HOR-TENON Twin 180˚ horizontal tenons - recieves on 2 3/8” vertical tenon
EHA-ADAPT-TRIPLE-90-HOR-TENON Triple 90˚ horizontal tenons - recieves on 2 3/8” vertical tenon
EHA-ADAPT-TRIPLE-120-HOR-TENON Triple 120˚ horizontal tenons - recieves on 2 3/8” vertical tenon
EHA-ADAPT-QUAD90-HOR-TENON Quad 90˚ horizontal tenons - recieves on 2 3/8” vertical tenon
EHA-ADAPT-4ROUND-TENON Vertical tenon adapter - recieves on 4” round pole
EHA-ADAPT-5ROUND-TENON Vertical tenon adapter - recieves on 5” round pole
EHA-ADAPT-4SQ-TENON Vertical tenon adapter - recieves on 4” square pole
EHA-ADAPT-5SQ-TENON Vertical tenon adapter - recieves on 5” square pole
EHA-ADAPT-ROUND-POLE-SIDE-TENON Side tenon for round poles, fits 3-5” poles
EHA-ADAPT-SQ-POLE-SIDE-TENON Side tenon for square poles, fits 4-5” poles
EHA-ADAPT-90DEG-WallMount 90˚ wall mount tenon adapter
EHA-ADAPT-PTSF Square post top adapter for up to 4 fixtures - recieves on 2 3/8” vertical tenon
EHA-ADAPT-SAA Slipfit adjustable adapter
EHA-ADAPT-4/5WALLBRACKET Wall mount tenon adapter
EHA-ADAPT-TWIN-VER-4SQ-POLE Twin vertical tenon straight adapter for 4” square pole
EHA-ADAPT-TWIN-VER-5SQ-POLE Twin vertical tenon straight adapter for 5” square pole
EHA-ADAPT-FLEM6 6” extruded pole mounting arm (Shoebox 6” extension arm)
EHA-ADAPT-ADAPT-4SQ-POLE-CAP 4” square pole cap
EHA-ADAPT-5SQ-POLE-CAP 5” square pole cap
EHA-ADAPT-SL-SF Slipfit adjustable adapter- 2 sided tenon - gray color
Back to top 34LED Flat Panel
Energy Harness® LED Back Lit Flat Panels are
designed to replace traditional fluorescent troffer
fixtures in drop or grid ceilings. These panels
are easily installed in the same locations as
existing lights or in new locations. With excellent
distribution and uniform illumination, as well as
the ability to adjust wattage and CCT, these lights
are sure to improve the quality of your lighting.
Give your fixtures a modern look while upgrading
your light output, all while reducing your energy
cost.
Features
- Available in 1x4, 2x2, 2x4 - Additional junction box for extra wiring
room (included)
- CCT selectable by switch
- Installation by drop ceiling, suspended,
- Wattage selectable by switch or surface mount
4 lumen packages per model
- Boards are top mounted for improved
efficacy
Applications
-Classrooms -Hallways
-Offices -Conference rooms
-Lobbies -Common areas
35
Back to topLED Flat Panel
Specifications
- IP 40 rated (indoor use) - Lifespan: > 50,000 hours
- 0-10V dimmable - Operating Temperature: -4°F - 113°F
- Efficacy: > 125lm/w - Fixture Trim: White Aluminum
- CRI > 80 - CCT: 3000K, 3500K, 4000K, 5000K
- PF > .95 - LED Source: SMD2835
- Input Voltage: 120-277V - THD < 15%
Dimensions
1x4 panel 2x2 panel 2x4 panel
Back to top 36LED Flat Panel
Photometrics
EHF-PANBL-1X4 EHF-PANBL-2X2 EHF-PANBL-2X4
AT 35W IN 5000K AT 35W IN 5000K AT 35W IN 5000K
Lumen Packages
EHF-PANBL-1x4 EHF-PANBL-2x2 EHF-PANBL-2x4
Wattage Lumens Wattage Lumens Wattage Lumens
20 2500 20 2500 35 4375
25 3125 25 3125 40 5000
30 3750 30 3750 45 5625
35 4375 35 4375 50 6250
37
Back to topLED Flat Panel
Ordering Guide
Example Model Number: EHF-PANBL-2X4-50-277-CDM-BBU-BBB
EHF-PANBL-1x4-35
Product EHF-PANBL-2x2-35
EHF-PANBL-2x4-50
Voltage 277 = 120-277VAC
Functionality CDM = CCT and Wattage Selectable by switch
+ 0-10V dimmable
SMK = Surface Mount Kit
Accessories SP = Surge Protection
Model Number: EHF - PANBL - ____ - ____ - 277 - CDM - ____
Project Name:
Date:
Specified By:
38
Back to topRecessed LED Downlight
Energy Harness® Recessed LED Downlights are
a great replacement for traditional recessed can
lighting. With several size options, they are sure
to meet your needs. Not only do they upgrade
your light output but also use less energy than
traditional downlights. With countless applications
our Recessed LED Down Lights are sure to
improve the quality of your lighting!
Features
- Built in J-Box - Voltage range up to 347V
- Variety of trim shapes - Includes three 1/2” knockouts
- 1 Light module, interchangeable trims - 5-year limited warranty
Applications
- Hospitals - Hallways
- Places of worship - Entryways
- Offices - Restrooms
- Retail locations - Confrence rooms
39
Back to topRecessed LED Downlight
Specifications
- 1-10V dimmable - THD < 20%
- CRI > 80 - Lifespan: 35,000 hrs (15W & 20W)
- PF > 0.90 50,000 hrs (40W)
- Input voltage: 120-347VAC - CCT Adjustable:
- Temperature rating < 113°F 3,000K | 3,500K | 4,000K (40W)
- Interchangable trim sizes 3,000K | 4,000K | 5,000K (15W & 20W)
- Beam angle: 115°
Accessories
New Construction Plate Round Trim Rings in 4” | 6” | 8” | 10”
Square Trim Rings in 4" | 6" Round Wall Wash in 4" | 6"
Square Wall Wash in 4" | 6"
Lumen Chart
Model Wattage CCT Adjustable
3000K 3500K 4000K 5000K
70 lm/W 85 lm/W 85 lm/W 75 lm/W
EHD#-DP-15-347-D010 15W
1275lm 1275lm 1125lm
1050lm
70 lm/W 80 lm/W 80 lm/W 70 lm/W
EHD#-DP-20-347-D010 20W 1400lm 1600lm 1600lm 1400lm
85 lm/W 100 lm/W 90 lm/W 100 lm/W
EHD#-DP-40-347-D010 27W 2295lm 2700lm 2430lm 2700lm
80 lm/W 95 lm/W 80 lm/W 95 lm/W
EHD#-DP-40-347-D010 34W 2720lm 3230lm 3200lm 3230lm
75 lm/W 90 lm/W 80 lm/W 90 lm/W
EHD#-DP-40-347-D010 40W 3000lm 3600lm 3200lm 3600lm 40Recessed LED Downlight
Trim Dimensions
Round Trims
3.43” 3.43” 3.43” 3.43”
4” 5.52” 6” 7.62” 8” 9.22” 10” 11.9”
4.10” 5.91” 7.29” 9.26”
Mounting Diamters: 4.7” - 5.2” Mounting Diamters: 6” - 7.3” Mounting Diamters: 7.4” - 0.9” Mounting Diamters: 9.5” - 10.8”
Round Wall Wash
3.35” 3.35”
4” 6.38” 6” 7.62”
4.10” 5.91”
Mounting Diamters: 5.3” - 6” Mounting Diamters: 6” - 7.3”
Tilt: 15-20 Tilt: 15-20
Square Trims Square Wall Wash
3.35” 3.35” 3.35” 3.35”
4” 6.38” 6” 7.62” 4” 6.38” 6” 7.62”
4.10” 5.91” 4.10” 5.91”
Mounting Diamters: 5.3” - 6” Mounting Diamters: 6” - 7.3” Mounting Diamters: 5.3” - 6” Mounting Diamters: 6” - 7.3”
Tilt: 15-20 Tilt: 15-20
Photometrics
Model Model Model
15W 4000K 20W 4000K 40W 3000K
41Recessed LED Downlight
Ordering Guide
Example Model Number: EHD4-DP-15-347-D010-RD
Product Series EHD
Trim Size 4 = 4” | 6 = 6” | 8 = 8” | 10 = 10”
DP = CCT Selectable Switch
CCT Tunability 35K = 3500K (available for 15W | 20W only)
50K = 5000K (available for 27W | 34W | 40W only
Wattage 15 = 15W | 20 = 20W | 40 = 27W | 34W | 40W
Selectable
Voltage 347 = 120-347 VAC
Dimming D010 = 0-10V Dimming
RD = Round Trim (available in 4” | 6” | 8” | 10”)
Trim Shape SQ = Square Trim (available in 4” | 6”)
RDW = Round Wall Wash (available in 4” | 6”)
SQW = Square Wall Wash (available in 4” | 6”)
Model Number: EHD___ - ___ - DP - ___ - 347 - ___
Project Name:
Date:
Specified By:
42
Back to topLED Downlights
Energy Harness® LED Downlights are used to
replace traditional can lighting. These energy
efficient lights are available in a wide range of
sizes and wattages for many applications. With
using Energy Harness’ integrated technology the
need to change bulbs and ballasts is completely
eliminated. Upgrade to a clean modern look today
to improve your lighting and start saving energy.
Applications
-Churches -Canopies
-Dealerships -Common areas
-Walkways -More
43
Back to topLED Downlights
Specifications
-Power Factor > 0.9 -Ballast bypass
-IP20 rated -CRI > 80
-Aluminum/Plastic Housing -Working Temp: -4° - 113°F
-Lifespan > 50,000hrs -100-277VAC 50/60Hz
Accessories
Custom Size
Trim Rings
Wireless on/off
dimming controls
Hole Size (in) : 4” 4” 5”/6” 6” 8” 8”
EHC Part Number EHD4TCP-10xxK-120 EHD4-20xxK-277V EHD56TCP-14xxK-120 EHD6-15xxK-277-D010 EHD8-15xxK-277-D010 EHD8-60xxK-277
Replacement 40-65W 65-100W 65-85W 65-85W 65-85W 150-175W
Wattage 10W 20W 14W 15W 15W 60W
Lumens 800lm 1700lm 1260lm 1600lm 1600lm 6300lm
Efficacy 80lm/w 85lm/w 90lm/w 107lm/w 107lm/w 105lm/w
Lens Cover Semi-frosted Clear Semi-frosted Semi-frosted Semi-frosted Clear
Color (CCT) 3000K, 4000K, 5000K 4000K,5000K 3000K,4000K, 5000K 4000K, 5000K 4000K, 5000K 4000K, 5000K
Rating UL, Energy Star ETL, CE UL, Energy Star ETL, CE ETL, CE ETL, CE
Dimmable Triac 0-10V Optional Triac 0-10V 0-10V 0-10V Optional
Base E26 Direct A/C E26 Direct A/C Direct A/C Direct A/C
44
Back to topIndirect LED Troffer
Energy Harness Indirect LED Troffer
2X2 Option Fixtures offer a modern design with the
latest lighting technology. This product’s CCT and
wattage tunability along with its architectural design
allow for a large range of applications. While this
product is visually pleasing, its performance is not
to be outshined. Combining energy efficiency and
great distribution,our Indirect LED Troffer
Fixtures will provide clean, bright light for years
to come.
2X4 Option
Applications
-Offices -Schools
-Lobbies -Hallways
-Hospitals -Conference Rooms
45
Back to topIndirect LED Troffer
Specifications
-Tunable by DIP switch -Fits standard T-Grid ceilings
-Transparent optics -Power factor > 0.9
-0-10V Dimmable -CRI > 80
Accessories
-Wireless controls -Battery backup options -BBU Bracket
Indirect LED Troffer EHF- IND-2X2DS-40-277 EHF- IND-2X4DS-50-277
Wattage (Tunable) 30W, 35W, 40W 30W, 40W, 50W
Lumens 3000 lm, 3500 lm, 4000 lm 4000 lm, 4500 lm, 5000 lm
Efficacy 100 lm/w 100 lm/w
Size (L x W) 2’ x 2’ 2’ x 4’
CCT (Tunable) 3000K, 3500K, 4000K 3000K, 3500K, 4000K
Voltage (AC) 100-277 V 100-277 V
46
Back to topArchitectural Suspended LED Fixture
The Architectural Suspended LED Fixture has a
unique design is nearly transparent when off and
excellent uniformity and efficiency when on. 4mm
thick acrylic optical light guide coupled with high
efficacy LEDs, precisely control optimal direct
indirect light distributions between the direct
surfaces below and the ambient area above the
fixture, making the illusion of the light floating in
mid-air.
Applications
-Healthcare Facilities -Schools
-Offices -Lobbies
-Retail -More!
47
Back to topArchitectural Suspended LED Fixture
Specifications
-Input Voltage: 100-277V AC -Damp location rated
-Input Current: 0.43A -Driver Output: 30-42VDC, 0.88A
-CRI > 80 -Driver: Internal and replaceable
-Power Factor > 0.9 -Mounting Hardware included for Dry wall installation
-Dimming: 0-10V -Mounting Hardware available for Suspended Ceiling
-5 Year Warranty -Continuous run up to 36 feet on 120VAC
-THD < 20% -Continuous run up to 80 feet on 277VAC
-Life Span: 50, 000 hrs
Product: Architectural Suspended LED Fixture
EHC Part Number EHF-UPDN-40-277-D010
Replacement 100-175W
Wattage 40W
Lumens 4200lm
Efficacy 105lm/w
Color (CCT) 3500K, 4000K, 5000K (Tunable)
Size (L” x W” x H”) 47.24” x 7.87” x 0.94”
48
Back to topLED Strip Light
Energy Harness LED Strip Lights are a great
replacement to traditional strip light options.
Their long-lasting, energy efficient design ensures
great light for years to come. The low maintenace
and sleek design of these fixtures make them ideal
for tight spaces, and being CCT tunable allows you
to find the best light for your space.
Applications
-Utility
areas -Warehouses
-Stairwells -Workareas
-Storage spaces -General area lighting
49
Back to topLED Strip Light
Specifications
-Size (L x W x H): 48” x 3.5” x 2.5” -3000K/4000K/5000K tunable
-Durable plastic cover -Surface, junction box, or chain mounted
- IP20 rated -White aluminum housing
Emergency Backup
LED Strip Light Wattage Lumens Efficacy Voltage Option
EHF-STRIP4-DS-40-277 40W 4000 lm 100 lm/w 100-277V N/A
Emergency Backup
LED Strip Light W/ BBU Wattage Lumens Efficacy Voltage
Option
90 min emergency
EHF-STRIP4-DS-40-277-BBU 40W 4000 lm 100 lm/w 100-277V battery with test switch
and indicator light
50
Back to topLED Wrap Fixture
Energy Harness® LED Wrap Fixtures provide
clean bright light anywhere you need it. Using the
latest LED technology these fixtures will increase
the amount of light in your space and reduce your
energy cost due to their energy efficient design. All
this along with easy installation and a maintenance
free design makes them a great choice for any
space!
Applications
-Closets -Offices
-Storage rooms -Hallways
-Stairwells -More!
51
Back to topLED Wrap Fixture
Specifications
-0-10V dimmable -White Finish
-Power factor: > 0.9 -Easy installation
-CRI: 80
Product Replacement
LED Wrap Fixture 40W
EHC Part Number EHF-WRAP-4040K-277-D010
Replacement 60-75W
Wattage 40W
Lumens 5200lm
Efficacy 130lm/w
Size (L x W x H) 4’ x 10” x 3”
Color (CCT) 4000K
Voltage (AC) 120-277VAC
Fixture Color White
Back to top
52LED Vanity
Energy Harness® LED Vanity Fixtures
are ideal for decorative or accent lighting
but still provide a great amount of clean
bright light, all while using less energy
than traditional lighting. With easy
installation and a modern design, this
product is a great replacement to your
current wall mounted lighting. Start saving
on your energy cost by upgrading your
lights to LEDs today!
Applications
-Wall Sconces -Offices
-Restaurants -Restrooms
-Hallways -Lobbies
Back to top 53LED Vanity
Specifications
-CRI > 80 -Suitable for damp locations
-Superior thermal management -Triac dimmable
-Easy surface mount installation -ETL pending
LED Vanity Fixture 23W
EHC Part Number EHF-VAN-2340K-120-DTRIAC
Replacement 60-100W
Wattage 23W
Lumens 2300lm
Efficacy 100lm/w
Size (L” x W” x H”) 24.8” x 5.3” x 4.2”
Color (CCT) 4000K
Voltage (AC) 120VAC
Back to top 54LED Wall Sconce
Energy Harness® LED Wall Sconce
Fixtures have a slim, modern design that
allows them to be easily mounted over
an existing junction box. This luminaire
is ideal for decorative or accent lighting
but still provides a great amount of clean
bright light all while being more energy
efficient than traditional lighting. With
easy installation and their unique design,
this product is a great replacement for
your current wall mounted lighting. Start
saving on your energy cost by upgrading
your lights to LEDs today!
Applications
-Hotels -Hallways
-Restaurants -Conference rooms
-Offices -Restrooms
55
Back to topLED Wall Sconce
Specifications
-Power factor: > 0.9 -Junction Box installation
-CRI: 80 -Plastic lens
-TRIAC dimmable -Suitable for damp locations
-Aluminum trim -Rated Life 50,000 hrs
Product Replacements
LED Wall Sconce 15W
EHC Part Number EHF-WALLSCON-15xxK-120-DTRIAC
Replacement 50-75W
Wattage 15W
Lumens 1200lm
Efficacy 80lm/w
Size (W” x H”) 9.5”x10.6”
Color (CCT) 3000K, 4000K
Voltage (AC) 120VAC
Fixture Color White/Silver
56
Back to topHorizontal PL Bulb G24Q
Energy Harness® LED Horizontal PL bulbs are
ideal for a range of applications across the industrial,
public, and commercial field. A pure aluminum
housing provides excellent heat dissipation, leading
to a long life time and high quality bulb. With a
rotating base, this product is sure to provide light
right where you need it, as well as use less energy
than traditional lighting. Start saving on your energy
costs by upgrading to the Energy Harness® LED PL
bulb today!
Dimensions
A = 6”
B = 3.86”
C = 1”
D = 0.82”
E = 1.33”
F = 1.33”
Features
- Pure aluminum housing - UV resistant housing
- Excellent heat dissipation - Rotatable base
- High quality SMD2835 LED chips
Applications
- Wallpacks - Recessed Cans - Wall Scones
57Horizontal PL Bulb G24Q
Specifications
- CRI > 80 - Beam angle : 180°
- PF > 0.9 - THD < 20%
- CCT : 4000K | 5000K - IP20
- Wattage: 9W - Operating Temp: 25 - 45°C
- Efficacy : 105LM/W - Lifespan = 50,000 hrs
- Ballast Bypass - Voltage Input: 100-277VAC
Wiring
Photometric Diagram: 9W
58Horizontal PL Bulb G24Q
Ordering Guide
Example Model Number: EHB-PL-0940K-G24Q-277-FR
Product Series EHF-PL
Wattage 9 = 9W
CCT 40 = 4000K | 50 = 5000K
Base G24Q
Voltage 277 = 100-277VAC
Cover FR = Frosted
Model Number: : EHB-PL-09-__K-G24Q-277-FR
Project Name:
Date:
Specified By:
Back to top 59LED High Output PARs
Energy Harness® LED High Output PAR lamps are
designed to replace traditional HID bulbs in high bay
and high ceiling can applications. These bulbs are
easily installed using the existing lamp base. They are
environmentally friendly using no mercury or ballasts.
With excellent distribution and uniform illumination
these lights are sure to improve the quality of your
lighting. Enhance your lighting today while reducing
your energy cost!
Applications
-Auditoriums -Large common areas
-Warehouses -High soffits
-Airports -More!
Back to top
60LED High Output PARs
Specifications
-Ballast bypass -3 year warranty
-Beam angle: 60˚/120˚ -Weight < 3.5lbs
-Power factor > 0.9 -CRI > 80
-Lifespan > 50,000hrs -Working temperature: -25˚-140˚F
-100-277VAC
Product Replacements
LED HO PAR PAR52 PAR58 PAR52 DIMMABLE
EHC Part Number EHB-PAR52-5250K-E40-277 EHB-PAR58-8550K-E40-277 EHB-PAR52-5250K-E40-120-DTRIAC
Replacement 150-250W 250-400W 150-250W
Wattage 52W 85W 52W
Lumens 8700lm 11050lm 8700lm
Efficacy 167lm/w 130lm/w 167lm/w
Size (D x H) 6.50” x 7.65” 7.28” x 8.43” 6.50” x 8.78”
Color (CCT) 5000K 5000K 3000K, 5000K
Beam Angle 60˚ 60˚ 120˚
Voltage (AC) 100-277VAC 100-277VAC 90-120VAC
Back to top 61LED Circular High Bay Fixtures
Energy Harness® LED Circular High Bay fixtures are
great for replacing traditional metal-halide high bay
fixtures. With their compact modern design and use
of the latest integrated LED technology, these lights
are sure to upgrade the look, performance, and
energy efficiency of your existing lighting. They are
produced in a variety of sizes and wattages to meet
the needs of any high bay application.
EHF-HB-CIR-15050K-277-BL-HU
EHF-HB-CIR-20050K-277-BL-HU
Applications
-Storage facilities -Gymnasiums
-Maintenance facilities -Warehouses
-Factories -Fabrication shops
62
Back to topLED Circular High Bay Fixtures
Specifications
-50-60Hz -Lifespan > 54,000hrs
-Total Harmonic Distortion < 15% -IP65 Rating
-Power Factor > 0.93 -Working Temp: -22° -122°F
-1-10V Dimmable (upon request) -Meanwell power supply
-110˚-120˚ beam angle -Aluminum housing
-Black finish
Accessories
- Aluminum or acrylic bell - Motion sensor - Wire guard
Circular High Bay: 100W 150W 200W 300W
EHF-HB-CIR-10050K-277 EHF-HB-CIR-15050K-277 EHF-HB-CIR-20050K-277 EHF-HB-CIR-30050K-277
EHC Part Number -BL-HU
-BL-HU -BL-HU -BL-HU
Replacement 150-300W 250-400W 400-750W 750-1000W
Wattage 100W 150W 200W 300W
Lumens 13000lm 21000lm 28000lm 42000lm
Efficacy 130lm/w 140lm/w 140lm/w 140lm/w
Size (D”x H”) 13.00” x 8.11” 10.24” x 8.46” 10.24” x 9.06” 12.6” x 6.2”
Color (CCT) 5000K 5000K 5000K 5000K
Voltage (AC) Available in Available in Available in Available in
100-277V or 480VAC 100-277V or 480VAC 100-277V or 480VAC 100-277V or 480VAC
Circular High Bay: 277V 277V 277V 277V
DLC Product ID PURO68NW P0T571YZ PYXPKFPL POGMJV91
Circular High Bay: 480V 480V 480V 480V
DLC Product ID PF2MYZ1S PGD7JAFH P8W3OF2Q PDFTT9U7
Back to top 63LED Linear High Bay
Energy Harness® Linear High Bay LED lighting is designed
to replace traditional T5 and T8 tube high bay fixtures.
These high bays are easily installed via chain mounting or
pendant. The fixture design allows for excellent distribution
and uniform illumination resulting in improved quality of your
lighting. Give your fixtures a modern look while upgrading
your light output, all while reducing your energy cost.
Features
- Easy installation by chain, pendant, or surface mounting
- Suitable for Dry and Damp locations
- Easy wiring access from bottom of fixture
- (7) ½” knockouts for wiring and accessories
Applications
- Warehouses - Manufacturing
- Grocery Stores - Retail Stores
- Gymnasiums - Automechanics
64
Back to topLED Linear High Bay
Specifications
-IP20 Rated -Power Factor > 0.90 -THD < 20%
-Dimmable 0-10V -Lifespan > 50,000hrs -Beam Angle: 110°
-CRI > 80 -White Powder Coat Finish -Operating Temperature: -4°F - 122°F
Accessories
Chain Mounting: 2 pcs suspending Motion Sensor: PIR technology 20’-40’
chain | 2 pcs V hooks | wire nuts height (MS)
(standard mounting)
Pendant Mounting: metal plates & Surge Protection: inline device (field
hardware (does not include pendant Installed) | EHA-SURGE
or wire)
Surface Mounting: 2 pcs surface Wireless Controls: EHW product line
brackets
Dimensions
Wattage A B C D
110W 23.83 “ 9.60” 0.79” 1.97”
165W 23.83” 12.60” 0.79” 1.97”
225W 45.90” 12.60” 0.79” 1.97”
65
Back to topLED Linear High Bay
Photometrics
Unit; cd
C0 /180,101.0 Ic:5356
C90 /270,102.2 Ic:534
Lumen Packages
EHF-HB-LIN-11050K-347 EHF-HB-LIN-16550K-347 EHF-HB-LIN-22550K-347
Wattage | Lumens Wattage | Lumens Wattage | Lumens
110 14850 165 21450 225 27395
Back to top 66LED Linear High Bay
Ordering Guide
Example Model Number: EHF-HB-LIN1-11050K-347
Product Series EHF-HB-LIN
Wattage 1-110 = 110W | 2-165 = 165W | 5-225 = 225W
40K = 4000K 57K = 5700K
CCT 50K = 5000K (Standard)
Voltage 347 = 120-347VAC (Standard)
480 = 480 VAC
PM = Pendant Mount Left Blank = Chain Mount (Standard)
Mounting
SM = Surface Mount
Model Number: EHF- HB-LIN1- ____ ____K - ____ - 347
Project Name:
Date:
Specified By:
Back to top 67LED Linear T8 Tube Lights
Energy Harness® LED linear lighting is designed to
replace traditional fluorescent T8 and T12 lighting with
energy saving and long lasting LED technology. Keep
your fixtures and upgrade only your lights. These lights
do not use a ballast and are environmentally friendly (no
mercury). With energy savings between 50-65% and no
maintenance required throughout the lifespan of the bulb,
these LED lights are sure to pay for themselves!
Replacement
Applications
-Lobbies -Hospitals
-Warehouses -Offices
-Common areas -More!
68
Back to topLED Linear T8 Tube Lights
Specifications
-CRI > 80 -Ballast bypass
-Beam angle > 120˚ -Single ended power
-Power factor > 0.9 -Aluminum housing
-IP20 rated -Isolated internal driver
-100-277VAC 50/60hz -Working temp: 14° - 113°F
Accessories
23 mm non-shunted (2) Lamp 8ft to (4) lamp 4ft
lampholders Conversion Kit
T8 Base
Tube: 2’
E26 3’ A/C
Direct 4’
E26 4’ A/C
Direct
EHC Part Number EHLR24-T809-xxK EHLR36-T813-xxK EHL48-T816-xxK EHLR48-T816-xxK
Replacement 15-25W 20-30W 30-40W 30-40W
Wattage 9W 13W 16W 16W
Lumens 955lm 1360lm 1920lm 1920lm
Actual Length (in) 23.187” 35.158” 47.165” 47.165”
Color (CCT) 3000K, 4000K, 5000K 3000K, 4000K, 5000K 4000K, 5000K 3000K, 4000K, 5000K, 6500K
Efficacy 105lm/w 105lm/w 112.5lm/w 112.5lm/w
Plastic Cover Semi frosted Semi frosted Frosted Semi frosted
Base Rotating G13 Rotating G13 G13 Rotating G13
DLC Number N/A N/A PLFYOZK2W96I PLFYOZK2W96I
69
Back to topLED Linear T8 to T5 Tube Light
Energy Harness® LED linear lighting is designed
to replace traditional fluorescent T5 lighting with
energy saving and long lasting LED technology.
Keep your fixtures and upgrade only your
lights. These lights do not use a ballast and are
environmentally friendly (no mercury). With energy
savings between 50-65% and no maintenance
required through the lifespan of the bulb, these
LED lights are sure to pay for themselves!
Product Replacements
Applications
-Offices -Hospitals
-Schools -Lobbies
-Common areas -More
70
Back to topLED Linear T8 to T5 Tube Light
Specifications
-CRI > 80 -Rotating pins
-Beam angle > 140˚ -Working Temp: -40° -104°F
-Power Factor >0.95 -Aluminum/ Plastic Housing
Accessories
EHA-TOMB-T5-20mm
20mm shunted lampholders
LED T8 to T5 Tube: 15W 24W
EHC Part Number EHL45F-T8T515-50K-277 EHL45C-T8T524-50K-277
Replacement 25-40W 50-60W
Wattage 15W 24W
Lumens 1950lm 3160lm
Efficacy 130lm/w 132lm/w
Actual Length (mm) 1148mm 1148mm
Color (CCT) 5000K (4000K on req.) 5000K (4000K on req.)
Voltage 100-277VAC 100-277VAC
Cover Frosted plastic Clear plastic
Base Rotating G5 Rotating G5
Ballast Compatible No No
71
Back to topLED T8 U-bend Tube Lights
Energy Harness® LED T8 U-bend Tube lights are
designed to replace traditional fluorescent U-bend
lighting with energy saving and long lasting LED
technology. Keep your fixtures and upgrade only
your lights. These lights do not use a ballast
and are environmentally friendly (no mercury).
With energy savings between 50-65% and no
maintenance required throughout the lifespan
of the bulb, these LED lights are sure to pay for
themselves!
EHU06F-T818-40K EHU06F-T818-50K
Applications
-Offices -Restrooms
-Lobbies -Hallways
-Common areas -More!
72
Back to topLED T8 U-bend Tube Lights
Specifications
-CRI > 80 -Aluminum/plastic housing
-Total Harmonic Distortion < 15% -Lifespan > 50,000hrs
-Power Factor > 0.9 -G13 base (bi-pin)
-140˚ beam angle -Working Temp: -4° - 104°F
-Semi-frosted cover
Accessories
EHA-TOMB-23MMSS23mm
non-shunted straight slot lampholders
T8 U-bend
EHC Part Number EHU06F-T818-xxK
Replacement T12 U-bend fluorescent tube
Wattage 18W
Lumens 1800lm
Efficacy 100lm/w
Actual Length (mm) 600mm
Color (CCT) 4000K, 5000K
Voltage (AC) 100-277VAC
73
Back to topLED PLL Bulbs
Energy Harness® LED PLL style bulbs are
designed to replace compact fluorescent PLL style
bulbs. With half the energy usage of traditional
lighting and no ballast required, these lights are
sure to reduce your energy and maintenance costs
as well as increase your light output. They are
manufactured with plastic eliminating traditional
hazards of mercury and glass.
EHB-PL-2340K-2G11-277 EHB-PL-940K-2G11-277
Applications
-Soffits
-Wall sconces -Wall pack lights
-Walkways -More!
-Common areas
Back to top
74LED PLL Bulbs
Specifications
-CRI > 80 -Plastic Housing
- Beam angle: 360˚ -Non-dimmable
-Power Factor > 0.9 -Working Temp: -4° - 113° F
-IP20 rated -Ballast bypass
-Frosted cover -85-277VAC 50/60Hz
-Isolated internal driver
Product Replacement
PLL Bulb 23W 9W
EHC Part Number EHB-PL-2340K-2G11-277 EHB-PL-940K-2G11-277
Replacement 50-75W 20-40W
Wattage 23W 9W
Lumens 2460lm 1100lm
Efficacy 107lm/w 122lm/w
Base 2G11 2G11
Color (CCT) 4000K 4000K
Plastic Cover Semi-Frosted Frosted
Dimmable N/A N/A
Actual Length (in) 21.06” 8.86”
Back to top
75LED Integrated T8 Lights
Energy Harness® Integrated LED Lighting provides
a modern design that is a smart alternative to
fluorescent lighting. This unique design allows for
these products to be used as their own fixture or
mounted inside of existing fixtures. Integrated LED
tube lights are safer than fluorescent tubes as they
do not contain mercury or glass.
Applications
-Ceilings -Signs
-Shelves -Cabinet lighting
-Coolers -More!
76
Back to topLED Integrated T8 Lights
Specifications
-CRI > 80 -100-277VAC 50/60hz
-Beam angle > 120˚for single, 240˚ for V-type -Isolated internal driver
-Power Factor > 0.9 -Working Temp: -22°F - 140°F
-IP40 rated -Efficacy: 105lm +/- 5lm
-Aluminum Housing -Ballast bypass
-Semi-frosted PC cover -Isolated internal driver
Accessories
EHA-ONOFF-CABLE (6’)
Sold seperately
T8 Single : 2’ 3’ 4’ 5’ 6’
EHC Part Number EHI24-T809-xxK EHI36-T813-xxK EHI48-T822-xxK EHI60-T825-xxK EHI72-T828-xxK
Replacement 15-25W 20-30W 30-40W 50-75W 70-85W
Wattage 9W 13W 22W 25W 28W
Lumens 993lm 1403lm 2389lm 2315lm 2590lm
Actual Length (in) 22.91” 34.96” 46.93” 58.78” 69.09”
Color (CCT) 3000K, 4000K, 5000K 3000K, 4000K, 3000K, 4000K, 5000K 4000K, 5000K 4000K, 5000K
6500K
T8 V-Type
Base : 2’
E26 3’ A/C
Direct 4’
E26 5’ A/C
Direct 6’
EHC Part Number EHI24V-T815-xxK EHI36V-T816-xxK EHI48V-T822-xxK EHI60V-T825-xxK EHI72V-T828-xxK
Replacement 15-25W 20-30W 30-40W 50-75W 70-85W
Wattage 15W 16W 22W 25W 28W
Lumens 692lm 1195lm 1512lm 2019lm 2218W
Actual Length (in) 22.91” 34.96” 46.93” 58.78” 69.09”
Color (CCT) 5000K 5000K 5000K 5000K 5000K
Back to top 77LED Integrated T5 Lights
Energy Harness® Integrated LED Lighting provides
a modern design that is a smart alternative to
fluorescent lighting. This unique design allows for
these products to be used as their own fixture or
mounted inside of existing fixtures. Integrated LED
tube lights are safer than fluorescent tubes as they
do not contain mercury or glass. EHC Integrated
lights are maintenance-free because they do not
use ballasts. They are wired directly to A/C power
for improved reliability and can be easily daisy
chained together from a single power source.These
Integrated Tubes are available in T5 Singles and
Doubles, both in a variety of sizes and colors to
meet your needs.
EHI48D-T530-xxK EHI48-T515-xxK
Applications
-Ceilings -Cabinets lighting
-Shelves -Soffits
-Coolers -More!
78
Back to topLED Integrated T5 Lights
Specifications
-CRI > 80 -Aluminum housing
-Beam angle > 120˚ -Efficacy: 105lm +/- 5lm
-Power Factor > 0.9 -Working Temp: -22° - 140°F
-IP40 rated -Isolated internal driver
-100-277VAC 50/60hz
Accessories
EHA-ONOFF-CABLE (6’)
Sold seperately
T5 Single : 6” 2’ 3’ 4’ 5’ 6’
EHC Part Number EHI06-T503-xxK EHI24-T507-xxK EHI36-T512-xxK EHI48-T515-xxK EHI60-T520-xxK EHI72-T522-xxK
Replacement 10-20W 15-25W 25-35W 35-45W 50-75W 65-85W
Wattage 3W 7W 12W 15W 20W 22W
Lumens 296lm 692lm 1195lm 1512lm 2019lm 2218lm
Actual Length (in) 5.83” 21.85” 33.82” 45.47” 58.66” 70.43”
Color (CCT) 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K
T5 Double
Base : 2’
E26 3’ A/C
Direct 4’
E26 5’ A/C
Direct
EHC Part Number EHI24D-T515-xxK EHI36D-T525-xxK EHI48D-T530-xxK EHI60D-T540-xxK
Replacement 30-45W 45-60W 50-65W 60-75W
Wattage 15W 25W 30W 40W
Lumens 1510lm 2575lm 3031lm 3575lm
Actual Length (in) 22.28” 35.21” 45.91” 59.06”
Color (CCT) 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K
79
Back to topLED Emergency Battery Back-Up Options
Energy Harness® LED Battery Back-up
products provide emergency lighting options
for fixtures that utilize LED lighting. We offer
multiple styles of emergency battery back-up
options to fulfill a wide range of uses. Upgrade
your lighting and emergency fixtures to start
saving on your electrical and maintenance
costs today! Battery Back-up Options are
great additions to troffer fixtures, tube lights,
recessed can lights, and much more! Contact
us today to upgrade your emergency lighting
and start saving with the latest in LED lighting
technology.
Applications
-Troffer / panel fixtures -Recessed can lights
-Tube lights -Hallways
-General emergency lighting -More!
80
Back to topYou can also read
