Dynamic Air Cleaners The Next Generation of Air Filtration
Dynamic Air Cleaners
The Next Generation of Air Filtration
Dynamic Air Cleaners The Next Generation of Air Filtration

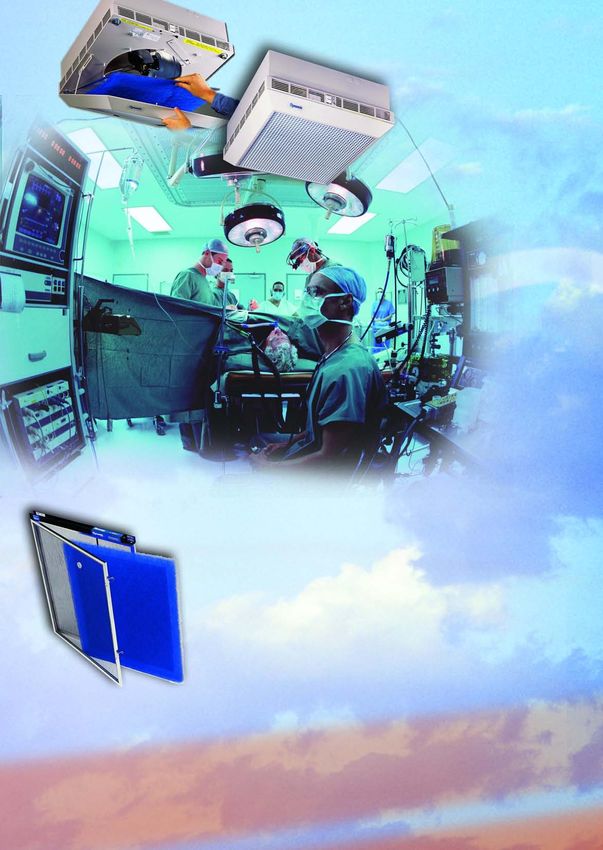

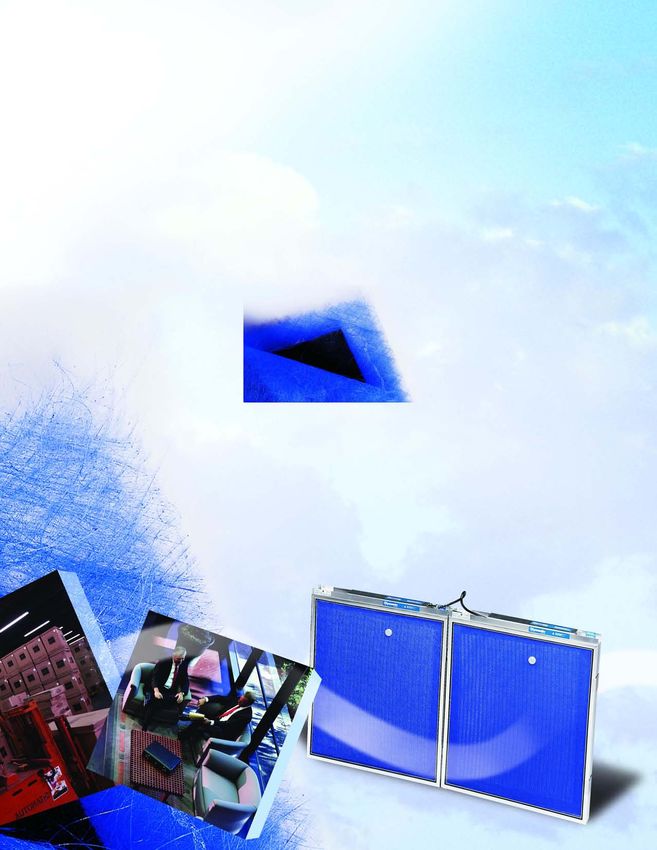

Configurations, Installation,                pad is put in its place. There are no parts
                and Maintenance                              to regularly clean.
                Dynamic Air Cleaners come in a number        Whether a home, hospital, or corporate
                of configurations to meet the                headquarters, the most valuable assets
                requirements of each installation. Our       in any building are the people inside.
                Panel Air Cleaners can slide into existing   Dynamic air-cleaning systems will
                1” and 2” filter tracks, our V-Banks can     protect the people and your other assets
                slide into bag and box filter headers, and   from the harmful effects of airborne
                our attractive overhead and console          contaminants.
                units can provide additional air cleaning
                where it is needed.
                In addition to being highly effective,
                Dynamic Air Cleaners are easy and
                inexpensive to maintain. The filter itself
                consumes pennies’ worth of power per
                month. When the filter pad is fully
                loaded, generally after four to six months
                of operation, it is removed and a new

RSP-SLB105-EN
Dynamic Air Cleaners The Next Generation of Air Filtration
Dynamic Air                                         Customer Satisfaction and
                                                    Clean Air
                                                                                                      quality in offices have yielded significant
                                                                                                      decreases in absenteeism.

Cleaners are the                                    Indoor air quality has a direct impact on
                                                    the comfort and well-being of the people
                                                                                                      Good air quality can benefit the bottom
                                                                                                      line in other ways as well. Cleaner coils,
next generation                                     in a building. The hospitality industry has
                                                    known this for years: customer
                                                                                                      lower system static, less housekeeping,
                                                                                                      and potentially less outdoor air can all
of air-cleaning                                     satisfaction is directly tied to the ability of
                                                    the establishment to control smoke and
                                                                                                      bring about substantial savings.
                                                                                                      Unfortunately, most HVAC systems are
technology—                                         odors. But pick up any newspaper and
                                                    you will see that molds, bacteria, volatile
                                                                                                      designed to heat and cool air, not to
                                                                                                      clean it. Also, system upgrades can be
                                                    organic compounds, particles, and other
providing                                           airborne contaminants are causing
                                                                                                      costly and difficult.
                                                    problems in offices, factories, schools,          Dynamic Air Cleaners
superior air                                        and hospitals. Furthermore, in two
                                                    recent studies, improvements in air
                                                                                                      That’s where Dynamic Air Cleaners come
                                                                                                      in. Dynamic Air Cleaners install into
quality for                                                                                           virtually any HVAC system. From 200 cfm
                                                                                                      PTACs to 200,000 cfm built-up units,
virtually any                                                                                         there is a Dynamic Air Cleaner to provide
                                                                                                      superior air quality and lower
application,                                                                                          operating costs.

improving
satisfaction and
health of
building
occupants.

© 2004 American Standard Inc. All rights reserved                                                                                   RSP-SLB105-EN
Dynamic Air Cleaners The Next Generation of Air Filtration
In casinos, industrial plants, and             of the filter pad, giving each fiber a          The one control measure that does this is
hospitals, Dynamic Air Cleaners have           negative and positive pole—just like a          the ability to agglomerate and capture
proven themselves worldwide in the             magnet. Particles entering the filter then      submicron particles. (A micron is a
most rigorous environments. But they           become polarized and are drawn to the           25,000th of an inch; a human hair is
are also able to bring air quality to          filter fibers, the same way that paper          about 150 microns.) Submicron particles
schools, offices, and hotel rooms.             clips are drawn to a magnet. Just as            are the vast majority of what is in the air
                                               paper clips on a magnet attract other           (by count, over 98 percent of the
How They Work—                                 paper clips, the dirt collected by the filter   particles), including contaminants such
Dynamic Air Cleaners’                          becomes part of the collecting surface,         as cigarette smoke, viruses, and dust
Patented Technology                            giving the filter increasing efficiency as it   damaging to lungs, and are linked to an
Dynamic Air Cleaners combine elements                                                          increasing number of health problems.
of both passive filters and electronic air                                                     Because of their mechanisms, Dynamic
cleaners. In our unique system, safe, low-                                                     Air Cleaners are able to capture more
                                                                                  Carbon
current DC power is continuously applied                                          center       than 98 percent of particles 0.3 microns
to the center screen (either aluminum or                                          screen       and greater in a recirculating system.
carbon mesh) within the disposable filter                                                      Furthermore, they are able to
pad. This creates an electrostatic field                                                       agglomerate and capture the smallest
between the center screen and the filter                                                       contaminants.
frame. This force field polarizes each fiber
                                                                                                Performance
                                                                                                Single-Pass Efficiency
                                               loads with contaminants. Furthermore,            Particles 0.3–0.5 microns: 33% to 75%
                                               the polarizing field causes the smallest         Particles 0.5–1.0 microns: 75% to 95%
                                               particles to form into larger groups that
                                               are more easily captured. This
                                               agglomeration, plus the carbon center            Multiple-Pass Efficiency
                                               screen, allows Dynamic Air Cleaners to           Particles 0.3–0.5 microns: 97%
                                               capture odors and gas-phase
                                               contaminants as well.                            Particles 0.5–1.0 microns: 98.6%

                                               How They Perform
                                               There are three basic problem categories         Pressure Drop @ 300 fpm
                                               in indoor air: particle, biological, and gas     0.15" wg, 0.37 Pa for standard filter pad
                                               phase. To fully impact air quality, an air
                                               cleaner must be able to address all three.       0.21" wg for carbon pad

RSP-SLB105-EN
Dynamic Air Cleaners The Next Generation of Air Filtration
Dynamic Air Cleaner
PARTICLE        CONTAMINANT                                                                                      CAPTURE
SIZE                                                                                                             EFFICIENCY

        crons
3—10 Mi         Pollen
                         , mo
                             ld ,
                                    du
                                      st m
                                             ites                                                                99.0%
                                                 , hairspray
1—3 Microns     Auto
                     e   mis
                            si o
                                ns
                                   , le
                                        ad                                                                       98.6%
                                            dust
.3—1 Microns    Smok                             , large bacteria
                       e (to
                fine d       bac
                       ust,      c
                            pai o, co
                               nt        o                          ,
                                   pig king), s mall bacteria                                                    97.0%
                                       me
                 VOCs                       nts
                        (o
                 from dors,
                      carp       o                                       e
                            ets ff gas                                yd
                                                                   eh s
                               , fu       e s                  a ld
                                   rnit       i                        t                                         40.0%
                                         ure ncludin g form oduc
                                             , and              r
                                                    cle aning p

                                                 PARTICLE             CONTAMINANT                                 Pleated Filter   CAPTURE
                                                 SIZE                                                                              EFFICIENCY

                                                      Microns         Pollen, mo                                                   98.0%
                                                 3—10                           ld, d
                                                                                     u   st m
                                                                                             ites
                                                                                                  , hai r
                                                                                                         spray
                                                            ns        Auto emi
                                                      Micro                   ssio                                                 Not Effective
                                                  1—3                             n   s, l
                                                                                           e   ad d
                                                                                                   u
                                                                                                 st, large acteria
                                                                                                          b
                                                           ron   s   Smoke (to
                                                     1 M ic                     bacc
                                                  .3—                fine dust,       o, c                                         Not Effective
                                                                                pain      o
                                                                                     t pi oking
                                                                                         gm        ),            ia,
                                                                                             ent sm all bacter
                                                                                                 s
                                                                     VOCs (odo
                                                                                rs
                                                                     from carp , off ga                                            Not Effective
                                                                               ets,        s
                                                                                    furn es inc                      yde
                                                                                         itur       lu          ldeh
                                                                                             e, a ding forma ucts
                                                                                                  nd cleaning prod

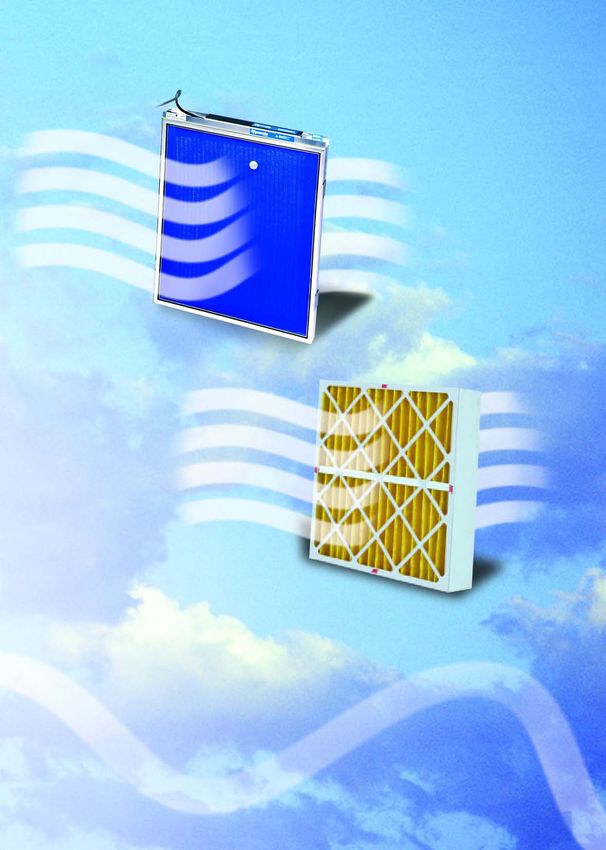

     How They Compare                                                 Cleaners can provide another level of air
     Traditional high-efficiency alternatives                         quality. Where high-efficiency passive
     are in two categories: passive filters and                       filters are an alternative, angled Dynamic
     electronic air cleaners. Passive filters rely                    Air Cleaners can supply equal or better
     on the density of the media for capture,                         air quality at a far lower cost.
     and the tradeoff for efficiency is pressure                      Electronic air cleaners rely on
     drop and cost. Filters in most buildings                         electrostatic attraction, using a high DC
     just keep visible dust (10 microns and                           voltage to charge (or ionize) particles and
     larger) from building up on the coil and                         then collecting them on oppositely-
     other equipment. In other words, they                            charged plates. When the plates are
     are there to clean the air for the                               clean, the electronic air cleaner can be
     equipment and not the people. Because                            very efficient. However, as the plates
     of space and static requirements, unless                         load, the efficiency declines significantly.
     an HVAC system was designed for high-                            Then the unit will generate charged
     efficiency passive filters, retrofitting them                    particles that, uncaught, will stick to
     can be difficult and costly. Also, passive                       grounded surfaces such as duct work,
     filters have little or no ability to influence                   coils, furnishings, and people. Electronic
     gas-phase contaminants. Where 1" and                             air cleaners also generate toxic ozone.
     2" passive filters are used, Dynamic Air

     RSP-SLB105-EN
Dynamic Air Cleaners The Next Generation of Air Filtration
RSP-SLB105-EN
January 2004
