INSTRUCTION MANUAL
DVR1909K

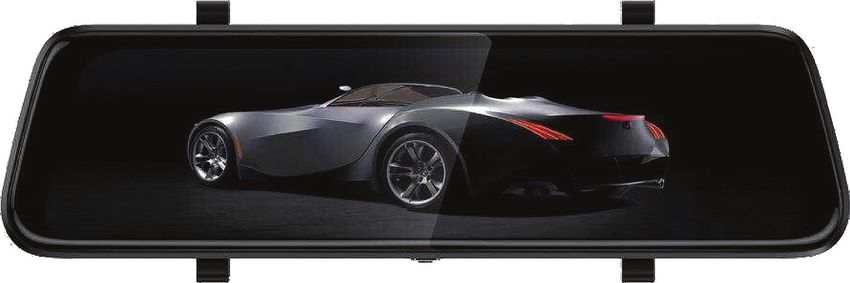

9.3” TOUCHSCREEN REARVIEW MIRROR KIT with DVR
SPECIFICATIONS
GENERAL FRONT CAMERA
- Vertical Viewing Angle Adjustable via Touchscreen - Full HD: 1920 x 1080P 30FPS
- Wide Dynamic Range - Swivel Adjustable
- Built-In Microphone / Speaker - 6 Layer Full Glass Lens
- Operating Temperature: 0°C to +40°C - 130° Diagonal View Angle
- Built-In Battery: 500mAh
REAR CAMERA
- Working Voltage: DC +5V
- HD: 1280 x 720P 25FPS
- Working Current: 2A Max
- 140° Diagonal View Angle
- Power: 10W Max
- Runs off Mirror Power
MONITOR - 12V Reverse Trigger

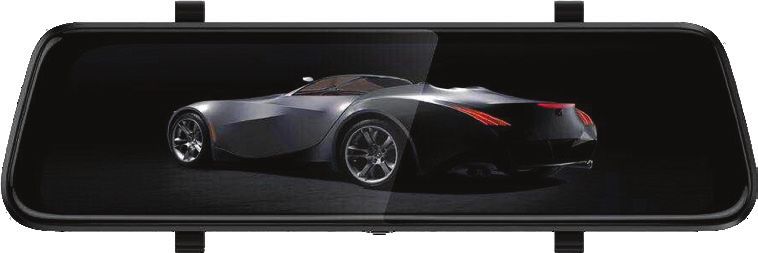

- 9.3” Touchscreen LCD Screen
- Highly Reflective Mirror Finish INCLUDES
- Anti-Glare Glass - 12/24V Cig Lead Car USB Charger
- Front or Rear View - Hard Wiring Kit
- Adjustable Rubber Straps - 8m Rear Camera to Mirror Extension Lead
- 12/24V via Cig Lead
- Dimensions: 72mm (H) x 25.5mm (D) x 257mm (W)
DVR
- G-Sensor
- Parking Monitor / Loop Recording
- Front 1080p Recording
- Rear 720p Recording via Rear Camera
- Supports up to 128GB SD Card Class 10 (not included)
2YEAR WARRANTY
Product
Product Structure
Structure
2

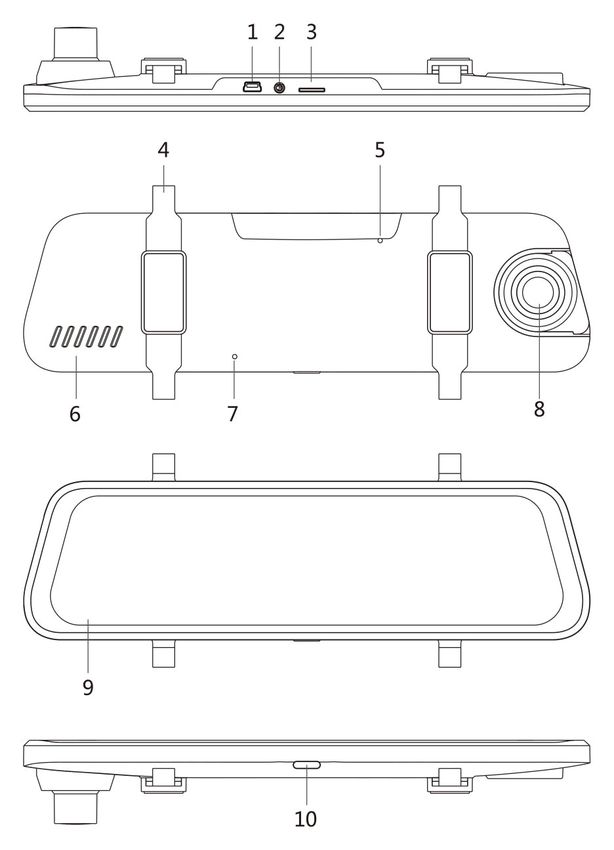

Buttons / Functions
1. Mini USB Data Interface
- Used to connect to a PC to transfer data;
- Connects to 5V output of cigarette charger or hardwire kit.
2. AV IN- Rear Camera Input
Connection for rear-view camera.
3. Micro SD Card Slot
Memory card slot. Use speed class 10 or higher.
Capacity should be between 4GB and 128GB.
MLC cards are highly recommended.
4. Back clip-on hook.
Used to mount onto existing rear-view mirror.
5. RESET
Press the reset button when the unit is frozen/not operating correctly.
6. Speaker
Playback audio from recorded videos.
7. Mic
Supports audio recording in DVR mode.
8. Front Camera lens
Front view DVR recording. Position is adjustable.
9. LCD screen
Image display.
10. Power button/Screen saver button
Short press: Screen saver.
11
Long press: On / Off.

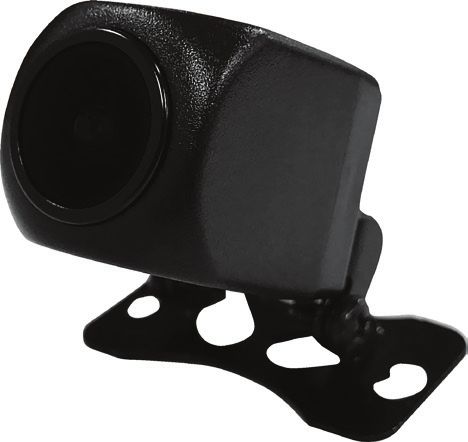

11. Rear Camera (Included)
Angle Adjustable Mount.
3
Main Menu Functions
Resolution:
Select Video recording resolution: 1296P*, 1080p or 720p.
A higher resolution results in clearer and sharper videos with larger file sizes.
* 1296P is only available when the rear camera is disconnected.
Loop Recording:
Can be set to record files in: 1 min, 3 min, 5 min size or set to close for no file
size. In the event of an accident, the recorded file will be saved.
Exposure:
Is used to adjust the brightness of the light in dark environments.
7 settings from -3 to +3 selectable. Option 0 is recommended.
Note: When the exposure is set too high, it will be difficult to read license plates.
Screen Saver:
LCD display time-out can be adjusted to:
Close (Off), 10sec, 15sec, 1min, 3min, 5min.
G-Sensor:
The G-shock sensitivity can be set to; Close (Off), Low, Medium or High.
When the unit senses impact due to a collusion, the recorded files will
be locked and not be deleted by loop recording. The camera will turn on
automatically and start recording when it feels a bump or crash.
It will stop after 18-20 seconds of recording.
Note: 1. If the G-sensor sensitivity set too high, the storage card will more
easily be filled and will not have available space to record.
2. The Parking Monitor function requires the G-sensor to operate, so do
not set to Close if using Parking Monitoring function.
Format:
Format the memory card (not included) before recording.
It is recommended to format the card once or twice per month depending on
the amount of use.
Note: Formatting the card will erase all recorded data/information.
Date & Time:
Setting time and date: Year, Month, Day, Hour, Minute.
Note: Once the battery runs out, the time and date set will revert to factory default,
requiring the date & time to be set again.
Default:
Use to restore the unit to factory settings.
4
Parking FPS:
In Parking Monitoring Mode the FPS (Frames per Second) can be set to:
Close (Off), 2 FPS, 5 FPS
Key Sound:
Sound selection: Close (Off) / ON
Language Selection:
Setting the required language
Parking Monitor:
Will automatically power on and record when the car is bumped.
Note: G-Sensor setting must be on. Requires sufficient power from internal battery or
from the vehicle’s battery if using the hard wiring harness.
Version:
Factory firmware version details.
Reversing Aid:
Guide-lines: Close (Off) / ON.
Special Functions / Features
Automatic ON/OFF
The camera can automatically starts recording when connected to the vehicle
power and stops recording with auto save after the car is stalled.
In the event of an accident, the recorded file will be saved.
Note: In low power state, the unit will be automatically shut down after it displays low
battery voltage warning.
WDR:
The WDR (Wide Dynamic Range) automatically adjust exposure and
enhances the brightness of the image in the low light or in dark environment
which optimizes night vision.
Photo Mode
Click the “Camera” on the main interface. A photo is taken after the click
sound.
File Management
Click the “file management” on the main interface to view the videos
recorded and the photos taken. Video and photo files can be operated (locked,
deleted, etc.).
5USB Mode (Not included connect cable)
Connect the USB cable to the computer, the car camera recorder will
automatically pop up the USB menu. There are three different modes to
choose as below:
1. Memory Mode
In this mode, you can access video files and photo files.
2. Camera Mode
Selecting this mode to pop up a USB video equipment for real-time photo
or video.
3. Camera Recording Mode (USB cable as a power supply in this mode)
In this mode, you can record the video & switch to photo mode to take
pictures.
Battery Charging instructions
There are three ways to charge the battery:
1. Charging via the cig. power adapter
2. Charging via PC-USB
3. Charging via the car power supply using the hard wiring kit
The charging indicator will light up in the battery symbol on the screens top
right corner when on.
6Troubleshooting Tips and Techniques
Cannot take pictures or record video:
Check the Micro SD card. It may have come to the end of its life cycle, may be
full or all recorded files may be locked. Format the MicroSD Card.
A “file error” notice appears when playing back your pictures and
videos:
Please “Format” the Micro SD card. Refer to the Main Menu of this unit.
Video quality is not clear:
Please check the resolution settings in the Main Menu.
Check if the clear film from the factory has been removed from the lens.
Check if the lens has any dirt or finger print and use a lens cloth to wipe clean.
The image is very dark or too bright:
Adjust the exposure setting in the Main Menu.
Will not respond:
Press the Reset button and the unit will reboot.
IMPORTANT NOTE:
Use only high endurance type Micro SD Cards made for Dash Cam or Video
Surveillance only! Not all Micro SD cards are made for continuous recording or
for in vehicle conditions.
7Product Specifications:
Product Specifications
Product Name Car Camera Recorder
Product Features HD Camera, HD Video Recording
Colour Customized
Display Screen HD Display
Lens 130º Diagonal A+ Level high resolution ultra-wide angle lens
Language English, Japanese, French, Italian, German, Spanish, Russian,
Chinese (Simplified), Chinese (Traditional), Korean
File Format MOV
Video Resolution Maximum 1080P (Front) 720P (Rear)
Video Format H.264
Loop Recording Seamless loop recording, no leakage seconds
AUTO ON/OFF Support
Time/Date Support
Camera Mode 5 MP
Photo Format JPEG
USB Function 1: USB-Disk 2: PC camera
Storage Card Micro SD (maximum support 128GB)
Parking Monitoring Support
Microphone Support
Built-in Sound Support
Video Format PAL / NTSC
Current Frequency 50Hz / 60Hz
Battery 500mA Built-in battery
Power Interface 5V/2A
8Wiring Diagram
9Notes
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
10Notes
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
11WARRANTY
Congratulations on your purchase of a quality axl§ Mobile Safety System! You're joining
thousands of satisfied customers who enjoy & experience the benefits of the products we
distribute. In the unlikely event that some technical difficulty arises with your purchase, be assured
that we are most anxious to see that the problem is quickly rectified to your
satisfaction. Please familiarise yourself with the following simple conditions of our warranty.
This warranty covers faults through component failure or failure of the product to operate in
accordance with published specifications. Product failure as a result of unreasonable
environmental conditions, accident, misuse, improper installation, unauthorised repair, vehicle
electrical or wiring faults or neglect etc, will not be covered by this warranty. Removal and
installation costs, if any, would be paid by the owner as well as any freight or postage costs of
transporting the product to AudioXtra. AudioXtra shall not be liable or responsible for any loss
of use of this product or any form of consequential loss.
CONSUMER WARRANTY
This product is warranted by AudioXtra Pty Ltd to be free from defects in materials and
workmanship under NORMAL USE for a period of TWENTY FOUR MONTHS
from the date of purchase.
WITHIN 30 DAYS OF PURCHASE DATE: Please return the unit for replacement to our
National Service Centre or the Retailer from where you made the purchase. All accessories
must be included. Proof of purchase date must accompany the products.
AFTER30 DAYS OF PURCHASE DATE: Warranty repair and service is carried out by our
National Service Centre. Repair and service will be carried out at no cost to the owner if proof
of ownership and the date of purchase can be verified to the satisfaction of the authorised
centre concerned with this repair. This proof should take the form of either:
a) The warranty card accompanying this product, stamped and dated by the dealer.
b) A Tax Invoice or Receipt showing full details of original vendor, purchaser, model
number and serial number.
COMMERCIAL WARRANTY: A product used in or associated with a commercial
application will carry a limited SIX MONTH warranty. An abnormal commercial application is
one where usage, dust, vibration, heat/cold and other environmental conditions exist at an
extreme level.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Please complete details below in the event of warranty service being required.
Purchaser's Name: __________
Purchaser's Address: ________________
DVR1909K
Model Number: ________ Serial Number: ___ _
_
Dealer Name:_ _ _ _ _ _ _ _ _Date of Purchase:
Dealer Address:
Invoice/Sales Docket no:
General Hints: To expedite service and prompt return of the equipment, please:
a) Clearly describe the fault in detail c) Include your return address
b) Safety and security pack the unit for transport d) Provide proof of purchase date as outlined above
audiall'tra�
National Service Centre:
10 STODDART ROAD, PROSPECT, SYDNEY NSW 2148Australia
Telephone: (02) 8841 9000 Fax: (02) 9636 1204
email: services@audioxtra.com.au
www.audioxtra.com.auYou can also read
