Part 4: Building Alterations and Extensions
Contents

General Advice                             PARA    Extensions                                               PARA

Planning Permission                        4.3
Building Control                           4.5     Rear Extensions—Closet Returns                            4.37
Building Repairs                           4.6     Rear Extensions—Returns                                   4.39
                                                   Infill, End and Wrap-around Extensions on Rear Returns    4.43
                                                   Full Width Rear Extensions                                4.48
Building Alterations                               Glazed Extensions                                         4.51
                                                   Front Extensions                                          4.52
Demolition                                 4.10    Side Extensions                                           4.54
Façade Retention                            4.11   Extensions – Detailed Advice                              4.58
Windows Replacement                        4.12
Balconies and External Staircases          4.20
New Balconies on Existing Buildings        4.21    Lambeth’s Roofscape
Balcony Alterations                        4.22
External Staircases                        4.23    London Roofs                                              4.65
External Materials                         4.24    Traditional Mansard Roofs                                 4.66
                                                   Mono-Pitched Roofs                                        4.67
                                                   Double-Pitched Roofs                                      4.68
Conversions                                        Hipped Roofs                                              4.69
                                                   Flat Roofs                                                4.70
House to Flats Conversions                 4.28    Chimneys and Other Roof Structures                        4.71
Shop and Pub Conversions                   4.29
Forecourt Treatment in Shop Conversions    4.32
New Residential Accommodation over Shops   4.33
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Roof Alterations                       PARA

New Roof Lights                        4.73
New Tube Lights                        4.76
Existing Dormers                       4.77
New Dormers                            4.78

Roof Extensions
General Advice                         4.87
Rear Mansard Extensions                4.89
L-Shaped Dormers                       4.91
Extensions to Hipped Roofs             4.92
New Masards on Traditional Buildings    4.94
Non-Standard Roof Additions            4.97
Living Roofs                           4.106
Sustainability                         4.107
Gardens                                4.121
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
This page is intentionally blank
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Design Code Part 4: Building Alterations and Extensions

                                                   General Advice
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
General Advice

      4.1 This guidance has been prepared in a positive manner in order to optimise            Building Control
      the opportunity for sustainable growth based on an understanding of Lambeth’s            4.5 Structural works and some other alterations such as window replacements
      character. The Council wishes to help residents and businesses stay in their             normally require separate Building Regulations approval or compliance with
      properties by accommodating their changing needs. Building conversions and               those regulations. Lambeth Building Control provides this service. E-mail
      extensions also offer significant opportunity for the provision of new homes,            buildingcontrol@lambeth.gov.uk.
      ensures effective use of urban land and makes good environmental sense.
      Carefully considered alterations and extensions have the potential to improve and        Building Repairs
      enhance the borough just as poorly considered proposals can potentially cause            4.6 Keeping properties in good repair can minimise the need for expensive
      harm.                                                                                    comprehensive repairs and refurbishment in future. Repair rather than replacement
                                                                                               is much more sustainable too. For information on repairs to traditional buildings
      4.2 The Lambeth Local Distinctiveness Study (2012) is a useful reference point for       see:
      anyone trying to understand the character and built form of the borough. The advice
      is general in nature which means can’t necessarily be applied to all situations.         1. www.maintainyourbuilding.org.uk
      However, every effort has been made to address a range of common issues and
      circumstances in Lambeth including alterations to buildings on the local heritage list   2. Stitch in Time: Maintaining Your Property Makes Good Sense and Saves
      (non-designated heritage assets) and buildings within conservation areas. Some of           Money available from:
      it may be relevant to statutory listed buildings too.                                       www.ihbc.org.uk/publications/stitch/stitch.html

      Planning Permission                                                                      3. The Society for the Preservation of Ancient Buildings provides advice online:
      4.3 In very general terms, planning permission is required for most external                http://www.spab.org.uk/advice/conservation-advice/
      alterations to flats and commercial premises, irrespective of whether they are
      purpose built or conversions. Planning permission is also required for some              4. Historic England’s Practical Building Conservation publications are particularly
      changes and extensions to single family dwelling houses. The Government’s                   good documents for those considering repairs and alterations to heritage
      planning website is the best place to find definitive advice on planning controls -         assets and traditional buildings (especially those in conservation areas).
      www.planningportal.gov.uk.                                                                  https://historicengland.org.uk/advice/

      4.4 For those considering alteration or extension works that do not require planning
      permission, it is recommended that a Certificate of Lawful Development is sought
      from the Council, as this provides official confirmation that planning permission is
      not required.

Q11

      Draft Design Code SPD Part 4: General Advice
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Design Code Part 4: Building Alterations and Extensions

                                                 Building Alterations
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Building Alterations

      4.7 Policy Q5 seeks to sustain and reinforce Local Distinctiveness, Policy Q8
      seeks to maintain high standards of design / construction quality and Policy Q11 (a)
      seeks alterations to be designed in a way that positively responds to the character
      of the host building, respecting locally distinct forms and detailing. The Council’s
      Lambeth Local Distinctiveness Study (2012) and other relevant documents (such
      as conservation area character appraisals) should be consulted where relevant.

      4.8 Lambeth’s building stock dates largely from the 19th and 20th centuries. The
      vast majority of buildings in Lambeth have been carefully designed, many as part of
      a group, street, housing estate or unified development. Great care was often taken
      by the original designer to ensure that the building looks good and performs well.
      Attractive and well-designed buildings are an asset for everyone in Lambeth and
      they contribute to local distinctiveness.

      4.9 Unsympathetic alterations (poor design or inappropriate materials) harm the
      appearance of buildings and the visually amenity of our neighbourhoods. To avoid
      harm designers should:
                                                                                                 Before reinstatement   After reinstatement
                 1.    Take care to ensure that all alterations positively respond to the host
                       building,
                 2.    Retain and respect important features.
                 3.    Reinstate lost external detailing (such as cornices and glazing types)
                       where such opportunities present themselves.

Q5

Q11                                                                                              Before reinstatement   After reinstatement

      Draft Design Code SPD Part 4: Building Alterations
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Demolition
      4.10 Partial demolition (such as the removal of chimneys, turrets or parapets)
      should be avoided where it would have an adverse impact on the design integrity
      of buildings. Demolition in conservation areas requires particular care because of
      the architectural and historic interest of the buildings and the statutory obligation to
      preserve their character. Relevant demolition (substantial or complete) of buildings
      and boundaries within a conservation area often requires planning permission.
      Designers should:

                1.   Ensure that design and access/ heritage statements are explicit in
                     the amount of demolition proposed
                2.   Show clearly on demolition plans the extent of demolition proposed
                3.   Remember that façade retention is not considered acceptable in
                     conservation areas under Policy Q22.
                4.   Note that substantial or complete demolition of local heritage assets
                     which harms their significance will be resisted under Policy Q23.

      Facade Retention
      4.11 The retention of a building façade and the erection of a new building behind
      may be desirable in instances where a façade makes a particular contribution to
      its locality. Where a façade retention is acceptable in principle designers should
      ensure the façade is retained in a meaningful way, one which is respectful of the
      architectural integrity of the retained elements (including fenestration) and fully
      integrated within the over-all design.

                                                                                                 The loss of historic glazing in this façade retention has harmed the integrity of the retained façade.

Q22

Q23

                                                                                                                                                                            Draft Design Code SPD Part 4: Building Alterations
Draft Lambeth DESIGN CODE SPD Part 4: Buildings Alterations and Extensions - Lambeth Council
Window Replacement                                                                       cross sections) of the original and proposed windows, for ease of comparison. The
4.12 To comply with the building regulations replacement windows should be               cross sections should show how the window unit sits within the window reveal and
double glazed, although there are exemptions for statutory listed buildings and          relates to the existing cill.
historic buildings in conservation areas to preserve historic windows.
                                                                                         4.16 Section drawings for sash windows should include top rail (including sash
4.13 Where the building is part of a terrace or group which shares common window         box), glazing bar, meeting rail (of both sashes), bottom rail and cill (including sash
detailing it is especially important that the new windows match the originals that       box). See illustration below.
they replace. Similarly, the windows of individual flats are often identical to those
within the whole building to give unity of design. In order to protect the character
of the building designers should ensure replacement windows should replicate
the appearance, detailing and opening type of the originals. This is particularly
important on non-designated heritage assets and buildings in conservation areas.
If replacement windows for or buildings in conservation areas do not accurately
reproduce the originals, permission is likely to be refused and retention of the
originals sought.
                                                                                                      A
                                                                                                                                                A = top rail and sash
4.14 As a general rule replacement windows should:                                                     B
           1.    Fit neatly into existing openings, recessed into the established
                                                                                                                                                B = glazing bar
                 reveal depth.
                                                                                                       C                                        C = meeting rail
           2.    Follow the original style of opening - such as sliding sash or hinged
                 casement.
                                                                                                                                                D = bottom rail and
           3.    Replicate frame dimensions and detailing as closely as possible.
                 ‘Stick on’ or non-integral glazing bars should be avoided—they are
                 a poor substitute for authentic glazing bars and can loosen and                       E                                        E = jamb (side rail)
                 fall off. Glazing should generally have a treatment externally which
                 accurately reproduces a traditional putty finish.
                                                                                                        D
           4.    Have unobtrusive, security rated locks and fittings.
           5.    Avoid visually obtrusive trickle-vents on heritage assets and
                 buildings in conservation areas.
                                                                                          Figure 1 : A sash window with sections marked
           6.    Be of the same material as the original windows on heritage assets
                 and in conservation areas.

4.15 Planning applications for replacement windows should contain clear
elevations with each window proposed for replacement identified and numbered
and detailed drawings (1:20 scale elevations and larger scale 1:5 or 1:2 detailed

Draft Design Code SPD Part 4: Building Alterations
This information should also be provided in table form for each window:

4.17 This advice focuses on sash windows because they are Lambeth’s most
common type. Applicants should adjust table to suit their particular circumstance;
for example in relation to shop fronts or traditional side-hung casement windows.

4.19 A failure to include adequate information can result in an application being
considered invalid; a refusal of permission on the basis of insufficient information;
or delays, while additional information is sought.

                                                                                                      WINDOW 1                 EXISTING                  PROPOSED
                                                                                                                                IN MM                      IN MM
    A
                                                                                        A   Top rail and sash box combined

    B                                                                      E            B   Glazing Bar

    C                                                                                   C   Meeting rail

                                                                                        D   Bottom rail and cill combined

                                                                                        E   Jamb (side rail)
    D

Figure 2 : Sash window section drawing

                                                                                                                             Draft Design Code SPD Part 4: Building Alterations
Balconies and External Staircases
4.20 Balconies are not characteristic features of Lambeth’s pre– Second World
War building stock. When it comes to existing buildings, the addition of projecting
balconies to facades has the potential to significantly alter the architectural
composition and appearance of the host building or its group; as a general design
rule new balconies should be limited to rear elevations.

New Balconies on Existing Buildings
4.21 Where new balconies are considered acceptable on amenity grounds the
Council will expect the design (including doors and balustrades) to be appropriate
for the character of the host building; which may mean a traditional approach on
traditional buildings.

Balcony Alterations
4.22 Many purpose-built block of flats in Lambeth, and some commercial buildings,
were designed with balconies. When considering alterations designers should note
the advice in para 3.52 and also:
           1.    Retain and respect important features.
           2.    Not remove balconies where they are an integral part of the building
                 design. Note that the enclosure of existing balconies (such as
                 bricking up or glazing in) will generally be resisted unless the whole
                 block is receiving the same treatment and the design integrity of the
                 host building is not compromised by the change.

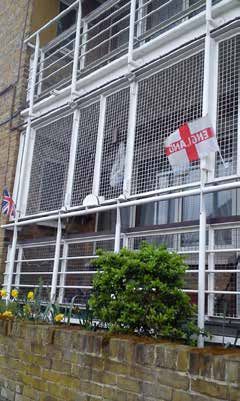

           3.    Avoid the installation of security cage enclosures. Other security
                 means should be deployed.                                                Unsympathetic design   Caged balconies are unacceptable

           4.    Not propose sheds or other similar structures on balconies where
                 they would harm visual amenity.

Draft Design Code SPD Part 4: Building Alterations
External Staircases
4.23 Direct access from upper floor accommodation to the rear gardens is often
desirable but resulting overlooking can have an adverse impact on the amenity of
neighbouring property. Designers should:

         1.   Ensure external staircases are of an appropriate form, design and
              scale for the host building.
         2.   Avoid excessive rearward projection (this includes any access
              balcony
         3.   Avoid unacceptable overlooking into neighbouring properties.
         4.   Ensure the design does not aid unlawful access into adjoining
              property.
         5.   Where possible, come to an agreement with neighbours on any
              proposed party wall screening prior to the submission of any
              application.

                                                                                   Draft Design Code SPD Part 4: Building Alterations
External Materials

4.24 Care should be taken with all building alterations to ensure that the external
materials are appropriate. Generally a close match will be required to integrate the
new works and ensure a seamless finish.

4.25 Brick is Lambeth’s most common building material. It unifies whole streets
and neighbourhoods. Its appearance does not degrade with age and it is largely
maintenance free. It is a key part of Lambeth’s local distinctiveness. When
considering alterations to brickwork designers should:

           1.    When re-pointing ensure mortar mixes are appropriate for the
                 brick type. Otherwise there is risk of brickwork damage. A slightly
                 recessed pointing finish is generally the most appropriate.
           2.    Take a cautious approach to brick cleaning. Some methods are
                 harmful and all cleaning dramatically changes the appearance of the
                 property – often to the detriment of groups and terraces.
           3.    Avoid the painting of unpainted brickwork. It noticeably changes
                 the appearance of the building. Regular redecoration places an
                 unnecessary maintenance burden on the building owner.
           4.    Consider paint removal where brick surfaces have been
                 inappropriately painted.
           5.    Avoid the rendering or cladding (stone, tile, timber etc.) of buildings,
                 the covering up original features. For guidance on insulating render
                 please see para 5.112.
                                                                                            Clean brick looks jarring

Draft Design Code SPD Part 4: Building Alterations
Design Code Part 4: Building Alterations and Extensions

                                                 Conversions
Conversions

4.26 Conversions are one way to deliver housing growth. Whilst extensions can              such shop fronts while ensuring the provision of high quality conversions.
help, the success of conversion will be dependent on the suitability of the host
building and the quantum / type of development being sought. Some buildings                4.30 The framing elements (pilasters, fascia, historic signage and cornice) may
lend themselves better to conversion than others and in many cases complete                warrant retention of the shop is an integral part of the building design. In cases
re-development will be preferable in order to ensure that development potential is         where the property was originally residential and the shop front/shop unit is of
optimised and that the quality of accommodation is the best possible.                      no interest consideration should be given to returning the building to its original
                                                                                           appearance.
4.27 Aside from the important aesthetic impact of alterations, conversions bring
with them particular issues that need careful attention in relation to amenity and         4.31 The conversion of shops to residential units needs careful consideration.
quality of life, especially in relation to residential amenity space, outlook, daylight    Conversions undertaken in the past often have a poor appearance which harms
and sunlight, and refuse storage and cycle storage. The mix of uses and the                the host building and the wider locality; the interior accommodation provided is
suitability of the site for servicing and access all require careful consideration. For    also of poor quality. Poor examples should not be used to justify the design of new
more information see Part 2.                                                               schemes. The design of the infill needs careful consideration and proportions of
                                                                                           new openings need to respond well to the host building. Where the facade fronts
House to Flats Conversions                                                                 the pavement outward opening windows will be resisted as they present a risk to
4.28 The conversion of a single dwellinghouse into flats is a relatively                   pedestrians. Sliding sash windows should be used in these instances.
straightforward means of providing additional residential accommodation. In such
conversions designers should:                                                              Forecourt Treatment in Shop Conversions
                                                                                           4.32 Where ground floor premises with forecourts are being converted to
           • Maintain the appearance of the house as a single family dwelling by not       residential use designers should enclose the forecourt and have it soft landscaped
             adding additional entrance doors or altering the general appearance.          to provide defensible visual amenity space for the new residents.

           • Not relay on small front gardens as private amenity space as they are         New Residential Accommodation Over Non - Residential Premises
             unsuitable.                                                                   4.33 The re-use of vacant accommodation over shops is supported in principle.
                                                                                           However, the conversions of upper floor premises should not compromise the
           • Pay particular regard to fire proofing and sound proofing to ensure the       future use of the commercial use below. For example, in the case of public houses,
             best possible outcomes for residents.                                         sufficient external space needs to be provided for effective servicing, refuse storage
                                                                                           etc. of the public house premises.
           • Provide access for all residents to a communal garden at the rear.
                                                                                           4.34 Part conversion (for example the conversion of the shop’s rear storage
           • Consider the future needs of users particuarly for the aging population       area to residential use) need to meet all necessary standards and should not
             by ensuring flexibilty and adaptability of internal layouts.                  compromise the long term viability of the unit.

Shop and Pub Conversions
4.29 Policy Q16 seeks the retention of shop fronts (including pub fronts, bank
fronts, etc.) of architectural or historic interest. This is particularly important with
heritage assets and in conservation areas where the shop fronts can contribute
to the special interest. Design ingenuity should allow for the sensitive retention of

Draft Design Code SPD Part 4: Conversions
Poor Conversion          Successful Conversion

 Successful Conversion   Successful Conversion

                                                 Draft Design Code SPD Part 4: Conversions
This page is intentionally blank
Design Code Part 5: Building Alterations and Extensions

                                                   Extensions
Introduction

4.35 Extensions offer the opportunity to optimise accommodation. Residential
dwellings houses have permitted development rights that allow some types of
extension to be undertaken without planning permission, this is called Permitted
Development (PD). Detailed information about PD rights can be found on the
government’s Planning Portal.
https://www.planningportal.co.uk/info/200187/your_responsibilities/37/planning_
permission/2

4.36 Property owners with permitted development rights may still find the advice
in this section useful in terms of informing the general design approach. In some
instances, such as rear mansards the council endorsed approach presents a
practical, more attractive solution than offered by the PD right. Therefore property
owners might benefit from making a planning application for the council endorsed
approach instead of using PD rights.

Rear Extensions - Closet Returns
4.37 Many early/mid-19th century buildings originally had flat rear elevations.
Where these survive unaltered on heritage assets or buildings in conservation
areas they are generally considered worthy of preservation. Many other early/
mid-19th century properties have historic ‘closet additions’ on their rear elevation
- these often date from the 19th century and are associated with ‘standard’ plan
properties with rear staircases. The closet addition comes off the stairwell at half-
landing level (the half landing window becomes a doorway) and is generally about
the same width off the stairwell itself. Closet returns are generally no deeper than     Good closet return   Poor closet return
they are wide; and because they are at half landing level their roofs terminate a half
storey below the main roof. Their combined mass and height generally make them
subordinate to their host building. Because they contribute to local distinctiveness
the demolition of closet returns will generally be resisted especially where they form
part of a group or similar properties.

4.38 Where new closet returns are considered acceptable (amenity and outlook
will be key considerations) Policy Q11 (c) requires that they follow the established
local pattern. Additional floors to existing closet returns may be acceptable if there
is no harm to amenity and if they terminate half a storey below eaves. On heritage
assets and conservation area buildings the acceptability of extending closet returns
upward will be judged on a case-by-case basis based on the asset and its context
(group value etc.).
Draft Design Code SPD Part 4: Extensions
Figure 3: closet return extensions

                                     Draft Design Code SPD Part 4: Extensions
Rear Externsions - Returns

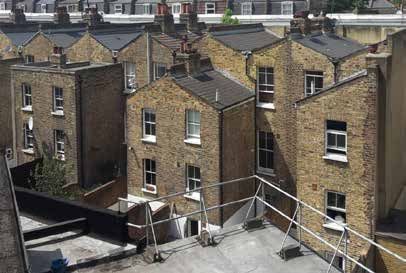

4.39 Rear returns are common on buildings in Lambeth from the mid-19th century.
They were seen as preferable to semi-basement accommodation which until then
had been common. As a result, it is unusual for properties with purpose-built semi-
basements to also have rear returns; they tend to have closet returns instead. The
return is typically linear in form and projects at right angles from the rear elevation.
They vary greatly depending on the age and scale of the property, from modest
single storey structures to those with the same eaves height as their host building.
Generally they achieve subordination through a combination of the width, rearward
projection and lower roof ridge height. Rear returns are never full width therefore
allowing for windows and doors on the rear elevation of the host building. However,
the amount of space retained down the side of the return can vary greatly.

4.40 The demolition of rear returns will generally be resisted where the property
is part of a group which exhibits uniform patterns. This is particularly the case
on heritage assets and in conservation areas. Policy Q11 (d) supports new rear
returns where they are characteristic of the building type and locality; subordination
is key. Policy Q2 (Amenity) will be a key consideration when considering new
returns - especially the impact on the outlook and daylight / sunlight of neighbours.      Traditional rear returns
See Figure 4.

4.41 The upward extension of single storey rear returns may be possible if no
harm to amenity results (Q2) and it meets the requirements of Policy Q11 (a) (i)
and (b). Generally the best approach is to just replicate the details of the return
itself – extruding the walls upward and following the same roof form. Party walls
should be built up in matching (usually yellow stock) brick with a parapet treatment
and remain blank. Above eaves level of the host building the general approach to
upward extensions should be to treat them as subordinate roof forms rather than                                                             No visual amenity
brick structures. See section on roof extensions in para. XX The upwards extension
of rear returns may not be acceptable if the result is not subordinate or on heritage
assets and buildings in conservation areas if they harm amenity or where the
uniformity of existing rear elevations contribute to local distinctiveness.

4.42 The enlargement of a rear return to make it full-width will generally be
resisted. The elongation of rear returns may be possible if care us taken to match
roof forms and materials. Again, amenity impacts will be a key consideration.
Elongation is unlikely to be acceptable in circumstances where the uniformity of a
group is important.

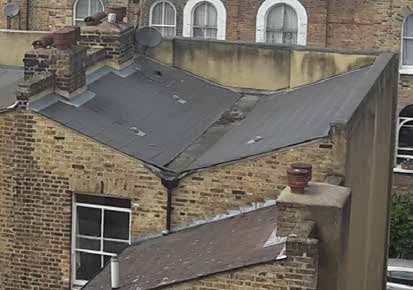

                                                                                           Rear return roofscape can contribute to local distinctivenes

Draft Design Code SPD Part 4: Extensions
Infill, End and Wrap-Around Extensions on Rear Returns

4.43 Single storey infill extensions (infilling the side space), single storey end           Wrap-Around Extensions
extensions (on the end of the return) and wrap-around extensions (combined infill            4.45 Wrap-around extensions (an L shaped extension comprising an infill
and end) are potentially acceptable, so long as subordination can be achieved and            which continues to enclose the end of the rear return) generally result in a full
there is no harm to amenity. Generally party walls of such extensions should be              width glazed elevation to the rear garden. Whilst this is acceptable in most
built in brick with parapets so that no gutters over-hang neighbouring properties.           circumstances it will be resisted on heritage assets and buildings in conservation
                                                                                             areas as the horizontal emphasis and dominance of glazing is not considered
                                                                                             a sympathetic response. Wrap around infill extensions on properties with closet
Infill Extensions                                                                            returns is problematic due to the closet’s differing internal floor level. For that
4.44 Policy Q11 (e) states that infills should be single storey. The extent of               reason they will generally be resisted.
rearward projection beyond the gable end of the return is not specified in policy.
However, subordination will still be required and issues of amenity, prevailing              4.46 The Figure 5 shows options for properties that are not heritage assets or
character and retention of sufficient garden space will be important considerations.         buildings in conservation areas. Property no. 1, shows a typical infill extension.
Side spaces are quite narrow and amenity issues (especially daylight and outlook)            Property no. 5, shows a typical wrap-around extension. The downside of this
in relation to adjoining properties will always be an important consideration. To be         approach is the long flank wall which presents to the adjoining property. The
visually lightweight infills should be mostly glazed, this give the original return visual   longer the wrap-around the greater the flank and therefore the greater the impact
primacy. Infill extensions on properties with semi-basements and closet returns              on neighbours. One solution is shown in property no. 3. This example leaves a
are difficult to achieve, because of the differing floor levels. The single storey           small courtyard space adjoining the rear wall of the host building— allowing good
requirement of Policy Q11 (e) limits infills to basement level in these instances.           daylight and ventilation to the rear room of the property. This approach is beneficial
                                                                                             to adjoining amenity too, as it removes built mass from the flank.
                                                                                             4.47 Figure 6 sets out appropriate extension types for non-designated heritage
                                                                                             assets and buildings in conservation areas. All the extensions stop short of existing
                                                                                             corners, to better emphasise their subordination; this need only be a single brick
                                                                                             - just enough to retain the corner. Properties no. 1 and 3 have glazed infills (which
                                                                                             is the preferred approach for non-designated heritage assets and buildings in
                                                                                             conservation areas) and properties nos. 4 and 5 have end extensions. Although not
                                                                                             shown, an infill and end extension may be acceptable in some instances so long as
                                                                                             they are both set back from the corner of the original return. Varied roof forms are
                                                                                             shown for illustrative purposes only. In reality, roof profiles within terraced groups
                                                                                             will be expected to follow a uniform pattern. The party wall to the adjoining property
                                                                                             should be as low as possible. Gutters and fascias on party walls should be avoided
                                                                                             in favour of parapet gutters.

Figure 4: Two Storey Extension
                                                                                                                                               Draft Design Code SPD Part 4: Extensions
Figure 5: Indicative infill, end and wrap-around extensions for non-heritage assets. The prevailing characteristics of the
adjoining properties, especially the rear building line and size of the rear garden, along with amenity and outlook of neighbours
will be a material consideration when assessing the acceptability of the rearward projection.

Draft Design Code SPD Part 4: Extensions
Figure 6: Acceptable infill extensions for heritage assets such as locally listed buildings and buildings in conservation areas.

                                                                                                                                   Draft Design Code SPD Part 4: Extensions
Full Width Rear Extensions

4.48 A positive response to the host building is required under Policy Q 11 (a)
and subordination is required in Policy Q11 (b). Policy Q2 will also be a key
consideration in relation to adjoining neighbours. Whilst a simple, full-width box
across the rear of a residential property with a glazed elevation to the garden
may be the most desirable extension further refinement to terms of the form and
treatment will be required where the host building has a stepped rear elevation,
especially to non-designated heritage assets and buildings in conservation areas in
order to lessen the boxy horizontal effect of the built form and dominant character
of the full-width glazing. Figure 6 shows how stepping the façade and introducing
brick piers between the glazing can address this. Whilst ‘contemporary’ forms
contrasting are often desirable they may not be appropriate in every instance.
Especially on non-designated heritage assets or on buildings in conservation areas.
Full-width extensions are unlikely to acceptable on statutory listed buildings.

4.49 For rear extensions on commercial premises consideration needs to be
given to ensuring adequate space for servicing, refuse storage etc. Particular care
needs to be taken with plant and other equipment and its impact on the amenity of
adjoining residents. It some cases it may be preferable to extend parapet walls to
screen ducts and low plant on flat roofs.

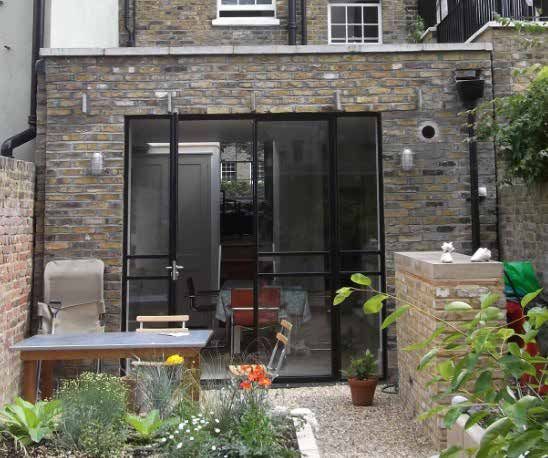

                                                                                         A full width extension on a modest terraced property
4.50 Policy Q11 (f) states that full-width two-storey extensions will be resisted if
they fail to meet the design requirements in policy Q11 (a) (i) and (b). It should be
noted that this policy will be applied to any full width extension of two storeys or
above. Design integration with the host building (especially its roof) and the amenity
of adjoining properties will be key considerations. Whilst flat roofs may reduce bulk
they often fail to integrate the extension with the host building.

Draft Design Code SPD Part 4: Extensions
Figure 7: Stepped full width extension

                                         Draft Design Code SPD Part 4: Extensions
Glazed Extensions                                                                       Side Extensions

4.51 Fully glazed extensions are uncharacteristic above ground floor level and          4.54 The space between buildings can be attractive characteristic of the
this built form at higher level often presents issues of overlooking / perceived        street scene providing relief from continuous frontages in urban areas where
overlooking and light spill, which can adversely affect the amenity of neighbours.      development is dense and giving suburbs their key spatial characteristics. Side
For that reason glazed extensions will normally be limited to single storey height      spaces allow for views between buildings and therefore prevent overbearing
and limited to ground or semi-basement level at the rear of the buildings.              enclosure along the street frontage. Side spaces also have value as visual amenity
                                                                                        and domestic storage areas and allow residents direct access to rear gardens
                                                                                        without the need to pass through the property.

                                                                                        4.55 Within conservation areas the spaces around and between buildings is
Front Extensions                                                                        generally considered to be an important positive contributor to the special interest.
                                                                                        For this reason the loss of contributory side spaces may be resisted.

4.52 Policy Q11 (g) states that such extensions will not usually be appropriate if      4.56 Policy Q11 (h) seeks, as a general rule, to retain sufficient side space above
there would be an adverse impact on the host building or the building line. The         ground floor level. It identifies that the minimum retained space should be 1m
existing contribution to the locally distinct forms, including any prevailing design    between the extension and the property boundary. There may be instances where
uniformity on the street, will be key considerations; especially on non-designated      much more than 1m will be required; especially in areas where side space is
heritage assets and buildings in conservation areas. Where considered appropriate       important to local character. Policy Q2 seeks to protect amenity. The residential
they should be of a height, design and footprint that is proportionate to the size of   amenity of adjoining residents will be a consideration when considering side
the dwelling and the front garden.                                                      extensions. Windows, balconies and roof terraces should not allow unacceptable
                                                                                        overlooking.
4.53 On commercial premises with forecourts the erection of front extensions will
be required to meet Policy Q11 (a) (i) and (b). The extent of the front extension       4.57 Side extensions that unacceptably imbalance existing building compositions
requires careful consideration in terms of building lines, sight lines and pedestrian   (especially semi-detached properties) are unacceptable. Elevations on party walls
flow too. A canted corner is encouraged on corner units for this reason. In order to    should be blank to allow neighbouring properties to extend in a similar manner. In
ensure the future extensions of adjoining units is not compromised the flank walls      order to achieve subordination, it may be necessary to set back side extensions
of any such extension should be blank brickwork. Care needs to be taken where           on the corners and provide lower roofs. However, in some cases this type of
such extensions adjoin entrances to residential upper floors to ensure the result       subordination may not be appropriate; the approach will be dependent on the
is attractive and safe for users. In some instances it may be necessary to gate         character of the host building and its surroundings. Dummy roof slopes (those
the access route between forward extensions to give residents secure defensible         concealing a flat roof) should have a sufficient size and pitch to have design
entrances.                                                                              integrity in their own right. See Figure 8.

Draft Design Code SPD Part 4: Extensions
This side extension is acceptable because it retains the minimum 1m side space at first
                            floor level, it is set back from the façade of the host building to achieve subordination and
                            the roof design is integrated with the main roof in a subordinate manner. On heritage assets
                            the desire to maintain the design integrity of buildings and their spatial setting may preclude
                            side extensions in some instances.

                            The side extension above is unacceptable because it does not retain side space at first
                            floor level, it does not show subordination in relation to the host building façade and the roof
                            design is poor.

Figure 8: Side Extensions

                                                                             Draft Design Code SPD Part 4: Extensions
Extensions - Detailed Advice

Extensions - Party Walls                                                              4.63 Designers should provide as much information on construction detailing
4.58 To minimise adverse impact, the party wall of any extension should be as         and materials as possible up front at application stage; otherwise the application
low as possible. For simplicity parapet walls with parapet gutters are the strongly   may be delayed whilst further information is prepared or the Council may impose
recommended. Designs with roof eaves, fascias and gutters on party walls or           conditions to an approval requiring more information to be submitted.
overhang onto neighbouring property will be resisted.

Extensions - Building Materials
4.59 When considering facing materials for extensions, the colour, texture and size
of the materials on the host building should be taken into account to ensure a good
match. Contemporary materials on modern or innovative design will be supported
where the impact on the host building and wider area is not harmful.

4.60 For brickwork, the mortar mix and colour, the pointing technique, brick
bond, and whether the bricks are hand or machine made can make a significant
difference to the final appearance of the masonry. The use of reclaimed brick
and other closely matching materials is encouraged. Re-use is sustainable the
weathered appearance of old materials helps blend them in.

4.61 Render and timber cladding do not weather well in urban environments,
and they both require regular treatment or redecoration to maintain a smart
appearance, placing an unnecessary maintenance burden on property owners. For
that reason they will generally be resisted on new work unless limited to ground
floor at the rear. Even then designers should seek specification which ensure long-
term durability and minimal maintenance. For example, leaving render unpainted
and using sustainable hardwoods.

Extensions - Construction Detailing
4.62 Policy Q8 sets out the Council’s commitment to good quality design and
construction. Simple designs based on local precedents are often much easier
(and cheaper) to construct than complex or bespoke ones. For example, parapets
generally look better on flat roofs than exposed fascias and gutters. Designers
should seek to design scheme which minimise the long term maintenance burden
on the occupier.

Draft Design Code SPD Part 4: Extensions
Unsightly balcony detail

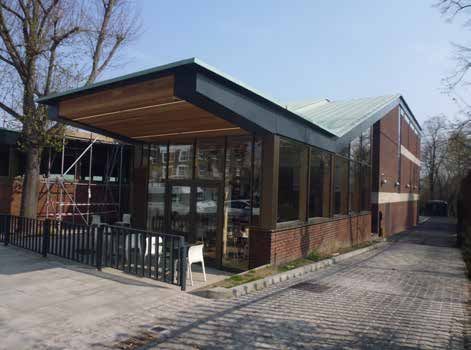

Sympatheitc materials used on library extension

                                                  Visually obtrusive roof detail

                                                                                   Draft Design Code SPD Part 4: Extensions
This page is intentionally blank
Design Code Part 4: Building Alterations and Extensions

                                                   Lambeth’s Roofscape
Lambeth’s Roofscape

Lambeth’s Roofscape
4.64 Whilst Lambeth’s roofscape is rich and varied there are a number of key roof
forms that are found across the borough.

London Roofs
4.65 Two pitches aligned front to rear concealed behind a front parapet and sloping
into a central valley that drains to the rear. The absence of front rainwater pipes
was a design objective. The basic effect is that these roofs are hardly visible from
ground level, therefore reducing the perceived bulk of the building. London roofs
are a key aspect of London’s local distinctiveness. These are common on early to
mid-19th Century buildings in Lambeth.

Traditional Mansard Roofs
4.66 These typically rise from behind parapets and drain to the rear through
concealed rainwater pipes. The absence of front rainwater pipes was a design
objective. They typically have four roof pitches—two steep (70 degrees) lower
slopes and two shallow (up to 30 degrees) upper slopes. On end properties
mansards can terminate in full gables or be half-hipped or fully hipped. Some          Typical London roof
properties have a double mansard with a central roof valley running parallel to
the façade. The dormer heads and internal ceiling height on traditional mansards
typically align with the junction between the steep and shallow roof pitches. There
are generally fewer dormers than windows on each floor below, in order to achieve
visual subordination. These are common on early to mid-19th Century buildings.
They can also be found on inter-war Council flats where they tend to be finished
with traditional plain clay tiles.

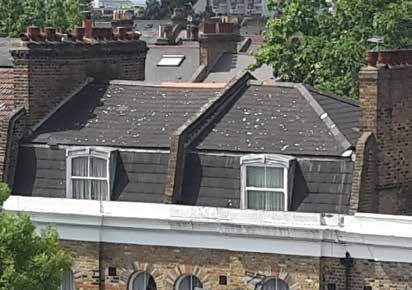

                                                                                       Variation on a London roof
Draft Design Code SPD Part 4: Roofs
Mono-Pitched Roofs
                       4.67 These have a single roof slope and are most commonly found on rear returns
                       where they drain into the site rather onto the party wall. They can also be found on
                       Lambeth post-war housing estates.

                       Double-Pitched Roofs
                       4.68 The most common roof type in Lambeth. They comprise a front pitch and a
                       rear pitch between gabled ends. The pitches can drain to parapet gutters but more
                       commonly have conventional rainwater goods and down pipes.

                       Hipped Roofs
                       4.69 These are like double pitched roofs but instead of a gable there is a matching
                       roof slope. They are particularly common on detached and semi-detached houses.
                       On Victorian buildings the roof pitches are generally low to give a subordinate
                       effect. On inter-war buildings the roofs are often plain clay tiled.

Traditional Mansards   Flat Roofs
                       4.70 These are uncommon as the main roofs on traditional buildings (up to 1920)
                       but flat lead roofs are common on closet returns where they tend to be enclosed
                       by parapet walls. Flat roofs are more common on inter-war and post Second World
                       War buildings where their treatment very much depends on the style of the building.

                       Chimneys and Other Roof Features
                       4.71 Chimney stacks are a feature common to most Lambeth properties built
                       before 1939. They are a key aspect of Lambeth’s roofscape. Decorative gables,
                       dormers, hips, turrets, towers and ventilators also add important richness and
                       ornamentation in places.

Double-pitched roofs
                                                                            Draft Design Code SPD Part 4: Roofs
This page is intentionally blank
Design Code Part 4: Building Alterations and Extensions

                                                   Roof Alterations
4.72 Policy Q11 (a) requires alterations to be respectful of the character of the                   4.   Avoid placing escape roof lights at low level on front roof pitches.
existing building. In this respect, the Council will normally resist changes to roofs                    Other less visually intrusive methods of escape should also be
that would be detrimental to their appearance. Policy Q 11 (b) seeks subordination.                      considered; for example the upgrading of internal staircases
This is essential at roof level, given the visibility and therefore potential wider                      to provide a suitable escape route through the building. See
impact of proposals. The design unity of architectural groups and the prevailing                         illustrations in Figure 9 and 10.
uncluttered character of many roofscapes mean that most roof alterations are
best located to the rear. Features such as chimneys and parapet walls should not          4.75 Where deemed appropriate on heritage assets and on building in
be removed or obscured by them. Proposed alterations that introduce alien roof            conservation areas, roof lights should be small. Roof lights which open up to form
configurations (such as cut-outs and add-ons) are likely to be resisted.                  roof terraces will not be acceptable in these instances. Traditional style roof lights
                                                                                          are most appropriate; small set flush into the roof slope, slim framed black painted
                                                                                          metal with a vertical glazing bar.

New Roof Lights
                                                                                          New Tube Lights
4.73 Roof lights are generally not an original feature of Lambeth’s traditional
buildings. Where historic examples exist they tend to be very small and placed at
                                                                                          4.76 These bring light internally via reflective tube from an outside source.
the rear, to light attic spaces and tank areas.
                                                                                          The outward appearance is normally that of a small glass dome. They can be
                                                                                          particularly effective in bringing natural daylight to windowless spaces such as
4.74 Policy Q11 (A) (i) and (L) seek to minimise the adverse impact of roof lights
                                                                                          stairwells, corridors and bathrooms, reducing the need for artificial lighting. Their
through careful placing and alignment. Roof lights are often the most sympathetic
                                                                                          use is encouraged where they can be accommodated in unobtrusive locations; as a
way of providing daylight and natural ventilation to a habitable attic space as they
                                                                                          general rule front or side roof slopes should be avoided, in favour of rear locations
follow the line of the roof. Designers should:
                                                                                          on buildings in conservation areas and on local heritage assets.

           1.    Ensure roof lights are clearly subordinate features on the roof.
           2.    Align the roof lights with the windows or other features on the
                 elevations below. This is particularly important on street facing roof
                 pitches.
           3.    Not place roof lights on sensitive buildings (those with ornate or
                 complex roof forms and including heritage assets and buildings in
                 conservation areas where roof lights are not characteristic of the
                 type) or on the steep slopes of traditional mansard roofs.

Draft Design Code SPD Part 4: Roof Alterations
Figure 8: Front roof lights

Figure 8: Rear roof lights at property nos. 1, 2 and 4 are considered appropriate as a general rule. On
heritage assets noticeably smaller roof lights then those illustrated will normally be sought .
                                                                                                          Draft Design Code SPD Part 4: Roof Alterations
Existing Dormers                                                                       New Dormers

4.77 Dormers were not a particularly common feature of traditional buildings in        4.78 Policy Q11 (k) seeks to ensure dormers are appropriately sited and
Lambeth other than on mansard roofs. Where traditional examples do exist they          subordinate to the host building. They will generally supported at the rear but
are modest, of simple, robust appearance. Where dormers are an integral part of        resisted on front roof pitches where they are not characteristic features of the
the character of a building their loss or unsympathetic alteration will generally be   building type or group.
resisted. Many of the more modern dormers in Lambeth are unfortunately bulky
and poorly detailed; their replacement with better examples will be supported.         4.79 Dormers are considered the most appropriate way to provide additional roof
                                                                                       accommodation in conservation areas. The introduction of new dormers requires
                                                                                       a great care to ensure compatibility with the host building and their wider context.
                                                                                       Designers should ensure dormers on conventional pitched roofs are:

                                                                                                 1.   Are subordinate height to the windows on the elevation below and
                                                                                                      set in from the sides of the roof (the roof must remain the dominant
                                                                                                      element).
                                                                                                 2.   Have a window cill that rests on the roof slope (around 1 metre
                                                                                                      above the attic floor level or 1m above eaves level if the floor has
                                                                                                      been lowered) and a dormer head running flush with the room ceiling
                                                                                                      height (normally 2.1m).
                                                                                                 3.   Have a window type and style which is in keeping with or improves
                                                                                                      upon those on the main building.
                                                                                                 4.   Are of materials, construction detailing and form that is simple and
                                                                                                      robust. Bulky construction detailing, timber fascias etc. should be
                                                                                                      avoided in order to achieve subordination.
                                                                                                 5.   Are of modest size and aligned with the openings on the elevation
                                                                                                      below.

                                                                                       4.80 With all dormers careful design and construction detailing is essential. Forms
                                                                                       should be graceful and considered; slim enough to accommodate insulation, but no
                                                                                       bulkier. The dormer front face should contain only window - no wall. Fascias and
                                                                                       bargeboards should generally be avoided as they add visual clutter.Thought should
                                                                                       be given to the careful selection of materials, the design of rainwater gutters (if
                                                                                       required at all) etc.

                                                                                       4.81 On buildings in conservation areas, where dormers are deemed appropriate,
                                                                                       the number, style, size and materials should be based on traditional local
                                                                                       precedents and be appropriate to the period of the building. On some local
Historic dormers are subordinate features and have slender frames.                     buildings the dormers historically have casement windows while others have sliding
                                                                                       sashes. Detailed design advice and historic examples can be found in the English
Draft Design Code SPD Part 4: Roof Alterations                                         Heritage Listed Building Guidance Leaflet Dormer Windows which is available as a
                                                                                       pdf from Lambeth’s Conservation and Design team.
Good traditional dormers      Bulky and obtrusive

Neat construction detailing   Crude and ugly        Not surbordinate

                                                        Draft Design Code SPD Part 4: Roof Alterations
Linked Dormers                                                                           Box dormers
4.82 On small, two storey cottage-type properties (including those in conservation       4.84 In Figure 11 below shows a horizontal ‘box’ dormer, set well in from the edges
areas) where attic floor space is limited, the linking of two small individual dormers   of the roof to achieve subordination (aligned with the outer edge of the windows
together to make one wide dormer may be an acceptable way of increasing head-            below); anything larger is unlikely to be considered subordinate and therefore
room (see Figure 11). This option is only acceptable for rear roof pitches and is        would fail to meet Policy Q11 (k) (ii). This approach is inappropriate for heritage
unsuitable for heritage assets. Designers should:                                        assets and buildings in conservation areas.
           1.    Ensure that the link element is subordinate to the dormers—
                 recessed back from the front of the dormer by one third of the
                 depth of the dormer roof and no wider than 1 ½ of each dormers
                 (otherwise the linking element can be inappropriately wide and
                 visually dominant).                                                     L-Shaped Dormers
           2.    Clad the face of the link element to match the roof material            4.85 These are roof extensions that extend out over the roofs of rear returns and
           3.    Design the link roof should be a seamless continuation of the dormer    are generally attached to rear mansards. See para 5.93.
                 roof without fascias or gutters.

Inset Dormers
4.83 An inset dormer is shown in Figure 11. As inset dormer are formed by
cutting into the roof slope they reduce the area of the interior accommodation
and are generally not a popular option on terraced properties. This approach is
inappropriate for heritage assets and buildings in conservation areas. Inset dormers
are most likely to be used on building conversions to provide amenity space. In
order to achieve subordination within the roof, adequate sections of the original roof
surface must be retained to each side (aligned with the windows or building bays
below) and below the ridge. Sufficient roof should be retained across the front of
the cut-out to act as a 1.1m high balustrade to the roof terrace. Omission of this
roof slope and the erection of conventional balustrades or projecting balconies is
unacceptable.

Draft Design Code SPD Part 4: Roof Alterations
Figure 11: Rear dormers

                          Draft Design Code SPD Part 4: Roof Alterations
Non-Standard Dormers
4.86 Large, dominant dormers and irregularly shaped dormers (such as those
that wrap around hipped roofs or rise above roof ridges) are rarely acceptable.
Whilst blank dormers are generally inappropriate, they may be supported where
attic conversions require modest up-stands at the intersection of return roofs and
mains roofs to provide the necessary headroom for access. Such proposals, whilst
technically blank dormers, will be supported where their size is kept to the bare
minimum, the design is neat and where visibility is limited.

Draft Design Code SPD Part 4: Roof Alterations
Figure 12: Non-standard dormers

                                  Draft Design Code SPD Part 4: Roof Alterations
This page is intentionally blank
Design Code Part 4: Building Alterations and Extensions

                                                   Roof Extensions
General Advice

4.87 The Council supports the principle of optimising accommodation through                      mansards in a row are to link up.
the use of roof extensions, within the constraints of achieving subordination
                                                                                            4.   Link the 2.3m top of the 70 degree pitch to the roof ridge with the top roof.
and protecting the design integrity of the host building. Policy Q11 (B) seeks
                                                                                                 Its treatment will be dependent upon its pitch, which will be dictated by the
subordination of extensions. Policy Q 11 (m) is clear that roof extensions will be
                                                                                                 remaining height available between 2.3m and the ridge. The top roof must
resisted where harm would result to the building or its group.
                                                                                                 terminate below ridge level, allowing adequate room for a flashing and
                                                                                                 retention of existing ridge tiles.
4.88 Where visible front roof pitches and hipped ends contribute positively to the
group character of buildings or a wider street scene, their loss or alteration will be      5.   Treat the join between the 70 degree pitch and top roof with a simple lead
resisted. This means that in most cases the preferred location for roof extensions is            flashing. A fascia is not acceptable along this junction nor is a gutter.
the rear. On heritage assets and buildings in conservation areas a presumption in
                                                                                            6.   Extend existing brick upstand walls between properties in matching brickwork
favour of retaining historic roof forms means that there may be little scope for roof
                                                                                                 with a brick-on-edge coping (following the 70 degree slope). If no brick
extensions or mansards; in these instances loft conversions with modest dormers
                                                                                                 upstand exists the party wall should be built up in the same manner to create
or small roof lights are preferable.
                                                                                                 one.
                                                                                            7.   Extend any chimneys on the party wall up by 8 brick courses above the
                                                                                                 roofline and rebuilt the original chimney top with reinstated pots were
Rear Mansard Extensions                                                                          appropriate.
                                                                                            8.   Ensure that dormers meet the guidance in para 3.97.
4.89 On traditional properties with double pitched roofs (but not hipped roofs), a
rear mansard (see Figure 13) is the best option in terms of optimising space and
headroom without altering the street facing roof pitch. However, this approach
is generally not considered appropriate for heritage assets and buildings in
conservation areas.

4.90 Whilst the basic principles are set out below, the dimensions and details of
previously approved adjoining examples also need to be understood to ensure
roofs align. Designers should:

           1.    Not alter roof ridges in pairs or groups of buildings with shared ridge
                 lines. There must be sufficient internal headroom (2.1m) below
                 the existing ridge or the principle of a rear mansard will not be
                 acceptable.
           2.    Ensure the lower pitch of the rear mansard is 70 degrees and hung
                 with slate (or clay tile is that is the host building roofing material).
           3.    Terminate the 70 degree pitch at the 2.3m height if all the rear

Draft Design Code SPD Part 4: Roof Extensions
Figure 13: Rear mansard roof   extensions

                                            Draft Design Code SPD Part 4: Roof Extensions
L Shaped Dormers

4.91 This is where a rear roof extension projects out over a rear return. The design
objective should be to integrate well with the roof and remain subordinate to the
host building. It should be noted that this approach is not considered appropriate on
heritage assets or buildings in conservation areas. Where there is an existing roof
extension the L-shaped part should integrate well with it and mimic its materials
and detailing taking into account the advice below where relevant. Otherwise,
designers should:

           1.    Bring L-shaped dormers forward with proposals for rear mansards to
                 ensure an integrated approach.
           2.    Ensure the L-shaped element contains no more than one storey of
                 accommodation and is no higher than the main roof ridge of the host
                 building.
           3.    Finish the L shaped element in the same roofing material as the
                 associated rear mansard with a matching 70 degree roof pitch along
                 its long flank elevation, a vertical elevation at the end (flush with the
                 end of the return and a flat roof.)
           4.    Retain the end gable of the rear return and dress the slate hanging
                 to follow the line of the gable.
           5.    Extend party walls’ upward in stock brick and provide a traditional
                 parapet with brick on edge coping.
           6.    Extend chimneys on party walls upward to at least 8 courses above
                 the junction with the roof / parapet line, replicating the chimney cap
                 detailing and re-using pots etc.

Draft Design Code SPD Part 4: Roof Extensions
Figure 14: L shaped dormers

                              Draft Design Code SPD Part 4: Roof Extensions
Extensions to Hipped Roofs                                                               New Mansards on Traditional Buildings

4.92 A hipped roof is a means of successfully achieving subordination and creating       4.94 London roofs are part of Lambeth’s and London’s local distinctiveness.
a sense of spaciousness between buildings. In Lambeth hipped roofs are common            For that reason the loss of London roofs on heritage assets and on buildings in
on detached houses, at the ends of some terraces and on semi-detached pairs;             conservation areas is not acceptable. Elsewhere the Council will only support the
they are particularly common in suburban areas.                                          replacement of a London roof with a traditional full mansard roof in full accordance
                                                                                         with the guidance in below.
4.93 On heritage assets and buildings in conservation areas the loss of hipped
roofs is not considered acceptable. Elsewhere, hip to gable extensions should
                                                                                         4.95 Where deemed appropriate, new mansards on traditional buildings should
not harm the design integrity of the host building and where necessary chimney
                                                                                         match any adjoining historic example closely to ensure a unified approach. Where
stacks should be extended so that they look comfortable on the enlarged roof. On
                                                                                         there is no adjoining historic example designers should:
residential properties with clay tiled roofs (characteristic in suburban Lambeth) full
hip to gable conversions will be resisted in favour of a half-hip solution which is                1.   Ensure the mansard has two 70 degree lower roof pitches and two
more in keeping with the traditional style of this property type.                                       30 degree upper roof pitches.
                                                                                                   2.   Provide an internal head height of 2.1m. The steep roof slope
                                                                                                        should terminate externally 2.3m above internal floor level.
                                                                                                   3.   Retain existing front parapet heights and ensure there is adequate
                                                                                                        space front and rear for parapet gutters. Where sloping parapets
                                                                                                        exist at the rear these can be raised level to accommodate parapet
                                                                                                        gutters. Where parapet copings are required, they should have a
                                                                                                        single surface sloping into the parapet gutter. Saddle copings, lead
                                                                                                        capping or paving slabs etc. are not acceptable.
                                                                                                   4.   Finish roof pitches in natural or reconstituted slate with a lead
                                                                                                        flashing at the junction of the two slopes. Fascia or gutters on the
                                                                                                        roof junctions are not acceptable.
                                                                                                   5.   Raise party walls in stock brick following the profile of the roof
                                                                                                        slopes, and coped with bricks on edge. Party walls should terminate
                                                                                                        set in behind the front and rear parapets, not rise off them.
                                                                                                   6.   Extend party wall chimney stacks upward in brickwork rising eight
                                                                                                        brick courses above the point the chimney intersects the roof. The
                                                                                                        historic chimney stack brick detailing should be replicated and pots
                                                                                                        reinstated.
                                                                                                   7.   Locate dormers on the steep pitches only, ensuring that they are
                                                                                                        equal or fewer in number than the windows on the elevation below
                                                                                                        and be aligned with them. The top of the dormer should terminate
                                                                                                        where the 70 degree slope meets the 30 degree slope (2.3m). This

Draft Design Code SPD Part 4: Roof Extensions
You can also read
