DNA STUDY KY 2021 Perry County 2012 Highway Plan Item No. 10-1103.00 Prepared by: KYTC District 10 July 2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
I. PRELIMINARY PROJECT INFORMATION
County: Perry Item No.: 10-1103.00
Route Number(s): KY 2021 Road Name: Big Willard Road
Program No.: UPN: (Function) 97 2021 001-002
Federal Project No.: Type of Work: Bridge Replacement
2012 Highway Plan Project Description:
Replace Bridge on Big Willard Rd (KY 2021) over Willard Creek at Intersection with Beech Nut Lane (CR
1213) (SR 44.6) 097B00027N
Beginning MP: 1.075 Ending MP: 1.115 Project Length: 0.04 miles
Functional Class.: Urban Rural State Class.: Primary Secondary
Local Route is on: NHS Nat'l Truck Network
MPO Area: Not Applicable Truck ClassA
In TIP: Yes No % Trucks: 0
ADT (current): 600 Terrain: Level
Access Control: Fully Controlled Permit Partial Detour Length: 7.0 mi (via county road)
Median Type: Undivided Divided (Type):
Existing Bike Accommodations: Shared Lane Ped: Sidewalk
Posted Speed: 35 mph 45 mph 55 mph Other (Specify):
KYTC Guidelines Preliminarily Based on : 35 MPH Proposed Design Speed
COMMON GEOMETRIC
Roadway Data: EXISTING PRACTICES*
No. of Lanes 2 2 Existing Rdwy. Plans available?
Travelled Way Width 16 22 Yes No
Shoulder Width 0 4 Year of Plans:
Max. Superelevation** NA 4% Traffic Forecast Requested
Minimum Radius** NA 420 Date Requested: 5/10/2012
Maximum Grade NA NA Mapping Requested
Minimum Sight Dist. 250 Date Requested:
Sidewalk Width(urban) NA NA Type:
Clear-zone*** 18
Project Notes/Design Exceptions?: Should use Low Volume Rural Roadway Design Manual
*Based on proposed Design Speed, **AASHTO's A Policy on Geometric Design of Highways and Streets, ***AASHTO's Roadside Design Guide
Bridge No.*: 097B00027N (Bridge #2)
Sufficiency Rating 46.8 Existing Geotech data available?
Total Length 42 Yes No
Width, curb to curb 16.7
Span Lengths 21
Max. Span Length 21 * If more than 2 bridges are present on project, see
attached sheets.
Year Built 1975
Posted Weight Limit NA
Structurally Deficient? YES
Functionally Obsolete? YES
1 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
II. PROJECT PURPOSE AND NEED
A. Legislation
This project was approved by the General Funding Phase Year Amount
Assembly as part of the Bridge Replacement BRO D 2014 $200,000
Program in the 2012 Biennal Highway Plan. BRO R 2015 $100,000
BRO U 2015 $50,000
BRO C 2016 $600,000
B. Project Status
Design Funds have been requested but not authorized at this time. There are no other projects in this area at this
time.
C. System Linkage
KY 2021 is a local road that serves residents of theBig Willard community as well as the primary access to the Little
Beech Historic Site. This route connects to KY 451 and then to the Hal Rogers Parkway and KY 80 corridors.
D. Modal Interrelationships
There are currently no Modal connections in this area.
E. Social Demands & Economic Development
There are currently no new plans for further commercial or industrial type development in this area. It is anticipated
that this route will continue to function as a local residential route.
F. Transportation Demand
The usage demand for this road is expected to stay the same for the foreseeable future.
2 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
II. PROJECT PURPOSE AND NEED (cont.)
G. Capacity
There are no known capacity issues at this time nor are any expected in the near future.
H. Safety
A review of the Kentucky State Police Collision Database shows no collisions along the project section.
I. Roadway Deficiencies
KY 2021 is a narrow two lane roadway with little to no shoulders. It has numerous substandard horizontal and
vertical curves. The bridge is considered both structurally deficient and functionally obsolete.
Purpose and Need Statement:
Need: This project will replace a structurally deficient (SR 46.8) bridge along KY 2021. This replacement is needed to
ensure a continued linkage for residents of this community to the rest of the highway system.
Purpose: The purpose of this project is to replace a Structurally deficient, functionally obsolete bridge in order to
allow continued usage of the roadway for residents of the Big Willard area.
3 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
III. PRELIMINARY ENVIRONMENTAL OVERVIEW
A. Air Quality
Project is in: Attainment area Nonattainment or Maintenance Area PM 2.5 County
STIP Pg.#: TIP Pg.#:
NA
B. Archeology/Historic Resources
Known Archeological or Historic Resources are present
NA
C. Threatened and Endangered Species
Indiana Bat
D. Hazardous Materials
Potentially Contaminated Sites are present Potential Bridge or Structure Demolition
Existing Structure to be removed.
G. Permitting
Check all that may apply: Waters of the US MS4 area Floodplain Impacts Navigable Waters of the US Impacts
Are 401/404 Permits likely to be required? Yes No Impacts to: Wetlands Stream/Lake/Pond
ACE LON ACE NW ACE IP DOW IWQC Special Use Waters
H. Noise
Are noise sensitive receivers adjacent to the proposed project? Yes No
I. Socioeconomic
Check all that may apply: Low Income/Minority Populations affected Relocations Local Land Use Plan available
J. Section 4(f) or 6(f) Resources
The following are present on the project: Section 4(f) Resources Section 6(f) Resources
NA
Anticipated Environmental Document: CE Level 1
4 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
IV. POSSIBLE ALTERNATIVES
A. Alternative 1: No Build
This alternate will not address the identified purpose and need.

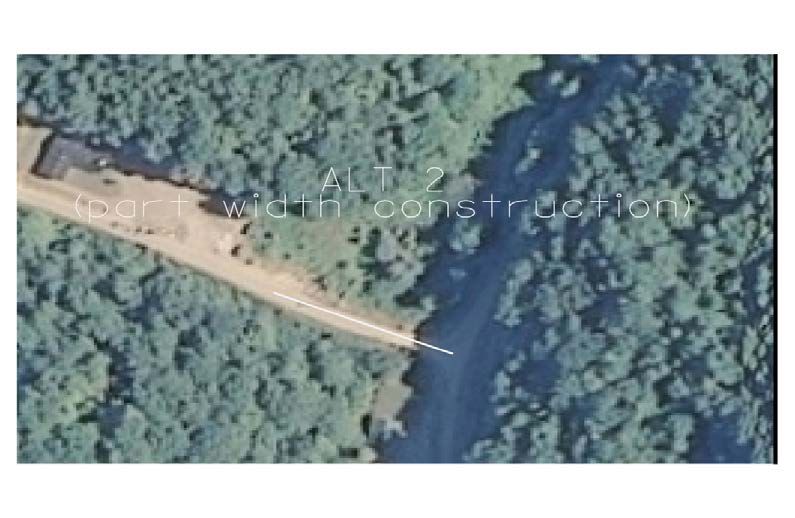

B. Alternative 2
This alternate proposes to reconstruct the new bridge in the same location as the existing using part width
construction methods. This alternate appears to have the least impact on both RW and Utilities but would take longer
to complete.
Planning Level Cost Estimate: Phase Estimate
Design $200,000
R/W $25,000
Utilities $50,000
Const $550,000
Total $825,000
5 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
IV. POSSIBLE ALTERNATIVES (cont.)
B. Alternative #3
This alternate proposes to construct the new bridge in the same place as the existing only this alternate would utilize
a temporary diversion for Maintenance of Traffic. The diversion is proposed on the north side due to lower potential
cost associated with RW.
Planning Level Cost Estimate: Phase Estimate
Design $200,000
R/W $75,000
Utilities $50,000
Const $600,000
Total $925,000
V. Summary
This is a DNA Study of Item # 10-1103.00 as authorized in the 2012 Biennial Highway Plan. The following are the
results and recommendations by the Project team:
1. The Purpose of this project is - This project will replace a structurally deficient (SR 46.8) bridge along KY 2021.
This replacement is needed to ensure a continued linkage for residents of this community to the rest of the highway
system.
2. The Project Team recommends to carry Alternate 3 forward into the Design Phase.
Alt # Description D ($)(2014) R ($)(2015) U ($)(2015) C ($)(2016) Total ($mil)
1 No Build - - - - -
2 Part Width $ 200,000.00 $ 25,000.00 $ 50,000.00 $ 550,000.00 $ 825,000.00
3 Diversion $ 200,000.00 $ 75,000.00 $ 50,000.00 $ 600,000.00 $ 925,000.00
- Current Hwy Plan Estimated Cost $ 200,000.00 $ 100,000.00 $ 50,000.00 $ 600,000.00 $ 950,000.00
- Current Pre-Con Estimated Cost $ 200,000.00 $ 100,000.00 $ 50,000.00 $ 600,000.00 $ 950,000.00
6 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
VI. Tables and Exhibits

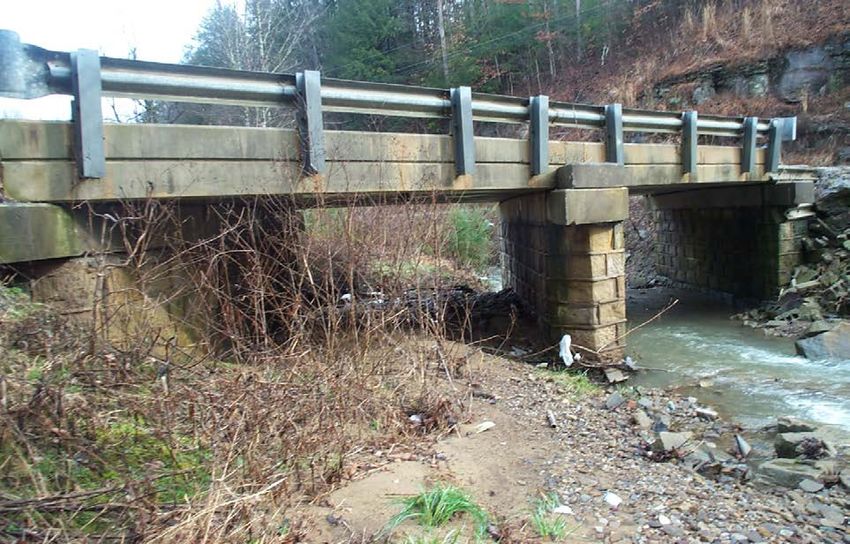

Exhibit 2:
7 7/13/2012
Item No. 10-1103.00 Data Needs Analysis
Perry County Scoping Study
VI. Tables and Exhibits (cont.)

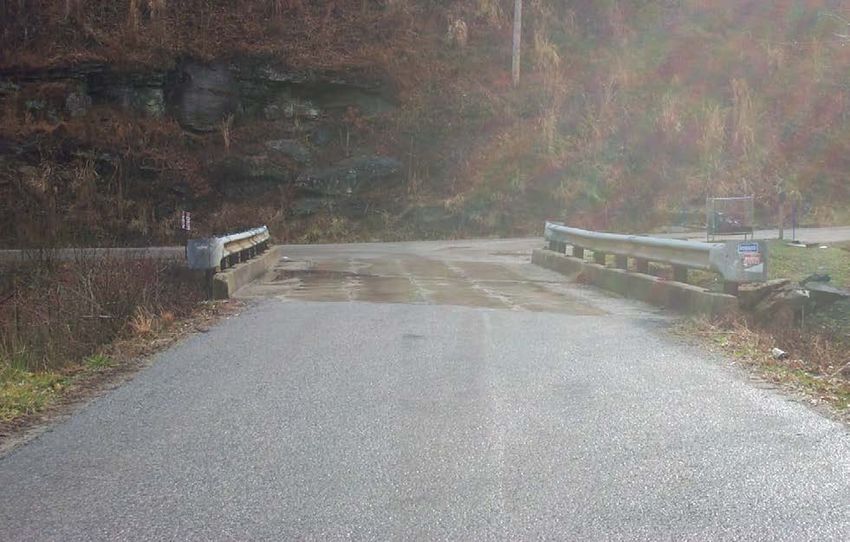

Exhibit 3:
Exhibit 4
8 7/13/2012
