Catalogue 2021
Ambrogio: The Robotic Lawnmower P. 2
A Robot for Every Lawn P. 3
6 Reasons to Choose Ambrogio P. 4
RANGE
P. 5
L60 Elite - L60 Elite S+ P. 6
GREEN line datasheet P. 7
P. 8
L35 Deluxe P. 10
L250 Deluxe P. 11
L250i Elite - L250i Elite S+ P. 12
L350i Elite P. 13
L400i Deluxe P. 14
ZCS Innovative Inside + P. 16
PRO line datasheet P. 18
P. 21
TWENTY deluxe - TWENTY elite - TWENTY elite S+ P. 23
ZCS Power Unit P. 24
4.0 Basic P. 25
4.0 Elite P. 26
4.36 Elite P. 28
Long lasting warranty P. 29
NEXT line datasheet P. 30
ACCESSORIES Accessories P. 32
AMICO P. 35
TECHNOLOGY APP P. 36
Voice assistant P. 37
+INFINITY SYSTEM P. 38
The illustrations and feature described may undergo variations
after the approval of the final draft.
Ambrogio Robot is the automatic lawn mower that will Ambrogio Robots speak the language of the future and
completely take care of your lawn. It is the perfect solution make life easier by giving you time to enjoy your yard and the
for anyone looking for a perfectly manicured lawn and freedom to manage it, even away from home. Thanks to ZCS
more free time. Ambrogio provides professional results Smart Technologies, it is possible to control and manage the
through technological innovation combined with respect for robot wherever you are. Integrated with voice assistants,
the environment. you can easily ask for status updates and issue commands.
Ambrogio Robot is the perfect groundskeeper, tirelessly Ambrogio Robot is safe to use around pets. With the
managing any type of lawn every day: from small, urban Amico accessory installed, Ambrogio keep pets safe by
yards, to large, sprawling lawns. The mulching function stopping the blade when your furry friend gets too close. It
will improve lawn health over time, requiring less fertilizer. is also capable of working in teams to cover larger, more
And best of all – no need to dispose of lawn clippings! difficult areas.
Ambrogio Robot is Made in Italy and built to last with Ambrogio Robots come in three lines to meet a diverse
brushless motors, lithium batteries, durable materials, and range of needs. The GREEN Line is simple and intuitive; the
a beautiful, stylish design to provide high performance on all PRO Line is more advanced for home and professional use
types of lawns. alike; the NEXT Line is innovative, modular, and designed
with the future in mind.
AUGMENTED REALITY OF
AMBROGIO ROBOT
BRING THE CATALOG TO LIFE WITH
YOUR SMART PHONE OR TABLET
1. Download the Ambrogio Remote APP from
either Google Play or the Apple App Store.
2. Search the catalog for images showing the
symbol with the letters +AR
3. Open the APP, scan the image and… enter the
world of Ambrogio Robot!
Discover all videos in the catalog!
Three lines with many models,
designed for every type of lawn
5
acres
1.75
acres
1.50
acres
1.25
acres
0.85
acres
0.8
acres
0.65
acres
0.55
acres
0.45
acres
0.32
acres
NEW
0.25
acres
0.17
acres
4,300
ft2
NEW
2,150
ft2
6 Reasons to Choose Ambrogio
for Your Lawn:
FREEDOM
QUALITY VIDEO VIDEO
INNOVATION
CHOICE
VIDEO VIDEO
BEAUTY
RELIABILITY
VIDEO VIDEO
RANGE
Enjoy your Time
Forget the boredom of mowing and rediscover the beauty of your SIMPLE & ECO-FRIENDLY
property. The GREEN Line was designed to provide all the advantages of Whisper quiet and eco-friendly, with easy and intuitive management.
Ambrogio’s innovative technology for small lawns. All four models of the SMALL & SAFE
line feature brushless motors and ensure excellent cutting and nutrition Designed for small and medium sized lawns, it moves with agility while
of the turf, resulting in a greener and healthier lawn in an environmentally keeping safety at the forefront.
friendly way. GREEN Line models can handle the some of the most difficult BLUETOOTH & APP
slopes and manage up to 4 separate areas. All GREEN line models can be managed and updated from the Ambrogio
Remote APP via Bluetooth.
PET FRIENDLY (AMICO)
Ambrogio loves pets and respects their need for space.
VIDEO
4,300 ft2
Bluetooth Receiver + App ZCS Connect (Optional)
Simple (no perimeter wire installation)
NO installation! for small areas
NO perimeter wire!
Keeping small lawns in pristine condition has never been easier with the Ambrogio L60,
designed for residential yards up to 4,300 ft2. Available in two options, Elite and Elite
S+, the L60 is ideal for those who want a perfectly mowed lawn, without the need to
install perimeter wire. The L60 can be put to work immediately and easily carried to
multiple areas and different lawns. Managing and updating the robot is easy through the
Ambrogio Remote APP via Bluetooth.
2,150 ft2 4,300 ft2
NEW
5 Ah lithium-ion 7.5 Ah lithium-ion
Eco Mode SensorRecognizes mowed areas, reducing working time and lawn wear while prolonging
Lightweight and portable
robot and battery life.
Bluetooth ReceiverTransfers software updates from Smartphone/Tablet to the robot and connects the
Slopes up to 26º
Ambrogio Remote APP from iOS and Android.
ZGS (Zucchetti Grass Sensor)Detects the presence of grass and recognizes holes or empty spaces,
Four wheel drive
even without a perimeter wire marking off the area.
P. 34
Charging point Keypad commands Blade and ZGS Sensor Bumper and obstacle sensor AMICO
6
NEW
MODEL DESCRIPTIONS L60 Elite L60 Elite S+
POWER
Maximum cutting surface [acres] (-20%)* 2,150 ft2 4,300 ft2
Motor Type Brushless Brushless
Lithium-Ion Battery (25.9V) 1x5.0 Ah 1x7.5 Ah
Max. permissible Slope (degrees) 26 26
Max. Slope (degrees) 22 22
Slope on outer edge/perimeter wire (degrees) – –
Average Working Time [h] (+-20%) 02:00 03:00
Recharge Mode Manual Manual
CUTTING SYSTEM
Blade Type 4 Point Star Blade 4 Point Star Blade
Cutting Width [in] 9.8 9.8
Cutting Height (min-max) [in] 1.7 - 1.9 1.7 - 1.9
Spiral Cutting Method – –
ZGS Sensors (Grass /Drop Off) Yes Yes
Eco Mode Yes Yes
Rain Sensor No No
Separate Mowing Areas Including Main 1 1
NAVIGATION
ZCS Connect Module (GPS, GSM) Optional Optional
CONTROL DEVICES
User Interface Keypad & LED Keypad & LED
APP Control Bluetooth Bluetooth
Bluetooth Receiver Yes Yes
Smart Assistant Included in ZCS Connect Included in ZCS Connect
AMICO Optional Optional
SAFETY
Safety PIN PIN Code via APP PIN Code via APP
STANDARD EQUIPMENT FOR INSTALLATION
Perimeter Wire Lenght [ft] Not necessary Not necessary
Fixing nails Not necessary Not necessary
Charging Station – –
Recharging Base Cover – –
FEATURES
Weight with Batteries Incl. [lbs] 18.3 19
Robot Size (lxwxh) 17.3 x 14.2 x 7.9 in 17.3 x 14.2 x 7.9 in
Sound Power [dB(A)] 65 65
Level of protection IPx4 IPx4
*acres referring to the maximum performance of the batteries. Based on the conditions of the turf and the complexity of the cutting area.
7
Love your smart Garden 8
RANGE Enjoy a beautiful, well-tended lawn effortlessly by utilizing the latest in technology. Get perfectly cut grass when and how you want it and manage the robot instantly at any time with user-friendly features. The Ambrogio Robot PRO Line models are designed for those who desire all the latest features and performance. All eight models in the PRO Line feature brushless motors and powerful lithium-ion batteries with advanced cutting systems to meet the needs of property owners who want to keep their lawn in pristine condition all year long. Connected and managed by the Ambrogio Remote APP. AUTONOMOUS & EFFICIENT Ambrogio does not need to work for repeated continuous cycles during the day and night. Powerful batteries and careful programming allow Ambrogio to rest all night and part of the day (or vice versa, according to the needs of the owner). HIGH PERFORMANCE & PRECISION Ambrogio easily handles some of the most difficult slopes. Stainless steel blades ensure precise cutting on any type of grassy surface. SMART & USER-FRIENDLY Ambrogio can work in any situation and weather condition. Rain sensors, which can be turned off at any time, return the robot to the charging station in case of rain, helping to preserve lawn quality. ZCS INNOVATIVE INSIDE Ambrogio is a real smart product; hyper connected to the Cloud with the Internet of Things. Innovative processors, ZCS Connect, Touch Display, GSM, and Bluetooth. What’s more, the new SMART ASSISTANT function allows you to talk to Ambrogio (request information, statistics, and give commands). PET FRIENDLY (AMICO) Ambrogio is a friend to all animals and respects their need for space. SDM CUTTING SYSTEM (SATELLITE DYNAMIC MEMORY)* The satellite navigation system, based on advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then creates virtual maps and remembers working times used for each area, increasing efficiency. *Available on select models +INFINITYSYSTEM* Ambrogio's innovative navigation system allows several robots to simultaneously manage a large area, in a smart and integrated way. *Available on select models
VIDEO
0.45 acres
Bluetooth Receiver + App
Innovative and compact
Model L35 Deluxe includes a high degree of innovation. Brushless motors, advanced
cutting systems, and flex rubber wheels allow the robot to mow and maintain
complex areas up to 0.45 acres in the least time possible.
INNOVATIVE BLUETOOTH & GSM ZCS CONNECT SMART
5 Ah lithium-ion 2 30 h Continuous cutting * 17 h Free Lawn Time
MOTHERBOARD (L35 Deluxe) ASSISTANT
Flex rubber rear wheels ZCS Connect (L35 Deluxe) T o connect and interact with the robot any time and anywhere.
Bluetooth ReceiverTransfers software updates from Smartphone/Tablet to the robot and connects the
High efficiency brushless motors
Ambrogio Remote APP from iOS and Android.
SDM Cutting System (Satellite Dynamic Memory) (L35 Deluxe) T he satellite navigation system,
Manage up to 8 separate areas based on advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then
creates virtual maps and remembers working times used for each area, increasing efficiency.
P. 34
Keypad & LED 4 point star blade Spiked wheels Shelter garage (shiny black) Shelter garage (carbon look)
10 *Work cycles vary in relation to the amplitude and to the characteristics of the area.VIDEO
0.65 acres
Bluetooth Receiver + App ZCS Connect (Optional)
Robust, intuitive and flawless
Ambrogio L250 Deluxe is designed for lawns up to 0.65 acres, including up to eight
separate cutting areas. It is ideal for those who want a robust, high-performance,
and innovative robot. The user interface, with a large, touchscreen display, makes
programming the robot simple and intuitive.
7.5 Ah lithium-ion 3 30 h Continuous cutting * 16 h Free Lawn Time
High efficiency brushless motors Patented front wheelsMoving independently of each other, while maintaining high cutting
performances even on uneven terrain.
Manage up to 8 separate areas
Eco Mode SensorRecognizes mowed areas, reducing working time and lawn wear while prolonging
robot and battery life.
Slopes up to 24º
Bluetooth ReceiverTransfers software updates from Smartphone/Tablet to the robot and connects the
7.5 Ah lithium-ion battery Ambrogio Remote APP from iOS and Android.
P. 34
Touchscreen Display 4 point star blade Flex rubber rear wheels Spiked wheels Shelter garage (shiny black)
*Work cycles vary in relation to the amplitude and to the characteristics of the area. 11VIDEO
+INFINITYSYSTEM
1.25 acres
Interactive and Smart
The two L250i models - Elite and Elite S+ - are a combination of innovation and
technology. Touchscreen displays, advanced navigation systems, and standard ZCS
Connect module make the robots extremely efficient and innovative. Compatible
with most voice assistants (SMART ASSISTANT) for complete interaction with the
robot.
0.8 acres 1.25 acres
INNOVATIVE TOUCH BLUETOOTH & ZCS SMART
MOTHERBOARD DISPLAY GSM CONNECT ASSISTANT
3 30 h 16 h 7 00 h 12 h
7.5 Ah lithium-ion Continuous cutting* Free Lawn Time 7.5 Ah lithium-ion Continuous cutting* Free Lawn Time
High efficiency brushless motors Flex rear wheels P rovide excellent grip on all types of terrain, even on wet surfaces.
Patented front wheelsMoving independently from each other, while maintaining high cutting
Manage up to 8 separate areas
performances even on irregular and uneven terrain.
SDM Cutting System (Satellite Dynamic Memory) T he satellite navigation system, based on
Slopes up to 24º advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then creates virtual
maps and remembers the working times used for each area, saving time and increasing efficiency.
P. 34
Touchscreen Display 4 point star blade Flex rubber rear wheels Spiked wheels Shelter garage (shiny black)
12 *Work cycles vary in relation to the amplitude and to the characteristics of the area.VIDEO
+INFINITYSYSTEM
1.75 acres
Attractive design and high technology
The L350i Elite can manage lawns up to 1.75 acres and mow for seven consecutive
hours. The touchscreen display makes programming simple and intuitive. The standard
ZCS Connect module ensures safety and ease of use thanks to its compatibility with the
most popular voice assistants (SMART ASSISTANT).
INNOVATIVE
MOTHERBOARD
TOUCH
DISPLAY
BLUETOOTH &
GSM
ZCS
CONNECT
SMART
ASSISTANT
15 Ah lithium-ion 7 00 h Continuous cutting * 9 h Free Lawn Time
High efficiency brushless motors Powerful lithium-ion batteries
Manage up to 8 separate areas Flex rear wheels P rovide excellent grip on all types of terrain, even on wet surfaces.
SDM Cutting System (Satellite Dynamic Memory) T he satellite navigation system, based on
Slopes up to 24º advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then creates virtual
maps and remembers the working times used for each area, saving time and increasing efficiency.
P. 34
Touchscreen Display 4 point star blade Flex rubber wheels Spiked wheels Shelter garage (shiny black)
*Work cycles vary in relation to the amplitude and to the characteristics of the area. 13VIDEO
+INFINITYSYSTEM

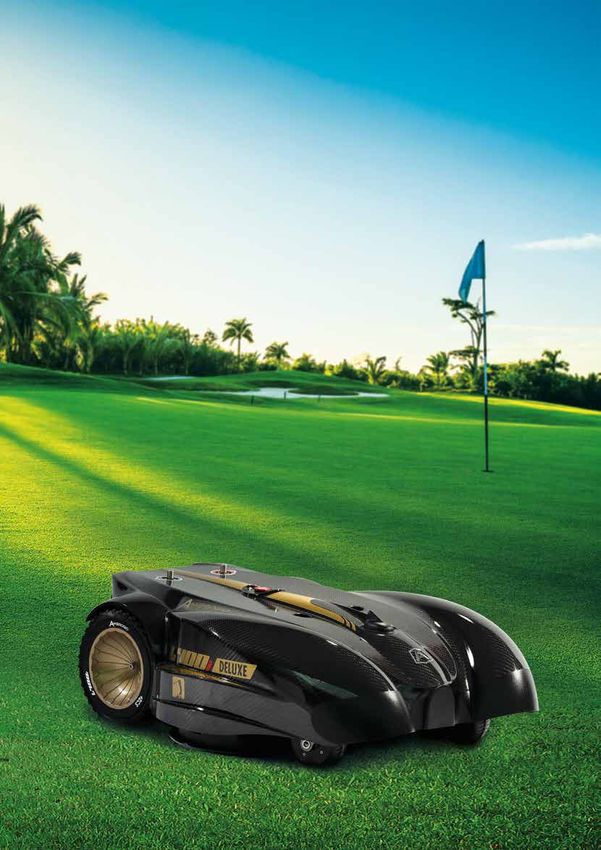

145 acres
Powerful and elegant, for very large areas
A powerful robot with an attractive design typical of Italian products, which can manage
lawns up to 5 acres, including multiple separate areas. The model is also equipped
with the ZCS Connect module so you can connect and interact with Ambrogio any time
and anywhere.
INNOVATIVE TOUCH BLUETOOTH & ZCS SMART
MOTHERBOARD DISPLAY GSM CONNECT ASSISTANT
High efficiency brushless motors Motorized blade height adjustment
Manage up to 8 separate areas Perfect cut even on uneven ground
Slopes up to 24º Flex rubber rear wheelsFor excellent grip on all types of terrain, even on wet surfaces.
SDM Cutting System (Satellite Dynamic Memory) T he satellite navigation system, based on
Powerful lithium-ion batteries advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then creates virtual
maps and remembers the working times used for each area, saving time and increasing efficiency.
Lightweight and robust carbon cover
U nique design with stylish curves combined with
a carbon-fiber look, makes the robot robust and
attractive.
P. 34
Touchscreen Display 4 point star blade Flex rubber wheels Charging points AMICO
15ZCS
NNOVATIVE
NSIDE
A STANDARD UPGRADE ON MORE ADVANCED MACHINES OF
THE PRO Line
LATEST GENERATION
MOTHERBOARD
Faster processors that can process more
data at higher rates, with less power
consumption. BLUETOOTH & GSM
Communication technology for
updating the software and driving
the robot at close range.SMART ASSISTANT
Models equipped with ZCS Connect can
interact with the user thanks to the new SMART
ASSISTANT function (compatible with Siri, Google
Home, and Alexa).The SMART ASSISTANT allows
you to send voice commands; ask for information
TOUCH DISPLAY on the functioning of the robot, as well as the
An interactive and intuitive touch working statistics.
display provides easy control of the
operating system by simply touching
the screen, without having to use
physical keys.
ZCS CONNECT*
Connect and interact with the robot any time and anywhere
(with your own smartphone or tablet). By using the Ambrogio
Remote App, you can set robot time profiles, verify location
(geo localization), isolate and/or work on specific areas of the
lawn (Go Away), monitor the status of the robot, and receive
alerts when it leaves the yard (Geo fence alarm, an evolved anti-
theft system). Thanks to the Go Home and Work Now functions, it
is possible to force the robot to return to the charging station or
to work in the yard.
*ZCS Connect module requires coverage and a data transfer connection.
Contact your dealer to inquire about the necessary frequencies and to verify
the operating requirements in your country. Free data traffic for two years.
Renewable on expiry.MODEL DESCRIPTIONS L35 Deluxe L250 Deluxe
POWER
Maximum cutting surface [acres] (-20%)* 0.45 acres 0.65 acres
Motor Type Brushless Brushless
Lithium-Ion Battery (25.9V) 2x2.5 Ah 1x7.5 Ah
Max. permissible Slope (degrees) 24 24
Max. Slope (degrees) 20 20
Slope on outer edge/perimeter wire (degrees) 11 11
Average Working Time [h] (+-20%) 02:30 03:30
Recharge Mode Contact Contact
CUTTING SYSTEM
Blade Type 4 Point Star Blade 4 Point Star Blade
Cutting Width [in] 10 11.5
Cutting Height (min-max) [in] 1.0 - 2.4 1.0 - 2.8
Spiral Cutting System Yes Yes
“SDM” Cutting System Yes No
"+ Infinity" Cutting System No No
Self-Levelling – Yes
Eco Mode Yes Yes
Rain Sensor Yes Yes
Separate Mowing Areas Including Main 8 8
NAVIGATION
ZCS Connect Module (GPS, GSM) Yes Optional
CONTROL DEVICES
User Interface Keypad & LED Touchscreen Display
APP Control Bluetooth-GSM Bluetooth
Bluetooth Receiver Yes Yes
Smart Assistant Yes Included in ZCS Connect
AMICO Optional Optional
SAFETY
Safety PIN PIN Code via App & Geofence PIN Code
STANDARD EQUIPMENT FOR INSTALLATION
Perimeter Wire Lenght [ft] 0 0
Fixing nails 20 20
Charging Station Yes Yes
Recharging base cover Optional Optional
FEATURES
Weight with Batteries Incl. [lbs] 24.3 33.7
Robot Size (lxwxh) 21.3 x 17.7 x 9.9 in 22.8 x 19.7 x 11.4 in
Wheel Profile Flex Rubber Flex Rubber
Sound power [dB(A)] 59 63
Level of protection IPx4 IPx4
18 *acres referring to the maximum performance of the batteries. Based on the conditions of the turf and the complexity of the cutting area.L250i Elite L250i Elite S+ L350i Elite
0.80 acres 1.25 acres 1.75 acres
Brushless Brushless Brushless
1x7.5 Ah 2x7.5 Ah 1x15 Ah
24 24 24
20 20 20
11 11 11
03:30 07:00 07:00
Contact Contact Contact
4 Point Star Blade 4 Point Star Blade 4 Point Star Blade
11.5 11.5 14.2
1.0 - 2.8 1.0 - 2.8 1.0 - 2.5
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes –
Yes Yes Yes
Yes Yes Yes
8 8 8
Yes Yes Yes
Touchscreen Display Touchscreen Display Touchscreen Display
Bluetooth-GSM Bluetooth-GSM Bluetooth-GSM
Yes Yes Yes
Yes Yes Yes
Optional Optional Optional
Pin & Geofence Pin & Geofence Pin & Geofence
0 0 0
20 20 20
Yes Yes Yes
Optional Optional Optional
33.7 35.7 40.6
22.8 x 19.7 x 11.4 in 22.8 x 19.7 x 11.4 in 27.6 x 19.3 x 11.8 in
Flex Rubber Flex Rubber Flex Rubber
63 63 69
IPx4 IPx4 IP44
19MODEL DESCRIPTIONS L400i Deluxe
POWER
Maximum cutting surface [acres] (-20%)* 5.0 acres
Motor type Brushless
Lithium-Ion Battery (25.9V) 4x15Ah
Max permissible Slope (degrees) 24
Max. Slope (degrees) 20
Slope on outer edge/perimeter wire (degrees) 11
Average Working Time [h] (+-20%) 11:00
Recharge Mode Contact
CUTTING SYSTEM
Blade Type 4 Point Star Blade
Cutting Width [in] 84 (3 discs)
Cutting Height (min-max) [in] 1.0 - 2.8
Cutting Height Adjustment Automatic
“SDM” Cutting System Yes
"+ Infinity" Cutting System Yes
Eco Mode Yes
Rain Sensor Yes
Separate Mowing Areas Including Main 8
NAVIGATION
ZCS Connect Modulo (GPS, GSM) Yes
CONTROL DEVICES
User Interface Touchscreen Display
APP Control Bluetooth-GSM
Bluetooth Receiver Yes
Smart Assistant Yes
AMICO Optional
SAFETY
Safety PIN Pin & Geofence
STANDARD EQUIPMENT FOR INSTALLATION
Perimeter Wire Lenght [ft] 0
Fixing nails 100
Charging Station Yes
Recharging base cover –
FEATURES
Weight with Batteries Incl. [lbs] 108
Robot Size (lxwxh) 47.2 x 38.5 x 14.6 in
Wheel Profile Flex Rubber
Sound power[dB(A)] 69
Level of protection IP44
20 *acres referring to the maximum performance of the batteries. Based on the conditions of the turf and the complexity of the cutting area.RANGE
Live in the Future
21THE NEW GENERATION OF ROBOTIC LAWNMOWERS
The revolutionary NEXT Line was born in the era
of digital technology, the Internet of Things, Cloud,
and connectivity, but also the era of customizable
and flexible smart products.
The Z (post-millennial) generation of ZCS robotic lawnmowers is designed to anticipate future needs in lawn mowing and
autonomous and controlled management. The NEXT Line expands robot offerings able to cover any lawn area, even with the
most complex features.
HIGHLY TECHNOLOGICAL & CONNECTED
New on-board smart technologies make it possible to manage and control the robot wherever the user is located. High performance, highly
connected in the Cloud via IoT, Touch Display, remote management/control/monitoring thanks to the APP, which is compatible with any voice assistant.
RELIABILITY & WARRANTY
High quality materials, solid and reliable structure.
High performance with maximum reliability guaranteed up to 6 years*.
*only for 4.0 and 4.36 models.
MODULAR & CUSTOMIZABLE
The NEXT Line features a modular design with different Power Unit Kit (battery) options. With different kits, Ambrogio 4.0 (Basic and Elite models) and
4.36 models, can be adapted to your specific lawn requirements. Modular, articulated, and adaptable to different lawn needs. They are intuitive, with
brushless motors and wheels with rubberized profiles. Ideal for medium-sized yards, they can be adapted to smaller or larger spaces with the use of
different Power Unit Kits.
PET FRIENDLY (AMICO)
Ambrogio is friend to all animals and respects their need for space.
SDM CUTTING SYSTEM (SATELLITE DYNAMIC MEMORY)*
The satellite navigation system, based on advanced algorithms, allows the robot to recognize freshly mowed areas. The robot then creates virtual maps and
remembers the working times used for each area, saving time and increasing efficiency.
*Available on select models
+INFINITYSYSTEM*
Ambrogio's innovative navigation system allowing several robots to manage a large area simultaneously, in a smart and integrated way.
*Only for 4.0 Elite and 4.36 models.
22VIDEO
0.25 acres
The smallest of the new generation
A mini robotic lawnmower created to have even less impact on the environment and
equipped with the most advanced features. The latest generation processors, brushless
motors, powerful batteries, and 7 in blade allow the robot to manage up to 4 separate
areas. Excellent efficiency with fast and flawless results from a robot weighing under 16
lbs and measuring 16.5 in. The Elite and Elite S+ models are equipped with the ZCS
Connect module allowing you to manage, interact with, and monitor the functions of the
robot remotely. It is also compatible with voice assistants (SMART ASSISTANT) and with
AMICO.
m
42 c
0.17 acres 0.25 acres
0.32 acres
NEW
Smart Assistant (Elite and Elite S+) Next generation processors Bluetooth & GSM
ZCS Connect Keypad & LED
P. 34
Keypad commands 7” blade Flex rubber rear wheels Shelter garage (shiny black) AMICO
23THE CUSTOMIZED ROBOT THAT OFFERS UP TO A
6-YEAR WARRANTY!
Ambrogio 4.0 and 4.36 are the first models of the new digital era to revolutionize lawnmowing robotics. Equipped with a new technological
platform, futuristic design, and state-of-the-art jointed structure allowing it to articulate and better manage uneven terrain. Users can
customize their robot by selecting one of the Power Unit Kits designed to meet the needs of their property.
All the Power Units come with smart batteries!
Lithium-ion smart batteries are equipped with Bluetooth technology to exchange information with the motherboard, to optimise charging
and power consumption, and to monitor the battery's health.
Customizable Power Units: upgrade the robot's battery power and charging speed to enable managing lawns of different sizes more
efficiently with longer working times and shorter charging times.
Double and triple wheel options allow greater stability and traction with less pressure on the lawn. Spiked wheels can be fitted to help
the robot move over wet terrain and slopes. The robot will handle these obstacles so that you can fully enjoy your beautifully-manicured
outdoor space.
Power Unit Power Unit
Power Unit Power Unit EXTRA ULTRA
Power Unit
LIGHT MEDIUM PREMIUM PREMIUM PREMIUM
4.0 Basic only 4.0 Elite only 4.36 Elite only
Contact charging Contact charging Contact charging Inductive charging Contact charging
Battery Battery Battery Battery Battery
2.9 Ah 5.8 Ah 8.7 Ah 8.7 Ah 10.35Ah
Battery Charger Battery Charger Battery Charger Battery Charger Battery Charger
2.0 A 5.0 A 8.0 A 8.0 A 10.0 A
Working Time Working Time Working Time Working Time Working Time
1:30 h 3:00 h | 2:45 h 4:00 h | 3:45 h 3:45 h 4:00 h
4.0 Basic | 4.0 Elite 4.0 Basic | 4.0 Elite
Recharging Time Recharging Time Recharging Time Recharging Time Recharging Time
2:00 h 1:30 h 1:30 h 1:30 h 1:30 h
24VIDEO
0.55 acres*
The articulated robot that transforms itself
The 4.0 Basic model is ideal for those who require a simple, reliable robot that can
adapt to changes. Its flexible yet solid and safe design enables the installation of three
different types of Power Units, that allow it to be converted from a robot for small to
medium-sized lawns (with Power Unit Light up to 0.25 acres, or with Power Unit Medium
up to 0.35 acres) to a solution that covers up to 0.55 acres (with Power Unit Premium).
With brushless motors, rubber profile wheels, and soft bumpers this innovative robot will
meet all sort of needs. Equipped with a Bluetooth Receiver that can be independently
controlled by a dedicated APP. This new design also allows greater autonomy: with a deck
engineered around the blade, it provides quick and safe self-cleaning.
Power Unit Power Unit Power Unit
LIGHT MEDIUM PREMIUM
0.25* 0.35* 0.55*
acres acres acres Contact charging
suggested suggested suggested
0.20 acres 0.30 acres 0.45 acres
Next generation processors App Bluetooth Smart batteries Rubber wheels Keypad & LED
* The platform is designed for work on indicated surfaces, in ideal cutting conditions: a simple, rectangular-shaped
flat lawn, without any obstacles or additional areas and a moderate lawn growth speed. Jointed Self-cleaning
P. 34
Keypad & LED 10" blade Double tired rubber wheels Spiked wheels Shelter garage (shiny black)
250.86 acres*
Super Smart, Super Flex … the future is now!
The Elite model combines flexibility and modularity with 4.0 technological innovation. It
is built around the ZCS Connect module that, together with GPS, Bluetooth, and GSM
technology, enables communication with the robot any time and anywhere. It is possible
to stop, start, exclude areas to be cut, and monitor the robot with a simple click on
your device. Thanks to the Geofence Alarm, the system will warn the user when the
robot leaves the lawn area. This way, you will always be aware of the movements that
your Ambrogio 4.0 makes. It is also fitted with a state-of-the-art anti-theft system. It
can be combined with the Medium, Premium, and Extra Premium Power Units ranging
between 0.55 and 0.85 acres. The Extra Premium kit makes it possible to equip the
robot with the inductive recharge device. Ambrogio only needs to brush against the
station to recharge itself. Induction recharging removes the usual need to regularly clean
the charging contacts. Blade height is easy to adjust as it is motorized and adjustable
from the APP. The ZCS technology is more user-friendly and interactive than ever before:
enabling easier management of your lawn in a completely autonomous manner. It is also
compatible with voice assistants (SMART ASSISTANT) and with AMICO.
Always, anywhere, anytime… Ambrogio!
Power Unit
Power Unit EXTRA Power Unit
MEDIUM PREMIUM PREMIUM
0.55 0.85 0.85
acres acres acres
suggested suggested suggested * The platform is designed for work on indicated surfaces, in ideal cutting conditions: a simple, rectangular-
0.45 acres 0.80 acres 0.80 acres
shaped flat lawn, without any obstacles or additional areas and a moderate lawn growth speed.
P. 34
Touchscreen display 6 cutters Inductive charging Spiked wheels Shelter garage (shiny black)
26VIDEO
+INFINITYSYSTEM
Smart Assistant Next generation processors Bluetooth & GSM ZCS Connect Smart batteries
Motorized blade height Jointed for uneven
Self-cleaning Rubber wheels Touch Display
adjustment terrain
SDM Cutting System (Satellite Dynamic Memory) T he satellite navigation system, based on advanced algorithms, allows the robot to recognize freshly
mowed areas. The robot then creates virtual maps and remembers the working times used for each area, saving time and increasing efficiency.
Scan the photo with the
Ambrogio Remote APP
to see the video
27VIDEO
1.50 acres*
Powerful and jointed
+INFINITYSYSTEM
The powerful battery and 14” blade of the Ambrogio 4.36 Elite model allow it to handle
large areas. With the ULTRA PREMIUM Power Unit Kit, the robot will work for over 4 hours,
and manage up to 1.50 acres. It comes highly equipped with all the latest technologies
(Touchscreen display, ZCS Connect, GPS, Bluetooth and GSM), and is able to work in a
team with other robots. It is also compatible with voice assistants (SMART ASSISTANT)
and with AMICO.
SDM Cutting System (Satellite Dynamic Memory) T he satellite navigation system,
based on advanced algorithms, allows the robot to recognize freshly mowed areas. The
robot then creates virtual maps and remembers the working times used for each area,
saving time and increasing efficiency.
Power Unit
ULTRA PREMIUM
1.50
acres
Smart Assistant Next generation processors Bluetooth & GSM ZCS Connect Smart batteries
Motorized blade height Jointed for uneven
Self-cleaning Rubber wheels Touch Display
adjustment terrain
P. 34
Touchscreen display 4 point star blade Triple rubber wheels Spiked wheels Shelter garage (shiny black)
28For the Ambrogio 4.0 Basic and Elite and the Ambrogio
4.36, Zucchetti Centro Sistemi (ZCS) offers an extended
warranty up to 6 years!
Warranty up to 6 years
2 year warranty
covering the conditions and limitations stated in the warranty booklet
+
4 year extension
to the warranty covering plastic components that are not subject to wear and tear that have manufacturing defects.
to the warranty covering electronic components excluding the limitations specified in the warranty booklet.
to the warranty covering cutting and propulsion motors limited up to 5,000 hours of operation.
To validate the warranty extension, it is mandatory to carry out regular winter servicing, register such servicing on the
manufacturer’s website, and request the appropriate filing of the completed certifications.
29NEW
MODEL DESCRIPTIONS TWENTY Deluxe TWENTY Elite TWENTY Elite S+
POWER
Maximum cutting surface [acres] (-20%)* 0.17 acres 0.25 acres 0.32 acres
Motor type Brushless Brushless Brushless
Max. permissible Slope (degrees) 24 24 24
Max. Slope (degrees) 20 20 20
Slope on outer edge/perimeter wire (degrees) 11 11 11
CUTTING SYSTEM
Blade Type 4 Point Star Blade 4 Point Star Blade 4 Point Star Blade
Cutting Width [in] 7 7 7
Cutting Height (min-max) [in] 1.0 - 2.8 1.0 - 2.8 1.0 - 2.8
Cutting Height Adjustment Manual Manual Manual
Spiral Cutting System Yes Yes Yes
“SDM” Cutting System No Yes Yes
"+ Infinity" Cutting System No No No
Self-Levelling – – –
Eco Mode Yes Yes Yes
Rain Sensor Yes Yes Yes
Manageable Areas Including the Main 4 4 4
NAVIGATION
ZCS Connect Module (GPS, GSM) Optional Yes Yes
CONTROL DEVICES
User Interface Keypad & LED Keypad & LED Keypad & LED
APP Control Bluetooth Bluetooth-GSM Bluetooth - GSM
Bluetooth Receiver Yes Yes Yes
Smart Assistant Included in ZCS Connect Yes Yes
AMICO Optional Optional Optional
SAFETY
Safety PIN PIN Code via APP PIN Code via App & Geofence PIN Code via App & Geofence
STANDARD EQUIPMENT FOR INSTALLATION
Perimeter Wire Lenght [ft] 0 0 0
Fixing nails 20 20 20
Charging Station Yes Yes Yes
Recharging base cover Optional Optional Optional
FEATURES
Robot Size (lxwxh) 16.5 x 11.4 x 8.7 in 16.5 x 11.4 x 8.7 in 16.5 x 11.4 x 8.7 in
Wheel Profile Rubber Rubber Rubber
Sound power [dB(A)] 59 59 59
Level of protection IPx5 IPx5 IPx5
Maximum suggested cutting surface [acres] (-20%) 0.17 acres 0.25 acres 0.32 acres
Lithium-Ion Battery (25.9V) 2.5Ah-64Wh 2.5Ah-64Wh 5Ah - 130Wh
Quantity of batteries 1x2.5 Ah 1x2.5 Ah 1x5.0 Ah
Average Working Time [h] (+-20%) 02:00 02:00 04:00
Recharge Mode Contact Contact Contact
Battery Chargers 2,3A-68W 2,3A-68W 5,0A - 150W
Weight with Batteries Incl. [lbs] 7.1 7.2 7.5
30 *acres referring to the maximum performance of the batteries. Based on the conditions of the turf and the complexity of the cutting area.4.0 Basic 4.0 Elite 4.36 Elite
Driving unit set up to 0.55 acres* Driving unit set up to 0.85 acres* 1.50 acres
Brushless Brushless Brushless
24 24 24
20 20 20
11 11 11
4 Point Star Blade 6 Cutter 4 Point Star Blade
10 10 14.2
0.8 - 2.6 0.8 - 2.6 0.8 - 2.6
Manual Automatic Automatic
Yes Yes Yes
No Yes Yes
No Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
4 8 8
Optional Yes Yes
Keypad & LED Touchscreen Display Touchscreen Display
Bluetooth Bluetooth-GSM Bluetooth-GSM
Yes Yes Yes
Included in ZCS Connect Yes Yes
Optional Optional Optional
PIN Code via APP PIN & Geofence PIN & Geofence
0 0 0
20 20 20
Yes Yes Yes
Optional Optional Optional
25 x 18.3 x 11.8 in 25 x 18.3 x 11.8 in 30.9 x 21.1 x 11.8 in
Flex Rubber Flex Rubber Flex Rubber
63 63 65
IPx5 IPx5 IPx5
Power Unit Power Unit Power Unit Power Unit Power Unit Power Unit Power Unit
LIGHT MEDIUM PREMIUM MEDIUM PREMIUM EXTRA PREMIUM ULTRA PREMIUM
0.2 acres 0.3 acres 0.45 acres 0.45 acres 0.80 acres 0.80 acres 1.5 acres
2.9Ah - 73Wh 5.8Ah - 146Wh 8.7Ah - 220Wh 8.7Ah - 220Wh 8.7Ah - 220Wh 8.7Ah - 220Wh 10.35Ah - 260 Wh
1x2.9 Ah 1x5.8 Ah 1x8.7 Ah 1x5.8 Ah 1x8.7 Ah 1x8.7 Ah 1x10.35 Ah
01:30 03:00 04:00 02:45 03:45 03:45 04:00
Contact Contact Contact Contact Contact Inductive Contact
2.0A-60W 5.0A-150W 8.0A-235W 5.0A-150W 8.0A-235W 8.0A-235W 10.0A-300W
15.0 15.3 15.6 15.5 15.8 15.8 18
31ACCESSORIES
Installation Kit
PRODUCTS COMPOSITION ITEM NUMBER
Installation Kit SS 492 ft wire (2.5mm) 300 pegs 3 connectors 200A00060A
Installation Kit S 492 ft wire (3.0mm) 300 pegs 3 connectors 200A00065A
Installation Kit L 984 ft wire (3.0mm) 500 pegs 6 connectors 200A00070AACCESSORIES
Recharging base cover
PRODUCTS ITEM NUMBER AMBROGIO MODEL
Shelter Garage (shiny black) 015Z11800A
Shelter Garage (black carbon) 051Z19000A
Shelter Garage (shiny black) 051A00050A
Shelter Garage (shiny black) 110Z66200A
Shelter Garage (shiny black) 300Z42300A
Shelter Garage (shiny black) 075Z45800A
33ACCESSORIES
Spikes
PRODUCTS ITEM NUMBER AMBROGIO MODEL
Spiked wheels 051Z50900A
Spiked wheels 110Z54001A
Spiked wheels 042Z21900A
PRODUCTS ITEM NUMBER AMBROGIO MODEL
Pet safety device 030Z22500A
34ACCESSORIES
The companion device for your
Ambrogio
Ambrogio is a friend to all animals and respects their need for space.
AMICO is the ZCS technology that ensures the safe operation of Ambrogio robots near animals wearing an AMICO, automatically
shutting down the blade. A micro device placed on an average/large-sized pet’s collar, or on its back, as in the case of a tortoise. The
AMICO tag communicates with Ambrogio robot as it approaches any animal with the tag.
AMICO is harmless and safe.
AMICO is available for all models of the Ambrogio range.
For more information, please visit ambrogiorobot.com or contact your dealer.
Scan the photo with the
Ambrogio Remote APP
to see the video
35TECHNOLOGY
Ambrogio Remote APP
Graphic Manual robot control Download
restyling via Bluetooth manuals
With the ZCS CONNECT MODULE* the future is now!
Geographic localisation Geofence alarm Go away Go Home
displays the robot's an evolved anti-theft temporarily excludes a sends the robot to the
location on the map device particular area of the garden recharging base
The functions available for the L60 are: *ZCS Connect module requires coverage
Remote monitoring of the robot status | Receive error notifications and a data transfer connection. Contact
your dealer to inquire about the necessary
| Receiving Geofence notifications | Stop the robot frequencies and to verify the operating
requirements in your country. Free data traffic
for two years. Renewable on expiry.
Scan the photo with the
Ambrogio Remote APP
to see the video
36TECHNOLOGY
Ambrogio robot speaks the
language of the future!
The models equipped with ZCS Connect are able to communicate with the most popular voice assistants (Apple’s Siri,
Google Home, and Amazon’s Alexa). The function allows you to control the robot with simple voice commands,
without using an APP or a display, but remotely via a simple internet connection.
With voice commands, you can*:
• know what Ambrogio Robot is doing
• make Ambrogio work immediately
• send Ambrogio to the charging station
• get working statistics
Interact with your Ambrogio robot by giving it voice commands!
*For specific commands, please refer to the “guide” sections
in the APPs of Ambrogio, Alexa, and Google Home.
37TECHNOLOGY
+INFINITYSYSTEM
The innovative navigation system that allows several robots to manage a
large area simultaneously, in a smart and integrated way.
+INFINITYSYSTEM*, through Cloud technologies and ZCS Connect, creates a constantly shared virtual map of the
area to be mowed. The shared map allows robots to know what areas have already been cut, optimizing the working
time, without neglecting any area, and with maximum precision.
Robots equipped with +INFINITYSYSTEM have the ability to readjust themselves to work in areas that have increased
their surface over time. External areas which become “yards” can be managed in a perfect combination with all the
other green spaces.
The + INFINITYSYSTEM system is recommended for the maintenance of medium/large spaces up to very large areas
such as sports fields, airfields, parks, and golf courses.
* Available on select models of the Ambrogio 2021 range, prior to a technical evaluation of the area.
Scan the photo with the
Ambrogio Remote APP
to see the video
38THE ROBOT SPECIALISTS
Since 2000 Zucchetti Centro Sistemi has designed, created and innovated its
Ambrogio robot lawnmowers.
Come and discover Ambrogio robot lawnmowers at your nearest authorized dealer
in order to obtain the following:
Professional guidance and support Specialized technical assistance in Original spare parts guaranteed
during the robot selection phase case of malfunctioningZucchetti Centro Sistemi SpA
Via Lungarno, 305/A
52028 - Terranuova B.ni (AR) - Italy Ambrogio Robot
Phone +39 055 91971 - Fax +39 055 9197515
ambrogiorobot.com
Dealer
project design: settore8.itYou can also read
