BROCHURE TELTONIKA
2020
www.telestar-automation.it Teltonika Brochure 2020 4
www.telestar-automation.it Teltonika Brochure 2020
TABLE OF CONTENTS / V1.1
MODEMS ACCESSORIES COMPATIBILITY 54
TRM240 6
USE CASES
TRM250 8 INDUSTRY 4.0 POWDER COATING SYSTEMS 56
GATEWAYS SMART GRID & SUBSTATION COMMUNICTION 57
TRB140 10
DIGITAL SIGNAGE & CELLULAR CONNECTIVITY 58
TRB141 12
CCTV CONSTRUCTION SITE MONITORING 59
TRB142 14
4G CONNECTIVITY FOR RETAIL 60
TRB145 16
INTELLIGENT TRAFFIC SYSTEM CONNECTIVITY 61

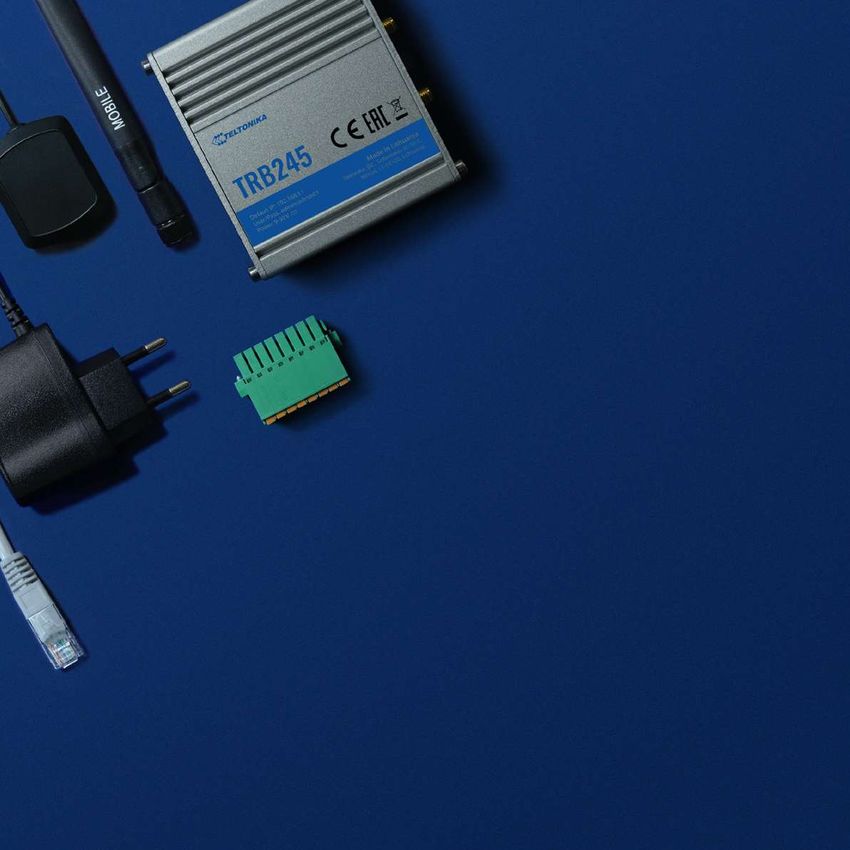

TRB245 18
TRB255 20
ROUTERS
RUT230 22
RUT240 24
RUT850 26

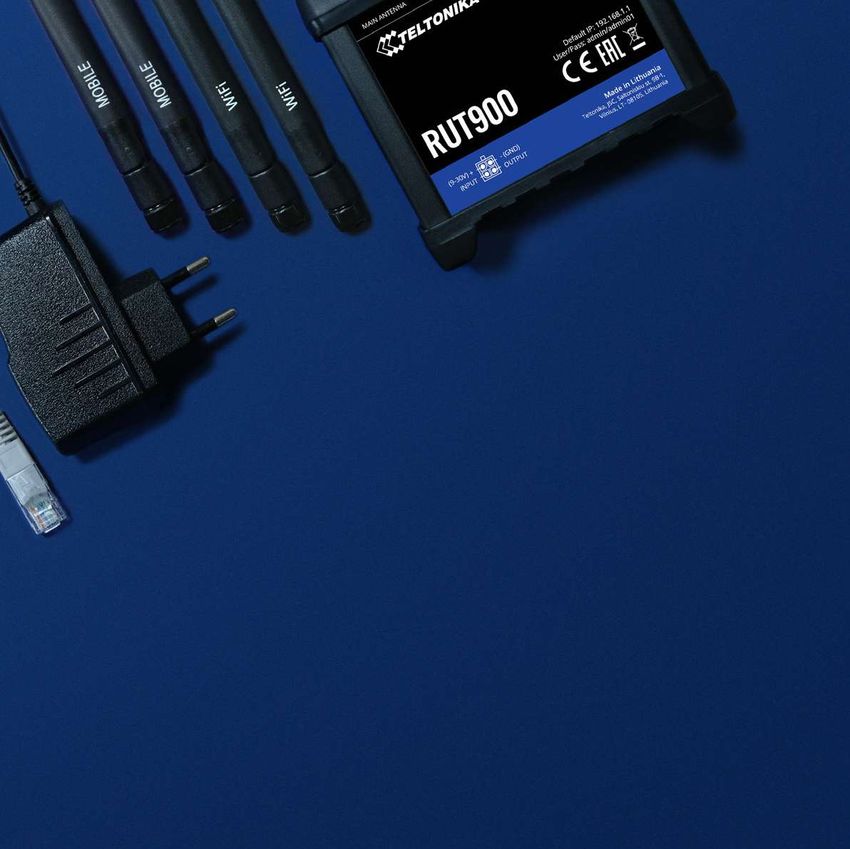

RUT900 28
RUT950 30

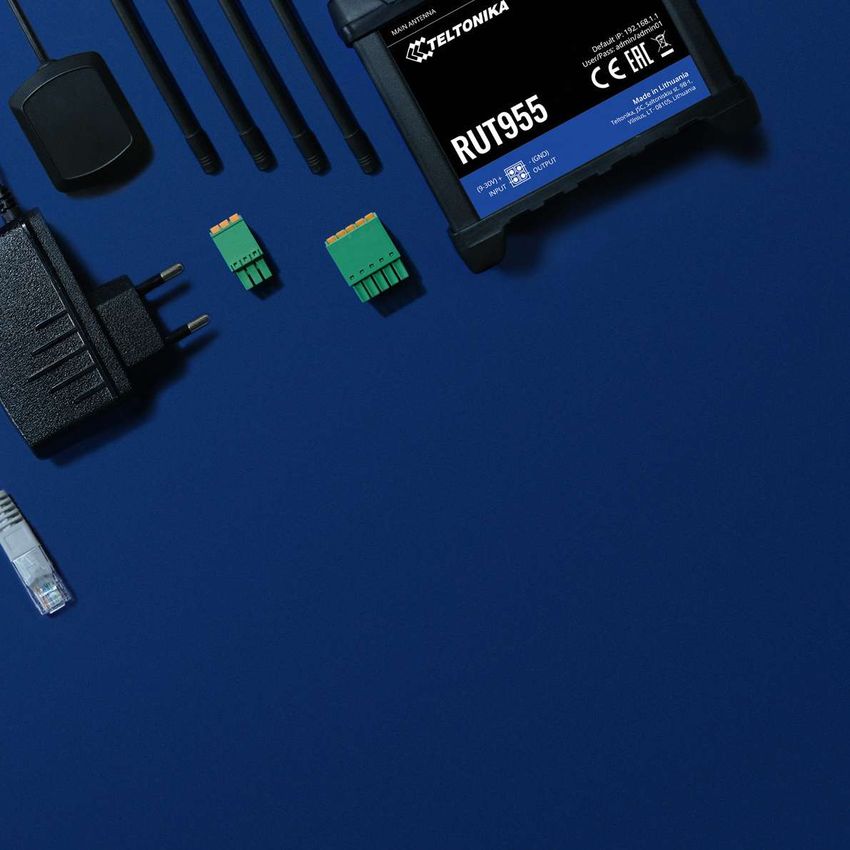

RUT955 32

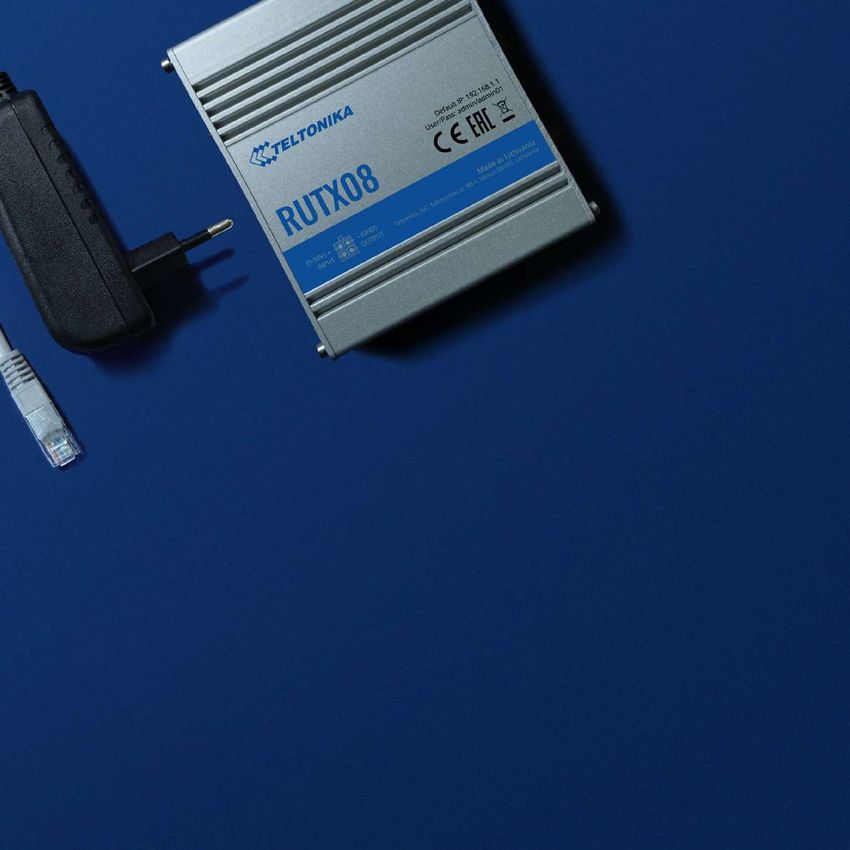

RUTX08 34

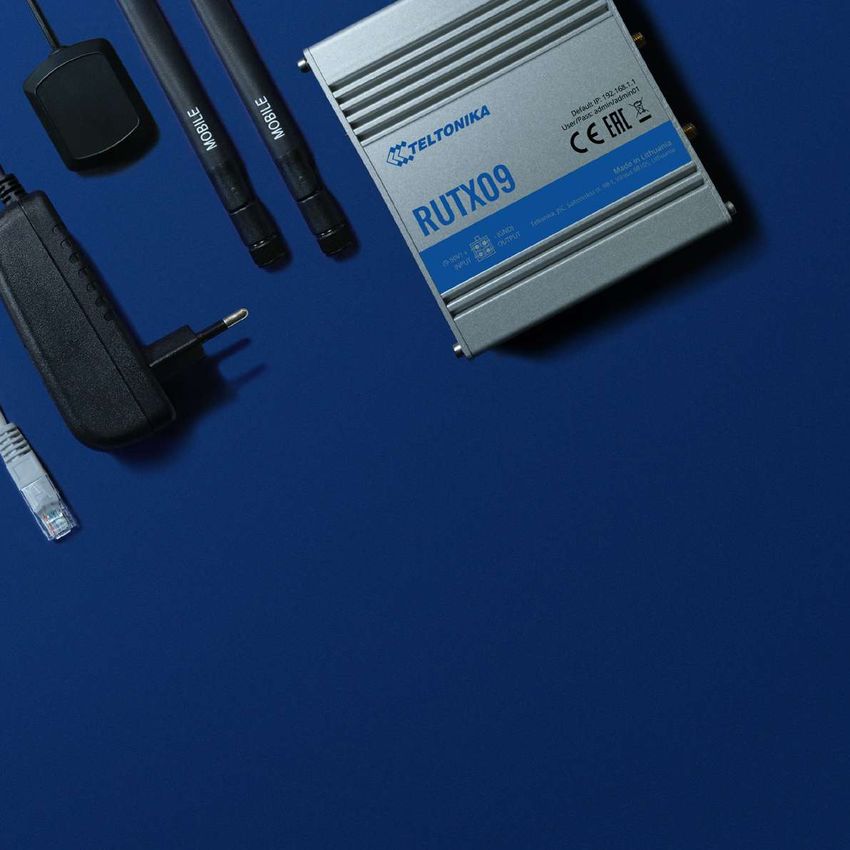

RUTX09 36

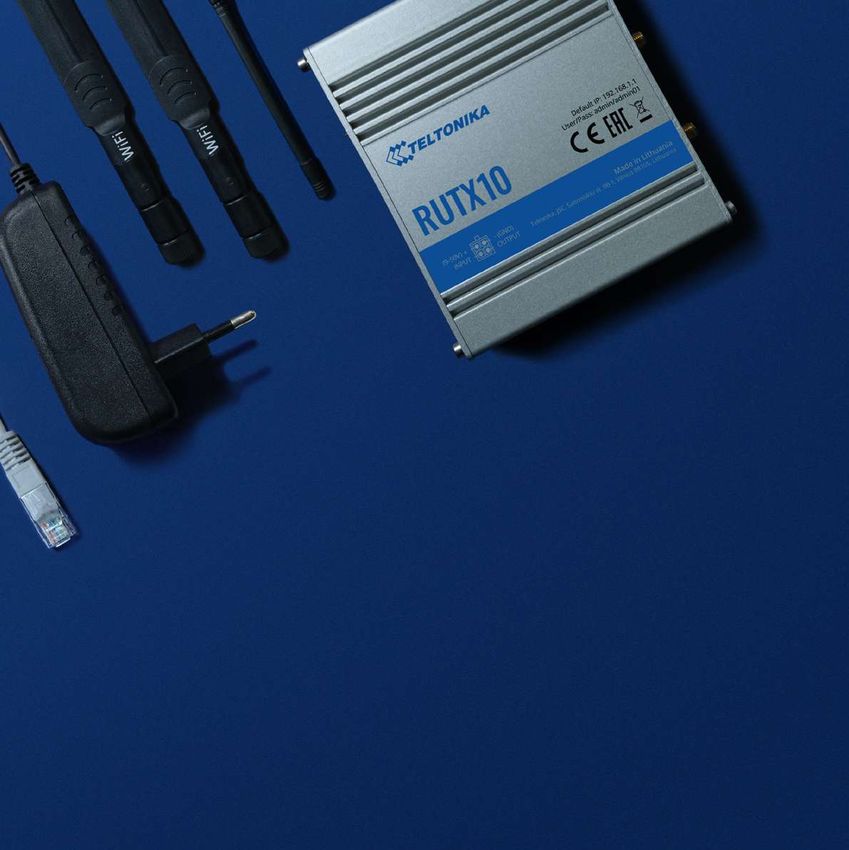

RUTX10 38

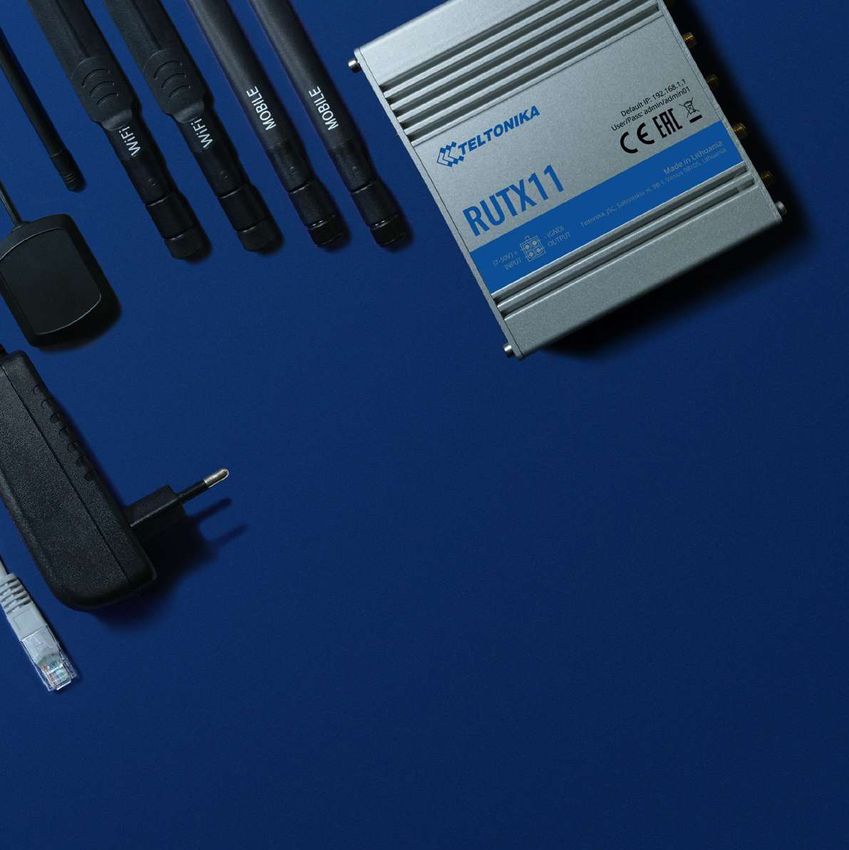

RUTX11 40
RUTX12 42
RUTXR1 44
SOFTWARE
RMS 46
RUTOS 48
NETWORKING PRODUCTS COMPARISON 50
ACCESSORIES
POWERING OPTIONS 51
ANTENNA OPTIONS 52
MOUNTING OPTIONS 53
BLUETOOTH SENSORS 53
5
www.telestar-automation.it Teltonika Brochure 2020
TRM240 INDUSTRIAL CELLULAR MODEM
TRM240 is an Industrial grade USB LTE Cat 1 Modem with rugged housing and external antenna for better signal
coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
CONNECTIVITY DURABLE USB
4G/LTE (Cat 1), 3G, 2G Rugged aluminium housing Interface for internet accsess
EFFICIENT COMPACT EASY TO USE
Low power consumption Small size, easy installation Controlled using Network manager
6
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.it
www.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 1), 3G, 2G
Powering option microUSB, 5 VDC
SIM 1 x Internal SIM holder (2FF)
Antenna connectors 1 x SMA for mobile
USB 1 x Micro USB slave
Status LEDs 1 x LTE, 1 x Network, 1 x Power
Ingress protection rating IP30
Operating humidity 10 % to 90 % non-condensing
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 75 x 25 x 65 mm
Weight 125 g
SOFTWARE
Windows 7/8/8.1/10
Network manager
Linux distributions
Windows 7/8/8.1/10
Windows CE 5.0/6.0
USB serial driver
Linux 2.6~5.4
Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL driver Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS driver Windows 7/8/8.1/10
Gobinet driver Linux 2.6~5.4
QMI_WWAN driver Linux 3.4~5.4
Control via AT commands 3GPP TS27.007 and enhanced AT commands
7
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.it
www.telestar-automation.it Teltonika Brochure 2020
TRM250 INDUSTRIAL CELLULAR MODEM
TRM250 is an Industrial grade USB LTE Cat-M1/NB-IoT/EGPRS Modem with rugged housing and external
antenna for better signal coverage. This product is perfect for providing cost-efficient Internet connectivity
in remote monitoring applications.
CONNECTIVITY DURABLE USB
4G/LTE (Cat M1), NB-IoT, 2G Rugged aluminum housing Interface for internet accsess
EFFICIENT COMPACT EASY TO USE
Low power consumption Small size, easy installation Controlled using Network manager
8
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.it
www.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat M1), NB-IoT, 2G
Powering option microUSB, 5 VDC
SIM 1 x Internal SIM holder (2FF)
Antenna connectors 1 x SMA for mobile
USB 1 x Micro USB slave
Status LEDs 1 x Network, 1 x Power
Ingress protection rating IP30
Operating humidity 10 % to 90 % non-condensing
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 75 x 25 x 65 mm
Weight 125 g
SOFTWARE
Windows 7/8/8.1/10
Network manager
Linux distributions
Windows 7/8/8.1/10
Windows CE 5.0/6.0
USB serial driver
Linux 2.6~5.4
Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL driver Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS driver Windows 7/8/8.1/10
Gobinet driver Linux 2.6~5.4
QMI_WWAN driver Linux 3.4~5.4
Control via AT commands 3GPP TS27.007 and enhanced AT commands
9
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB140 INDUSTRIAL RUGGED LTE GATEWAY
Ultra-small, lightweight and energy efficient IoT device equipped with mission-critical LTE connectivity, Gigabit
Ethernet interface and Linux environment offering a high degree of customization. TRB140 is perfect for projects
and applications where a single device must be upgraded with reliable and secure Internet connectivity.
CONNECTIVITY DURABLE RUTOS
Rugged aluminum housing Easy to use, secure and feature rich
4G/LTE (Cat 4), 3G, 2G
OpenWRT based operating system
9-30V COMPACT RMS
Wide range of supported power supply Small size, easy installation Compatible with Teltonika Remote
voltages Management System
10
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Qualcomm, ARM Cortex A7, 1.2 GHz
Memory 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace)
Powering option 4pin power socket, 9-30 VDC
SIM 1 x Internal SIM holder (2FF)
Antenna connectors 1 x SMA for mobile
Ethernet 1 x 10/100/1000 Ethernet port
Inputs/Outputs On 4pin socket: 2 x Digital input/Digital open collector output (configurable)
Other 1 x Micro USB slave
Status LEDs 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 75 x 25 x 65 mm
Weight 134 g
SOFTWARE
Operating system RutOS
Mobile features Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers,
Firewall
Unlimited firewall configuration via CLI
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port
Security
scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS
SMS features
to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
11
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB141 INDUSTRIAL RUGGED GPIO LTE GATEWAY
Industrial and small LTE Cat 1 Gateway equipped with multiple Inputs/Outputs and MicroUSB port. Compact
design makes this Gateway perfect for applications where devices must be remotely managed using I/O’s.
CONNECTIVITY DURABLE I/O
4G/LTE (Cat 1), 3G, 2G Rugged aluminum housing Wide range of multiple Inputs/Outputs
for remote monitoring and control
9-30V COMPACT RMS
Wide range of supported power supply Small size, easy installation Compatible with Teltonika Remote
voltages Management System
12
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
HARDWARE
Mobile
Mobile 4G/LTE
4G/LTE
(Cat(Cat
1), 3G,
1), 3G,
2G 2G
CPUCPU Qualcomm,
Qualcomm,
ARM
ARM
Cortex
Cortex
A7, A7,
1.2 1.2
GHzGHz
Memory
Memory 512512
MBytes
MBytes
Flash
Flash
(70 (70
MBytes
MBytes
for for
userspace),
userspace),
128128
MBytes
MBytes
RAMRAM
(50 (50
MBytes
MBytes
for for
userspace)
userspace)
Powering
Powering
option
option 4pin4pin
power
power
socket,
socket,
9-309-30
VDCVDC
SIMSIM 1x1
Internal
x Internal
SIMSIM
holder
holder
(2FF)
(2FF)
Antenna
Antenna
connectors
connectors 1x1
SMA
x SMA
for for
mobile
mobile
On On
4pin4pin
socket:
socket:
2x2 Digital
x Digital
input/Digital
input/Digital
openopen
collector
collector
output
output
(configurable)
(configurable)
Inputs/Outputs
Inputs/Outputs On On
16pin
16pin
socket:
socket:
1x1 Isolated
x Isolated
input,
input,
1x1 Single
x Single
wirewire
input,
input,
1x1 Analog
x Analog
input
input
(with
(with
4-20mA
4-20mA
capability),
capability),
1x1Latching
x Latching
relay
relay
output,
output,
1x1 Non-latching
x Non-latching
relay
relay
output,
output,
2x2Dry/Wet
x Dry/Wet
input
input
(configurable)
(configurable)
Other
Other 1x1
Micro
x Micro
USBUSB
slave
slave
Status
Status
LEDs
LEDs 3x3
Connection
x Connection
type,
type,
5x5Signal
x Signal
strength,
strength,
1x1 Power
x Power
Operating
Operating
temperature
temperature -40 -40
°C to
°C75
to °C
75 °C
Housing
Housing Aluminium
Aluminium
housing
housing
withwith
DINDIN
rail rail
mounting
mounting
option
option
Dimensions
Dimensions
(W x(W
H xx H
D)x D) 75 x75
25x x25
65x mm
65 mm
Weight
Weight 136136
g g
SOFTWARE
SOFTWARE
Operating
Operating system
system RutOS
RutOS
Network
Network protocols
protocols TCP,TCP,
UDP,UDP,
IPv4,
IPv4,
IPv6,
IPv6,
ICMP,
ICMP,
NTP,NTP,
DNS,DNS,
HTTP,
HTTP,
HTTPS,
HTTPS,
FTP,FTP,
SMTP,
SMTP,
SSLv3,
SSLv3,
TLS TLS
1.3,1.3,
ARP,ARP,
PPP,PPP,
DHCP,
DHCP,
Telnet
Telnet
VPNVPN
andand
tunneling
tunneling OpenVPN,
OpenVPN,
IPsec,
IPsec,
GRE,
GRE,
PPTP,
PPTP,
L2TP
L2TP
Monitoring
Monitoring
andand
Management
Management WEB
WEB
UI, CLI,
UI, CLI,
SSH,SSH,
SMS,SMS,
TR-069,
TR-069,
SNMP,
SNMP,
JSON-RPC,
JSON-RPC,
MQTT,
MQTT,
RMSRMS
Connection
Connection
monitoring
monitoring PingPing
Reboot,
Reboot,
WgetWget
reboot,
reboot,
Periodic
Periodic
Reboot,
Reboot,
LCPLCP
andand
ICMP
ICMP
for for
linklink
inspection
inspection
Cloud
Cloud
solutions
solutions RMS,
RMS,
FOTA,
FOTA,
Telenor,
Telenor,
Azure
Azure
IoT IoT
Hub,Hub,
Cloud
Cloud
of Things,
of Things,
Cumulocity,
Cumulocity,
ThingWorx
ThingWorx
Services
Services DDNS,
DDNS,
VRRP,
VRRP,
WEBWEB
filter,
filter,
UPNP,
UPNP,
Traffic
Traffic
Logging
Logging
13 13
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB142 INDUSTRIAL RUGGED LTE RS232 GATEWAY
Ultra-small, lightweight and energy efficient IoT device equipped with mission-critical LTE connectivity. TRB142
comes with a widely used RS232 Industrial interface for remote device management.
CONNECTIVITY DURABLE SERIAL
4G/LTE (Cat 1), 3G, 2G Rugged aluminum housing Equipped with RS232 for serial
communication
9-30V COMPACT RMS
Wide range of supported power supply Small size, easy installation Compatible with Teltonika Remote
voltages Management System
14
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
HARDWARE
Mobile
Mobile 4G/LTE
4G/LTE
(Cat 1),
(Cat3G,
1),2G
3G, 2G
CPU CPU Qualcomm,
Qualcomm,
ARMARM
Cortex
Cortex
A7, 1.2
A7,GHz
1.2 GHz
Memory
Memory 512 MBytes
512 MBytes
FlashFlash
(70 MBytes
(70 MBytes
for userspace),
for userspace),
128 MBytes
128 MBytes
RAMRAM
(50 MBytes
(50 MBytes
for userspace)
for userspace)
Powering
Powering
option
option 4pin 4pin
powerpower
socket,
socket,
9-30 9-30
VDC VDC
SIM SIM 1 x Internal
1 x Internal
SIM holder
SIM holder
(2FF)(2FF)
Antenna
Antenna
connectors
connectors 1 x SMA
1 x SMA
for mobile
for mobile
Inputs/Outputs
Inputs/Outputs On 4pin
On 4pin
socket:
socket:
2 x Digital
2 x Digital
input/Digital
input/Digital
openopen
collector
collector
output
output
(configurable)
(configurable)
SerialSerial 1 x RS232
1 x RS232
Other
Other 1 x Micro
1 x Micro
USB USB
slaveslave
Status
Status
LEDsLEDs 3 x Connection
3 x Connection
type,type,
5 x Signal
5 x Signal
strength,
strength,
1 x Power
1 x Power
Operating
Operating
temperature
temperature -40° -40°
C to 75°
C toC75° C
Housing
Housing Aluminium
Aluminium
housing
housing
with with
DIN rail
DINmounting
rail mounting
option
option
Dimensions
Dimensions
(W x (W
H xxD)
H x D) 75 x 75
25 x 25
65 xmm
65 mm
Weight
Weight 135 g135 g
SOFTWARE
SOFTWARE
Operating
Operating system
system RutOS
RutOS
Network
Network protocols
protocols TCP, TCP,
UDP,UDP,
IPv4, IPv4,
IPv6, IPv6,
ICMP,ICMP,
NTP, NTP,
DNS,DNS,
HTTP,HTTP,
HTTPS,
HTTPS,
FTP, SMTP,
FTP, SMTP,
SSLv3,
SSLv3,
TLS 1.3,
TLSARP,
1.3, ARP,
PPP, PPP,
DHCP,DHCP,
Telnet
Telnet
Monitoring
Monitoring
and Management
and Management WEBWEB
UI, CLI,
UI, SSH,
CLI, SSH,
SMS,SMS,
TR-069,
TR-069,
SNMP,
SNMP,
JSON-RPC,
JSON-RPC,
MQTT,
MQTT,
RMS RMS
Connection
Connection
monitoring
monitoring Ping Ping
Reboot,
Reboot,
WgetWget
reboot,
reboot,
Periodic
Periodic
Reboot,
Reboot,
LCP and
LCP ICMP
and ICMP
for link
for inspection
link inspection
Cloud
Cloud
solutions
solutions RMS,RMS,
FOTA,
FOTA,
Telenor,
Telenor,
Azure
Azure
IoT Hub,
IoT Hub,
CloudCloud
of Things,
of Things,
Cumulocity,
Cumulocity,
ThingWorx
ThingWorx
Modbus
Modbus TCP slave,
TCP slave,
TCP master,
TCP master,
RTU RTU
master,
master,
RTU RTU
gateway,
gateway,
Modbus
Modbus
over over
MQTT MQTT
SerialSerial Console,
Console,
OverOver
IP, Modem,
IP, Modem,
NTRIP,
NTRIP,
Modbus
Modbus
15 15
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB145 INDUSTRIAL RUGGED LTE RS485 GATEWAY
Ultra-small, lightweight and energy efficient IoT device equipped with mission-critical LTE connectivity. TRB145
comes with a widely used RS485 Industrial interface for remote device management.
CONNECTIVITY DURABLE SERIAL
4G/LTE (Cat 1), 3G, 2G Rugged aluminum housing Equipped with RS485 for serial
communication
9-30V COMPACT RMS
Wide range of supported power supply Small size, easy installation Compatible with Teltonika Remote
voltages Management System
16
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 1), 3G, 2G
CPU Qualcomm, ARM Cortex A7, 1.2 GHz
Memory 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace)
Powering option 4pin power socket, 9-30 VDC
SIM 1 x Internal SIM holder (2FF)
Antenna connectors 1 x SMA for mobile
Inputs/Outputs On 4pin socket: 2 x Digital input/Digital open collector output (configurable)
Serial 1 x RS485
Other 1 x Micro USB slave
Status LEDs 3 x Connection type, 5 x Signal strength, 1 x Power
Operating temperature -40° C to 75° C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 75 x 25 x 65 mm
Weight 130 g
SOFTWARE
Operating system RutOS
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Monitoring and Management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Modbus TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial Console, Over IP, Modem, NTRIP, Modbus
17
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB245 INDUSTRIAL M2M LTE GATEWAY
Industrial All-In-One M2M LTE Cat 4 Gateway equipped with multiple Inputs/Outputs, RS232, RS485 and
Ethernet interfaces. All these features allow this device to be used universally in M2M applications.
CONNECTIVITY DUAL SIM SERIAL
4G/LTE (Cat 4), 3G, 2G With auto failover, backup WAN and other RS232/RS485 serial communication
switching scenarios interfaces
9-30V I/O GNSS
Wide range of power supply voltages Multiple Inputs and Outputs for remote Global Navigation Satellite System for location
monitoring and control services with geofencing functionality
18
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE COMING
SOON
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Qualcomm, MIPS 24Kc, 650 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 16pin terminal, 9-30 VDC
SIM 2 x Internal SIM holders (2FF)
Antenna connectors 1 x SMA for mobile, 1 x SMA for GPS
Ethernet 1 x 10/100 Ethernet port
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs On 16pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
Serial 1 x RS232, 1 x RS485
Status LEDs 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 165 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Monitoring and Management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
Modbus TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial Console, Over IP, Modem, NTRIP, Modbus
Administration Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
19
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
TRB255 INDUSTRIAL M2M GATEWAY
Industrial All-In-One M2M LTE Cat-M1/NB-IoT/EGPRS Gateway equipped with multiple Inputs/Outputs, RS232,
RS485 and Ethernet interfaces. All these features allow this device to be used universally in M2M applications.
CONNECTIVITY DUAL SIM SERIAL
4G/LTE (Cat M1), NB-IoT, 2G With auto failover, backup WAN and RS232/RS485 serial communication
other switching scenarios interfaces
9-30V I/O GNSS
Wide range of supported power supply Multiple Inputs and Outputs for remote Global Navigation Satellite System for location
voltages monitoring and control services with geofencing functionality
20
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE COMING
SOON
Mobile 4G/LTE (Cat M1), NB-IoT, 2G
CPU Qualcomm, MIPS 24Kc, 650 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 16pin terminal, 9-30 VDC
SIM 2 x Internal SIM holders (2FF)
Antenna connectors 1 x SMA for mobile, 1 x SMA for GPS
Ethernet 1 x 10/100 Ethernet port
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs On 16pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
Serial 1 x RS232, 1 x RS485
Status LEDs 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 165 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Monitoring and
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
management
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
Modbus TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial Console, Over IP, Modem, NTRIP, Modbus
Administration Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
21
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT230 INDUSTRIAL CELLULAR ROUTER
Compact, robust and powerful device tailored for Industrial M2M/IoT applications where no high data throughput
is needed. RUT230 is equipped with 2 x Ethernet and Wireless interfaces. Device provides secure and stable
Internet connectivity for Industrial applications using RutOS software and security features.
CONNECTIVITY WAN FAILOVER WIFI
Worldwide 3G network coverage Automatic switching to available Backup Wireless Access Point with Hotspot
connection functionality
COMPACT I/O RMS
Small size – easy integration Digital Input/Output for remote Compatible with Teltonika Remote
monitoring and control Management System
22
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 3G, 2G
CPU Atheros, MIPS 24Kc, 400 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 4pin power socket, 9-30 VDC
SIM 1 x External SIM holder (2FF)
Antenna connectors 1 x SMA for mobile, 1 x RP-SMA for WiFi
Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs 2 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 130 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network Failover (Network backup), VLAN, QoS, Load Balancing
Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers,
Firewall
Unlimited firewall configuration via CLI
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port
Security
scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to
SMS features
HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
23
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT240 INDUSTRIAL CELLULAR ROUTER
Compact, robust and powerful device tailored for Industrial M2M/IoT applications. RUT240 is equipped with
2 x Ethernet and Wireless interfaces with Hotspot functionality. Device provides secure and stable Internet
connectivity for Industrial applications using RutOS software and security features with RMS support.
CONNECTIVITY WAN FAILOVER WIFI
4G/LTE (Cat 4), 3G, 2G Automatic switch to available backup Wireless Access Point with Hotspot
connection functionality
COMPACT I/O RMS
Small size – easy integration Digital Input/Output for remote Compatible with Teltonika Remote
monitoring and control Management System
24
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Atheros, MIPS 24Kc, 400 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 4pin power socket, 9-30 VDC
SIM 1 x External SIM holder (2FF)
Antenna connectors 2 x SMA for mobile, 1 x RP-SMA for WiFi
Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 135 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Auto APN, Band lock
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network Failover (Network backup), VLAN, QoS, Load Balancing
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port
Security
scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacksw
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to
SMS features
HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
25
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT850 AUTOMOTIVE CELLULAR ROUTER
E-mark certified, ultra-slim router equipped with Ignition detection (sleep mode), Overvoltage Protection and
Automotive FAKRA connectors. RUT850 comes with RutOS software and security features and custom GNSS
tracking protocol that is compatible with main Global AVL tracking platforms.
CONNECTIVITY GNSS WIFI
4G/LTE (Cat 4), 3G, 2G Global Navigation Satellite System for location Wireless Access Point with Hotspot
services with geofencing functionality functionality
SLEEP MODE DURABLE RMS
With ignition detection and overvoltage Vibration resistant FAKRA connectors Compatible with Teltonika Remote
protection Management System
26
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Atheros, MIPS 74Kc, 550 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 4pin power socket, 9-30 VDC
SIM 1 x External SIM holder (2FF)
Antenna connectors 2 x FAKRA D for mobile, 1 x FAKRA C for GPS
WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs On 4pin socket: 1 x Digital input
Status LEDs 3 x Connection type, 5 x Signal strength, 1 x WiFi, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Plastic housing
Dimensions (W x H x D) 131 x 18 x 79 mm
Weight 110 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network Failover (Network backup), VLAN, QoS, Load Balancing
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
27
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT900 INDUSTRIAL CELLULAR ROUTER
This router is equipped with Dual-SIM, 4 x Ethernet interfaces and WiFi. RUT900 is a robust and powerful device
tailored for Industrial M2M/IoT applications where no high data throughput is needed. RUT900 comes with core
RutOS software and security features with RMS support.
CONNECTIVITY WAN FAILOVER WIFI
Worldwide 3G network coverage For additional connection reliability Wireless Access Point with Hotspot
functionality
DUAL SIM ETHERNET RMS
With auto failover, backup WAN and other 4x Ethernet ports with VLAN functionality Compatible with Teltonika Remote
switching scenarios Management System
28
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
HARDWARE
Mobile
Mobile 3G, 3G,
2G 2G
CPUCPU Atheros,
Atheros,
MIPS
MIPS
74Kc,
74Kc,
550 550
MHzMHz
Memory
Memory 16 MBytes
16 MBytes
Flash,
Flash,
128 128
MBytes
MBytes
RAMRAM
Powering
Powering
option
option 4pin4pin
power
power
socket,
socket,
9-309-30
VDCVDC
SIM SIM 2 x External SIM SIM
2 x External holders (2FF)(2FF)
holders
Antenna connectors
Antenna connectors 2 x SMA for mobile,
2 x SMA 2 x RP-SMA
for mobile, for WiFi
2 x RP-SMA for WiFi
Ethernet
Ethernet 4 x 10/100 Ethernet
4 x 10/100 ports:
Ethernet 1 x WAN
ports: (configurable
1 x WAN as LAN),
(configurable 3 x LAN
as LAN), 3 x LAN
WiFiWiFi IEEEIEEE
802.11b/g/n, Access
802.11b/g/n, point
Access (AP),(AP),
point Station (STA)
Station (STA)
Inputs/Outputs
Inputs/Outputs On 4pin socket:
On 4pin 1 x Digital
socket: input,
1 x Digital 1 x Digital
input, open
1 x Digital collector
open output
collector output
Status LEDs
Status LEDs 1 x Bi-Color connection
1 x Bi-Color type,type,
connection 5 x Signal strength,
5 x Signal 4 x Ethernet,
strength, 1 x Power
4 x Ethernet, 1 x Power
Operating temperature
Operating temperature -40 °C
-40to°C75
to°C
75 °C
Housing
Housing Aluminium housing
Aluminium withwith
housing DINDIN
rail mounting option,
rail mounting plastic
option, panels
plastic withwith
panels flat mounting option
flat mounting option
Dimensions (W x(W
Dimensions HxH
D)x D) 109 109
x 50xx50
103 mmmm
x 103
Weight
Weight 263 263
g g
SOFTWARE
SOFTWARE
Operating system
Operating system RutOS (OpenWrt
RutOS based
(OpenWrt Linux
based OS) OS)
Linux
Mobile features
Mobile features SIM SIM
switch, Data/SMS
switch, limits
Data/SMS limits
Network protocols
Network protocols TCP,TCP,
UDP,UDP,
IPv4,IPv4,
IPv6,IPv6,
ICMP,ICMP,
NTP,NTP,
DNS,DNS,
HTTP,
HTTP,
HTTPS,
HTTPS,
FTP,FTP,
SMTP,
SMTP,
SSLv3,
SSLv3,
TLS 1.3,
TLS 1.3,
ARP,ARP,
PPP,PPP,
PPPoE,
PPPoE,
DHCP,
DHCP,
Telnet
Telnet
Network
Network Failover
Failover
(Network
(Network
backup),
backup),
VLAN,
VLAN,
QoS,QoS,
LoadLoad
Balancing
Balancing
Monitoring
Monitoring
andand
management
management WEBWEB
UI, CLI,
UI, CLI,
SSH,SSH,
SMS,SMS,
TR-069,
TR-069,
SNMP,
SNMP,
JSON-RPC,
JSON-RPC,
MQTT,
MQTT,
RMSRMS
Connection
Connection
monitoring
monitoring PingPing
Reboot,
Reboot,
WgetWget
reboot,
reboot,
Periodic
Periodic
Reboot,
Reboot,
LCPLCP
andand
ICMPICMP
for link
for link
inspection
inspection
Cloud
Cloud
solutions
solutions RMS,
RMS,
FOTA,
FOTA,
Telenor,
Telenor,
Azure
Azure
IoT Hub,
IoT Hub,
Cloud
Cloud
of Things,
of Things,
Cumulocity,
Cumulocity,
ThingWorx
ThingWorx
SMSSMS
status,
status,
SMSSMS
configuration,
configuration,
Send/Read
Send/Read
SMSSMS
via HTTP
via HTTP
POST/GET,
POST/GET,
EMAIL
EMAIL
to SMS,
to SMS,
SMSSMS
to Email,
to Email,
SMSSMS
to to
SMSSMS
features
features
HTTP,
HTTP,
SMSSMS
to SMS,
to SMS,
scheduled
scheduled
SMS,SMS,
SMSSMS
autoreply,
autoreply,
SMPPSMPP
Services
Services DDNS,
DDNS,
VRRP,
VRRP,
Wake
Wake
On Lan
On Lan
(WOL),
(WOL),
WEBWEB
filter,
filter,
UPNP,UPNP,
Traffic
Traffic
Logging
Logging
29 29
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT950 INDUSTRIAL CELLULAR ROUTER
This router is equipped with Dual-SIM, 4 x Ethernet interfaces and WiFi. Device is designed as Main/Backup
Internet source and can guarantee reliable Internet connection with high data throughput and data redundancy.
RUT950 comes with RutOS software and security features with RMS support.
CONNECTIVITY WAN FAILOVER WIFI
4G/LTE (Cat 4), 3G, 2G Automatic switch to available backup Wireless Access Point with
connection Hotspot functionality
DUAL SIM ETHERNET RMS
With auto failover, backup WAN and 4 x Ethernet interfaces with VLAN Compatible with Teltonika Remote
other switching scenarios functionality Management System
30
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Atheros, MIPS 74Kc, 550 MHz
Memory 16 MBytes Flash, 128 MBytes RAM
Powering option 4pin power socket, 9-30 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 2 x SMA for mobile, 2 x RP-SMA for WiFi
Ethernet 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions (W x H x D) 109 x 50 x 103 mm
Weight 263 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network Failover (Network backup), VLAN, QoS, Load Balancing
Routing Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, NHRP), Routing rules
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to
SMS features
HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
31
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUT955 INDUSTRIAL CELLULAR ROUTER
Equipped with Dual-SIM, 4 x Ethernet, WiFi and RS232, RS485, USB interfaces and Inputs/Outputs. RUT955
comes with RutOS advanced software features such as Modbus, SNMP, TR-069, NTRIP, MQTT protocol
support and custom GNSS tracking protocol that is compatible with Global AVL tracking platforms.
CONNECTIVITY DUAL SIM GNSS
4G/LTE (Cat 4), 3G, 2G For additional connection reliability Global Navigation Satellite System for location
services and time synchronization
I/O SERIAL RMS
Multiple digital and analog inputs and outputs RS232/RS485 serial communication Compatible with Teltonika Remote
for equipment control and event notification interfaces Management System
32
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Atheros, MIPS 74Kc, 550 MHz
Memory 16 MBytes Flash, 128 MBytes RAM
Powering option 4pin power socket, 9-30 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GPS
Ethernet 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Inputs/Outputs On 10pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open
collector output (requires external voltage), 1 x Relay output (non-latching)
Serial 1 x RS232, 1 x RS485
Other 1 x USB host, 1 x MicroSD
Status LEDs 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions (W x H x D) 109 x 50 x 103 mm
Weight 295 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network Failover (Network backup), VLAN, QoS, Load Balancing
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
Modbus TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial Console, Over IP, Modem, NTRIP, Modbus
33
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTX08 INDUSTRIAL ETHERNET ROUTER
This robust industrial router is equipped with 4 x Gigabit Ethernet ports, Quad-core CPU and 256 MB of RAM.
These powerful specifications combined with core RutOS software features, such as multiple VPN services,
advanced Firewall and RMS support, makes this device a superb Industrial performer.
GIGABIT ETH I/O & USB 9-50 V
4 x Gigabit Ethernet ports with up to 128 Digital Input / Output for remote monitoring This router supports a wide range of power
port/tag-based VLANs supported and control and USB 2.0 interface supply voltage for versatile integration
PROTOCOLS SECURITY RMS
Multiple protocols supported including Firewall and numerous VPN services including Compatible with Teltonika Remote
MQTT, Modbus TCP, BGP, GRE OpenVPN, IPsec, PPTP, L2TP & DMVPN Management System
34
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
HARDWARE
CPUCPU Qualcomm,
Qualcomm, 4 x ARM
4 x ARM Cortex
Cortex A7, 717
A7, 717 MHzMHz
Memory
Memory 256 256 MBytes
MBytes Flash,
Flash, 256 256 MBytes
MBytes RAMRAM
Powering
Powering option
option 4pin4pin power
power socket,
socket, 9-509-50
VDCVDC
Ethernet
Ethernet 4 x 10/100/1000
4 x 10/100/1000 Ethernet
Ethernet ports:
ports: 1 x WAN
1 x WAN (configurable
(configurable as LAN),
as LAN), 3 x LAN
3 x LAN
Inputs/Outputs
Inputs/Outputs On 4pin
On 4pin socket:
socket: 1 x Digital
1 x Digital input,
input, 1 x Digital
1 x Digital openopen collector
collector output
output
Other
Other 1 x USB
1 x USB HostHost
Status
Status LEDsLEDs 8 x Ethernet,
8 x Ethernet, 1 x Power
1 x Power
Operating
Operating temperature
temperature -40to°C75
-40 °C to°C
75 °C
Housing
Housing Aluminium
Aluminium housing
housing withwith
DIN DIN rail mounting
rail mounting option
option and and grounding
grounding capability
capability
Dimensions
Dimensions (W x(W
H x D)
H x D) 115 115
x 32xx32
95xmm
95 mm
Weight
Weight 345 345
g g
SOFTWARE
SOFTWARE
Operating
Operating system
system RutOS
RutOS (OpenWrt
(OpenWrt based
based Linux
Linux OS) OS)
Network
Network protocols
protocols TCP,TCP,
UDP,UDP,
IPv4,IPv4,
IPv6,IPv6,
ICMP,ICMP,
NTP,NTP,
DNS,DNS, HTTP,
HTTP, HTTPS,
HTTPS, FTP,FTP,
SMTP,SMTP, SSLv3,
SSLv3, TLS ARP,
TLS 1.3, 1.3, ARP,
PPP,PPP, PPPoE,
PPPoE, DHCP,
DHCP, Telnet
Telnet
Routing
Routing Static
Static routes,
routes, Dynamic
Dynamic routes
routes (BGP,
(BGP, OSPFv2,
OSPFv2, RIPv1/v2,
RIPv1/v2, EIGRP,
EIGRP, NHRP),
NHRP), Routing
Routing rulesrules
PortPort forward,
forward, Traffic
Traffic rules,
rules, Custom
Custom rules,
rules, Pre-configured
Pre-configured firewall
firewall rules,
rules, DMZ,DMZ,
NAT,NAT, NAT-T,
NAT-T, NATNAT helpers,
helpers,
Firewall
Firewall
Unlimited
Unlimited firewall
firewall configuration
configuration via CLI
via CLI
DDOSDDOS prevention
prevention (SYN(SYN flood
flood protection,
protection, SSHSSH attack
attack prevention,
prevention, HTTP/HTTPS
HTTP/HTTPS attack
attack prevention),
prevention), PortPort
Security
Security
scanscan prevention
prevention (SYN-FIN,
(SYN-FIN, SYN-RST,
SYN-RST, X-mas,
X-mas, NULLNULL flags,
flags, FIN scan
FIN scan attacks)
attacks)
VPNVPN
and and tunneling
tunneling OpenVPN,
OpenVPN, IPsec,
IPsec, GRE,GRE, PPTP,
PPTP, L2TP,
L2TP, Stunnel,
Stunnel, DMVPN,
DMVPN, SSTP,
SSTP, WireGuard,
WireGuard, ZeroTier
ZeroTier
Monitoring
Monitoring and and management
management WEBWEB UI, CLI,
UI, CLI, SSH,SSH,
SMS,SMS, TR-069,
TR-069, SNMP,
SNMP, JSON-RPC,
JSON-RPC, MQTT,
MQTT, RMSRMS
Cloud
Cloud solutions
solutions RMS,RMS, FOTA,
FOTA, Telenor,
Telenor, Azure
Azure IoT Hub,
IoT Hub, Cloud
Cloud of Things,
of Things, Cumulocity,
Cumulocity, ThingWorx
ThingWorx
Services
Services DDNS,
DDNS, VRRP,
VRRP, Wake
Wake On Lan
On Lan (WOL),
(WOL), WEBWEB filter,
filter, UPNP,UPNP, Network
Network shares
shares (Samba),
(Samba), Traffic
Traffic Logging
Logging
Administration
Administration Multi
Multi user,user, Configuration
Configuration profiles,
profiles, Diagnostics,
Diagnostics, logs,logs, Configuration
Configuration backup
backup
wwww
35 35
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTX09 INDUSTRIAL CELLULAR ROUTER
This powerful LTE Cat 6 cellular industrial router is designed for professional and IoT applications where
steady and fast connection and high data throughput is required.
4G LTE CAT 6 DUAL SIM GIGABIT ETH
Cellular speeds up to 300Mbps with With auto failover, backup WAN and 4 x Gigabit Ethernet ports with up to 128
Carrier Aggregation other switching scenarios port/tag-based VLANs supported
GNSS SECURITY RMS
Global Navigation Satellite System for Firewall and numerous VPN services including Compatible with Teltonika Remote
location services and time synchronization OpenVPN, IPsec, PPTP, L2TP & DMVPN Management System
36
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 6), 3G
CPU Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory 256 MBytes Flash, 256 MBytes RAM
Powering option 4pin power socket, 9-50 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 2 x SMA for mobile, 1 x SMA for GPS
Ethernet 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x USB host
Status LEDs 3 x WAN type, 2 x Connection type, 5 x Signal strength, 8 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D) 115 x 44 x 95 mm
Weight 455 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network Failover (Network backup), VLAN, QoS, Load Balancing
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
Administration Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
37
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTX10 PROFESSIONAL ETHERNET ROUTER
This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet,
Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities along with numerous security &
networking protocols supported make RUTX10 an ideal choice for professional applications.
GIGABIT ETH I/O & USB WIFI & BT
4 x Gigabit Ethernet ports with up to 128 Digital Input / Output for remote monitoring Wave-2 802.11ac Dual Band WIFI and
port/tag-based VLANs supported and control and USB 2.0 interface Bluetooth LE
PROTOCOLS SECURITY RMS
Multiple protocols supported including Firewall and numerous VPN services including Compatible with Teltonika Remote
MQTT, Modbus TCP, BGP, GRE OpenVPN, IPsec, PPTP, L2TP & DMVPN Management System
38
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
CPU Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory 256 MBytes Flash, 256 MBytes RAM
Powering option 4pin power socket, 9-50 VDC
Antenna connectors 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth
Ethernet 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
Bluetooth 4.0 (Low energy)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x USB host
Status LEDs 2 x WiFi, 8 x Etherner, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option and grounding capability
Dimensions 115 x 32 x 95 mm
Weight 355 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Routing Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, MAC authentication, Walled Garden
Supported Hotspot platforms IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
39
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTX11 INDUSTRIAL CELLULAR ROUTER
This powerful LTE Cat 6 cellular industrial router is designed for professional and IoT applications where
steady and fast connection and high data throughput is required. It is equipped with 4 x Gigabit Ethernet,
Bluetooth LE, and AC Wi-Fi with remote management capabilities.
4G LTE CAT 6 DUAL SIM WIFI & BT
Cellular speeds up to 300Mbps with With auto failover, backup WAN and Wave-2 802.11ac Dual Band WIFI and
Carrier Aggregation other switching scenarios Bluetooth LE
GNSS PROTOCOLS RMS
Global Navigation Satellite System for Multiple protocols supported including Compatible with Teltonika Remote
location services and time synchronization MQTT, Modbus TCP, BGP, GRE Management System
40
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE
Mobile 4G/LTE (Cat 6), 3G
CPU Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory 256 MBytes Flash, 256 MBytes RAM
Powering option 4pin power socket, 9-50 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
Ethernet 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth 4.0 (Low energy)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x USB host
Status LEDs 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option and grounding capability
Dimensions 115 x 44 x 95 mm
Weight 456 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network Failover (Network backup), VLAN, QoS, Load Balancing
Routing Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS NMEA forwarding, AVL, Geofencing
41
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTX12 DUAL LTE CAT 6 INDUSTRIAL CELLULAR ROUTER
Powerful Dual LTE Cat 6 router is designed for mission critical applications. Equipped with two LTE modems
for dual simultaneous connections allowing instant seamless LTE service switching and load balancing
features make this device irreplaceable in applications where loosing connection is not an option.
DUAL LTE DUAL SIM WIFI & BT
Cellular speeds up to 600Mbps with dual Instant failover switching Wave-2 802.11ac Dual Band WIFI and
simultaneous LTE CAT 6 connections Bluetooth LE
GNSS LOAD BALANCING RMS
Global Navigation Satellite System for Allows to use multiple WAN sources to Compatible with Teltonika Remote
location services and time synchronization increase throughput Management System
42
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
HARDWARE COMING
SOON
Mobile 2 X 4G/LTE (Cat 6), 3G
CPU Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory 256 MBytes Flash, 256 MBytes RAM
Powering option 4pin power socket, 9-50 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
Ethernet 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Connectors 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth
Bluetooth 4.0 (Low energy)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x USB host
Status LEDs 4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D) 132 x 44 x 95 mm
Weight 540 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network Failover (Network backup), VLAN, QoS, Load Balancing
Routing Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
43
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itwww.telestar-automation.it Teltonika Brochure 2020
RUTXR1 ENTERPRISE SFP/LTE RACK MOUNT READY ROUTER
Rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces (WAN failover), Dual SIM,
SFP, USB and dedicated console ports. This feature-rich device with well-known and powerful RutOS is perfect
where fast and ultra-reliable connection is needed.
4G LTE CAT 6 DUAL SIM WIFI
Cellular speeds up to 300Mbps with With auto failover, backup WAN and other Wave-2 802.11ac Dual Band WIFI
Carrier Aggregation switching scenarios
SFP GIGABIT ETH RMS
SFP port for long-range Fiber-optic 5 x Gigabit Ethernet ports Compatible with Teltonika Remote
communication Management System
44
TELESTAR SRL Sede Legale e Operativa: Via Novara, 35 - 28010 Vaprio d’Agogna (NO) Tel. (+39) 0321966768 - Web www.telestar-automation.itYou can also read
