the big book of everything from BSW Timber | 2021 fencing components | composite decking | decorative cladding | construction | landscaping | and more www.bsw.co.uk
2 3
Contents
The Fencing Range 8 The Landscaping Range 20 The Construction Range 44 The Wood Fuel Range 58
The Inspiration 10 The Inspiration 22 The Inspiration 46 The Technical Information 64
Boards And Rails 12 Timber Decking 24 Beams 48 Treatment Information 66
UC4 Posts 14 Alchemy Composite Decking 26 Purlins & Yorkshire Boarding 50 Species Information 67
Motorway Fencing 16 Sleepers 32 Cladding 52 Warranty Information 68
Tongue And Groove 34 Machined Carcassing 54 Responsible Purchasing 69
IRO Timber Cladding and Decking 36 General Construction Timber 55
Accredited Installer Scheme 70
About the BSW Group 72
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
4 5
With over 170
years of timber
production
experience…
…we really know
what we are
talking about
Whether your requirement is for
an addition to a design in a small
garden, or as the backbone in a
multi-million pounds civils project,
we have the right product for you.
Our product range is the widest of
any sawmiller in the UK and with
innovation at the heart of everything we
do, our focus is on bringing the latest
developments to the market as quickly
as possible, ensuring your options are
both wide ranging and on-trend.
With quality, efficiency, investment and
customer service as the four pillars of our
business, we are confident BSW will help
you transform your space.
Our team of UK-based timber experts
are ready to offer advice. Whether you
are building a bespoke deck, creating
contemporary landscapes or building your
own dream home, we are here to help.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
6 7

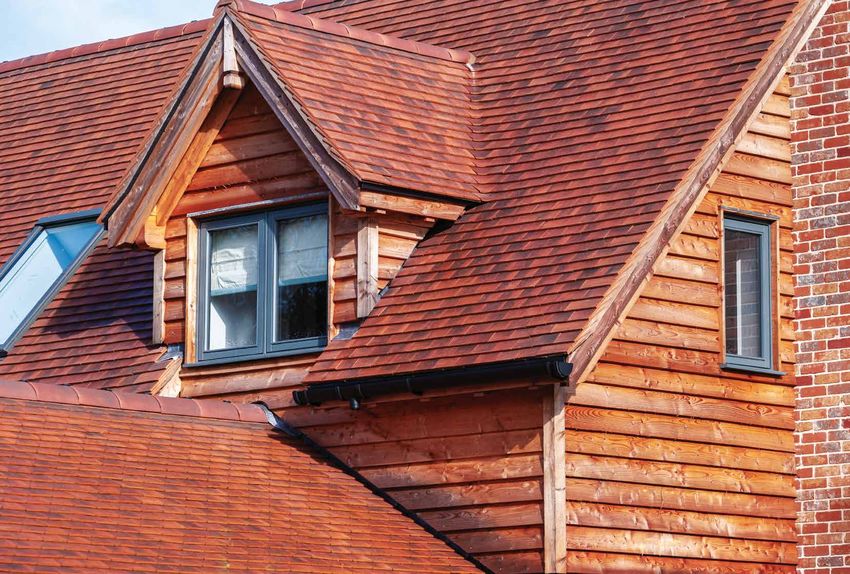

product shown:
larch cladding
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
8 9
The
Fencing
Range
Whether you are looking
to add some extra privacy
or create a new outdoor
living space, we have all
the fencing solutions you
will ever need.
Our collection of fencing
components ranges from
feather edge, post and rail,
and specialist fencing like
knee rails and our innovative
acoustic solutions.
Our 100% natural timber
fencing range is all
responsibly sourced and
produced right here in the
UK, meaning that you can
have complete confidence that
your new fencing solution
is both environmentally
friendly and from managed
sustainable sources.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
10 11
Fencing
Inspiration Outerspace Creative Landscaping
If you are looking to do something
different with your fencing, why not
utilise posts in unique ways?
Our UC4 posts are ideal for use in ground
contact and can be used to create ornate
pergolas or Japanese-style timber archways.
Divide off your decking or frame your garden
walkways; timber fencing materials can be
used to add a contemporary natural serenity
to any outdoor space.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
12 13
Boards
Square Edge
Thickness (mm) Width (mm) Length [palisades] (m) FSC® certified
Palisades 16 75 100 125 150
2.1 2.4 3.0 3.6 4.2 4.8
Yes
[0.9 1.2 1.5 1.8]
The classic fencing option, palisade fencing
2.1 2.4 3.0 3.6 4.2 4.8
completes a traditional look to any garden 19 75 100 125 150
[0.9 1.2 1.5 1.8]
Yes
and can perfectly frame any garden walkway. 2.1 2.4 3.0 3.6 4.2 4.8
22 75 100 125 150 Yes
Alternative options for your palisade tops [0.9 1.2 1.5 1.8]
are available to suite your particular project.
whatever the style you decide upon. Feather Edge
Thickness (mm) Width (mm) Length (m) FSC® certified
Post and Rail 22 100 125 150 1.5 1.65 1.8 3.6 Yes
Ideal for boundaries around fields, paddocks, 32 175 3.6 4.8 Yes
ménages and more, this design provides a
38 200 3.6 4.8 Yes
cost effective and sturdy solution for ensuring
the safety of both livestock and pedestrians.
Knee Rail
Often used commercially to border Rails
pathways in school, supermarkets, car parks,
playgrounds and shopping areas– our knee Capping Rails
rail fencing sits at just the right height and
Thickness (mm) Width (mm) Length (m) FSC® certified
offers an alternative low cost yet attractive
solution for directing footfall or vehicles 32 63 2.4 3.0 3.6 Yes
along roads or pathways. 38 63 2.4 3.0 3.6 Yes
Boards D Rails
Thickness (mm) Width (mm) Length (m) FSC® certified
and Rails 38
Sawn Rails
100 3.6 4.8 Yes
Thickness (mm) Width (mm) Length (m) FSC® certified
38 75 88 100 3.0 3.6 4.2 4.8 Yes
BSW’s quality fencing timbers are 47 75 100 3.0 3.6 4.2 4.8 Yes
produced with the latest sawmilling
Counter Rails
technology and are ideal for
Thickness (mm) Width (mm) Length (m) FSC® certified
a range of domestic, agricultural 22 50 63 75 2.4 3.0 3.6 Yes
and industrial applications. 32 50 63 75 2.4 3.0 3.6 Yes
Cant Rails
Available with either green TANALITH or brown
Thickness (mm) Width (mm) Length (m) FSC® certified
TANATONE high pressure treatment, all of our
47 125 175 2.4 3.0 Yes
fencing boards, posts and rails are treated to
guarantee the longest possible service life. Arris Rails
Thickness (mm) Width (mm) Length (m) FSC® certified
For specialist and professional fencing
75 75 2.4 2.7 3.0 3.6 Yes
applications, our range includes notching and
morticing profiles to ensure that you have the
right component whatever your project. Key: Green Treatment Brown Treatment
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
14 Lemon Tree Landscapes 15
UC4 Incised Posts
Thickness (mm) Width (mm) Length (m) FSC® certified
15 year warranty
75 75 100 125 150 1.5 1.8 2.1 2.4 3.0 Yes Don’t forget to register your UC4
Warranty at www.bsw.co.uk/warranty
100 100 125 150 1.5 1.8 2.1 2.4 3.0 Yes
125 125 2.1 2.4 Yes
150 150 2.1 2.4 Yes
175 175 2.1 2.4 Yes
200 200 2.1 2.4 Yes
UC4 Pine Posts*
Thickness (mm) Width (mm) Length (m) FSC® certified
75 75 1.5 1.8 2.1 2.4 2.7 3.0 3.6 Yes
75 100 2.4 Yes
75 125 1.8 2.4 Yes
75 150 1.8 2.4 Yes
100 100 1.5 1.8 2.1 2.4 2.7 3.0 3.6 Yes
100 125 2.1 2.4 2.7 Yes
100 200 2.4 Yes
*Selected areas only. Other sizes are available on request.
Key: Green Treatment Brown Treatment
Machining Options
UC4 Posts Sawn Posts Gate Posts Palisades Rails Capping Rails
Our state-of-the art incising technology
guarantees that our chemical treatment
can impregnate a minimum of 6mm into Single Weather Four-Way Weather Four-Way Weather Pointed Top Scarfed End Arris Twice Weather
the timber. This ensures maximum protection
for the product meaning that we can offer
a guaranteed minimum 15-year life span
and a UC4 classification.
What is incising? What is UC4? Round Top Birds Mouth Round Top Round Top Arris Rail Weather Grooved
When a piece of timber has Use Class 4, or UC4, is a
been incised, this means class within BS EN 335-2
that a bladed machine has that determines where
made tiny incisions along the timber products are or are
surface of the timber. not suitable for use.
V Notched Morticed Chiselled Top Cant Rail
Incising allows preservative If a timber product meets
treatment to penetrate UC4 classification, that
further into the timber, means that it is suitable to
increasing its life span be used in ground contact
without affecting its strength. or freshwater.
See for yourself
Visit www.bsw.co.uk to see how Four-Way Point Drive D Rail
we produce our incised products
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
16 17
Environmental Noise Barriers
To complete our fencing range, we produce a
range of flexible and effective acoustic solutions for
industrial and commercial applications, including
both highway and railway environments. Reflective
and absorptive systems have been meticulously
tested in laboratories and are certified in accordance
with BSEN1793/1794 acoustic and mechanical
performance standards. Our reflective barriers can
be supplied either prefabricated or in kit form to suit
your specific requirements.
Absorptive
The choice for ultimate performance. Our absorptive
barriers are ideal for applications where the noise
source is in a tight confined area and surrounded by
other noise-reflective surfaces.
Reflective
For high-performance, our single-sided and double-
sided reflective timber solutions are available from
1m to 8m in height and can be supplied either
prefabricated or in component format.
Motorway Post and Rail
For major contract based highways and rail projects
Fencing
we can provide a wide range of post and rail fencing
components manufactured to BS1722 standards and
treated to National Highways sector scheme 4.
BSW are fully certified for the manufacture, treatment
and supply of fencing components and environmental
noise barriers. Our Warrior motorway fencing range
has been supplied to some of the largest infrastructure
projects across the UK, including the M5, M6 and M25.
All our motorway fencing components are responsibly sourced
in the UK from sustainably managed forests, and are processed
through our sawmills to ensure consistent quality for your projects.
The BSW motorway fencing range is produced in accordance with
National Highways Sector Scheme 2A, 2C, 4 and ISO 9001 Quality
Management Systems. Components adhere to BS1722 standards
and Highways England specification series 300 and 311 for quality
and preservation to an extended 30-year desired service life.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887
18
18 19
19

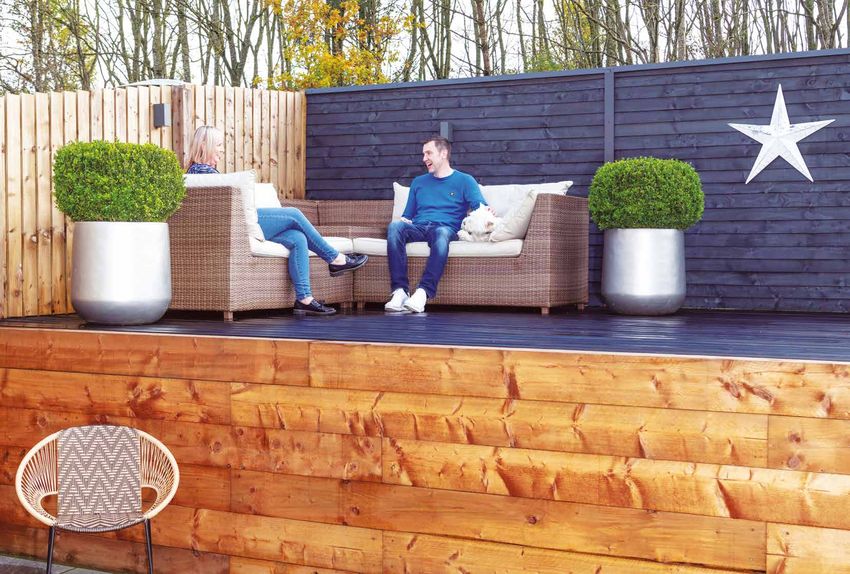

products shown:
• sawn sleepers
• IRO decking
• feather edge boards
• fence rails
• UC4 posts
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888720 21
The
Landscaping
Range
For many people, the garden has become an
extension of their home space and we are
all spending an increasing amount of time in
this space. As a result, many families are now
creating multi-purpose areas suitable for not
only entertaining, but for a much wider range
of day-to-day activities.
Whatever your needs, our inspirational collection of
decking products can deliver the solution you are
seeking. Be it an inspirational family area or an outdoor
working environment, our decking products deliver
a quality that is unparalleled.
Our full range of traditional timber decking products includes
our Deckmark™ accredited and wax coated Timeless
boards which, like all our timber decking products, are
high pressure treated to provide assured durability and
ongoing protection. Our diverse range of garden sleepers
are produced using our innovative sawmilling technology to
exacting standards, adding a natural charm to any garden.
Our new Alchemy range of composite decking, with its
modern tones, is the ideal way to bring your contemporary
garden vision to life, creating a stylish, versatile space that
will look its very best for years to come.

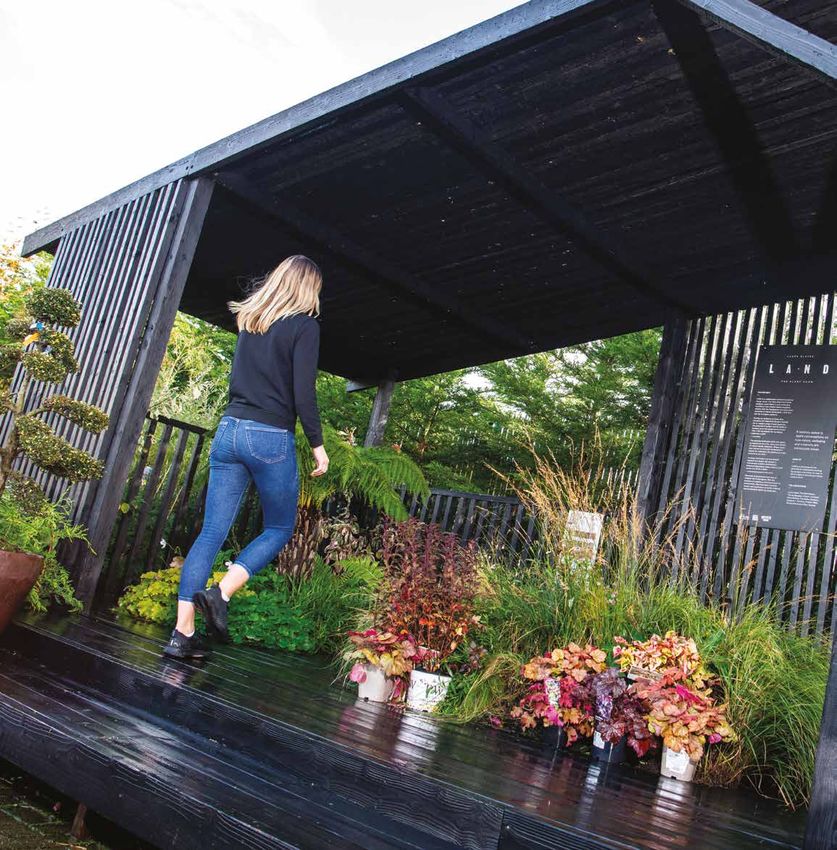

IRO Timber is our latest self-cleaning outdoor living product,
available as cladding and decking. With the option of 10
vibrant hues enhancing the feel of natural timber, IRO
offers a unique charred and inspiring look that allows your
creativity to enhance any outdoor space.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888722 23
Landscaping To add a modern look to your
outside space, why not consider
injecting some coloured timber?
Inspiration Dark decking or cladding hues
offset displays, instantly against
bright floral displays instantly
creating a contemporary vibe.
For an ultra-modern look, low-
maintenance composite decking in grey
offers an on-trend aesthetic for 2021.
Most decks are square or rectangular as
they’re easier to construct, but rounded
edges are visually stunning and are great
in small spaces.
Sawn or smooth natural railway sleepers
can be used to create clean-cut barriers
between different areas of your garden
or can be stacked to create naturally
charming steps and borders.
Greentop Landscapes and Design

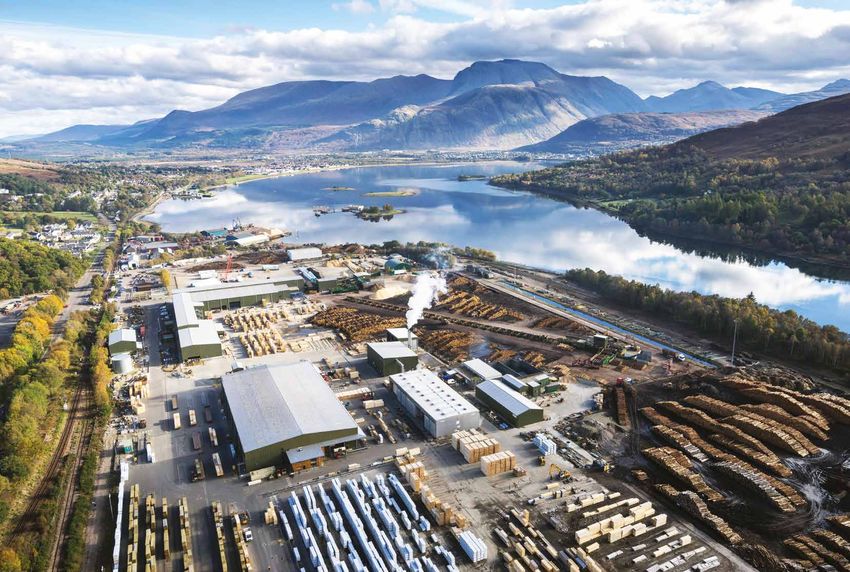

Estate Sawmills
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888724 25
Need some number help?
Visit bsw.co.uk/calculator to calculate how many
boards you’ll need and save yourself some time!
Spruce Deck
M Fry Garden Services
Thickness (mm) Width (mm) Length (m) FSC® certified
32 100 3.6 Yes
Timeless
Thickness (mm) Width (mm) Length (m) FSC® certified
38 125 2.4 3.0 3.6 4.2 4.8 Yes
Brushwood
Thickness (mm) Width (mm) Length (m) FSC® certified
32 150 3.6 Yes
C16 Graded Joists
Thickness (mm) Width (mm) Length (m) FSC® certified
47 100 2.4 3.0 3.6 4.2 4.8 Yes
47 150 2.4 3.0 3.6 4.2 4.8 Yes
Key: Green Treatment Brown Treatment
Timber Timeless Spruce Deck
Decking See pages 36-41 for further information
on our IRO architectual timber products.
The right deck can
make us completely
re-think the way we
Brushwood Graded Joists
use our gardens.
With a range that starts
with our traditional
spruce timber decking
product right through to
our Timeless decking
DeckMark™ approved
premium product, we
can always offer the right
product for any budget.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888726 27
We bring 17 decades
in the timber industry
and high-quality,
British manufacturing
together to create
effortless, cost-effective
composite decking.
Created from a blend of
wood flour and recycled
materials, Alchemy is
for entertaining, not
maintaining. So, once
your deck’s down, you
can concentrate on
making the most of it.
Discover our range of
high-enjoyment, hassle-
free composite decking
for residential and
commercial use.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888728 29
Pick your
Perfect Shade

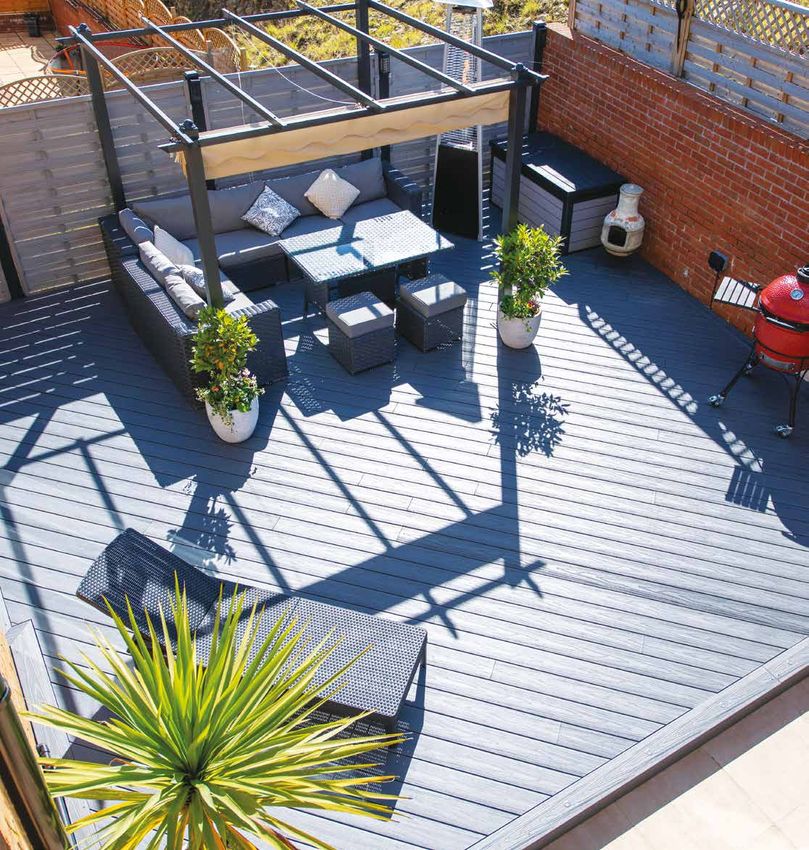

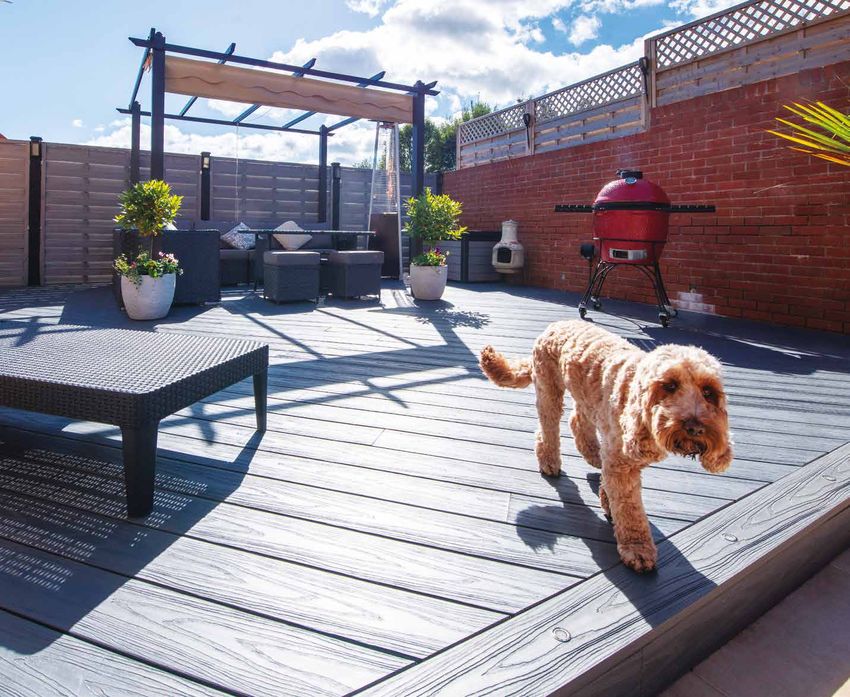

The Habitat+ timeless tones are available
in a wood-grain or grooved finish.
Bowness Grizedale Rydal
Habitat+ hollow core deck boards
Thickness (mm) Width (mm) Length (mm)
Habitat+ is our wood plastic
22 135 3600
composite decking product
that’s suitable for residential
decking projects. The Best Bits
Here are the things that make our Habitat+ range a great choice for your outdoor space:
Dual-sided for optional
Low-Maintenance Stain Resistant Surface Easy to clean
finishes, with a HDPE capped
coat, Habitat+ composite 15-year UK-based Warranty Colour-matching Screws Made in Britain™
decking is as strong as it is
Recyclable UV Stability Good weathering properties
attractive.
If you are seeking a no-nonsense, low- Hidden Fixing System Enhanced Wear Will not split or rot
maintenance deck board that allows you
Perfect for residential
to spend time enjoying the sun, then this Dual-sided Quick and easy to install
installations *
product is perfect .
* Habitat+ is for residential applications only Don’t forget to register
Hard wearing and robust, Habitat + will allow your Alchemy Warranty at
you to focus on the creation of your dream www.alchemywpc.co.uk/ warranty
deck and not the future maintenance of your
moss-covered terrace or water- logged lawn.
Trims & Fixings
Habitat+ decking is quick to install and easy Hidden fixings, starter clips, skirt trim and colour coded
to maintain with just a simple brush down, and screws are available in individual packs to make your
deck as smooth and seamless as possible.
barefoot-friendly with its smooth, splinter-free
surface and our hidden fixing system.
Dual-faced boards give you the chance to get
creative with contemporary colour variations
Starter Clips Hidden Fixing Clips
and, with UV stability and colour-matching
screws, your deck will always look its best.
Get your hands (or feet) on some free
Habitat+ samples at: www.alchemywpc.co.uk Skirt Trim Colour Coded Screws
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888730 31
Pick your
Perfect Shade
The Urban timeless tones are
available in a wood grain finish.
Arran Jura Mull
Urban solid core deck boards
Thickness (mm) Width (mm) Length (mm)
22 138 3600
Our Urban wood plastic
The Best Bits composite decking
Here are the things that make our Urban range a great choice for your outdoor space: product is suitable for
both residential and
Low-Maintenance Stain Resistant Surface Easy to clean commercial applications.
20-year UK-based Warranty Colour-matching Screws Good weathering properties
Making light work of heavy
Recyclable UV Stability Will not split or rot footfall, you can rely on
Urban for a rock-solid deck
Hidden Fixing System Enhanced Wear Perfect for residential installations *
for years to come.
Tough and long-lasting, our Urban decking is as
Solid Core Colour stability
perfectly suited to hotels, bars, and restaurants as it
is outside any beautiful home.
* 20 years in residential applications and 10 years in commercial applications
Don’t forget to register
Our simple fixing packs make your deck quick and
your Alchemy Warranty at
www.alchemywpc.co.uk/ warranty easy to install, while its low maintenance,
stain resistant surface gives you more time to enjoy
your creation.
High Spec Homes Ltd
Trims & Fixings
Urban’s solid core and specially formulated capping
Hidden fixings, starter clips, skirt trim and colour coded
makes it the ultimate deck board when it comes to
screws are available in individual packs to make your
high-performance and its 20-year warranty gives deck as smooth and seamless as possible.
complete peace of mind.
Manufactured in the UK to our most exacting
standards, and with a supply chain that meets the
highest levels of traceability, we can guarantee that Starter Clips Hidden Fixing Clips Colour Coded Screws
our product is what we say it is.
Get your hands (or feet) on some free
Urban samples at: www.alchemywpc.co.uk Urban Edge Board Skirt Trim
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888732 33
Sawn
Thickness (mm) Width (mm) Length (m) FSC® certified
100 200 2.4 Yes
125 250 2.4 Yes
Incised
Thickness (mm) Width (mm) Length (m) FSC® certified
100 200 2.4 Yes
125 250 2.4 Yes
Smooth
Thickness (mm) Width (mm) Length (m) FSC® certified
100 200 2.4 Yes
Charred Brushwood
Thickness (mm) Width (mm) Length (m) FSC® certified
125 250 2.4 Yes
Rustic
Thickness (mm) Width (mm) Length (m) FSC® certified
100 150 1.8 Yes
Key: Green Treatment Brown Treatment
Sawn Incised
Sleepers
Our range of timber sleepers
provide complete versatility when
transforming your outdoor space. Smooth Charred Brushwood
If you are creating raised flower beds, a seating
area or a play area for little gardeners, our
comprehensive range will allow you to make
the perfect choice for any situation.
Our charred sleepers utilise our innovative IRO
yakisugi technology to create a completely
Rustic
unique raised woodgrain effect.
Estate Sawmills
For ultimate peace of mind, our UC4 Collection
includes incised sleepers, for those who want the
added security of a 15-year UK based guarantee.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888734
34 35
Tongue and Groove
Thickness (mm) Width (mm) Length (m) FSC® certified
47 200 3.6 Yes
Key: Green Treatment Brown Treatment
Tongue
and Groove
One of our most versatile products,
our homegrown larch tongue and groove
boards are engineered to provide easy
installation and a perfect finished fit.
Thanks to our high-precision machining techniques,
and with a natural durability, our T&G boards are easier
than ever to use. T&G boards can be used for building
raised beds, planter boxes, gravel or decking boards,
cladding or even a heavy-duty dividing wall.
They are available in a green finish and treated with
TANALITH wood preservative for a longer life, while
further protective and decorative coatings can be
applied should further protection be needed.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888736 37
IRO - which is Japanese
for ‘colour’ - is inspired by
yakisugi, the ancient Japanese
method of charring timber.
We’re combining one of the
oldest, most versatile building
materials with progressive
design techniques to redefine
how natural timber can be
used in modern spaces,
putting you in control.
As people turn to colour to
elicit different moods and to
energise their buildings, IRO’s
collection of colours evokes
emotion and excitement,
embracing creativity over dull
tones and faded palettes.
The continued desire for
natural, sustainable elements,
combined with the increasing
appetite for vibrant colour,
makes IRO ideal for a
variety of public and private
environments, both indoor
and outdoor. IRO Timber is an
exclusive range of cladding and
decking products that can be
used in multiple, imaginative
ways to transform both indoor
and outdoor spaces.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888738 39
If you enjoy showing
your creativity in your
outdoor spaces, IRO is
the product for you. M Fry Garden Services
Barlow’s Woodyard
Carefully crafted through our intricate 7 step core colour range
process, IRO (which is Japanese for colour) is
available in 10 dynamic colours designed to
bring your spaces to life.
From deep natural hues to bold statement charcoal dolphin driftwood mountain natural
shades, IRO helps you to embrace your
surroundings in new breathtaking ways. extended colour range
Taking inspiration from yakisugi, the ancient
Japanese method of charring timber, we have
created a revolutionary product to help with
the transformation of your garden or home. lagoon poppy sunflower sunset woodland
With its water-repellent, self-cleaning surface
and HVOC-free commitment, IRO comes
product details
with peace of mind that your living spaces product thickness (mm) width (mm) length (m)
are family-friendly and built to last. external cladding 25 150 3.6
internal cladding 25 150 4.8
However you want to enrich your
decking 32 150 4.8
environment, IRO can provide the solution.
see more at www.irotimber.co.uk Request a sample
view full details and request a
sample at www.irotimber.co.uk
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888740 41
As people turn to colour to
create different moods and
transform buildings, IRO’s
collection of warm vibrant
colours evoke emotion and
excitement, changing spaces
from the traditional to the
contemporary quickly and
efficiently whilst always retaining
that environmental awareness.
The continued desire for natural,
as seen on:
sustainable elements, combined with the
increasing appetite for bold statement
colours, makes IRO ideal for both public
projects and private environments -
indoors and outdoors.
100% natural kiln dried charred
timber
brushed high pressure coated in
treated wood cream visit www.irotimber.co.uk
for more information
• explore more case studies
eco friendly exclusive uv stable
colour range
• view technical information
• order a free sample box
• find your nearest distributor
hvoc free water low • view the image gallery
replellent maintenance
• request a quote
Win £200!
send us a picture of your project for a chance to
win visit irotimber.co.uk/competitions to enter
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888742 43

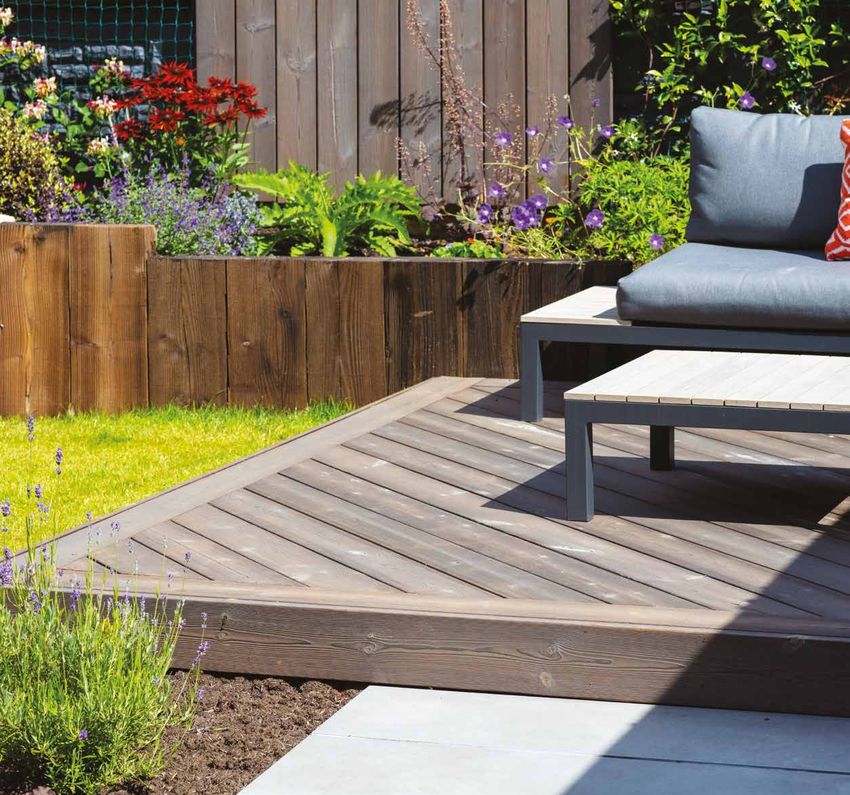

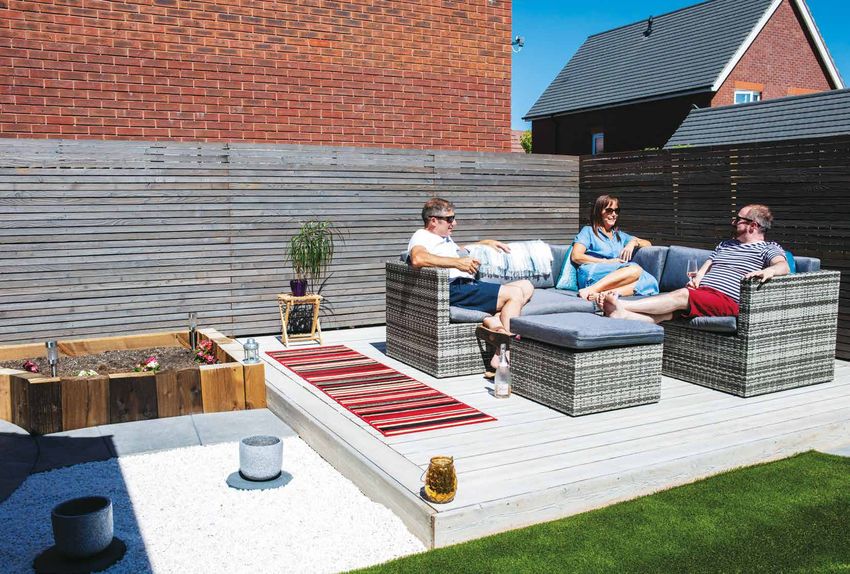

products shown:
• driftwood IRO decking
• dolphin IRO cladding
• charred brushwood sleepers
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888744 45
The
Construction
Range
Whatever the project, our range of
structural timbers ensures you will
have the perfect product to complete
your job quickly, efficiently and safely.
Our sawmills cut a wide variety of lengths
and section sizes. Our strength graded
timbers are available kiln dried and treated
for both strength and durability.
In addition to its versatility and strength,
one of the many benefits of choosing
homegrown timber for your construction
project is its positive environmental impact.
Every piece of timber used in your project
locks away harmful Co2 from the atmosphere
and significantly reduces the carbon footprint
of your project.
For outdoor projects, our superb timber
cladding enhances the appeal of any
structure, and with our fantastic new IRO
range of high quality pre-coated charred
timber cladding, your choices just got much
more interesting.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888746 47
47
Joanne Crawford
Construction
Inspiration
In an increasingly environmentally-
conscious world, timber is revered as being
the front-runner for sustainable materials.
Whether you want to create a head-turning
facade with larch cladding or inject natural
stability and character into your project
through our large section timber beams,
BSW’s construction timber range is the
perfect choice, every time.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888748 49

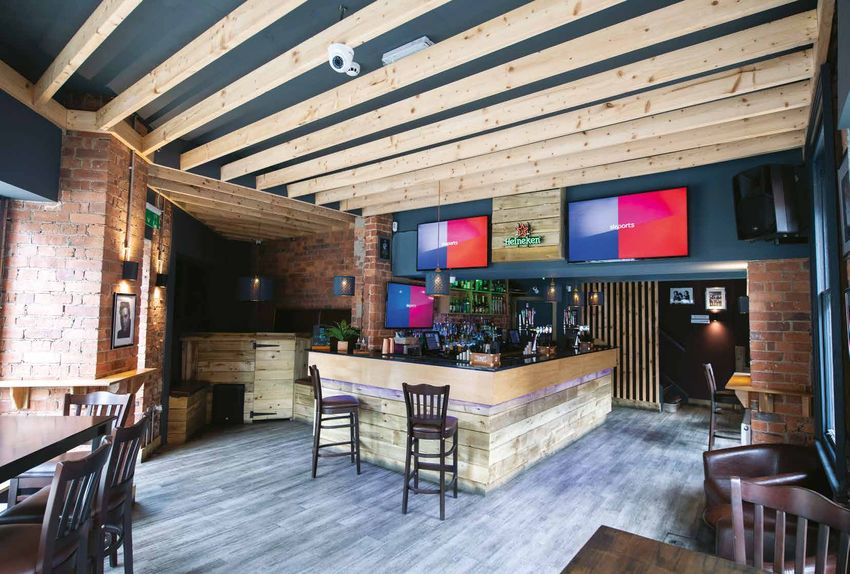

Beams
Width Length Strength
Treatment
(mm) (m) Grade
75 - 450 x 150 - 400 2.4 - 8.0 GS SS
75 - 450 x 150 - 400 2.4 - 8.0 GS SS Untreated
Key: Green Treatment Brown Treatment
Beams
Manufactured from UK grown Douglas Fir, known
for its structural integrity, our unique softwood
beams are an attractive alternative to European oak
and bring a touch of natural style into any home.
Although their practical use in Supplied in both ungraded and
supporting roofs, ceilings and visually graded sections, we
walls is well known, they are also guarantee that you can make
popular when used as decorative the right choice.
features such as mantles and faux
exposed beams. Our visually graded sections are
available in GS & SS grades which
As well as being used for dependent on species and section
residential homes they are are equivalent to grades C14, C16,
also suitable for timber framed C18, C22 and C24 therefore giving
buildings, barn conversions and maximum design flexibility.
restoration projects.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888750 51
Purlins
Thickness 50 75 100 125 150 175 200 225 Lengths
Treatment
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (m)
38 ✓ ✓ ✓ - ✓ - ✓ - 2.4 3.0 3.6 4.2 4.8
47 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2.4 3.0 3.6 4.2 4.8
Unseasoned and 75 - - ✓ - ✓ - ✓ ✓ 2.4 3.0 3.6 4.2 4.8
Kiln Dried Purlins &
Agricultural Building Components
Thickness Width Length Machine Visually
Ungraded
(mm) (mm) (mm) Graded Graded
63 175 4572 4877 6096 Yes C16 Yes
Yorkshire Boarding 75
75
75
100
125
150
4572 4877 6096
4572 4877 6096
4572 4877 6096
Yes
Yes
Yes
C16
C16
C16
Yes
Yes
Yes
75 175 4572 4877 6096 Yes C16 Yes
75 200 4572 4877 6096 Yes C16 Yes
BSW also supply a 75 225 4572 4877 6096 Yes C16 Yes
Unseasoned Timber
range of timbers that Used in construction applications
75 250 4572 4877 6096 Yes C16 Yes
are perfectly suited for where an unseasoned (not kiln dried)
and ungraded product may Yorkshire Boarding
agricultural purposes. be acceptable or beneficial. Thickness Width Length Machine Visually
Ungraded
(mm) (mm) (mm) Graded Graded
22 125 5486 6096 N/A N/A N/A
Horizontal structural Large Sections 22 150 3000 3048 3600 N/A N/A N/A
timber purlins used in and Long Lengths 3658 4200 4267
All strength graded timber for
roof construction help to 4500 4572 4800
agricultural buildings is wet graded
support the loads from either visually or by machine. BSW 4877 5486 6096
the roof deck or sheathing can offer machine wet graded to
and are supported by the class C16 and visually graded timber Agricultural Materials
is available subject to species Thickness Width
principal rafters and/or the (mm) (mm)
Length
(mm) Ungraded Machine
Graded
Visually
Graded
availability and agreement.
building walls. 47 175 4572 6000 6096 N/A N/A N/A
47 200 4572 6000 6096 N/A N/A N/A
Key: Green Treatment Brown Treatment
See pages 36-41 for further information
on our IRO architectual timber products.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888752 53

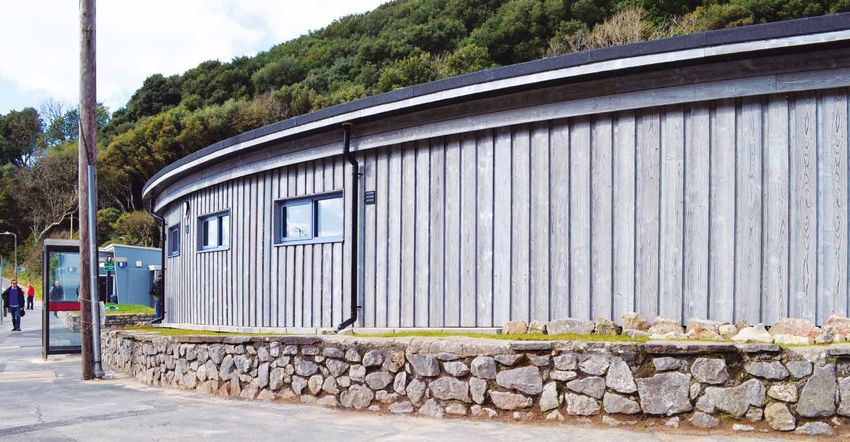

Cladding
Without doubt the external finish of
a building or structure is paramount
to its overall appeal. Timber cladding
can enormously improve the exterior
aesthetic of a structure. Using timber
to partially clad a building can either
modernise or traditionalise new or
existing buildings in equal measure.
We select only the highest quality larch
logs sourced from FSC® certified British
forests to create our cladding boards.
Our boards come from a heartwood-
based selection and are kiln dried and
appearance graded to ensure the finest
timber product.
Typically warmer in appearance than its
Siberian counterpart, British grown larch
boasts a rich heartwood colour, more grain
character and displays a greater number of
rustic knots.
Our cladding boards are manufactured
in line with the TDCA CladMark quality
assurance scheme. This verifies our factory
production control procedures and ensures
consistency of quality.
Cladding
Type Section (mm) Height (m) Species Treatment FSC® certified
Blanks 25 x 125 3.3 - 3.6 Larch - Yes
Blanks 25 x 150 3.3 - 3.6 Larch - Yes
Bespoke sizes and specifications available on request – subject to availability and volume.
See pages 36-41 for further information
on our IRO architectual timber products.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888754 55
General
Construction
Timber
BSW also supply a wide range of
unseasoned, general construction timbers
suitable for a vast array of purposes.
Our unseasoned timbers are available in both green
and brown high-pressure preservative treatment for
added protection and longevity.
Sawn Battens
Quality, treated sawn batten timbers. Also available with high pressure
preservative protection.
Unseasoned Timber
Machined
For applications in construction where an unseasoned (not kiln dried)
and ungraded construction timber may be acceptable or beneficial.
Carcassing
C16 Graded CLS Construction Timber Formwork
Nominal size Finished size Length FSC® These sections are generally used in the fabrication of temporary
(mm) (mm) (m) certified
concrete moulds during major construction projects. Used in conjunction
50 x 75 38 x 63 2.4 3.0 4.8 Yes with shuttering plywood, these two products produce a robust frame
50 x 100 38 x 89 2.4 3.0 4.8 Yes suitable for most civil engineering processes.
Our classic easi-edge and 50 x 150 38 x 140 2.4 3.0 4.8 Yes
CLS range of C16 construction
timbers can be supplied in C16 Graded Construction Timber
Sawn Battens
various dimensions and lengths Nominal size
(mm)
Finished size
(mm)
Length
(m)
FSC®
certified Thickness (mm) Width (mm) Length (m) FSC® certified
and can also be high and low 47 x 50* 45 x 45 2.4 3.0 3.6 4.2 4.8 Yes 19 38 3.0 3.6 4.2 4.8 Yes
pressure treated. 47 x 75* 45 x 70 2.4 3.0 3.6 4.2 4.8 Yes 25 38 3.0 3.6 4.2 4.8 Yes
47 x 100 45 x 95 2.4 3.0 3.6 4.2 4.8 Yes 35 50 3.0 3.6 4.2 4.8 Yes
47 x 125 45 x 120 2.4 3.0 3.6 4.2 4.8 Yes
Machined, Kiln Dried C16 47 x 150 45 x 145 2.4 3.0 3.6 4.2 4.8 Yes
Unseasoned Timber
Graded Construction Timber 47 x 175 45 x 170 2.4 3.0 3.6 4.2 4.8 Yes
All our carcassing products are dimensionally stable Thickness (mm) Width (mm) Length (m) FSC® certified
47 x 200 45 x 195 2.4 3.0 3.6 4.2 4.8 Yes
and regularised for precise installation. We offer 38 50 75 88 100 150 200 225 2.4 3.0 3.6 4.2 4.8 Yes
47 x 225 45 x 220 2.4 3.0 3.6 4.2 4.8 Yes
a high-pressure preservative treatment as standard 47 50 75 100 125 150 175 200 335 2.4 3.0 3.6 4.2 4.8 Yes
75 x 100 72 x 95 2.4 3.0 3.6 4.2 4.8 Yes
although a low pressure treatment is available on 75 100 150 175 200 225 2.4 3.0 3.6 4.2 4.8 Yes
request subject to availability. 75 x 125 72 x 120 2.4 3.0 3.6 4.2 4.8 Yes
75 x 150 72 x 145 2.4 3.0 3.6 4.2 4.8 Yes
Because it’s smooth and we’ve eased the edges this 75 x 175 72 x 170 2.4 3.0 3.6 4.2 4.8 Yes Formwork
timber is easier to work with. It’s been machined so
75 x 200 72 x 195 2.4 3.0 3.6 4.2 4.8 Yes Thickness (mm) Width (mm) Length (m) FSC® certified
all its dimensions are regular and true, making for a
75 x 225 72 x 220 2.4 3.0 3.6 4.2 4.8 Yes 47 100 150 4.8 Yes
quicker better fit. The finished job looks neater and
75 x 250 72 x 245 2.4 3.0 3.6 4.2 4.8 Yes 75 100 150 4.8 Yes
you can paint, stain or preserve it easier too.
How long?
*Not C16 Visit bsw.co.uk/downloads for full span
table guides and other helpful information.
Key: Green Treatment Brown Treatment Key: Green Treatment Brown Treatment
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888756 57
products shown:
• boards
• easi edge
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888758 59
At BSW Energy we produce
a range of highly-efficient
renewable wood fuel
products that are sustainably
sourced and manufactured
right here in the UK.
Made from co-products –
wood chips and sawdust – our
popular Hotties heat logs and
Pizazz pizza logs are also
approved under Woodsure’s
‘Ready to Burn’ scheme.
All our wood fuel products
are also extremely safe –
they’re certified by HETAS and
we feature on the Biomass
Supplier’s List (BSL) as an
authorised supplier for added
peace of mind.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888760 61
test results
We believe our heatlogs are the best in the
market - and we have the test results to prove it.
The open fire tests were carried out in a 4.57m high brick chimney fitted with a
refractory fireback conforming to BS 12511.
Two consecutive refuel periods were undertaken for each log. The start and finish radiation level was taken as 1.3kW.
For the c omparison tests the same mass of logs were used for each log, this was 3 .97kg, the mass of Hotties logs.
radiAnt output (1.9 kw)
Independent tests have shown
that Hotties Heatlogs achieve
RIVALS (1.6 kw*)
a radiant mean output o f 1.9kW
compared to its rivals’ average
of 1.6kW.
Radiant heat output is heat
energy transmitted by
Market leading electromagnetic waves in
contrast to heat transmitted by
performance conduction or convection.
1.0 kw 1.25 kw 1.5 kw 1.75 kw 2.0 kw
*average
moisture content heat output
With a uniform Hotties are clean, environmentally-friendly,
easy to store and low in moisture content.
moisture content 6% 4.9 kw
of aPPROX 6%, kiln-dried logs 20% kiln-dried logs 4.0 kw
Hotties heatlogs •
Made to size 70mm wide • Easy to stack and store
seasoned logs 30% seasoned logs 3.4 kw
generate a heat by 200mm length to suit all
appliances
• Low moisture content - normally
less than 6% (average wood log
output of • Reliable flame with assured
warmth: once you use them, you’ll
moisture content is 25-50%)
4.90 kw/h/t.
• No spitting or sparking
always want to use them
• Great used alone or mixed with
• Easy to light, burn well, throw off
regular fuel type
great heat, safe (no expansion
during burning) • Competitive RRP makes them a
practical alternative to traditional
• Low ash residue (0-5-0.7%), no
coal and wood logs
soot, keep stoves, cassette fires
and chimneys clean • Easy and clean to handle Heat output is a measure of the amount of heat the fuel releases. Hotties Heat Logs compare favourably with other
household fuels. If you compare them directly with fresh seasoned wood, you will see you get far more energy
density for your money. Why pay for water when you can buy dried wood with a m oisture content of around 6%.
The difference in the heat output and radiant mean figures is due to the fact that Radiant heat has a higher watts
output per metre, per degree than convection heating. A product requires less radiant heat for less time to do the job
of a standard convected product over a longer period of time.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888762 63
Love at first slice Odourless natural The SCOttish
firelighters candle
The UK’s only briquette for Ignite natural firelighters are Grown in Britain, Logi is our
wood fired pizza ovens. made from renewable, untreated take on the Swedish Torch.
wood shavings dipped in wax.
Made in the UK, Pizazz is a brand new Made from homegrown kiln dried Scots Pine, Logi
pizza log made from sweet chestnut. is great for camping, beach nights, in the garden or
Great for wood burning stores, open fires, pizza ovens,
anywhere you need a natural no fuss open fire.
charcoal barbecues, chimeneas and campfires.
• Very clean and easy to handle
• Easy to light • Clean and easy to handle
PLACE FIRELIGHTERS IN ADD SMALL OFFCUTS OF • Packaged in boxes of fifty
THE OVEN AND LIGHT PIZAZZ TO GET IT GOING • Easy to light
• High heat output • Perfect for use with Hotties, Barbies and Pizazz
• L ong cooking time - up to 2-3 hours • Ideal for campfires
• Made in Britain
depending on equipment • Suitable for use on any flat surface
• Can be used internally
• ade from 100% Sweet Chestnut
M • Perfect for use with Ignite
– no chemicals, binders or adhesives
• Grown in Britain from responsibly managed forests
• Low ash residue and compostable
•
Grown in Britain from responsibly BUILD UP THE FIRE BY HEAT THE OVEN UP
ADDING MORE PIZAZZ TO TEMPERATURE
managed forests
long burn odourless easy to light clean &
MOVE TO THE BACK NOW YOU’RE READY convenient
OF THE OVEN TO GET COOKING!
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888764 65
65
Technical
Information
For further information on our
range of products, please see
our technical information.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888766 67
Treatment Information Species Information
Our market leading timber utilises several different species:
Strength Graded Timber
Softwoods are the most frequently used timbers for load At BSW Timber we offer both machine graded and visually
bearing projects. However, in order to comply with Building graded timber products. C16 machined graded products Sitka Spruce (Picea sitchensis)
Regulations, the timber must always be strength graded. are used for carcassing projects. Visually and mechanically
graded products can also be used for agricultural purposes A true Spruce, Sitka is a native of North America, although it is one of the most commonly
In the UK, softwoods are graded visually, in accordance with and can be available for load bearing large sections. planted timber trees in the UK: forming the main part of our British spruce. It is similar in
BS4978, or by machine to EN14081. When graded visually, all appearance to European Whitewood, but British grown material is often much coarser in
defects in each piece (such as knots, slope of grain, wane, Beams which are load bearing are visually graded to both GS texture, with larger and more numerous knots.
fissures, wormholes etc), are assessed and measured against and SS grades which dependent on species and section are
the appropriate standards. equivalent to grades C14, C16, C18, C22 and C24 therefore
giving maximum design flexibility.
European Redwood (Pinus sylvestris)
A true Pine, this is one of the two most used softwoods in the UK, and it comes in a range
Preservative Treated Timbers of qualities, each preferred for various end uses. It is a pale, creamy-coloured timber, with
a pinkish-brown tinge to the heartwood: and this reddish colour gives the wood its common
We provide a range or preservative timber treatments Preservative treatments are based on different chemicals for trade name. Trees from more Northerly, colder latitudes (e.g. Northern Scandinavia, Russia)
specifically suited for the end use of your timber. the different applications, and are applied in a pressure vessel are of slower growth and give timber of a finer texture than wood of the same species from
(treatment tank) in one of two ways: either low pressure (UC1 elsewhere in Europe. When grown in the UK, this species is called Scots pine and it is one
Timber is classified into one of 5 use classes dependant on and 2) or high pressure (for UC2,3 and 4), depending upon the of our few native conifers.
where the timber will be used (as shown on the table below). species being treated.
1 2 3.1 3.2 4 Low-pressure treatments are generally suitable for internal
timbers such as timber frame studding and roof trusses where
Internal, dry
e.g. upper floor
Internal, risk of
wetting e.g. tile
Outdoors, Outdoors,
coated, above uncoated above
Direct soil or
fresh water
the level of hazard is low, and/or the wood species has some Douglas Fir (Pseudotsuga menziesii)
joists battens ground e.g. win- ground e.g. contact e.g.
dow frames fxence panels fence posts natural durability to begin with. Low pressure treated timber is
identifiable by its golden yellow colour. Another native of North America, but also planted to some extent in the UK. Douglas Fir is
a very large tree, producing timber in long lengths and large sizes. It is a very distinctive
The use classes are based on the potential threat to the High-pressure treatments are required for higher risk wood with a deep orange-red heartwood and a very marked contrast between the
timber from effects such as decay or insect attack during its environments such as exterior timbers for fence posts, boards, earlywood and latewood parts of the growth ring, thus giving rise to a distinctive “flame”
application. The higher the threat the higher the use class and rails and general landscaping timbers. High pressure treated figure in flat-sawn material, and a pronounced “comb” figure when quarter-sawn.
the higher the level of preservative protection required. timbers have an initial green or rich brown colouration.
Larch (Larix decidua & Larix kaempferi)
British-grown Larch is (rather in the same way as Spruce and Pine) a mixture of more
than one species. Most of the British Grown Larch is hybrid (Larix x eurolepis) with a small
Incised Fence Posts and Sleepers amount of European Larch (Larix decidua) and Japanese Larch (Larix kaempferi).
BSW Timber’s incised products utilise an innovative well- This process ensures support of the 15 Years Desired Service
British Larch is denser than other British grown Softwoods - about 550 kg/m3 - and it has
established North American practice of incising prior to the Life as stipulated within the Standard BS8417 Preservation of
a resinous heartwood which is strikingly orange pink in colour when freshly felled, later
treatment of the timber component. Wood - Code of Practice.
fading to pinkish or brick red. It is clearly separated from the creamy-white sapwood. Its
natural durability is an average class of 3, though as with all larch species this ranges
This pre-treatment process involves precise incisions This uniquely engineered system developed in Britain by
between 2 and 4. Larch generally has a lot of small knots, which are scattered along the
on each of the four faces of the sawn post or sleeper to BSW Timber takes the performance level beyond BS8417
length of a sawn board. It can be used for all the end-uses to which Spruce and Pine are
ensure sufficient levels of preservative penetration (6mm by ensuring preservative penetration is achieved within the
put and is increasingly popular for external cladding (and in this end-use, it is also helped
in the analytical zone) and retention are achieved from the heartwood area of the timbers as well as the sapwood area.
by its durability rating).
subsequent treatment
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888768 69
With thanks to
our customers
and installers
Outerspace Creative Landscaping
North Somerset
01275 870 701
hello@outerspacegardens.co.uk
www.outerspacegardens.co.uk
Lemon Tree Landscapes
Bristol
07756934817
lemontreelandscapes@hotmail.com
www.lemontreelandscapes.net
Greentop Landscapes and Design
Newport
01633 896 007
info@greentoplandscapes.co.uk
www.greentoplandscapes.co.uk
Fountain Timber
Bristol
01934 862 710
helpdesk@fountaintimber.co.uk
www.fountaintimber.co.uk
Estate Sawmills
Bradford
01274 487882
info@estatesawmills.com
www.estatesawmills.com
M Fry Garden Services
Canterbury
07737987273
mfrygardenservices@gmail.com
Barlow’s Woodyard
Warranty Information Responsible Purchasing Thatcham
01635 200253
newbury@barlowsofhermitage.co.uk
BSW’s commitment to you We source all our material from well-established www.barlowswoodyard.co.uk
and ethically managed sources.
Because of our use of the latest In the unlikely event that our High Spec Homes
All our timber is FSC® certified. backed campaign designed to Devon
generation TANALITH wood timber products should fail due
Chain of Custody certification create a sustainable future for 01392 851 541
preservative and the quality to decay or insect attack within www.highspechomes.com
traces the wood from forest British forests and woodlands.
of our treatment procedures, 15 years of purchase, BSW
to distribution, ensuring you Specific aims include creating
BSW has real confidence in the Timber will replace the failed
receive timber that is from legal, a new and stronger market
products we send to market. timbers* providing they have
environmentally appropriate, pull for British forest products,
been installed, maintained and
socially beneficial, and developing private sector funding
Our 15-year performance used correctly.
warranty on Use Class 4 posts
economically viable forests. BSW to support woodland creation, Would you like your
and timber decking gives you *Full details of our warranty
Timber is a proud member of and promoting a strong wood images featured in
Grown in Britain, a government culture throughout our society.
real confidence in their long- conditions are available to our brochure?
term performance. download at www.bsw.co.uk
Send your submissions to
marketing@bsw.co.uk
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888770 71
he benefits we bring to our BSW
T
Accredited Installer Scheme include:
• It’s free – no joining fees or monthly subscription
• P
roduct samples, to help your customers
see and feel the BSW range
• Access to BSW’s innovative products
• Technical support from the BSW team
• A
listing as an accredited installer on the
BSW website
We’ll be supporting all businesses
in our Accredited Installer Scheme:
•
BSW is a supplier with more than 170 years
experience in the timber industry
• Receive referrals for jobs in your area
•
Reap the benefits of our points reward scheme
and continuous training to help you guide your
customer to make the right choice
At BSW we want to help you to
learn so that your business can
grow. That’s why we’ve launched
the Accredited Installer Scheme.
If you’re a landscaper, joiner or builder and
want to grow your job opportunities whilst
working with award winning products,
then sign up to become a BSW Accredited
Installer – it’s completely free!
BSW Accredited Installers benefit from a
wide range of services and support that help
IRO Alchemy
to promote and add value to their business.
Sign up now at www.bsw.co.uk/installers
Find an Accredited Installer
Visit www.bsw.co.uk/installers to find a BSW Acreddited Installer in your Fencing Landscaping
area for any of your IRO, Alchemy, Fencing or Landscaping projects.
* To be eligible for the scheme you will need to submit public liability insurance.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888772 73
Where it all begins, Maelor Forest Nurseries is Where it is made. BSW Timber manufactures
the first in the BSW chain of production. and supplies a wide range of quality, sawn
products for an array of industries, including
Maelor plants and produces an extensive range of fencing, landscaping, cladding, construction,
commercial forestry and native broadleaf species DIY, decking, and packaging.
from seed - marketing approximately 28 million trees
a year to customers throughout the UK and Europe. This covers everything from C16 construction
timber to innovative products such as composite
decking and acoustic fence panels. The company
also offers fencing components – such as posts,
rails, and boards – in addition to sleepers, purlins,
beams, baulks and large sections.
Tilhill is the UK's leading forestry and timber harvesting
company responsible for harvesting a large percentage
of the timber that ends up in BSW sawmills.
Established more than 60 years ago, Tilhill is a national
company operating from a network of offices throughout BSW Energy manufactures a range of renewable
Great Britain, with a turnover in excess of £100 million. wood fuel products that are distributed into
domestic and trade markets from our site in
Fort William. BSW Energy are a BSL authorised
supplier and also Woodsure accredited by HETAS
which means its fuels are certified to be both safe
and efficient.
BSW Energy is a member of the new Woodsure
Recently acquired and now working alongside Tilhill as
Ready to Burn scheme, backed by Defra and
a part of the BSW Group family, Dick Brothers Forestry
guaranteed below 20% moisture content. Our
Ltd is a highly mechanised timber harvesting company
versatile, clean and efficient wood fuel ranges
operating throughout the United Kingdom using state-
are available for nationwide delivery.
of-the-art forestry technology.
The BSW Group is
Its operations are predominantly harvesting of shortwood
the largest integrated for our sawmills and small roundwood trade, but it has the
forestry business in the capabilities to provide highly technical services such as
skyline and high lead systems as required.
UK - and it has five main
operating divisions:
Not just timber. Proudly located in Telford,
tree nurseries, forestry, Shropshire – Alvic Plastics is the UK’s largest
sawmilling, timber manufacturer of Extruded Wood Polymer
Composites (WPC).
manufacturing
CarbonStore is a unique carbon offsetting programme
and energy. offered by the BSW Group. CarbonStore provides
One of the pioneers of the burgeoning WPC scene
in the 1990’s, Alvic Plastic’s management team
the vital link to unite landowners looking to sell their have over two decades of experience developing
Woodland Carbon Units with companies keen to a strong background and a pristine track record
offset their carbon emissions. both designing and manufacturing a range of
cutting-edge WPC products and PVC rigid profiles.
It is unique in that CarbonStore grow the tree seed, design
the schemes, plant the saplings, manage the trees and
sell the carbon units. Its professionalism, transparency,
and many years of experience combine to create and
nurture the very best woodlands for us all to enjoy.
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 888774 75
BSW Timber K2 Sawmill, Fort William
www.bsw.co.uk | sales@bsw.co.uk | 0800 587 8887Carlisle Sawmills,
Carlisle,
CA6 4BA
Tel: 0800 587 8887
sales@bsw.co.uk
www.bsw.co.ukYou can also read
