G.-F. Dalla Betta Feb. 6, 2017 ATLAS ITk CSN1 Meeting – Roma, 6 Febbraio 2017 Gian-Franco Dalla Betta1, Claudia Gemme2 1 Universityand TIFPA INFN / Trento 2 INFN Genova On behalf of RD_FASE2: ATLAS Pixel BO, CS, GE, MI, TN, UD
Overview of the Phase-II Pixel upgrade ü The project is now accelerating significantly given the schedule for the Pixel TDR (Dec 2017). • Possibility to have two FE submissions is included in the schedule. Module op:miza:on can start with first chip. • Module produc:on and loading: ~27-33 months 2
Overview of the Phase-II Pixel upgrade ü The project is now accelerating significantly given the schedule for the Pixel TDR (Dec 2017). Zoom in 2017: • Layout definition will allows groups to take commitments on parts of detector. • and preliminary design of the local supports. • RD53-A will be submitted in spring 2017à technological demonstrator of the 65 nm technology and module prototypes with small pixel size. • Bump bonding marker survey. • Sensors: identify the baseline designs to be used in the detector. A preliminary design of the data transmission and power distribution scheme will be included in the TDR. • Start of ATLAS chip design. 3
G.-F. Dalla Betta 4 Feb. 6, 2017 INFN Contribution to ITk & R&D’s Main target of the R&D – 3D Pixel Sensors → RD_FASE2 – (common with CMS) • In partnership with FBK (Trento) • Baseline technology in Layer 0 (maybe also L1 and Ring0) – Bump-bonding → RD_FASE2 (in part common with CMS) • Indium thermo-compression process with Leonardo (ex Selex) – Pixel R/O chip (RD53) → common CHIPIX65 project of CSN5 – Pixel module assembly / tes:ng → RD_FASE2 – CMOS sensors (with STM) → HVR_CCPD project of CSN5 – Mul: module R/O & DAQ → RD_FASE2 – Local support / CO2 cooling → RD_FASE2 – Simula:on & tracking Several topics also co-funded 4 by EU AIDA2020
G.-F. Dalla Betta 5 Feb. 6, 2017 Assegnazioni RD_FASE2 a ITk 2014-2017 (inclusi items comuni con CMS) A3vità Descrizione BO CS GE MI TN UD TOT Sviluppo sensori con FBK 3D - - 65 - 38.5 - 103.5 (inclusi substra:, etc.) Bump bonding di moduli per BB sensori & Qualificazione Bump - - 62 110 - - 172 bonding ad alta densita’ su W. 12” Assemblaggio moduli, test, MODULI - 7 22 2 8.5 2 41.5 irraggiamen:, etc. Sviluppo sistema READ-OUT READ-OUT 42.5 - - - - - 42.5 mul: modulo MECCANICA QA suppor: locali e contributo al - 8 26 57 - - 91 E COOLING Cooling System ITk Total per Group 42.5 15 175 169 47 2 450.5 Grand Total 450.5
G.-F. Dalla Betta 6 Feb. 6, 2017 Milestones 2014 Data Descrizione % Note 31-05-2014 Presentazione documenti relativi alle attivita' di R&D, 100 pianificazione temporale e gruppi coinvolti 20-12-2014 Realizzazione batch sensori planari a 100 FBK con prove tecniche di foratura Milestones 2015 Data Descrizione % Note 31-07-2015 Verifica batch FBK n. 2 pixel planari su wafer DWB 100 6". Se positiva seguono test di moduli single ROC con pixel planari 30-11-2015 Qualifica della prima produzione di pixel 0 Riportata 3D single side FBK al 2016
G.-F. Dalla Betta 7 Feb. 6, 2017 Milestones 2016 Data Descrizione % Note 31-07-2016 Pixels, Caratterizzazione in clean 100 room di dispositivi planari e 3D 30-11-2016 Pixels, test in laboratorio di moduli 3D 100 30-11-2016 Pixels,Definizione Layout per pixel 3D e 100 planari compatibili con i prototipi del chip di lettura previsto per RD53 Milestones 2017 Data Descrizione % Note 31-07-2017 Prove su fascio di rivelatori a pixel 3D 100 con chip di lettura FEI4 e PSI46dig 31-10-2017 Caratterizzazioni in laboratorio di Confidenti di sensori a pixel planari con pitch soddisfare 50x50um e 25x100um pienamente
Italian R&Ds à 3D sensors ü Achieved so far: • Feasibility of small-pitch 3D demonstrated, tested with large pitch read-out • Extensive testing of 3D modules under way with good results • Very promising results also from irradiated test structures Preliminary test beam results 8
Italian R&Ds à 3D sensors ü Achieved so far: • Feasibility of small-pitch 3D demonstrated • Extensive testing of 3D modules under way with good results • Very promising results also from irradiated test structures ü Towards the TDRà Qualify FBK as a 3D vendor • Need to qualify sensors for extreme radiation hardness. 3D wafer: New layout • proceed with irradiations of FE-I4 modules, looking forward to RD53A ROCs (~fall 2017) • One 3D batch being launched now (funded by AIDA 2020), another one (already funded by RD_FASE2) to be produced, essential to finalize this R&D, still waiting for the new agreement with FBK for pixel sensors. 9
Italian R&Ds à Bump-Bonding@Leonardo ü Achieved so far: • Bump bonded FBK 3D and planar sensors. • High bump density deposition (50x50 µm2 over 2x2 cm2) validated with electrical and visual QA on 6” wafers with dummy chains. • Started validation of high density BB on 12” wafer. So far just bump deposition on bare Silicon. Bump R of dummy chains Source scan of a 3D sensor bump bonded to a +FEI4 by Leonardo High density Bumps X-ray 10
Italian R&Ds à Bump-Bonding@Leonardo ü Achieved so far: • Bump bonded FBK 3D and planar sensors. • High bump density deposition (50x50 µm2 over 2x2 cm2) validated with electrical and visual QA on 6” wafers with dummy chains. • Started validation of high density BB on 12” wafer. So far just bump deposition on bare Silicon. ü Towards the TDRà Qualify Leonardo as a BB vendor • Next step is to deposit bumps on 12” wafer with resistive chains. If successful to be used for RD53A wafer in Fall 2017 • For the TDR and beyond: Qualify Leonardo to do high density In bump deposition on 12” wafers 12” dummy chain wafer and maybe part of the flip-chip. • Deposited wafers may be flip-chipped by users in the collaboration (BCN, Moscow, Glasgow, Geneva, etc...). 11
Italian R&Ds à Read-out ü Profiting of IBL (and Pixel Layer 2/1 on-going upgrades) experience in Read-Out Card design/production/qualification. ü The idea is to produce a table top card, replacing the ROC+BOC current pit implementation: • Manpower: 2 FTE with electronics Workshop in Bologna • For the TDR: qualify the system for the detector offline readout. 12
Italian R&Ds à Mechanics/Cooling Plant in USA15 PP2 PP1 7 Chiller 9 Transfer line 8 Pump 7 2 3 4 5 1 6 Staves PP1 Splitting box ü Participation to the ITK cooling system with the design, construction and tests of the splitting box (Genova): • Prototypes to be ready in summer for QA at CERN. 13
Italian R&Ds à Mechanics/Cooling ü CO2 evaporative system with recycle now available for ATLAS and LHCb in Milano. ü Slim longeron (Support of the inclined solution) • Manufacturing of the Al moulding. • Thermo mechanical FEA: stress in the cell critical interfaces and thermal radiation effect studies. Al mould short prototype Cell FEA studies SLIM Local Support for Inclined Layout • Planned CO2 tests of cooling circuits with the 2PACL Traci unit. • Planned measurement of the cell solder/tim interfaces before and after cooling/pressure cycles. 14
Aggio E cosa costruiamo? rn un p amenti in aio di mesi ü We are discussing if to take responsibility of building one End-cap, so far uncovered. • The other one is built by UK colleagues. • Building the innermost barrel layers - as originally proposed to better match our sensor interests - seems to be difficult as there is a strong US interest and our design and engineering capabilities are limited. • This is not expected to damage our interest and leadership in the 3D sensors as the pixel production model decouples the module production&test from their installation on detector. ü Meeting in Genova on Feb 8/9 to discuss the current status of the activities, push them to be relevant in the Pixel TDR and discuss if to take the responsibility to deliver the End-cap. ü This is an ambitious project (2.5 m length, 60 cm diameter, 2.5 m2 surface) but may be a big opportunity to boost the Italian contribution: • New groups have shown interests in this opportunity (Lecce, Frascati). 15
Production organization for the pixel detector Lab1Lab1 Lab1Lab2 Lab3 Modules and LabN LabM Supports QA sites are not necessarily Pool of Qualified Pool of Qualified correlated to the Modules Supports Loading sites (3D, planar…) (Staves, Half-Rings) Barrel Loading Sites receive EC Loading Sites receive QA Staves + QA module QA Half-rings + QA Module Loading: modules Robot, Survey Loaded supports QA: HW setup, source, cold box
Aggio A possible model for Italy rn un p amenti in aio di mesi ü Module Assembly e QA: • Assembly e QA dei 3D (~1 m2 /2 vendors ) – per paragone 0.04 m2 sono i 3D installati in IBL. • Altro se necessario per il nostro share. à Coinvolgere piu’ lab: almeno 2 per module assembly, 4-5 per module QA. àE’ MOLTO importante per il formare competenze per l’operazione negli anni futuri! ü Module Loading and QA: • A Genova montati in passato ~ 40 staves (~500-600) moduli. • Procedura lenta , va sicuramente ottimizzata. à1/2 siti per il Loading (Genova/xx) à Almeno 2 siti per la QA dei moduli sui supporti. ü Integration: • To be defined.
Aggio rnam uFeb. n pa6,i 2017ent G.-F. Dalla Betta 18 o di m i in esi Riassunto FTE 2017 Sezione First+Name Family+Name Ruolo RD_FASE2+ HVR_CCPD CHIPIX65 AIDA2020 BO Federica Fabbri PhD 0,20 1 1 1 BO Davide3 Falchieri Tecn.3Cat.3D 0,20 1 1 1 Total for the 4 R&D of interest for ITk BO BO Alessandro3 Carla Gabrielli Sbarra RU RIC 0,20 1 1 0,20 1 1 1 1 BO Antonio Sidoti RIC 0,20 0,20 1 1 - 39 persons (same as in 2016) BO CS Maximiliano Anna Sioli Mastroberardino PA RU 0,20 0,50 1 1 1 1 1 1 CS Daniela Salvatore Assegnista 0,30 1 1 1 - 18 FTE (was 16.2 in 2016) GE GE Giovanni Andrea Darbo Favareto DR Assegnista 0,60 0,30 0,30 1 1 1 1 1 GE Andrea Gaudiello PhD 0,50 0,30 1 1 GE Claudia Gemme RIC 0,20 0,10 1 0,15 GE Silvia Miglioranzi Assegnista 0,20 1 1 1 GE Paolo Morettini 11RIC 0,60 0,20 1 1 Sez. RD_FASE2 HVR_CCPD CHIPIX65 AIDA2020 GE GE Hideyuki Leonardo Oide Rossi Borsa DR 0,40 0,20 1 0,10 1 1 1 1 GE Cecilia Rossi Tecn. 0,30 1 1 1 BO 1.00 0.40 - - GE MI Mario3 Gianluca Sannino Alimonti PA RIC 0,40 0,50 0,20 1 1 1 1 0,20 MI Attilio Andreazza PA 1 0,30 1 1 CS 0.80 - - - MI MI Mauro Simone Citterio Coelli D1TEC Tecn. 1 0,40 0,10 1 1 1 1 1 MI Luca Frontini PhD 1 1 0,60 1 MI Danilo Giugni P1TEC 0,50 1 1 1 GE 3.70 1.20 - 0.15 MI Valentino Liberali PA 1 0,20 0,40 1 MI Chiara Meroni DR 0,25 0,30 1 0,15 MI Francesco Ragusa PO 0,10 0,30 1 1 MI 2.12 1.20 1.50 0.35 MI Seyedruhollah Shojali Assegnista 1 1 0,50 1 MI Clara Troncon 11RIC 0,37 1 1 1 TN Maurizio Boscardin RIC 0,10 1 1 1 TN 3.30 - - 1.00 TN Gian1Franco Dalla3Betta PO 0,50 1 1 1 TN Mostafa El3Khatib PhD 0,50 1 1 1 TN Roberto Iuppa RTD1A 0,10 1 1 1 UD 1.30 - - - TN TN David Roberto Macii Mendicino PA PhD 0,70 1 1 1 1 1 1 1,00 TN D3M3S Sultan PhD 0,70 1 1 1 Total 12.22 2.80 1.50 1.50 TN UD Giovanni Mario3Paolo Verzellesi Giordani PO RU 0,70 0,30 1 1 1 1 1 1 UD Gilberto Giugliarelli RU 1,00 1 1 1 Total 39 12,22 2,80 1,50 1,50 Lecce e Frascati hanno dimostrato serio interesse a partecipare; altri laboratori potrebbero aumentare il loro contributo à FTE>25 nei prossimi anni
G.-F. Dalla Betta Feb. 6, 2017 Itk Money Matrix Pixel Contributions Italy Common Item Contribution Italy GRAND TOTAL = 6282,60 kCHF
Final Message ü 2017 important steps: • Contribute to the TDR! • Test 3D sensor at very high fluence and produce new batches for test and assembly with RD53A. • Qualify the high density bump deposition on 12” wafers. • Choose a detector part to built and contribute with our expertize there. 20
G.-F. Dalla Betta 21 Feb. 6, 2017 Back-Up Slides • Funding 2014-2017 • General ITK • Sensors • Bump Bonding • Mechanics • ITk Cooling • Electronics
G.-F. Dalla Betta 22 Feb. 6, 2017 RD_FASE2: Assegnazioni 2017 Funding
23 G.-F. Dalla Betta Feb. 6, 2017 RD_FASE2: Assegnazioni 2016 1 2 Funding 3 1) In corso ordine congiunto GE-MI a Selex per BB (40 kEuro) + residuo ~12 kEuro per lavorazione wafer 12’’ 2) In attesa di riattivazione convenzione per ordine a FBK 3) Include contributo 2016 a Baby Demo
G.-F. Dalla Betta Feb. 6, 2017 RD_FASE2: Assegnazioni 2015 A3vità Descrizione BO CS GE MI TN UD 6" Wafer procurement (SOI, wafer bonding, epi) - - - - 10.0 - 3D PicoScope 6407 Digi:zer with 1.5 GHz probes and accessories. - - - - 8.5 - 6" dummy wafers - test deposi:on on 6" and - - - 20.0 - - Funding BB high-density bumps (150 k-bumps/chip) BB for 3D sensor test - - 24.0 - - - Upgrade R/O Systems - 2.0 2.0 2.0 - 2.0 MOD Module assembly and irradia:on, RD on flex - - 10.0 - - - MM-R/O Mul: module R/O 15.0 - - - - - CO2/µCH Develop µ-channel cooling - - - 10.0 - - 15.0 2.0 36.0 32.0 18.5 2.0 Total requested by ATLAS 105.5
G.-F. Dalla Betta Feb. 6, 2017 RD_FASE2: Assegnazioni 2014 2014: CSN1 funded (Feb and May) R&D Phase 2 activities for ATLAS & CMS inner trackers. – Development of 3D and Ac:ve Edge sensors with FBK – 3 Batches (ATLAS/CMS) – Bump-bonding: development of Indium bumps (6” sensors) and produce modules Funding – Develop a technology for pixel detector hybridiza:on using C (dielectric) instead of R (bump-bonding) coupling – Comple:on of CO2 test plant (combined ATLAS / LHCb) Assigned on Sezione Category ATLAS/CMS/COMMON Assigned DescripVon Feb 2014 GE 3D COMMON 21 000 Wafer for 3D sensors (common with CMS) Apr 2014 GE 3D COMMON 44 000 3 processes at FBK: 2 commiped with MEMS3 May 2014 GE HV ATLAS 13 000 HV-CMOS Hybridiza:on + 3 FE-I4B wafers May 2014 MI BB ATLAS 27 000 BB of 3D (IBL design on 6") + 3 FE-I4B wafers May 2014 MI CO2/µ-CH ATLAS 20 000 TRACI: co-funded with LHCb 125 000
Itk Layout à strip TDR One layout for strip; two concepts for pixel. General ITk Strip Pixel 08/05/2015 Roadmap to Layout Workshop 26
The ITK Pixel detector: FullyInclined Outer Barrel General ITk End cap Innermost: Barrel + endcap Same Endcap in both layouts, optimized for the Extended 27
The ITK Pixel detector: Extended Outer Barrel General ITk End cap Innermost: Barrel + endcap Same Endcap in both layouts, optimized for the Extended 28
performance General ITk 29
Surfaces General ITk Una Endcap à 3.3 m2 ma in processo di ottimizzazione, si potrebbe ridurre del 30% Il Pixel detector oggi e’ 1.9 m2
Bump-bonding: Selex à Leonardo ü Requirements/challenges: • 5x bump density of current IBL à 120 k-bumps/chip FEI4 size • Optimize the process on dummies (produced by FBK), studying bump height, size and the process parameters as pressure and temperature. • Visual, mechanical and electrical test of the parts and assemblies. • Bump deposition on 12-inch electronics and 8-inch sensors wafers (was 8” Bump Bonding and 6”) • Optimize the process on dummy supports • Wafers and deposition masks procured: test uniformity of bumps deposition. • Handling of thin electronics (100 µm has been achieved for few FEI4 test modules). • Indium bumps have an easier process that does not need temporary support wafer à competitive for innermost layers • 10x total surface (14-18 m2 vs current pixel of 1.7): • Need to optimize production flows and reduce bottle-necks as Flip-chip à outsourcing ? ü We are working with Leonardo for the R&D phase and to qualify it as vendor. 31
Bump Bonding
Bump Bonding

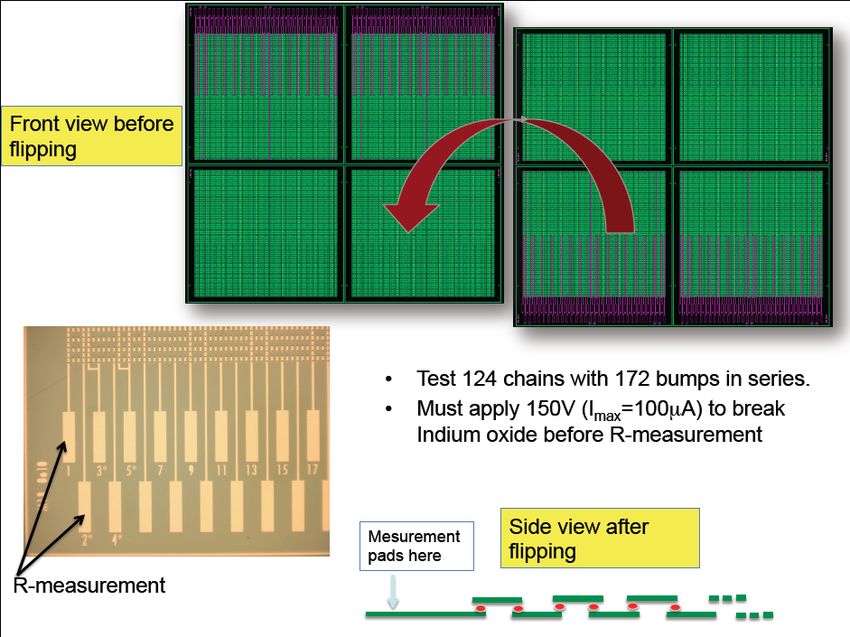

Bump-bonding@Leonardo: resistive chains ü Very promising results from first resistive chain tests on 6”: • Bumps resistivity as expected • No open among 64k bumps (3 chips) • No indication of shorts (either by X-rays or R measurement) • Mechanical tests with thermal cycles on module-like structure are fine. Flip-chip planarity needs to be improved. Bump Bonding • ü Next steps: • Resistive chain QA with 12” wafers • … until high pitch density is available with real sensors/RD53A 34

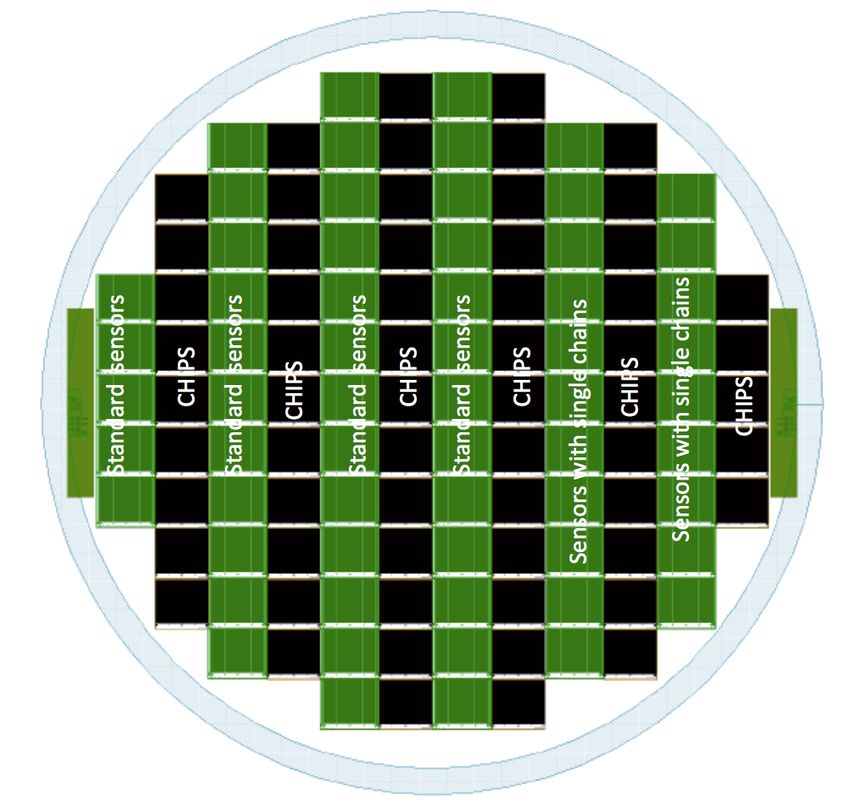

Bump-bonding@Leonardo: 12” deposition ü Bump deposition on 12” bare wafer (just Si, no pattern) with several bumps openings under test • Wafer has been visually analyzed and bumps height measured with a profilometer • preliminary results on bump height (~10 µm) uniformity good (~1 µm) if opening is larger than 16 µm. Bump Bonding • Some problems at the photoresist lift-off due to low number of bumps (bump density is nominal but only in spots uniformly distributed over the wafer surface). ü Next steps on daisy chains: • More tests needed with high bumps density all over the wafer and daisy chains to measure bump resistivity. • Resistive chains layout on 12” is a common layout for all the groups. • In fabrication nowà BB in March. 35
Bump-bonding@Leonardo: 12” deposition Bump Bonding 36

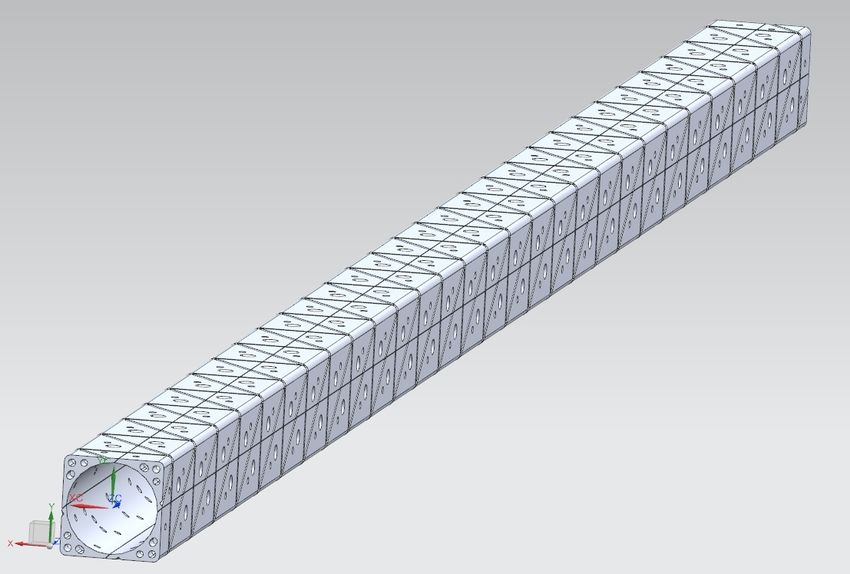

SLIM LONGERON PROTOTYPE PRODUCTION: MANUFACTURING OF ALUMINUM MOULDS STRUCTURE ALUMINUM MOULDS FOR: • TEST PROTOTYPES • FULL LENGTH COMPONENTS FOR THE PRODUCTION OF THE CARBON FIBER Mechanics LONGERON MODEL OF THE MOULD INTERNAL COMPONENTS WITH CRITICAL MACHINING DETAIL OF THE CARBON FILAMENTS CORNER CROSSING (THE VOLUME FIBER NEEDS TO BE MAINTAINED CONSTANT) 37
STAINLESS STEEL MOULD ALUMINUM MOULD SHORT PROTOTYPE (200 mm) Mechanics PRODUCED IN MILANO MECHANICAL WORKSHOP SENT TO CERN TO TEST THE DE- MOULDING PROPERTIES WORK IN PROGRESS: MANUFACTURING STUDIES FOR ALUMINUM FULL ASSEMBLY MOULD, LENGTH 400 mm 38
EXAMPLES OF CARBON FIBER LONGERON STRUCTURES UNDER TEST Mechanics 39
THERMO-MECHANICAL FEA: EVALUATION OF THE STRESS IN THE CELL CRITICAL INTERFACES BARREL CELL SLIM CELL CRITICAL INTERFACES ISO-GRAPHITE BLOCK USE OF ADVANCED MATERIALS (NO ALL DATA ARE AVAILABLE) Sn-37Pb SOLDER • SOLDERING (BRAZING) BETWEEN PIPE AND PHASE-CHANGE THERMAL COOLING BLOCK Mechanics TPG PLATE • PHASE-CHANGE-THERMAL INTERFACE MATERIAL INTERFACE-MATERIAL TILTED CELL MATERIAL CTE AND YOUNG MODULES UNDER INVESTIGATION FEA CALCULATION OF THE STRESS IN THE INTERFACES 40
FEA STUDY: EFFECT OF THE THERMAL RADIATION ON THE THERMAL FIGURE OF MERIT THERMAL RADIATION EFFECT MODEL: CELL IN A CLOSED CYLINDER ENVELOPE TO SIMULATE THE ENERGY EXCHANGE WITH THE SURROUNDING ENVIRONMENT DUE TO THE INFRARED RADIATION EMISSIVITY CASES STUDIED • Ɛ = 1 (BLACK BODY) • Ɛ = 0.5 (GRAY BODY) Mechanics 41
Mechanics EFFECT OF THE THERMAL RADIATION HEAT EXCHANGE WITH A SURROUNDING ENVIRONMENT AT 20 °C, FOR BOTH THE BARREL AND TILTED SLIM CELLS: THE THERMAL FIGURE OF MERIT CHANGES WITH THE COOLING TEMPERATURE, WITH THE EMISSIVITY OF THE FACING OBJECTS => INCREMENT OF THE 6 TO 9 % OF THE TFOM DUE TO THERMAL RADIATION EXCHANGE 42

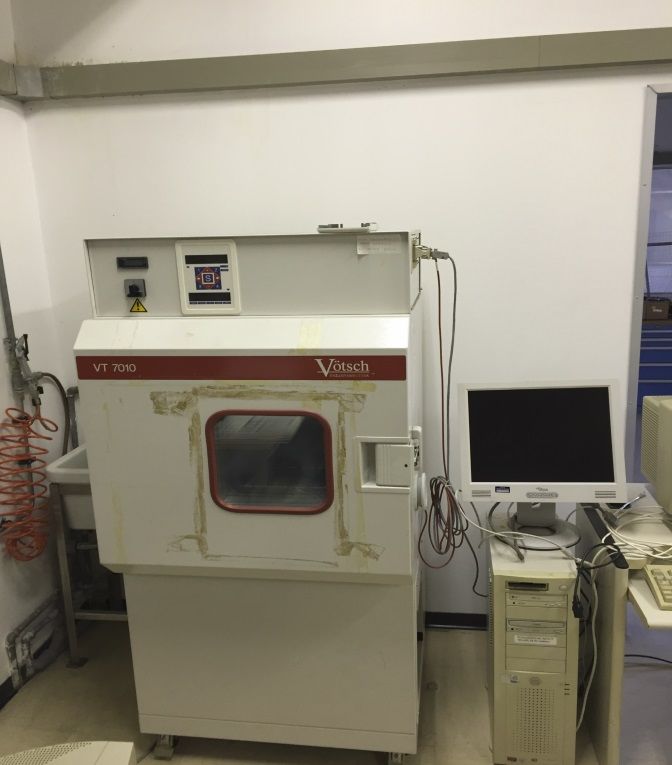

COLD BOX FOR SLIM CELL SOLDERING/THERMAL INTERFACE THERMAL TEST BEFORE AND AFTER THERMAL/PRESSURE CYCLING DEDICATED COLD BOX DESIGN COMPLETED CONSTRUCTION WORK IN PROGRESS DRY-AIR FLUXED CHAMBER WITH INTERNAL DEW POINT MEASUREMENT CO2 COOLING SUPPLY Mechanics FROM 2PACL TRACI COOLING UNIT ARMAFLEX INSULATION TEMPERATURE PROBES ATTACHED TO THE SYSTEM UNDER TEST POWER SUPPLY FOR HEATER DUMMY LOAD SLIM BARREL/TILTED CELL UNDER TEST PRE-QUALIFICATION USING A DUMMY PROTOTYPE 43
TEST PLAN: 1. MEASUREMENT OF THE THERMAL FIGURE OF MERIT, APPLYING POWER WITH HEATERS AND MEASURING THE TEMPERATURES, COOLING THE CELL USING THE CO2 SUPPLY FROM THE TRACI UNIT 2. CYCLE THE PROTOTYPE (100) TIMES BETWEEN AMBIENT AND COLD TEMPERATURE (- 40 °C) 3. POST-MEASUREMENT OF THE THERMAL FIGURE OF MERIT AFTER THE CYCLES Mechanics THERMAL TEST CLIMATIC CHAMBER 44
CO2 TEST OF COOLING CIRCUIT CRITICAL COMPONENTS WITH 2PACL TRACI UNIT SWAGELOK FLOW RESTRICTOR CALIBRATED ORIFICE= 0,25 mm (0,01 ") CO2 T, P (OUTLET FLOW RESTRICTOR)= -20 °C, 20 barA 3.5 3 ORIFICE PRESSURE DROP - bar 2.5 2 1.5 Mechanics 1 0.5 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 MASS FLOW RATE - g/s CO2 FLUID-DYNAMIC CHARACTERIZATION MILANO COOLING LAB. SOLVED THE PROBLEMS FOUND 2PACL TRACI V.3 UNIT IN THE PUMP: NEW GASKET TO WITHSTAND EXPLOSIVE DE- COMPRESSION UNDER FINAL COMMISSIONING AT CERN 45
NEXT FEA TASKS: ANSYS ACP FINITE ELEMENT ANALYSIS SLIM LONGERON FEA PERFORMANCE. RIGIDITY, VIBRATION FREQUNCIES, THERMO-MECANICAL STABILITY, MOUNTING Mechanics FIXATIONS AND DETAIL STUDIES EXAMPLE OF OPTIMIZATION PROCESS FOR THE TILTED CELL COOLING BLOCK 46
ITk Cooling system Genova is involved in the splizng box project and produc:on. 3D metallic printed prototype by summer :me. Plant in USA15 PP2 PP1 ITK Cooling 7 Chiller 9 Transfer line 8 Pump 7 2 3 4 5 1 6 Staves Splitting Box Splitting Box Plant →PP1 PP1 → Detector • Common Mechanics group • Pixel side (Lukasz Zwalinski, Paolo Petagna, … ) (Danilo Giugni,…) • DEMO & BABY DEMO 47
Scheda Pixel_ROD Features • 7-series Xilinx® FPGAs ü Kintex®7 XC7K325T for trigger and data processing ü Zynq® Z020 with physical dual-core ARM Cortex-A9 • 1 x PCIe Express interface (4GB/s towards the PC memory) • 16 x GTX@ 10Gb/s ü 1 x 10-Gb/s link (GBTx) • 1 x HPC (400-pin) HS (Half pair BOC-ROD) Read-out • 2 x LPC (160-pin) HS differen:al lines Man Power (anyone Welcome!!) • INFN (Lab. Elepronica) • G. Balbi, D. Falchieri, G. Pellegrini • DIFA: A. Gabrielli + studen: • G. D’amen (XXX PhD 12-2017) • N. Giangiacomi (XXXI PhD 12-2018) • F. Alfonsi (Magistrale 06-17) • C. Pre: (Magistrale 03-17)
