An Operating System for the Home
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
An Operating System for the Home
Colin Dixon (IBM Research) Ratul Mahajan Sharad Agarwal
A.J. Brush Bongshin Lee Stefan Saroiu Paramvir Bahl
Microsoft Research
Abstract—Network devices for the home such as re- that is compatible with existing home technology is er-
motely controllable locks, lights, thermostats, cameras, ror prone at best. This is problematic as users prefer to
and motion sensors are now readily available and inex- organically add a few devices or applications at a time.
pensive. In theory, this enables scenarios like remotely
We argue that this state of affairs stems directly from
monitoring cameras from a smartphone or customizing the abstractions that home technology presents to users
climate control based on occupancy patterns. However, and developers. There are two prevalent abstractions to-
in practice today, such smarthome scenarios are limited
day: an appliance and a network-of-devices. The appli-
to expert hobbyists and the rich because of the high over- ance abstraction is that of a closed, monolithic system
head of managing and extending current technology.
supporting a fixed set of tasks over a fixed set of devices.
We present HomeOS, a platform that bridges this gap Commercial security and automation systems [1, 12] and
by presenting users and developers with a PC-like ab- many research efforts [29, 43] present this abstraction.
straction for technology in the home. It presents network The closed nature of such systems means that end users
devices as peripherals with abstract interfaces, enables and third-party developers typically cannot extend them,
cross-device tasks via applications written against these making it a poor fit for an environment where incremen-
interfaces, and gives users a management interface de- tal extensions are desired.
signed for the home environment. HomeOS already has
The second abstraction is a decentralized network-of-
tens of applications and supports a wide range of devices.
devices. Interoperability protocols such as DLNA [14],
It has been running in 12 real homes for 4–8 months, and Z-Wave [46] and SpeakEasy [16] provide this abstrac-
42 students have built new applications and added sup-
tion. It is also a poor fit for the home because it provides
port for additional devices independent of our efforts.
limited or no support for users to manage their technol-
ogy or for developers to build portable applications that
1 Introduction span multiple devices.
In this paper, we advocate for a PC-like abstraction
Pop culture, research prototypes and corporate demos for technology in the home—all devices in the home
have all envisioned a smart, connected home where mul- appear as peripherals connected to a single logical PC.
tiple devices cooperate to cater to users’ wishes with lit- Users and applications can find, access and manage these
tle or no effort. For instance, in a home with remotely devices via a centralized operating system. The op-
controllable lights, cameras and locks, it should be easy erating system also simplifies the development of ap-
to automatically adjust lights based on the weather and plications by abstracting differences across devices and
time of day as well as remotely view who is at the door homes. Further, it provides a central location to extend
before unlocking it. But such seamless home-wide tasks the home by adding new devices and applications.
are conspicuously absent from the mainstream despite
We present an architecture to provide the PC abstrac-
the fact that the needed hardware devices are reasonably
tion for home technology and its instantiation in the form
priced—wireless lightswitches, door locks, and cameras
of a system called HomeOS. Its design is based on user
can each be bought for (US) $50–100.
interviews and feedback from a community of real users
Studies of technology use in the home help explain and developers. It has been under development for over
the gap between the longstanding vision of connected two years.
homes and its reality [7, 8, 15, 22, 34]. They find that it
HomeOS uses (i) Datalog-based access control and
is increasingly difficult for users to manage the growing
other primitives that simplify the task of managing tech-
number of devices in their homes. Further, application
nology in the home, (ii) protocol-independent services
software that can compose the functionality of these de-
to provide developers with simple abstractions to access
vices is hard to develop because of extreme heterogeneity
devices and (iii) a kernel that is agnostic to the devices
across homes, in terms of devices, interconnectivity, and
to which it provides access, allowing easy incorporation
user preferences. Finally, finding hardware and software
of new devices and applications. HomeOS runs on a ded- 1. Management Unlike other contexts (e.g., enterprise
icated computer in the home (e.g., the gateway) and does or ISP networks), the intended administrators are non-
not require any modifications to commodity devices. expert users. But the management primitives available to
Our current prototype supports several device proto- users today were originally designed for experts. As a
cols (e.g., Z-Wave and DLNA) and many kinds of de- result, most users find them hard to use. Worse, devices
vices (e.g., lights, media renderers and door/window sen- often need to be individually managed and each comes
sors). It runs in 12 real homes and 42 students have with its own interface and semantics, rather than having
developed applications using it. These homes run ap- a single, unified interface for the home.
plications varying from getting e-mail notifications with The management challenge is particularly noteworthy
photos when the front or back door is opened at unex- when it comes to security and access control where users
pected times, to seamlessly migrating video around the are frequently forced to choose between inconvenience
house. Students have built applications ranging from us- and insecurity [7, 22]. When they are unable to eas-
ing Kinect cameras to control devices via gestures to per- ily and securely configure guest access for devices (e.g.,
sonalized, face-recognition-based reminder systems. printers) on their home networks, they either deny access
to guests or completely open up their networks.
The experiences of these users and developers, along
with our controlled experiments, help validate the use- 2. Application development Users want to compose
fulness of the PC abstraction and our design. Users were their devices in various ways [34] and software should
able to easily manage HomeOS and particularly liked be able to do just that, but heterogeneity across homes
the ability to organically add devices and applications makes it difficult to develop such application software.
to their deployments. Developers appreciated the ease We identify four primary sources of heterogeneity.
with which they could implement desired functionality • Topology: Devices are interconnected in different
in HomeOS, without worrying about low-level details of
ways across homes. Some homes have a Wi-Fi-only
devices and protocols. These experiences also point to- network while others have a mix of Wi-Fi, Ether-
ward avenues for future work where we could not pro- net and Z-Wave. Further, some devices use mul-
vide a clean PC abstraction. For instance, connectivity
tiple connectivity modes (e.g., smartphones switch
to network devices, especially wireless ones, is harder to between home Wi-Fi and 3G).
diagnose than for directly connected PC peripherals.
• Devices: Different devices, even of the same type,
In summary, we make three main contributions. First, support different standards. For example, light
we propose using a PC abstraction for technology in the switches may use Z-Wave, ZigBee or X10; and TVs
home to improve manageability and extensibility. Sec- use DLNA, UPnP A/V or custom protocols.
ond, we implement this abstraction in HomeOS. While • User control: Different homes have different re-
we do not claim the pieces of our design are novel, to our quirements as to how activities should occur [22].
knowledge, their use in addressing the challenges of the Some homes want the Xbox off after 9 PM and
home environment is novel. Third, we validate the PC some want security cameras to record only at night.
abstraction and our design with both controlled experi- • Coordination: If multiple tasks are running, simul-
ments and real users and developers. taneous accesses to devices will inevitably arise.
Such accesses may be undesirable. For instance, a
climate control application may want the window
2 A new abstraction for home technology open when a security application wants it closed.
3. Incremental growth Users frequently want to
Our proposal to use a PC-like abstraction for technol- grow their technology incrementally, as their preferences
ogy in the home is motivated by our own recent study evolve [7, 22]. Such growth is difficult today because
of home technology [7] as well as the work of oth- users cannot tell if a given piece of technology will be
ers [8, 15, 22, 34]. We first summarize the challenges compatible with what they currently have. This difficulty
uncovered by this work, then explain why existing ab- corners them into buying from one vendor (creating lock-
stractions for home technology cannot meet those chal- in), seeking expensive professional help, and making sig-
lenges, and finally present the PC abstraction. nificant upfront investments (e.g., buying a home-wide
automation system with many features before knowing
which features fit their lifestyle). Supporting incremen-
2.1 Challenges tal growth is further complicated by the rapid innovation
in hardware and software; users’ existing systems fre-
Home technology faces three main challenges today. quently do not support these new technologies.2.2 Prevalent abstractions Challenge Heterogeneity
addressed src. handled
Today, home technology can be seen as presenting one Application layer Incremental growth
of two abstractions to users and developers. The first is Management layer
App development User control
Management Coordination
the appliance abstraction that provides the same inter- App development
Device functionality layer Device
face that a monolithic, fixed-function device would. It is Incremental growth
used for most home security and home automation sys- Device connectivity layer Incremental growth Topology
tems where the set of devices and tasks are both closed.
This has the advantage of offering (potentially) simpler
user interfaces and simpler integration across the set of
involved devices. However, it inhibits extensibility and Figure 1: Layers in HomeOS and their considerations
application development because integration with third-
party devices and software is typically not possible. As a current PC OSes that make some network devices (e.g.,
result, the security, audio-video, and automation systems printers) appear local. We take this design to its logical
are mutually isolated in many homes [7, 22]. extreme, making all network devices appear local, while
tackling other challenges of the home environment.
The second abstraction is a network-of-devices,
which arises from interoperability protocols offering
standardized interfaces to devices. This means that, in 3 HomeOS architecture
theory, applications can remotely control devices and de-
vices can be integrated to accomplish tasks. For instance, HomeOS uses a layered architecture (Figure 1) to bri-
DLNA allows some TVs to play media content from a dle the complexity of the home environment and address
computer. In practice, it leaves too much for users and the challenges mentioned in the previous section. Be-
developers to do for themselves. Users interact with each low, we describe each of the four layers in detail, but
device’s own management interface and application de- briefly, the key elements of our approach are: (i) pro-
velopers must deal with all the sources of heterogeneity viding users with management primitives and interfaces
mentioned above. that align with how they want to manage and secure their
home technology, (ii) providing application developers
with high-level APIs that are independent of low-level
2.3 The PC abstraction details of devices, and (iii) having a kernel that is inde-
pendent of specific devices and their functionality. Our
The abstractions prevalent today demonstrate the inher- design borrows heavily from traditional OSes but also
ent tension between ease of management on one side differs from them in a few key ways.
and extensibility (for both applications and devices) on
the other. The appliance abstraction can provide simple
user management (at least for the included devices), but 3.1 Device connectivity layer
typically does not accommodate new devices and appli-
cations. On the other hand, the network-of-devices ab- The Device Connectivity Layer (DCL) solves the prob-
straction readily incorporates new devices, but does not lems of discovering and associating with devices. This
includes dealing with issues arising from protocols de-
provide the needed support for developing cross-device
applications or simple management tools. signed to operate only on one subnet (e.g., UPnP) as
well as connecting to devices with multiple connectivity
We propose to resolve this tension by presenting the paradigms (e.g., a smartphone on WiFi vs. 3G).
abstraction of a PC. Network devices appear as con-
The DCL provides higher layers with handles for ex-
nected peripherals, and tasks over these devices are akin
to applications that run on a PC. Users extend their home changing messages with devices, but it attempts to be as
technology by adding new devices or installing new ap- thin as possible, avoiding any understanding of device
semantics. There is one software module in the DCL for
plications without any guesswork with respect to com-
patibility. They implement desired access control poli- each protocol (e.g., DLNA and Z-Wave). This module
cies by interacting with the operating system, rather than is also responsible for device discovery, using protocol-
specific methods (e.g., UPnP probes). If it finds an un-
with individual devices and applications. Finally, appli-
cations are written against higher-level APIs, akin to ab- known device it passes that up to the management layer
stract PC driver interfaces, where developers do not have where the proper action can be taken.
to worry about low-level details of heterogeneous de- The DCL frees developers from worrying about some
vices and their connectivity. Our proposal is inspired by of the most pernicious issues in using distributed hard-Pan, Tilt and Zoom Camera DLNA Media Renderer DFL
GetImage() → bitmap Play(uri)
GetVideo()† → bitmaps PlayAt(uri, time) DCL
Up() Stop()
Down() Status() → uri, time
(a) (b) (c)
Left()
Right() Dimmer Switch
ZoomIn() Get()† → percent
Figure 3: The organization of software modules in HomeOS
ZoomOut() Set(percent) (a) and two alternative organizations (b) and (c); Solid regions
represent protocol-specific code and hatched regions represent
Figure 2: Example HomeOS roles and their operations. ‘† ’ protocol-independent code
indicates that the operation can be subscribed to
XML and TCP/IP. As technology changes or new con-
cerns arise (e.g., low-energy, low-bandwidth), new pro-
ware by having a different layer take care of discovering tocols emerge to meet engineering needs.
and maintaining connectivity to devices.
3.2.2 Extensibility
3.2 Device functionality layer
Introducing new devices in HomeOS is straightforward.
The Device Functionality Layer (DFL) takes the handles A new device can either use an existing role or, if it is a
provided by the DCL and turns them into APIs that de- new type of device, a new role can be registered for its
velopers can easily use. These APIs are services that are functionality. Applications can then be written against
independent of device interoperability protocols (§3.2.1), this new role, without the need to upgrade HomeOS itself
and the DFL is architected to allow easy incorporation of because the kernel is completely agnostic to the services
new devices and interfaces whether they are similar to spoken across it. This behavior is different from periph-
existing ones or not (§3.2.2). eral APIs in current PC OSes which typically require OS
updates to provide common support for new peripher-
als to application developers. Simplifying the introduc-
3.2.1 Protocol-independent services tion of new functionality is important in the home where
DFL modules provide device functionality to applica- new devices arrive frequently. Just in the last five years,
tions using a service abstraction. We refer to service in- devices like depth cameras (Kinect), Internet connected
terfaces as roles, and each role contains a list operations DVRs, and digital photo frames have gone from nearly
that can be invoked. For instance, the “lightswitch” role non-existent to commonplace.
has two operations, “turnOn” and “turnOff,” each tak- Similarly, if a new capability for an existing device is
ing no arguments. Role names are unique with seman- developed, a new role that exposes the capability can be
tics; “lightswitch” implies functionality that is the same registered. The DFL module for this device can export
across device vendors and homes. Operations may return both the old and new roles for backward compatibility.
results immediately and/or allow subscription to events Currently, each role in HomeOS is independent; we are
of interest (e.g., when a light switch is physically tog- considering arranging them in a class hierarchy in which
gled). Figure 2 shows a few example roles in HomeOS. subclasses correspond to more specialized functionality.
In HomeOS, DFL specifications only capture device
functionality (and no other detail), and thus the applica- 3.2.3 Alternative architectures
tions that use them do not require changes unless device The HomeOS architecture splits device interactions into
functionality itself evolves. (We describe below how we two separate layers—a device-agnostic layer (DCL) for
handle changing device functionality.) In contrast, the
basic connectivity and device-specific layer (DFL) that
common method today for applications to use network builds on this basic connectivity to mediate between ap-
devices is to use a device protocol. For instance, an ap- plications and devices. Figure 3(a) illustrates the soft-
plication might use DLNA to play videos on a remote
ware organization for three devices that share the same
TV. Using device protocols is problematic because there underlying protocol. It is similar to what occurs in PC
are many such protocols and they continue to evolve. OSes for USB devices, with a USB-specific module and
We believe that continuous evolution of device pro- a device-specific module. However, for network devices,
tocols is inevitable because they tend to be fat, spanning where no universal device protocol exists, this organiza-
many layers and concerns. For instance, Z-Wave speci- tion may appear ill-advised. The knowledge of a device
fies not only device functionality but also MAC and PHY protocol is spread across two layers, and incorporating a
layer details, and UPnP requires the use of HTTP, SOAP, new protocol requires changes to both.In the home setting, this design has important advan- give us insight into their experience with current tech-
tages over alternatives. Figure 3(b) shows one alterna- nology as well as how they would like to manage home
tive that follows a “one driver per protocol” architecture. technology in the future. We present results on the for-
It is convenient if there are one or a small number of mer elsewhere [7] and focus here on the latter aspect.
supported devices in the protocol, but quickly becomes We interviewed 31 people across 14 homes (1 in the UK,
cumbersome to maintain as the number of devices in the rest in the USA), with different systems such as Elk M1,
protocol grows. A more traditional “one driver per de- Control4 and Leviton.
vice” architecture produces the software organization in
Our visits revealed that households want access con-
Figure 3(c) where both connectivity and functionality are
trol primitives that differ from those present in traditional
mediated by a single piece of software for each device. OSes. We summarize four important differences below.
This not only results in DCL functionality being repli-
cated if multiple devices use the same protocol, but also 1. Time-based access control Our participants wanted
necessitates coordination among modules communicat- to control access to devices based on time. Parents men-
ing to different devices. For instance, Z-Wave only al- tioned restricting children from using certain devices af-
lows one live message in the Z-Wave network at a time ter certain times (e.g., “If my daughter wanted watch
requiring coordination among any software modules that [Curious] George at 11 o’clock at night, I wouldn’t want
might send Z-Wave messages. Thus, after experimenting to do that”). While social interaction suffices to address
with these alternatives, we chose to split device commu- some of these concerns, many parents asked for technical
nication across DCL and DFL as shown in Figure 3(a). means as well. Time-based access control is also needed
to give households an ability to grant a variety of access
durations for guests (e.g., a few hours to babysitters and
3.3 Management layer a few days to house guests).
The management layer in HomeOS provides two key Current commodity OSes provide coarse-grained
functionalities. First, it provides a central place to add parental controls that can limit whole accounts to certain
and remove applications, devices, and users as well as times of the day, but they lack flexible controls that can
to specify access control policies. Second, it mediates easily implement policies such as those above.
potentially conflicting accesses to devices ensuring that 2. Applications as security principals Users high-
applications do not need to build their own mechanisms lighted a desire to be able to limit applications’ abilities
to handle shared devices. to access devices. One participant said “I don’t want to
We provide both functionalities using the same prim- grant it [the application] access to everything, just my
itives. A key goal for their design is that they be sim- laptop.” A participant in a different home commented
ple and translate into management interfaces with which about another application: “if it said my DVR and my TV
users can easily implement desired policies. Otherwise, I would say fine, ... if it had my phone or my computer I
we risk not only user frustration but also misconfigu- would want to be able to choose [what it can access].”
rations with serious security and privacy consequences, This observation requires treating applications as
given the sensitive nature of many devices (e.g., cameras first-order security principals, in addition to users. In
and locks). To gain insights on the design requirements, current PC OSes, users alone are the primary security
we conduct a study of households with existing automa- principals (with some exceptions such as firewall rules
tion. We describe the study in §3.3.1 and the primitives in Windows), and applications simply inherit users’ priv-
in §3.3.2. While these primitives do not extend the state ileges. While smartphone OSes treat applications as se-
of the art beyond what researchers have proposed in the curity principals, they are solving the simpler problem of
past, their simplicity and universal application across an regulating single-user, self-contained resources.
OS goes beyond commodity OSes.
3. Easy-to-understand, queryable settings As ex-
pected, users complained about complicated interfaces
3.3.1 Understanding management requirements to configure devices (and especially security), but they
Users have complex needs of home technology. While also bemoaned the lack of a simple way to verify secu-
different than those of experts, their own mental mod- rity settings. They had no way convince themselves that
els are often refined. To understand these mental models they had correctly configured their settings. For exam-
and common user activities, we visited households with ple, to ask if guests can access security devices or if a
home automation already installed (e.g., remote lighting given application cannot unlock the door after 10 PM.
and locks, security cameras). While we expect HomeOS Providing reliable answers to such questions is diffi-
to enable tasks not possible today, these households cancult in current OSes due to issues such as dynamic dele- views is straightforward because they can be formulated
gation [10]. In the home, the consequences of incorrect as Datalog queries. Answering these queries is fast de-
configurations can be severe, requiring even more con- spite there being many dimensions per rule. Because the
fidence in security. The lack of such a capability can policies are straightforward, as we show later, even non-
scare users away from the idea of using new or poten- experts can configure and understand them.
tially dangerous capabilities, even if it is possible they
The main advantage of Datalog over ACLs is its sim-
are correctly configured. For instance, a participant with plicity. ACLs can be more expressive, assuming we ex-
electronic door locks said he had not hooked up remote
tend them to include time and applications. But they are
access because he was not “100% certain of its security.”
hard for users to program [33] and hard to aggregate and
4. Extra sensitive devices Our users showed height- summarize. We are not the first to propose the use of
ened sensitivity for the security and use of certain devices Datalog for access control, but its use can require major
(e.g., locks and cameras). They wanted support to ensure extensions to accommodate policies of complex environ-
accidentally granting access to such devices was difficult. ments [32]. We find that the needs of the home environ-
ment can be met without such extensions.
3.3.2 Primitives Past systems looking to simplify access control have
The requirements for security and access control out- explored using a simple table [38] with the principals
lined above are in conflict. The first two call for primi- along one axis and the objects along the other with
tives that are richer than those in current OSes. However, each cell specifying if access should be allowed. While
non-experts find it hard to configure and understand even promising, this approach does not scale well beyond two
those primitives [10, 33]. We reconcile the conflict by dimensions and our interviews indicated that time and
noting that the home is a much simpler environment that application were both required dimensions.
does not need much of the complexity motivated by en- Time-based user accounts In addition to the use of
terprise environments (e.g., dynamic delegation, highly- time in access rules, user accounts in HomeOS can have
customizable ACLs and exceptions). an associated time window of validity. This window is
Datalog access control rules We formulate access used to simplify guest access, which studies have shown
control policies as Datalog [9] rules of the form (r, g, m, to be both common and particularly problematic [22, 33].
Ts , Te , d, pri, a), which states that resource r can be ac- Home owners can start access for a user at a certain time
cessed by users in group g, using module m, in the time (e.g., for a future guest) and terminate access at a certain
window from Ts to Te , on day of the week d, with prior- time (e.g., when the guest is expected to leave). The data
ity pri and access mode a. Time window and day of the corresponding to the guest (e.g., access privileges) are
week lets users specify policies by which something is not deleted automatically after the validity window, to
allowed, for instance, on Sundays 7–9 PM. Groups such simplify reinstating access at a later time.
as “kids” and “adults” are configured separately. Prior- Hierarchical user and device groups Groups in
ities are used to resolve conflicting access to the same HomeOS are arranged in a tree hierarchy. In contrast,
resource. Access mode is one of “allow” or “ask.” With groups in current OSes can be independent sets. We
the latter, the users have the option to permit or deny ac- picked the tree organization because of its simplicity.
cess interactively when the access is attempted. Studies When a user group is given access, it enables an easier
show that users prefer this flexibility rather than having determination of which users are given access. A user
to specify all possible legal accesses a priori [5, 33]. Any who is not part of this group will not inadvertently gain
access that is not in the rule database is denied. While access because she is part of another group.
these rules may seem complex for users at first, they are
amenable to visualization and English sentences like “Al- For devices, we use a tree hierarchy that is rooted in
low residents to access the living room speakers using the space because that matches how users think of resources
music player from 8 AM to 10 PM.” in the home. It also aligns well with physical access as it
is delineated by rooms. To our knowledge, current OSes
Expressing access control as Datalog rules meets our do not support such device groups. We find that device
requirements. Users can configure time-based policies as groups simplify management; users can specify policies
well as restrict an application to accessing only certain for groups rather than individual devices.
devices. They can also easily understand their config-
uration by queries such as “Which applications can ac- Orthogonal to spatial grouping, HomeOS has a high-
cess the door?”, “Which devices can be accessed after security group. Users can deem certain devices as high-
10 PM?” or “Can a user ever access the back door lock?” security to avoid accidental access to such devices and
to fully understand their risk. Reliably providing such simplify the task of keeping the home network secure.Applications are not given access to secure devices by central to the platform is implemented by software com-
default, and the user must explicitly provide access to ponents called modules. Modules that sit in the applica-
such devices. We add some common classes of devices tion layer are applications, and those that sit in the DCL
(e.g., cameras, locks) automatically to this group; users and DFL are drivers.
can later add or remove devices to or from this group.
Access control also forms the basis for privacy in our
4.1 Modules
design. Applications cannot access sensor data unless
they are granted access to those devices. Further, net- Modules are the basic unit of functionality in HomeOS
work access is disabled by default, so they cannot leak in- and, whether applications or drivers, they implement the
formation externally. (Software updates are downloaded API described in Figure 4(a).
and applied by HomeOS.) Thus, we coarsely control pri-
vacy at the granularity of applications and devices. In the Before a module can be run, it must be installed.
future, we will consider finer-grained control [42, 44]. Driver modules are installed when new devices are dis-
covered on the home network; applications are installed
in response to explicit user directives. Modules are in-
3.4 Application layer stalled by copying the binaries and accompanying meta-
data (e.g., manifests) to a specific directory. Installation
The application layer is where developer-written code is carried out only if the module is deemed compatible
runs. The key feature this layer provides, beyond the with the devices in the home. This check is also per-
ability to use and compose devices, is the ability to de- formed each time the application is run to deal with con-
termine if an application is compatible with the home and figuration changes. During installation, users specify if
what services and/or devices are missing if it is not. the module should be started automatically upon system
(re)start or only upon explicit user request. Module up-
Today, users have little assurance that a given piece
dates and uninstallation are carried out by HomeOS and
of software will work in their home. To address this
not by the module itself.
uncertainty, HomeOS requires that applications provide
a manifest describing what services they need. This Running modules are isolated to prevent any interac-
enables it to determine if an application will function tion except via the APIs to the HomeOS platform and the
with the current device services in the home. (A simi- service interface. By default modules are denied access
lar approach is being used to manage handset diversity to the network. DCL modules are the exception as some
in smartphones today.) If the manifest indicates an ap- must use the network to control their associated devices.
plication is not compatible, HomeOS can also determine Even then, when possible we limit connectivity to only
what additional devices or services are needed. those devices. A module’s file system access is limited
to its own working directory where it can store its data
A manifest has mandatory and optional features.
and configuration.
Each feature is a set of roles, at least one of which is
needed. For instance, an application may specify {“TV”, HomeOS relies on DCL modules to discover new de-
“SonyTV”}, {“MediaServer”} as mandatory features, vices on the home network by running protocol-specific
indicating that it needs a service with at least one of the discovery protocols. (We also support a mode where
two TV roles and a service that exports a media server. It users can also manually add a device if HomeOS is un-
might have {“Speaker”} as an optional feature if it offers able to do so automatically.) Once a new device is dis-
enhanced functionality with that role. covered, HomeOS installs a DFL module for it based on
a database of device type to driver mappings. The de-
Our current manifest descriptions cannot encode
vice type is reported by the DCL module and is protocol-
complex requirements (e.g., if an application needs de-
specific. The DFL module is granted access to the ser-
vices to be in the same room). They handle what we
vice that the DCL module exports for this device.
deem to be the common case. Should the need arise, it
would be straightforward for us to enhance manifest de-
scriptions.
4.2 Services
Services are the only way that modules are allowed to
4 Design and implementation interact with each other. They do so using a standard-
ized API described in Figure 4(b). Modules advertise the
HomeOS is an implementation of the above architecture services they offer to HomeOS which keeps a history of
as a component-based OS. All functionality that is not offered services to enable future compatibility testing.Start: Called to start a module; modules are garbage InitSvcAndCapability: Creates a service and a capability to access it; returns the
collected when it returns service handle back
Stop: Called to request a module to stop; where state RegisterSvc: Registers the service as active advertising it to other modules
can be cleaned up before exit DeregisterSvc: Marks a service as being inactive and notifies other modules
SvcRegistered: Called when a new service becomes GetAllSvcs: Returns a list of all active services
active; used to listen for services of interest GetCapbility: Requests a capability to access a given service
SvcDeregistered: Called when a service becomes in IsMySvc: Returns whether a given service belongs to this module
active; used to avoid using inactive services Invoke: Used to call an operation either synchronously or asynchronously
AsyncReturn: Called whenever a subscription gener- Subscribe: Subscribe to notifications from an operation
ates an event or asynchronous call returns SpawnSafeThread: Create new thread which safely propagate its failures
(a) API for HomeOS modules (b) API For finding and interacting with HomeOS services
Figure 4: The APIs for modules (a) and services (b) in HomeOS
Modules inform HomeOS about services of interest coupled with HomeStore which hosts all HomeOS appli-
to them using role names and/or locations. (Note that ex- cations and drivers. It indexes application manifests as
pressing interest does not grant access to a service other well as drivers’ associated devices and exported services.
than to know of its existence and description.) When a It helps users find applications that are compatible with
service is registered, modules that have expressed inter- their homes, by matching manifests against services in
est in it are notified. A module can then query the service their home. If an application is not compatible, it can rec-
for its description as well as its location. Querying for the ommend additional devices that meet the requirements.
existence of a service does not require access privileges.
When a module needs to invoke an operation on a ser- 4.4 Management tasks
vice, it requests a capability [31] from HomeOS. As part
of the request, the module passes the credentials of the To explain how users manage their homes using
user it is running on behalf of. Without valid credentials, HomeOS we describe four important management tasks.
the request is successful only if the access is legal for all 1. Adding a new application Users can browse appli-
users. Drivers are handled slightly differently and typi- cations and view their compatibility within HomeStore.
cally have rules that give them access to their correspond- Upon installing an application, HomeOS walks the user
ing devices regardless of the user. User-controlled policy through setting up access control rules for the applica-
is applied when applications access the driver rather than tion. The core of this task is specifying which devices (or
when the driver accesses the device. services1 ) the application should be allowed to access.
The legality of the requested access is evaluated by Since there may be hundreds of devices, we use the
HomeOS based on the user, module, service, and time of
application manifest and service descriptions to show
day, by formulating the check as a Datalog query over only compatible, non-secure services. Once the user se-
the users table and access rules. If legal, a capability lects which services the application can access, HomeOS
is generated and returned. A copy of the capability is uses the Datalog rule database to detect if the new appli-
then passed to the target service; this makes it easier for cation could access a device at the same time as other ap-
HomeOS to revoke the capability later if needed. Subse-
plications. If so, it asks the user which application should
quently, the requesting module can use the capability to have a higher priority.
make calls directly to the service. HomeOS capabilities
have an expiration time based on access rules. 2. Adding a new device Once a new device is reg-
istered, users need to specify its location and whether
An operation’s callers must also include input param- it should be marked secure. They also need to config-
eters of the right type. HomeOS supports both primitive ure which existing applications should have access to the
and complex types, which are passed by reference across device. This task is again simplified using application
isolation boundaries to avoid the overhead of serializa- manifests, as only applications compatible with the new
tion. Finally, operation invocations include a timeout. device are presented as valid options.
Unless the called service responds within this time limit,
a timeout error code is returned. 3. Verifying access rules To verify access con-
trol configuration, HomeOS allows users to view the
rules from different vantage points using faceted brows-
4.3 HomeStore ing [25] (found on shopping Web sites to filter content
To simplify the process of finding new applications and 1 HomeOS devices are exposed as services, as are features like no-
devices, inspired by smartphone app stores, HomeOS is tification and face recognition. To ease exposition, we refer to devices.Room 1 Intermatic PC3lab
lamp module
Wi-Fi
power cable
Z-wave
Windows7 laptop with
Z-wave Aeon door/window sensor
Windows Media Player
Z-wave
HomeOS Aeon
Internet ethernet
Z-stick
sw
it ch
Wi-Fi
3G
HTC Fuze
smartphone Sony Bravia TV
Axis 213 PTZ camera (KDL-32EX40B)
Z-wave
Room 2
Wi-Fi Intermatic PC3lab
lamp module
Windows7 laptop with power
cable
Windows Media Player
Figure 6: Our implementation testbed

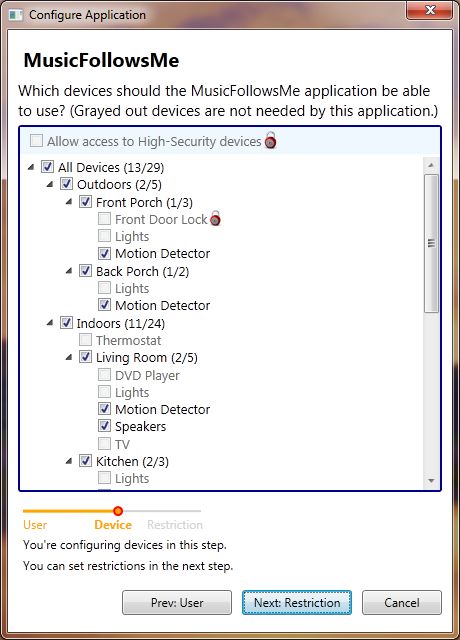

Figure 5: A GUI screen capture showing how applications are access control. As our evaluation shows, the overhead of
given access to devices this isolation mechanism is low enough to support inter-
active applications. However, it does not provide perfor-
along multiple dimensions). This enables users to pose mance or memory pressure isolation; these are subjects
questions such as what devices an application can access of future work. For Datalog query evaluation, we use
or what devices can be accessed at night by a user group. Security Policy Assertion Language (SecPAL) [40], af-
The questions are answered using Datalog queries. ter modifying it to support time comparisons.
4. Adding new users When a new user account is In addition to the HomeOS kernel, we devel-
added, the administrator must specify their group (e.g., oped drivers to interact with a diverse set of off-the-
guest) and the time window of account validity. shelf devices that includes Z-Wave lighting controls,
We have built a complete user interface (UI) to sup- door/window sensors, smartphones, network cameras,
port these tasks. An example screenshot is shown in Fig- TVs capable of receiving DLNA streams, Windows PCs,
ure 5 which occurs during the course of adding applica- and IR (infra-red) transmitters. Figure 6 shows one of
tions. We omit detailed description of the UI for space our testbeds with some of these devices.
constraints, but note that it closely mirrors our system Interoperability protocols greatly simplified the task
primitives and includes heuristics designed to minimize of making these devices work with HomeOS because a
the exposure to risk even if users click OK repeatedly module corresponding to the protocol can communicate
during configuration activities. Evaluation of its usabil- with different devices. For instance, the same DLNA
ity, which we discuss later, also evaluates the manage- module works with both Windows 7 computers and the
ability of our primitives. Sony TV; and the Z-Wave lightswitch module works with
both Aeon and Intermatic devices. Greater adoption of
interoperability protocols will make it easier to integrate
4.5 Implementation devices with HomeOS. See below, however, for some
We implemented HomeOS in C# using the .NET 4.0 shortcomings of current interoperability protocols.
Framework. We use the System.AddIn model which al- We developed 18 applications that use these devices
lows dynamic loading and unloading modules. It also of- and run on our testbeds. While some applications require
fers module version control allowing the HomeOS kernel access to only one device (e.g., turn on or off a light), oth-
and individual modules to evolve independently. We iso- ers are quite complex. For example, a media application
late modules using AppDomains, a lightweight sandbox- transparently redirects a music stream from one room to
ing mechanism [2]. Each module runs inside a domain. another, depending on how lights are turned on or off in
Direct manipulation is not allowed across domains. In- each room (using lights as a proxy human presence in
stead, communication is done only through typed objects the room). We also implemented a two-factor authenti-
exchanged through defined entry points and subject to cation application that triggers a configured action (e.g.,open a lock) when the same person authenticates with
their voice on the phone (speech recognition) and with
their face on the camera (face recognition).
Each of the 18 applications is less than 300 lines of
C# code and took only a few hours to develop. Because
applications are written against high-level abstractions,
most of the effort went toward application-specific logic.
As we report below, other developers also found applica-
tion development in HomeOS to be easy.

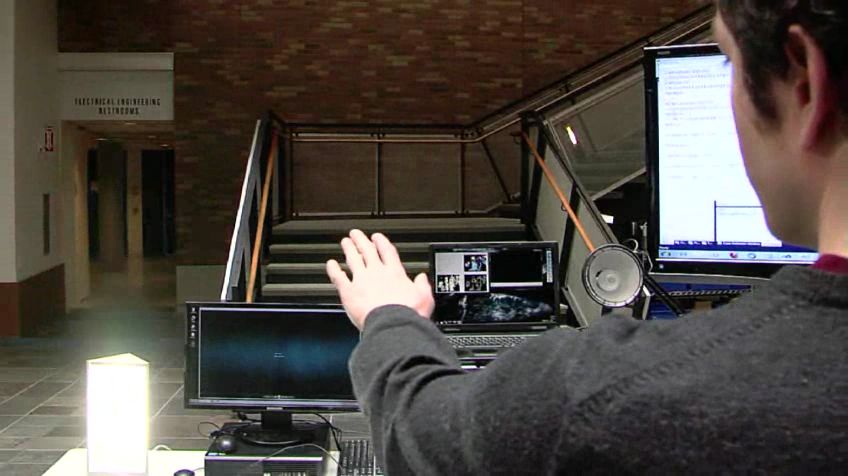

Figure 7: A student demonstrating how to turn on and off
5 Experience lights via gestures with a Kinect
with existing devices. Another group built an applica-
HomeOS currently runs in 12 real homes and 42 develop-
tion that plays audio reminders based on who is rec-
ers have written modules for it. These field experiences
ognized on cameras. This works with webcams, secu-
validate key aspects of the HomeOS architecture. They
rity cameras, Kinect or IP cameras and with any device
also evaluate the utility of the PC-like abstraction for
HomeOS can play audio through (right now PCs, DLNA
home technology as well as situations in which HomeOS
TVs, and Windows Phones). This underlines the power
was more or less able to preserve that abstraction. Gen-
HomeOS gives to application developers to easily span
erally, the experiences were positive even for people with
multiple types of devices (security, PC, phone, entertain-
no prior home automation experiences. However, the ex-
ment, etc.). Commercial systems today support only a
periences did reveal some rough edges of our prototype
subset of devices related to their target scenario (e.g., se-
and limitations of current interoperability protocols.
curity systems focus on cameras and motion sensors).
We describe the main findings below, based on infor-
Layering and programmability Developers who
mal surveys of our users and developers. The next sec-
wrote applications found the protocol independence of
tion presents results from controlled experiments.
the APIs appealing. Developers who wrote new drivers
for devices with existing DCL modules (e.g., a Z-Wave
appliance controller) liked that they did not have to con-
5.1 Developers
cern themselves with the low-level connectivity details
and could instead focus exclusively on device semantics.
We gave the HomeOS prototype to ten academic research
groups, for use as a platform for both teaching and re- Interestingly, developers who extended HomeOS to
search on home applications. As part of this program, devices without an existing DCL module (e.g., ENVI en-
42 undergraduate and graduate students developed tens ergy meters [19]) started by building one module that
of HomeOS applications and drivers. spanned both the DCL and DFL. For them, the split was
They extended HomeOS in several directions [3, 4, unnecessary overhead as only one device used the con-
26, 27]. They wrote drivers for new devices including en- nectivity protocol. However, in one case a group had
to support multiple devices with the same connectivity
ergy meters, different network cameras, appliance con-
trollers and IM communication. They wrote new appli- protocol based on IP to Z-Wave translation. This group
cations such as energy monitoring, remote surveillance, found value in separating functionality across two layers
indicating it was not just an artifact or our experience.
and reminders based on face recognition. The PC-like
abstractions of drivers and applications enabled them to Hardware-software coupling Our developers some-
build software quickly and in reusable modules. More- times wanted to use device features that were not ex-
over, as a testament to the flexibility and extensibility of posed to third-parties over the network. For instance,
its architecture, we were not required to—and did not— one developer wanted to insert a text notification on a
modify HomeOS to support these development efforts. TV without otherwise interrupting the on-screen video.
As an example, one group extended HomeOS to sup- Today, some set-top boxes have this capability (e.g., for
cable TV operators to signal caller identity of incoming
port the Kinect RGB-D camera and built an application
which allowed users to control lights via gestures (Fig- calls), but they do not expose it to third-party software.
ure 7). They were able to do this without having to This points to an inherent advantage of vertically in-
wait for Kinect integration with a large commercial sys- tegrated software—being able to better exploit device
tem (e.g., Control4) and were able to get it to interact capabilities—that open systems like HomeOS lack. Thisis unsurprising in retrospect as the closed nature of cur- Indeed, all users employed an organic growth strat-
rent solutions and devices is what HomeOS attempts to egy. One user started running HomeOS with only one
combat. However, the systematic way vendors can ex- network camera to view his front yard on a smart-
pose device capabilities in HomeOS should encourage phone while away from home. He later added two more
them to make their capabilities available to applications. cameras—a webcam and a network camera from a differ-
Media applications and decentralized data plane A ent vendor—and was able to continue using the same ap-
few developers had difficulty in writing media applica- plication without modification. He then added two sen-
tions. HomeOS centralizes the control plane but not the sors to detect when doors were opened so that he could
data plane to avoid creating a performance bottleneck. be notified when unexpected activity occurred. This used
If two devices use the same protocol, we assume that our door-window monitoring application sends email no-
they can directly exchange data. Thus, we assume that tifications, which can contain images from any cameras
a DLNA renderer can get data directly from a DLNA in the home. The user later added two light controllers
server once provided with a media URI. The DLNA pro- and another application to control them. What started
tocol turns out to not guarantee this because of video off as simply wanting to see his front yard from work
encoding and/or resolution incompatibilities. While we evolved into a notification system and lighting control.
currently use heuristics to provide compatible formats Diagnostic support in interoperability protocols On
when transcoding is available, they are not perfect. the negative side, at least two homes had problems di-
agnosing their deployments. For instance, when appli-
For reliable operation, we also plan to use HomeOS as
a transcoding relay (thus, centralizing the data plane and cations that use Z-Wave devices behaved unexpectedly,
more closely mirroring the PC abstraction) when data users could not easily tell if it was due to code bugs, de-
vice malfunctions or poor signal strength to the device.
plane compatibility between nodes is not guaranteed. As
high-quality open source transcoders exist [21], the main Disambiguation requires effort and technical expertise
technical challenge is to generate profiles of what input (e.g., unmount the device, bring it close to the controller,
and output formats devices support. This requires pars- and then observe application behavior).
ing device protocols like DLNA. Although this means vi- This difficulty is an instance where the added com-
olating HomeOS’s agnostic kernel, we believe that media plexity of network devices, in contrast to directly con-
applications are common and important enough to justify nected peripherals, becomes apparent. Countering it re-
an exception. quires diagnostic tools but they are hard to build today
because interoperability protocols have limited diagnos-
tic support. We thus recommend that device protocols be
5.2 Users extended to provide diagnostic information. Even some-
thing akin to ICMP would be a step forward.
Twelve homes have been running HomeOS for 4–8
months. We did not actively recruit homes but many ap-
proached us after becoming aware of the system. We lim- 6 Evaluation
ited our initial deployment to 12 homes. Ten of them had
no prior experience with home automation. Beyond pro- In addition to our experience with real homes and de-
viding the software and documentation, we did not assist velopers, we evaluate HomeOS through controlled ex-
users in running or managing HomeOS. These homes are periments, focusing on its ease of programming, ease of
using a range of devices including network cameras, we- managing and system performance. This gives us quan-
bcams, appliance and light controllers, motion sensors, titative validation to confirm our real-world experiences
door-window sensors and media servers and renderers. above. We find that developers can write realistic appli-
Organic growth What our users found most attractive cations within 2 hours, that users can use our manage-
was being able to start small and then expand the sys- ment interfaces with similar success to other carefully
tem themselves as desired. At first, they typically did not designed systems and that system performance is good
know what they wanted and only discovered what they enough to easily support rich, interactive applications.
found valuable over time. HomeOS let them start small
(at low cost) and extend as needed. It thus provided a sys- 6.1 Ease of programming
tem that was much more approachable than commercial
systems today that require thousands of dollars upfront. To evaluate how easy it is to write a HomeOS applica-
It was also more likely to satisfy users by allowing them tion, we conducted a study where we recruited student
to evolve it to meet their needs rather than requiring them and researcher volunteers to develop HomeOS applica-
to make all decisions during initial installation [7]. tions. (Different from the students mentioned in §5.)We provided our participants with a brief introduction to and could have been avoided with clearer instructions.
HomeOS, some basic documentation on our abstractions,
In the exit interview, almost all participants (even
all the drivers, and four simple applications that use only
those who did not finish) reported that HomeOS was
one driver each—image recognition, camera snapshot, “very programmable” and the APIs were “natural.”
DLNA music player, and light-switch controller. Each
However, they also expected more syntactic support in
participant got a total of five-minutes of verbal instruc-
the IDE for invoking operations. We are addressing this
tions (with no demonstration of code) on the goal of the issue by defining a C# interface for each role.
study and pointers to these resources. We left the par-
ticipant and the testbed, with the HomeOS server con- These results suggest that it is easy to develop appli-
sole running an IDE (Visual Studio) configured to use cations for HomeOS. Even without prior experience, de-
HomeOS binaries. We provided little assistance beyond velopers were able to implement realistic applications in
the initial training, though on three occasions the partic- just a couple of hours. We do not mean to suggest that
ipants uncovered bugs in our system that we had to fix all HomeOS applications can be developed in two hours.
before they could proceed. Our study emphasized the use of HomeOS’s basic ab-
stractions and did not require the developers to focus on
We gave each participant the task of writing one of
consumer-facing issues such as a richer GUI. However,
two applications for our testbed. “Custom Lights Per-
it does provide evidence that the base programming ab-
User” (CLU) will adjust the lights in any room based on stractions are a good fit for applications in the home.
its occupant’s preferences. This application needs to find
cameras in the house to which it has access, continuously
poll them, use the image recognition service to identify 6.2 Ease of managing
the occupant (if any), and set the “dimmers” in the cam-
era’s room to the occupant’s preferences. For testing, Our second study evaluates whether our management
we gave each participant two photographs on which the primitives and interfaces are easy enough for non-expert
image recognition service was trained and the user-to- home users to use. We find that with no training, typi-
lighting preference chart. cal home users are able to complete typical management
The second application—“Music Follows the Lights” tasks correctly around 80% of the time.
(MFL)—was one we previously built but did not pro- Methodology We began each session by explaining the
vide to participants. This application finds all lights and background and goals of the study and the three security
media devices in the house, registers for changes to the principals—users, devices and applications. We asked
lights’ status and plays music (from a media server) on participants to pretend to be a member of the following
an audio device in rooms with lights that are on. imaginary family. Jeff and Amy are husband and wife.
We recruited ten participants for this study via a mail- Dave and Rob are their eight-year and seven-month old
ing list within our organization. Seven were graduate stu- kids. Jeff’s brother Sam, who visits occasionally, has a
dents and three were researchers. Only one had prior ex- guest account. The house has 29 devices of nine different
perience with home automation, and none had significant types. Three of the devices—camera and microphone in
prior experience with programming service-based ab- Rob’s room, and the front door lock—are high-security.
stractions (e.g., WSDL or SOAP). This level of expertise The family has four applications for lighting, monitoring,
is at the low-end of what we expect of future HomeOS and temperature control, and fourteen rules specifying
developers. We gave each participant two hours to write access controls policies. We assigned the male partici-
an application. Half of the participants were given the pants to play Jeff and females to play Amy.
first application and half were given the second. We then asked them to perform the 7 management
Figure 8(a) summarizes the results of our study. The tasks show in Figure 8(b) using our UI. These tasks re-
time reported was computed from the end of verbal flect what we expect users to do with HomeOS and span
instructions until the participant was done, minus any key management tasks (§4.4). Tasks 1, 2 and 6 require
breaks the participant took and the time we spent correct- configuring applications, including restricting their use
ing bugs. Eight participants developed complete appli- to certain users, devices and times of day. Task 3 requires
cations within approximately two hours (126 minutes). configuring a new device with group and application ac-
Of the two who did not finish, one spent the bulk of cess. Task 4 requires adding a new guest. Tasks 5 and 7
the time developing a “slick GUI” for the application in- require verifying policies based on specific concerns.
stead of its core logic and the other did not realize that At the same time, our tasks stress the ability of primi-
HomeOS drivers were not running by default. This prob- tives in HomeOS to simplify management. For instance,
lem stemmed from a misinterpretation of instructions Tasks 1 and 2 use application manifests, Datalog rules,You can also read
