5G is a giant leap Realize a scalable and latency aware network
Endless possibilities New technologies New business case New revolution
Today 2020-25
Users 10M people +100M ‘things’
Speed 100 Mbps 100x faster Smart home Mobile gaming
Latency >>10 ms 10x less
Industry 4.0 Connected cars
NW service Best effort
for all Committed SLAs
level
Logical networks 1 Many (slices) Drones IoT wearables
2 © 2018 Nokia
Examples from 5G-trials

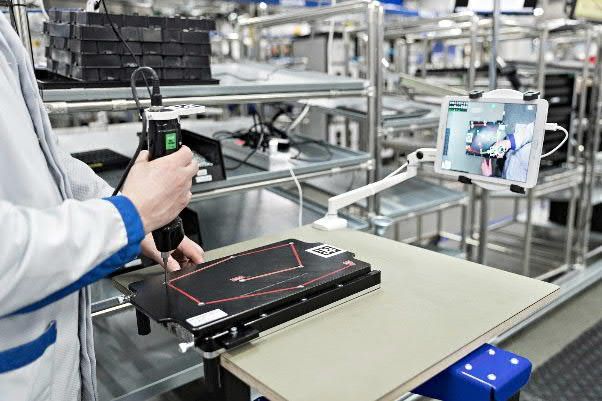

Rakuten Smart Telia Self-driving cars eSports Industry 4.0
stadium experience Autonomous driving in Nokia • Gaming over 5G in • Monitoring factory
remote unmanned delivery Espoo Campus shopping center assembly line – Telefonica
robot operation • Innovation lab • Nokia Oulu Conscious
drone-based identity Factory with Telia
• Virtual football – Du
verification • Nokia, ABB and Kalmar
• Virtual reality penalty -
8K VR video streaming through conduct industry's first trial
Megafon
the utilization of a 5G network with ultra-reliable, low-
latency 5G technology for
electricity grid and harbor
automation
Intel MPT with Robotto
3 © 2018 Nokia
Densification for cost efficient capacity and coverage, indoors and
Versatile portfolio for any deployment scenario
outdoors
Shopping malls
Homes Small
shops SOHO Medium and
Apartments large enterprises Hotels Airports Stadium Urban hot spots Outdoor-in Deep rural villages
Residential Femto 3G + 4G
Enterprise Femto 3G + 4G
AirScale Wi-Fi Indoor and Outdoor and integrated module 802.11ac
Flexi Zone Pico 3G or 4G + Wi-Fi or LAA
AirScale Indoor 2G+3G+4G+5G
Flexi Zone Micro 3G or 4G
AirScale Micro RRH 3G or 4G or 5G
MiniMacro 3G or 4G
MEC Wi-Fi, LTE and 5G
4 © 2018 Nokia
Mobility evolution
Static beamforming – digital/analog beamforming - beam tracking
Single beam Beamforming Beam tracking
UE can
move from
one beam
to another
gNB UE gNB gNB
Sector beam
The gNB and test UE need to With beamforming UE can be Beam tracking is maintained for
be aligned as there is single located anywhere in the cell connected UE
bore sight beam coverage area
5 © 2018 Nokia
Tampere University 5G trial based on 3X
option
Hervanta premises Nokia SRN Tampere Finland
LTE Flexi FRGY Outdoor 2100MH
5G System module, AEQN-Antenna
S1c S6a
MEC MME HSS
S11
WebServer
LTE Flexi FTP server VP VP • The Access Point Name (APN)
X2 SGi N N
AirScale SM
SGW/PGW controls the end-point of user plane (UP)
S1u CMG IP
Sec
• LTE capacity can be demonstrated with high quality video and large file download in MEC
server
• Internet traffic and voice calls are managed in centralized core in SRN
• Voice traffic over the LTE and MEC and internet traffic over the 5G
6 © 2018 Nokia
Tampere University 5G trial based on 3X
5G
option gNB
LTE Flexi eNB
• One ASIK + one ABIL configuration for one 1 sector
sector with AEQD-antenna AEQA
LTE
RU
• One ASIK + one ABIL = gNB
• Only connectivity between 5G and LTE is SYNC CPRI 9.8
chaining AirScale
(AMIA)
• CPRI front haul connection towards RU ABIL ABIA
• 1 / 10 GE interface towards backhaul
ASIK ASIA
• GNSS synchronization and synch chaining
S1 (U/M) S1 (U/C/M)
X2 (U/C) X2 (C/U)
Site router / switch
(Ethernet)
MME S/P-GW
Nokia Core EPC / Mini EPC in container
7 © 2018 Nokia
8 © 2018 Nokia

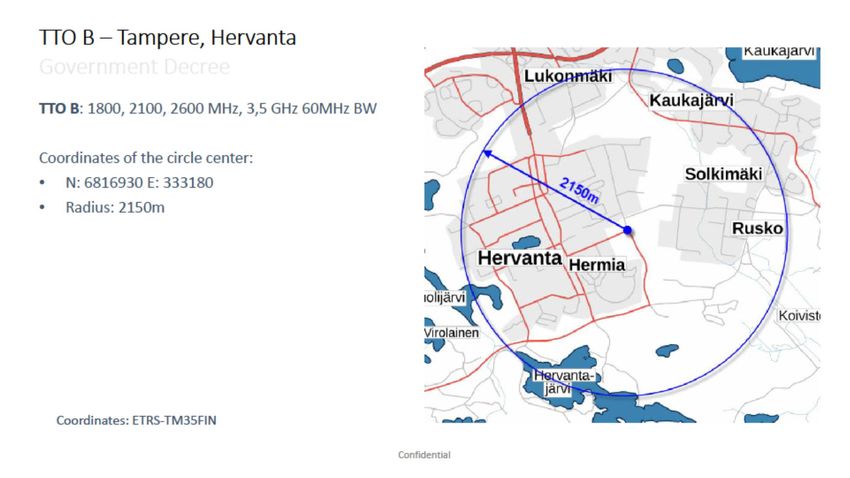

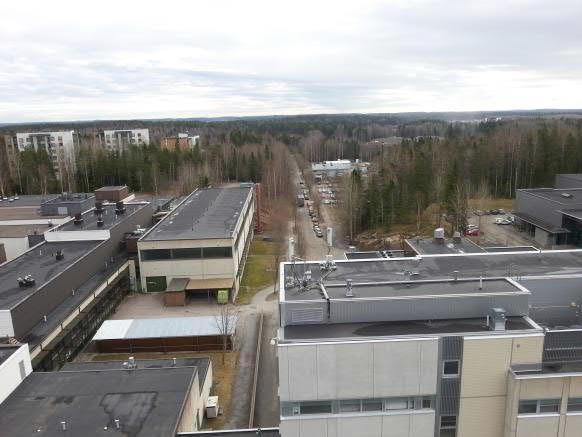

Overview of 5G Trial in the Hervanta campus
The coverage area of 5G-cell
The place of 5G-antenna
1
9 © 2018 Nokia
