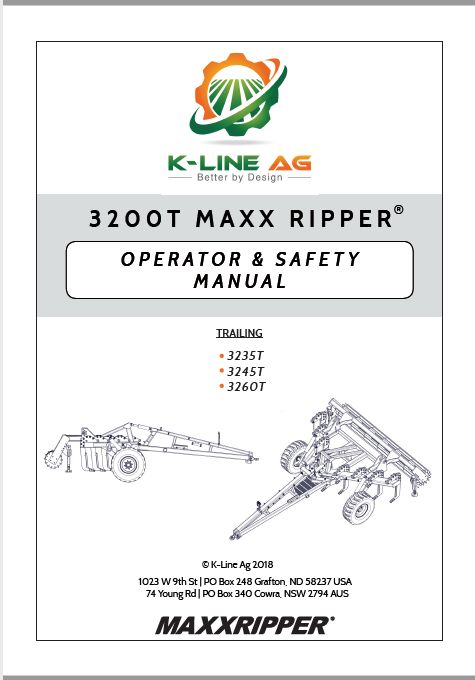

3200T MAXX RIPPER
O P E R AT O R & S A F E T Y
MANUAL
TRAILING
3235T
3245T
3260T
© K-Line Ag 2018
1023 W 9th St | PO Box 248 Grafton, ND 58237 USA
74 Young Rd | PO Box 340 Cowra, NSW 2794 AUS
White Sticker when cut - 70mm high x 715mm wide
Would you like a copy of
thi s manual emailed to you?
S en d you r req u est to m a r keting@k-l ine. ne t.au or scan h e re :
3200 Maxx RipperⓇ Operator & Safety Manual 2
Dear Customer
Thank you for purchasing a Maxx Ripper®. We would like to assure you that you have made a good choice,
and will be able to rely on this high quality piece of equipment. We ask you to follow the user’s instructions
closely, as this will ensure that you experience the benefits of using the machine
without experiencing the unnecessary down time caused by misuse.
When you receive the machine, make sure that it has not been damaged during transportation and that
no parts are missing. Contact your dealer immediately if any parts are missing. Ensure that all
components are correctly adjusted.
The return of the Warranty Registration Form Page 40 will enable a prompt and efficient identification of
your Maxx Ripper® and attention to any concern you may have.
Before operating PLEASE TAKE THE TIME TO LEARN the process of operation. Do not take the unit for
granted; ease into becoming familiar with your new equipment. The operator should be a responsible
adult familiar with farm machinery and trained for this purpose. Do NOT allow persons to operate or
assemble the unit until they have read this manual and understand how to use this machine, and observe
the safety precautions.
Never exceed the limits of this machine. If its ability to do a job, or to do so safely, is in question - DO NOT
TRY IT.
DO NOT attempt to operate this equipment under the influence of drugs or alcohol.
Remember - Your best assurance against accidents is a careful and responsible operator.
If you have any questions not answered in this manual or require additional copies or the manual is
damaged, please contact your dealer or be free to phone us on our free call number:
USA - 1800 445 6882
AUS - 1800 194 131
The team here at K-Line Agriculture trust you enjoy a good season and prove the benefits of owning and
operating a quality machine that is built to perform.
Signed:
James Larsen
General Manager
3200 Maxx RipperⓇ Operator & Safety Manual 3
TA B L E O F CO N T E N T S
Specifications 5
Legal Disclaimer 5 Rear Roller Bearing Fitting Instructions 30
INTRODUCTION 6

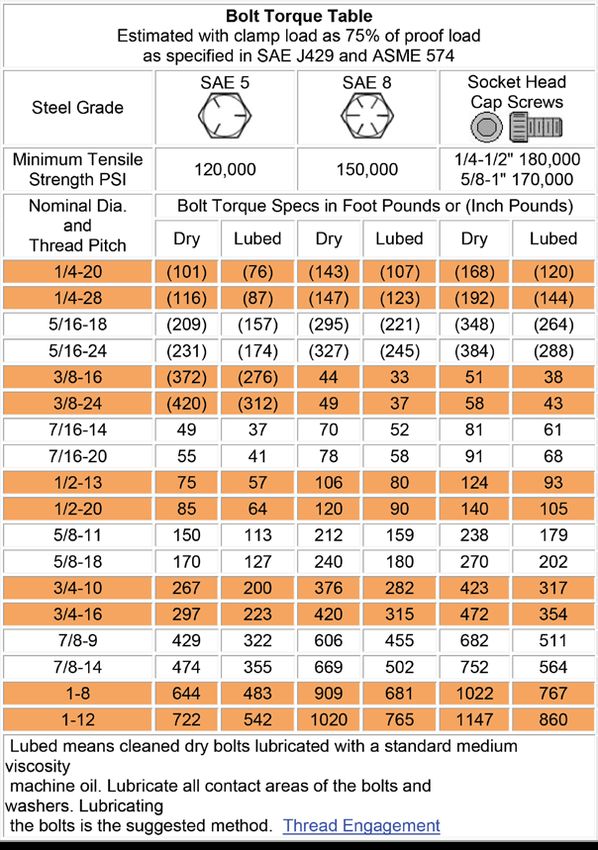

Identifying The Machine 6 Bolt Torque Tables 31-32
Tractor Requirements 6 Metric 31
Definitions Used In This Manual 6 Imperial 32
Availability Of Genuine Parts 6
Testimonial Permission Form 34-35
RISK MANAGEMENT 7-9
Identifying Hazards 7 WARRANTY 37-41
Monitor & Review Control Measures 7 Warranty Letter 37
Risk Assessment 7 Warranty Registration Form 39
Risk Control 7 Warranty Request Form 41
Risk Assessment Score Chart 8
Risk Assessment Table 9
SAFETY 10-13
Important Notice 10
Safety Alert Symbol 11 END OF DOCUMENT 48
Signal Words 11
Safety Decal Placement 12
Safety Decals 13-15
Safety Sign Care 16
Tire Safety & Pressures 17
Hydraulic Operation & Safety 18
Priming Hydraulic System 19
Hydraulic System Failure 20
Electrical Connection Hook Up 20
Hitching/Unhitching To Tractor 21
Transporting/Roading 22
Crushing Hazard 23
Operating Instructions 24
Setting Up The Maxx Ripper 25-26
Maintenance & Safety 27
After Delivery Check-List 28
Lubrication Of Rear Roller Bearings 28
Heavy Duty Roller Bearing 29
3200 Maxx RipperⓇ Operator & Safety Manual 4
3 2 0 0 M A X X R I P P E R S P EC I F I C AT I O N S
MODEL SIZES 3235T 3245T 3260T
OPERATING WIDTH APPROX. 3.5M (11.5FT) 4.5M (14.8FT) 6.0M (19.7FT)
280-420 HP 360-500HP 450-600HP
TRACTOR POWER RANGE 210-310 KW 270-370KW 335-445KW
WEIGHT APPROX 4500KG 9922.5LB 5000KG 11025LB 5500KG 11025LB
TRANSPORT HEIGHT APPROX 2.1M (6.9FT) 2.1M (6.9FT) 2.1M (6.9FT)
TRANSPORT WIDTH APPROX 3.5M (11.5FT) 4.5M (14.8FT) 6.0M (19.6FT)
TRANSPORT LENGTH 6.95M (22.8FT) 7.32M (24.0FT) 7.7M (25.2FT)

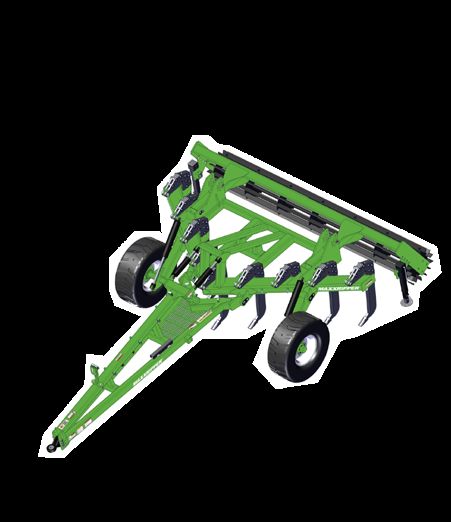

Figure 1
LEGAL DISCLAIMER
LAST UPDATED: 06/08/18
The information contained in the K-Line Industries Pty Ltd (also trading as “K-Line Ag”
and “K-Line Agriculture”) manual is for general information purposes only. K-Line
Industries Pty Ltd assumes no responsibility for errors or omissions in the contents on the
book.
In no event shall K-Line Industries Pty Ltd be liable for any special, direct, indirect,
consequential, or incidental damages or any damages whatsoever, whether in an action
of contract, negligence with the use of the Service or the contents of the Service. K-Line
Industries Pty Ltd reserves the right to make additions, deletions, or modification to the
contents of this manual at any time without prior notice.
3200 Maxx RipperⓇ Operator & Safety Manual 5
AFTER DELIVERY
When you receive the machine, make sure that it has not been damaged during transportation and that no
parts are missing. Only by giving us immediate advice can the necessary replacement parts be obtained.
Ensure that all components are correctly adjusted.
GENUINE PARTS
K-Line spare parts and accessories have been specifically designed and developed for the machines produced.
We would call your attention to the fact that non-genuine parts and accessories are not recommended
by K-Line. The use of such replacement parts frees K-Line from all liability and makes the warranty void.
The installation and/or use of non-genuine parts may, because of technical characteristics of construction,
modify or influence the performance of the machine negatively.
IDENTIFYING THE MACHINE FOR REQUESTING SPARE PARTS
The machine is identified by the serial number on the metal plate on the machine. When requesting spare
parts or maintenance service, please indicate the model and number of your equipment to ensure prompt
and efficient attention.
TRACTOR REQUIREMENTS
10-14 Horsepower x width of machine in feet
25-35 Kilowatt x meter width of machine in meters
Tractor weight must be same as or greater than the towed unit.
Hydraulic valves 2 x Double spool (optional)
Hydraulic operating pressure 2800 PSI approximately
DEFINITIONS USED IN THIS MANUAL
Figure 2
3200 Maxx RipperⓇ Operator & Safety Manual 6
RISK MANAGEMENT
Risk management is the process of finding out what may cause an injury, deciding what may happen as a
result, and doing something about it.
The steps of risk management are:
• Identify the hazards to workplace health and safety arising from work activities
• Assess the risks
• Determine and implement control measures to reduce risk
• Monitor and review the effectiveness of the control measures
IDENTIFYING HAZARDS
Prior to commencing work, all hazards related to the work tasks should be identified. The selection of the
appropriate work procedure(s) will depend on the type of work procedure(s) and hazards involved. Regular
safety inspections will also identify hazards and ensure that control measures are in place.
RISK ASSESSMENT
Risk assessment allows appropriate control measures to be developed. Once hazards have been
identified, they should be assessed in terms of their potential to do harm. To assess risk, consideration
should be given to probability and consequences. (SEE RISK ASSESSMENT SCORE CHART - Pg 8).
RISK CONTROL
Risk control is the process of eliminating or reducing risk factors. Control measures should be chosen and
implemented to eliminate or reduce risk as far as practicable. When deciding on the most appropriate
measures to use, practicality and acceptance of the control measures should be considered. Safe Working
Procedures will be developed for all high – medium risk hazards.
MONITOR AND REVIEW CONTROL MEASURES
The risk identification, assessment and control process requires regular monitoring to ensure the
implemented control measures perform as originally intended and continue to prevent or adequately
control the risk of injury or incident. Control measures should also be checked carefully to ensure that new
hazards are not created, directly or indirectly, by the original control measures.
3200 Maxx RipperⓇ Operator & Safety Manual 7

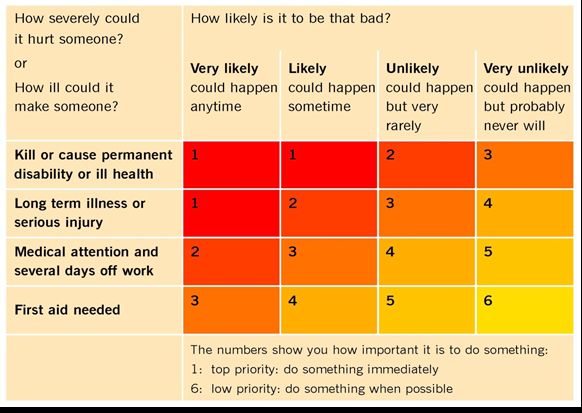

RISK ASSESSMENT SCORE CHART
Figure 3
AT ALL TIMES COMPLY WITH RECOMMENDATIONS
AND REQUIREMENTS OF THE MANUFACTURER AND
THE ENVIRONMENTAL PROTECTION AUTHORITY
3200 Maxx RipperⓇ Operator & Safety Manual 8
RISK ASSESSMENT- CONTINUED
RISK REVISED
CODE HAZARDS CONTROL
SCORE RISK SCORE
ADJUSTING & CLEANING MUST ONLY BE
CRUSHING - WHEN DONE WHEN MACHINE IS LOWERED
ADJUSTING AND CLEANING, OR IN TRANSPORT POSITION AND ONLY
1(A). 1 5
AS MACHINE MAY DROP AFTER ALL CHAINS AND BOLTS HAVE BEEN
WITHOUT WARNING CHECKED FOR TIGHTNESS & WEAR IN THE
LOWER POSITION.
ENSURE JACK IS INSTALLED CORRECTLY &
CRUSHING - IMPROPER USE JACK RECEIVES REGULAR MAINTENANCE.
1(B). 1 5
OF JACK KEEP FEET AND BODY CLEAR WHEN
OPERATING.
ENSURE NO PERSONNEL ARE BETWEEN
CRUSHING - WHEN HITCHING
1(C). 2 TRACTOR & HARROW BAR WHEN HITCHING 5
TRACTOR
TRACTOR
MACHINE MUST BE LOWERED INTO
WORKING POSITION USING SUITABLE
LIFTING EQUIPMENT BEFORE PRIMING
CRUSHING - PRIOR TO
IS EFFECTED BY SLIGHTLY LOOSENING
PRIMING HYDRAULIC SYSTEM,
1(D). 1 FITTING/S INTO CYLINDERS AND 5
AS MACHINE MAY DROP
OPERATING TRACTOR HYDRAULICS TO
WITHOUT WARNING
ACHIEVE FULL UNINTERRUPTED TRAVEL OF
CYLINDER SEVERAL TIMES. THEN
RE-TIGHTEN HYDRAULIC TINE FITTINGS
SUDDEN LIFT OF DRAWBAR ENSURE ALL THREE JACKS ARE CORRECTLY
CAUSING SEVERE INJURY, POSITIONED AND TAKING WEIGHT BEFORE
1(E). 1 5
IF MACHINE BECOMES REMOVING DRAWBAR PIN. STICKERS WARN
UNHITCHED OPERATOR
PENETRATION OF
MAINTAIN REGULAR CHECKS ON
OIL - BROKEN OR BADLY
2(A). 2 HYDRAULIC SYSTEM FOR WEAR & CHECK 5
MAINTAINED HYDRAULIC
ALL FITTINGS ARE SECURE
LINES
RUPTURE OF OIL LINES BY
OVER PRESSURE WHEN ENSURE TRACTOR OIL FLOW IS LIMITED
MACHINE COMES TO TO REDUCE FALLING SPEED OR DO NOT
2(B). 2 5
SUDDEN STOP BEFORE FULLY INTERRUPT MACHINE FALLING UNTIL
LOWERED TO WORKING MACHINE IS FULLY IN LOWERED POSITION
POSITION
SAFETY PINS MUST BE PUT IN PLACE AS
COLLISION - HYDRAULICS
SOON AS MACHINE IS PUT IN TRANSPORT
ACCIDENTALLY LOWERED
3. 1 POSITION AND IF TRAVELLING ON PUBLIC 5
WHEN MACHINE IS BEING
ROADS TO DISCONNECT HYDRAULICS
OPERATED IN TRANSPORT
FROM TRACTOR
Figure 4
ALL HAZARDS & RISKS ARE CONTROLLED THROUGH SAFE WORKING
PROCEDURES & ADEQUATE SIGNAGE
3200 Maxx RipperⓇ Operator & Safety Manual 9
It is the responsibility of the operators to:
Read and understand your manual.
Take time to familiarize yourself with the
operation of this machine, particularly
the safety signs and devices fitted to this
machine.
USE OF MACHINE BEYOND ITS LIMITS OR
INTENT OF OPERATION WILL VOID WARRANTY.
Slow down in terrain such as rocks, or other difficult
operating conditions. I M P O R TA N T
• Safe work procedure analysis must be performed NOTICE
before attempting to assemble this machine.
• Do not attempt to operate this equipment under the
influence of Drugs & Alcohol. For further information
please contact :
• K-Line Ag can not be held responsible for any injury,
death or property damage in the process of
US: 1800 445 6882
assembling this machine.
AU: 1800 194 131
• Ensure hydraulic system is full primed. Pg 19
K-Line Ag has produced this manual as a guide for the operation of your machine.
While every care and precaution has been taken in compiling this booklet, K-Line Ag carries no
responsibility for errors and omissions.
• This production is made available as is, without warranty of any kind expressed or implied.
• K-Line Ag assumes no responsibility for damages resulting from the use of information contained
herein.
• This booklet is compiled to comply with the present state of the machine at the time of publication,
and K-Line Ag reserves the right to improve and revise their products at any time.
3200 Maxx RipperⓇ Operator & Safety Manual 10
SAFETY ALERT!!
S A F E T Y. . .YO U C A N L I V E W I T H I T
YOUR SAFETY AND THE SAFETY OF OTHERS IS
I M P O R TA N T
• B E P R E PA R E D!
SAFETY ALERT SYMBOL
• B E S A FE !
When you see this symbol, you must be
alert to the possibility of injury or death. • B E AWA R E !
• BE SEEN!
SIGNAL WORDS
The use of signal words, DANGER, WARNING
AND CAUTION relating to the safety
messages. The appropriate signal word is
selected when using the following guidelines.
Indicates an imminently Indicates a potentially Indicates potentially
hazardous situation that if hazardous situation that, if hazardous situation that,
not avoided, WILL result not avoided COULD result if not avoided MAY result
in serious injury or death if in serious injury or death if in serious injury or death
proper safety measures are proper safety measures are if proper safety measures
not taken. not taken. are not taken.
ALL OPERATORS MUST UNDERSTAND AND ABIDE BY MAINTENANCE SAFETY
PROCEDURES SET OUT IN THIS BOOK.
IT IS THE RESPONSIBILITY OF THE ASSEMBLER TO ATTACH ALL SAFETY SIGNS
AND DEVICES TO THIS MACHINE. FAILURE TO OBSERVE THE INSTRUCTIONS OF
THIS BOOKLET COULD RESULT IN SERIOUS INJURY OR DEATH.
3200 Maxx RipperⓇ Operator & Safety Manual 11SAFETY DECAL PLACEMENT
I M P O R TA N T
If safety signs have been damaged, removed, become illegible or parts replaced without decals, new decals
must be applied. New decals are available from your authorized dealer or direct from factory.
NOTE : ALL STICKERS SAME FOR THE DIFFERENT SIZES
N - BOTH SIDES OF MAIN FRAME
P
L
P
TOP
TOP B & S - BOTH SIDES OF WHEEL FRAME
C
J M- BOTH SIDES OF MAIN FRAME
R G (ON INSTRUCTION MANUAL
HOLDER)
A
K H
Figure 5 SIDE
Figure 6
Decals part numbers & quantities shown in table below:
DECAL A B C S G H I J K L M N P R I - BOTH ENDS OF BOW
QTY 1 2 1 2 1 1 2 1 1 1 2 2 2 1
Figure 7
3200 Maxx RipperⓇ Operator & Safety Manual 12SAFETY DECALS
*NOTE:
NOT ALL DECALS
GO ON ALL MODELS.
(See previous page for
details)
A. 9WD-W022
B. 9WD-C023 E. 9WD-D01V
G. 9WD-W021
C. 9WD-W05
D. 9WD-D04
H. 9WD-C04
F. 9WD-D01H
I. 9WD-I01
3200 Maxx RipperⓇ Operator & Safety Manual 13SAFETY DECALS - CONTINUED
N. 9WD-W01
J. 9WDW-T5
0. 9WD-D01
K. 9WDD-T3
R. AUS SPEED STICKER MAX 32KPH/20MPH
L. 9WD-W024
S. 9WD-W02
M. 9WD-W10
T. HYDRAULIC COLOR
3200 Maxx RipperⓇ Operator & Safety Manual 14SAFETY DECALS- CONTINUED
*NOTE:
WHEEL DEPTH STICKER:
WHITE WITH CUT OUTS
(SHOWN AS BLACK)
U. 9WD-I02 Y. WHEEL DEPTH
W. FOLDING INSTRUCTION
Q. 9WD.F01
P. 9WD-R01
3200 Maxx RipperⓇ Operator & Safety Manual 15SAFETY SIGN CARE
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed a safety sign should also display the current sign.
TO ORDER SAFETY DECALS CONTACT:
USA: K-Line Agriculture Australia: K-Line Agriculture
PO Box 567 PO Box 340
700 Division Avenue S 74 Young Rd
Cavalier ND 58220 Cowra NSW 2794
Email: sales@k-lineag.com Email: sales@k-line.net.au
Free-call: 1800 445 6882 Free-call: 1800 194 131
HOW TO INSTALL SAFETY SIGNS:
• Be sure that the installation area is clean and dry.
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the decal over the specified area and carefully press the small portion with the exposed sticky
backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in
place.
• Failure to comply could result in serious injury or death.
Figure 8 Locate where necessary. (Refer to safety decal placement - Pg 12)
3200 Maxx RipperⓇ Operator & Safety Manual 16TIRE SAFETY & PRESSURES
SERVICING PROCEDURES • Always cage tires before seating beads.
• Never exceed stated pressures when
seating beads.
• Do not attempt to mount a tire unless
you have the suitable equipment and
experienced personnel.
Figure 9
• Inflating tires can be dangerous. Always
stand to the side when inflating.
• Failure to comply could result in serious
injury or death.
• Load ratings of replacement tires
should meet or exceed weight
requirements.
Figure 10
• Correct pressure is 90PSI/413KPA
(Centre)
Tire Pressures When Fitted With Standard • Before mounting wheel to machine,
22.5 Inch Tires check all hub and rim contact surfaces
are undamaged and free of paint, dirt
TIRE PRESSURE
and grease.
Centre:
90PSI/413KPA • Lubricate wheel stubs with standard
viscosity oil.
Wheel Nut Tension:
350ft lbs /47nm
• Tension wheel nuts to 350ft lbs/
474nm.
Figure 11
• For field operation: Re-tension after
When optional flotation tires are fitted 1st, 5th, then every 50 hrs of operation.
use tire pressures stated on the tire. If
no pressure stated use 50/55 PSI. • For road travel re-tension first 3 miles
(5kms), 10 miles (15kms), & thereafter
at 25 miles (40kms) intervals.
3200 Maxx RipperⓇ Operator & Safety Manual 17H Y D R AU L I C O P E R AT I O N & S A F E T Y
HYDRAULIC HOSE HOOK UP
• For ease of hook up, hose grip handles are color coded.
• The same color is used for each hydraulic circuit.
• To distinguish between EXTEND & RETRACT, hose grips are marked
accordingly.
• Clean hydraulic hose breakaway ends before connecting to tractor.
• Hose grip circuits are color coded and marked accordingly for In & Out.
• After disconnecting tractor, ensure hydraulic hoses are safely stored in
the hose holder.
HOSE GRIP COLOR CODES
COLOR FUNCTION
GREEN WING LIFT
BLUE ROLLER (OPTION)
RED WHEEL LIFT
EXTEND
YELLOW FORE & AFT (TILT)
Figure 12

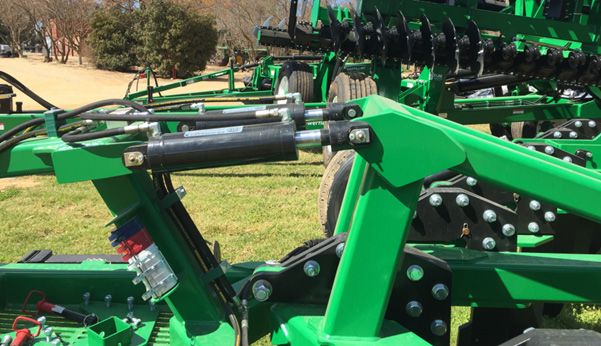

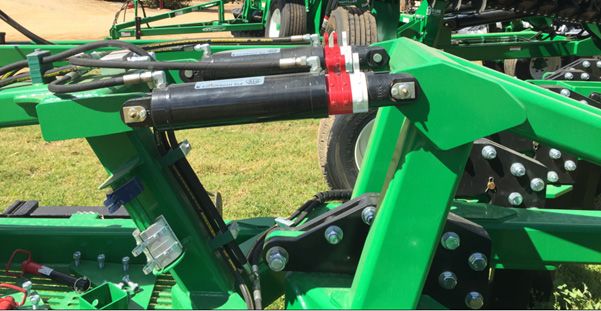

Figure 13 Hydraulic Ram Extension & Retraction Diagram
FORE & AFT (TILT) Out
CIRCUIT
In
WHEEL LIFT Out
CIRCUIT
In
Out
WING FOLD
CIRCUIT In
ROLLER Out
CIRCUIT
In Figure 10
Figure 14
3200 Maxx RipperⓇ Operator & Safety Manual 18SAFETY
Hydraulic fluid escaping under pressure can have sufficient force to cause injury. Keep all hoses and
connections in good serviceable condition. Failure to heed may result in serious personal injury or death.
Escaping hydraulic fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by
relieving the pressure before disconnecting lines or performing work on the system. Make sure hydraulic
fluid connections are tight and all hydraulic hoses and lines are in good condition before applying pressure
to the system. Use a piece of paper or cardboard, NOT BODY PARTS, to check for suspected leaks. Wear
protective gloves and safety glasses or goggles when working with hydraulic systems. DO NOT DELAY! If
an accident occurs, see a doctor familiar with this type of injury immediately. Any fluid injected into the
skin or eyes must be treated within a few hours or gangrene may result.
ENSURE HYDRAULIC SYSTEM IS FULLY PRIMED BEFORE USING
PRIMING HYDRAULIC SYSTEM INSTRUCTIONS
• Fully extend and retract hydraulic cylinders.
• Repeat 3-4 times and hold lever extended each way
for 10 to 15 seconds to release air from the system.
If problem exists hold hydraulic lever under pressure,
until air is fully released from system.
3200 Maxx RipperⓇ Operator & Safety Manual 19SAFETY
IN THE EVENT OF HYDRAULIC SYSTEM FAILURE OR HYDRAULIC HOSE
RUPTURE, YOU MUST FOLLOW THE STEPS SET OUT BELOW.
Escaping Hydraulic fluid is dangerous and can cause serious injury or death.
STEP 1: PREPARE FOR SHUTDOWN. STEP 4: APPLY THE LOCKOUT /
• Immediately return hydraulic lever to neutral TAG-OUT DEVICE.
position. • Disconnect all hydraulic hoses from tractor
remotes.
• Stop operating machine.
• Place Lockout or Out of Service tags on all
hoses.
STEP 2: SHUTDOWN THE EQUIPMENT.
• Use hydraulic lever to lower machine to ground STEP 5: CONTROL THE STORED
(if in raised position). ENERGY.
• Ensure no hydraulic pressure remains in
system, slowly release bleed tap (if equipped),
STEP 3: ISOLATE THE EQUIPMENT. or slightly loosen one hydraulic connection on
• Freely operate remote levers to release residual each circuit to allow any remaining fluid under
pressure from system. pressure to be released.
• If tractor is equipped place levers in float
position. STEP 6: VERIFY ISOLATION OF
• Shut down tractor. EQUIPMENT.
• Double check the steps and verify that the
equipment has been shut down and has
the Lock and Tag labels evident to prohibit
operation. Have repairs carried out and
defective parts replaced. Do not re-connect
to tractor or other hydraulic power source,
until system has been fully tested.
ELECTRICAL CONNECTION HOOK UP
• Ensure tractor and machine electrical connections
are compatible.
• Plug lead into tractor terminal.
• Test lighting prior to road travel (Power not
required for field work).
3200 Maxx RipperⓇ Operator & Safety Manual 20SAFETY
HITCHING TO TRACTOR
1. Keep well clear when backing up to machine.
2. Shut down tractor.
3. Secure & lock drawbar pin in place.
4. Install safety chain by crossing the chains under
the tongue and secure to the drawbar hitch frame
of the tractor.
5. Clean all hydraulic couplings.
6. Hoses are coded according to function. Pg 18
7. Beware of high pressure fluid. Figure 15
8. Plug in hoses to respective remote ports.
9. Plug in electrical lead to tractor connection.
10. Release implement jack & store.
11. Check hydraulic cylinders are fully primed to avoid
serious injury or death.
12. See Pg 19 to prime hydraulic system.

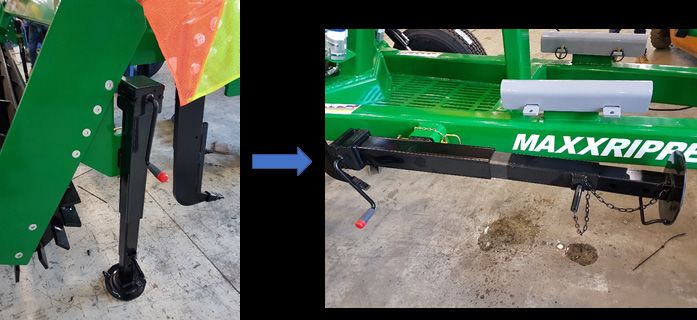

UNHITCHING
• achine must be fully lowered or in transport
M
Figure 16
position with safety locks engaged.
• Release hydraulic pressure from system.
• Lock Implement jack in place.
• Remove safety chains and drawbar pin.
• Use wheel chocks.
If implement jack is damaged DO NOT USE, replace
immediately, or severe bodily harm may result.
Figure 17
3200 Maxx RipperⓇ Operator & Safety Manual 21SAFETY
TRANSPORTING/ROADING
1. Ensure towing unit weight is the same as or greater than the towed unit.
2. Lockout tractor drawbar swing mechanism.
3. Ensure tires are correctly inflated - Pg 17.
4. Check wheel nut tension *NB - Pg 17 for wheel nut re-tensioning times 4 sequence.
5. Ensure all safety locks are engaged.
6. Ensure safety chains are attached to towing unit.
7. Tractor drawbar must be in fixed position, not swinging.
8. Ensure tractor brakes are latched together at all times.
9. Plan your route to avoid heavy traffic.
10. Observe bridge load ratings.
TIP OVER HAZARD this is an unbraked implement. Use extreme caution when turning, and on steep
terrain.
Maximum towing speed is 20mph (32km/hr). DO NOT EXCEED AT ANY TIME.
NEVER transport machine on public roads without complying with Federal and State laws and local
regulations governing the safe movement of farm machinery. Refer to Figure 18
Figure 19
Figure 18
POWER LINES CAN ARC & ELECTROCUTE WITHOUT COMING IN DIRECT CONTACT
Figure 20
Consult electricity authorities and all relevant energy companies to determine safe working distances
from overhead power lines etc. BEFORE operation of this machine.
• Ensure all operators are familiar with this manual and all safety devices and features of the machine.
• Take every reasonable precaution as is commonly expected in this industry and in the operation of
the machine.
• Maintain the machine at all times in a condition that is safe to operate, and ensure it complies with any
relevant safety acts of parliament, government authorities and regulations.
3200 Maxx RipperⓇ Operator & Safety Manual 22SAFETY
BEWARE OF CRUSHING HAZARD WHEN
ENGAGING & DISENGAGING SAFETY
LOCKS & IN THE OPERATION OF THE
WING FOLDING MECHANISM
• Beware of pinch points in wing lift area when
securing or releasing safety locks.
• Never stand within radius of wings when in raised
position, or folding and unfolding.
Figure 21
FAILURE TO COMPLY WILL RESULT IN SERIOUS
INJURY OR DEATH.
DANGER: BEWARE OF UPTHRUST
Figure 22
AND DOWN / THRUST ON DRAWBAR
DURING OPERATION. Figure 23
• Tractor weight must be equal to machine weight.
• Drawbar pin must be securely fastened with
safety chains in place.
3200 Maxx RipperⓇ Operator & Safety Manual 23OP E R AT I N G I NST RU C T I ONS
The K-Line Ag 3200 Maxx Ripper is a heavy-duty deep tillage tool designed for hard pan removal and
soil fracturing.
The key operating principle of the Maxx Ripper is that the roller controls the depth of the
digging, and the front wheels are to remain in float during
operation.
When turning on headlands lift the Maxx Ripper out of the ground with the wheels, and
retract the wheels when re-commencing ripping on the
following row. Once the ripper has engaged the ground, put the wheel rams back into float.
NOTES:
• If you have problems with stalling during operation you can use the wheels and lift the ripper slightly.
Put the wheels back into float when you have passed the hard area.
• If you find you are using the wheels more then not during operation, you are digging too deep for the
Horsepower you have. Move the Depth Pins to a shallower hole and try again.
If you have any questions please call K-Line on (02) 6340 0400.
3200 Maxx RipperⓇ Operator & Safety Manual 24SETTING UP THE MAXXRIPPER:
1. Connect Maxx Ripper to your tractor.
2. Ensure that the jacks are removed from the roller mounts and placed onto the drawbar mounts.
Only after Drawbar pin and hyd are connected.
Figure 23 Figure 24
3. Locate the Pins above the roller bow to set the depth of the ripper. The bottom hole will rip at
approximately 100mm and each hole after that will drop the ripper 50mm further.
NOTE: These are approximate measurements, and exact ripping depth will change depending on soil
type and other factors.
Figure 25
3200 Maxx RipperⓇ Operator & Safety Manual 25SETTING UP THE MAXXRIPPER - CONTINUED
4. The two 3x8” Rams between the drawbar and mainframe of the ripper set the angle of the main-
frame to the ground when working. Use the depth stops provided to ensure that that mainframe
is parallel to the ground when the ripper is digging. Once set for your depth you will not need to
change this.
a. These rams must run hard on the stops, so the stops are taking the weight.
b. You may need to pull the ripper completely into the ground do determine how many depth-stops
you need to correctly level the Ripper.
c. For 300mm dig, try one silver and one red stop.
Figure 26
Figure 27
3200 Maxx RipperⓇ Operator & Safety Manual 26MAINTENANCE & SAFETY
• Good maintenance is your responsibility. Poor
maintenance is an invitation to trouble.
- Make sure maintenance area has plenty of
ventilation. Beware exhaust fumes may cause
asphyxiation.
• Prior to commencing work, IDENTIFY ALL • K-Line Agriculture spare parts and
HAZARDS! Use control measures to eliminate accessories have been specifically
these dangers. designed and developed for the
• Use blocks to support frame of machine on level machines produced. We would call
area free of obstruction. your attention to the fact that
• Always use a safety support and chock the wheels. non-genuine parts and accessories are
• Never use an implement jack to support the not recommended by K-Line. Use of
machine. Only when doing maintenance. non-genuine parts and accessories
• Never work under raised machine unless all releases K-Line from all liability and
components are securely positioned and locked. makes the warranty void.
• Engage all safety transport locks, chock wheels and The installation and/or use of
front drawbar for temporary service if machine is in non-genuine parts may, because
free standing mode. of technical characteristics of
• A fire extinguisher and first aid kits should be kept construction, may modify or influence
readily accessible while performing maintenance the performance of the machine
on this equipment. negatively.
• Follow the torque chart in this manual when
tightening bolts and nuts.
• Refer to bolt torque chart for head identification
marking.
• Always replace bolts with specified grades.
• Where replacement parts are necessary for periodic
maintenance and servicing, genuine factory
replacement parts must be used to restore your
equipment to original specifications,
• Always use approved lifting equipment
• If equipment has been altered in any way from
original design, the manufacturer does not accept
any liability for warranty or personal injury.
• Replace all shields and guards after servicing before
moving.
• After servicing, be sure all tools, parts and service
equipment are removed.
• The machine is identified by the serial number on
the metal plate on the machine. When requesting
spare parts or maintenance service, please indicate
the model and number of your equipment to ensure
prompt and efficient attention.
3200 Maxx RipperⓇ Operator & Safety Manual 27AFTER DELIVERY CHECK LIST
1. Check all pivot pins are fastened and anchor bolts are correctly tensioned.
2. Before mounting wheel to machine, check all hub and rim contact surfaces are undamaged and
free of paint, dirt and grease.
3. Lubricate wheel studs with standard viscosity oil.
4. Tension wheel nuts to torque specifications pg 17
5. Check tires are inflated according to pressure stated on tire.
6. Check for damaged, worn and fatigued parts. Have machine repaired if necessary.
7. Ensure all appropriate safety decals are securely attached to machine – Pgs 12-16
8. Check hydraulic system is fully primed – Pg 19
9. Check all safety mechanisms are in place and operating correctly.
10. Lubricate heavy rear roller bearings – (This page)
11. Instruction manual has been stored with machine.
Always reset adjustments after changing disc blades.
HEAVY DUTY REAR ROLLER BEARINGS (LABYRINTH SEALS):
Standard-Refer to page 30 for identification
• Continually rotate roller slowly while greasing
• Grease must purge past seals
• Grease every 8 hours
3200 Maxx RipperⓇ Operator & Safety Manual 28HEAVY DUTY ROLLER BEARING EXPLODED VIEW
Figure 28
ITEM NO. QTY. PART NUMBER DESCRIPTION
1 1 2900HRBM06 2900H ROLLER BEARING HOUSING
2 1 9SR22215K 22215 SPHERICAL ROLLER BEARING
3 1 29000RBM05 2900H SPHERICAL SEAL
4 1 29000RBM04 LARGE BEARING SPACER
5 1 29000RBM02 2900H INNER LABYRINTH
6 1 29000RBM03 2900H INNER SEAL SPACER
7 1 29000RBM01 2900H DOUBLE TAPER
8 1 9ASH2313 H2313 BEARING ADAPTOR SLEEVE
9 1 9MB13 LOCKING WASHER
10 1 9KM13 LOCKING NUT
11 1 9OR357 357 ‘O’ RING 5 1/2” X 5 7/8” X 3/16” CS
1 2900HRBA60 COMPLETE BEARING ASSEMBLY
3200 Maxx RipperⓇ Operator & Safety Manual 29REAR ROLLER BEARING FITTING INSTRUCTIONS
1. Kit comes partially assembled and pre-greased
2. Important, locking nut must only be tensioned with approved socket. DO NOT tighten with hammer
and punch.
3. Thoroughly clean roller shaft and check for defects.
4. Run a bead of silicon along the gap in the adaptor sleeve
5. Apply ‘Lock tight’ shaft lock to roller shaft.
6. Push bearing units onto roller shaft with mounting face to the exterior, ensuring large O-Ring is
7. installed in outer groove. Set outer mounting face of bearings apart to give a measurement of only
2-4mm less than the internal measurement of the bow, to allow easy fitting of roller assembly to bow.
Distance of bearing faces must not be greater than internal measurement of bow, or O-ring may be
damaged when fitting.
8. Double check bearing face position measurement is correct.
9. Important; bearing assembly must be fully tensioned twice for complete seating. To do this-
• (a) Remove locking washer, and fully tighten castle nut to 500ft lb / 700nm
• (b) Undo castle nut and insert locking washer.
10. Re-tighten locating nut to 500ft lbs / 700nm
11. Fold locking washer down.
12. Smear some grease around outer O-Ring and slide roller assembly into bow, securing mounting bolts.
13. Ensure the O-Ring is seated correctly, and the grease nipple is accessible.
14. Bolt flange bearing to bows and secure tightly.
15. Allow 12 hours after fitting to allow sealant to set before greasing, then follow Instructions for Greasing
Roller Bearings.
Figure 29
3200 Maxx RipperⓇ Operator & Safety Manual 30M E T R I C B O LT T O R Q U E TA B L E
L u b e d m ea n s cl ea n e d d ry bolts lubr icated with a standar d m edium
v i s c o s i t y mach i ne o i l .
L u b r i c a te a l l co n ta ct a rea s of the bolts and washer s.
L u b r i c a ti ng th e b o l ts i s th e suggesting m ethod. Thr ead Engagem en t
Figure 30
3200 Maxx RipperⓇ Operator & Safety Manual 31I M P E R I A L B O LT T O R Q U E TA B L E
Lubed means cleaned dry bolts lubricated with a standard medium
viscosity machine oil.
Lubricate all contact areas of the bolts and washers.
Lubricating the bolts is the suggesting method. Thread Engagement
Figure 31
3200 Maxx RipperⓇ Operator & Safety Manual 32TESTIMONIAL PERMISSION FORM
Name:
Phone Numbers:
Machine Type & Size:
I give permission for K-Line to publish my:
(tick all that apply)
Testimonial
Name
Audio
Video
I give permission for K-Line to give interested clients my contact number to discuss
my K-Line product
SIGNATURE: _ _ _ _ _ _ _ _ _ _ _ _ ________________
DATE: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
My Story:
More to say? Please turn over...
3200 Maxx RipperⓇ Operator & Safety Manual 33Thank you! 3200 Maxx RipperⓇ Operator & Safety Manual 34
SEND US A TESTIMONIAL
EXPLAINING WHY YOU
LOVE YOUR K-LINE AG
PRODUCT, AND WE WILL
SEND A FREE HAT!
Send to marketing@k-line.net.au or
scan here :
3200 Maxx RipperⓇ Operator & Safety Manual 35THIS PAGE IS LEFT
INTENTIONALLY BLANK
3200 Maxx RipperⓇ Operator & Safety Manual 36WARRANTY
K-LINE AGRICULTURE has been known over the last 22 years for supplying an ever expanding range of
quality agricultural machinery.
K-LINE AGRICULTURE warrants the products it manufactures and distributes to be free of defective
materials and workmanship for a period of twelve months from date of purchase, to the first owner.
Any part of the goods manufactured and distributed by K-LINE AGRICULTURE that proves to be defective
material, will be replaced or repaired by K-LINE AGRICULTURE when returned to K-LINE AGRICULTURE
at cost to purchaser and at purchaser’s risk.
Goods sold shall only have the benefit of this warranty if the purchaser has complied with the manufacturer’s
instructions in relation to the maintenance and operation of the said goods. All conditions and warranties
implied by Law or Statute are hereby expressly excluded and negative so far as legally permissible.
K-LINE AGRICULTURE is not otherwise liable for any direct, indirect or consequential loss or damage
howsoever arising or occurring, whether founded in tort, contract, and statute or otherwise.
This warranty must be read as subject to the General Terms and Conditions and does not cover misuse,
neglect or negligence.
ANY CLAIM FOR WARRANTY IS ALSO SUBJECT TO THE FOLLOWING CONDITIONS:
• Machine has not been subject to misuse.
• The speed limit of 20mph (32kmh) has been observed at all times.
• The machine has not been used for custom or hire work.
• Equipment must be handled, assembled, operated, maintained and stored correctly in accordance
with the manufacturer’s instructions by competent personnel.
• Warranty registration form must be signed by reseller and purchaser and returned to K-LINE
AGRICULTURE within 14 days of invoice. Warranty is not valid unless registered.
• Normal wear and tear, routine maintenance costs and accidental damage are NOT covered by this
warranty.
• Any alteration of equipment or negligence in maintenance including the use of non-genuine parts,
renders this warranty null and void.
• K-LINE AGRICULTURE will not authorize or reimburse expenses without a warranty request form
filled out to K-LINE AGRICULTURE satisfaction.
Signed on behalf of K-LINE AGRICULTURE
3200 Maxx RipperⓇ Operator & Safety Manual 37THIS PAGE IS LEFT
INTENTIONALLY BLANK
3200 Maxx RipperⓇ Operator & Safety Manual 38WA R R A N T Y R EG I S T R AT I O N F O R M
Conduct comprehensive risk assessment of machine with consideration for use and
maintenance
Ensure machine is delivered as per purchase order including options
All pins and lynch pins are in place
Hydraulic system is primed and operating properly (if applicable).
Check gear boxes for oil (if applicable).
Check belts for tightness (if applicable).
Instruction manual is supplied and explained.
It is the responsibility of the purchaser to:
• Maintain in as new condition all warning and safety signs and devices at all times.
• Ensure all operators are familiar with this manual and all safety devices and features of
the machine.
• Maintain the machine at all times in a condition that is safe to operate, and ensure it
complies with any relevant safety acts of parliament, government authorities and
regulations.
• Take every reasonable precaution as is commonly expected in this industry and in the
operation of the machine.
• Before mounting, check with manufacturer of machine or consult engineer to ensure
strength and balance of machine is adequate to accommodate the K-Line products you
have purchased.
• You must conduct a risk assessment, taking all risks into consideration before
commissioning machine for use.
Reseller: Client First Name:
Client Last Name:
Salesman: Trading Name:
Address: Address:
Phone: Phone:
Date of In-
Email Address:
voice:
Invoice No: Start- Up Date:
Machine Make
Serial No:
& Type:
Signed: Signed:
To confirm registration for warranty, please return this page (signed) to
F :( 02) 6342 6913 or E: sales@k-line.net.au
3200 Maxx RipperⓇ Operator & Safety Manual 39THIS PAGE IS LEFT
INTENTIONALLY BLANK
3200 Maxx RipperⓇ Operator & Safety Manual 40WARRANTY REQUEST FORM
RESELLER: _______________________ CLIENT: ______________________
ADDRESS: _______________________ _____________________________
PHONE: _________________________ _____________________________
MACHINE MAKE & TYPE: ____________________________________________
SERIAL NO: ______________________ CUSTOMER ORDER NO: _______
INVOICE NO: _____________________ DATE OF INVOICE: ___________
FULL DESCRIPTION: ________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
CAUSE: ____________________________________________________________
___________________________________________________________________
___________________________________________________________________
DATE OF FAILURE: _______________ HOURS WORKED: _____________
DATE OF REPAIR: ________________ HECTARES WORKED: __________
I AGREE:
1. That in accordance with the warranty given by K-LINE AGRICULTURE, I have taken every reasonable
precaution as is commonly expected in this industry in the operation of the machine.
2. This claim is not due to negligence, lack of maintenance, routine wear & tear or accidental damage &
no unauthorized alteration has been made to this machine.
OPERATOR: SIGNATURE ________________________________ DATE:
_____________________
OWNER: SIGNATURE _________________________________
DATE:_____________________
OFFICE USE ONLY:
ACCEPTED: YES/NO DENIED: YES/NO
DATE: ___________________________________ DATE: _____________________________
GOODS REPAIRED/ REPLACED/ REFUNDED FOR REASON FOR DENIAL: _______________
CREDIT? (CIRCLE) ___________________________________
REFUND OR REIMBURSEMENT REQUIRED? __________________________________
_
CHQ NO/ ADJUSTMENT NOTE NO: ___________ CHANGE REQUIRED? (CIRCLE)
SHIPPING DETAILS: _______________________ DESIGN
APPROVED BY: ___________________________ WORK METHOD
ACTION TAKEN: ___________________________ SUPPLIED PRODUCT
__________________________________________ REFER TO SUPPLIER
CLIENT SATISFIED YES/NO RECALL REQUIRED
FILE CLOSED BY: _________________________ DATE: _____________________________
3200 Maxx RipperⓇ Operator & Safety Manual 41THIS PAGE IS LEFT
INTENTIONALLY BLANK
3200 Maxx RipperⓇ Operator & Safety Manual 42NOTES
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
3200 Maxx RipperⓇ Operator & Safety Manual 43____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
3200 Maxx RipperⓇ Operator & Safety Manual 44____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
3200 Maxx RipperⓇ Operator & Safety Manual 45____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
3200 Maxx RipperⓇ Operator & Safety Manual 46____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
3200 Maxx RipperⓇ Operator & Safety Manual 47END OF DOCUMENT
© K-Line Ag 2018
1023 W 9th St | PO Box 248 Grafton, ND 58237 USA
74 Young Rd | PO Box 340 Cowra, NSW 2794 AUS
White Sticker when cut - 70mm high x 715mm wide
3200 Maxx RipperⓇ Operator & Safety Manual 48You can also read
