Momsen Bikes 2017
CONTENTS 01 MOMSEN BIKES’ ROOTS.................................................................................. 3 02 FORGING THE WAY........................................................................................ 5 03 2017 MOMSEN BIKE RANGE OVERVIEW..................................... 6 04 THE VIPA (R)EVOLUTON................................................................. 11 05 VIPA ACCESSORIES...................................................................... 13 06 HARDTAIL ALLOY 29er.......................................................... 23 07 LSG EXPLAINED.................................................................. 28 08 RX SERIES.......................................................................... 41 09 JUNIOR SUPERLIGHT (JSL)................................. 51 10 JUNIOR ALLOY (JR)............................................. 63 11 MOMSEN ACCESSORIES........................... 71 12 SPECIFICATIONS........................................ 72 momsenbikes.com 1//77
2//77 Momsen Bikes 2017
Momsen Bikes has its roots firmly planted in the Baakens Valley in the heart of Port Elizabeth, South Africa. Established in 2009, Momsen is a home- grown South African brand of quality bikes, admired and sought-after by both local and international cyclists. Momsen Bikes are meticulously developed with the rigorous South African terrain in mind. All bike models are researched, designed and created by our South African-based, core R&D team. Tried and tested on rugged, local tracks - from precipitous mountain routes to rugged singletrack trails, in the most extreme off-road conditions - Momsen Bikes are Forged in the Untamed! Every bike is brought to life with your particular challenges in mind and how that impacts your every ride. We understand your needs and strive to meet and exceed those demands. Key features developed and designed around South Africa’s appetite for world- leading MTB Stage Races include Dual Waterbottle Mounts in the Front Triangle of our popular VIPA full suspension models and our I.T.B (Integrated Toptube Box) fixtures on various Hardtail 29er models – allowing essential, easy-to-reach, on-bike access to endurance event essentials. This unique understanding of endurance mountain biking sets us apart and inspires confidence in Momsen Bikes. 01 MOMSEN BIKES’ ROOTS Though rooted in South Africa, our guys compete worldwide on existing and prototype Momsen Bikes, from the Cape Epic to the UCI XCO World Cup. Incalculable competitive experience means constantly improved biking specifications, equating to a faster, smoother, more enjoyable ride for you. To us, cycling is about more than competition - it’s about conquest. The thrill. The challenge. It’s about fun. It’s our passion! We live, eat, sleep and breathe bicycles. Your innovative Momsen ride is guaranteed to reflect this passion. Welcome to the explosive and adventurous world of Momsen Bikes! momsenbikes.com 3//77
4//77 Momsen Bikes 2017

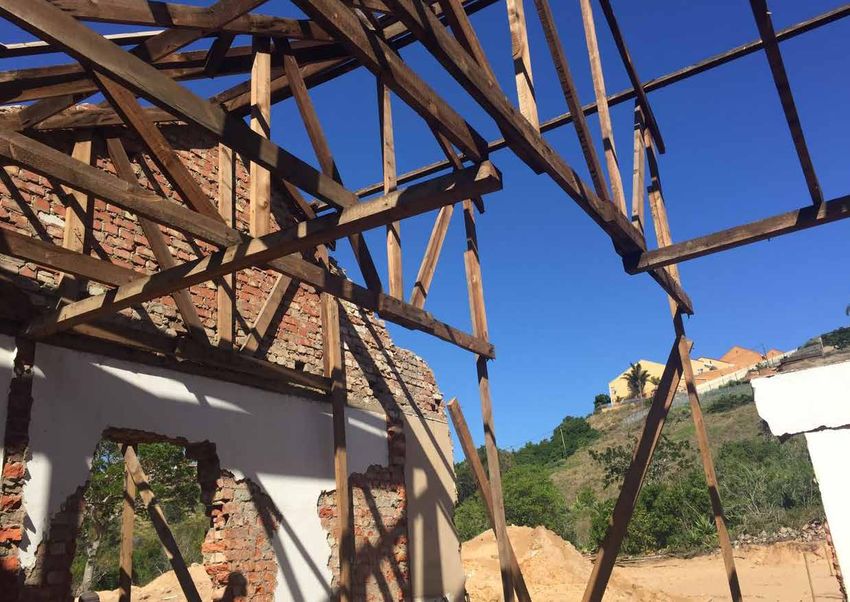

Ever fluid, Momsen Bikes is on the go! 2017 sees us relocating our operations to a purpose-built facility in the Baakens Valley, just a stone’s throw from the very spot where all of our prototypes and new models are ridden and refined. The multimillion-rand facility, already under construction, is part of the Upper Valley Road redevelopment in Port Elizabeth, South Africa. This new location and visibility will offer many new opportunities to leverage the brand’s proximity to some of the best trails in the Eastern Cape and also create a lifestyle environment where new ideas, concepts and designs can flourish. 02 FORGING THE WAY The new home of Momsen Bikes will include a showroom, administration offices, design and development, distribution operations, warehousing and an assembly section. Momsen Bikes, forging ahead into the untamed future - enjoy the ride! momsenbikes.com 5//77
03
2017 MOMSEN BIKE RANGE
From the legendary VIPA full suspension models to the affordable junior mountain bike
range (JR), Momsen Bikes has a ride to rival your individual adventure. Meticulously
developed and stringently tested, we have the ultimate bike for you.
VIPA FULL SUSPENSION - CARBON
VIPA TWO
VIPA TEAM LIMITED VIPA TEAM VIPA ONE
6//77 Momsen Bikes 2017
HARDTAIL - ALLOY 29er
NE
D - SEE P
17
AG
EXPLAI
RANGE
E 28
SG
L
AL529 AL429 AL329
D - SEE P D - SEE P
NE NE
AG
AG
EXPLAI
EXPLAI
E
E
28
28
SG
SG
L L
AL229 AL129
D - SEE P D - SEE P
NE NE
AG
AG
EXPLAI
EXPLAI
E
E
28
28
SG
L SG L
AL029 AL029
momsenbikes.com 7//77
RX SERIES - ALLOY
D - SEE P
NE
AG
EXPLAI
E 28
SG
L
RX290 RX260
RXL260 JRX100
8//77 Momsen Bikes 2017JUNIOR SERIES - JSL (JUNIOR SUPERLIGHT) JR (JUNIOR)
17
RANGE
JSL60 JSL40 JR100
JSL20 CARBON JSL20 JR40
JSL16 JR20
momsenbikes.com 9//7710//77 Momsen Bikes 2017
VIPA - arguably the most successful high-end bicycle from any South African bike brand in the history of the local mountain bike market. The first true full carbon, full suspension bike designed and developed on strenuous South African tracks and trails, the legendary VIPA is dubbed “SA’s first Superbike”. After more than 2 years of intensive development by a team of designers and engineers, the VIPA was first released during 2014. Results followed rapidly. VIPA now has numerous podium places and race victories on both national and international racing circuits, including one category and four stage wins at the ABSA Cape Epic. • SA’s first bicycle brand to win a category at the ABSA Cape Epic. • SA’s first designed and developed full carbon / full suspension MTB to win a stage at the ABSA Cape Epic. • Winner of the inaugural Redbull Run at the Joberg2C. 04 THE VIPA (R)EVOLUTION Lightweight. Smooth. Efficient. Available in full carbon, with either 1X or 2X carbon swingarms, the versatile VIPA range covers multiple spec and parts options. • Short travel design - 80mm wheel travel. • Low leverage ratio for “bottomless” feel. • Carbon construction ensures light weight. • 2 x water bottle mounts within the main frame (M, L size frames). Born and bred in the untamed, the ever popular VIPA is coveted by stage racers and marathon riders alike. The new generation promises to be the most refined yet, continuing to win hearts and legs of competitors world-wide. Join the VIPA revolution! momsenbikes.com 11//77
ALL-RISE & FLAT WIDE
INTEGRATED TOP CARBON HANDLEBAR
TUBE BOX (I.T.B.)
FRONT DERAILLEUR
COVER PLATE MOMSEN DESIGN
SILICONE RACE GRIPS
DERAILLEUR
HANGER BOLT
ADAPTOR
VIPA BOTTLE CAGE VIPA CARBON BOTTLE CAGES
ADAPTORS Grey | White
CHAINSTAY PROTECTOR
1X &2X Design
12//77 Momsen Bikes 2017Open Integrated Top Tube Box (I.T.B.) fitted on the VIPA top tube VIPA CARBON BOTTLE CAGES DERAILLEUR HANGER
05
Grey | White BOLT ADAPTOR
VIPA ACCESSORIES
More than just a bike! Our VIPA platform continues to evolve. With this evolution we
continue to develop a range of purposeful and practical accessories for this model range.
Key accessories include:
• The Integrated Top Tube Box (I.T.B.) is a stroke of genius - an easy-to-reach, on-bike
storage solution that’s practical, affordable and accentuates the sleek lines of your VIPA.
• The VIPA Bottle Cage Adaptor solves the other critical issue of on-board hydration
- giving you the option of a second water bottle for each ride.
• The Derailleur Hanger Bolt Adaptor which allows the use of a regular 6mm
Allen Key to remove/replace the hanger without the need of the large
and heavier 12mm Allen Key.
Just another reason why the VIPA is a popular choice on the local trails.
momsenbikes.com 13//77VIPA TEAM LIMITED - RAISING THE BAR. TO THE TOP.
We love the simplicity of 1X. For this LIMITED Edition model we went ALL IN with SRAM – from RockShox RS-1 to SRAM RISE 60 Carbon Wheels – the bar has been
raised.
14//77 Momsen Bikes 201717
FEATURES
• Race Proven Full Carbon Full Suspension Frame with 80mm of Efficient Suspension Travel.
• New Double Waterbottle Mount Feature on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately).
• RockShox RS-1 Inverted Carbon Fork – Revolutionary design with lightweight carbon construction and all-new Predictive Steering feature.
• Sram XX1 Drivetrain with XG-1195 10-42 Cassette – the leader in 1X drivetrain performance.
VIPA
• Sram RISE 60 Carbon Wheelset with Predictive Steering Front Hub (110 x 15mm) and 142 Rear Thru-Axle.
TEAM
•
•
Ritchey Carbon WCS Handlebar with WCS C-260 Carbon Matrix Stem – high quality and superlight cockpit components.
Fizik THAR Saddle with Custom Carbon Seatpost – popular aftermarket upgrades standard out the box. LIMITED
SPECS GEOMETRY
Sizes: Small, Medium, Large SIZE: SMALL MEDIUM LARGE
Frame: Full Carbon Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel, New Dual
Waterbottle Mount Design (for M and L) (A) Seat Tube Length: 406 432 483
Fork: Sram RS-1 Inverted Carbon Suspension Fork, 100mm Travel, Predictive Steering Front (B) Top Tube Effective: 570 595 615
Hub with XLoc Remote (C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚
Rear Shock: Sram Monarch XX 165mm with Hydraulic XLoc Sprint Remote (D) Seat Tube Angle: 73.5˚ 73.5˚ 73.5˚
Chainwheel: Sram XX1 Direct Mount X-Sync 32T for 11 Speed
(E) Wheelbase: 1077 1102 1122
Bottom Bracket: Sram Pressfit
(F) Rear Center: 440 440 440
Front Derailleur: N/A
Rear Derailleur: Sram XX1 for 11 Speed (G) BB Drop: 40 40 40
Shifter: Sram XO Trigger Discrete Clamp for 11 Speed (H) Head Tube Length: 105 115 125
Brake Levers: Shimano XTR M9000 (I) Reach: 397 418.8 436
Brakes: Shimano XTR M9000, Shimano SM-RT86 XTR Rotors, 160mm Front and Rear (J) Stack: 585 595 605
Cassette: Sram XG-1195 10-42T for 11 Speed
Rims: Sram RISE 60 Uni-Directional Carbon Tuned, Tubeless Ready, 24H
Tires: Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready,
Front 29 x 2.25, Rear 29 x 1.95 (Note: Designed for 29 x 1.9 to 2.25
on ZTR Crest Rims)
Pedals: N/A
Handlebar: Ritchey MTN WCS Carbon, 710mm +-5mm Rise, 9 Degree Sweep,
31.8mm Oversize
Stem: Ritchey MTN WCS Carbon C-260, 31.8mm Oversize
Seatpost: Carbon, 31.6mm x 400mm
Seat: Fizik THAR, Cordura Rear, Magnesium Blasted Black Rail
Headset: Custom Integrated Taper for VIPA
Colors: Matte Black/Gloss Black
Chain: KMC X11 SL for 11 Speed
Hubset: Sram Predictive Steering Front for RS-1, Sram 142×12
Rear with XD Driver, 24H
Spokes: Stainless Solo Spoke
Grips: Silicone Race
Weight: 11.03kg (Medium, excl. Pedals)

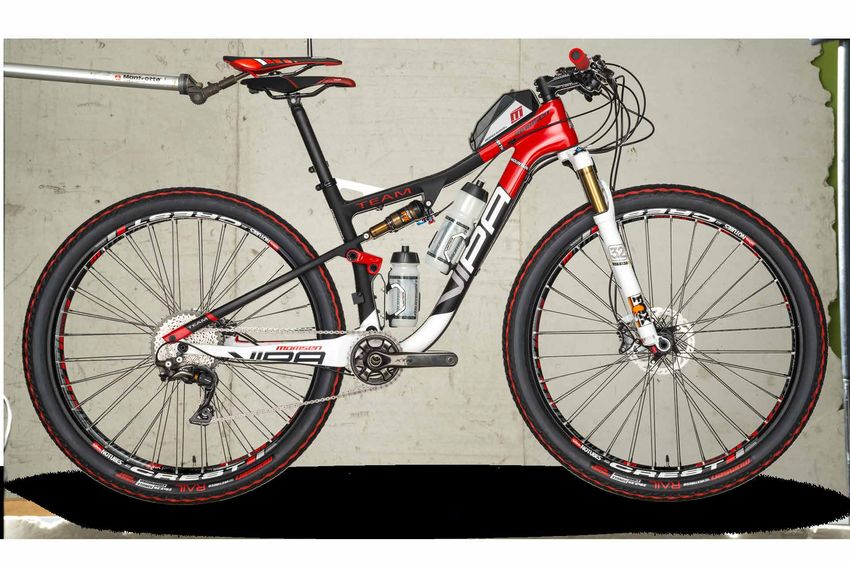

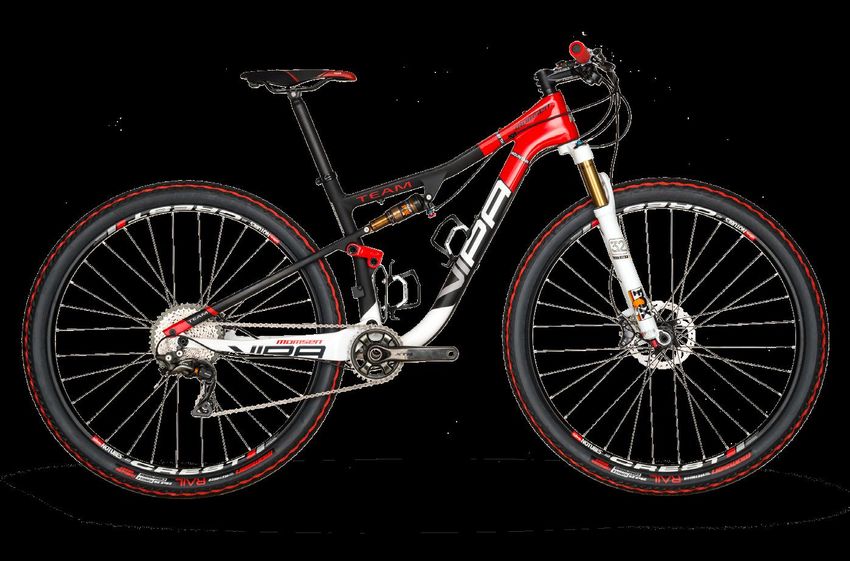

momsenbikes.com 15//77VIPA TEAM - LEGENDARY FLAGSHIP RACE BIKE.
A thoroughbred race bike as used by our team. Features a no-compromise buildkit with a 1x Specific frame. Shimano XTR 1 x 11. FOX Factory Suspension. The
bike the Pros race.
16//77 Momsen Bikes 201717
FEATURES
• Race Proven Full Carbon Full Suspension Frame with 80mm of Efficient Suspension Travel.
• New Double Waterbottle Mount Feature on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately).
• FOX Factory Level Suspension – the best of the best with KASHIMA coatings, FIT 4 Damper and Dual Remote Lockout Lever.
•
•
Shimano XTR M9000 Groupset with new 11-42 Cassette – legendary range topping performance.
Stan’s ZTR Crest Comp Wheelset with BST (Bead Socket Technology) for easy tubeless conversion and true tubeless performance. VIPA
•
•
Ritchey Carbon WCS Handlebar with WCS C-260 Stem – high quality and superlight cockpit components.
Fizik THAR Saddle with Custom Carbon Seatpost – popular aftermarket upgrades standard out the box.
TEAM
SPECS GEOMETRY
Sizes: Small, Medium, Large SIZE: SMALL MEDIUM LARGE
Frame: Full Carbon Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel,
New Dual Waterbottle Mount Design (for M & L) (A) Seat Tube Length: 406 432 483
Fork: Fox Float 32 Kashima with FIT 4 System, Factory Series w/Remote Lockout, 100mm Travel, (B) Top Tube Effective: 570 595 615
15mm Thru-Axle, Taper Steerer (C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚
Rear Shock: Fox Float DPS (Dual Piston System) Kashima with Remote Lockout with 3 Positions
(D) Seat Tube Angle: 73.5˚ 73.5˚ 73.5˚
On-The-Fly Adjust – Open, Medium, Firm
Chainwheel: Shimano XTR M9000 32T for 11 Speed (E) Wheelbase: 1077 1102 1122
Bottom Bracket: Shimano Pressfit (F) Rear Center: 440 440 440
Front Derailleur: N/A (G) BB Drop: 40 40 40
Rear Derailleur: Shimano XTR M9000 Shadow Plus for 11 Speed (H) Head Tube Length: 105 115 125
Shifter: Shimano XTR M9000 I-Spec 2 for 11 Speed
(I) Reach: 397 418.8 436
Brake Levers: Shimano XTR M9000
Brakes: Shimano XTR M9000, Shimano SM-RT86 XTR Rotors, 160mm Front and Rear (J) Stack: 585 595 605
Cassette: Shimano XT M8000 11-42T for 11 Speed
Rims: Stan’s No Tubes ZTR Crest, Tubeless Ready, 32H
Tires: Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready,
Front 29 x 2.25, Rear 29 x 1.95 (Note: Designed for 29 x 1.9 to 2.25 on
ZTR Crest Rims)
Pedals: N/A
Handlebar: Ritchey MTN WCS Carbon, 710mm +-5mm Rise, 9 Degree Sweep,
31.8mm Oversize
Stem: Ritchey 4-Axis WCS, 31.8mm Oversize
Seatpost: Carbon, 31.6mm x 400mm
Seat: Fizik THAR, Cordura Rear, Magnesium Blasted Black Rail
Headset: Custom Integrated Taper for VIPA
Colors: Matte Black/Red
Chain: Shimano XTR HG900 for 11 Speed
Hubset: Stan’s 3.30 Front 15mm Thru-Axle, Stan’s 3.30 Rear
142 x 12mm Thru-Axle
Spokes: Stainless Butted with Alloy Nipples
Grips: Silicone Race
Weight: 11.25kg (Medium, excl. Pedals)
momsenbikes.com 17//77VIPA TWO - OUR MOST POPULAR VIPA. THE ORIGINAL.
Our original Full Carbon Full Suspension SUPERBIKE – the new 2017 model features the latest Shimano XT M8000 11 Speed Components and brand new
RockShox SID Suspension Fork matched to Fox Float Performance Rear Shock.
18//77 Momsen Bikes 201717
FEATURES
• Full Carbon 80mm travel VIPA Frame – Carbon 1x Swingarm.
• Dual Bottle Cage Option on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately).
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• RockShox SID RL 100mm REMOTE with 15mm Thru-Axle and ONELOC Lockout Lever.
•
•
Fox Float DPS Performance Series rear shock with firm lockout.
Shimano XT M8000 11-Speed Drivetrain. VIPA
•
•
Shimano XT M8000 Thru-Axle Front and Rear Hubs with Centerlock.
Stan’s ZTR Crest Mk3 Tubeless Ready Rims.
TWO
• Vee Tire Co. Rail Tracker 29 x 2.2 Folding Bead 72tpi.
SPECS GEOMETRY
Sizes: Small, Medium, Large SIZE: SMALL MEDIUM LARGE
Frame: Full Carbon Front Triangle, Full Carbon 1x Rear Triangle, 80mm Rear Wheel Travel, Dual
Waterbottle Mount Design (for Medium and Large Size), Integrated Toptube Box (I.T.B) (A) Seat Tube Length: 406 432 483
Fork: RockShox SID RL, 100mm Travel, ONELOC Remote Lockout, 15mm Thru-Axle Lowers (B) Top Tube Effective: 570 595 615
Rear Shock: Fox Float DPS, Performance Series, Firm Lockout (C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚
Chainwheel: Shimano XT M8000 32T for 11 Speed (D) Seat Tube Angle: 73.5˚ 73.5˚ 73.5˚
Bottom Bracket: Shimano BB-MT800 Pressfit
(E) Wheelbase: 1077 1102 1122
Front Derailleur: N/A
Rear Derailleur: Shimano XT M8000 Shadow Plus for 11 Speed (F) Rear Center: 440 440 440
Shifter: Shimano XT M8000 for 11 Speed (G) BB Drop: 40 40 40
Brake Levers: Shimano XT M8000 Hydraulic (H) Head Tube Length: 105 115 125
Brakes: Shimano XT M8000 Short Lever / SM-RT81 Centerlock Rotors / (I) Reach: 397 418.8 436
160mm Front and Rear (J) Stack: 585 595 605
Cassette: Shimano XT M8000 11-46T for 11 Speed
Rims: Stan’s ZTR Crest Mk3 Tubeless Ready, 32H
Tires: Vee Tire Co. Rail Tracker Custom Logo, 72tpi Folding Bead,
29 x 2.20 Front and Rear
Pedals: N/A
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen 3D Forged Oval, 31.8mm Oversize
(S – 90mm, M – 100mm, L – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Composite Base, Chromoly Rail
Headset: Custom Integrated Taper for VIPA
Colors: Momsen Yellow/Matte Carbon
Chain: Shimano HG701 for 11 Speed
Hubset: Shimano XT M8000 Front 15mm Thru-Axle,
FH-M8000 Rear 142 x 12mm Thru-Axle
Spokes: Stainless Butted with Alloy Nipples
Grips: Kraton Composite Lock-On
Weight: 11.85kg (Large, excl. Pedals)
momsenbikes.com 19//77VIPA ONE - RACE PROVEN. SOLID CHOICE.
A new addition to the CARBON VIPA platform. Shimano’s all-new SLX 7000 11-Speed Drivetrain matched to the RockShox REBA RL and MONARCH RL suspension
units. A perfect match.
20//77 Momsen Bikes 201717
FEATURES
• Full Carbon 80mm travel VIPA Frame – Carbon 1x Swingarm.
• Dual Bottle Cage Option on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately).
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
VIPA
• RockShox REBA RL 100mm with 15mm Thru-Axle and ONELOC Lockout Lever.
• RockShox MONARCH RL rear shock with firm lockout.
ONE
• Shimano SLX M7000 11-Speed Drivetrain.
• Shimano M618 Thru-Axle Front and Rear Hubs with Centerlock.
• Alex DP21 Tubeless Ready Rims.
• Vee Tire Co. Rail Tracker 29 x 2.2.
SPECS GEOMETRY
Sizes: Small, Medium, Large SIZE: SMALL MEDIUM LARGE
Frame: Full Carbon Front Triangle, Full Carbon 1x Rear Triangle, 80mm Rear Wheel Travel,
Dual Waterbottle Mount Design (for Medium and Large Size), Integrated Toptube Box (I.T.B) (A) Seat Tube Length: 406 432 483
Fork: RockShox REBA RL, 100mm Travel, ONELOC Remote Lockout, 15m Thru-Axle Lowers (B) Top Tube Effective: 570 595 615
Rear Shock: RockShox MONARCH RL, Firm Lockout (C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚
Chainwheel: Shimano SLX M7000 32T for 11 Speed (D) Seat Tube Angle: 73.5˚ 73.5˚ 73.5˚
Bottom Bracket: Shimano BB-MT800 Pressfit (E) Wheelbase: 1077 1102 1122
Front Derailleur: N/A (F) Rear Center: 440 440 440
Rear Derailleur: Shimano SLX M7000 Shadow Plus for 11 Speed
(G) BB Drop: 40 40 40
Shifter: Shimano SLX M7000 for 11 Speed
(H) Head Tube Length: 105 115 125
Brake Levers: Shimano M506 Hydraulic
Brakes: Shimano M506 Short Lever / SM-RT30 Centerlock Rotors / 160mm Front and Rear (I) Reach: 397 418.8 436
Cassette: Shimano SLX HG60 11-42T for 11 Speed (J) Stack: 585 595 605
Rims: Alex DP21 Tubeless Ready, Custom Decal, 32H
Tires: Vee Tire Co. Rail Tracker Custom Logo, 72tpi Wire Bead, 29 x 2.20 Front
and Rear
Pedals: N/A
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen 3D Forged Oval, 31.8mm Oversize (S – 90mm, M – 100mm,
L – 100mm, XL – 110mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Composite Base, Chromoly Rail
Headset: Custom Integrated Taper for VIPA
Colors: Gloss White/Matte Carbon
Chain: Shimano HG60 for 11 Speed
Hubset: Shimano M618 Front 15mm Thru-Axle, FH-M618 Rear
142 x 12mm Thru-Axle
Spokes: Stainless Butted with Alloy Nipples
Grips: Kraton Composite Lock-On
Weight: 12.59kg (Large, excl. Pedals)
momsenbikes.com 21//7722//77 Momsen Bikes 2017
06 HARDTAIL ALLOY 29er Constantly evolving and being refined, our Alloy 29er range combines cutting edge design with leading frame technology and geometry. This combination results in lightweight, high performance race bikes that score just as high on fun as they do on durability and performance. momsenbikes.com 23//77
AL529 - PURE AND SIMPLE. WANTS TO RACE.
Our top of the range Alloy 29er hardtail model. The all-new 6000 Series RaceTech SL frame dressed to impress with the latest Shimano M7000 SLX 1 x 11
Drivetrain and RockShox Recon Silver RL Air Suspension Fork.
24//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech SL 6000 Series Alloy Frame with Formed Seattube.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• RockShox Recon Silver RL Air Fork with ONELOC Sprint Remote.
• Shimano M7000 SLX 1 x 11 Drivetrain with Shimano 11-42T Cassette.
AL529
• Shimano M506 Hydraulic Disc Brakes.
• Shimano M615 Front and Rear Hubs with Centerlock.
• Alex DP21 Tubeless Ready Rims.
• Vee Tire Co. Rail Tracker 29 x 2.2 Folding Bead with Multi Purpose Compound.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech SL 6000 Series Alloy, Formed Seattube for 1x, Integrated Toptube Box (I.T.B)
(A) Seat Tube Length: 380 430 480 533
Fork: RockShox Recon Silver RL, 100mm Travel, Air Adjust, ONELOC Sprint Remote Lockout
(B) Top Tube Effective: 580 595 615 630
Rear Shock: N/A
(C) Head Tube Angle: 71˚ 71.5˚ 71.5˚ 71.5˚
Chainwheel: Shimano M7000 SLX 32T
(D) Seat Tube Angle: 73˚ 73˚ 73˚ 73˚
Bottom Bracket: Shimano BB52 External
(E) Wheelbase: 1083 1088 1107 1122
Front Derailleur: N/A
(F) Rear Center: 450 455 455 455
Rear Derailleur: Shimano M7000 SLX for 11 Speed
(G) BB Drop: 60 60 60 60
Shifter: Shimano M7000 SLX Trigger for 11 Speed
(H) Head Tube Length: 110 110 110 120
Brake Levers: Shimano M506 Hydraulic
Brakes: Shimano M506 Hydraulic / SM-RT54 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano CS-M7000 SLX 11-42T for 11 Speed
Rims: Alex DP21 Tubeless Ready, Custom Decal, 32H
Tires: Vee Tire Co. Rail Tracker Custom Logo, 72tpi Folding Bead, 29 x 2.20
Front and Rear
Pedals: N/A
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Taper
Colors: Fast Black
Chain: KMC X11 for 11 Speed
Hubset: Shimano M615 Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton Composite Lock-On
momsenbikes.com 25//77AL429 - THE FIRM FAVOURITE. COMPLETELY RE-IMAGINED.
We kept the model name – that’s it. An all-new 6000 Series RaceTech SL frame with RockShox Air Suspension, Shimano 2 x 10 Gearing with XT rear derailleur.
26//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech SL 6000 Series Alloy Frame with Internal Downtube Routing.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• RockShox 30 Silver TK 100mm with POPLOC Remote.
• Shimano 2 x 10 Drivetrain.
AL429
• Shimano XT Rear Derailleur.
• Shimano RM35 Front and Rear Hubs with Centerlock.
• Alex DP21 Tubeless Ready Rims.
• Vee Tire Co. Rail Tracker 29 x 2.2 Skinwall Tyres.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech SL 6000 Series Alloy, Downtube Internal Cable Routing, SideSwing Compatibility,
(A) Seat Tube Length: 380 430 480 533
Integrated Toptube Box (I.T.B)
(B) Top Tube Effective: 580 595 615 630
Fork: RockShox 30 Silver TK, 100mm Travel, Air Adjust, POPLOC Remote Lockout
Rear Shock: N/A (C) Head Tube Angle: 71˚ 71.5˚ 71.5˚ 71.5˚
Chainwheel: Shimano M627 38/24T for 10 Speed (D) Seat Tube Angle: 73˚ 73˚ 73˚ 73˚
Bottom Bracket: Shimano BB52 External (E) Wheelbase: 1083 1088 1107 1122
Front Derailleur: Shimano M617 SideSwing 2x (F) Rear Center: 450 455 455 455
Rear Derailleur: Shimano XT Shadow Plus for 10 Speed (G) BB Drop: 60 60 60 60
Shifter: Shimano SLX Trigger for 10 Speed (H) Head Tube Length: 110 110 110 120
Brake Levers: Shimano M365 Hydraulic
Brakes: Shimano M365 Hydraulic / SM-RT30 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG50 11-36T for 10 Speed
Rims: Alex DP21 Tubeless Ready, Custom Decal, 32H
Tires: Vee Tire Co. Rail Tracker Custom Logo, Skinwall, 72tpi Wire Bead,
29 x 2.20 Front and Rear
Pedals: Alloy Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Taper
Colors: Navy/Orange
Chain: KMC X10 for 10 Speed
Hubset: Shimano RM35 Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton Composite Lock-On
momsenbikes.com 27//7707 TRADITIONAL BIKE
STEEP HEAD ANGLE
LSG EQUIPPED BIKE
SLACKER HEAD ANGLE
LSG EXPLAINED
TRADITIONAL BIKE LSG EQUIPPED BIKE
TRADITIONAL BIKE
= TRAIL OF FORK = TRAIL OF FORK
LSG EQUIPPED BIKE
SLACKER HEAD ANGLE
REACH INCREASED LESS TWITCHY HANDLING
SMALL - 10MM MORE CONTROL
MEDIUM/LARGE - 17MM All LSG Equipped models have a SLACKER headtube
X-LARGE - 21MM
angle. By decreasing the steering angle we were able
to further improve stability and when combined
with the short stem still offer responsive and
HEAD ANGLE direct steering. For 2017 we have opted for
LONGER REACH SLACKER BY 1º (MODERATE)
70,5º (WAS 71,5º)
a “moderate” revision of 70.5º compared
LESS CRAMPED POSTURE MORE COMFORT to the previous 71.5º on our previous
All LSG Equipped models have extended toptube lengths frames.
and extended REACH across all sizes. This LONGER front
end equates to an increased wheelbase, which increases
stability. We have combined the longer toptubes with
shorter stems to still allow responsive and direct
steering.
TRADITIONAL BIKE LSG EQUIPPED BIKE
WHEELBASE EXTENDED
70.5O
LONGER WHEELBASE MORE STABILITY
Our LSG GEOMETRY with longer wheelbase is
71.5O
the end result of all of these carefully calculated
new frame angles and lengths. The magic numbers
all come together to ensure that the bike handles well
and inspires confidence.
28//77 Momsen Bikes 2017FRAME COMPARISON
2017 - LSG EQUIPPED 2016 - TRADITIONAL
B B
I I
H H
A A
D C D C
G G
F F
E E
SIZE SMALL MEDIUM LARGE X-LARGE SIZE SMALL MEDIUM LARGE X-LARGE
(A) Seattube Length 380 430 480 533 (A) Seattube Length 380 430 480 533
(B) Toptube Effective 590 610 630 650 (B) Toptube Effective 580 595 615 630
(C) Headtube Angle 70º 70,5º 70,5º 70,5º (C) Headtube Angle 71º 71,5º 71,5º 71,5º
(D) Seattube Angle 73º 73º 73º 73º (D) Seattube Angle 73º 73º 73º 73º
(E) Wheelbase 1099 1113 1134 1154 (E) Wheelbase 1083 1088 1107 1122
(F) Rear Centre 450 450 450 450 (F) Rear Centre 455 455 455 455
(G) BB Drop 60 60 60 60 (G) BB Drop 60 60 60 60
(H) Headtube Length 110 110 120 130 (H) Headtube Length 110 110 120 130
(I) Reach 408 423 440 457 (I) Reach 395 420 445 470
momsenbikes.com 29//77AL329 - THE ORIGINAL GAME CHANGING ALLOY 29ER IN THE SA MARKET.
Legendary value and performance. Redesigned RaceTech TWO frame now with exclusive LSG and matched to a Shimano 3 x 10 Groupset with SR Suntour XCR
Air Fork.
SEE P
ED - A
IN
GE
LSG EXPLA
28
30//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech TWO Alloy Frame with exclusive LSG design.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• SR Suntour XCR 32 RL-R Air Fork with Remote Lockout and Rebound Adjustment.
• Shimano 3 x 10 Deore Drivetrain with Shimano 11-36T Cassette.
•
•
Shimano M365 Hydraulic Disc Brakes.
Shimano RM33 Front and Rear Hubs with Centerlock. AL329
• Vee Tire Co. Rail Tracker 29 x 2.2 Skinwall with Multi Purpose Compound.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech TWO Alloy, Exclusive LSG Design, Integrated Toptube Box (I.T.B), Tapered Headtube
(A) Seat Tube Length: 380 430 480 533
Fork: SR Suntour XCR32 RL-R, 100mm Travel, Air Adjust, Remote Lockout with Rebound Adjust
(B) Top Tube Effective: 590 610 630 650
and Tapered Steerer
Rear Shock: N/A (C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Chainwheel: Shimano M522 42/32/24T for 10 Speed (D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Bottom Bracket: Shimano BB-ES25 External (E) Wheelbase: 1099 1113 1134 1154
Front Derailleur: Shimano M610 Deore (F) Rear Center: 450 450 450 450
Rear Derailleur: Shimano M615 Deore for 10 Speed (G) BB Drop: 60 60 60 60
Shifter: Shimano Deore Trigger for 10 Speed (H) Head Tube Length: 110 110 120 130
Brake Levers: Shimano M365 Hydraulic (I) Reach: 408 423 440 457
Brakes: Shimano M365 Hydraulic / SM-RT30 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG50 11-36T for 10 Speed
Rims: Weinmann XM260 Alloy Doublewall, Custom Decal, 32H
Tires: Vee Tire Co. Rail Tracker Custom Logo, Skinwall, 27tpi Wire Bead,
29 x 2.20 Front and Rear
Pedals: Alloy Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Taper
Colors: Fast Black/Ghost Grey
Chain: KMC X10 for 10 Speed
Hubset: Shimano RM33 Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton Composite Lock-On
momsenbikes.com 31//77AL229 - A LOT OF BIKE. ADVENTURE AND FUN ALL ROLLED INTO ONE.
Our premium 27 Speed model in the range – now updated with a new RaceTech TWO frame with exclusive LSG and SR Suntour XCR Air Fork.
SEE P
ED - A
IN
GE
LSG EXPLA
28
32//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech TWO Alloy Frame with exclusive LSG design.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• SR Suntour XCR 32 RL-R Air Fork with Remote Lockout and Rebound Adjustment.
• Shimano 3 x 9 Acera Drivetrain with Shimano 12-36T Cassette.
•
•
Shimano M365 Hydraulic Disc Brakes.
Shimano RM33 Front and Rear Hubs with Centerlock. AL229
• CST Jack Rabbit 29 x 2.1 27tpi Wire Bead Tyres.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech TWO Alloy, Exclusive LSG Design, Integrated Toptube Box (I.T.B),
(A) Seat Tube Length: 380 430 480 533
Tapered Headtube Profile
(B) Top Tube Effective: 590 610 630 650
Fork: SR Suntour XCR32 RL-R, 100mm Travel, Air Adjust, Remote Lockout with Rebound Adjust
(C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Rear Shock: N/A
(D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Chainwheel: Shimano M351 44/32/22T for 9 Speed
(E) Wheelbase: 1099 1113 1134 1154
Bottom Bracket: Shimano BB-UN26 Cartridge
(F) Rear Center: 450 450 450 450
Front Derailleur: Shimano M370 Altus
(G) BB Drop: 60 60 60 60
Rear Derailleur: Shimano M3000 Acera for 9 Speed
(H) Head Tube Length: 110 110 120 130
Shifter: Shimano M3000 Acera Trigger for 9 Speed
Brake Levers: Shimano M365 Hydraulic (I) Reach: 408 423 440 457
Brakes: Shimano M365 Hydraulic / SM-RT10 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG300-9 12-36T for 9 Speed
Rims: Weinmann XM260 Alloy Doublewall, Custom Decal, 32H
Tires: CST Jack Rabbit, 27tpi Wire Bead, 29 x 2.10 Front and Rear
Pedals: Alloy Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Type
Colors: Race Blue/Dark Grey
Chain: KMC X9 for 9 Speed
Hubset: Shimano RM33 Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton Composite Lock-On
momsenbikes.com 33//77AL129 - READY FOR ACTION. SOLID TRAIL PERFORMER.
Reimagined and styled for 2017 – our popular AL129 sports a brand new RaceTech TWO Frame now with LSG design and a SR Suntour XCR Air Fork.
SEE P
ED - A
IN
GE
LSG EXPLA
28
34//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech TWO Alloy Frame with exclusive LSG design.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• SR Suntour XCR 32 Air Fork with Lockout and Rebound Adjustment.
• Shimano 3 x 9 Altus Drivetrain with Shimano 11-34T Cassette.
•
•
Shimano M315 Hydraulic Disc Brakes.
Shimano TX Series Front and Rear Hubs with Centerlock. AL129
• CST Jack Rabbit 29 x 2.1 27tpi Wire Bead Tyres.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech TWO Alloy, Exclusive LSG Design, Integrated Toptube Box (I.T.B), Tapered Headtube Profile
(A) Seat Tube Length: 380 430 480 533
Fork: SR Suntour XCR32, 100mm Travel, Air Adjust, Lockout with Rebound Adjust
(B) Top Tube Effective: 590 610 630 650
Rear Shock: N/A
(C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Chainwheel: Shimano M351 44/32/22T for 9 Speed
(D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Bottom Bracket: Cartridge Type
(E) Wheelbase: 1099 1113 1134 1154
Front Derailleur: Shimano M370 Altus
(F) Rear Center: 450 450 450 450
Rear Derailleur: Shimano M370 Altus for 9 Speed
(G) BB Drop: 60 60 60 60
Shifter: Shimano M370 Altus Trigger for 9 Speed
(H) Head Tube Length: 110 110 120 130
Brake Levers: Shimano M315 Hydraulic
(I) Reach: 408 423 440 457
Brakes: Shimano M315 Hydraulic / SM-RT10 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG200-9 11-34T for 9 Speed
Rims: Weinmann XM260 Alloy Doublewall, Custom Decal, 32H
Tires: CST Jack Rabbit, 27tpi Wire Bead, 29 x 2.10 Front and Rear
Pedals: Steel Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Type
Colors: Bright Blue/Dark Grey
Chain: KMC Z99 for 9 Speed
Hubset: Shimano TX Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton MTB Closed End
momsenbikes.com 35//77AL029 - RACE AND TRAIL READY DNA COMBINED WITH SOLID RELIABILITY.
Hit the trails with confidence. Our all-new LSG design ensures comfort and stability whilst the Shimano 24 Speed Gear System allows you to tackle the ups and
downs.
SEE P
ED - A
IN
GE
LSG EXPLA
28
36//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech TWO Alloy Frame with exclusive LSG design.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• HL ZOOM Suspension Fork with Alloy Lockout Lever.
• Shimano 3 x 8 Altus/TX Drivetrain.
•
•
Shimano HG200-8 12-32T Cassette.
Shimano M315 Hydraulic Disc Brakes. AL029
• Shimano TX Series Front and Rear Hubs with Centerlock.
• CST Jack Rabbit 29 x 2.1 27tpi Wire Bead Tyres
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech TWO Alloy, Exclusive LSG Design, Integrated Toptube Box (I.T.B), Tapered
(A) Seat Tube Length: 380 430 480 533
Headtube Profile
(B) Top Tube Effective: 590 610 630 650
Fork: HL ZOOM Suspension, 100mm Travel, Hydraulic Lockout, Preload Adjustment
(C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Rear Shock: N/A
(D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Chainwheel: Shimano TY301 42/34/24T for 8 Speed
(E) Wheelbase: 1099 1113 1134 1154
Bottom Bracket: Cartridge Type
(F) Rear Center: 450 450 450 450
Front Derailleur: Shimano TY70 Dual Pull Type
(G) BB Drop: 60 60 60 60
Rear Derailleur: Shimano M310 Altus for 8 Speed
(H) Head Tube Length: 110 110 120 130
Shifter: Shimano M310 Altus Trigger for 8 Speed
Brake Levers: Shimano M315 Hydraulic (I) Reach: 408 423 440 457
Brakes: Shimano M315 Hydraulic / SM-RT10 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG200-8 12-32T for 8 Speed
Rims: Weinmann XTB26 Alloy Doublewall, Custom Decal, 32H
Tires: CST Jack Rabbit, 27tpi Wire Bead, 29 x 2.10 Front and Rear
Pedals: Steel Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Type
Colors: Gloss White/Black
Chain: KMC Z7 for 8 Speed
Hubset: Shimano TX Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton MTB Closed End
momsenbikes.com 37//77AL029 - RACE AND TRAIL READY DNA COMBINED WITH SOLID RELIABILITY.
Hit the trails with confidence. Our all-new LSG design ensures comfort and stability whilst the Shimano 24 Speed Gear System allows you to tackle the ups and
downs.
SEE P
ED - A
IN
GE
LSG EXPLA
28
38//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech TWO Alloy Frame with exclusive LSG design.
• Integrated Toptube Box (I.T.B) Feature – allows on-bike storage of key marathon/stage-race essentials.
• HL ZOOM Suspension Fork with Alloy Lockout Lever.
• Shimano 3 x 8 Altus/TX Drivetrain.
AL029
• Shimano HG200-8 12-32T Cassette.
• Shimano M315 Hydraulic Disc Brakes.
• Shimano TX Series Front and Rear Hubs with Centerlock.
• CST Jack Rabbit 29 x 2.1 27tpi Wire Bead Tyres.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech TWO Alloy, Exclusive LSG Design, Integrated Toptube Box (I.T.B), Tapered
(A) Seat Tube Length: 380 430 480 533
Headtube Profile
(B) Top Tube Effective: 590 610 630 650
Fork: HL ZOOM Suspension, 100mm Travel, Hydraulic Lockout, Preload Adjustment
(C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Rear Shock: N/A
(D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Chainwheel: Shimano TY301 42/34/24T for 8 Speed
(E) Wheelbase: 1099 1113 1134 1154
Bottom Bracket: Cartridge Type
(F) Rear Center: 450 450 450 450
Front Derailleur: Shimano TY70 Dual Pull Type
(G) BB Drop: 60 60 60 60
Rear Derailleur: Shimano M310 Altus for 8 Speed
(H) Head Tube Length: 110 110 120 130
Shifter: Shimano M310 Altus Trigger for 8 Speed
Brake Levers: Shimano M315 Hydraulic (I) Reach: 408 423 440 457
Brakes: Shimano M315 Hydraulic / SM-RT10 Centerlock Rotors / 160mm Front and Rear
Cassette: Shimano HG200-8 12-32T for 8 Speed
Rims: Weinmann XTB26 Alloy Doublewall, Custom Decal, 32H
Tires: CST Jack Rabbit, 27tpi Wire Bead, 29 x 2.10 Front and Rear
Pedals: Steel Cage MTB Platform
Handlebar: Momsen Oversize Flat Wide Alloy, 700mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S – 70mm, M – 80mm,
L – 90mm, XL – 100mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Type
Colors: Dark Grey/Bright Orange
Chain: KMC Z7 for 8 Speed
Hubset: Shimano TX Centerlock – Front and Rear
Spokes: Stainless Butted with Brass Nipples
Grips: Kraton MTB Closed End
momsenbikes.com 39//7740//77 Momsen Bikes 2017
08 RX SERIES Brand new for 2017 and our most affordable range of bikes ever. Whilst being big on value these bikes still offer reliable and carefully selected components throughout. The new RX SERIES is ready and waiting to help you tackle your local trails with confidence. momsenbikes.com 41//77
RX290 - AN ADVENTURE AWAITS.
Your first taste of 29er fun and adventure. Our performance and value beating RX Series offers unrivalled specifications and features usually reserved for bikes
costing a lot more. Lockout Suspension Fork, Disc Brakes, Shimano Gearing.
SEE P
ED - A
IN
GE
LSG EXPLA
28
42//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech One Alloy Frame with Forged Dropout and Oversize Headtube.
• LSG (Long, Slack, Geometry) Frame Design.
• Available in Small, Medium, Large, X-Large Frame Sizes.
• Suspension Fork with 100mm Travel and Mechanical Lockout Lever.
• Shimano 21 Speed Gear System with Shimano Freewheel.
•
•
•
Shimano EF500 Brake/Shifter Levers.
Alloy Doublewall 29er Rims with Alloy Quick Release Hubs Front and Rear.
Tektro Mechanical Disc Brakes – Front and Rear, 160mm Rotors.
RX290
• Oversize 31.8mm Alloy Handlebar and Stem Cockpit.
SPECS GEOMETRY
Sizes: Small, Medium, Large, X-Large SIZE: SMALL MEDIUM LARGE XL
Frame: 2017 RaceTech One Alloy 6000 Series with Forged Dropout and Oversize Headtube, LSG Design
(A) Seat Tube Length: 380 430 480 533
Fork: HL-565D Suspension Fork with Mechanical Lockout, 100mm Travel, Disc Brake Version
(B) Top Tube Effective: 590 610 630 650
Rear Shock: N/A
(C) Head Tube Angle: 70.5˚ 70.5˚ 70.5˚ 70.5˚
Chainwheel: Alloy Forged Crankarm, 42/34/24T for Triple
(D) Seat Tube Angle: 73.5˚ 73˚ 73˚ 73˚
Bottom Bracket: Cartridge Type
(E) Wheelbase: 1099 1113 1134 1154
Front Derailleur: Shimano TY500
(F) Rear Center: 450 450 450 450
Rear Derailleur: Shimano TY300 for 21 Speed
(G) BB Drop: 60 60 60 60
Shifter: Shimano EF500 for 21 Speed
(H) Head Tube Length: 110 110 120 130
Brake Levers: Shimano, included with Shifter
Brakes: Tektro Mechanical, 160mm Disc Rotors Front and Rear (I) Reach: 408 423 440 457
Cassette: Shimano TZ21, 7 Speed
Rims: Alloy Doublewall Design, Custom Logo
Tires: H-5129 29er Wire Bead, 29 x 2.1, 30tpi
Pedals: Metal Cage Platform MTB Type
Handlebar: Momsen Oversize Flat Wide Alloy, 660mm, 6 Degree Sweep,
31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize (S/M – 70mm, L – 90mm,
XL – 110mm)
Seatpost: Momsen Alloy, 31.6mm
Seat: Momsen 2017 Custom, Satin Steel Rail
Headset: Integrated Type
Colors: Matte Black
Chain: KMC Z50 for 21 Speed
Hubset: Alloy with Quick Release, Front and Rear
Spokes: Stainless Steel with Brass Nipples
Grips: Kraton MTB Type
momsenbikes.com 43//77RX260 - EXPLORE FOR LESS.
Explore your local trails with confidence. Our performance and value beating RX Series offers unrivalled specifications and features usually reserved for bikes
costing a lot more. Lockout Suspension Fork, Disc Brakes, Shimano Gearing.
44//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech One Alloy Frame with Forged Dropout and Oversize Headtube.
• Available in Small, Medium, Large Frame Sizes.
• Suspension Fork with 63mm Travel and Mechanical Lockout Lever.
• Shimano 21 Speed Gear System with Shimano TZ Freewheel.
RX260
• Shimano EF41 Brake/Shifter Levers.
• Alloy Rims with Alloy Quick Release Hubs Front and Rear.
• Mechanical Disc Brakes – Front and Rear, 160mm Rotors.
• Alloy Handlebar with Forged Alloy Stem.
SPECS GEOMETRY
Sizes: Small, Medium, Large SIZE: SMALL MEDIUM LARGE
Frame: 2017 RaceTech One Alloy 6000 Series with Forged Dropout and Oversize Headtube
(A) Seat Tube Length: 380 430 480
Fork: HL-386A Suspension Fork with Mechanical Lockout, 63mm Travel, Disc Brake Version
(B) Top Tube Effective: 550 565 580
Rear Shock: N/A
(C) Head Tube Angle: 71˚ 71˚ 71˚
Chainwheel: Alloy Forged Crankarm, 42/34/24T for Triple
(D) Seat Tube Angle: 74˚ 74˚ 74˚
Bottom Bracket: Cartridge Type
(E) Wheelbase: 1045 1060 1076
Front Derailleur: Shimano TZ21
(F) Rear Center: 435 435 435
Rear Derailleur: Shimano TZ50 for 21 Speed
(G) BB Drop: 40 40 40
Shifter: Shimano EF41 for 21 Speed
(H) Head Tube Length: 120 130 140
Brake Levers: Shimano, included with Shifter
Brakes: Mechanical Disc Type, 160mm Disc Rotors Front and Rear
Cassette: Shimano TZ21, 7 Speed
Rims: Alloy Doublewall Design, Custom Logo
Tires: H-5129 26 x 1.95, Wire Bead
Pedals: Metal Cage Platform MTB Type
Handlebar: Momsen Alloy Oversize, 660mm Riser Type, 31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize
Seatpost: Alloy, 27.2mm
Seat: Momsen Comfort, Satin Steel Rail
Headset: Threadless Type
Colors: Matte Black
Chain: KMC Z50 for 21 Speed
Hubset: Alloy with Quick Release, Front and Rear
Spokes: Stainless Steel with Brass Nipples
Grips: Kraton MTB Type
momsenbikes.com 45//77RXL260 - EXPLORE FOR LESS. LADIES VERSION.
Explore your local trails with confidence. Our performance and value beating RX Series offers unrivalled specifications and features usually reserved for bikes
costing a lot more. Lockout Suspension Fork, Disc Brakes, Shimano Gearing.
46//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech One Alloy Frame with Forged Dropout and Oversize Headtube.
• Available in Small and Medium Frame Sizes.
• Suspension Fork with 63mm Travel and Mechanical Lockout Lever.
• Shimano 21 Speed Gear System with Shimano TZ Freewheel.
• Shimano EF41 Brake/Shifter Levers.
•
•
Alloy Rims with Alloy Quick Release Hubs Front and Rear.
Mechanical Disc Brakes – Front and Rear, 160mm Rotors.
RXL260
• Alloy Handlebar with Forged Alloy Stem.
• Lady Specific Comfort Saddle.
SPECS GEOMETRY
Sizes: Small, Medium SIZE: SMALL MEDIUM
Frame: 2017 RaceTech One Alloy 6000 Series with Forged Dropout and Oversize Headtube
(A) Seat Tube Length: 380 430
Fork: HL-386A Suspension Fork with Mechanical Lockout, 63mm Travel, Disc Brake Version
(B) Top Tube Effective: 550 565
Rear Shock: N/A
(C) Head Tube Angle: 71˚ 71.5˚
Chainwheel: Alloy Forged Crankarm, 42/34/24T for Triple
(D) Seat Tube Angle: 74˚ 74˚
Bottom Bracket: Cartridge Type
(E) Wheelbase: 1045 1060
Front Derailleur: Shimano TZ21
(F) Rear Center: 435 435
Rear Derailleur: Shimano TZ50 for 21 Speed
(G) BB Drop: 40 40
Shifter: Shimano EF41 for 21 Speed
(H) Head Tube Length: 120 130
Brake Levers: Shimano, included with Shifter
Brakes: Mechanical Disc Type, 160mm Disc Rotors Front and Rear
Cassette: Shimano TZ21, 7 Speed
Rims: Alloy Doublewall Design, Custom Logo
Tires: H-5129 26 x 1.95, Wire Bead
Pedals: Metal Cage Platform MTB Type
Handlebar: Momsen Alloy Oversize, 660mm Riser Type, 31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize
Seatpost: Alloy, 27.2mm
Seat: Momsen Lady Specific, Satin Steel Rail
Headset: Threadless Type
Colors: Matte Grey
Chain: KMC Z50 for 21 Speed
Hubset: Alloy with Quick Release, Front and Rear
Spokes: Stainless Steel with Brass Nipples
Grips: Kraton Ergonomic Type
momsenbikes.com 47//77JRX100 - JUNIOR SIZE. BIG FUN.
Ideal first 26” Mountain Bike for youngsters bursting with energy and enthusiasm. Our performance and value beating RX Series offers unrivalled specifications
and features usually reserved for bikes costing a lot more. Lockout Suspension Fork, Disc Brakes, Shimano Gearing.
48//77 Momsen Bikes 201717
FEATURES
• 2017 RaceTech One Alloy Frame with Forged Dropout and Oversize Headtube.
• Available in X-Small Frame Size Only.
• Suspension Fork with 63mm Travel and Mechanical Lockout Lever.
• Shimano 21 Speed Gear System with Shimano TZ Freewheel.
JRX100
• Shimano EF41 Brake/Shifter Levers.
• Alloy Rims with Alloy Quick Release Hubs Front and Rear.
• Mechanical Disc Brakes – Front and Rear, 160mm Rotors.
• Oversize 31.8mm Alloy Handlebar with Oversize Junior Alloy Stem.
SPECS GEOMETRY
Sizes: X-Small (13″) SIZE: JUNIOR
Frame: 2017 RaceTech One Alloy 6000 Series with Forged Dropout and Oversize Headtube
(A) Seat Tube Length: 380
Fork: HL-386A Suspension Fork with Mechanical Lockout, 63mm Travel, Disc Brake Version
(B) Top Tube Effective: 535
Rear Shock: N/A
(C) Head Tube Angle: 71˚
Chainwheel: Alloy Forged Crankarm, 42/34/24T for Triple
(D) Seat Tube Angle: 74˚
Bottom Bracket: Cartridge Type
(E) Wheelbase: 1029
Front Derailleur: Shimano TZ21
(F) Rear Center: 435
Rear Derailleur: Shimano TZ50 for 21 Speed
(G) BB Drop: 40
Shifter: Shimano EF41 for 21 Speed
(H) Head Tube Length: 110
Brake Levers: Shimano, included with Shifter
Brakes: Mechanical Disc Type, 160mm Disc Rotors Front and Rear
Cassette: Shimano TZ21, 7 Speed
Rims: Alloy Doublewall Design, Custom Logo
Tires: H-5129 26 x 1.95, Wire Bead
Pedals: Metal Cage Platform MTB Type
Handlebar: Momsen Alloy Oversize Flat, 560mm, 31.8mm Oversize
Stem: Momsen Alloy Forged, 31.8mm Oversize
Seatpost: Alloy, 27.2mm
Seat: Momsen Comfort, Satin Steel Rail
Headset: Threadless Type
Colors: Matte Black
Chain: KMC Z50 for 21 Speed
Hubset: Alloy with Quick Release, Front and Rear
Spokes: Stainless Steel with Brass Nipples
Grips: Kraton MTB Type
momsenbikes.com 49//7750//77 Momsen Bikes 2017
09 JUNIOR - SUPERLIGHT (JSL) No-compromise junior mountain bikes. We believe a child’s first bicycle experience should not be on a heavy, poorly designed object. The JSL range features triple butted, lightweight alloy frames that are robust and durable. Our pursuit of the lightest, kid-specific components is relentless. Result: the JSL range of kids’ bikes is the best in the business. momsenbikes.com 51//77
JSL60 - MINI RACE WEAPON.
Our commitment to making great JUNIOR mountain bikes runs deep. Our flagship JSL model features 26” wheels and a choice of 2 frame sizes – ensuring
good fit and usability. An Air Damped SR SUNTOUR suspension fork complete with Rebound Adjustment sets this bike apart. Shimano 24 Speed Gearing with
Hydraulic Brakes.
52//77 Momsen Bikes 201717
FEATURES
• New Junior Race Series 26″ Wheel Frame with Alloy Tubing.
• SR Suntour XCR Suspension Fork with Air Damping, Rebound Adjustment and 100mm of controlled travel.
• Shimano 24 Speed Gear System.
• Tektro M290 Hydraulic Disc Brakes with Tektro Brake Rotors – Proven Performance.
•
•
Shimano TY701 Crankset and Shimano Cartridge Bottom Bracket – Triple Chainring Design 42/34/24T.
Shimano HG200-8 Cassette with 12-32T Gearing. JSL60
• Alex DA16 Double Wall Alloy Rims – Light and Durable.
SPECS GEOMETRY
Sizes: X-Small, Small SIZE: X-SMALL SMALL
Frame: Junior Race Series, Alloy Tubing
(A) Seat Tube Length: 356 394
Fork: SR Suntour XCR Air, Hydraulic Lockout, Rebound Adjust and 100mm Travel
(B) Top Tube Effective: 545 560
Rear Shock: N/A
(C) Head Tube Angle: 71˚ 71˚
Chainwheel: Shimano TY701 42/34/24T (D) Seat Tube Angle: 73˚ 73˚
Bottom Bracket: Shimano Cartridge (E) Wheelbase: 1020 1035
Front Derailleur: Shimano M190 Dual Pull (F) Rear Center: 424 424
Rear Derailleur: Shimano Altus 8 Speed (G) BB Drop: 30 30
Shifter: Shimano M310 Trigger with Optical Gear Display (H) Head Tube Length: 110 110
Brake Levers: Tektro M290 Hydraulic Disc
Brakes: Tektro M290 Hydraulic Disc, Tektro Brake Rotors, 160mm Front and Rear
Cassette: Shimano HG200-8, 12-32T
Rims: Alex DA16 Double Wall Alloy, 32H
Tires: Kenda Small Block Eight, 26 x 2.10, 60tpi, Folding Bead
Pedals: Steel Cage MTB
Handlebar: Junior Alloy Lightweight Flat, 31.8mm Oversize, 560mm
Stem: Junior Alloy Lightweight, 31.8mm Oversize
Seatpost: Alloy Micro-Adjust
Seat: Momsen Junior Race Superlight
Headset: Threadless Ahead
Colors: Fast Black
Chain: KMC 8 Speed
Hubset: Alloy Disc, 32H, Quick Release
Spokes: Stainless
Grips: Kraton Comfort
Weight: 12.99kg (with Pedals)
momsenbikes.com 53//77JSL40 - 24” WHEEL DREAM MACHINE.
Still the benchmark 24″ Wheel MTB on the market. Best-in-Class Components and Performance. SR Suntour XCR Air Damped Suspension Fork,
Shimano 24 Speed Groupset, Tektro Hydraulic Brakes. Loaded.
54//77 Momsen Bikes 201717
FEATURES
• Triple Butted Superlight Alloy Frame – The Lightest 24” frame we could make – Butting means we add material where it is needed and remove where
it is not.
• SR Suntour XCR Air Damped Suspension Fork – Air damping means you can fine tune the fork for different rider weights – Improved control and
adjustability.
• Shimano 24 Speed Gear System – More gearing means more options when tackling challenging terrain.
•
•
Alex/Momsen Tubeless Ready Rims – Convert to Tubeless with less hassle – Improved performance with less weight.
Tektro Hydraulic Disc Brakes – More control via improved braking performance.
JSL40
• Alloy 31.8mm Oversize Cockpit – Light and Tough.
SPECS GEOMETRY
Sizes: 24” Wheel SIZE: 1 SIZE
Frame: Triple Butted Junior Race Series
(A) Seat Tube Length: 309
Fork: SR Suntour XCR Air, Hydraulic Lockout, 63mm Travel
(B) Top Tube Effective: 526
Rear Shock: N/A
(C) Head Tube Angle: 72˚
Chainwheel: SR Suntour XCT-JR 42/32/22T (D) Seat Tube Angle: 71˚
Bottom Bracket: Cartridge (E) Wheelbase: 967
Front Derailleur: Shimano M310 Dual Pull (F) Rear Center: 416
Rear Derailleur: Shimano Acera 8 Speed (G) BB Drop: 15
Shifter: Shimano Acera Trigger with Optical Gear Display (H) Head Tube Length: 102
Brake Levers: Tektro Hydraulic Disc
Brakes: Tektro Hydraulic Disc, Tektro Brake Rotors, 160mm Front and Rear
Cassette: Shimano HG31, 11-34T
Rims: Alex/Momsen DP21, Tubeless Ready, 24”, 32H
Tires: CST Critter, 24 x 1.95
Pedals: MTB Platform
Handlebar: Junior Alloy Lightweight Flat, 25.4, 540mm
Stem: Junior Alloy Lightweight, 25.4, 60mm
Seatpost: Alloy Micro-Adjust
Seat: Momsen Junior Race Superlight
Headset: Threadless Ahead
Colors: Fast Black
Chain: KMC 8 Speed
Hubset: Alloy Disc, 32H, Quick Release
Spokes: Stainless
Grips: Junior Race Foam
Weight: 11.10kg (with Pedals)
momsenbikes.com 55//77JSL20 CARBON - SAY WHAT? CARBON 20” WHEEL BIKE!
Uncompromising. Full blown 20″ Wheel Carbon Frame and Fork model. Hydraulic Disc Brakes. Shimano 8 Speed Gearing. Superlight Alloy components.
56//77 Momsen Bikes 201717
FEATURES
• Juvenile Specific Carbon Race Frame – Monocoque construction – Lightweight, stiff and responsive.
• Juvenile Specific Carbon Race Fork – Superlight – Disc-specific – Lightweight, stiff and responsive.
• Shimano 8-speed Gear System – More gears means easier to ride over varied terrain.
• Tektro Hydraulic Disc Brakes – Improved performance and braking – Smaller brake lever for small hands.
JSL20
CARBON
SPECS GEOMETRY
Sizes: 20” Wheel SIZE: 1 SIZE
Frame: Carbon Junior Race Series with postmount disc tab
(A) Seat Tube Length: 300
Fork: Carbon Junior Superlight Disc
(B) Top Tube Effective: 437
Rear Shock: N/A
(C) Head Tube Angle: 70˚
Chainwheel: Junior 32T with Dual Chainguard (D) Seat Tube Angle: 70˚
Bottom Bracket: Semi Integrated (E) Wheelbase: 865
Front Derailleur: N/A (F) Rear Center: 385
Rear Derailleur: Shimano Claris 8 Speed (G) BB Drop: 0
Shifter: Shimano Acera 8 Speed Trigger (H) Head Tube Length: 98
Brake Levers: Tektro Hydraulic Disc with Small Lever
Brakes: Tektro Hydraulic Disc
Cassette: Shimano HG20, 12-32T
Rims: Alex ACE20 Alloy Double Wall, 20”, 32H
Tires: Kenda Small Block Eight, 20 x 1.75
Pedals: MTB Platform
Handlebar: Junior Alloy Lightweight, 540mm
Stem: Junior Alloy Lightweight, 60mm
Seatpost: Alloy Micro-Adjust
Seat: Momsen Junior Race Superlight
Headset: Alloy Integrated Threadless
Colors: Fast Black
Chain: KMC 8 Speed
Hubset: Alloy, 32H
Spokes: Stainless
Grips: Kraton
Weight: 8.94kg (with Pedals)
momsenbikes.com 57//77JSL20 - LIGHT. VERY LIGHT. THE BEST.
Our 20″ Junior SuperLight model transformed perceptions of kids’ bikes. No longer heavy, clunky and as fun to ride as a wet newspaper, kids demand lightweight,
agile and tough bicycles to chase their dreams of podiums too. The JSL20’s build has a triple butted alloy frame, six-speed gear system and powerful alloy V
brakes. “Race you to the top of the mountain, Dad!”
58//77 Momsen Bikes 201717
FEATURES
• Triple Butted Superlight Alloy Frame – the Lightest 20” Frame we could make – butting means we add material where it is needed and remove where
it is not.
• Lightweight Alloy Fork – Suspension Forks without damping are just heavy – a Rigid Alloy Fork is lighter and easier to control than a heavy pogo
stick.
• Shimano 6 speed Gear System – quality Gear System with intuitive RevoShift “twist style” shifters.
• Lightweight and Strong Wheels – Double Wall Alloy rims mean these wheels can take a pounding – Alloy Hubs and Stainless Steel Spokes. JSL20
SPECS GEOMETRY
Sizes: 20” Wheel SIZE: 1 SIZE
Frame: Triple Butted Junior Race Series
(A) Seat Tube Length: 258
Fork: Custom Junior Alloy Superlight
(B) Top Tube Effective: 440
Rear Shock: N/A
(C) Head Tube Angle: 72˚
Chainwheel: Junior 32T with Chainguard (D) Seat Tube Angle: 73.5˚
Bottom Bracket: Semi Integrated (E) Wheelbase: 865
Front Derailleur: N/A (F) Rear Center: 375
Rear Derailleur: Shimano 6 Speed for 20” (G) BB Drop: 10
Shifter: Shimano RevoShift RS35 (H) Head Tube Length: 105
Brake Levers: Junior Alloy
Brakes: Tektro Alloy
Cassette: Shimano HG20, 11-28T
Rims: Weinmann DA19, 20”, 32H, Machined Braking Surface
Tires: Kenda Small Block Eight, 20 x 1.75
Pedals: MTB Platform
Handlebar: Junior Alloy Lightweight, 540mm
Stem: Junior Alloy Lightweight, 60mm
Seatpost: Alloy Micro-Adjust
Seat: Momsen Junior Race Superlight
Headset: Threadless Alloy
Colors: Race Red/Fresh White
Chain: KMC 6 Speed
Hubset: Alloy, 32H
Spokes: Stainless
Grips: Junior Race
Weight: 8.4kg (with Pedals)
momsenbikes.com 59//77You can also read
