OUR LEGENDARY
ALLMTN MODELS,
REDEFINED
THE DO IT ALL SHREDDERS,
NEW AND IMPROVED
FOR MY22.
ALLMTN 7 | 160 MM ALLOY
A L L M T N 10
MATTE-GLOSSY
BLACK INK
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 750 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Bremse vorne / Brake front Shimano Deore XT M8120, 203mm
Display Yamaha Interface - X Bremse hinten / Brake rear Shimano Deore XT M8120, 203mm
Akku / Battery InTube 750Wh Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Ladegerät / Charger Schnellladegerät 4A Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Laufradsatz / Wheel set Mavic E-Deemax
brake Post Mount Lenker / Handlebar Haibike Components TheBar +++ 780mm
Gabel / Fork FOX 38 Factory Kashima, air, Griffe / Grips Haibike MTB grips
Dämpfer / Damper FOX Float X Factory EVOL LV, air Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Schaltwerk / Rear derailleur Shimano Deore XT M8100 Shadow Plus, 12-speed Steuersatz / Headset Acros BlockLock
Schalthebel / Shift lever Shimano Deore XT M8100, trigger switch Sattel / Saddle fi'zi:k Terra Aidon X5-160
Zahnkranz (hinten) / Sprocket Shimano M6100, 10-51 teeth Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kette / Chain Shimano SLX M7100 Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Kettenblatt / Chainring aluminium, Haibike Components, 36 Zul. Gesamtgewicht / 150kg
Kettenführung / Chain guide Nylon directmount Permitted total weight
Bremshebel / Brake lever Shimano Deore XT M8100, aluminium Fahrradtyp / Bicycle type MTB All Mountain
ALLMTN 7 | C1
MATTE-GLOSSY
GREEN SHADOW
METALLIC CARAMEL
STREET
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 750 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Display Yamaha Interface - X Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Akku / Battery InTube 750Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A Felgen hinten / Rims rear WTB ST i35 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
brake Post Mount 15x110mm
Gabel / Fork FOX 36 Float Performance Luft 160 Lockout, air, Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
Aluschaft 1 1/8 - 1 1/2'' tapered, thru-axle Boost Speichen / Spokes Sapim Race, black
Dämpfer / Damper FOX Float DPS Performance EVOL LV Trunnion, air Lenker / Handlebar Haibike Components TheBar +++ 780mm
Schaltwerk / Rear derailleur Sram GX Eagle, 12-speed Griffe / Grips Haibike MTB grips
Schalthebel / Shift lever Sram GX Eagle, trigger switch Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Zahnkranz (hinten) / Sprocket Sram Eagle PG1230, 11-50 teeth Steuersatz / Headset Acros BlockLock
Kette / Chain Sram SX Eagle Sattel / Saddle fi'zi:k Terra Aidon X5-160
Kettenblatt / Chainring Sram X-Sync 2, 38 Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kettenführung / Chain guide Nylon directmount Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremshebel / Brake lever Magura MT7 HC-lever, aluminium Zul. Gesamtgewicht / 150kg
Bremse vorne / Brake front Magura MT7, 203mm Permitted total weight
Bremse hinten / Brake rear Magura MT7, 203mm Fahrradtyp / Bicycle type MTB All Mountain

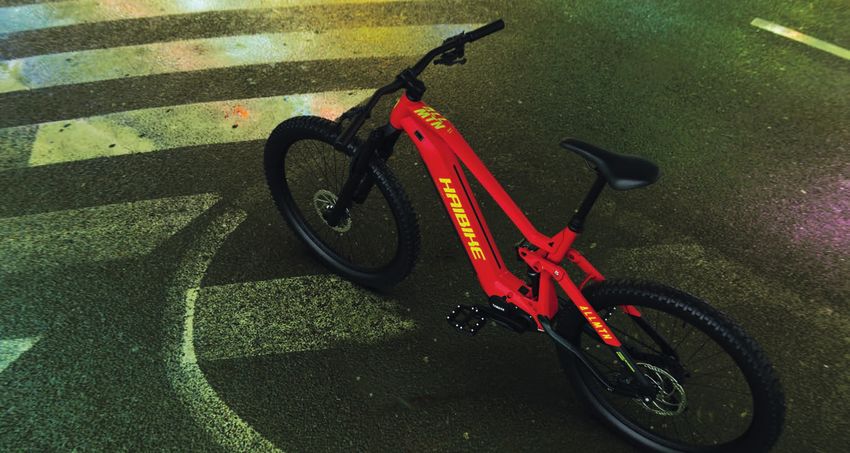

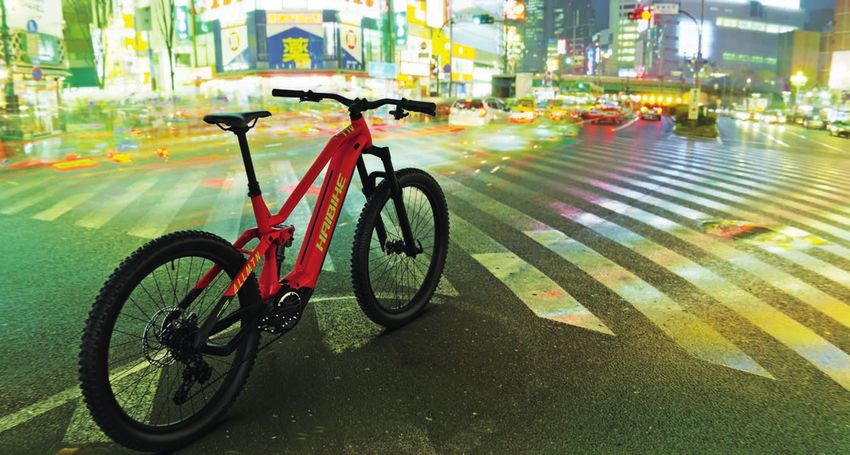

ALLMTN 7 | C2
MATTE
RED
BLACK INK
NEON YELLOW
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 750 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Display Yamaha Interface - X Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Akku / Battery InTube 750Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A Felgen hinten / Rims rear WTB ST i35 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
brake Post Mount 15x110mm
Gabel / Fork FOX 36 Float Performance Luft 160 Lockout, air, Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
Aluschaft 1 1/8 - 1 1/2'' tapered, thru-axle Boost Speichen / Spokes Sapim Race, black
Dämpfer / Damper FOX Float DPS Performance EVOL LV Trunnion, air Lenker / Handlebar Haibike Components TheBar +++ 780mm
Schaltwerk / Rear derailleur Sram GX Eagle, 12-speed Griffe / Grips Haibike MTB grips
Schalthebel / Shift lever Sram GX Eagle, trigger switch Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Zahnkranz (hinten) / Sprocket Sram Eagle PG1230, 11-50 teeth Steuersatz / Headset Acros BlockLock
Kette / Chain Sram SX Eagle Sattel / Saddle fi'zi:k Terra Aidon X5-160
Kettenblatt / Chainring Sram X-Sync 2, 38 Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kettenführung / Chain guide Nylon directmount Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremshebel / Brake lever Magura MT7 HC-lever, aluminium Zul. Gesamtgewicht / 150kg
Bremse vorne / Brake front Magura MT7, 203mm Permitted total weight
Bremse hinten / Brake rear Magura MT7, 203mm Fahrradtyp / Bicycle type MTB All Mountain
ALLMTN 4
GLOSSY
KHAKI GREEN
RED
HONEYDEW
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 750 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Display Yamaha Side Switch Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Akku / Battery InTube 750Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A Felgen hinten / Rims rear WTB ST i35 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Vorderradnabe / Front wheel hub Shimano MT410-B
brake Post Mount Hinterradnabe / Rear wheel hub Shimano MT410-B
Gabel / Fork RockShox Yari RC, air, Aluschaft 1 1/8 - 1 1/2'' Speichen / Spokes Sapim Race, black
tapered, thru-axle Boost
Lenker / Handlebar Haibike Components TheBar +++ 780mm
Dämpfer / Damper RockShox Deluxe Select Plus, air
Griffe / Grips Haibike MTB grips
Schaltwerk / Rear derailleur Shimano SLX M7100, 12-speed
Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Schalthebel / Shift lever Shimano Deore SLX M7100
Steuersatz / Headset Acros BlockLock
Zahnkranz (hinten) / Sprocket Shimano M6100, 10-51 teeth
Sattel / Saddle Selle Royal Vivo
Kette / Chain Shimano CN-M6100
Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kettenblatt / Chainring aluminium, Haibike Components, 36
Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Kettenführung / Chain guide Nylon directmount
Zul. Gesamtgewicht / 150kg
Bremshebel / Brake lever Shimano Deore M6100, aluminium Permitted total weight
Bremse vorne / Brake front Shimano Deore M6120, aluminium, 203mm Fahrradtyp / Bicycle type MTB All Mountain
Bremse hinten / Brake rear Shimano Deore M6120, aluminium, 203mm
ALLMTN 2 | C1
GLOSSY
WARM URBAN GREY
LEMON CREAM
BLACK INK
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 630 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Display Yamaha Side Switch Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Akku / Battery InTube 630Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A Felgen hinten / Rims rear WTB ST i35 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
brake Post Mount 15x110mm
Gabel / Fork RockShox 35 Gold RL, air, Aluschaft 1 1/8 - 1 1/2'' Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
tapered, thru-axle Boost Speichen / Spokes Sapim Race, black
Dämpfer / Damper RockShox Deluxe Select Plus, air Lenker / Handlebar Haibike Components TheBar +++ 780mm
Schaltwerk / Rear derailleur Sram SX Eagle, 12-speed Griffe / Grips Haibike MTB grips
Schalthebel / Shift lever Sram SX Eagle, trigger switch Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Zahnkranz (hinten) / Sprocket Sram Eagle PG1210, 11-50 teeth Steuersatz / Headset Acros BlockLock
Kette / Chain Sram SX Eagle Sattel / Saddle Selle Royal Vivo
Kettenblatt / Chainring Sram X-Sync 2, 38 Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kettenführung / Chain guide Nylon directmount Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremshebel / Brake lever TRP Slate T4, aluminium Zul. Gesamtgewicht / 150kg
Bremse vorne / Brake front TRP Slate T4, aluminium, 203mm Permitted total weight
Bremse hinten / Brake rear TRP Slate T4, aluminium, 203mm Fahrradtyp / Bicycle type MTB All Mountain
ALLMTN 2 | C2
GLOSSY
AQUAMARINE
MIAMI GREEN
BLACK INK
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 16 0/16 0 MI X ED 630 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR 29"/27.5" CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen vorne / Tyres front Maxxis Minion DHF, 63-622
Display Yamaha Side Switch Reifen hinten / Tyres rear Maxxis Minion DHR II, 66-584
Akku / Battery InTube 630Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A Felgen hinten / Rims rear WTB ST i35 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
brake Post Mount 15x110mm
Gabel / Fork RockShox 35 Gold RL, air, Aluschaft 1 1/8 - 1 1/2'' Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
tapered, thru-axle Boost Speichen / Spokes Sapim Race, black
Dämpfer / Damper RockShox Deluxe Select Plus, air Lenker / Handlebar Haibike Components TheBar +++ 780mm
Schaltwerk / Rear derailleur Sram SX Eagle, 12-speed Griffe / Grips Haibike MTB grips
Schalthebel / Shift lever Sram SX Eagle, trigger switch Vorbau / Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Zahnkranz (hinten) / Sprocket Sram Eagle PG1210, 11-50 teeth Steuersatz / Headset Acros BlockLock
Kette / Chain Sram SX Eagle Sattel / Saddle Selle Royal Vivo
Kettenblatt / Chainring Sram X-Sync 2, 38 Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Kettenführung / Chain guide Nylon directmount Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremshebel / Brake lever TRP Slate T4, aluminium Zul. Gesamtgewicht / 150kg
Bremse vorne / Brake front TRP Slate T4, aluminium, 203mm Permitted total weight
Bremse hinten / Brake rear TRP Slate T4, aluminium, 203mm Fahrradtyp / Bicycle type MTB All Mountain
RELIABLE EMTB’S FOR LONG RIDES
AND COMFORTABLE OFF-ROAD
PERFORMANCE.
ALLTRAIL 7 | 140/140 MM ALLOY 27’5” + 140 /140 MM ALLOY 29”
A L LT R A I L 9
GLOSSY
METALLIC STONE
BLUE
METALLIC OLIVE
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
29" YA M A H A R ANGE
AL 140/140 750 MRS 150
27.5" PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen hinten / Tyres rear Schwalbe Hans Dampf Evo TLE, 65-622
Display Yamaha Side Switch 27.5": Schwalbe Hans Dampf Evo TLE, 65-584
Akku / Battery InTube 750Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
27.5": WTB ST i35 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A
Felgen hinten / Rims rear WTB ST i30 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc 27.5": WTB ST i35 TCS, double-walled rim
brake Post Mount
Vorderradnabe / Front wheel hub Shimano MT400-B
Gabel / Fork RockShox 35 Gold RL, air, Aluschaft 1 1/8 - 1 1/2''
Hinterradnabe / Rear wheel hub Shimano MT400-B
tapered, thru-axle Boost
Speichen / Spokes Sapim Race, black
Dämpfer / Damper RockShox Deluxe Select Plus, air
Lenker / Handlebar Haibike Components TheBar +++ 780mm
Schaltwerk / Rear derailleur Sram NX Eagle, 12-speed
Griffe / Grips Haibike MTB grips
Schalthebel / Shift lever Sram NX Eagle, trigger switch
Vorbau / Stem Haibike Components TheStem ++, A-head, Bar bore:
Zahnkranz (hinten) / Sprocket Sram Eagle PG1210, 11-50 teeth
31.8mm, 7˚
Kette / Chain Sram SX Eagle
Steuersatz / Headset Acros BlockLock
Kettenblatt / Chainring Sram X-Sync 2, 38
Sattel / Saddle Selle Royal Vivo
Kettenführung / Chain guide Nylon directmount
Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Bremshebel / Brake lever Shimano MT401, aluminium
Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremse vorne / Brake front Shimano MT420, aluminium, 203mm
Zul. Gesamtgewicht / 150kg
Bremse hinten / Brake rear Shimano MT420, aluminium, 203mm Permitted total weight
Reifen vorne / Tyres front Schwalbe Magic Mary Evo TLE, 65-622 Fahrradtyp / Bicycle type MTB Cross Country & Marathon
27.5": Schwalbe Magic Mary Evo TLE, 65-584
A L LT R A I L 7 | C 1
GLOSSY
SILVER PEARL
BLACK INK
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
29" YA M A H A R ANGE
AL 140/140 630 MRS 150
27.5" PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen hinten / Tyres rear Schwalbe Nobby Nic Evo SuperTrail, 65-622
Display Yamaha Side Switch 27.5": Schwalbe Nobby Nic Evo SuperTrail, 65-584
Akku / Battery InTube 630Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
27.5": WTB ST i35 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A
Felgen hinten / Rims rear WTB ST i30 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc 27.5": WTB ST i35 TCS, double-walled rim
brake Post Mount
Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
Gabel / Fork RockShox 35 Gold RL, air, Aluschaft 1 1/8 - 1 1/2'' 15x110mm
tapered, thru-axle Boost
Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
Dämpfer / Damper RockShox Deluxe Select Plus, air
Speichen / Spokes Sapim Race, black
Schaltwerk / Rear derailleur Sram SX Eagle, 12-speed
Lenker / Handlebar Haibike Components TheBar ++ 780mm
Schalthebel / Shift lever Sram SX Eagle, trigger switch
Griffe / Grips Haibike MTB grips
Zahnkranz (hinten) / Sprocket Sram Eagle PG1210, 11-50 teeth
Vorbau / Stem Haibike Components TheStem ++, A-head, Bar bore:
Kette / Chain Sram SX Eagle 31.8mm, 7˚
Kettenblatt / Chainring Sram X-Sync 2, 38 Steuersatz / Headset Acros BlockLock
Kettenführung / Chain guide Nylon directmount Sattel / Saddle Selle Royal Vivo
Bremshebel / Brake lever TRP Slate T4, aluminium Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Bremse vorne / Brake front TRP Slate T4, aluminium, 203mm Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremse hinten / Brake rear TRP Slate T4, aluminium, 203mm Zul. Gesamtgewicht / 150kg
Reifen vorne / Tyres front Schwalbe Nobby Nic Evo SuperTrail, 65-622 Permitted total weight
27.5": Schwalbe Nobby Nic Evo SuperTrail, 65-584 Fahrradtyp / Bicycle type MTB Cross Country & MarathonA L LT R A I L 7 | C 2
GLOSSY
BLACK INK
METALLIC CARAMEL
STREET
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
29" YA M A H A R ANGE
AL 140/140 630 MRS 150
27.5" PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Reifen hinten / Tyres rear Schwalbe Nobby Nic Evo SuperTrail, 65-622
Display Yamaha Side Switch 27.5": Schwalbe Nobby Nic Evo SuperTrail, 65-584
Akku / Battery InTube 630Wh Felgen vorne / Rims front WTB ST i30 TCS, double-walled rim
27.5": WTB ST i35 TCS, double-walled rim
Ladegerät / Charger Schnellladegerät 4A
Felgen hinten / Rims rear WTB ST i30 TCS, double-walled rim
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc 27.5": WTB ST i35 TCS, double-walled rim
brake Post Mount
Vorderradnabe / Front wheel hub Haibike Components The Hub ++ Steckachse
Gabel / Fork RockShox 35 Gold RL, air, Aluschaft 1 1/8 - 1 1/2'' 15x110mm
tapered, thru-axle Boost
Hinterradnabe / Rear wheel hub Haibike Components TheHub ++ Steckachse 12x148
Dämpfer / Damper RockShox Deluxe Select Plus, air
Speichen / Spokes Sapim Race, black
Schaltwerk / Rear derailleur Sram SX Eagle, 12-speed
Lenker / Handlebar Haibike Components TheBar ++ 780mm
Schalthebel / Shift lever Sram SX Eagle, trigger switch
Griffe / Grips Haibike MTB grips
Zahnkranz (hinten) / Sprocket Sram Eagle PG1210, 11-50 teeth
Vorbau / Stem Haibike Components TheStem ++, A-head, Bar bore:
Kette / Chain Sram SX Eagle 31.8mm, 7˚
Kettenblatt / Chainring Sram X-Sync 2, 38 Steuersatz / Headset Acros BlockLock
Kettenführung / Chain guide Nylon directmount Sattel / Saddle Selle Royal Vivo
Bremshebel / Brake lever TRP Slate T4, aluminium Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Bremse vorne / Brake front TRP Slate T4, aluminium, 203mm Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Bremse hinten / Brake rear TRP Slate T4, aluminium, 203mm Zul. Gesamtgewicht / 150kg
Reifen vorne / Tyres front Schwalbe Nobby Nic Evo SuperTrail, 65-622 Permitted total weight
27.5": Schwalbe Nobby Nic Evo SuperTrail, 65-584 Fahrradtyp / Bicycle type MTB Cross Country & MarathonFULLY EQUIPPED FOR
DAILY AND WEEKEND
ADVENTURES
FULL TRAVEL, PRACTICAL EMTB’S FOR A
RANGE OF OUTDOOR EXPERIENCES.
ADVENTR FS 10 | 140 MM ALLOYA DV E N T R F S 10
GLOSSY
WARM URBAN GREY
BLACK INK
LIGHT WARM GREY
FOR COLOR AND GRAPHICS VISUALIZATION PURPOSES. SEE SIDE SHOT FOR CORRECT SPEC.
ZUR FA RB- UN D GRA F I K VI S U A L I SI E R U N G S I EH E S E I TE N B I L D F Ü R K OR R EK TE S P E Z I F I KATI O N.
YA M A H A R ANGE
AL 140/140 29" 750 MRS 150
PW-X3 E X TENDER
FR AME TR AVEL (MM) WHEEL SIZE DRIVE UNIT BAT TERY MRS OPTIONAL PER. TOTAL
MATERIAL FRONT/RE AR CAPACIT Y ( WH) WEIGHT (KG)
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h Felgen hinten / Rims rear WTB ST i30 TCS, double-walled rim
Display Yamaha Side Switch Vorderradnabe / Front wheel hub Shimano MT400-B
Akku / Battery InTube 750Wh Hinterradnabe / Rear wheel hub Shimano MT400-B
Ladegerät / Charger Schnellladegerät 4A Speichen / Spokes Sapim Leader, black
Rahmen / Frame aluminium, Steckachse M12 (1.00) x 148mm, disc Lenker / Handlebar Haibike Components TheBar ++ 780mm
brake Post Mount Griffe / Grips XLC Comfort bo3
Gabel / Fork FOX 34 Float AWL, air, Aluschaft 1 1/8 - 1 1/2'' Vorbau / Stem Alu, A-head, Bar bore: 31.8mm
tapered, thru-axle Boost
Steuersatz / Headset Acros BlockLock
Dämpfer / Damper FOX Float DPS Performance EVOL LV Trunnion, air
Sattel / Saddle fi'zi:k Terra Aidon X5-160
Schaltwerk / Rear derailleur Sram NX Eagle, 12-speed
Sattelstütze / Seat post Dropper-Post Remote, telescope, 34.9mm, aluminium
Schalthebel / Shift lever Sram NX Eagle, trigger switch
Pedale / Pedals Freeridepedal aluminium, mit Reflektor
Zahnkranz (hinten) / Sprocket Sram Eagle PG1230, 11-50 teeth
Scheinwerfer / Headlight Litemove AE-130, 130 lux
Kette / Chain Sram SX Eagle
Rücklicht / Rear light Adventr TBD
Kettenblatt / Chainring Sram X-Sync 2, 38
Dynamo / Dynamo via system battery
Kettenführung / Chain guide Nylon directmount
Gepräckträger / Carrier StandWell system carrier, XLC Carrymore
Bremshebel / Brake lever Shimano MT401, aluminium
Schutzbleche / Fenders Curana Apollo 75, aluminium
Bremse vorne / Brake front Shimano MT420, aluminium, 203mm
Ständer / Stand Ursus Mooi, adjustable
Bremse hinten / Brake rear Shimano MT420, aluminium, 203mm
Zul. Gesamtgewicht / 150kg
Reifen vorne / Tyres front Schwalbe Johnny Watts Performance, 60-622 Permitted total weight
Reifen hinten / Tyres rear Schwalbe Johnny Watts Performance, 60-622 Fahrradtyp / Bicycle type City, Trekking, Cross
Felgen vorne / Rims front WTB ST i30 TCS, double-walled rimYou can also read
