WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
WHISPERS 2021
                    Sponsor Video Presentation
                    March 2021

                    Ross Nakatsuji
                    Product Manager Remote Sensing
                    Headwall Photonics

                    The following presentation is a brief overview of Solar-Induced Fluorescence, its
                    importance to plant researchers, and a high-resolution hyperspectral sensor designed
                    and deployed for imaging this phenomena.

                    Video filename: Headwall_SIF-Imaging-Sensor_March_2021_5-Min_1080p.mp4

                    Download location: https://headwallphotonics.sharefile.com/d-
                    s5ad67108e280413595935f715dad24eb

© 2021 Headwall Photonics, Inc.   •   Slide 1        CONFIDENTIAL
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
SOLAR-INDUCED
                                                               FLUORESCENCE
                                                               IMAGING SENSOR
                                                               Application & Product
                                                               Overview
                                                               March 2021

                                                               Ross Nakatsuji
                                                               Product Manager Remote Sensing

© 2021 Headwall Photonics, Inc.   •   Slide 2   CONFIDENTIAL
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
HEADWALL HIGH-END SYSTEMS

                   Co-Aligned VNIR-SWIR                         SIF Imaging Sensor
                   Integrated sensor system                     High spectral resolution sensor system
                   Outstanding SWaP (Size, Weight, and Power)   SWaP optimized for deployment on manned aircraft
                   UAV turnkey or payload package               Market for deployment on tower/tripod

© 2021 Headwall Photonics, Inc.   •   Slide 3
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers

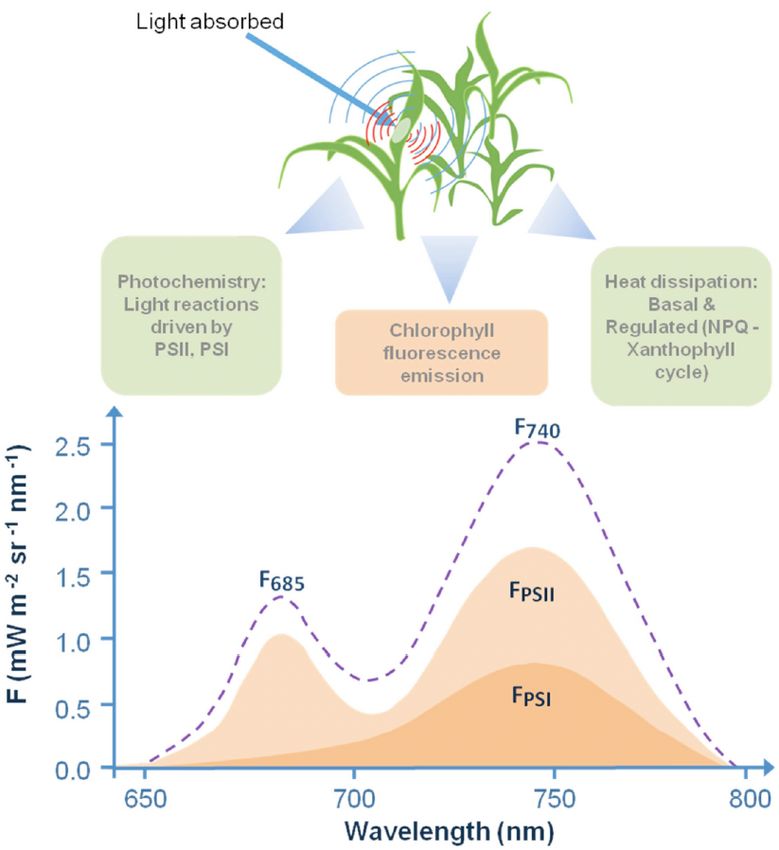

SOLAR-INDUCED FLUORESCENCE (SIF)

                                                  •        Photosynthesis is a complex process
                                                  •        Light is absorbed by chlorophyll-
                                                           containing plants and used in 3 ways:
                                                              –      Photochemistry
                                                              –      Heat dissipation
                                                              –      Fluorescence emission
                                                  •        Fluorescence emission (lower graph)
                                                              –      PSI = photosystems I
                                                              –      PSII = photosystems II
                                                              –      Healthy leaves usually have a red peak
                                                                     lower than the far-red peak
                                                              –      Interest in 685–690nm and 730–740nm

                                                  Remote Sensing of solar-induced chlorophyll fluorescence (SIF) in vegetation: 50 years of
                                                  progress, Jing M. Chen, ed., Gina H. Mohammed, et al., Remote Sensing of Environment
                                                  231 (2019) 111177 © 2019 Elsevier Inc.

© 2021 Headwall Photonics, Inc.   •   Slide 4
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
BENEFITS TO UTILIZING SIF AS A PROXY

                                                NASA Goddard G-LiHT flight over USDA ARS experimental farm with Headwall SIF Imaging Sensor

         •      Many plant health/stress measurements report on latent effects
                   – Damage is already done a while ago
                   – Beneficial factors may have disappeared
         •      Photosynthesis is a key process to plant health, crop production and atmospheric
                CO2 reduction/carbon cycle
         •      Measurement of photosynthesis in real-time is critical to understanding
                factors/mechanisms that are beneficial or harmful
                   – Symptoms can be detected using SIF before they become visible using other means

© 2021 Headwall Photonics, Inc.   •   Slide 5
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
RESEARCH STUDY TOPICS UTILIZING SIF
              Topic1                                                                   Space     Air / Field   Greenhouse
              Absorbed PAR2
              Bacterial infection
              Fungal infection
              Diurnal dynamics
              Seasonal dynamics
              GPP & NPP3
              Heat effects
              Herbicide effects
              Nitrogen deficit
              Phenotyping
              Stress detection
              Water deficit
              1 This list is not exhaustive. Source: https://doi.org/10.1016/j.rse.2019.04.030
              2 Photosynthetically Active Radiation
              3 Gross Primary Production & Net Primary Production (agriculture)

© 2021 Headwall Photonics, Inc.         •       Slide 6
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
CHALLENGES TO MEASURING SIF

                                                                                                      •   SIF is a weak signal that
                                                                                                          competes with:
                                                                                                           –   Atmospheric effects
                                                                                                           –   Sensor characteristics
                                                                                                           –   Observation angle
                                                                                                      •   An effective and reliable SIF
                                                                                                          Imaging Sensor must have:
                                                                                                           –   High spectral resolution
                                                                                                           –   Narrow bandpass (FWHM)
                                                                                                           –   Low stray light
                                                                                                           –   Low dark current
                                                                                                           –   Rugged construction for
                                                                                                               airborne or field use
                   Right: Flow-chart of potential influences on SIF signal from Characterization of
                   FIREFLY, an Imaging Spectrometer Designed for Remote Sensing of Solar-Induced
                   Fluorescence, Ian Paynter, et al., Sensors 2020, 20, 4682; doi:10.3390/s20174682

© 2021 Headwall Photonics, Inc.        •      Slide 7
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
SIF MEASUREMENT PLATFORMS

                        Different platforms used for top-of-canopy SIF measurements applied over time at different scales and spatial resolutions.
                        Top of NEON ecological sensor tower added above drone illustration. Source of original graphic: Sensors 2020, 20, 1144;
                        doi:10.3390/s20041144
© 2021 Headwall Photonics, Inc.   •     Slide 8
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
IMPORTANCE OF THE ESA FLEX MISSION

          •      First satellite mission specifically designed to measure SIF
          •      Mission website provides live updates
          •      Current anticipated launch date is mid-2024
          •      High-resolution FLORIS (FLuORescence Imaging
                 Spectrometer is very similar in design to Headwall’s SIF
                 Imaging Sensor
          •      Many organizations such as NASA, NEON (National                       The potential of fluorescence to serve
                 Ecological Observatory Network), and major research                   as an early indicator of stress – that
                                                                                       is, before damage is irreversible – is a
                 universities have deployed or plan to deploy SIF                      major aspect to be considered in the
                 instrumentation                                                       exploitation of FLEX measurements,
                                                                                       since reflectance changes often are
                    –     Provide higher spatial resolution than space-based imagery
                                                                                       detectable only in dramatic and/or
                    –     Provide ground-truth for data produced by FLEX mission       advanced cases of physiological strain
                                                                                       when remediation likely is too late. –
                    –     Provide SIF data over time in order to observe changes       ESA mission statement

© 2021 Headwall Photonics, Inc.   •   Slide 9
WHISPERS 2021 Sponsor Video Presentation - IEEE Whispers
HEADWALL SIF IMAGING SENSOR

          •      Headwall’s SIF Imaging Sensor Package meets the
                 challenge:
                    –     FWHM 0.1 – 0.2nm
                    –     0.051nm spectral sampling interval
                    –     671 – 780nm wavelength range                              2019 Paul F. Forman Team
                    –     2134 spectral bands                                      Engineering Excellence Award
                    –     1600 spatial pixels
                    –     23.5° Angular FOV with included 25mm lens
                    –     High dynamic range 16-bit focal plane array (TE-cooled
                          sCMOS)
                    –     Full CameraLink interface, 80-bit
                    –     6.3kg / 13.9lbs
                    –     < 30W max power
                    –     High-capacity Hyperspectral Data-Processing Unit with
                          removeable storage

© 2021 Headwall Photonics, Inc.   •   Slide 10               CONFIDENTIAL
VERY HIGH SPECTRAL RESOLUTION
                 Standard (~5nm) spectral resolution             Chlorophyll Fluorescence Imager

                                  Vibrational
                                  features obscured                   Vibrational features
                                                                      in the Oxygen A
                                                                      band still apparent

                                                                            SIF
                                                                                SIF is still very
                                            SIF not                             clearly apparent
                                            apparent

© 2021 Headwall Photonics, Inc.      •    Slide 11     CONFIDENTIAL
PERFORMANCE VALIDATION

              • Headwall SIF Imaging Sensor installed as
                NASA Goddard’s FIREFLY (Fluorescence
                Imaging of REd and Far-red Light Yield)
                onboard G-LiHT (Goddard’s LiDAR,
                Hyperspectral & Thermal Imager)
              • Tested using GLAMR (Goddard’s Laser
                for Absolute Measurement of Radiance)
                       • Absolute Spectral Response (ASR)
                       • Calibration
                       • Comparison to standard field
                         spectrometer

© 2021 Headwall Photonics, Inc.   •   Slide 12
PERFORMANCE VALIDATION
                                                                          * Laser wavelength
                                                                          − Gaussian fit
                                                                          − Band center
          • Absolute Spectral Response (ASR)                              − FWHM

          • Calibration

          • Comparison to standard field
            spectrometer (Ocean Insight QE Pro)
                    •     Higher spectral resolution
                    •     Lower dark current (not shown here)

© 2021 Headwall Photonics, Inc.   •   Slide 13          CONFIDENTIAL
EXAMPLE DEPLOYMENT
            G-LiHT Airborne Observations
            1)    Calibration tarps, vegetation at USFS Intl. Institute of Tropical Forestry (IITF)
            2)    Native and exotic tropical tree species
                   • Botanical Garden of the University of Puerto Rico (UPR)
                   • Arboretum Parque Doña Inés
            3)    USFS, NSF, Smithsonian and university ground plots (island-wide)

                             VNIR Spectrometer                                   FIREFLY Spectrometer

                                                                                                                       VNIR, SIF, thermal
                                                                                                                       and RGB imagers
                                                                                                        3D FOV model

                                                                                                        Fine-Resolution Stereo RGB

© 2021 Headwall Photonics, Inc.   •     Slide 14
EXAMPLE DEPLOYMENT

               G-LiHT Airborne Observations
                        •     SIF Retrieval Example
                        •     Approx. 50 data-flight hours
                        •     Support Next-Gen Ecosystems DOE Project
                                      Different retrieval methods
                                      show similar spatial patterns

                                                          Ian Paynter, 618/Biospheric Sciences (B33, A107)

© 2021 Headwall Photonics, Inc.   •   Slide 15
DEPLOYMENTS ON TOWERS/PLATFORMS

         •      Many existing non-imaging or low-spatial-res systems currently deployed
         •      Hundreds of environmental-observation towers in place worldwide
         •      Headwall SIF Imaging Sensor
                provides high-quality spectral
                and high-resolution spatial data

                                                                                                             Brazil

                                                                           Panama

                                                  FLUXNET Map circa 2015            View downward from top

© 2021 Headwall Photonics, Inc.    •   Slide 16
HEADWALL SIF IMAGING SENSOR

         •      Application-specific sensor for Solar-Induced Fluorescence

         •      High spectral & spatial resolution

         •      Performance-validated

         •      Deploy on aircraft

         •      Deploy on observation towers
                                                          2019 Paul F. Forman Team
                                                         Engineering Excellence Award

         •      High-value, award-winning product

         •      Wavelength and radiometrically calibrated

© 2021 Headwall Photonics, Inc.   •   Slide 17   CONFIDENTIAL
Want to know more?

                                                 Contact me at:
                                                 RNakatsuji@headwallphotonics.com
                                                 Phone: +1-978-353-4051
                                                 w w w. h e a d w a l l p h o t o n i c s . c o m

© 2021 Headwall Photonics, Inc.   •   Slide 18
SUPPLEMENTAL SLIDES

                                      The following slides provide supplemental
                                           information that might be useful.

© 2021 Headwall Photonics, Inc.   •    Slide 19
SIF PHENOMENA

                                  YouTube video Keeping an Eye on Photosynthesis...from Space!: https://youtu.be/xmomejWq2qs

© 2021 Headwall Photonics, Inc.      •     Slide 20
SUPPLEMENTAL SLIDE: HEADWALL SIF DATA

                                  Some relevant figures from Characterization of FIREFLY, an Imaging Spectrometer Designed for Remote Sensing
                                  of Solar Induced Fluorescence, Sensors 2020, 20(17), 4682; https://doi.org/10.3390/s20174682

© 2021 Headwall Photonics, Inc.      •     Slide 21
