Presentation – Great Lakes Purpose This presentation has been prepared by the Canadian Ice Service for briefing purposes only. All information presented herewith must not be used for navigational purposes. The content must not be further distributed. © #2
Ship Activities / Activités des navires Navire / Dernier 24H / Présent 24H / Prochain 24H / Ship Past 24H Present 24H Next 24H CCGS Escort PRENTISS Escort ALGOCANADA Flood Control in area of GRIFFON BROWN upbound with from X32 through Lake lower St. Clair River / USCGC BRISTOL St. Clair to Detroit River St. Clair Flats BAY in Lake St. Clair CCGS Escort PRENTISS Flood Control in St. Clair Flood Control in area of SAMUEL BROWN upbound in River. Escort lower St. Clair River / RISLEY St. Clair River. ALGOCANADA from St. Clair Flats Sarnia to X32 CCG CG942 Transit from Sarnia – Standby for Sarnia – Standby for HELO Parry Sound Base to tasking tasking Sarnia Airport 3
Ship Activities Continued The ice plug in the St. Clair river remains a concern and ice flushing operations will continue as required. Navigation of the area is feasible with icebreaker escort, and shipping may expect some delays in this problem area. CCGS SAMUEL RISLEY will head downriver this morning to conduct flushing operations and track preparation in the problem area before escorting the ALGOCANADA down from Sarnia in the afternoon. Risley will escort ALGOCANADA as far as Windsor. After completing escort, Risley may proceed to Windsor city dock to take-on potable water. CCGS GRIFFON will takeover the escort of the ALGOCANADA in the Detroit River and continue escort towards Pelee Passage until ALGOCANADA is in workable ice conditions and may continue unescorted towards destination Nanticoke. Griffon may return back to Windsor this evening for scheduled fueling at 09:00 Tuesday at Sterling in Windsor. Next tasking will likely be to assist tug MICHIGAN in the Western Basin. USCGC MORRO BAY will transit this morning from Detroit River to the ice jam area in the SCR to assist with flood control operations as required and escort assistance with SAMUEL RISLEY. Morro Bay replaces Neah Bay for this operation. Helicopter CG942 will be relocating from Parry Sound to Sarnia today. 4
Marine Warnings issued at 08:00Z FS G Gale-force 34-47 kn S Storm-force 48-63 kn H Hurricane-force > 64 kn FS Freezing Spray IP Ice Pressure IS Special Warning CL Rapid Closing of Coastal Leads #6 ©
Presentation – Great Lakes Synoptic Situation A broad ridge of high-pressure bringing cold, Arctic air is encroaching into the Great Lakes region from the Prairies. Over the next few days the ridge will build eastward. Tomorrow, a weak trough of low-pressure will pass over Lake Erie. On Thursday and Friday, another weak trough is expected to pass over the southern Lakes. Air temperatures across the Great Lakes region are forecast to be near or below normal values all week. Temperatures are especially cold in the western Lakes. © #8
Synoptic Prognosis & Precipitation – Tomorrow morning # 11 ©
Synoptic Prognosis & Precipitation – Tomorrow evening # 12 ©
Synoptic Prognosis & Precipitation – Wednesday morning # 13 ©
Synoptic Prognosis & Precipitation – Wednesday evening # 14 ©
Wind Forecast – This morning # 15 ©
Wind Forecast – This evening # 16 ©
Wind Forecast – Tomorrow morning # 17 ©
Wind Forecast – Tomorrow evening # 18 ©
This morning This evening Lake Superior Wind NW 15-20 W 20-25 W 15-25 Tomorrow morning Tomorrow evening NW 15-20 W-SW 15-25 W 15-25 © # 19
This morning This evening Lake Michigan Wind W 10-15 W 10-15 VAR LIGHT Tomorrow morning Tomorrow evening W 10-20 W 15-20 NW 15-20 NW 10-15 © # 20
This morning This evening NW 10-15 Lake Huron Wind W 10-20 SW 15-20 LIGHT Tomorrow morning Tomorrow evening W 10-20 W 10-15 © # 21
This morning This evening Southern Great Lakes Wind W-SW 10-20 SW 10-15 LIGHT VAR LIGHT Tomorrow morning Tomorrow evening VAR LIGHT W 10-15 N 10-15 W 10 © # 22
This morning This evening 1-2 m 1-2 m Great Lakes Waves Tomorrow morning Tomorrow evening 1-2 m 2-3 m 1-2 m © # 23
Daily Temperature Trend - Tendance journalière de température - Wind Fx - Prévision des vents En vigueur -> 08/02/2021
# 25 ©
Presentation – Great Lakes Ice Satellite Images Charts Pictures © # 26 ©

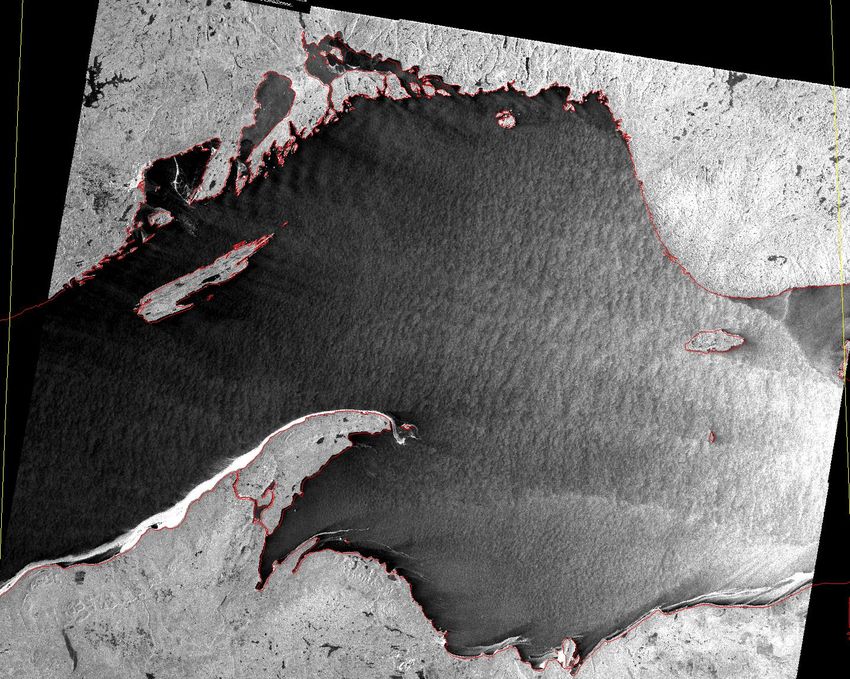

Lake Superior February 8, 2021, 1200Z Fast ice RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Do not use for navigation - Ne pas utiliser pour la navigation. Thunder Bay 090W 085W New ice New and thin ice Marquette # 27 ©

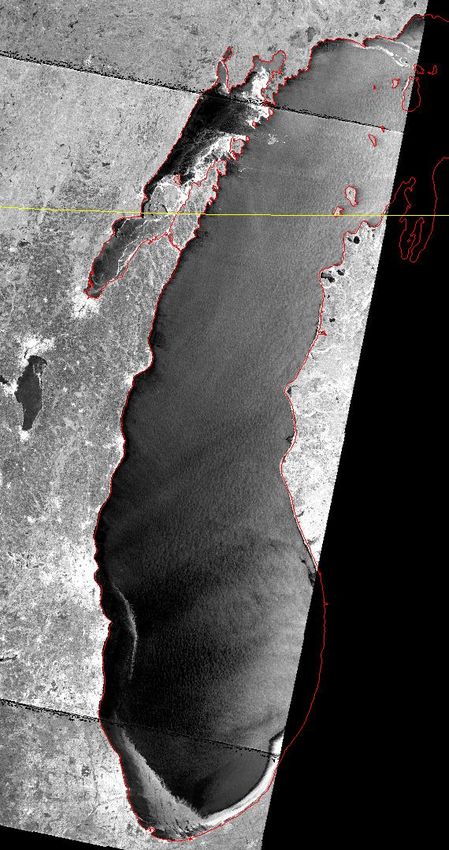

Lake Michigan February 8, 2021, 1200Z RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Do not use for navigation - Ne pas utiliser pour la navigation Medium lake ice 45N Green Bay Milwaukee Thin and new ice Chicago # 28 ©

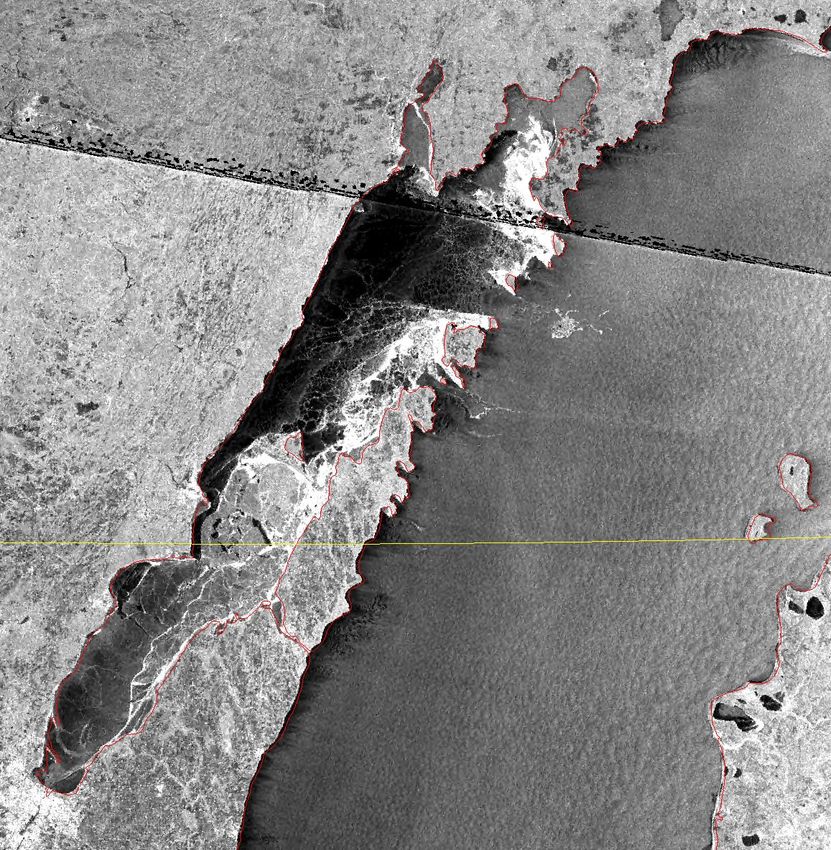

Northern Lake Michigan February 8, 2021, 1200Z RCM RADARSAT Constellation Mission Imagery © Government of Canada Fast ice (2021). Fast ice RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale Escanaba canadienne. Do not use for navigation - Ne pas utiliser pour la navigation Medium and thin lake ice Medium lake ice 45N Open water Fast ice Green Bay # 29 ©
St Marys River / Straits of Mackinac February 7, 2021, 1153Z RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Do not use for navigation - Ne pas utiliser pour la navigation Sault Ste Marie Fast ice Thin and medium lake ice 085W Fast ice Drummond Island Thin lake ice Cheboygan New ice # 30 ©

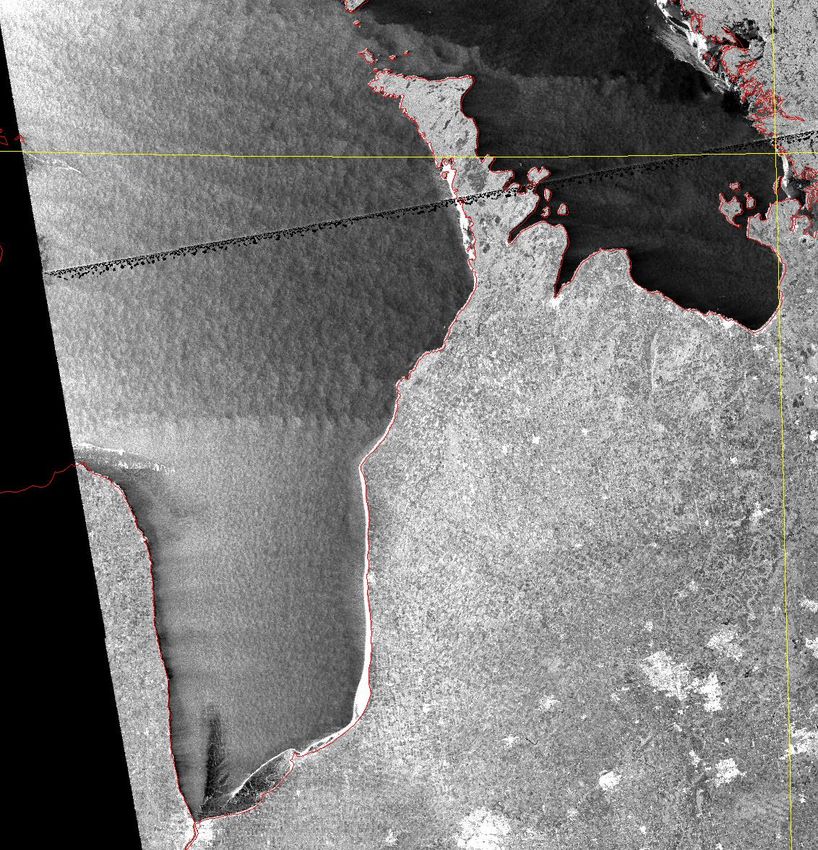

Lake Huron February 7, 2021, 2315Z RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Do not use for navigation - Ne pas utiliser pour la navigation 45N Owen Sound Open water 080W Thin lake ice Goderich Sarnia © # 31

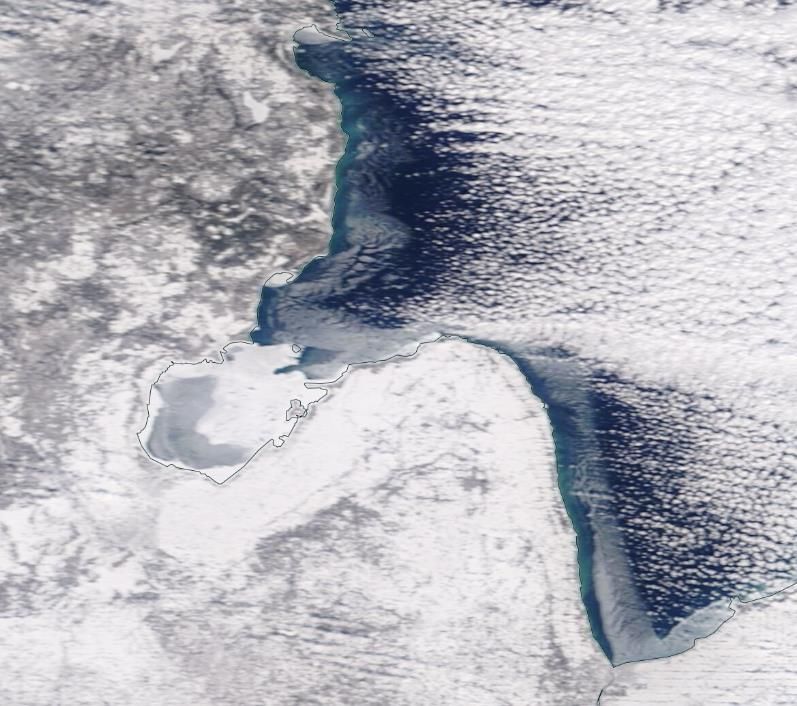

Southern Lake Huron February 7, 2021 MODIS – NASA Worldview Clouds Medium lake ice Saginaw Thin and new lake ice Sarnia # 32 ©
St Clair/Western Basin February 7, 2021, 1120Z RCM Brash ice (jam) Detroit Windsor Medium and thin lake ice Thin lake ice # 33 ©

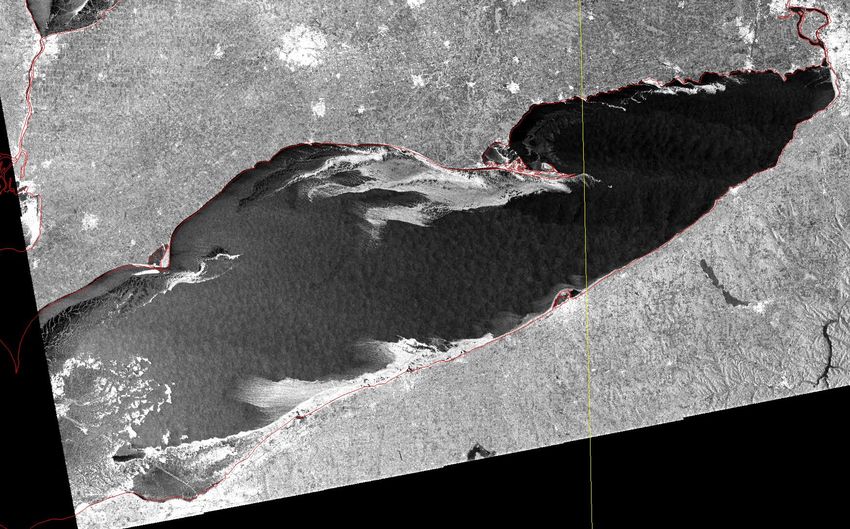

Lake Erie February 7, 2021, 2315Z RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Chatham-Kent Do not use for navigation - Ne pas utiliser pour la navigation Nanticoke New and thin lake ice Erie 080W Cleveland # 34 ©

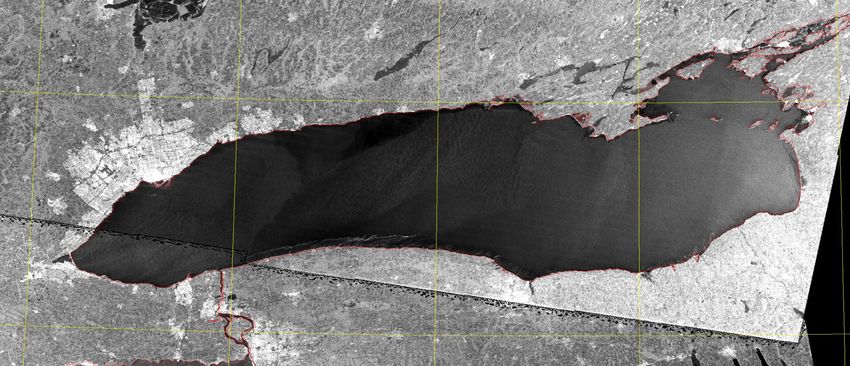

Lake Ontario February 7, 2021, 1120Z RCM RADARSAT Constellation Mission Imagery © Government of Canada (2021). RADARSAT is an official mark of the Canadian Space Agency. Imagerie de la mission de la Constellation RADARSAT © Gouvernement du Canada (2021). RADARSAT est une marque officielle de l’Agence spatiale canadienne. Do not use for navigation - Ne pas utiliser pour la navigation Kingston 079W 44N Toronto Hamilton Rochester # 36 ©
# 40 ©
# 41 ©
# 42 ©
# 43 ©
Presentation – Great Lakes Regional Updated on Wednesdays only © # 44
# 46 ©
# 47 ©
# 48 ©
Presentation – Great Lakes Useful Links Presentation & Pictures ftp://ftp.dfo-mpo.gc.ca/CCG_CNA/Ice-Briefing/GreatLakes/2020-21/ Marinfo http://www.marinfo.gc.ca/en/general/accueil.asp Canadian Ice Service https://www.canada.ca/en/environment-climate-change/services/ice-forecasts- observations/latest-conditions.html © # 49
Presentation – Great Lakes Questions © # 50 2Dv012N
