VSOP –
Variable-Size Printing for Optimum Flexibility

Printers today are always on the
look-out for new ideas and market                                                      VSOP markets
opportunities, and Variable Sleeve                                                     ! Label printing:
Offset Printing (VSOP) technology                                                        Wet-glue labels, wrap-around
can help you make the most of                                                            labels made of paper or film,
these opportunities. The Muller                                                          self-adhesive labels, in-mold
Martini VSOP technology enables                                                          labels, shrink sleeves
simple and quick format changes                                                        ! Flexible package printing:

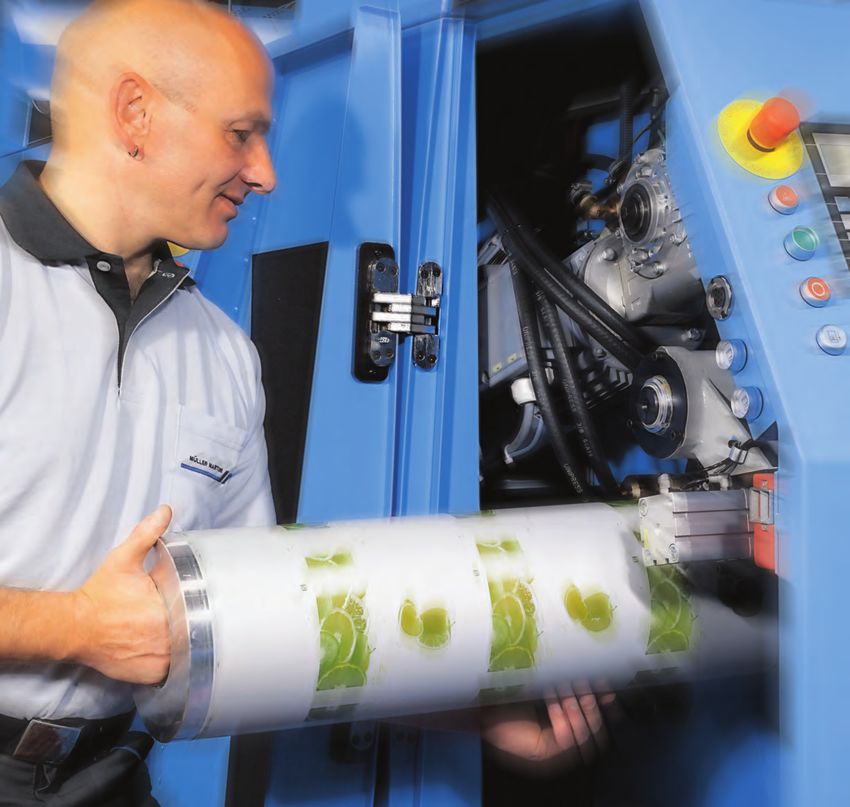

in offset printing. Sleeve technolo-                                                     Films, laminates, food packaging
gy allows print sizes to be changed                                                    ! Cardboard printing:
easily without having to remove                                                          Folding boxes, liquid packaging
entire inserts. So this process is
not just quick and simple, it is also
exceptionally cost-effective for
print lengths that change
frequently.

                                        Advantages of Muller Martini VSOP            Infinitely variable sizes
                                        The variable size print promotes great       VSOP printing units are infinitely vari-
                                        production flexibility thanks to quick       able for all print image lengths, giving
                                        and simple size and order changes, and       printers an incredibly flexible printing
                                        the VSOP printing units also deliver the     press that is suitable for an almost un-
                                        first-class printing quality needed to       limited order spectrum. This ensures
                                        meet the tough requirements of the           that a complete job change is possible
                                        package printing market. The print           in just a few minutes.
                                        forms are considerably cheaper and
                                        offer significantly shorter delivery times   Excellence in package printing
                                        than flexo and gravure printing, mean-       VSOP offers a complete solution for
                                        ing they are also profitable for small       a wide range of applications.
                                        and medium-size runs. Two light car-         When manufacturing high-quality
                                        tridges, known as sleeves, are the only      food packaging, electron-beam curing
                                        parts that need to be exchanged in or-       technology (EB) or UV equipment
                                        der to change the print size. The mini-      is used to cure the printing ink to
                                        mal weight of these sleeves ensures          ensure that low-migration and odorless
                                        that they are particularly ergonomic to      packaging is produced.
                                        manage.

2

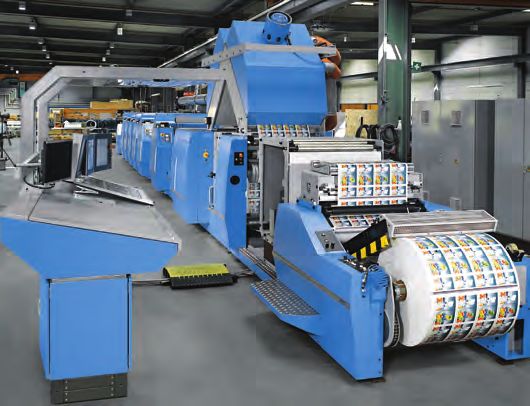

VSOP Web Offset Printing Press - Variable size web offset printing for labels, flexible packaging and cardboard

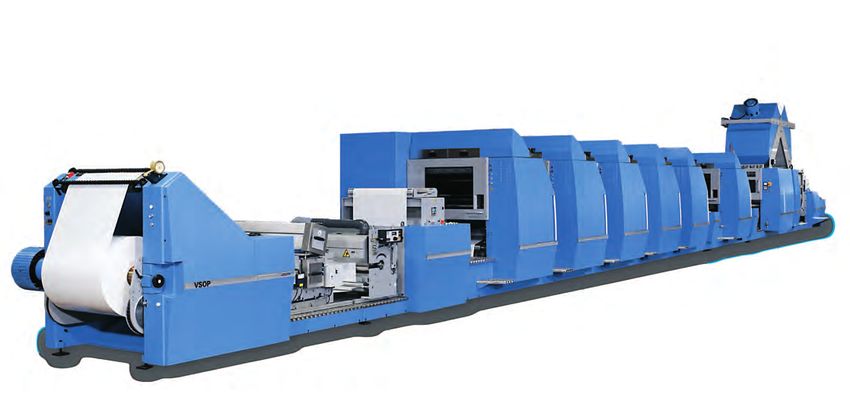

VSOP 520/850

           881       479       800      1250             930       600      1720            1720        1720          1720           1720       600          1002
          343/4’’   183/4’’   311/2’’   491/4’’         361/2’’   231/2’’   673/4’’       0’ 000/0’’    673/4’’       673/4’’        673/4’’   231/2’’       391/2’’

                                                                                                                                                                 ~29 801
                                                                                                                                                                 11731/4’’

1                                                 2                                   3                                 4
Infeed unit                                       Web cleaning and corona             Offset sleeves                  VSOP printing unit
Depending on whether films                        treatment                           Replacing the handy and         The printing units fulfill the
or cardboard are being print-                     Before printing, the web is         cost-effective plate and        demanding requirements of
ed, one or two infeed rollers                     cleaned with or without a           rubber blanket sleeves offers   package printing while the
are used to guarantee stable                      web contact and then treat-         infinitely variable print       stable pivot arms ensure
web tension control.                              ed with the corona station to       lengths.                        consistent conditions.
                                                  improve ink adhesion.

6                                                 7                                   8                                 9
Register controller                               Flexo printing unit                 Web video monitoring            Electron-beam curing
The scanning heads of the                         Infinitely variable sizes in-       Analog or digital web moni-     When manufacturing food
register controller are posi-                     cluding servo drives, sleeve        toring systems or a 100%        packaging, the printing ink
tioned immediately after the                      technology and an optional          print image inspection are      can be cured using electron-
printing units to ensure fast                     hot air dryer. For solvent-         used as required.               beam technology.
reaction times.                                   based, water-based and UV
                                                  inks and lacquers.
                                                                                                                                                         3
VSOP Web Offset Printing Press - Variable size web offset printing for labels, flexible packaging and cardboard
1441/2’’
                                                                                                                                                             3671
             1720       600      1002      1250          800       1600        1250       700       800      1250      1052              2635
             673/4’’   231/2’’   391/2’’   491/4’’      311/2’’    63’’        491/2’’   271/2’’   311/2’’   491/4’’   411/2’’           103/4’’

~29 801
11731/4’’

                                                                                                                                 Individual
                                                                                                                                 configuration
                                                                                                                                 VSOP machines for film
                                                                                                                                 and folding carton print-
                                                                                                                                 ing can be configured in-
            5                                                                                                                    dividually. The integration
            UV cooling station                                                                                                   of flexo or gravure print-
            A cooled cylinder is used for                                                                                        ing units permits special
            the UV drying of tempera-                                                                                            applications such as prim-
            ture-sensitive substrates                                                                                            ers, decorative inks, effect
            such as shrink films.                                                                                                coatings, opaque white
                                                                                                                                 and cold seal lacquer to
                                                                                                                                 be used.

            10
            Coating                                  Rotogravure printing                Staggered plate
            The flexo printing unit,                 For particularly thick ink          Staggered plate eliminates a
            especially designed for use              layers, rotogravure printing        straight plate gap and pro-
            with electron-beam curing,               units using sealing lacquers        vides an optimum usage of
            coats printed products                   or brilliant metallic inks can      expensive material such as
            without hardening the                    be integrated in the printing       cardboard and a reduction of
            printed ink beforehand.                  press.                              cut-off waste.
                                                                                                                                                                  4
VSOP Web Offset Printing Press - Variable size web offset printing for labels, flexible packaging and cardboard
Innovative Technology for High-Quality Package Printing

! High level of printing quality                                ! Broad range of applications
  The offset printing process ensures that the VSOP is par-       Thanks to individual drives, the printing length can be
  ticularly suitable for printing fine details and gradients.     changed within a defined range without affecting the
! Low-cost printing method                                        printing quality. The speed of the impression cylinder can
  Standard offset plates can be used, which are consider-         be adjusted for each of the printing units, ensuring that
  ably cheaper than image carriers used for flexo and             complex materials such as aluminum, thin foils or very
  gravure printing.                                               thick substrates can be printed on with register accuracy.
! Short response times                                          ! Fast order changes
  Flexible order management thanks to fast and simple             To guarantee maximum productivity, each print job can
  printing plate manufacture and short setup times.               be prepared offline while the machine is in operation.
! Infinite size variability                                       A quick changeover system, including automatic pre-
  The VSOP printing unit has plate and rubber blanket             adjustment, automatically enters the settings. All machine
  cylinders, which act as handy sleeves.                          settings for repeat jobs can be stored in the integrated
  The sleeves can be replaced manually in no time at all.         database.
  Each sleeve axis has its own servo drive, which is why        ! User-friendliness
  none of the gears needs to be changed.                          All stations are easily accessible to ensure fast and safe
! Swift, high-quality reproduction                                processing. Sleeves can be replaced on the operating
  The standardization of offset printing and the high             side without using tools.
  level of automation guarantee extremely short setup           ! Hybrid applications
  times while maintaining precise color reproduction              In line with offset printing technology, a range of other
  – particularly important for branded products.                  printing processes can be provided including flexo,
! Sustainable printing processes                                  screen, gravure and digital printing as well as finishing
  Through the integration of radiation curing procedures,         processes such as foil stamping, laminating, punching
  significantly less energy is used in comparison to              and sheeting.
  traditional printing processes with solvent ink systems.
  In addition, considerably smaller amounts of solvents are
  used for cleaning the machine parts, and storing inks and
  lacquers is much easier.

                                                                                                                          5
VSOP Web Offset Printing Press - Variable size web offset printing for labels, flexible packaging and cardboard
Technical specifications                                                     VSOP 520                    VSOP 850
Variable Size Web Offset Printing                           Press Delivery Systems                      Saddle Stitching Systems
Presses                                                     Efficient and reliable solutions are        A full range of stitchers, inserting, film
with in-line
Max.         finishing
       printing  speedensure top-quality                    required for press
                                                                             365 delivery
                                                                                  m/min systems         wrapping
                                                                                                         365 m/min  and packing systems in a
advertising, commercial and security                        to convey and 1200
                                                                             cut signatures,
                                                                                   ft/min    form and   range   of performance
                                                                                                         1200 ft/min            categories auto-
printing. These infinitely variable web                     palletize bundles or stacks and create      mates the print finishing process.
Web width                                                                    200–520 mm                  425–850 mm
presses are used for label and package                      rolls. This is the ideal connection         Modern systems produce products of
                                                                             8–20.5"                     17–33.5"
printing, and combine offset printing                       between press and print finishing.          top-class quality and with high added
Max.   printing
with flexo       width
           and rotogravure   printing                                        510 mm                      840 mm
                                                                                                        value.
methods.                                                                     20"                         33"
Size range                                                                381–762 mm                    381–762 mm
                                                                          15–30"                        15–30"
Format variability                                         Infinitely variable           Infinitely variable
Softcover Production                        Hardcover Production                        Newspaper Mailroom Systems
Non-printed            coated paper and film               3 mm                          3 mm
Perfect binding lines in all performance    Whether connected inline to produc-         Efficient and flexible mailroom systems
area                                                       0.12"                         0.12"
categories produce a wide range of          tion systems or operating as stand-         transport and process newspapers
spine-glued products,uncoated     paper and cardboard
                        such as bro-        alone systems,4the
                                                             mmhardcover systems         4 mm off the press fully automatically,
                                                                                        straight
chures, magazines, catalogs and                            0.16"
                                            complete all the  processing steps to        0.16"the printing press via the insertion
                                                                                        from
Size changes
paperbacks     per printing
            in perfect        unit
                        quality and at      create books from
                                                           2 minfolded signatures       process
                                                                                         2 min and stacking to the loading
the highest speeds.
Printing-length correction                  with  hard covers  and  protective jackets. dock.
                                                           +0.5% /– 0.2% (dependent on the substrate and required printing quality)
Range of materials Standard                                               12–300 µm                     12–300 µm
                               Optional                                   200–760 µm                    200–760 µm
                                                                          8-30 pt                       8-30 pt

All of the specifications detailed above are MM
                                             maximum values. The achievable values are dependent on the type of order,
Digital Solutions                               Services
the substrate and product size. Subject to technical changes.
The more efficient digital printing sys-     Muller Martini’s global service portfolio
tems become, the more challenging the        ensures productivity, quality and added
finishing process will be. Muller Martini    value and offers reliable investment      This leaflet may include components that are
develops innovative digital printing solu- protection for production systems.          not part of the standard equipment and
                                                                                       are available as options only. In some cases,
tions that yield new growth opportun-        With MMServices operating costs and
                                                                                       protective covers have been removed in photo-
ities for the graphic design industry –      investment costs are optimized.           graphs, in order to provide a more detailed view
for stitching as well as softcover and                                                 of the equipment. Subject to design and equip-
hardcover production.                                                                  ment changes.
