3/20/19
VCM DEMONSTRATION
2019 National and Local Elections
1
• 17 regions
• 81 provinces
• 145 cities
• 1,489 municipalities
• 42,045 barangays
• 36, 807 voting centers
• 389,685 established precincts
• 85,756 clustered/grouped precincts
• 61,843,728 registered voters
*Data as of Dec. 18,2018
STATISTICS 2
1
3/20/19
ELECTIVE POSITION NO. OF SEATS
Senators 12
Party List 59
Member, House of Representatives 239
Governor 81
Vice Governor 81
Member, Sangguniang Panlalawigan 778
Mayor 1,634
Vice Mayor 1,634
Member, City/Municipal Council 13,542
TOTAL 18,060
3
STATISTICS
Important Dates
Election Period 13 January to 12 June 2019
Campaign Period
National Positions 12 February to 11 May 2019
Local Positions 29 March to 11 May 2019
Final Testing and Sealing (FTS) 06 May 2019 to 10 May 2019
Election Day 13 May 2019 (6:00 AM to 6:00 PM)
IMPORTANT DATES 4
2
3/20/19
VOTING PROCESS
Look for your name in the Precinct
Computerized Voters List (PCVL) posted
near the door of the polling place, and
determine your precinct number and
sequence number.
Approach any member of the Electoral
Board (EB). The EB will verify your
identity and check if any of your
fingernails have already been stained
with indelible ink.
STEPS IN VOTING
VOTING PROCESS
In some areas, the Voter Registration
Verification System (VRVS) will be used to
verify the identity of the voter.
The voter will put his finger into the scanner
and the VRVS will check if his/her
biometrics is in the database. If found, the
printer will print a receipt confirming this.
THE VRVS
STEPS IN VOTING
3
3/20/19
After the voter’s identity has been
established by the EB, the voter will affix
his/her signature in the EDCVL or Election
Day Certified Voters List.
The EB will give the voter a ballot, ballot
secrecy folder and marking pen and direct the
voter to fill-up the ballot in the designated
voting area.
STEPS IN VOTING
Voter will FULLY SHADE the
circles beside the name/s of the
candidate/s of his/her choice.
DO NOT OVERVOTE.
STEPS IN VOTING
4
3/20/19
MALI PWEDENG MABASA TAMA
ü
û û
RIZAL, Jose
FULL shading the ovals is the BEST way. Use the Marking Pens provided.
FILLING UP THE BALLOT
OVERVOTE: When
the voter has voted
for more than the
maximum number
UNDERVOTE : If the
of votes allowed for
voter has voted for
a given contest.
less than the
number allowed for
VOTES CAST FOR
a given contest.
OVERVOTED
POSITIONS WILL
NOT BE
COUNTED.
FILLING UP THE BALLOT
5
3/20/19
The voter shall approach the VCM
and insert his ballot in the entry slot.
Marking pen and folder must be
returned.
UNDERVOTE
The VCM will display messages and
the ballot will automatically drop
inside the ballot box.
STEPS IN VOTING

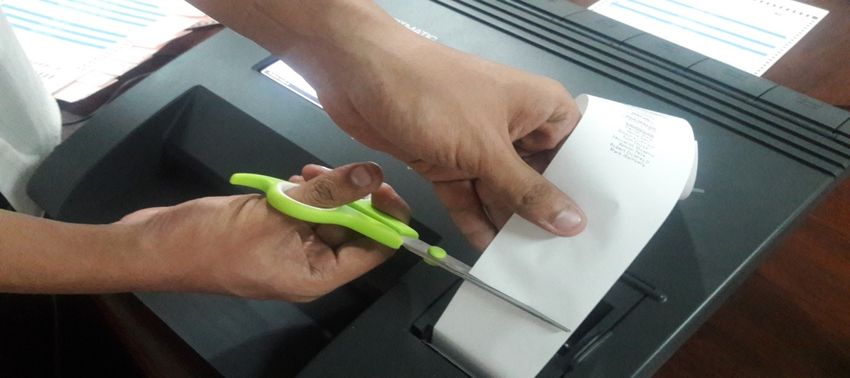

Receipt will be printed, folded in such
a way that its contents cannot be seen
then cut using scissors.
STEPS IN VOTING
6
3/20/19
Indelible ink will be applied to the voter's
right forefinger nail. Receipt will be
handed over to the voter.
Voter will approach the Voter’s Receipt
receptacle near the VCM to verify his/her
votes and drop the receipt in the
receptacle then leave the polling place.
STEPS IN VOTING
SAMPLE LAY-OUT PLAN
THE POLLING PLACE
7
3/20/19
The Vote Counting Machine
(VCM)
Allows voter verification of votes thru a
printed receipt
1gHz processor; 256-bit security
Uses SD cards that are more robust
Simultaneous saving; data corruption
less likely
Larger spare battery with a 14-hour
capacity
Self-diagnostic lens prevents digital lines
USED IN ALL PRECINCTS IN 2016 and in
2019
ABOUT THE VCM
8
3/20/19
• Precinct information
programmed into machine:
location, no. of voters, etc.
A word about security …
üUses Passwords & PINs;
ü3 digital signatures; and
ü256-bit Encryption
ABOUT THE VCM
• Ballot scans both sides
simultaneously
• Ballots are identified by the
machine (precinct specific)
and are rejected if:
üFake/Photocopied/Duplicate;
ü previously inserted or
scanned;
ü for another different precinct;
A word about the ballots…
ü Uses UV & barcode security;
ü Every ballot is unique
SECURITY FEATURES
ABOUT THE VCM
9
3/20/19

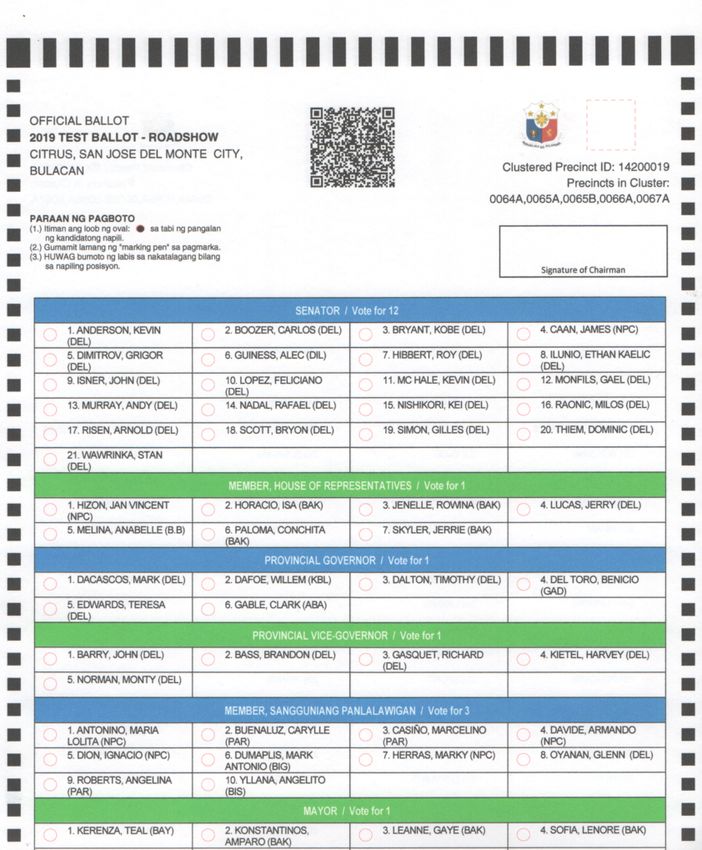

Timing QR CODE NPO Clustered
Marks Security Precinct
Instructions to Signature of EB
UV Security
voters Chairperson
FEATURES
THE BALLOT
VOTE COUNTING MACHINE
ACCURATE FAST
VERIFIABLE ACCESSIBLE
SECURE TRANSPARENT
PRACTICAL
ABOUT THE VCM CHARACTERISTICS
103/20/19
iButton Liquid Crystal Display
Receptacle Thermal Paper (LCD) Screen
Compartment - An 7” diagonal viewing area and
LCD touch screen capability for data
Screen and system navigation input
purposes.
Ballot Entry Slot
- ballots are inserted and/or
returned here
iButton Receptacle
- contact point for the Security Key.
Thermal Paper
Ballot Entry Compartment
Slot
- designed to allow easy loading and
reloading of the thermal paper.
ABOUT THE VCM PARTS OF THE VCM
Ethernet Port
A port on the right-hand side of the machine. It
is used for connecting the external device for
Backup Data SD Card Slot
results transmission. This is where the removable backup
data SD card is inserted.
Main Data SD Card Slot
This is where the removable main
data SD card is inserted.
ABOUT THE VCM PARTS OF THE VCM
113/20/19
Power Button DC Port
Turn the VCM On/Off. Power supply
Backup Battery Port USB Slots
This is where the backup battery is plugged in. Where the USB transmission
device must be inserted.
ABOUT THE VCM PARTS OF THE VCM
THESE FEATURES WILL
NOT BE USED
IN THE 2019 ELECTIONS
Manual Transmission Device Use Indicator
Used for transmission devices that A light indicator showing if a machine is being used or not.
are powered by the machine.
Voters Information Unit
For a biometrics checking unit
PARTS OF THE VCM
ABOUT THE VCM
123/20/19
COMPONENTS AND PERIPHERALS
iButton Thermal Paper
The VCM is activated by
SD Cards Paper used for printing;
the iButton when it makes Main and backup SD cards loaded in the thermal
are used for data storage. paper compartment.
contact with the iButton
receptacle.
2019
2019
2019
COMPONENTS AND PERIPHERALS
Battery Cleaning sheet
must be connected to
the machine, in case of used to clean VCM scanners.
power disruption.
133/20/19
COMPONENTS AND PERIPHERALS
Ballot Box Top cover
translucent box for valid covers the ballot box,
ballots. where the VCM is installed.
COMPONENTS AND PERIPHERALS
Backup Battery
cable VCM Adaptor
connected to the power cord
color coded cables used to and prevents power surge.
connect the machine to the
backup battery.
Power Cord
connected to the adaptor
and a power outlet.
143/20/19
COMPONENTS AND PERIPHERALS
Broadband
USB Modem Global Area iSavi
Portable satellite terminal
Network
(BGAN)
Ballot
Machine state: Not open ; Open ; Closed Precinct Code
Counter
Date & Time BATTERY ICON
Connected to:
Battery + adaptor
Adaptor only
Battery only
ABOUT THE VCM ON-SCREEN ICONS
153/20/19
1. The EB Chairperson taps his/her iButton security key for authentication.
USING THE VCM OPEN VOTING
163/20/19
2. Select profile to authenticate. Choose Chairman.
USING THE VCM OPEN VOTING
3. The EB Chairperson will input PIN Number,
then the VCM will display the MAIN MENU.
USING THE VCM OPEN VOTING
173/20/19
4. The EB Chairperson will then select, “Open Voting.”
USING THE VCM OPEN VOTING
5. The EB Chairperson will input PIN Number,
to confirm the execution of ‘Open Voting’,
USING THE VCM OPEN VOTING
183/20/19
6. VCM will print Initialization Report.
USING THE VCM OPEN VOTING
The Initialization Report will show ZERO votes for all candidates.
Note:
The Initialization Report
contains spaces for EBs
signatures and thumb prints.
All copies of the initialization
report must be signed and
thumbprints should be
affixed.
USING THE VCM OPEN VOTING
193/20/19
7. The VCM will display “OPEN POLLS COMPLETED SUCCESSFULLY. TRANSITION TO OPEN STATE
IS VALID.” Click the ‘DONE’ button.
USING THE VCM OPEN VOTING
7. Click the ‘Go to Voting’ button.
USING THE VCM OPEN VOTING
203/20/19
8. VCM will print the STATUS REPORT.
USING THE VCM OPEN VOTING
9. VCM will display ‘Go to voting completed succesfully.’ Press DONE button.
USING THE VCM OPEN VOTING
213/20/19
10 . The VCM is now ready to accept ballots. Voting can now begin.
USING THE VCM OPEN VOTING
Ballot should be
inserted gently into
the ballot entry
slot. Note that the
ballot can be
inserted in any of
four orientations
(EXCEPT SIDEWAYS,
OF COURSE :D)
USING THE VCM BALLOT CASTING
223/20/19
After the voter inserted the filled ballot in the ballot entry,
“YOUR BALLOT IS BEING PROCESSED” will be displayed on the screen.
USING THE VCM OPEN VOTING
After processing, “YOUR VOTE IS BEING PRINTED”
will be displayed on the screen while simultaneously printing the VVPAT.
USING THE VCM OPEN VOTING
233/20/19
The messages “DEPOSITING THE BALLOT IN THE BOX” and
“YOUR VOTE HAS BEEN CAST” will be displayed on the screen respectively.
USING THE VCM OPEN VOTING
Rejected BALLOTS
REJECTED Ballots
USING THE VCM REJECTED BALLOTS
243/20/19
A MISREAD warning
means that the ballot
has not been scanned
The scanner self diagnostic has failed. properly.
Possible reasons:
•The ballot is physically
damaged (torn, folded,
crumpled or stained with
water)
The ballot inserted was misread. •The voter has made markings
Please select one of the actions on the right. that obstruct certain
identifying marks.
REJECTED BALLOTS
PREVIOUSLY READ
BALLOT /
DUPLICATED
BALLOT
When a ballot with
the same Ballot ID
number was
already scanned.
No votes will be
counted for the
ballot.
REJECTED BALLOTS
253/20/19
An INVALID
BALLOT is a ballot
that belongs to a
different clustered
precinct. The VCM
is designed to
accept only the
ballots assigned to
it.
REJECTED BALLOTS
A FAKE BALLOT can
be detected when
the scanner doesn't
detect a ultra-violet
(UV) mark on the
ballot, and/or when
the ballot has a
different type of
bar code than the
one specified for
the election.
REJECTED BALLOTS
263/20/19
PAPER JAMS or
ballot blockages are
rare events but can
occur. The error
message saying
“Paper Jam
Detected” will be
displayed on the
screen in this
situation.
PAPER JAMS
273/20/19
1. The Chairperson taps the iButton and select the profile to authenticate.
USING THE VCM CLOSE VOTING
2. Select profile to authenticate. Choose Members.
USING THE VCM CLOSE VOTING
283/20/19
3. Select BEI Member and the EB Member will input his/her pin.
USING THE VCM CLOSE VOTING
4. Select the user to authenticate. Choose “BEI Poll Clerk”. The Poll Clerk will input pin.
USING THE VCM CLOSE VOTING
293/20/19
5. The VCM shall display the MAIN MENU. Choose “CLOSE VOTING”.
USING THE VCM CLOSE VOTING
6. The EB Member will input his/her PIN Number to confirm the execution of close voting.
Followed by the Poll Clerk who will do the same.
USING THE VCM OPEN VOTING
303/20/19
7. The VCM prompts to add signatures to the election results. Chairperson will press “NEXT”.
USING THE VCM CLOSE VOTING
8. The Chairperson will tap iButton to be registered and input his/her role pin.
USING THE VCM CLOSE VOTING
313/20/19
9. The VCM shall display “SIGNATURE SUCCESSFULLY ADDED”.
USING THE VCM CLOSE VOTING
10. The VCM shall again display “DO YOU WANT TO ADD A SIGNATURE TO THE ELECTION
RESULTS?” The Poll Clerk shall press “YES”.
USING THE VCM CLOSE VOTING
323/20/19
11. The Poll Clerk will tap iButton and input his/her role pin.
USING THE VCM CLOSE VOTING
12. The VCM shall display the message “SIGNATURE SUCCESSFULLY ADDED”.
USING THE VCM CLOSE VOTING
333/20/19
13. The VCM shall again display the message, “DO YOU WANT TO ADD A SIGNATURE TO THE
ELECTION RESULTS?” The BEI Member shall press “YES”.
USING THE VCM CLOSE VOTING
14. The EB Member will tap iButton and input his/her role pin.
USING THE VCM CLOSE VOTING
343/20/19
15. The VCM shall display the message “SIGNATURE SUCCESSFULLY ADDED”.
USING THE VCM CLOSE VOTING
16. The VCM displays the message “CHANGING THE VOTING MACHINE STATE TO CLOSED” and
automatically print 8 copies of the NATIONAL returns and then 8 copies of the LOCAL returns .
USING THE VCM CLOSE VOTING
353/20/19
NATIONAL POSITIONS LOCAL POSITIONS
1ST CBOC / MBOC CBOC / MBOC
2ND COMELEC COMELEC
3RD Accredited Citizen’s Arms PBOC
4TH Dominant Majority Party Accredited Citizen’s Arms
5TH Dominant Minority Party Dominant Majority Party
6TH Ballot Box Dominant Minority Party
7TH PBOC Ballot Box
8TH To be posted in the polling place To be posted in the polling place
17. After printing the Election Returns, the VCM will display the message “DO YOU WANT TO
TRANSMIT ELECTION RESULTS?” Choose YES.
USING THE VCM TRANSMISSION OF RESULTS
363/20/19
18. The VCM will display “Please insert the GSM transmission device to be used”.
USING THE VCM CLOSE VOTING
19. The VCM will display the message “THE RESULTS WERE SUCCESSFULLY TRANSMITTED TO
MBOC/CENTRAL/KBP SERVER”. A Transmission Report will be automatically printed.
USING THE VCM TRANSMISSION OF RESULTS
373/20/19
20. The VCM will print 22 copies of National Election Returns and 22 copies of Local ERs .
USING THE VCM CLOSING OF POLLS
Disposition of the 22 Election Returns
10 Accredited major national parties
2 Accredited major local parties
4 National broadcast or print media
2 Local broadcast or print media
3 Major citizens’ arm
ELECTION RETURNS
383/20/19
If transmission is NOT successful, press “Re-transmit results.”
USING THE VCM CLOSING OF POLLS
21. The VCM will display the message “CLOSE POLLS COMPLETED SUCCESSFULLY” .
USING THE VCM CLOSING OF POLLS
393/20/19
22. “VOTING PROCESS HAS BEEN COMPLETED".
The VCM will return to the Main Menu and is now in CLOSED STATE
USING THE VCM CLOSING OF POLLS
23. From the Election menu footer, press “Reports”.
USING THE VCM CLOSING OF POLLS
403/20/19
24. Click the down arrow on the right side to reveal “Print audit log” button.
Press the “Print audit log “ button.
USING THE VCM CLOSING OF POLLS
25. “Audit log report” screen will be displayed.
Click the “check” button on the bottom right of the screen to start printing.
USING THE VCM CLOSING OF POLLS
413/20/19
26. From the Election menu, press Write Protect Data option. Choose Yes.
The VCM locks the backup memory, displays a message informing about the
result of the operation and press “OK” button to shut down.
Note: For Election Day only
USING THE VCM CLOSING OF POLLS
423/20/19
POLL WATCHERS
85
Who are allowed to have watchers?
Each candidate, duly registered political party or coalition of political parties
and duly accredited citizens’ arms may appoint in every polling place two
watchers who shall serve alternately.
Other civil, professional, business, service, youth and any other similar
organizations be entitled collectively to appoint one watcher in every
polling place.
If the space in the polling place reserved for watchers is insufficient,
preference shall given to the watchers of the dominant majority and
dominant minority parties. Watchers of the citizens’ arm shall be given
preferential position closest to the EB.
WATCHERS
86
433/20/19
Qualifications of Watchers
• Is a registered voter of the city/municipality where he or she is
assigned
• Is of good moral character
• Has not been convicted by final judgment of any election offense or
of any other crime
• Knows how to read and write Filipino, English or the prevailing local
dialect
• Is not related within the 4th civil degree of consanguinity or affinity to
the chairperson, or any other member of the Electoral Board (EB).
WATCHERS QUALIFICATIONS
87
Watchers shall have the right to:
• Stay in the space reserved for them inside the polling place
• Witness and inform themselves of the proceedings of the EB
• Take note of what they may see or hear
• Take photographs of the proceedings during the testing and sealing of the
VCM, and voting, counting and transmission of election results, as well as
of the printed ERs and the ballot box, provided the secrecy of the ballot
shall be maintained at all times. Taking of pictures shall not be allowed
during casting of votes.
• File a protest against any irregularity or violation of law which they believe
may have been committed by the EB or by any other person present
• Obtain from the EB a certificate as to the filing of such protest and/or
resolution thereof
• Position themselves behind the chairman of the EB in such a way that they
can read the ERs while the Chairperson is announcing the precinct results
WATCHERS RIGHTS AND DUTIES
88
443/20/19
Watchers shall present to the chairman of the EB their appointments as
watchers
Watchers are not allowed to speak to any member of the EB or to any
voter, or among themselves, in a manner that would disrupt the
proceedings of the EB
Watchers representing the dominant majority and dominant minority
parties, and the citizens’ arm shall, if available, affix their signatures
and thumbmarks on the ERs
WATCHERS RIGHTS AND DUTIES
89
45You can also read
